The winner of the FAD Interior Design Award 2018 was the Mallorcan studio for the reform of the existing building in Can Picafort to house tourist apartments in the municipality of Santa Margarita.

The Mallorcan studio Ted'A Arquitectes, led by Irene Pérez and Jaume Mayol, has transformed the Can Picafort building to holiday apartments. The interior reform focuses on opening the space longitudinally and thus get a visual connection with the sea and the back street. An interior design that has managed to win the FAD Interior Design Award 2018.


Description of project by Ted'A Arquitectes

The intervention consists of the interior reform of an existing building, to transform it into some small tourist apartments.

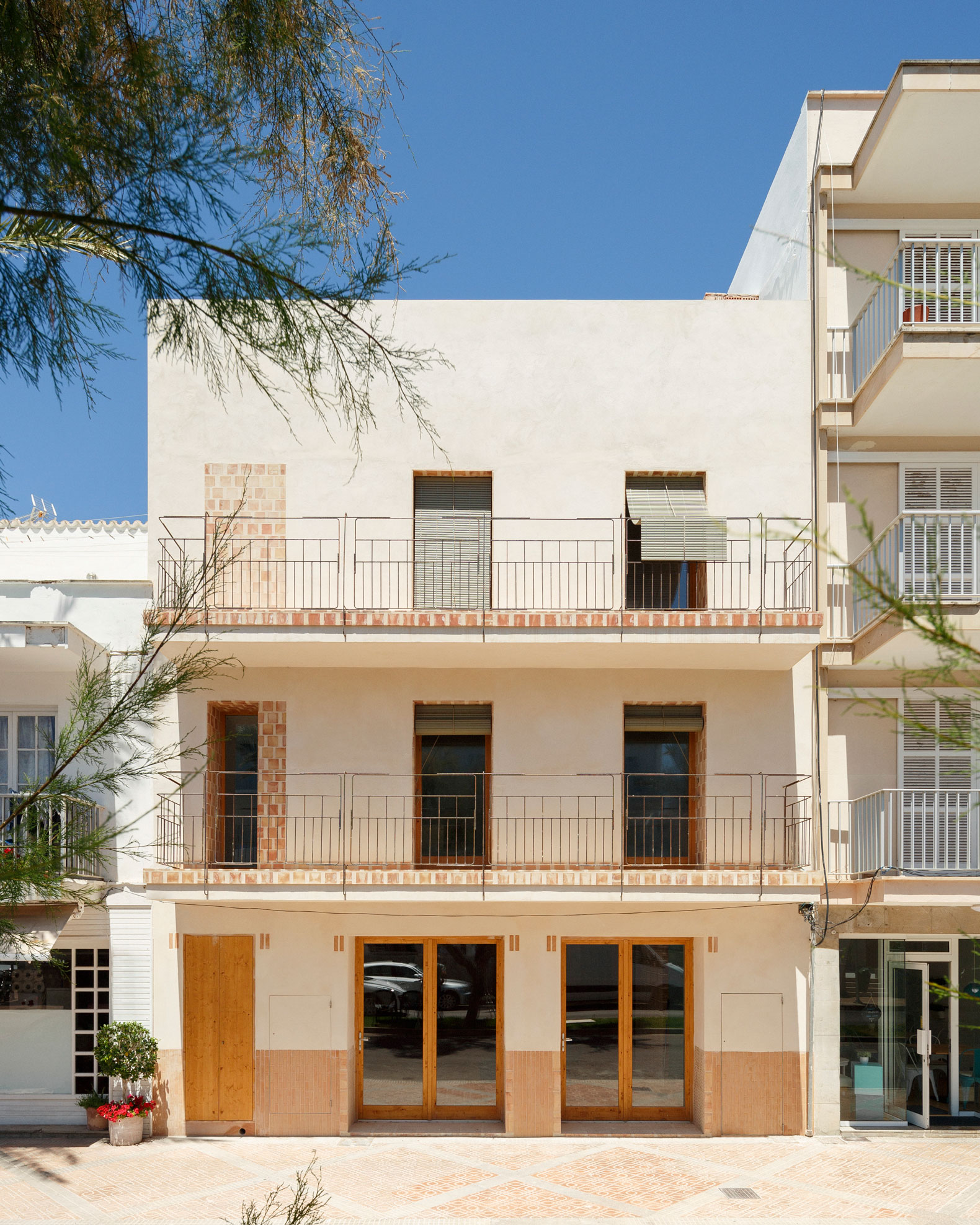

In a passing plot, placed in front of the sea, we find a two-volume construction: one of ground floor plus one, which looks towards the sea and that is accompanied by a ground floor porch; and another one of ground floor plus two, which looks at the back street. This two-volume form, therefore, is a staggered building in descending sense towards the sea.

In an initial state, both the accesses and stairs, as well as the distributions were appearing chaotically untidy.

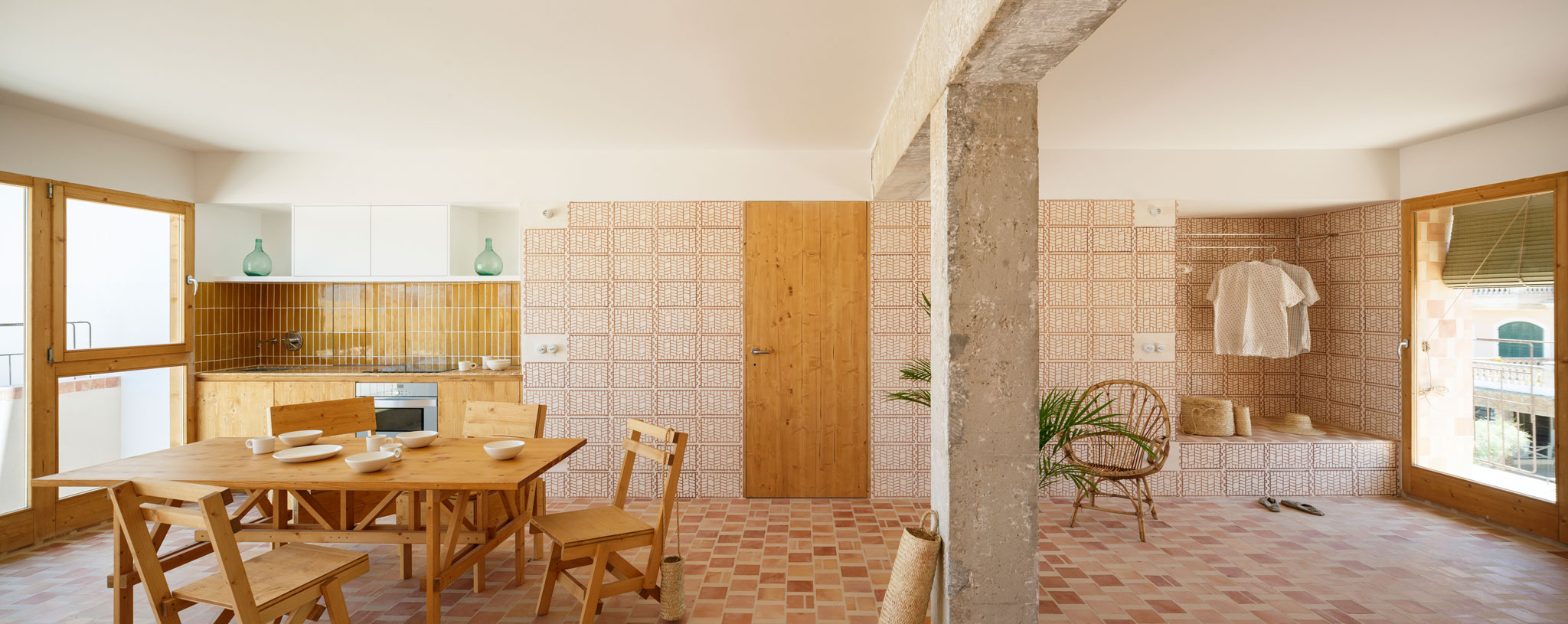

All the effort of the project centers on opening the space in a longitudinal way, so that is possible to visually connect the sea and the back street. The strategy consists in arranging and condensing all the services against the party walls. Stairs, closets, kitchens and bathrooms line up and accumulate against these walls. So the services appear as thick party walls.

The materials with which one responds tend to the imperfection of handmade things... or should we have said perfection?

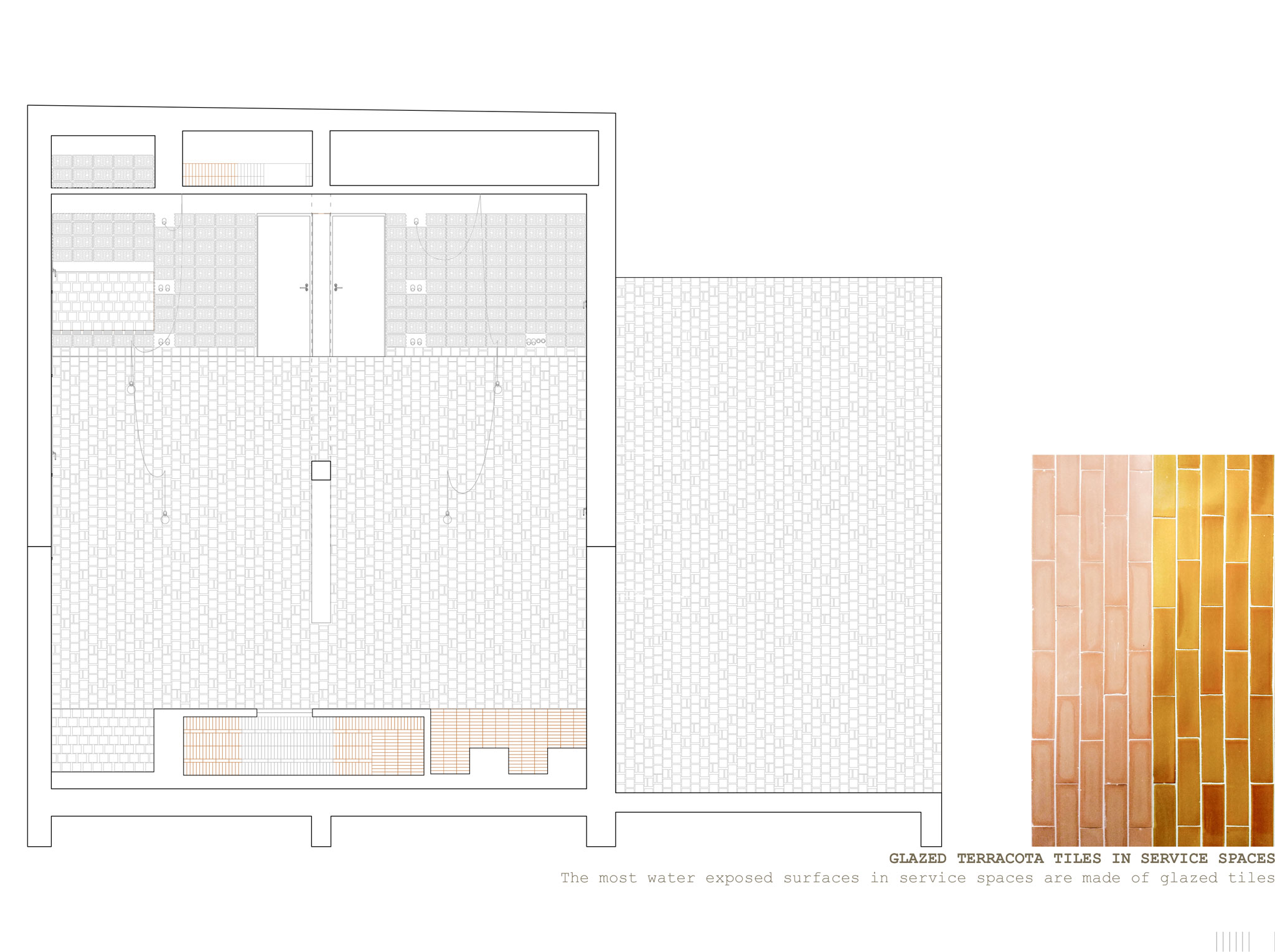

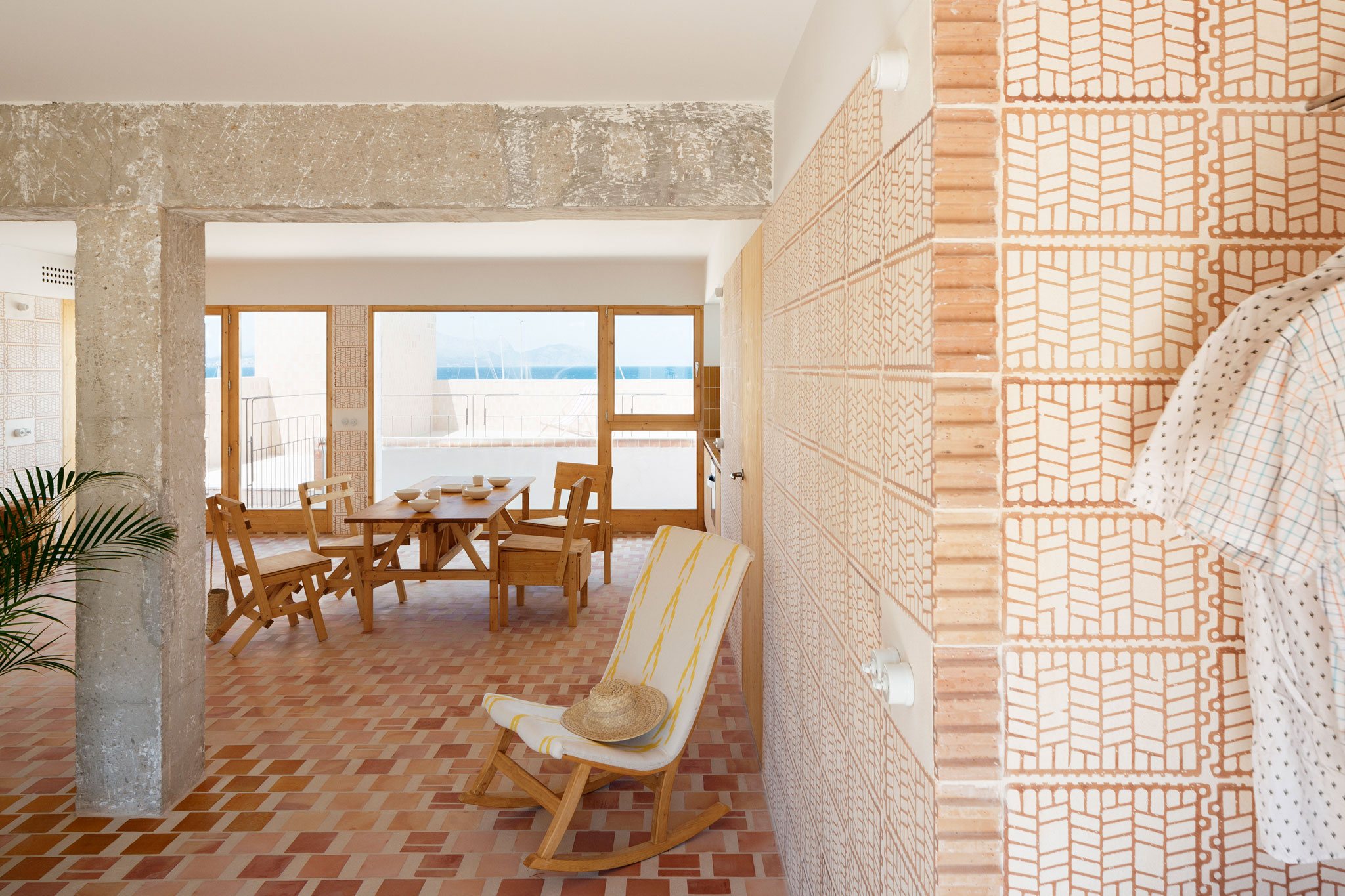

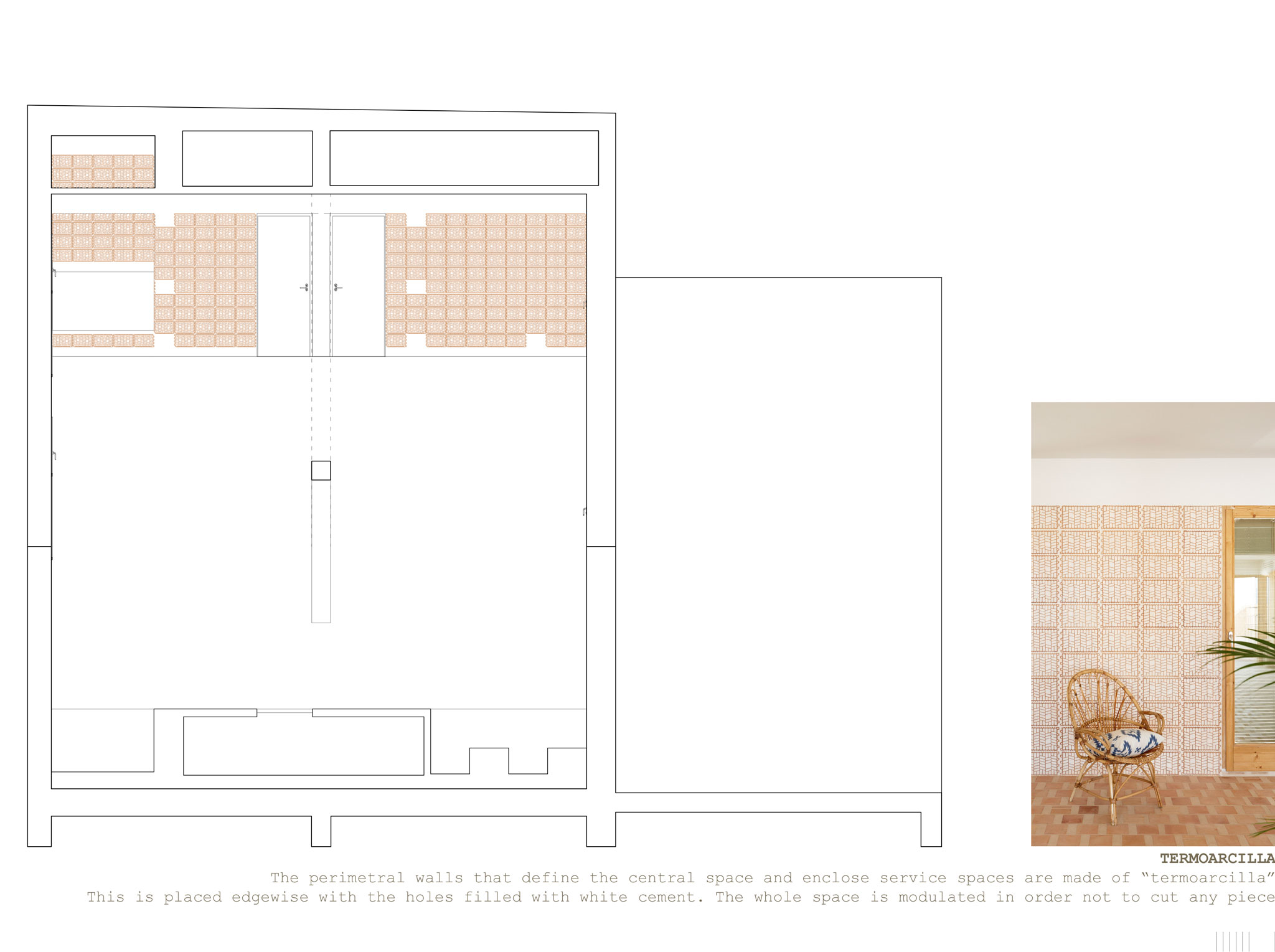

The clay as a humble and usual material. A range of different pieces gives a precise response to the different constructive needs. The “Termoarcilla”, placed on edge, shows its condition: it’s not a bearing wall, nor an acoustic one. “Termoarcilla” modulates, characterizes and dresses in a semperian manner, the main space. The tile covers, sometimes the pavement, with a very wide joint, sometimes the walls, with a narrower joint. The glazed tile sometimes also protects the water surfaces. In some points the tile protects of the oxide coming from the iron rails. The residue of crushed “colombrins” can be used as clay gravel. And a long etcetera. Due to the accumulation of small and different pieces, as well as the slight changes in the tone of the clay, we think that the materialization reduces the scale and manages to define a more domestic and human space.

Read more
Read less

More information

Label
Architects
Text
TEd’A arquitectes. Irene Pérez and Jaume Mayol
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Toni Ramis and Tomeu Mateu
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Technical architect
Text
Guillem Mas
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Promoter
Text
Es Roure Sec
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
398,50 sqm
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
C. Felicià Fuster, 37. Can Picafort. Sta Margalida. Mallorca
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Design.- 2013 - 2014. Construction.- 2015 – 2017
+ + copy Created with Sketch.
- + copy Created with Sketch.
TEd'A arquitectes is an architecture practice based in Mallorca, led by Irene Pérez and Jaume Mayol.

Irene Pérez (born 1976). Architect by the Vallès School of Architecture (ETSA Vallès, 2001). Recipient of the Oldenburg Workshop Grant (1998) and a scholarship for studies at Roma Tre University (1999). She collaborated with Pérez-Moré arquitectes (1999–2001) and Joan Pascual arquitecte (2001–2004).

Jaume Mayol (born 1976). Architect by ETSA Vallès (2000). PhD in Architecture with honours (cum laude) from the Polytechnic University of Catalonia (UPC), with the thesis La arquitectura escolar de Guillem Forteza (1917–1943), supervised by Josep Quetglas. He collaborated with Batlle i Roig (1999–2000) and RCR arquitectes (2000–2001). Assistant lecturer in the Master’s Programme “Architecture: Criticism and Project” at UPC (2003). Research fellow at ETSA Vallès (2003–2004). Certified Lecturer by AQU Catalunya (2011). Lecturer of the summer course “Mil pedreres.” Studio tutor in Projects and Design Studio at IE School of Architecture in Madrid (2011–2014).

Founded in 2006 in Palma de Mallorca, TEd’A arquitectes focuses on proximity architecture, attentive to context, local materials, and traditional building techniques. Among their notable projects are the School in Son Ferriol (2010), the Nursery and Primary School in Sa Ràpita (2014), the House in Bunyola (2014), the House in Montuïri (2016), and the House in Artà (2018).

The practice has received several awards, including the FAD Architecture Award (2018) for the House in Artà, the FAD Opinion Award (2018), the Arquitectura Plus Award (2018), and the XIII Spanish Biennial of Architecture and Urbanism (2016). They were finalists for the Mies van der Rohe Award (2019) and participants in the Venice Architecture Biennale (2016). Their work has been featured in El Croquis, Arquitectura Viva, Detail, and A+U.

Read more
Published on: June 13, 2018
Cite:
metalocus, VANESA DEL OLMO
"Reimagining use for ceramics. Can Picafort by TEd’A arquitectes" METALOCUS. Accessed
<http://www.metalocus.es/en/news/reimagining-use-ceramics-can-picafort-teda-arquitectes> ISSN 1139-6415
