In an area bordering on the rural and urban areas with a large presence of single-family homes, R21 Arkitekter is responsible for designing 12 semi-detached houses grouped under two typologies that are repeated and implemented in an L-shape, achieving an articulation between blind and open fronts that provide privacy without giving up the clarity of the space.

The residential project is generated through a careful strategy that positions the volumes of the homes taking into account the light conditions and prioritizing the views of the surroundings and respecting the perimeter street that surrounds the plot.

The project by R21 Arkitekter includes two types of homes. In both, the day areas are located on the ground floor, and the night areas on the upper floor, where the floor plan is flexible and can accommodate up to four bedrooms.

In the home, the living area is designed as a fourth room on the upper floor, which allows it to be directly connected to the terrace and the outside.

The structure of the homes consists of a system of prefabricated wooden frame walls, covered with talas in green tones, thus reinterpreting, together with the red colour of the roofs and the metal borders, the colour palette of the surrounding rural landscape.

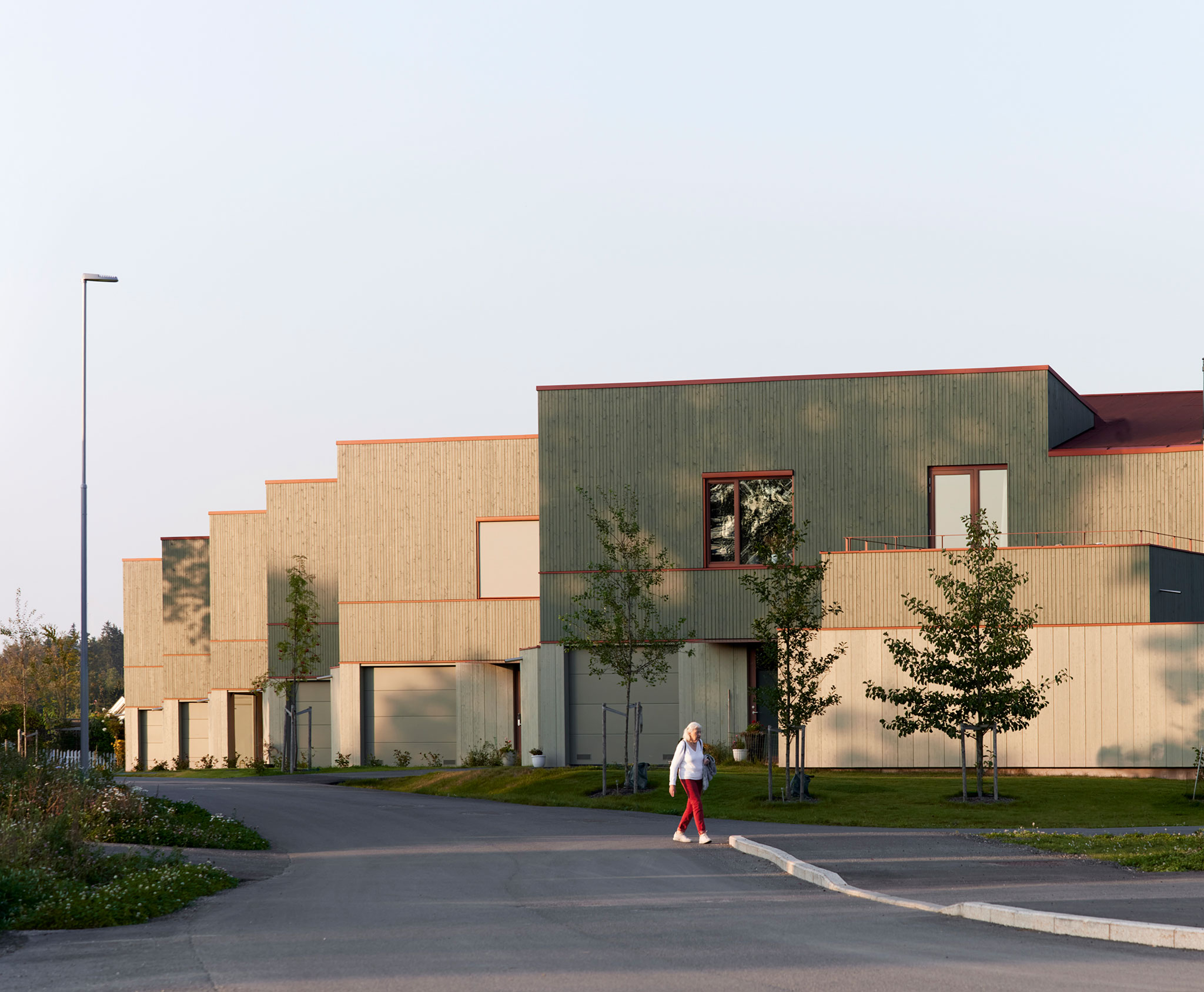

Semi-detached houses "Solberg Hage" by R21 Arkitekter. Photograph by Mariela Apollonio

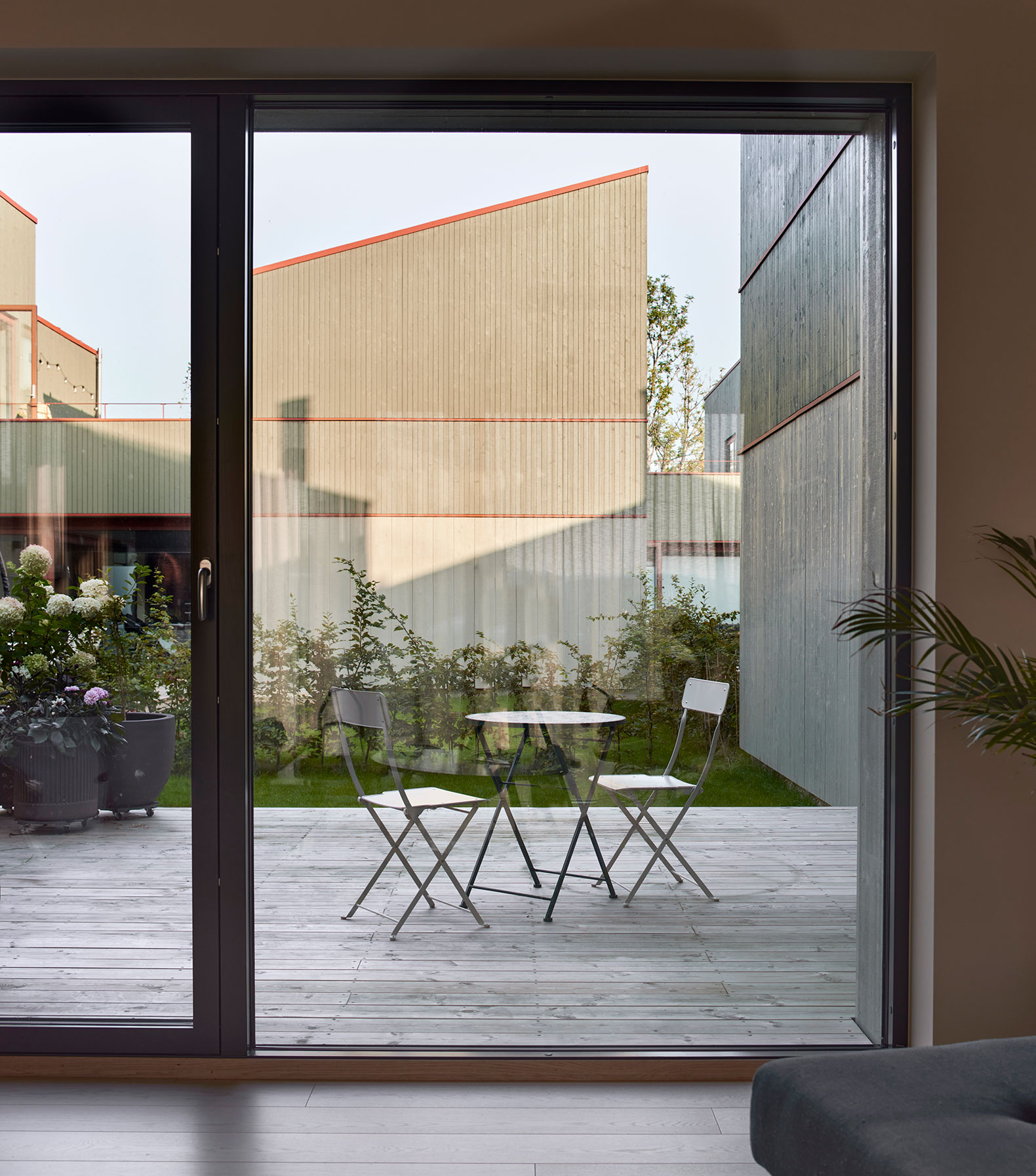

Semi-detached houses "Solberg Hage" by R21 Arkitekter. Photograph by Mariela Apollonio.

Project description by R21 Arkitekter

The project involves the design and construction of 12 semi-detached two-story homes located at the boundary between a rural area and a zone dominated by single-family homes.

Each unit consists of a two-story section and a single-story section. The L-shaped layout and the rotation of the units, combined with the repetition of the same design, generate the entrances and outdoor spaces. These are created through the articulation between solid facades and open facades, achieving a sense of privacy without sacrificing spatial openness.

Respecting the perimeter street around the site, the volumes are carefully positioned, taking into account light conditions and prioritizing the views of the surrounding environment.

Semi-detached houses "Solberg Hage" by R21 Arkitekter. Photograph by Mariela Apollonio
Semi-detached houses "Solberg Hage" by R21 Arkitekter. Photograph by Mariela Apollonio.

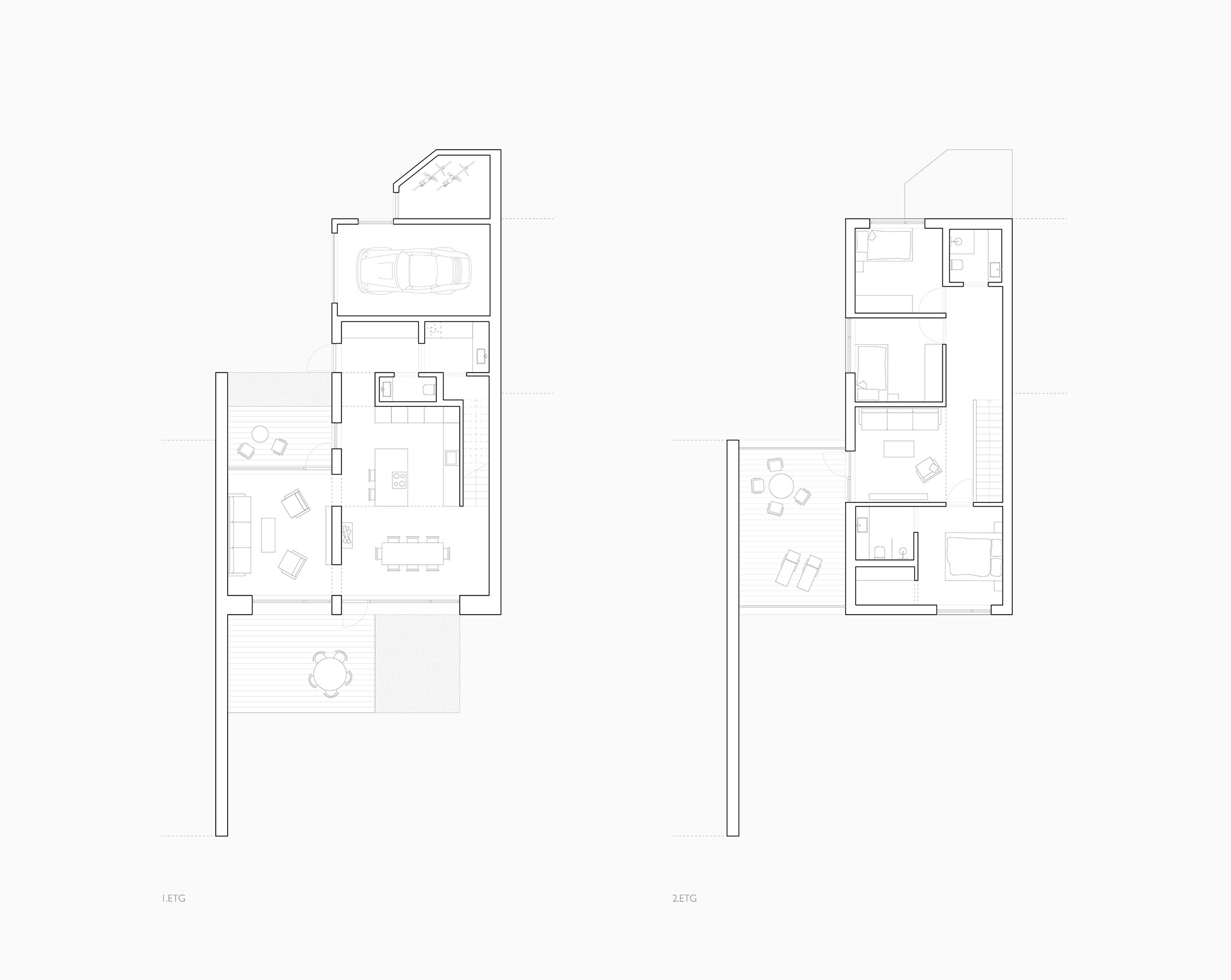

The project includes two housing typologies. In six units, the parking is integrated within the home, while in the other six, the garage is organized collectively. In both typologies, the day zones are located on the ground floor, and the night zones are on the upper floor, where the layout is flexible to accommodate up to four bedrooms. The fourth room, designed as a living area, connects to the terrace, which is positioned one level lower than the rest of the house, allowing for a direct relationship with the outdoors. To make the most of sunlight on the terraces and outdoor areas, the grouping of volumes is designed so that the lower side of the neighboring unit’s roof aligns with the terrace of the house.

The structure of the homes is solved with a prefabricated timber-frame wall system. The ground floor uses wide planks, while the upper floor uses narrower planks, both in green tones. Metal trim and a red pap roofing complete the composition, reinterpreting the color palette of the surrounding rural farmhouses.

More information

Label
Architects
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text

Follohus.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text

6 x 167 sqm.
6 x 146 sqm.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text

2023.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text

Ski, Norway.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
+ + copy Created with Sketch.
- + copy Created with Sketch.
R21 is an architecture practice located in Oslo, Norway founded in 2006 by architect Thomas Thorsnes. Their work is focused on the creation of homes, initially cabins, and single-family homes, gradually expanding in scale to encompass housing complexes and urban projects. The office takes on projects from conceptual sketches to the completion of the building to achieve greater control over the quality of the executed work.

R21 understands each project as an investigation, striving to maintain a consistent approach with the aim of continuous learning.

Their work has earned the recognition of several local awards and it has been featured in both national and international media. The R21 team has contributed to teaching and giving lectures at various universities in Norway.
Read more
Published on: November 29, 2024
Cite: "Volumetric articulation between rural and urban. Semi-detached houses "Solberg Hage" by R21 arkitekter" METALOCUS. Accessed
<http://www.metalocus.es/en/news/volumetric-articulation-between-rural-and-urban-semi-detached-houses-solberg-hage-r21> ISSN 1139-6415
