An old warehouse turned into a house with garden

01/03/2016. [Lisbon] Portugal
metalocus, LEONOR MARTÍN, ANDREA PORTILLO

Today we bring you this small town house and its wonderful facade made of green tiles located in the district of Belem in Lisbon, Portugal.

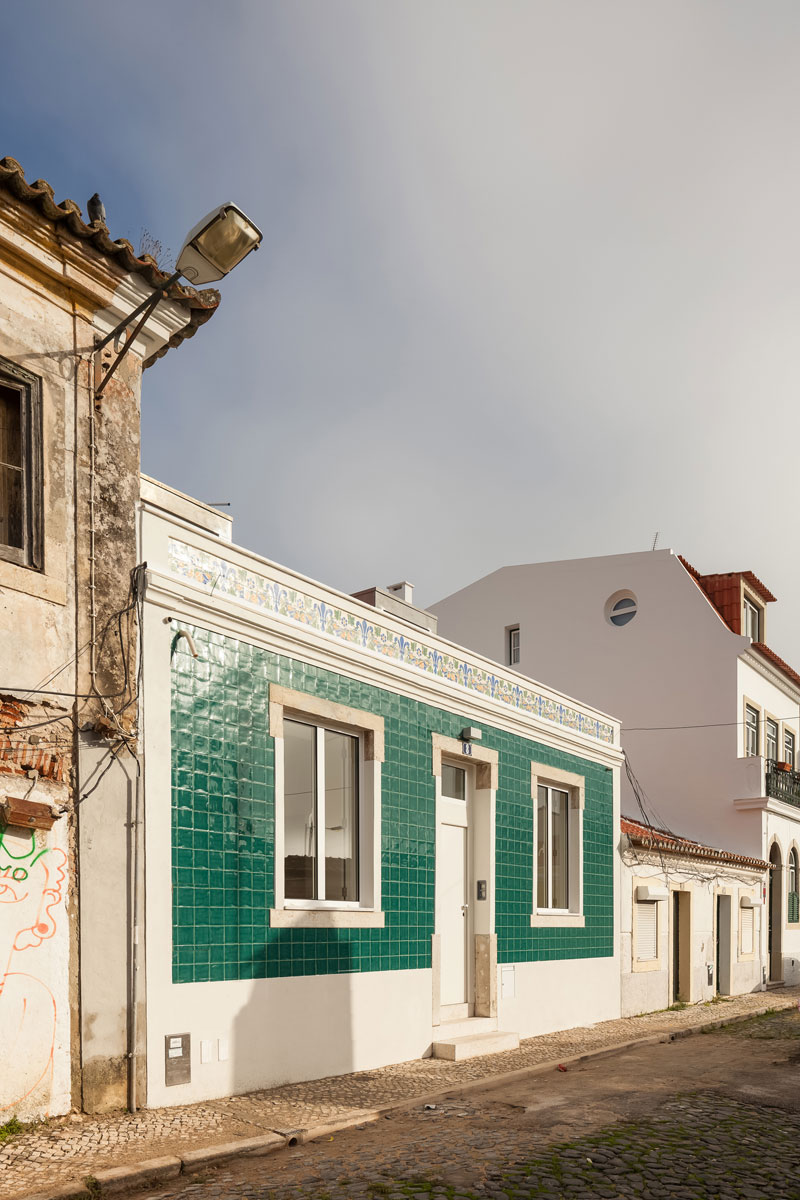

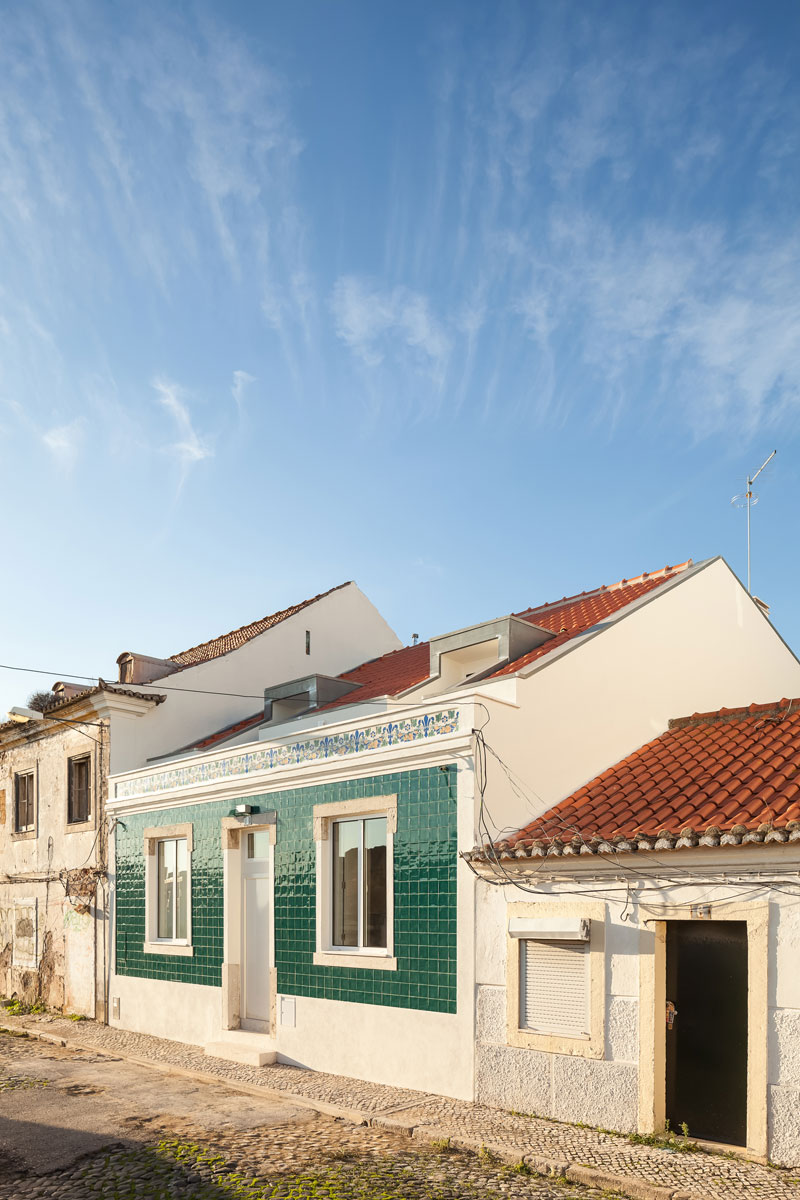

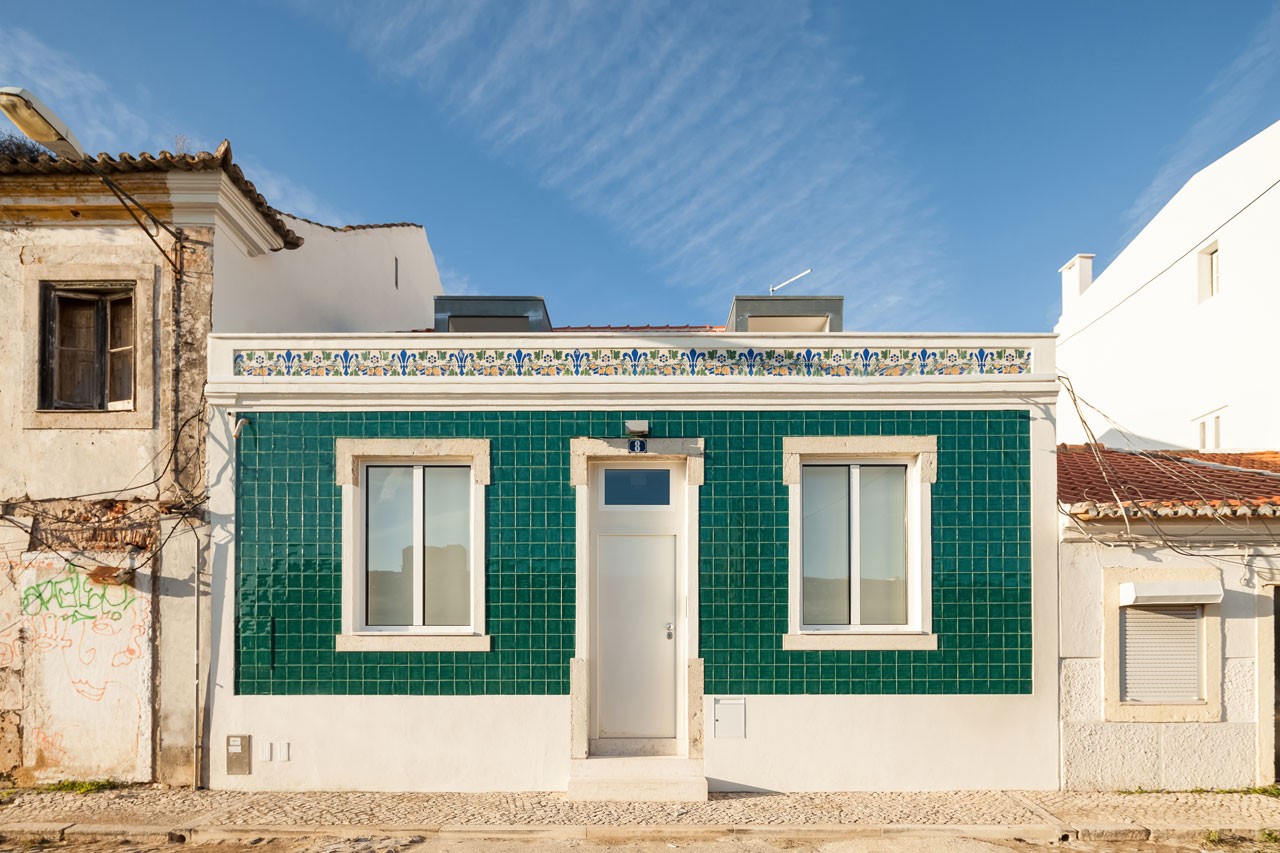

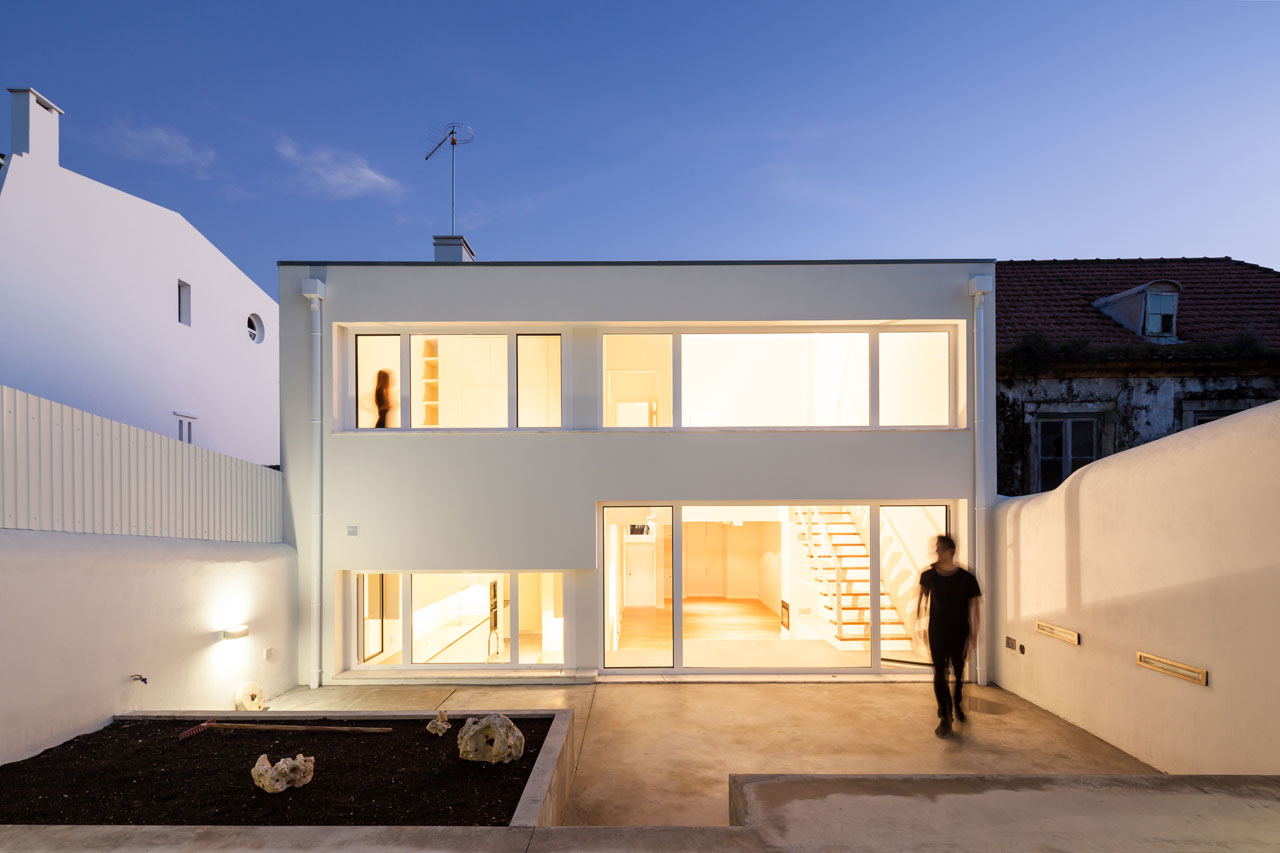

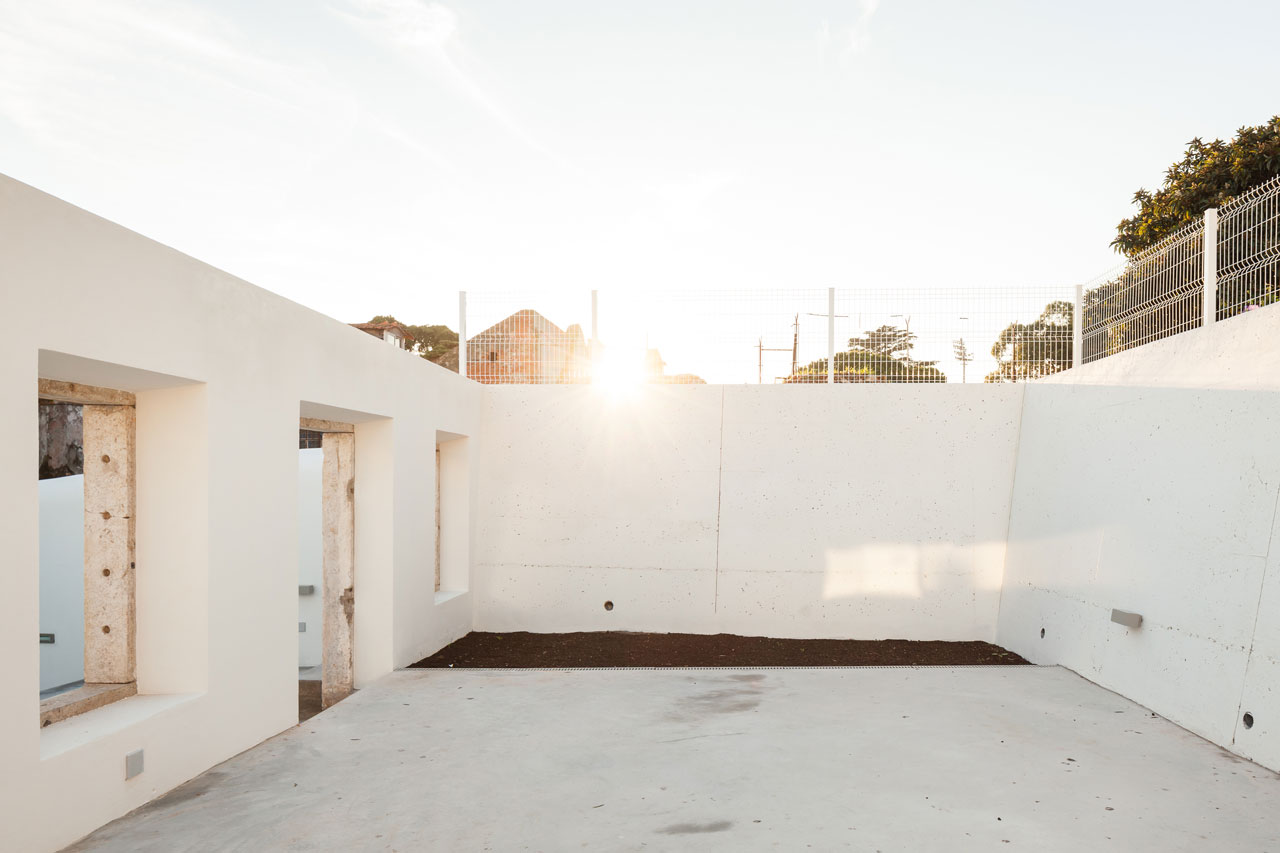

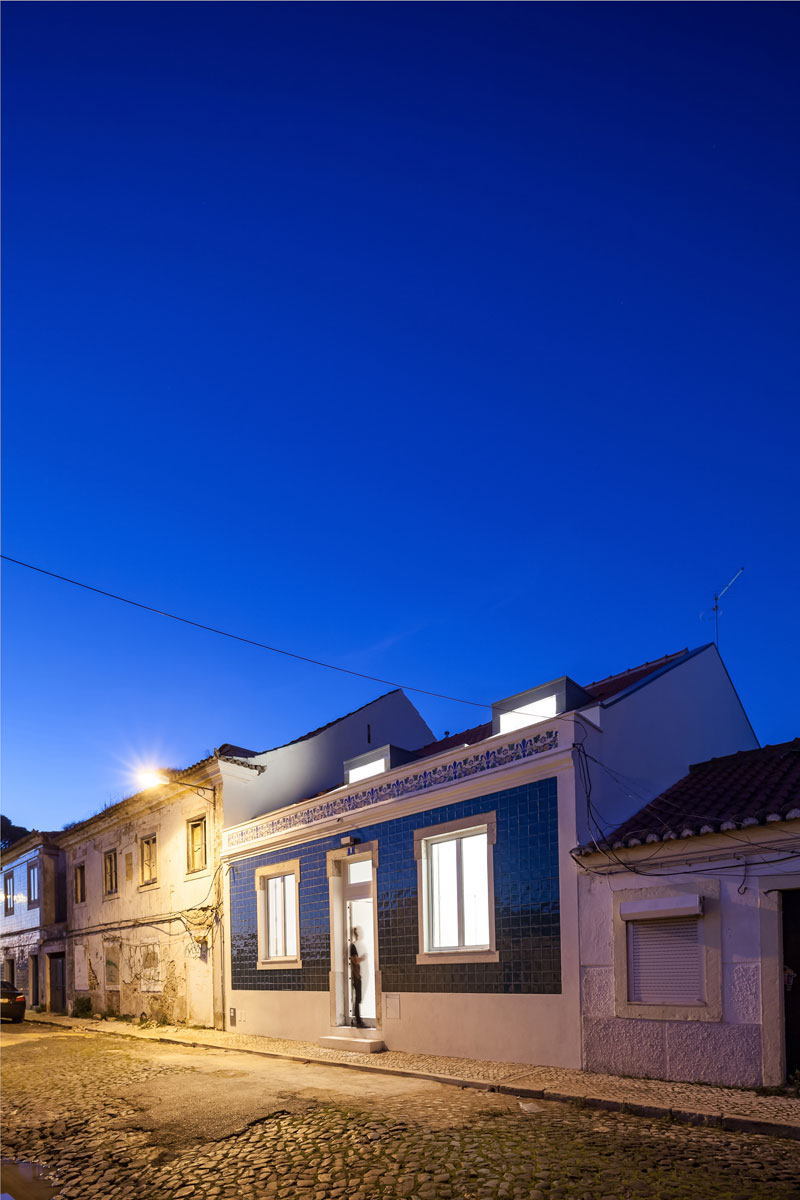

Exterior view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

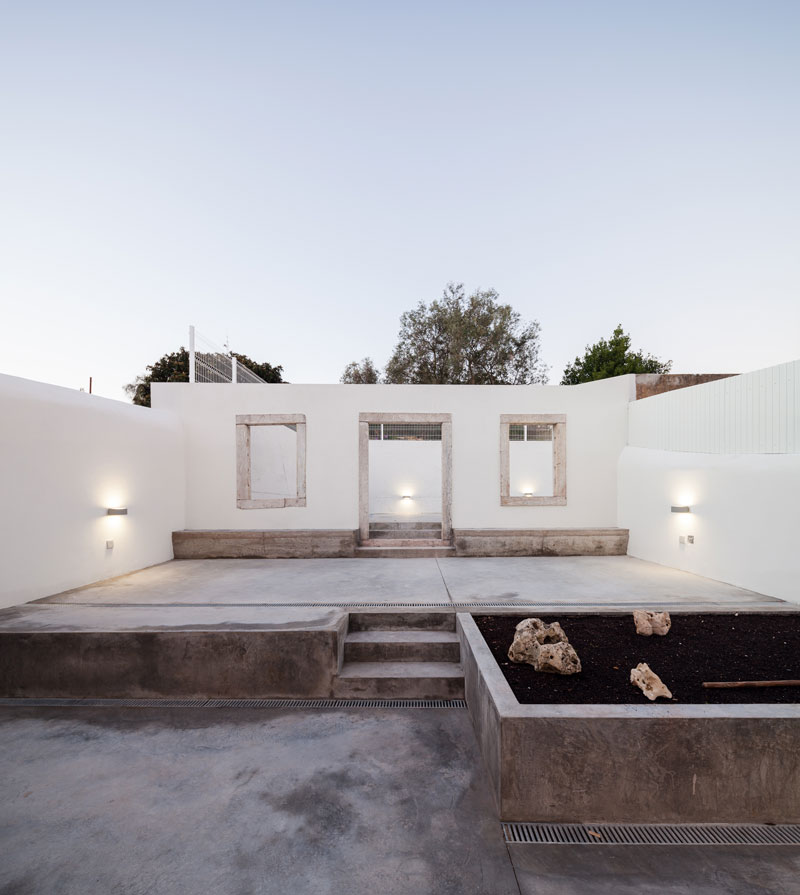

Exterior view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

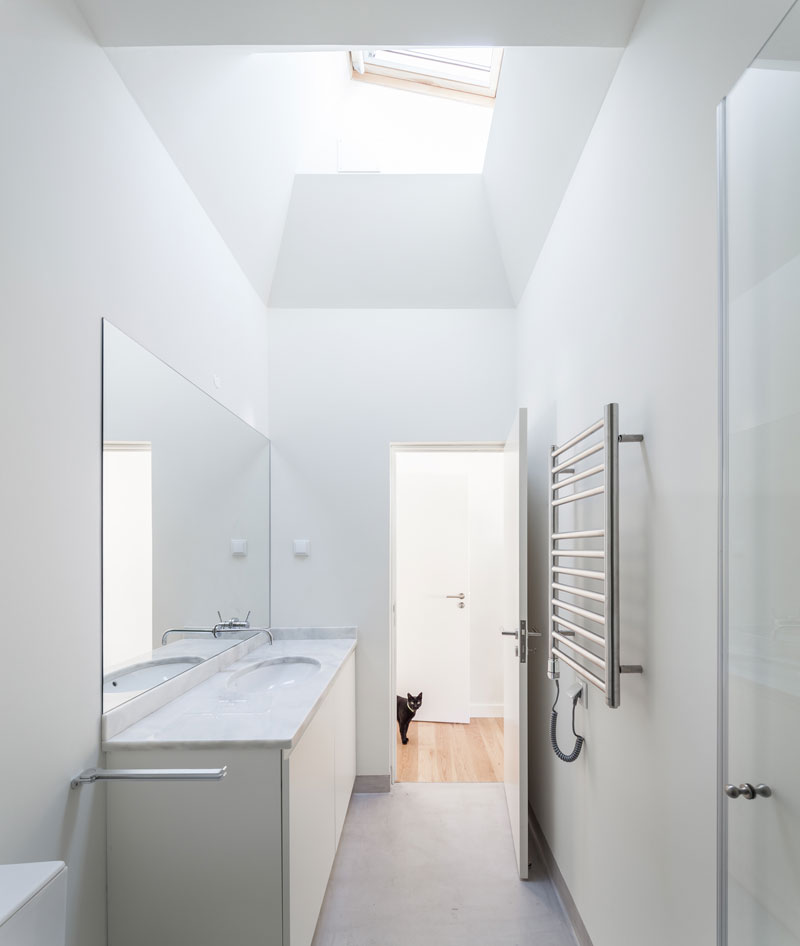

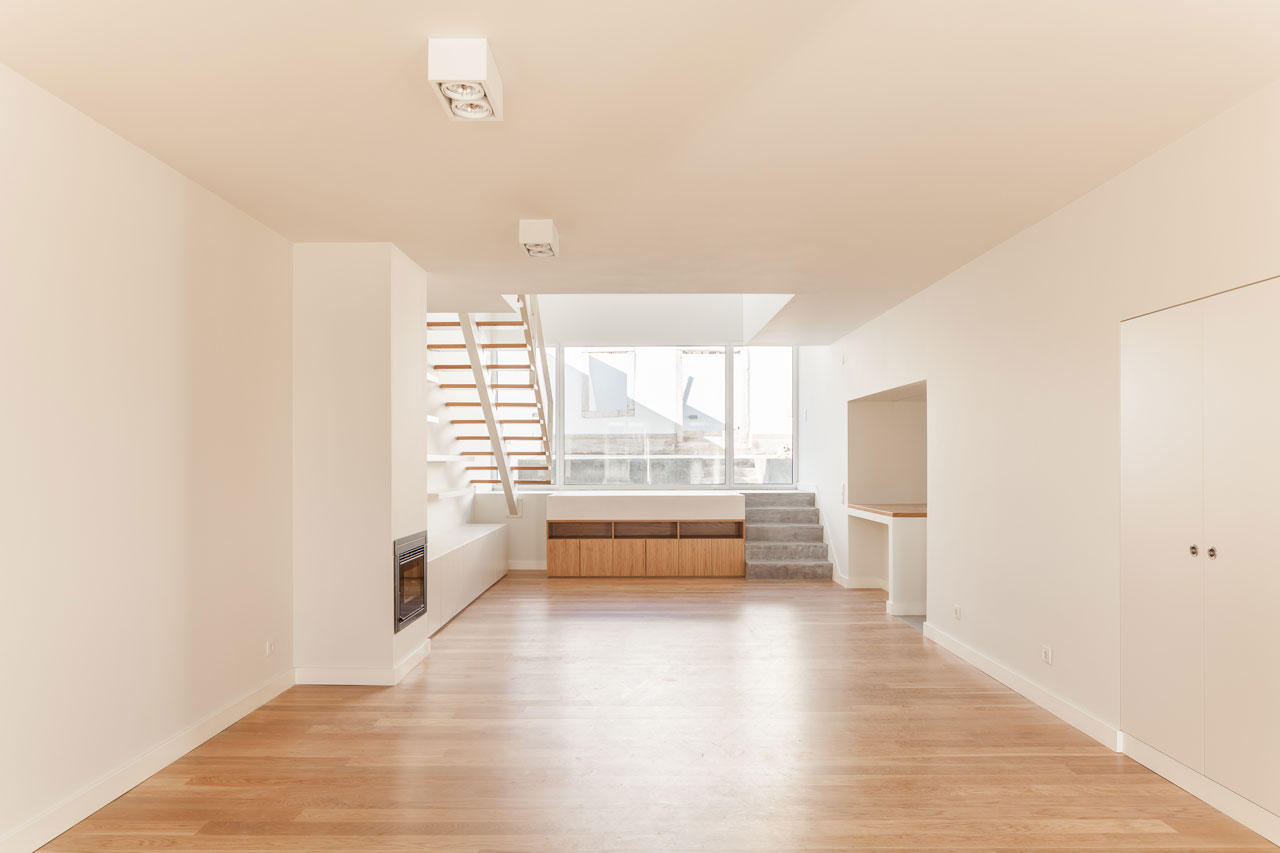

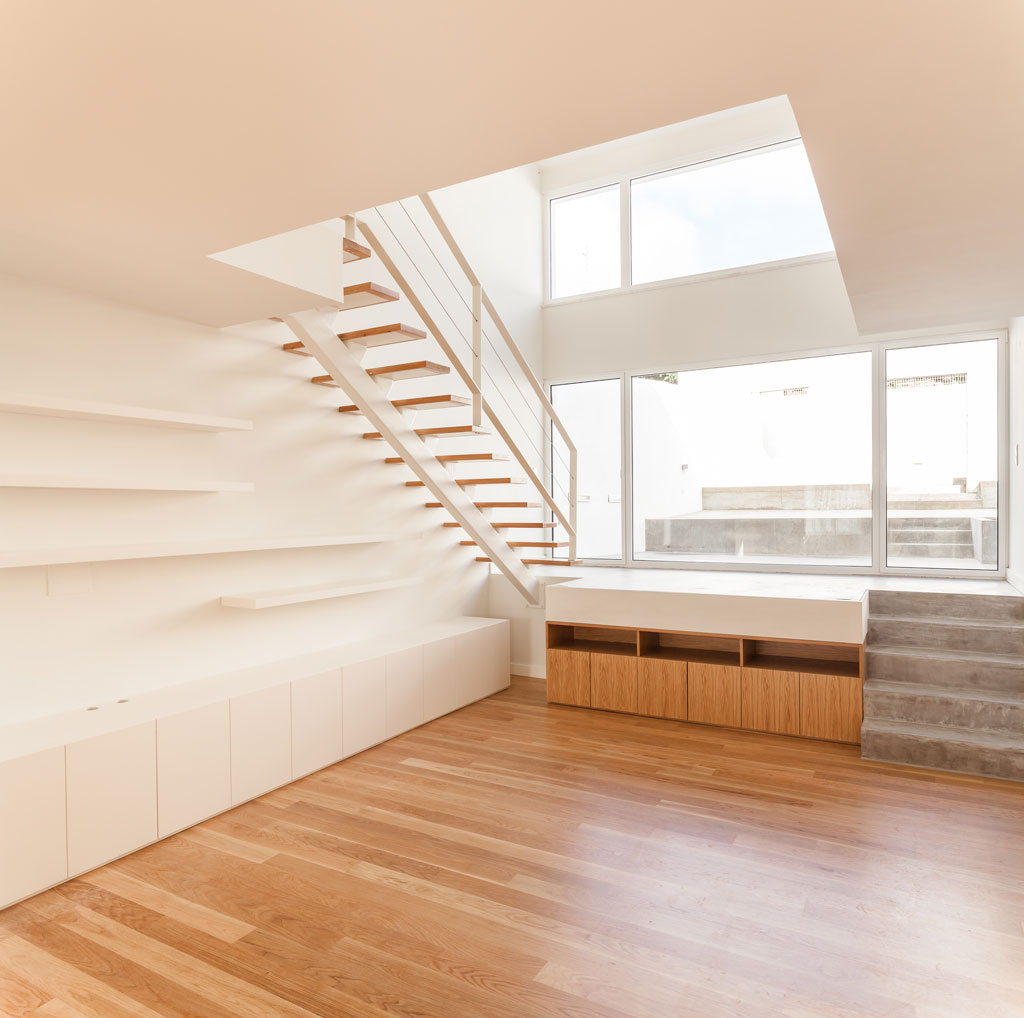

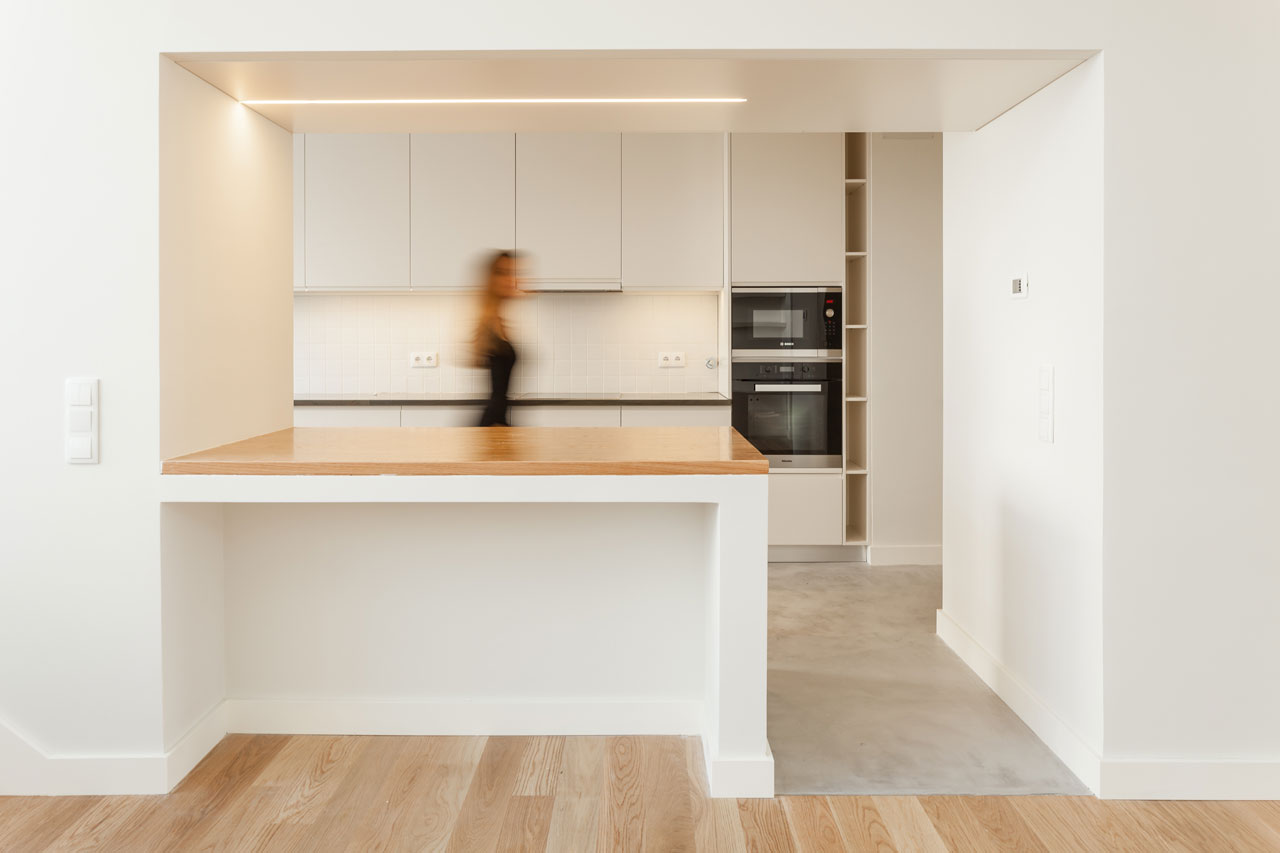

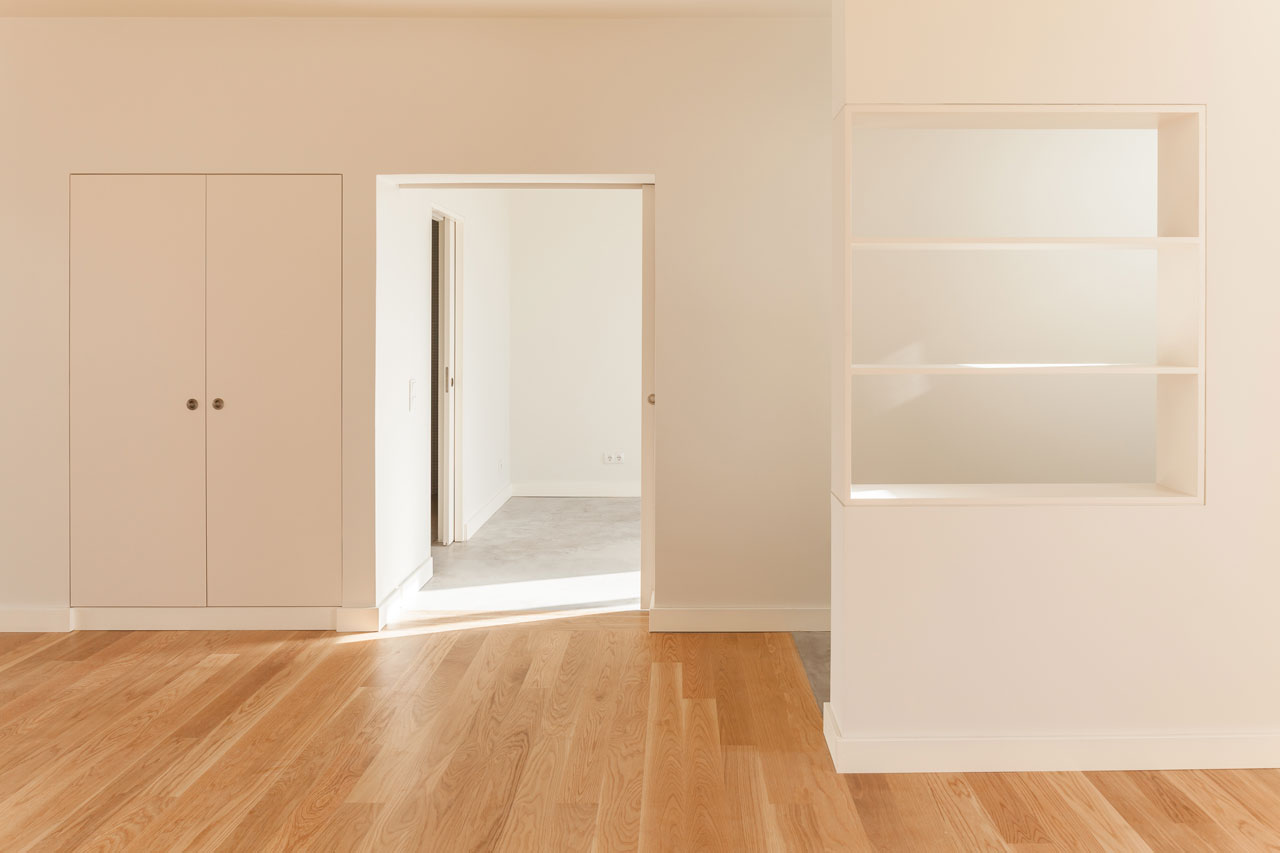

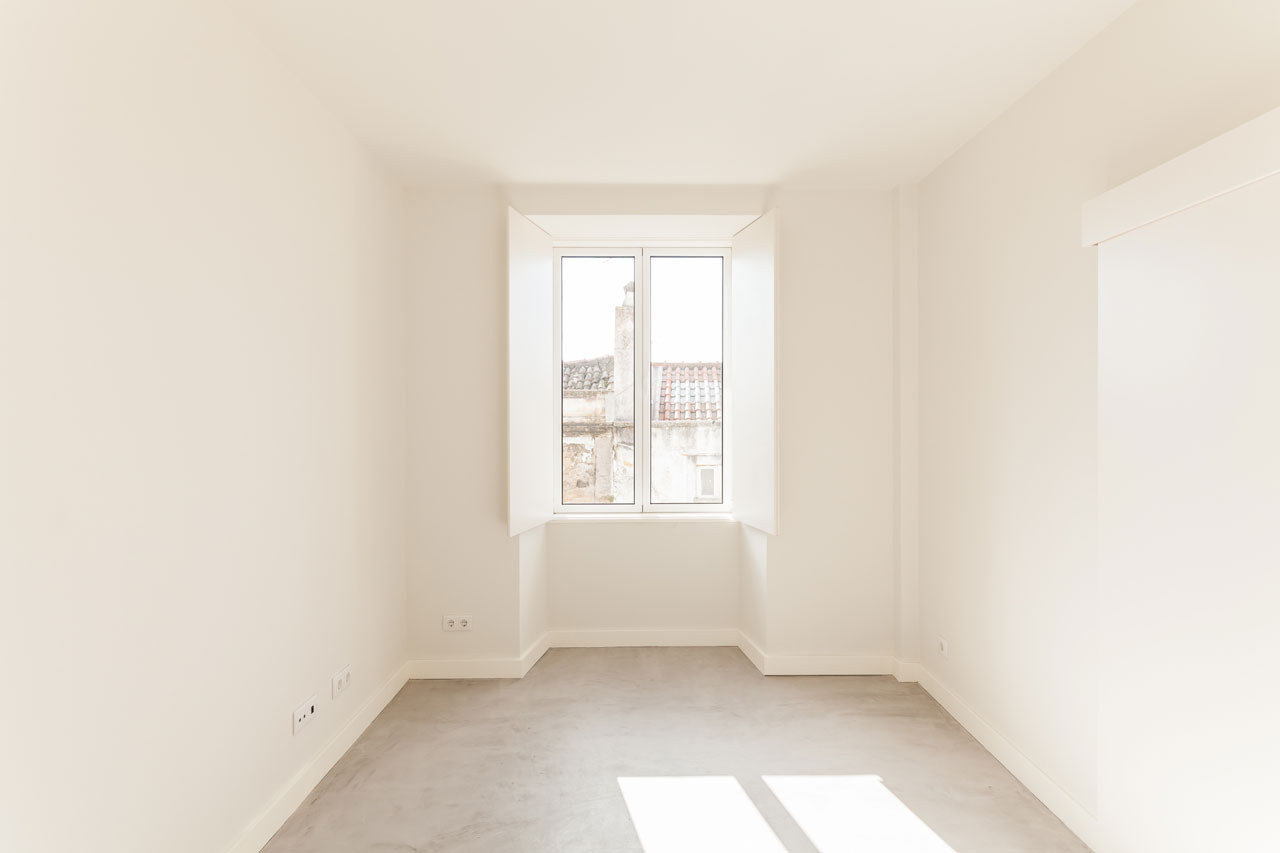

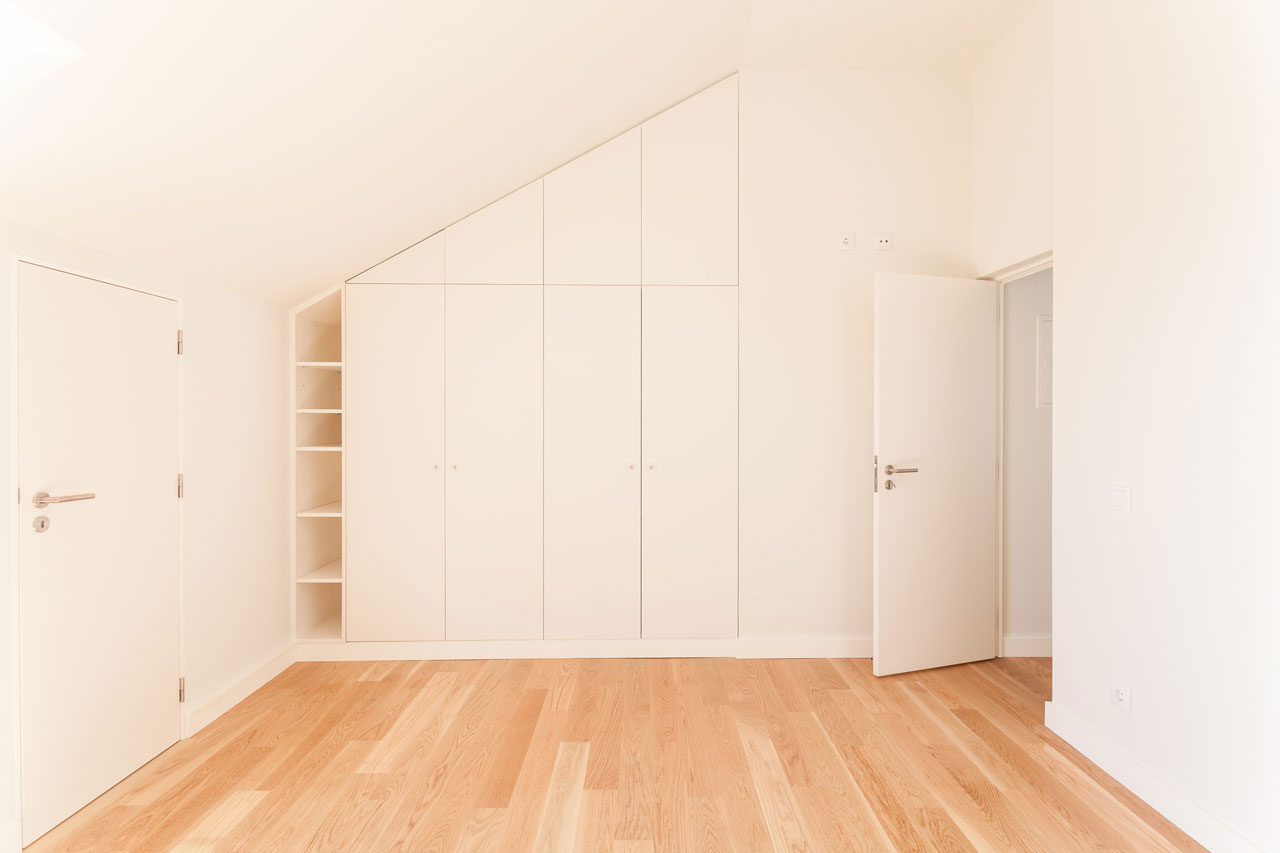

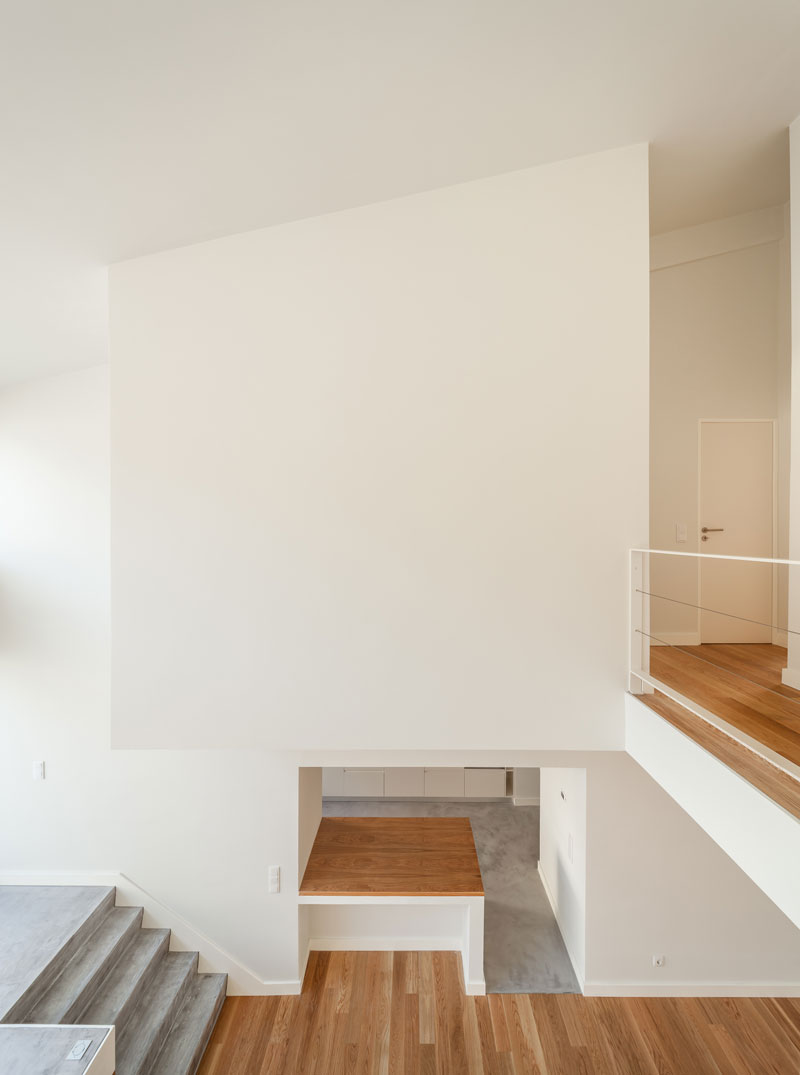

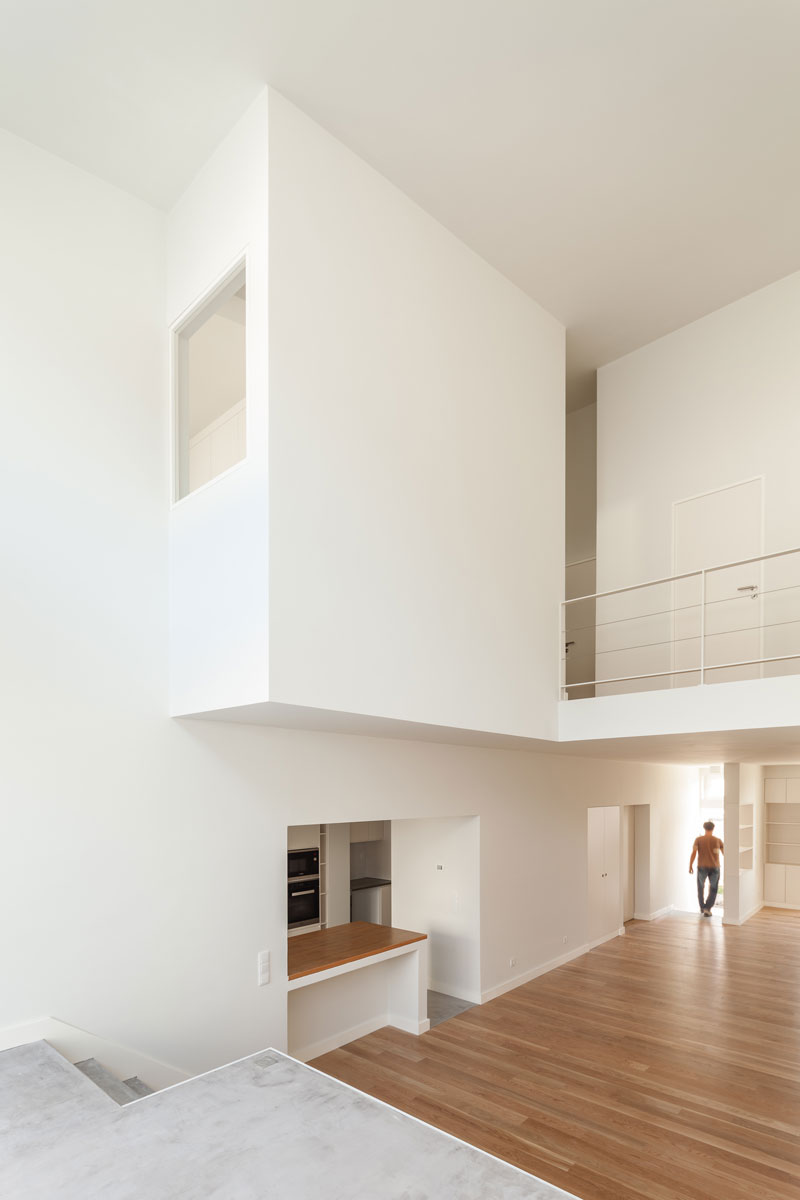

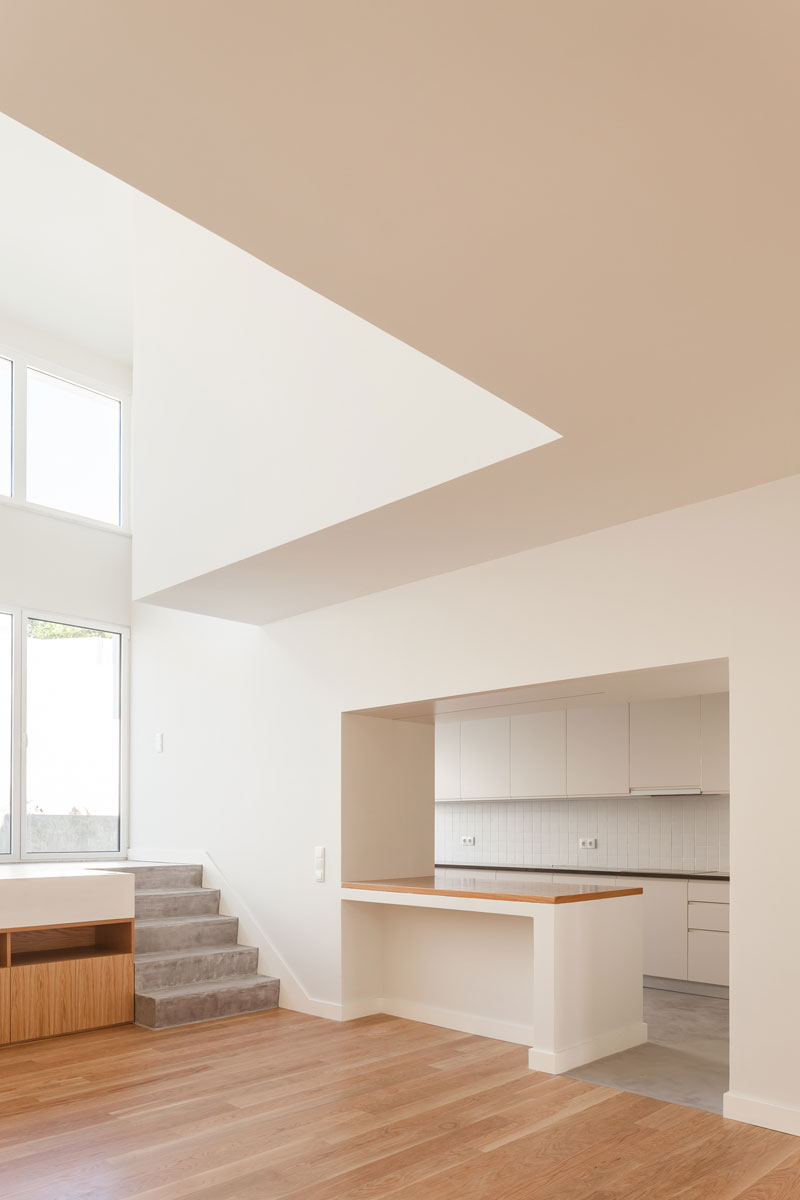

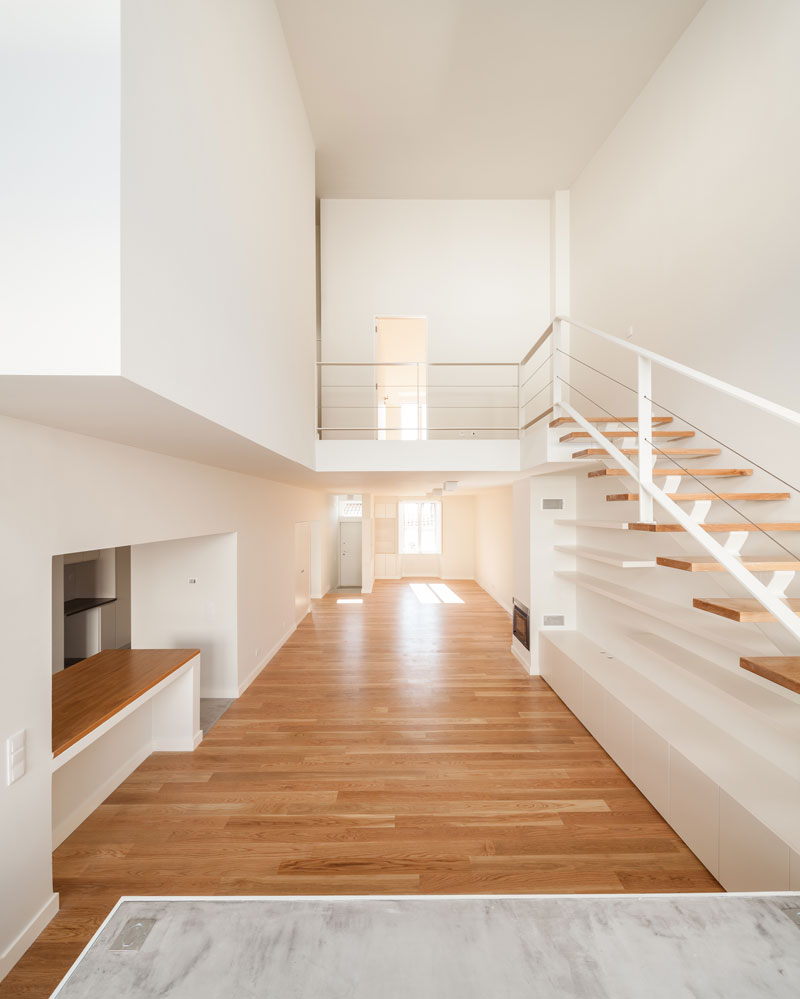

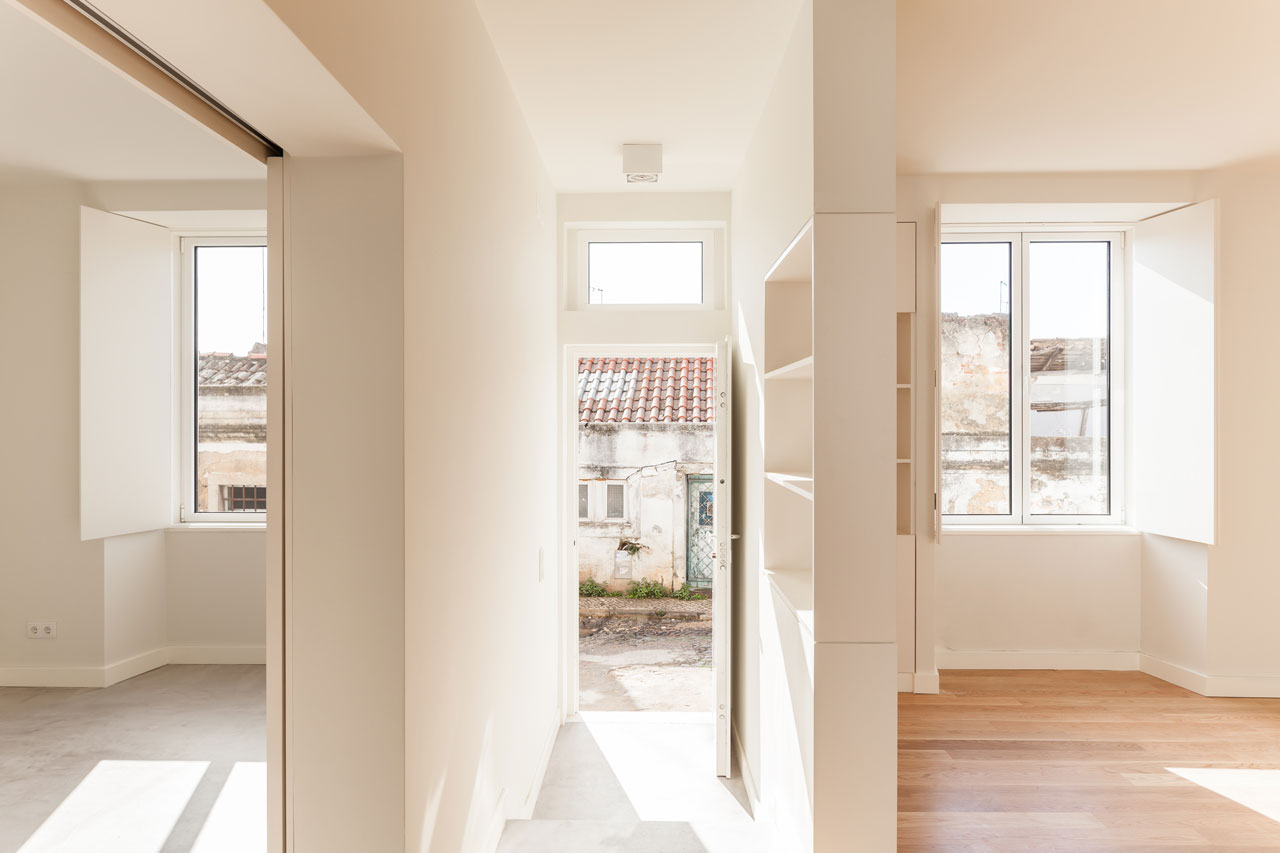

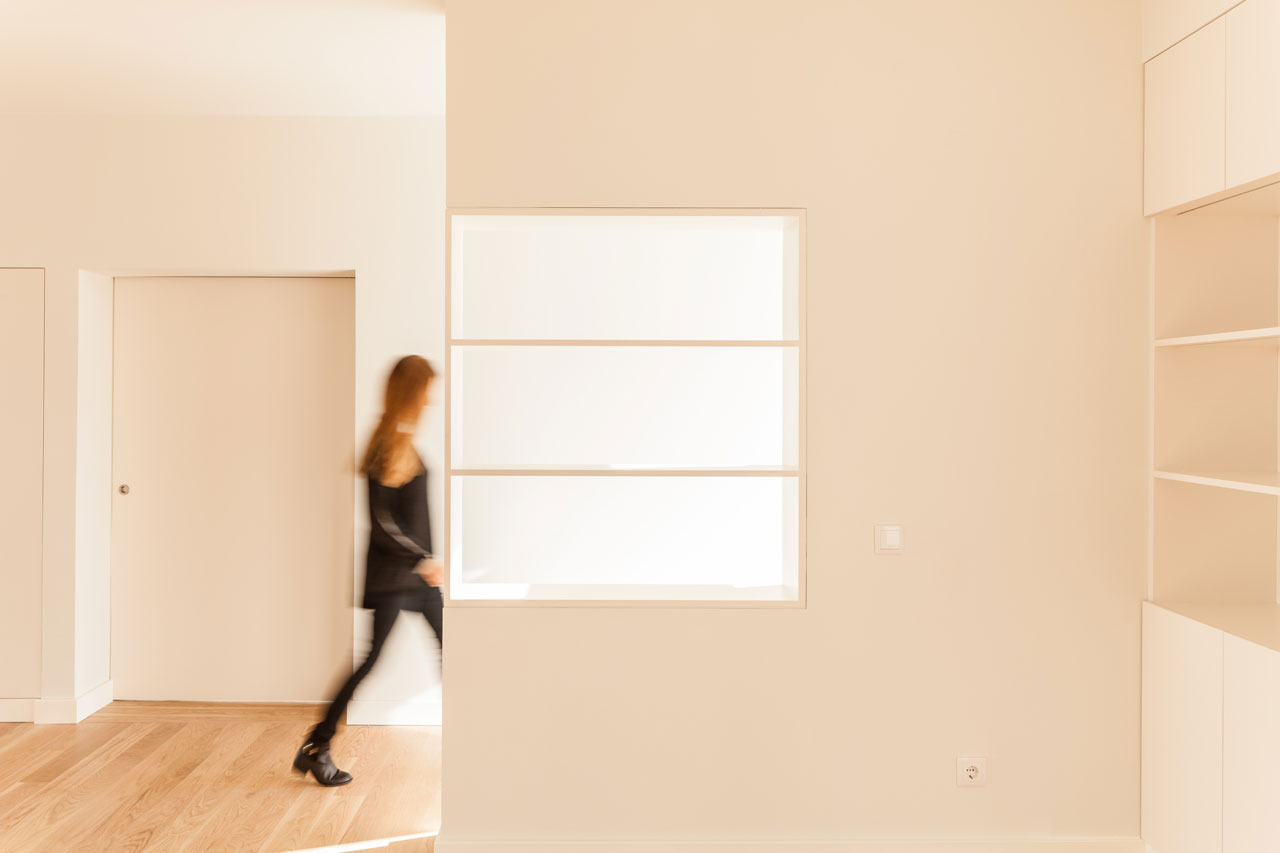

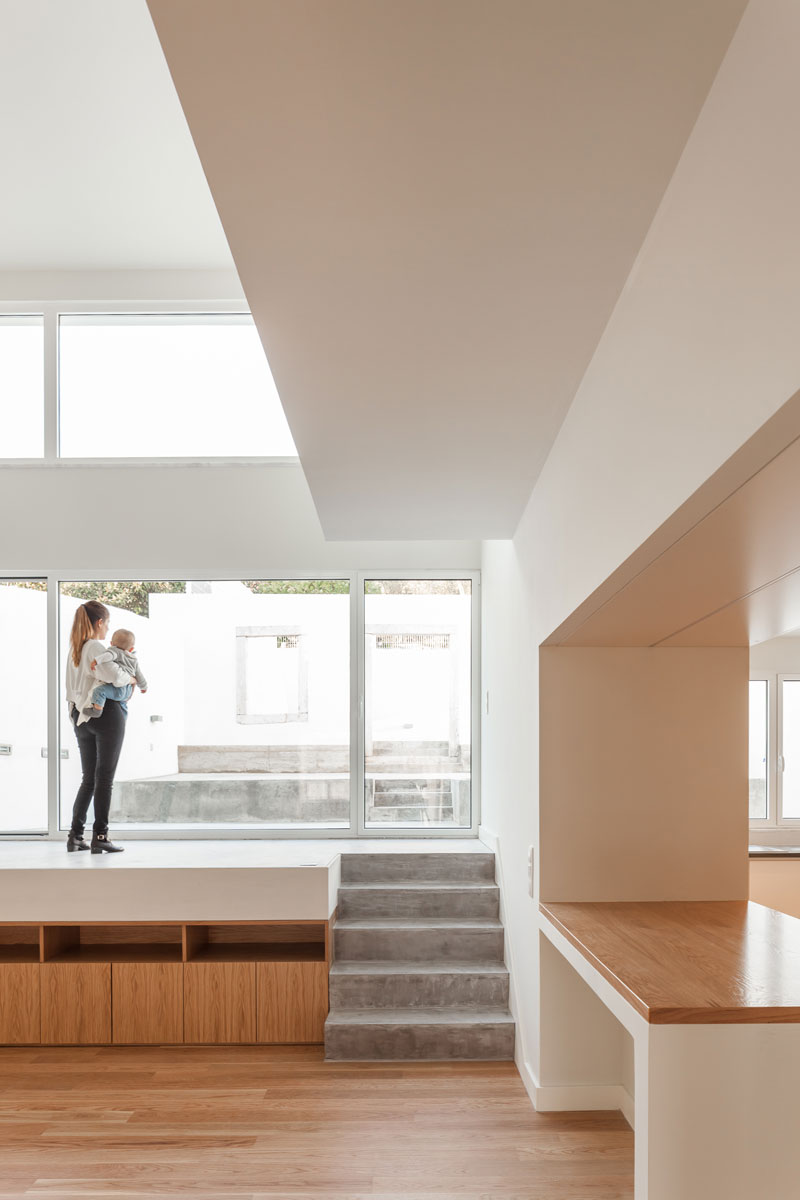

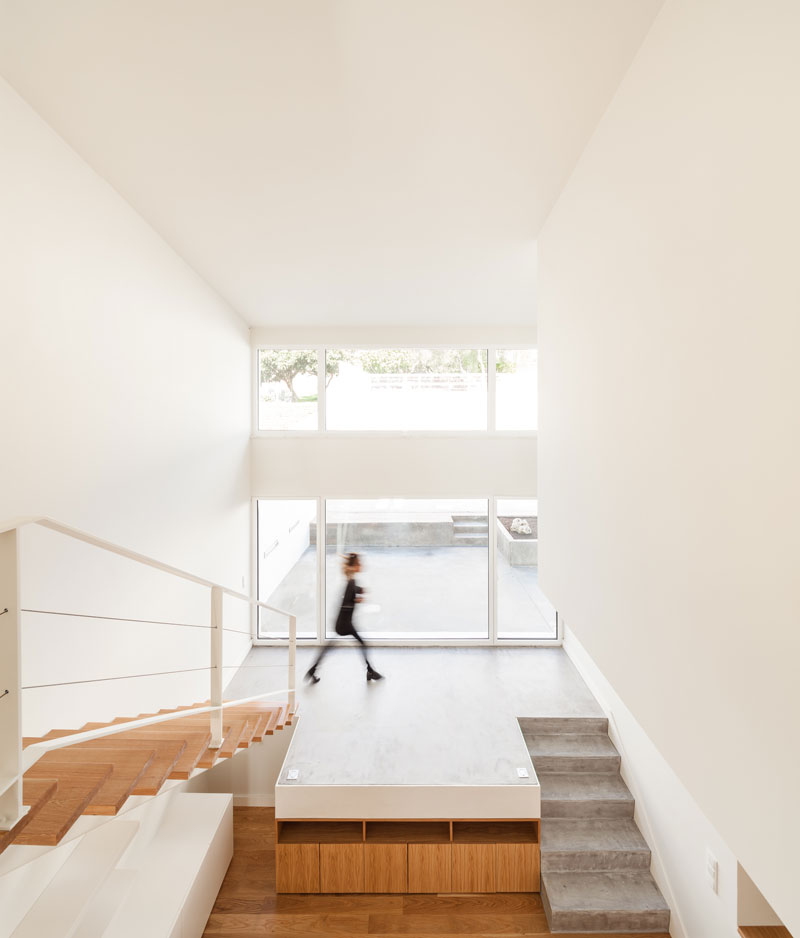

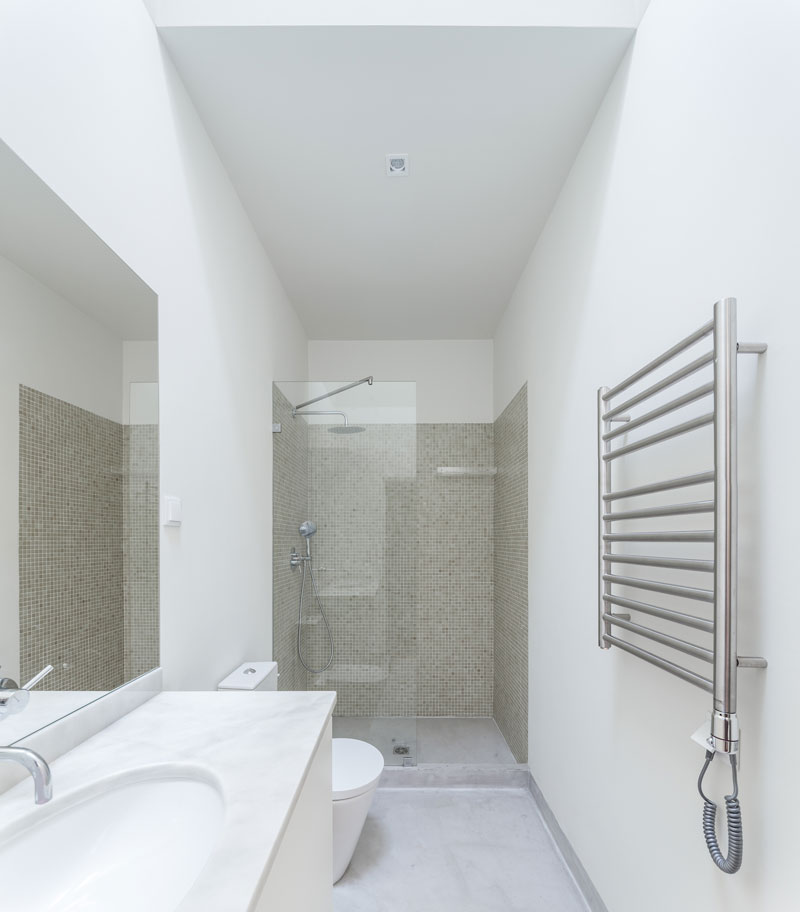

Inside view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

Inside view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira. Click above to see larger image.

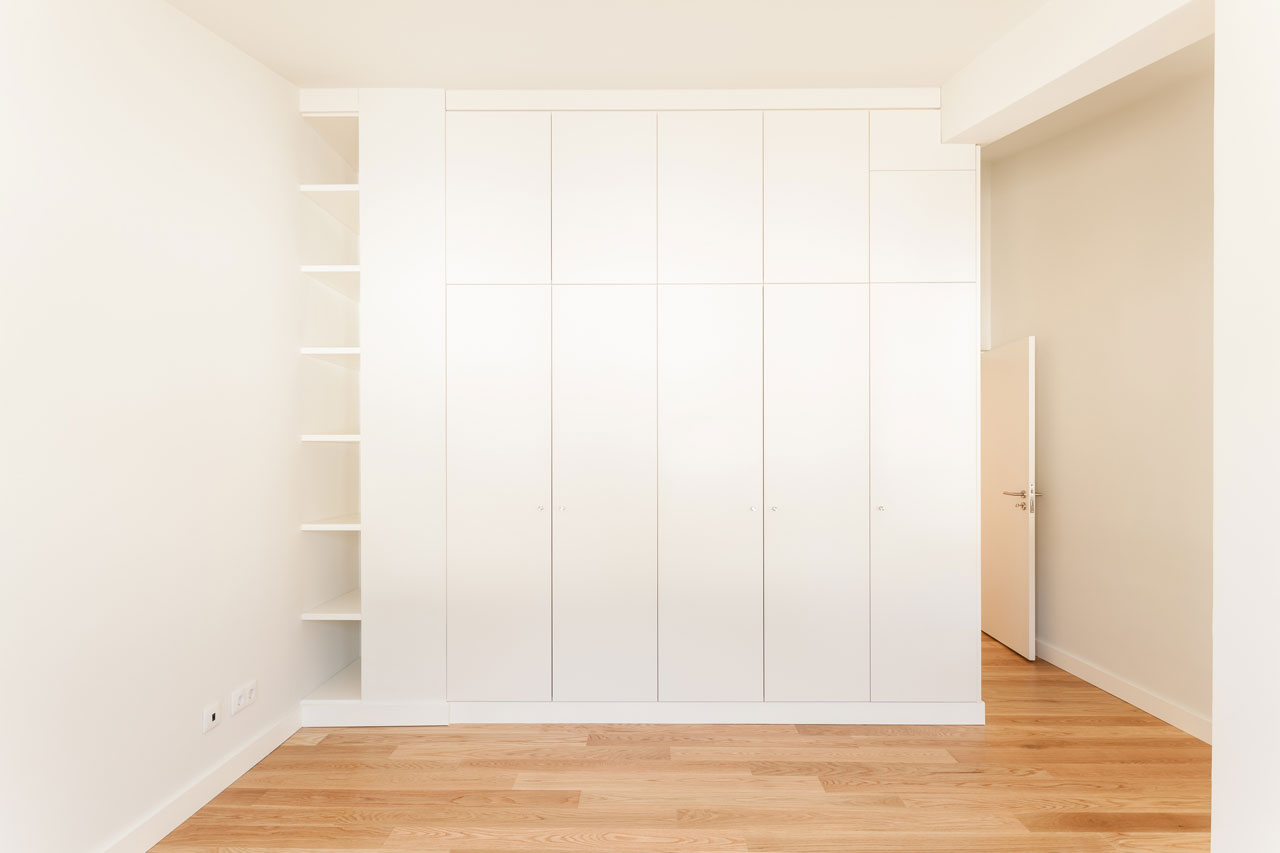

Inside view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

Inside view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira. Click above to see larger image.

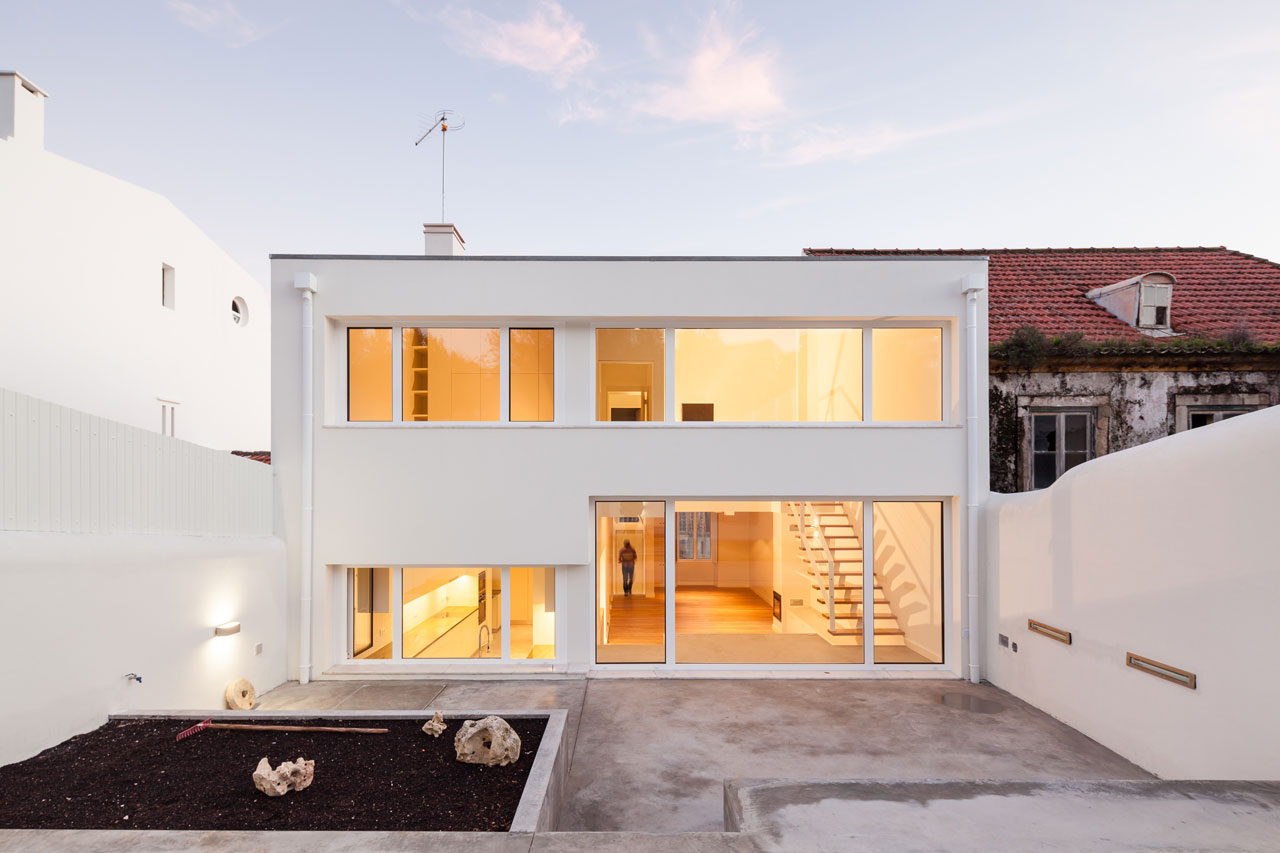

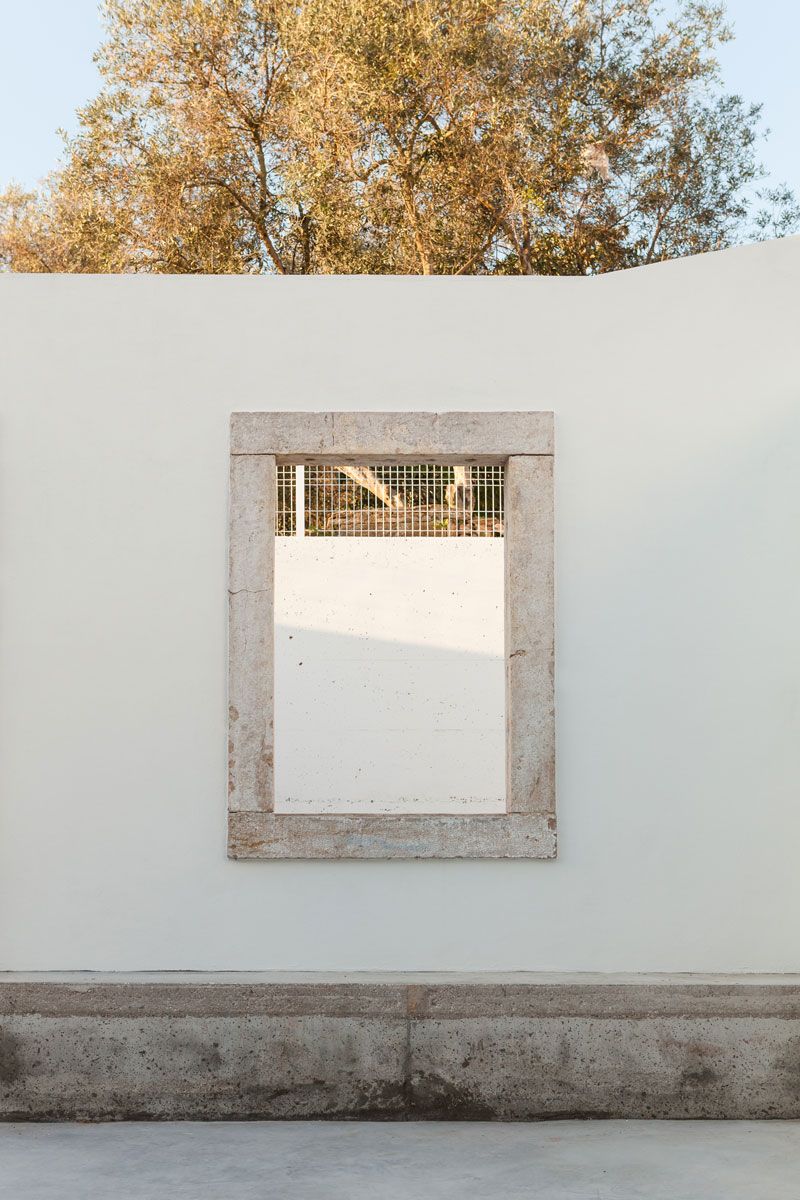

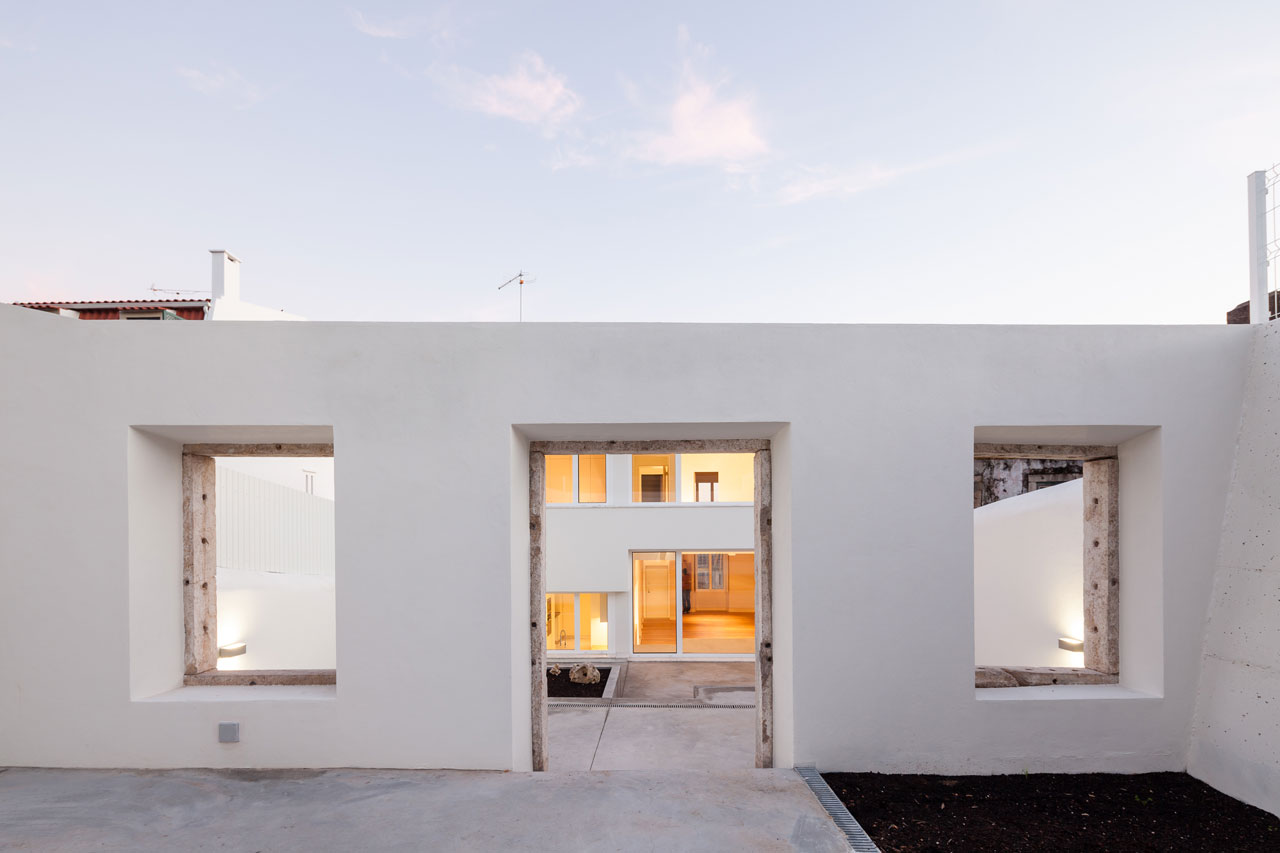

Exterior view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

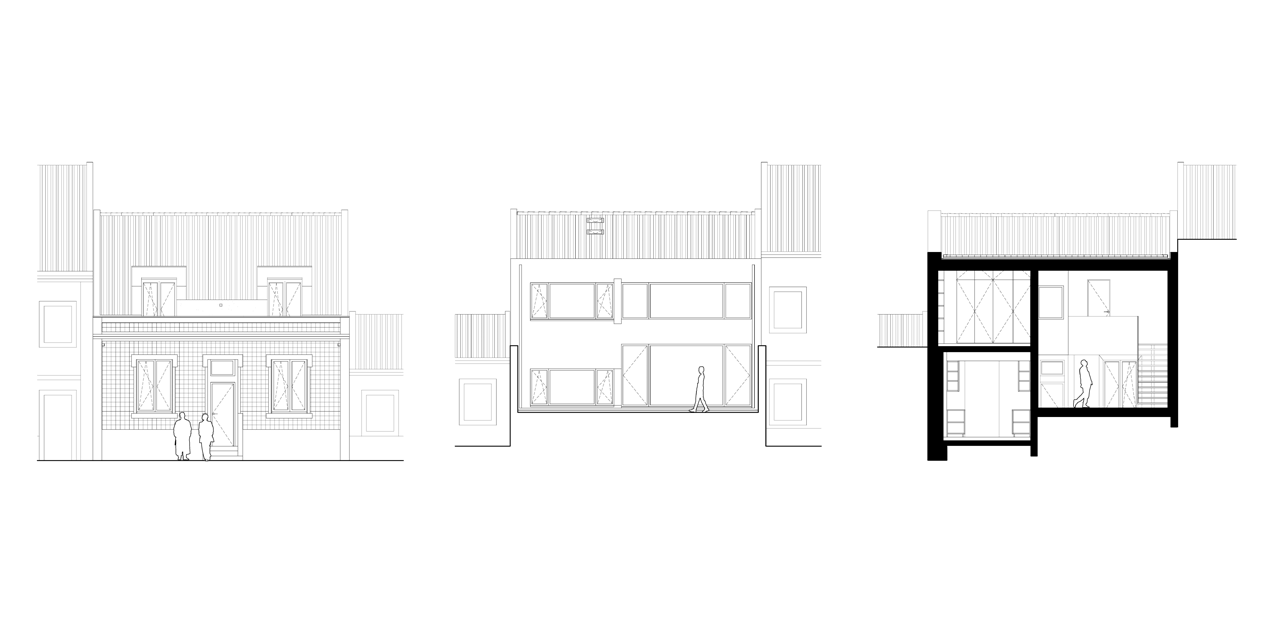

Elevations and cross section. Terras 8 house by Colectivo CAIS.

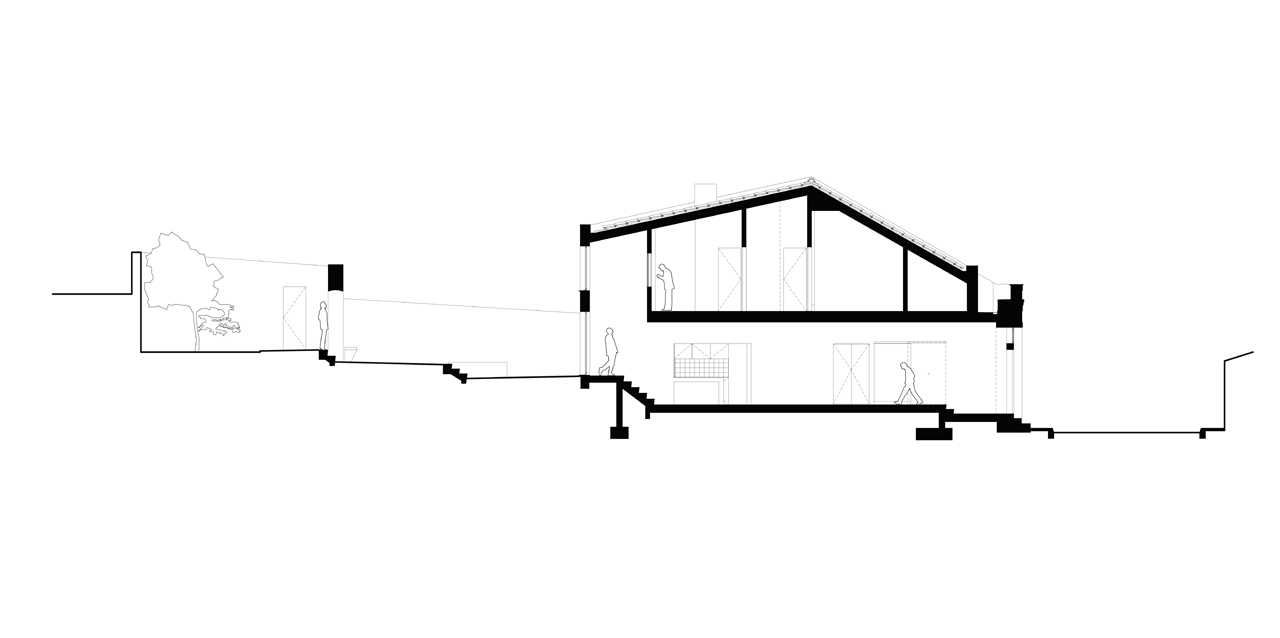

Longitudinal section. Terras 8 house by Colectivo CAIS.

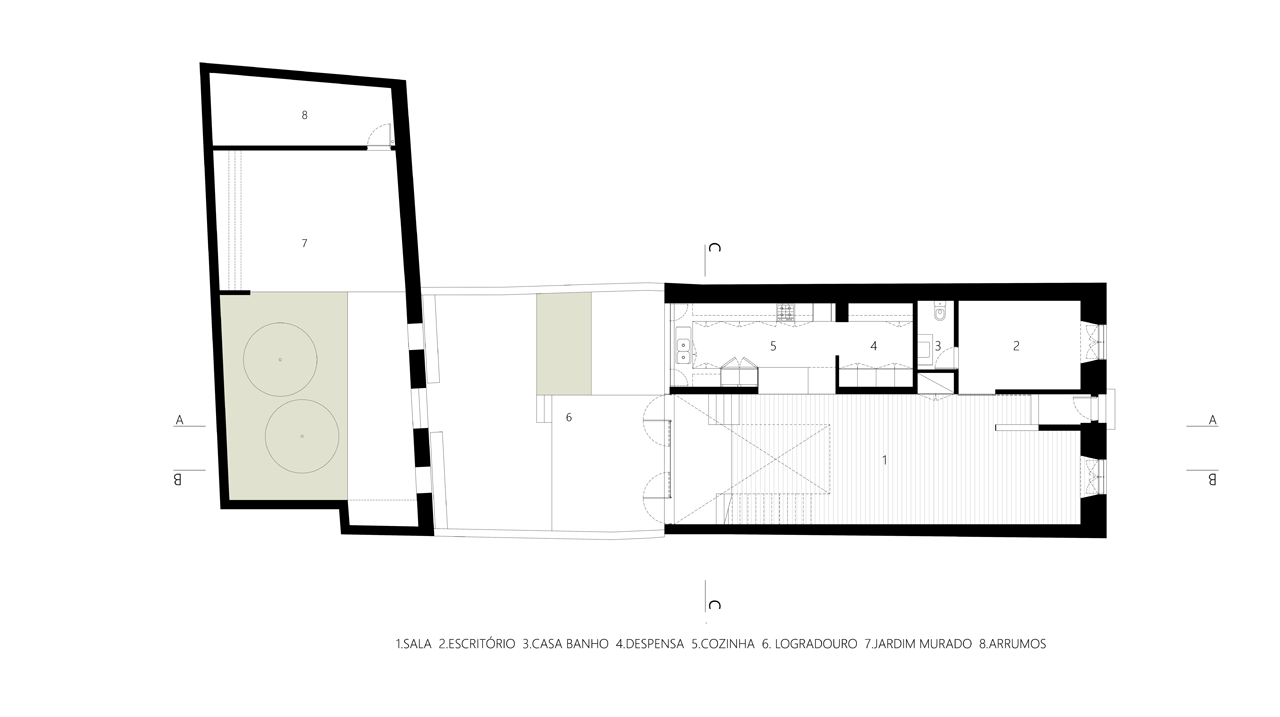

Lower floor plan. Terras 8 house by Colectivo CAIS.

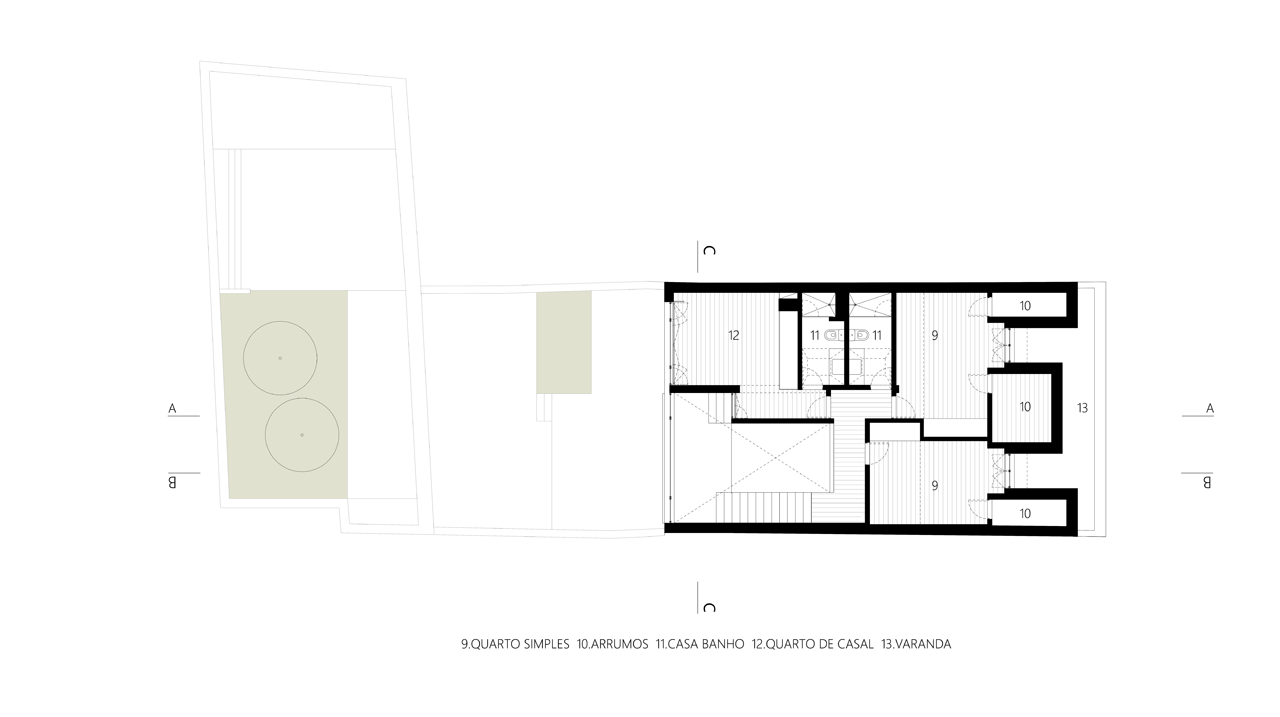

First floor plan. Terras 8 house by Colectivo CAIS.

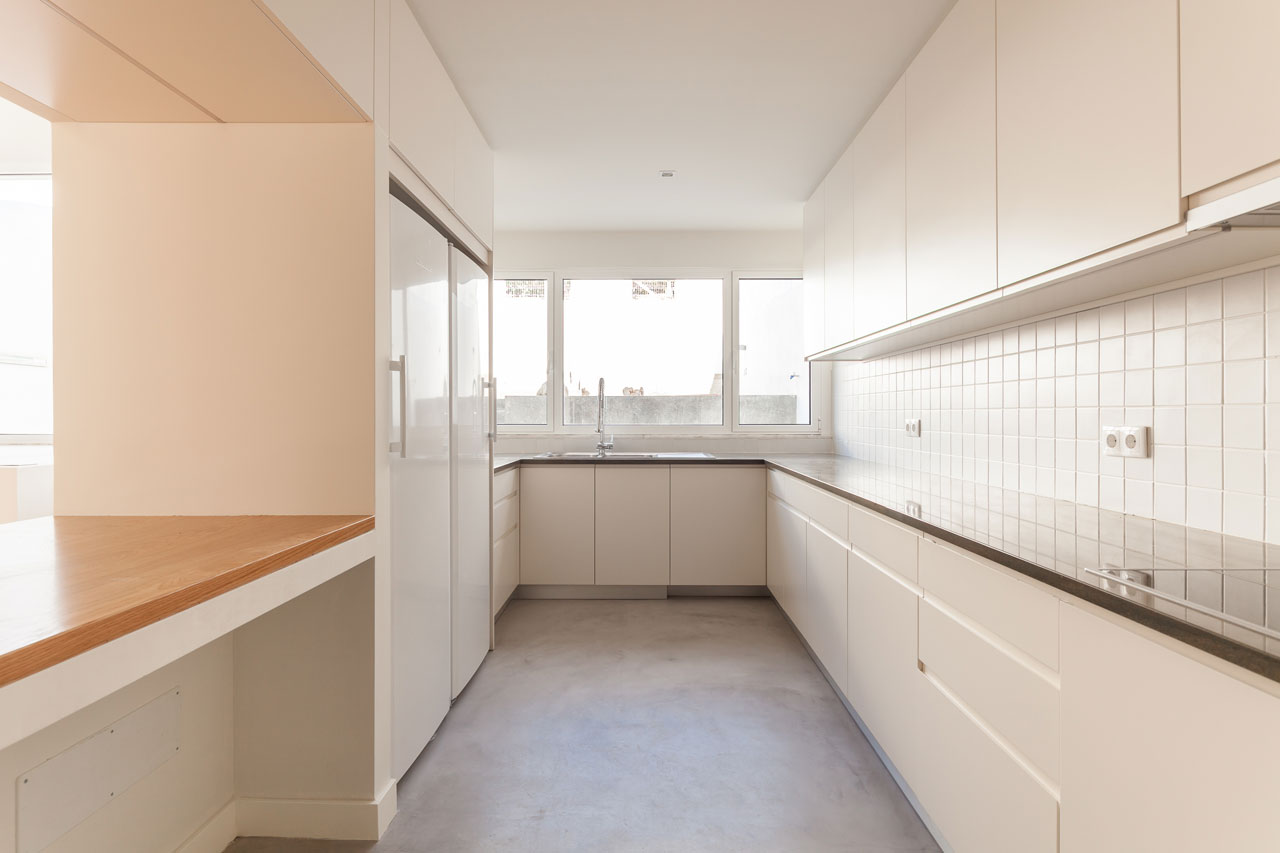

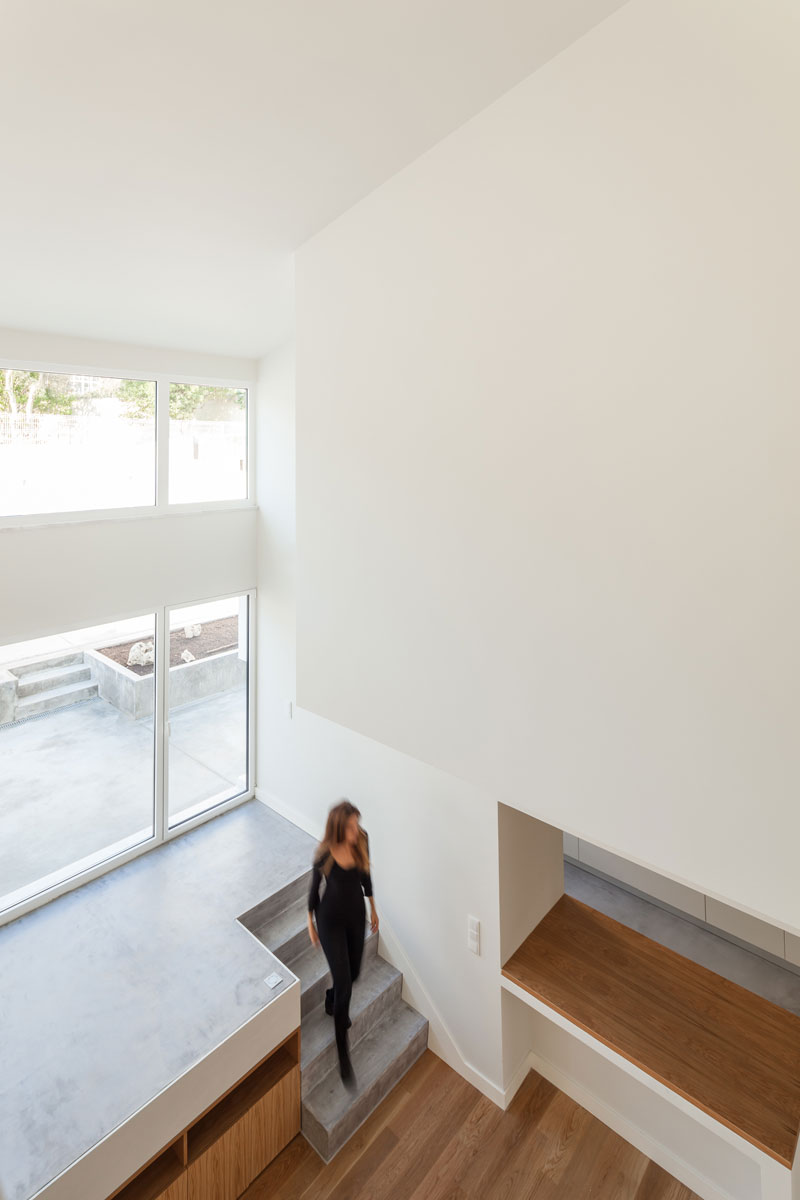

Inside view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

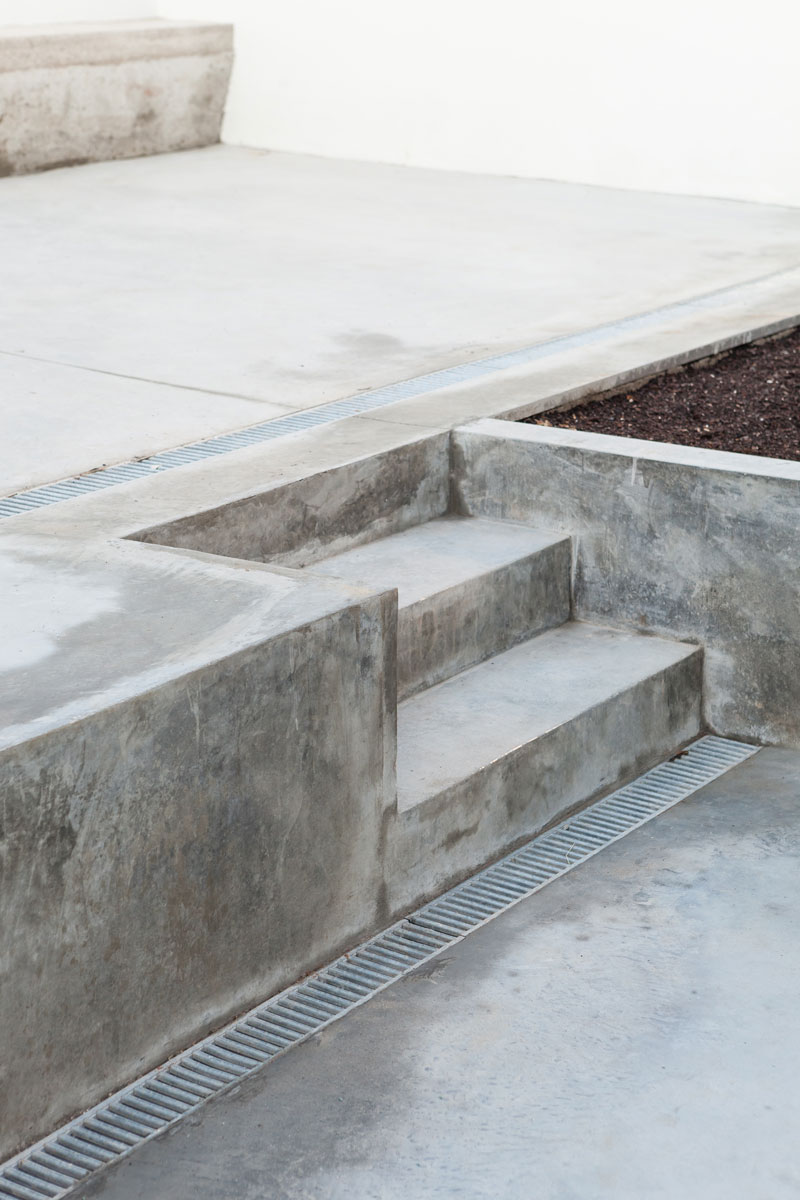

Exterior view. Terras 8 house by Colectivo CAIS. Photography © Francisco Nogueira.

Guilherme Bivar y Marta Pavão, members of Colectivo CAIS, have been responsible for renovating and expanding a one storey house with the ruins of an old warehouse in the same plot that has been converted into a walled garden. The house, to which a new floor has been added, develops in sequential levels to smoothen the height difference and the step from inside to outside.

Description of the project by Colectivo CAIS

Requalification and expansion project of an existing house, set in belém neighborhood, in Lisbon, Portugal. In the existing plot, there was a one store house, a backyard and the ruins of an old warehouse.

The project had the main goal of rehabilitating the existing house and expanding its total area through the addition of an upper floor. The existing front facade (characterized by a higher frieze of historical tiles) was preserved and treated. There was a free reorganization of the internal layout of the ground floor, to hold the social program of the house. The upper floor holds the private house program – rooms.

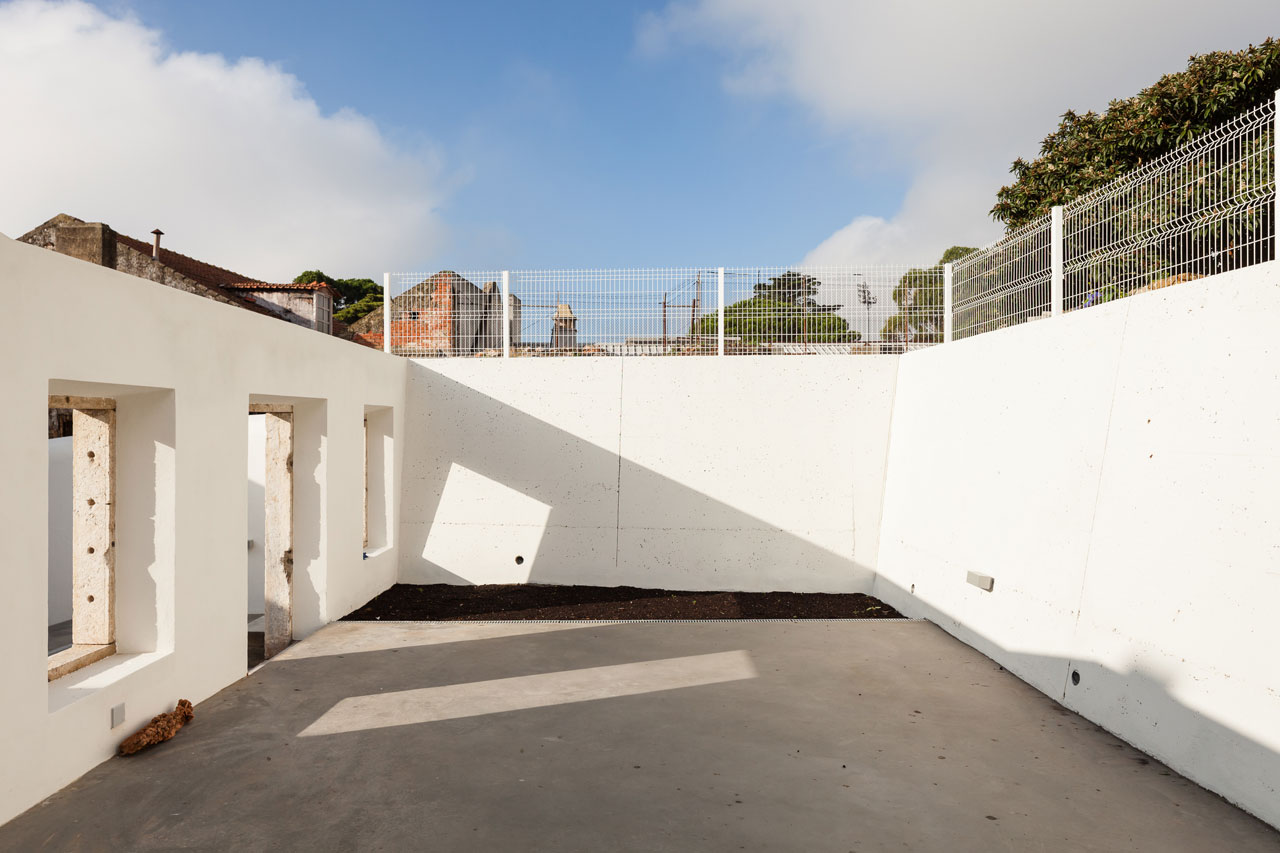

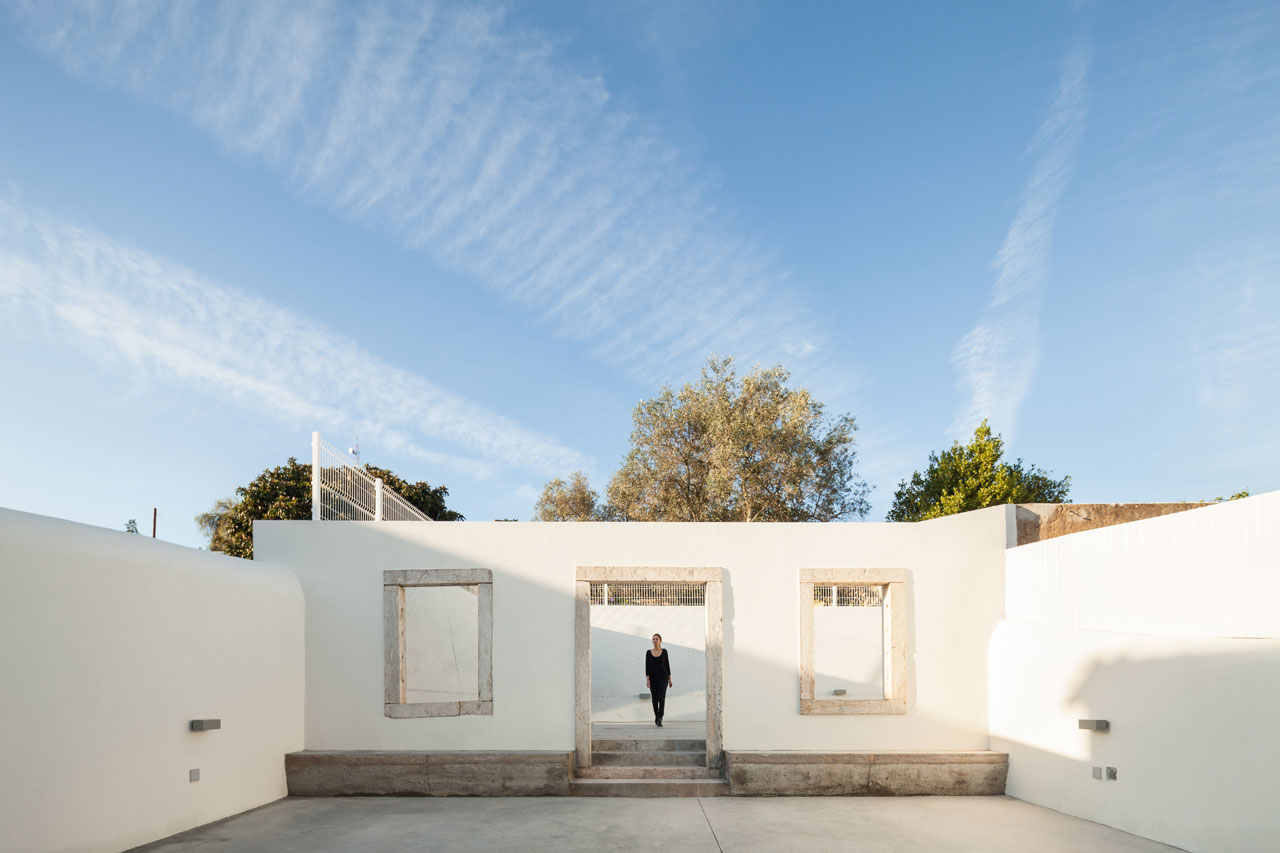

At the backyard, there was a topography arrangement, in order to optimize the relationship between the house and the outdoor areas. The old warehouse was converted into a walled garden, with a small storage at one corner.

From the street entry to the walled garden at the back, the house develops in sequential levels, in order to reduce the significant difference of hights, at the same time promoting a smooth transition between inside and outside. The house has a South-North solar orientation and it is intended for a family composed by a couple and three children.

In the front facade, it was decided to use the green tile, recovering the plasticity of the typical facades of that neighborhood. The main interior covering materials are: wood, sanded and varnished cement, tile and glass mosaic.
