Architecture studio LAOS designed a house renovation for a single user in what was previously a traditional house located between Gracia and the Dreta del Eixample neighborhoods, in Barcelona.

The project does not want to forget the traditional and the architectural value that the Eixample has as a whole, so it will try to unite it and connect it with a contemporary intervention where the flow and openness of the interior spaces will be crucial.
The project is located in a place with great historical, urban, and architectural value, therefore, the intervention of LAOS does not want to get rid of all this, the study works by modifying the spaces and eliminating the large part of the pre-established partitioning of the reform.

The bedroom part is separated from the living room by a large sliding door that could be considered a mobile partition that allows you to continue playing with the opening of spaces and the flows of circulation. The use of color treatment will be crucial, reflecting elegance and simplicity.


Description of project by ​ LAOS

The dwelling to upgrade is located on the fifth floor of a building built in 1910 very close to the imaginary border between Gràcia and la Dreta de l’Eixample. Due to the narrowness of the plot, the building has only two floors per floor and a width of less than 6 meters.

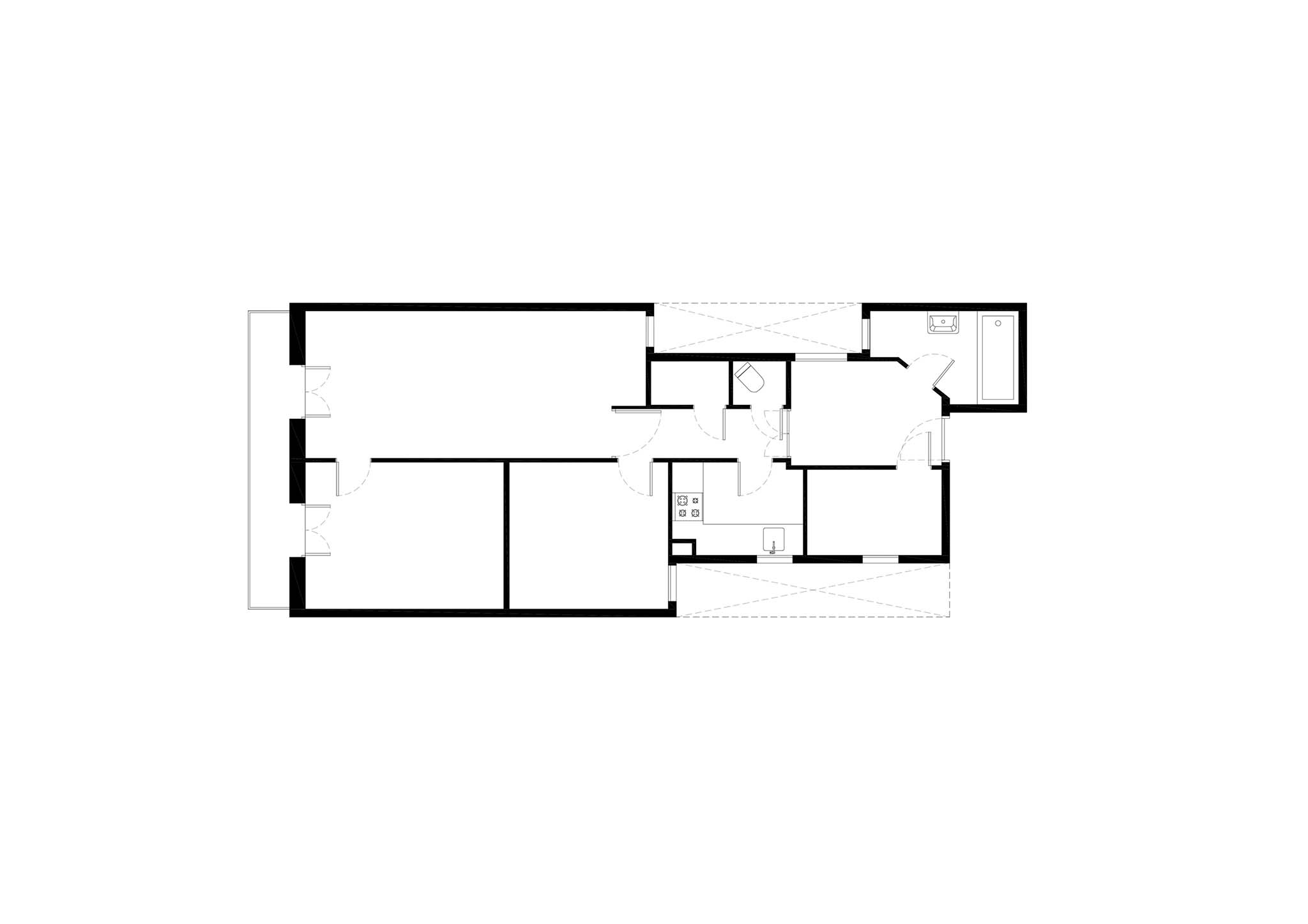

The proposal has two aims: on the one hand to highlight the typical building elements of the Eixample existing in the building. On the other hand, it is proposed to redistribute the flat in order to eliminate circulation spaces and enhance the feeling of spaciousness by offering visuals that cover the maximum dimension of the space, both in width and length. Some project decisions are viable because the reform is designed for a single user, so not much privacy is required.

To perceive the maximum width and length of the space, the following project decisions are made:

- An open kitchen to the acces area is proposed. It is a kitchen which is semi-incorporated in the dining-living room space with which crossed visuals are generated.

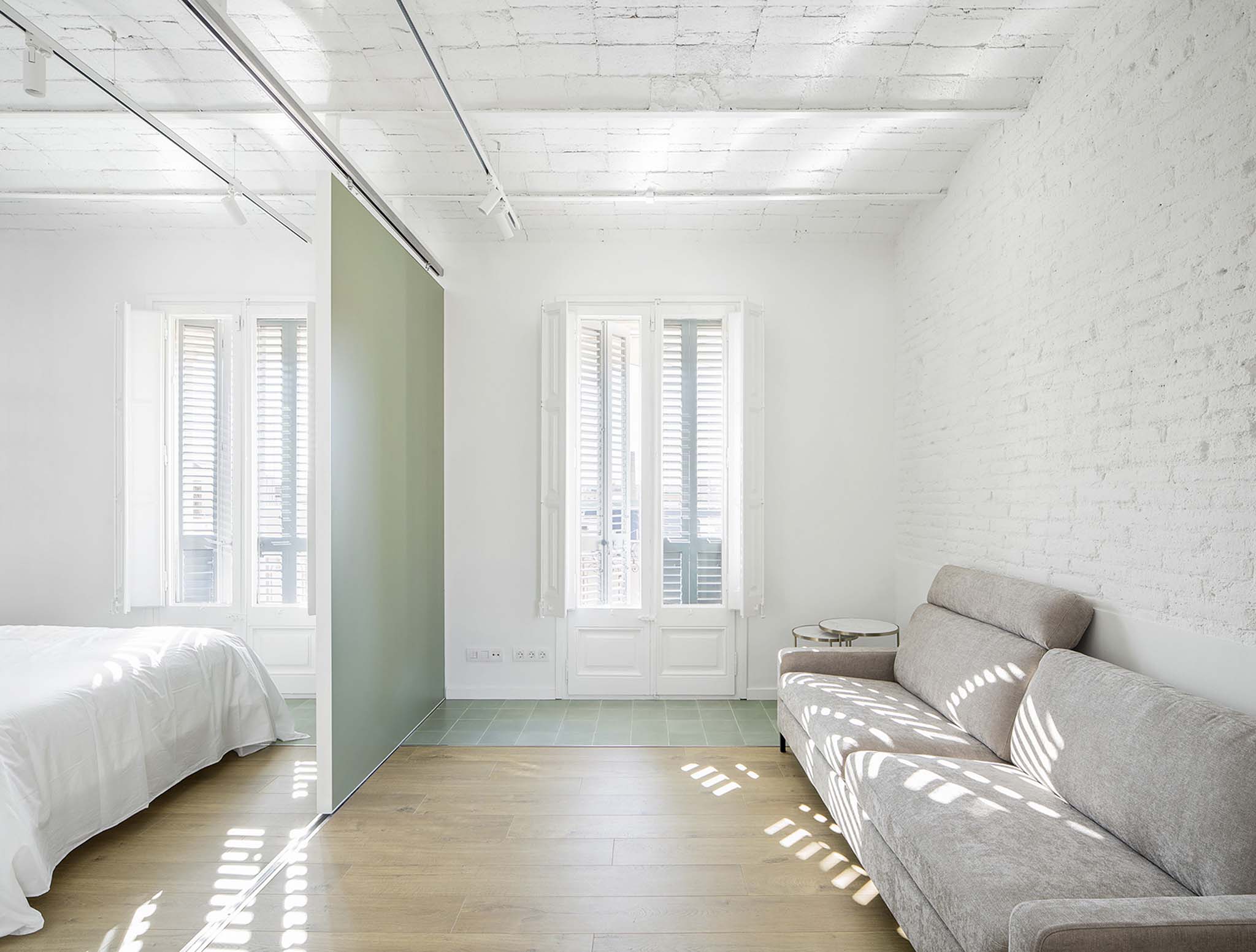

- Two sliding panels of large dimensions that run through a suspended guide of almost 8 meters long separate the living area from the double bedroom allowing to establish different types of relationship between these two spaces.

- We avoid placing any partition between the access door and the façade.

- The arrangement as a sequence of the /bedroom - bathroom - dressing room - kitchen space/ and the position of its doors facing each other offers also a second itinerary between the facade and the access door to the flat.

It has also been sought to highlight the existing elements of the typology. To achieve this, the ceilings are removed and the partition walls are stripped of their cladding in order to create a set of textures. The ceramic vaults and brick partitions are painted in white, emphasizing their texture but avoiding an overly rustic image.

The original carpentry is also restored and recovered and two interior doors with some value are placed in a new position; one to separate the kitchen from the office and the other between the kitchen and the dressing room. It should be noted that this dressing room has the minimum dimensions necessary to be turned into a second room in case it is needed in the future.

Finally, the new partition that runs parallel to the sliding panels and separates the living-dining room from the smaller pieces consists in a ceramic partition raised with large-format pieces. As a coating, again only paint was applied, preserving its texture and establishing a dialogue with the other elements that have received the same treatment.

Read more
Read less

More information

Label
Architects
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Design team
Text
Xavier Botet, Albert Saboya.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
2019.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
Barcelona, Spain.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.
LAOS is an architecture and design studio founded in Barcelona in 2018 by the architects Xavier Botet (ETSAB-UPC 2010 | Master in Calculation of Structures 2012) and Albert Saboya (ETSAB-UPC 2009 | Master in Restoration of Architectural Monuments 2013).

The studio understands architecture as the necessary conjunction between functionality, rationality and aesthetics; a tool and opportunity to improve the conditions of a place and the people who inhabit it.

The practice of the studio encompasses projects of very diverse scales and typologies, ranging from housing refurbishments and interior design to public facilities.

With the utmost rigor, from the first sketches to the execution phase, the aim of the studio is to carry out a constant exploration and investigation of new solutions and systems to achieve buildings integrated with the environment and with the maximum use of available natural resources.
Read more
Published on: October 22, 2020
Cite: "Visual relationships and open space. 1907.H Dwelling refurbishment in Barcelona by LAOS" METALOCUS. Accessed
<https://www.metalocus.es/en/news/visual-relationships-and-open-space-1907h-dwelling-refurbishment-barcelona-laos> ISSN 1139-6415
