Anaz House, designed by Garciagerman Architects, is located in San Vitores, a town in the municipality of Medio Cudeyo, Santander, in the north of Spain.

It stands out for the historical character of the territory and for the grazing activities of the area.

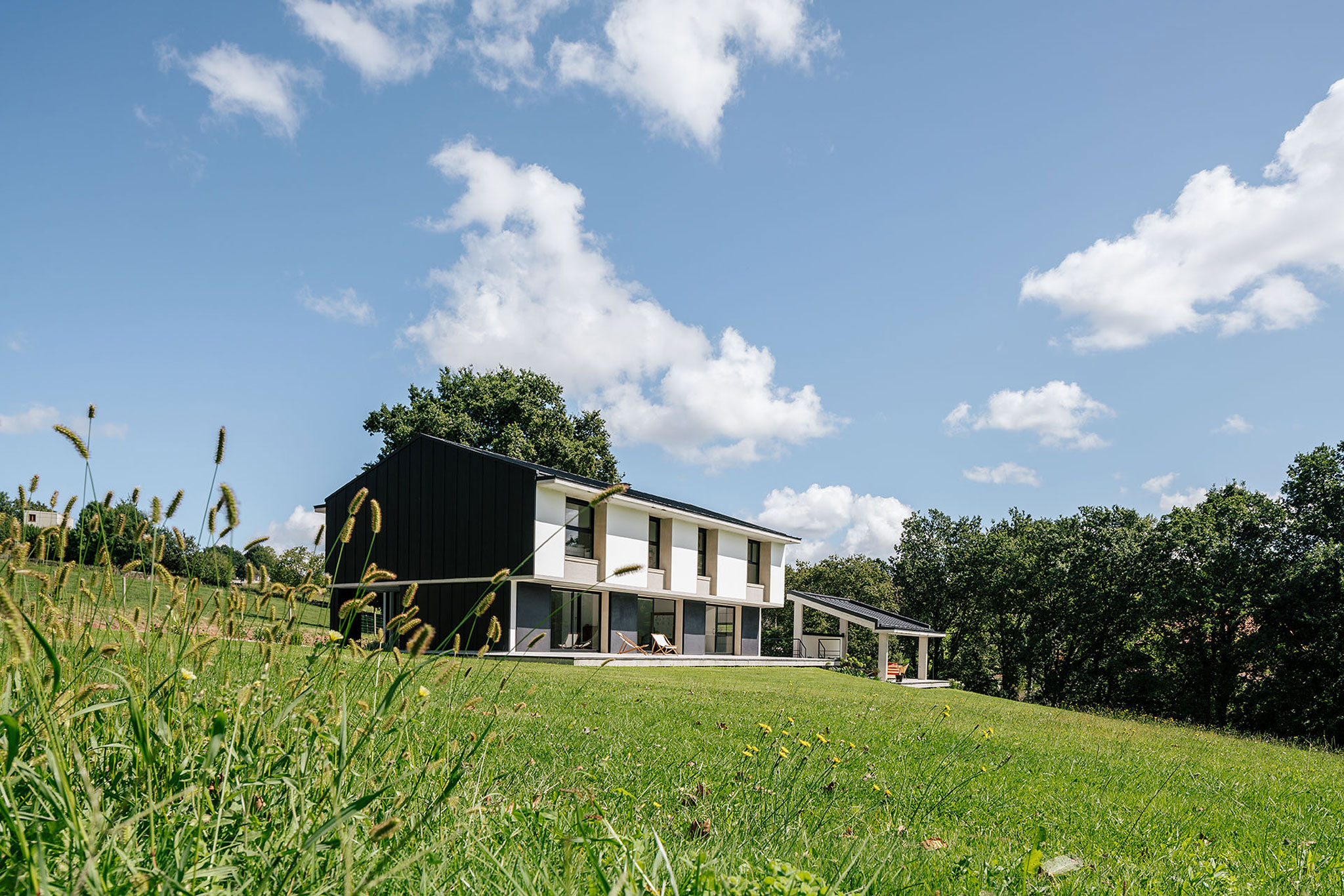

For the Anaz House, Garciagerman Architects are based on the traditional architecture of the area with a gabled pavilion reminiscent of the northern mountain dwellings. The elevation with respect to the uneven terrain and the summer sub-pavilion, create a simple set in harmony with the surroundings.

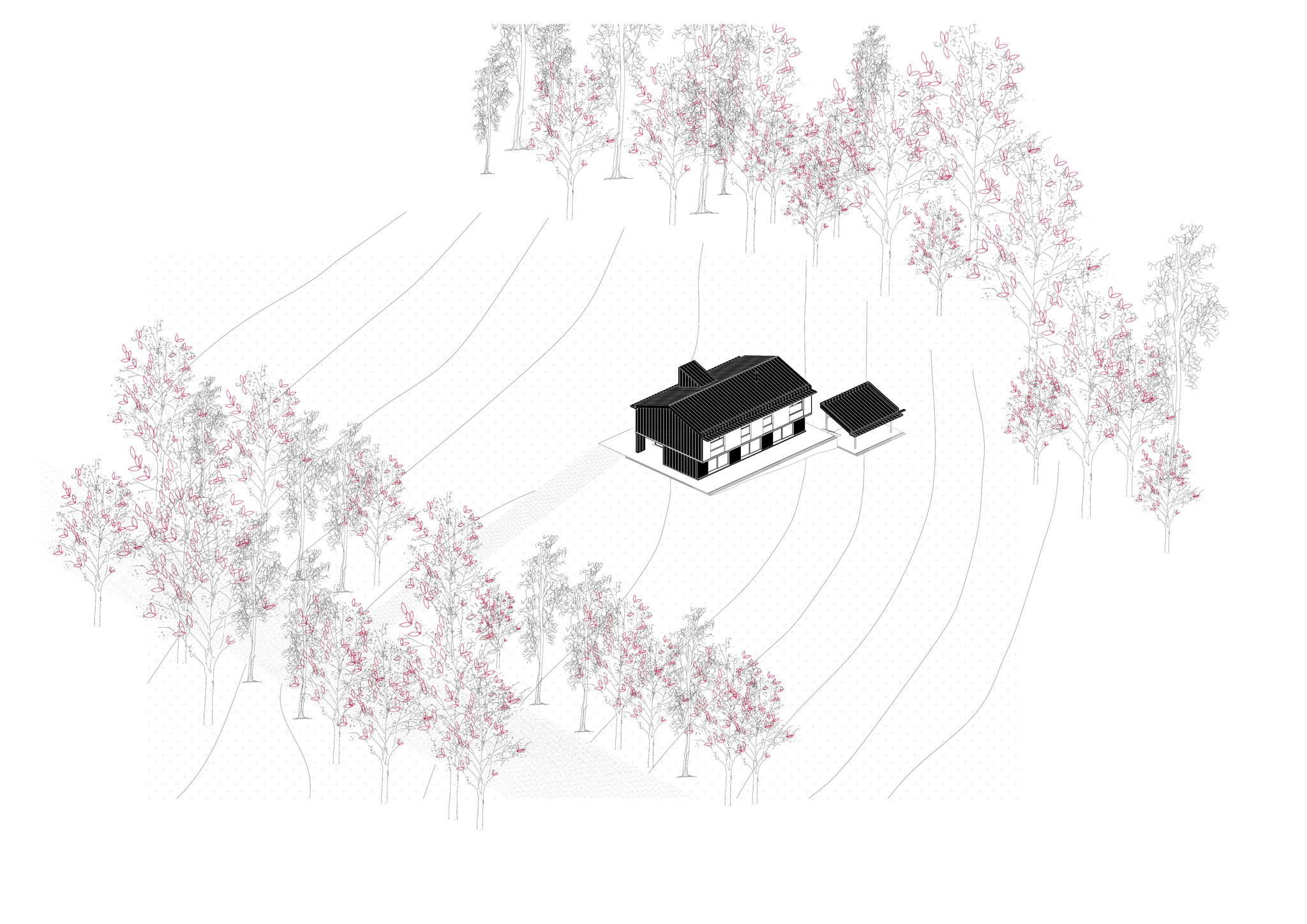

The project takes advantage of the area's conditions, covering itself with nearby trees in the east and west areas, while the north and south facades appear free of obstacles and with openings to capture natural light and cross ventilation.


Description of project by GarciaGerman Architect

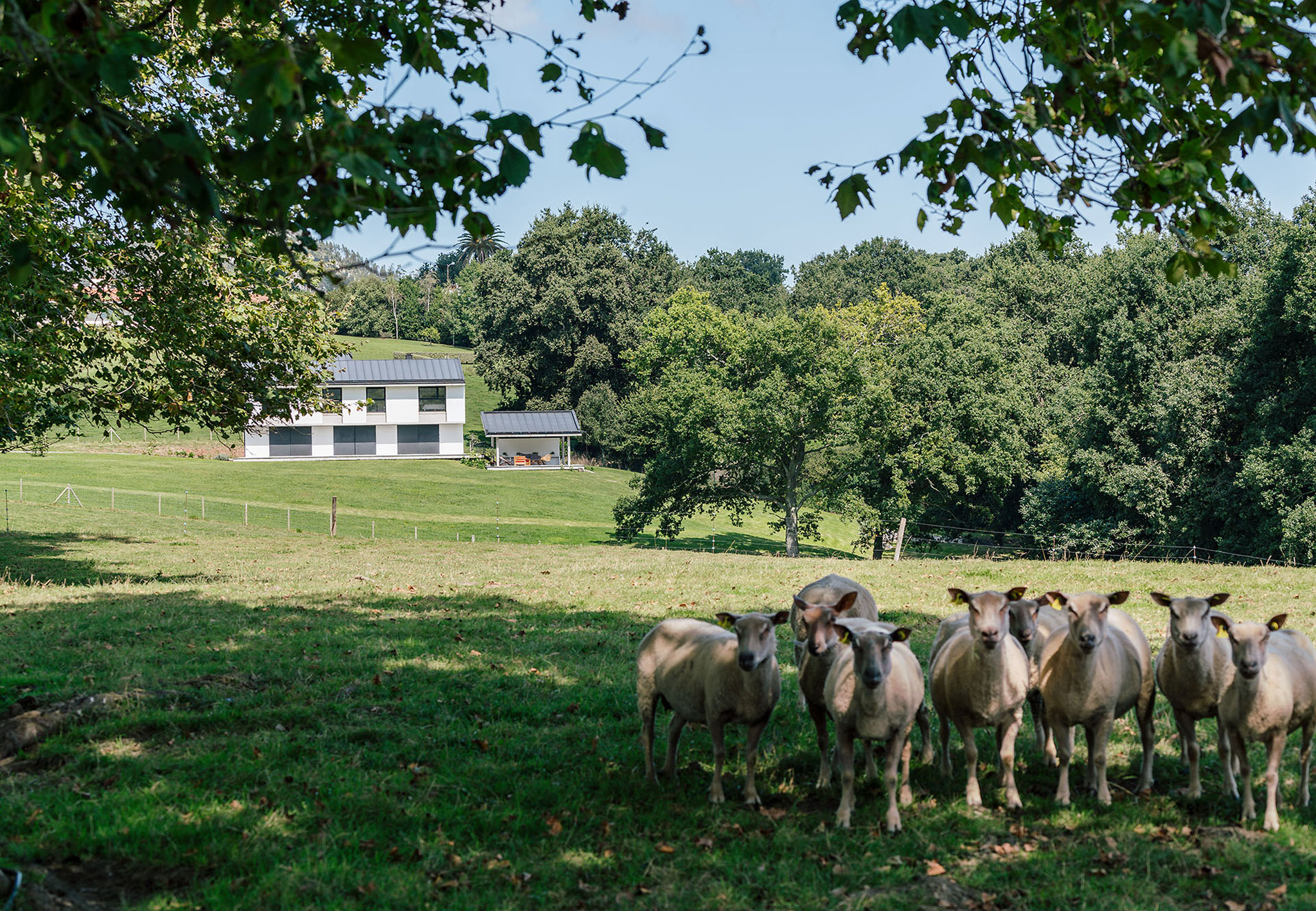

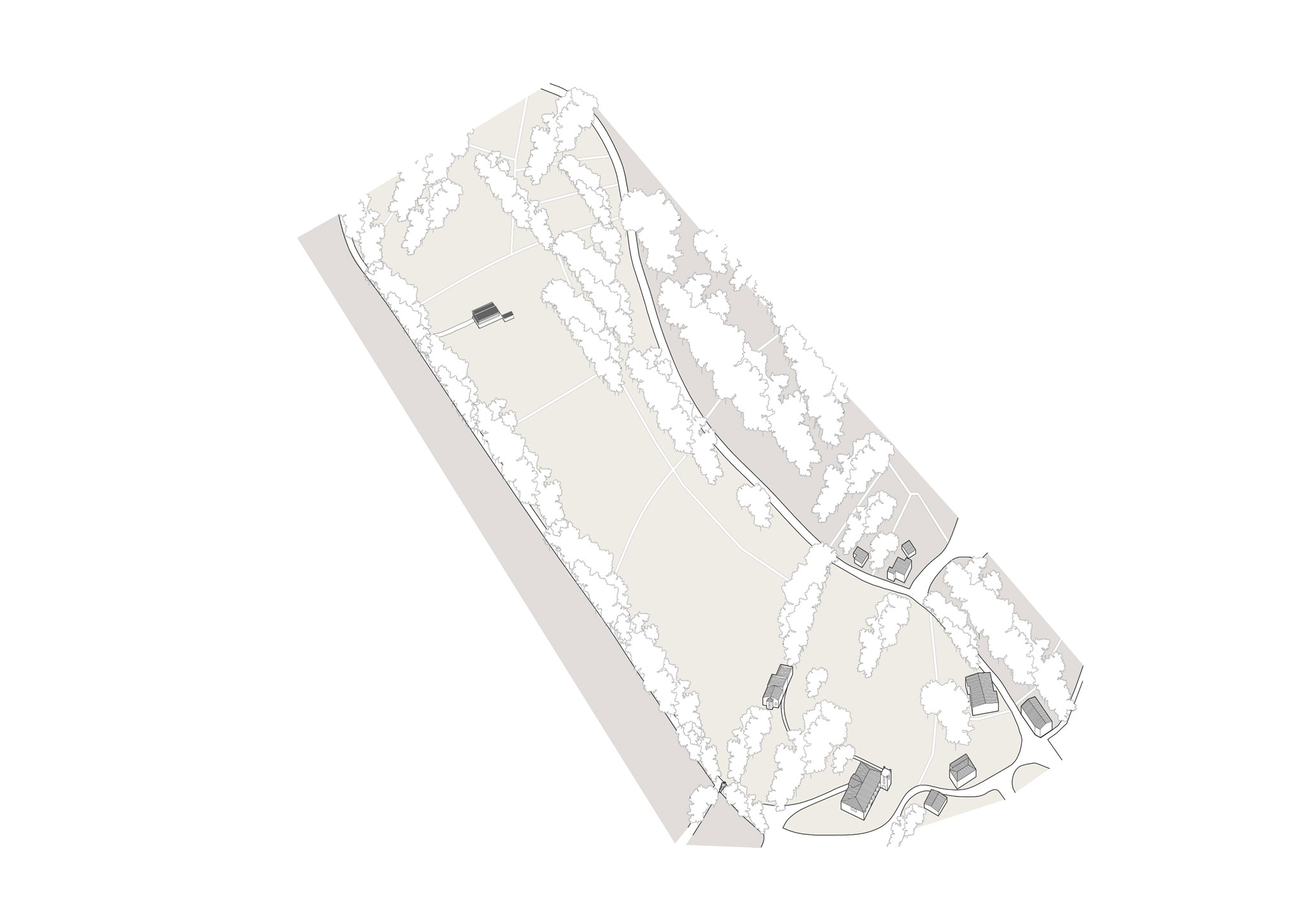

The Project is located in a rural enclave close to the village of San Vitores, a few kilometres away from the Atlantic Coast, and in the former grounds of the Torreánaz Palace. Once a grand property surrounded by a small settlement, the Torreanaz Palace lies at the end of a long plane-tree covered path leading to its gateway. Both the gateway and one of the palace’s stables, a detached pavilion, were designed by Spanish Regionalist architect Leonardo Rucabado in the late XIX century. The whole area constitutes a Protected Landscape, with listed historic constructions coexisting with traditional grazing activities.

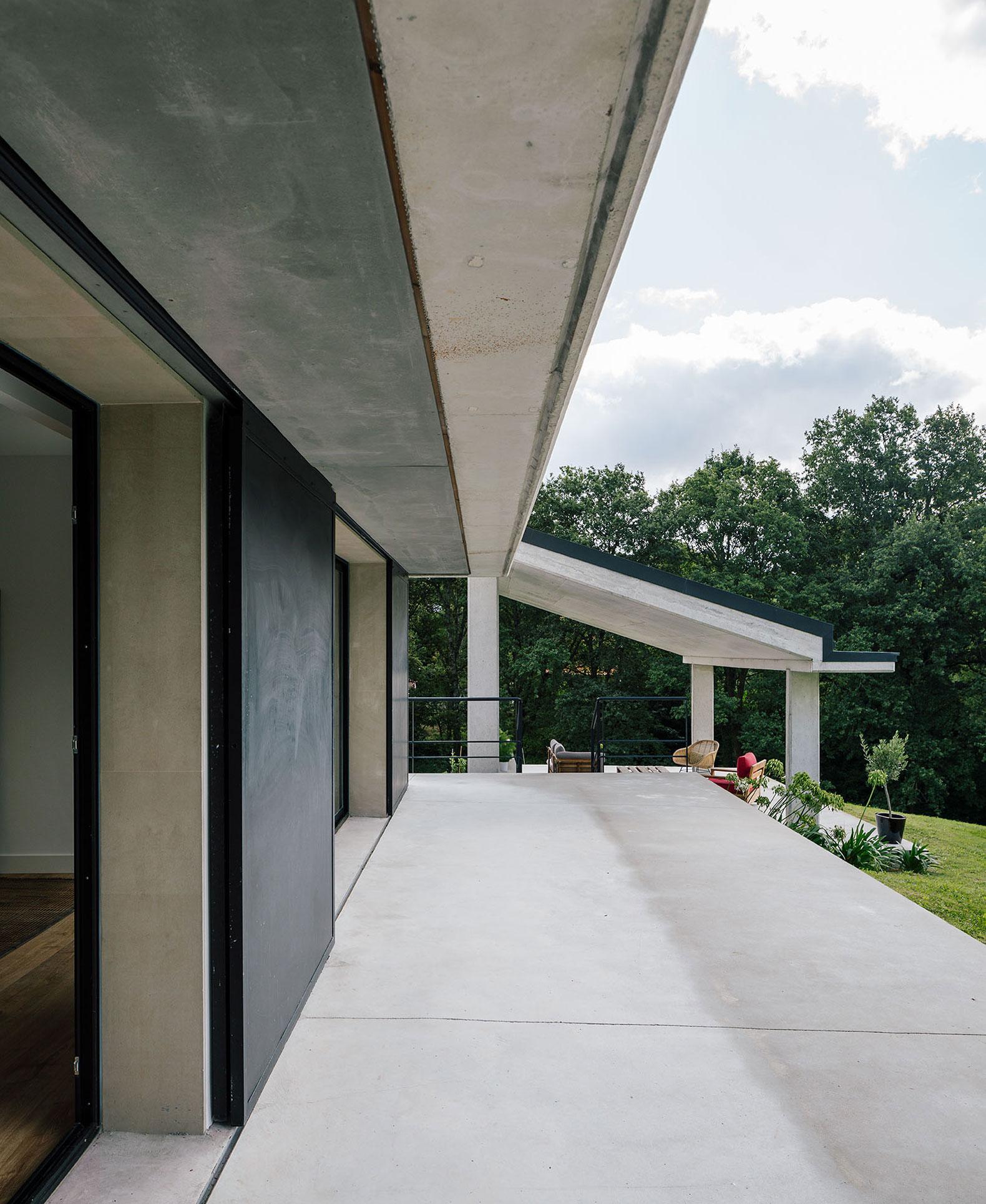

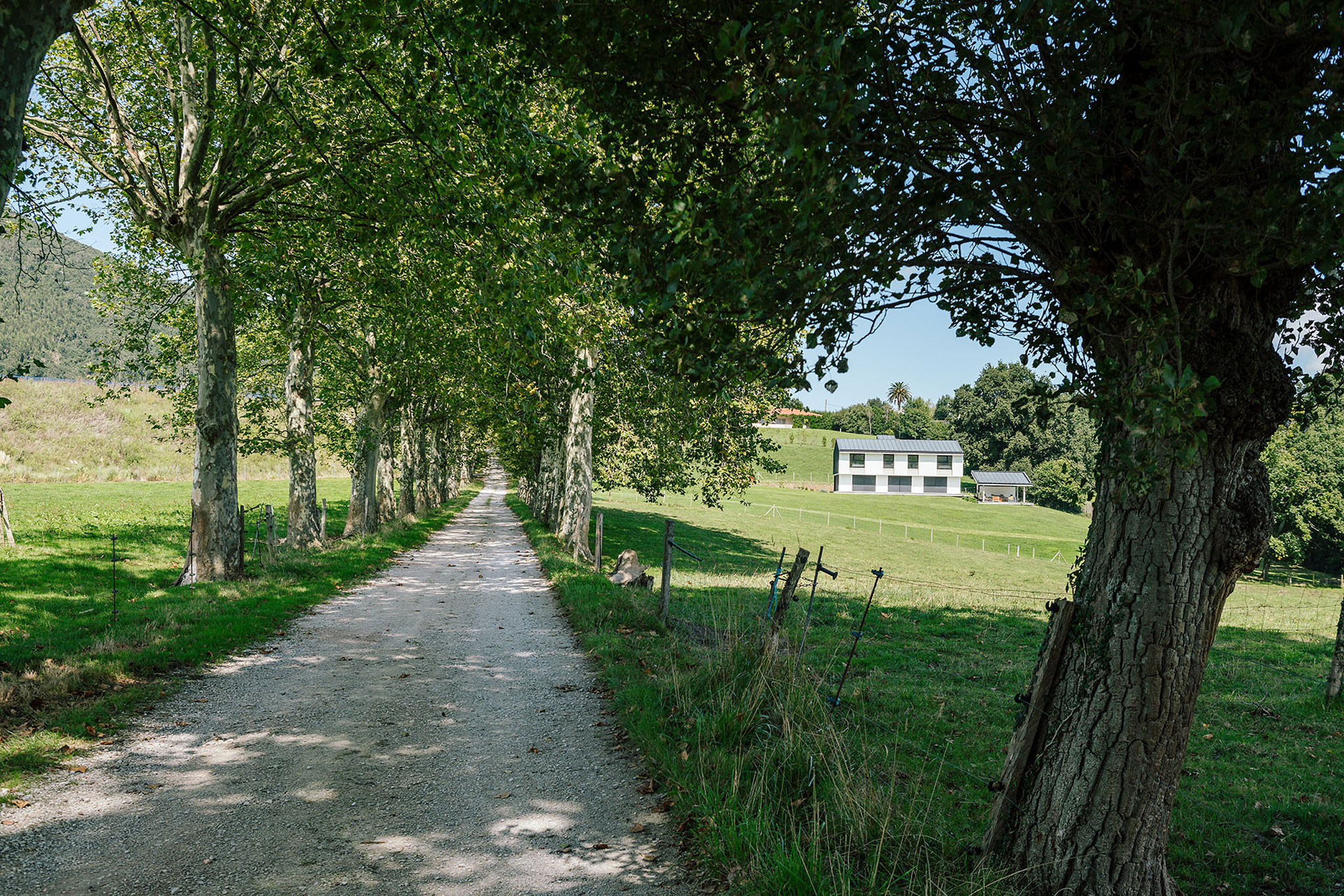

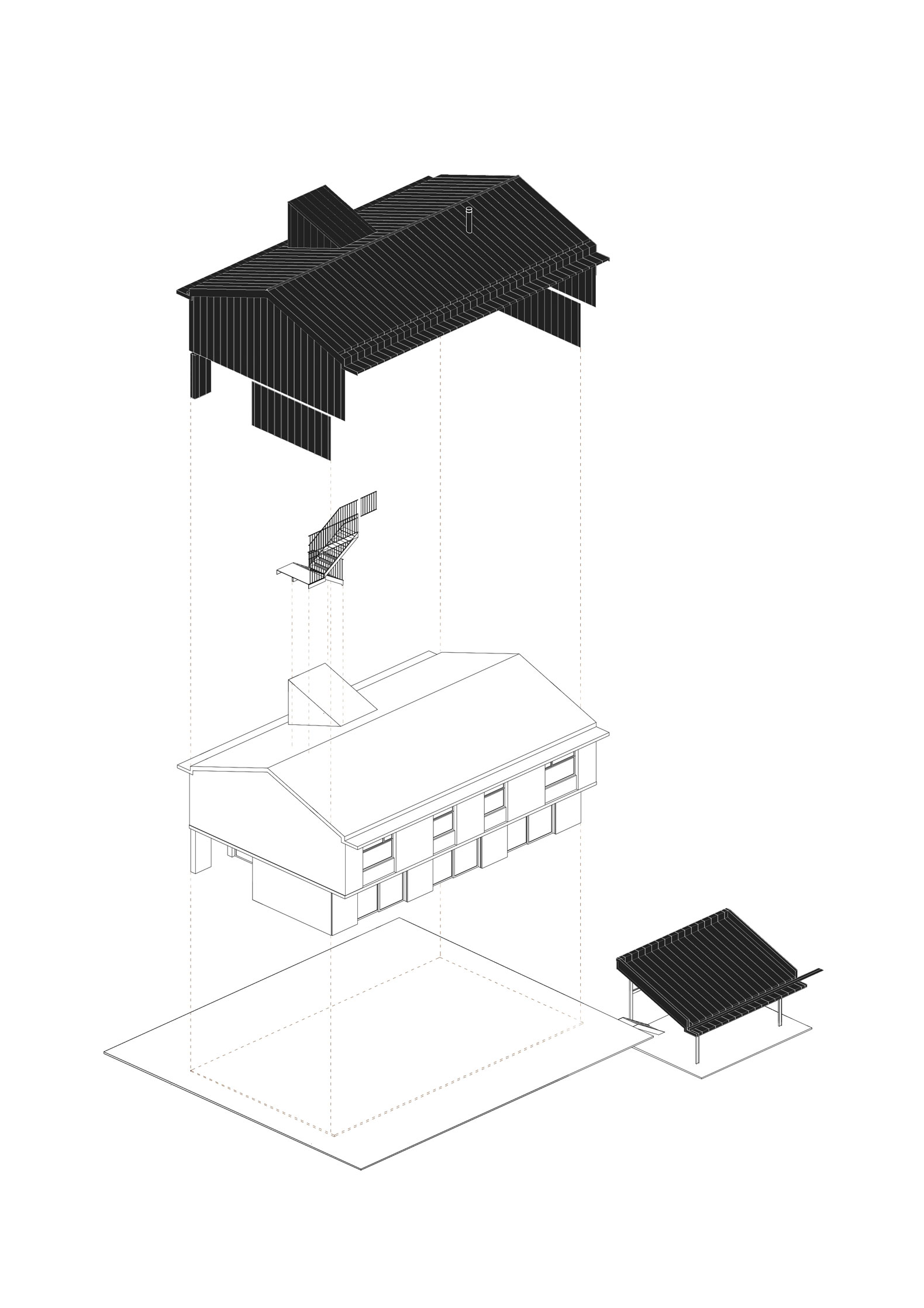

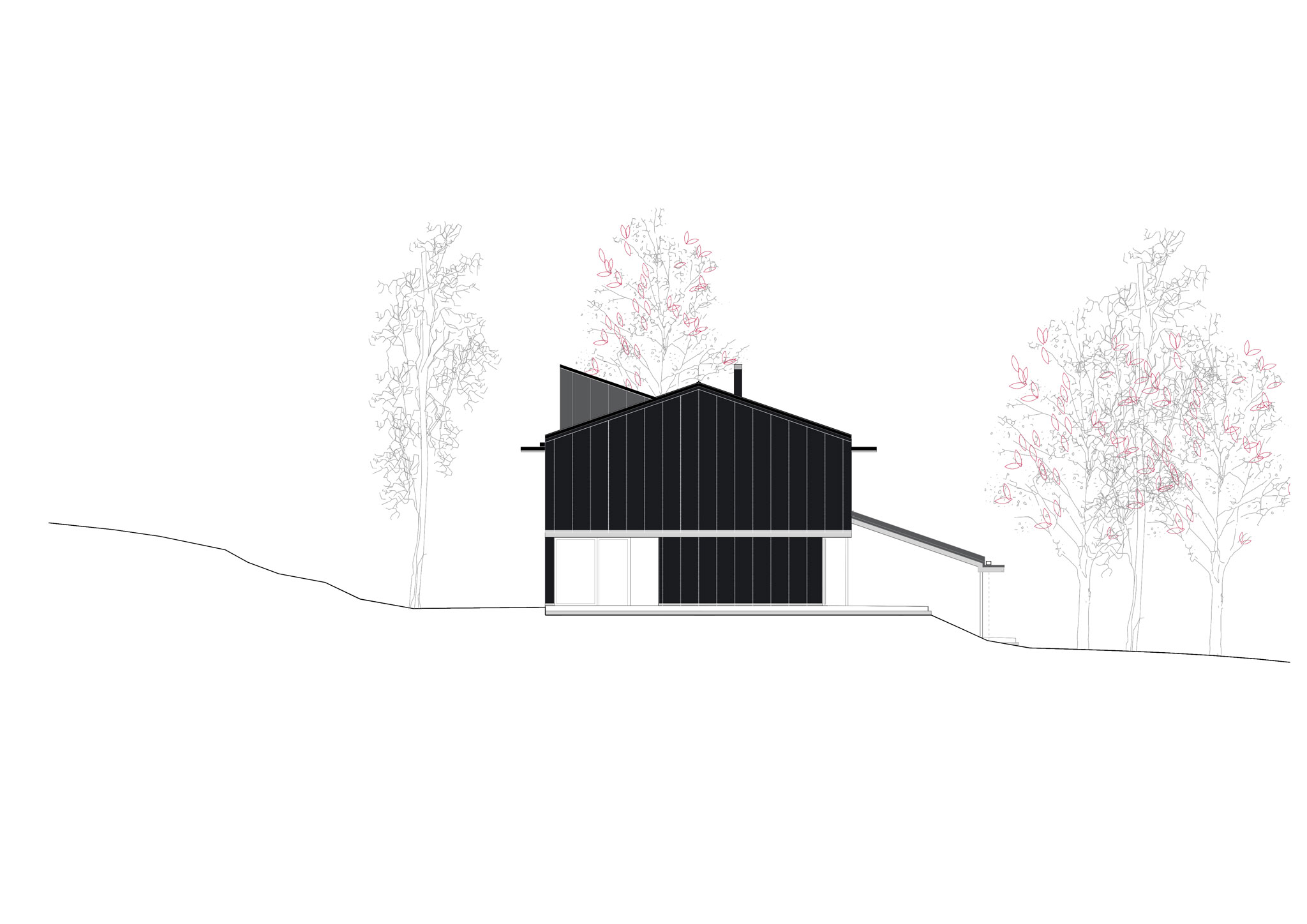

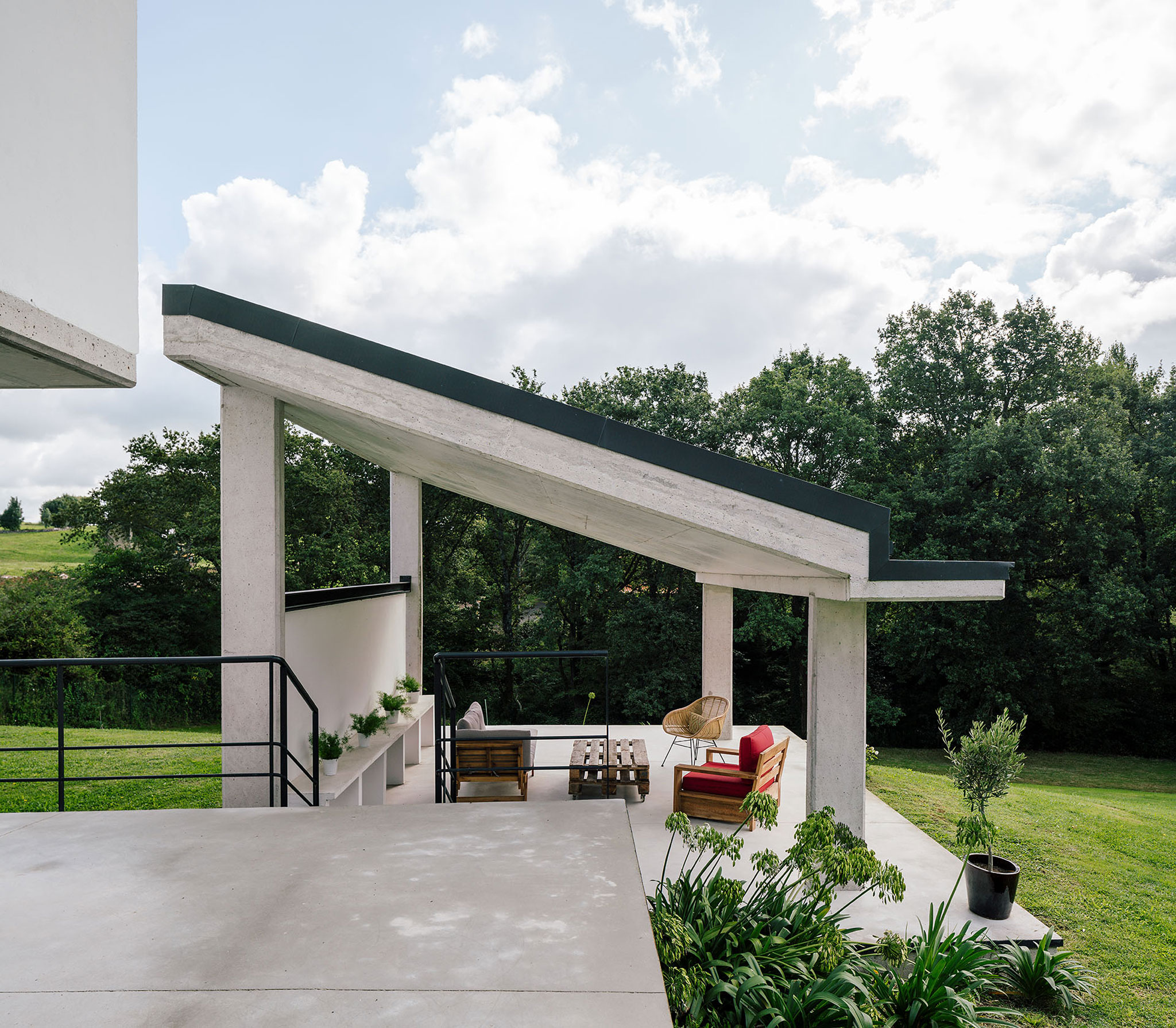

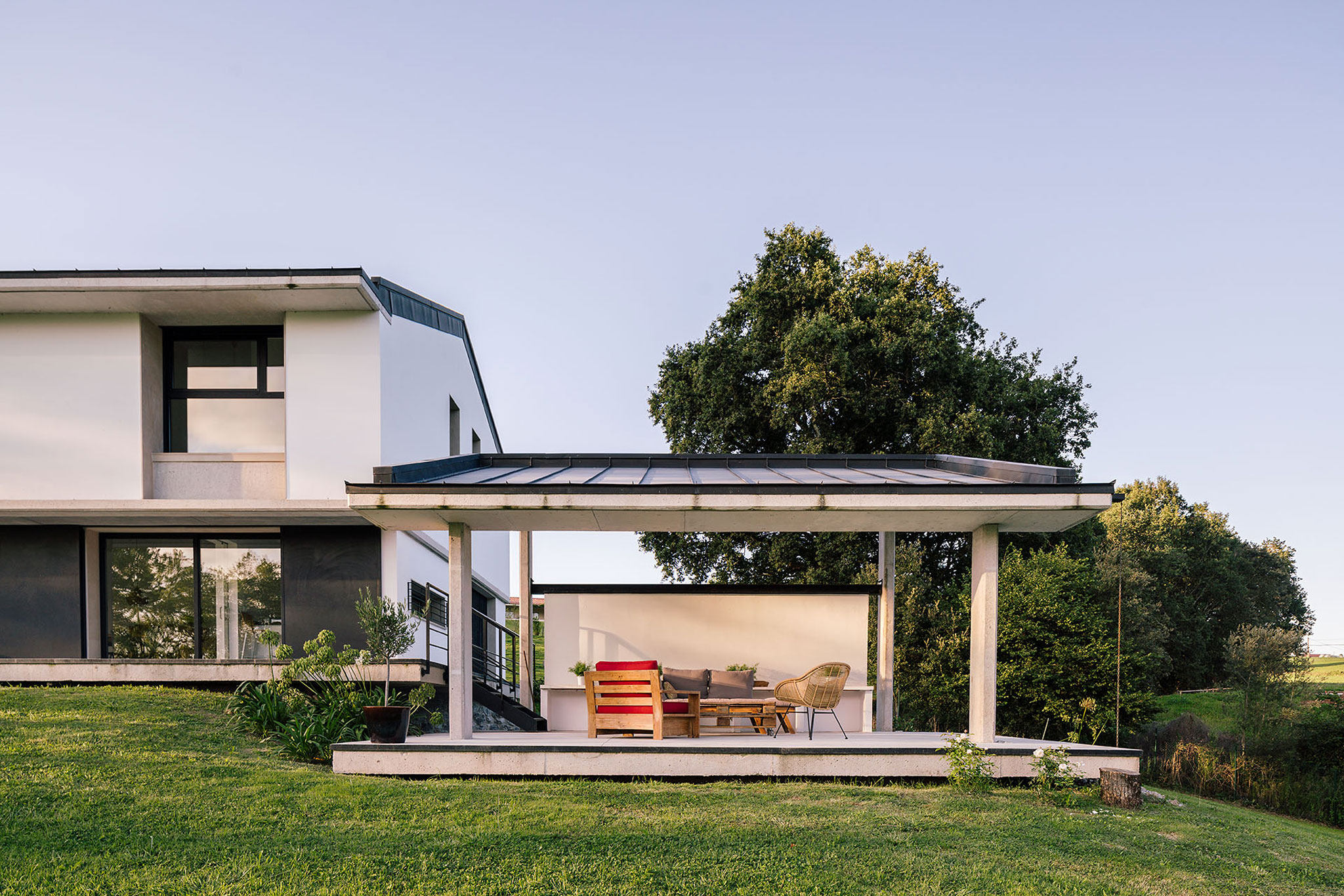

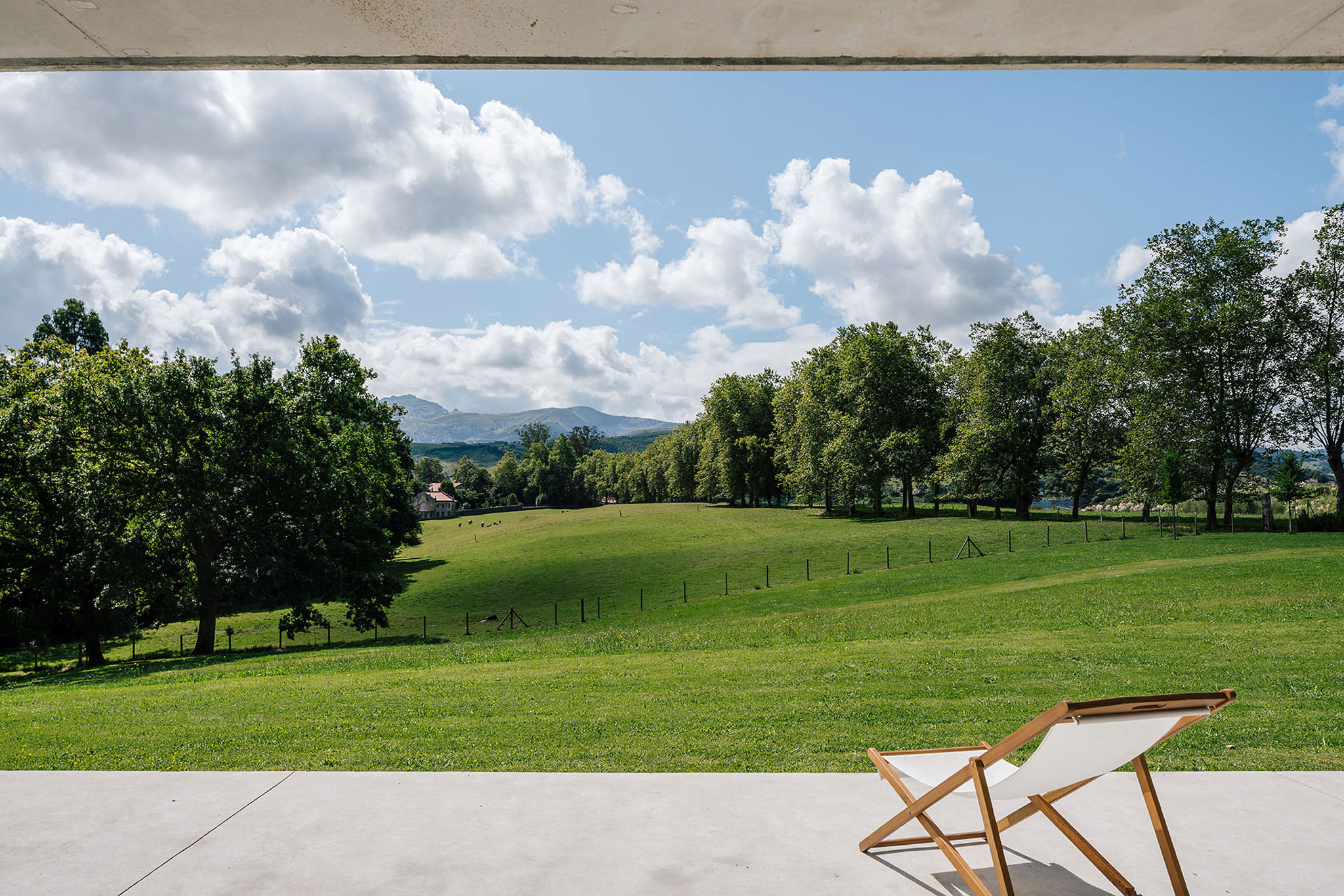

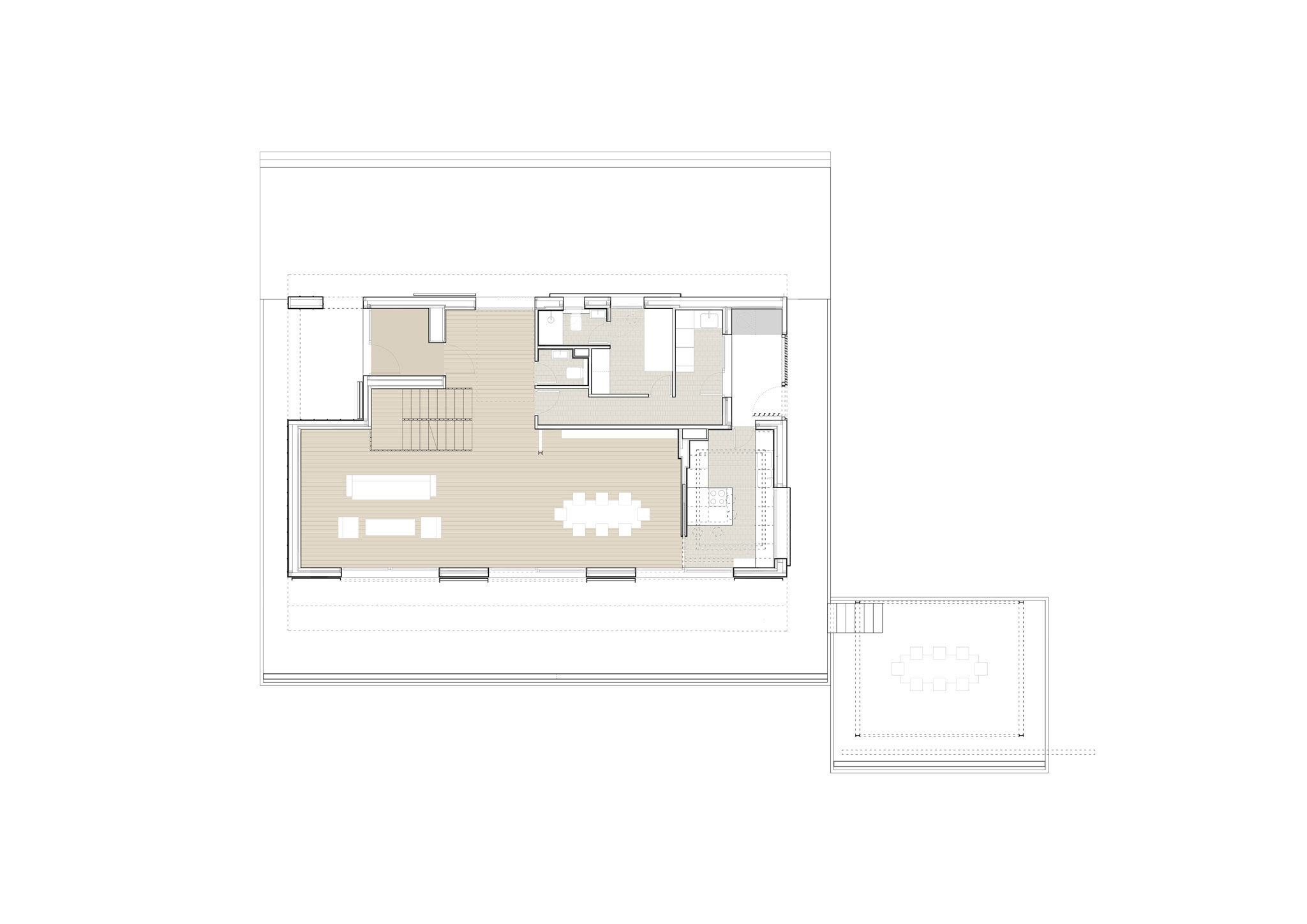

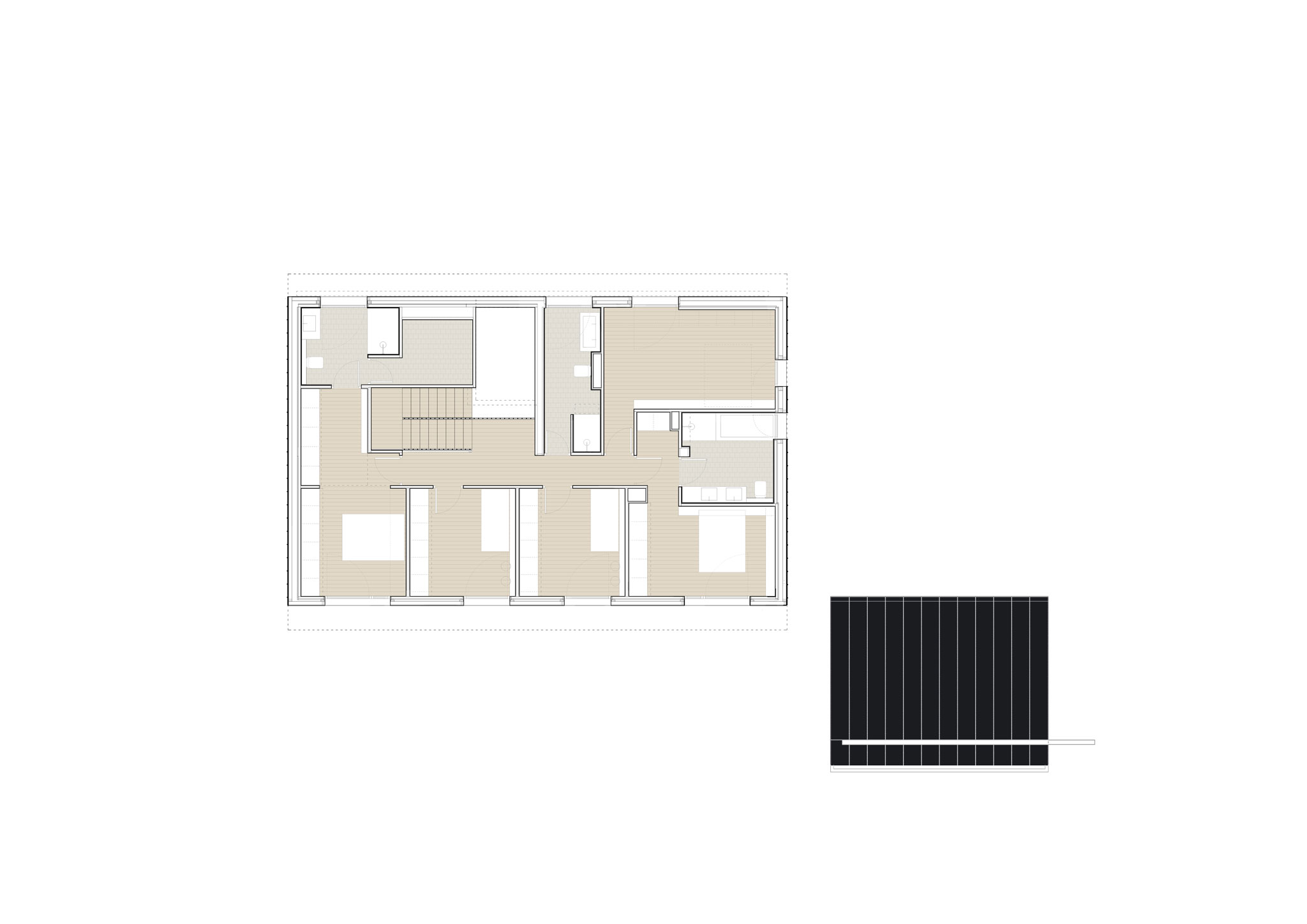

The house lies adjacent to the plane-tree covered path, and can be understood as another pavilion along the way to the palace’s entrance sequence. As such pavilion, its typological and organizational layout is straightforward, and comes from a direct interpretation and miniaturization of those in the rural “casonas” or local country homes: a regular and compact gabled volume, slightly elevated from the slope and surface runoff, sun-oriented and whose proportions have been outlined to optimise cross-ventilation, without ignoring the need for certain bay depth in this oceanic climate. This volume is accompanied by a porticoed open sub-pavilion, dedicated to breakfast, dining and entertaining in good weather.

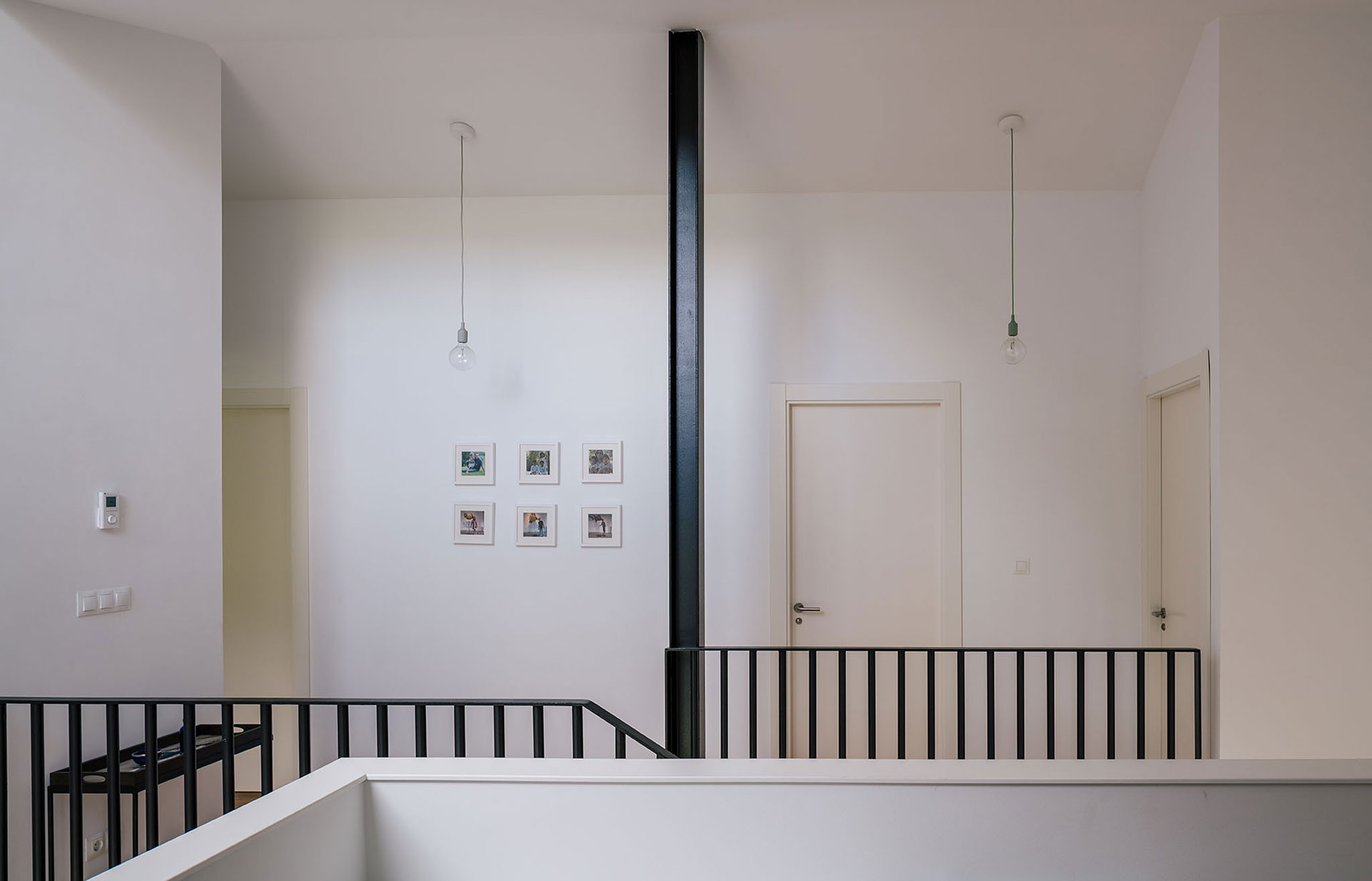

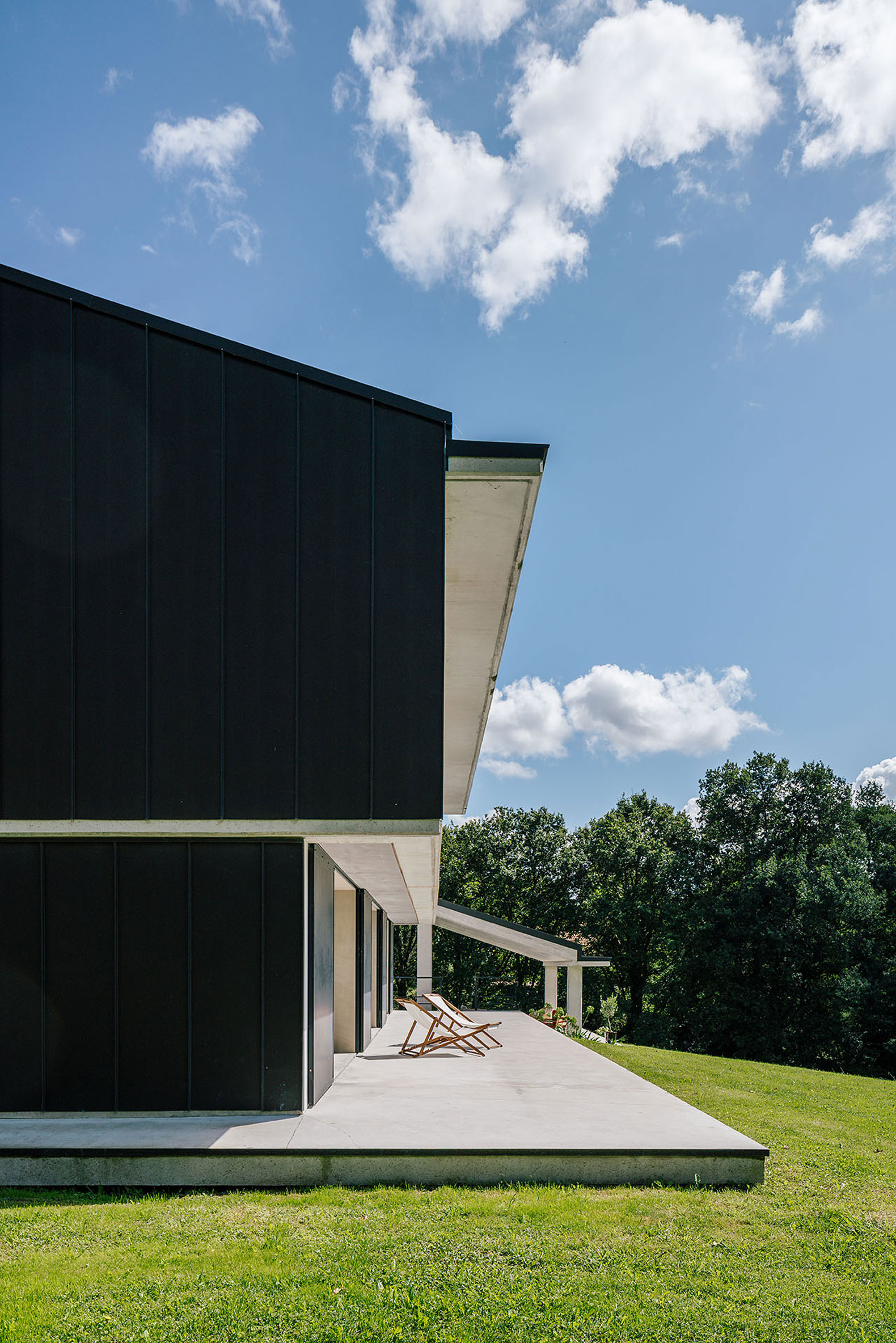

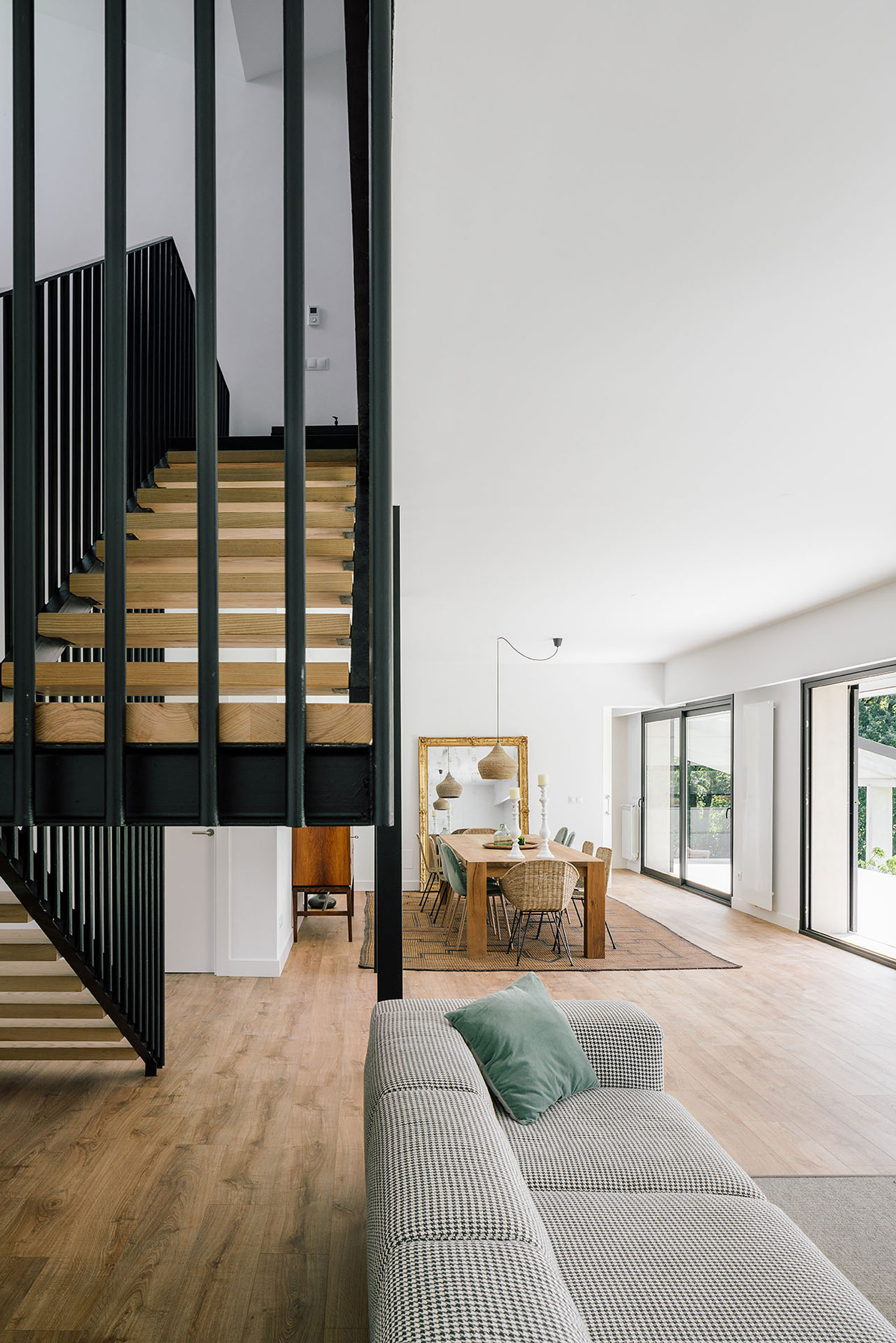

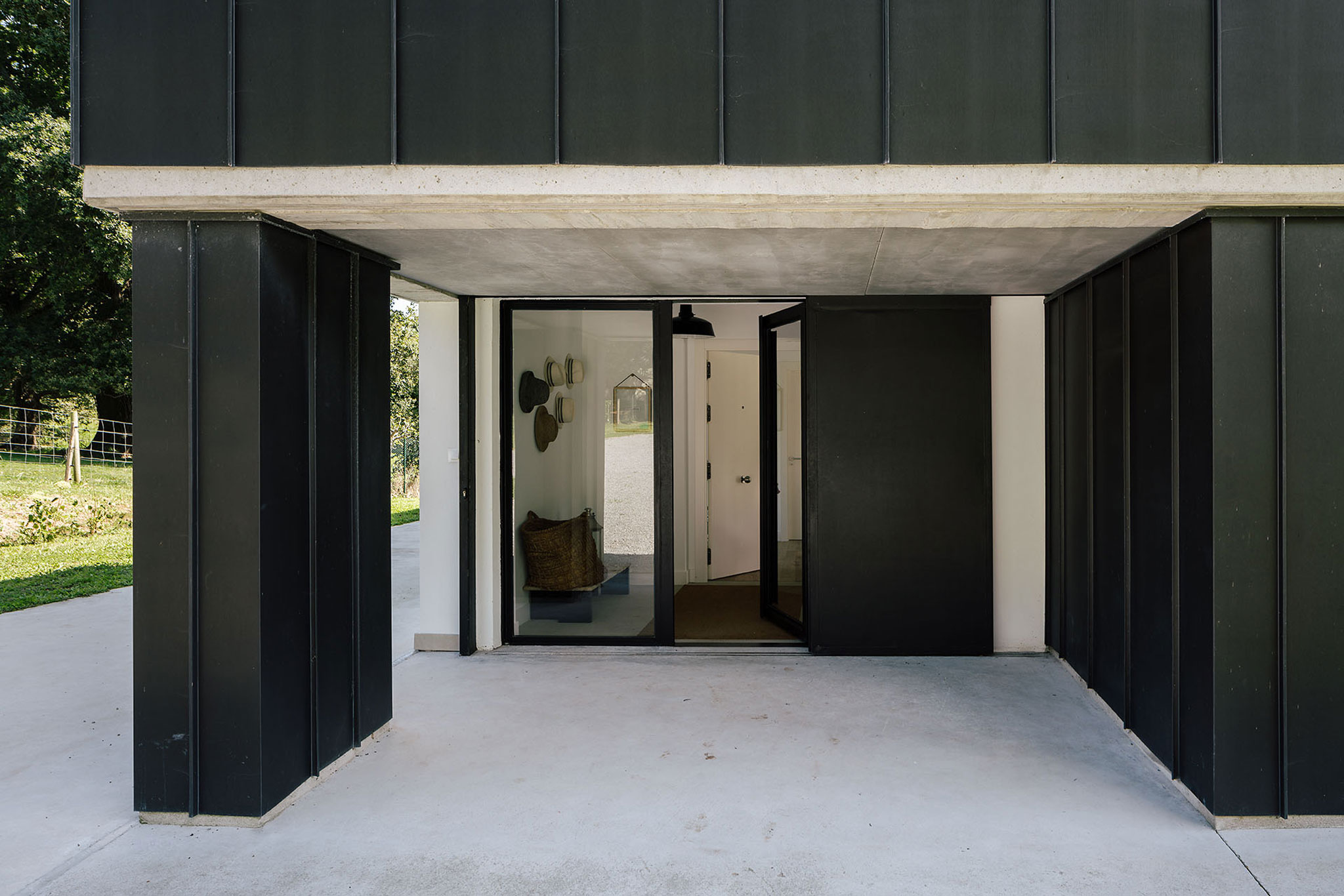

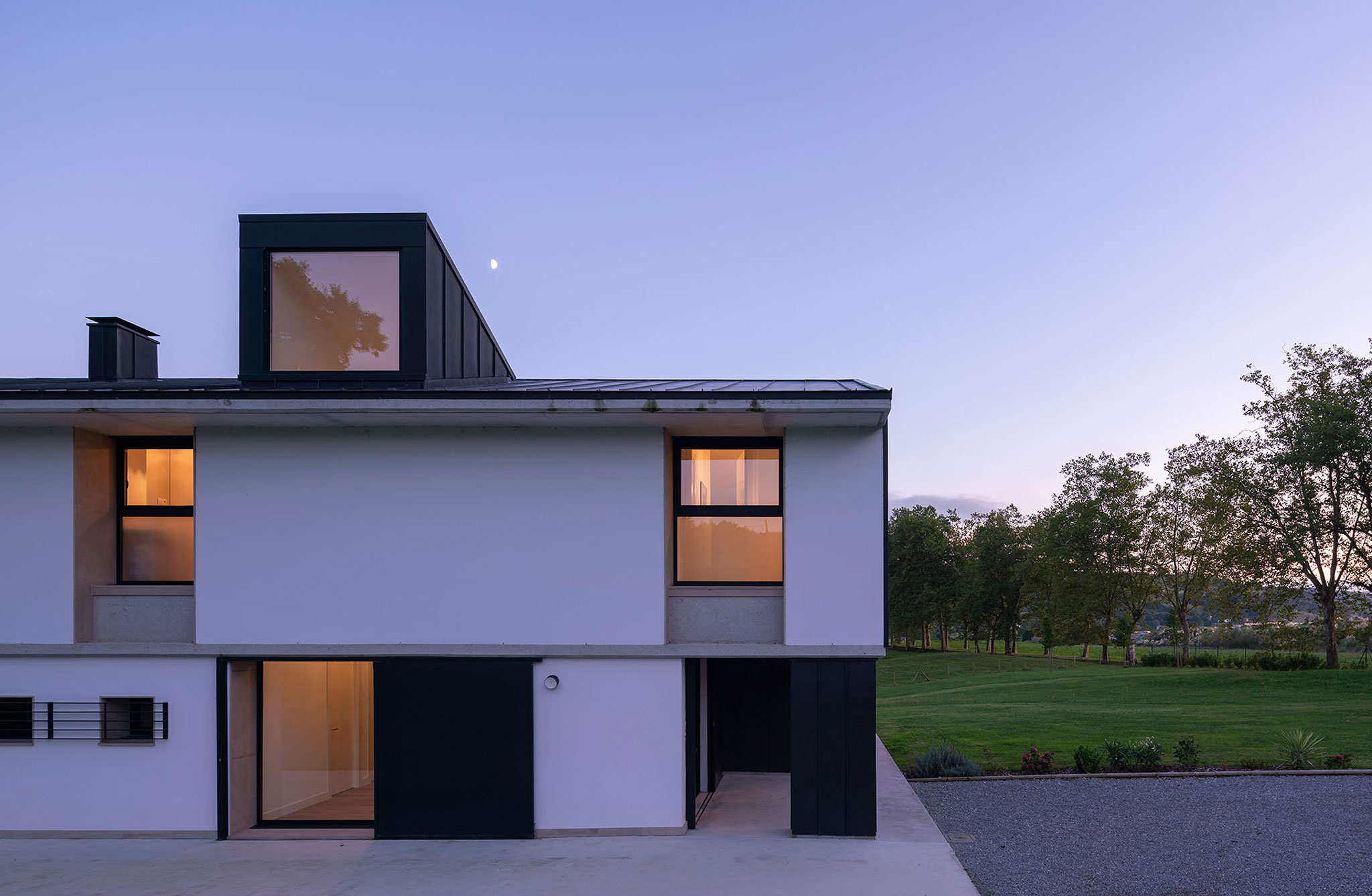

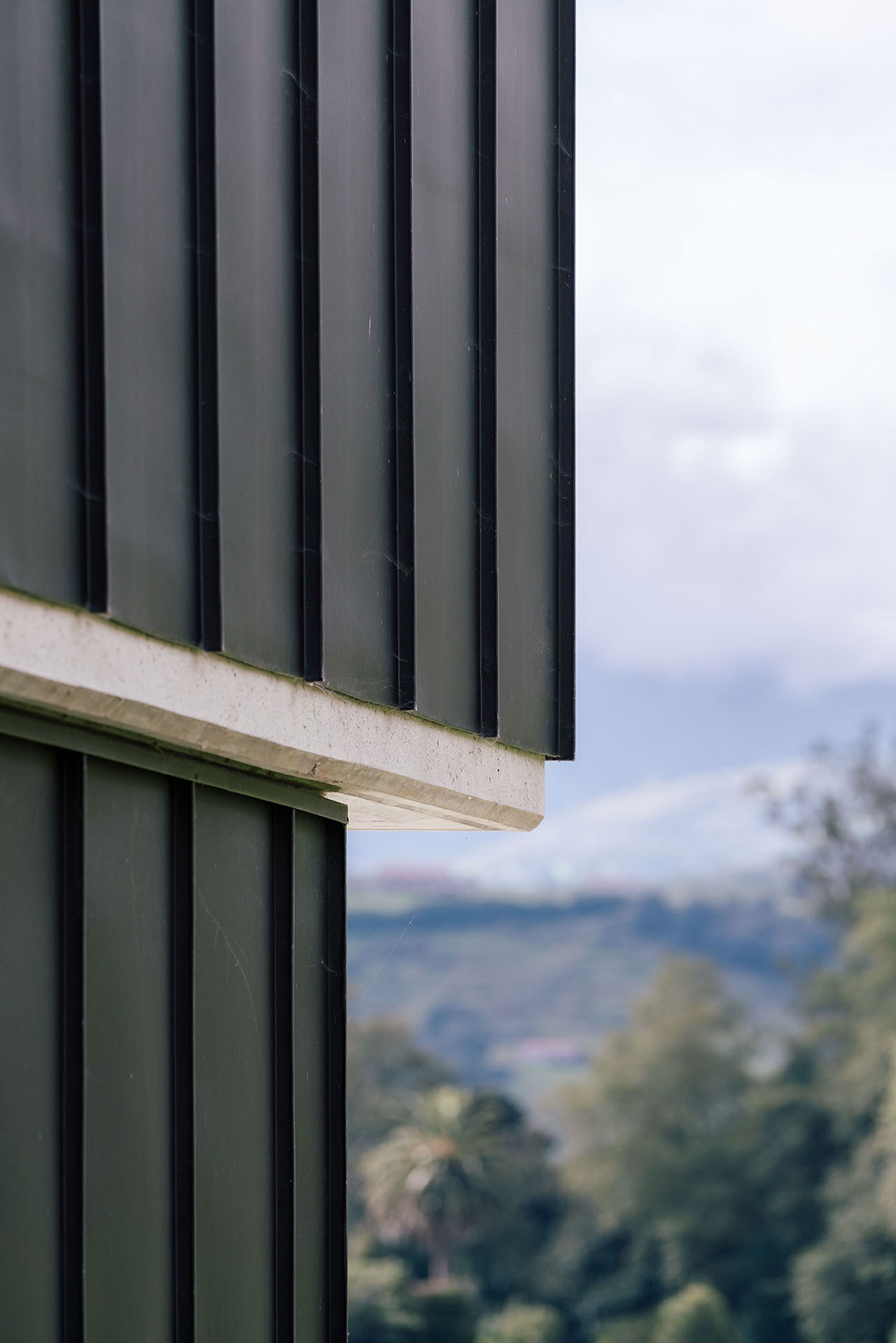

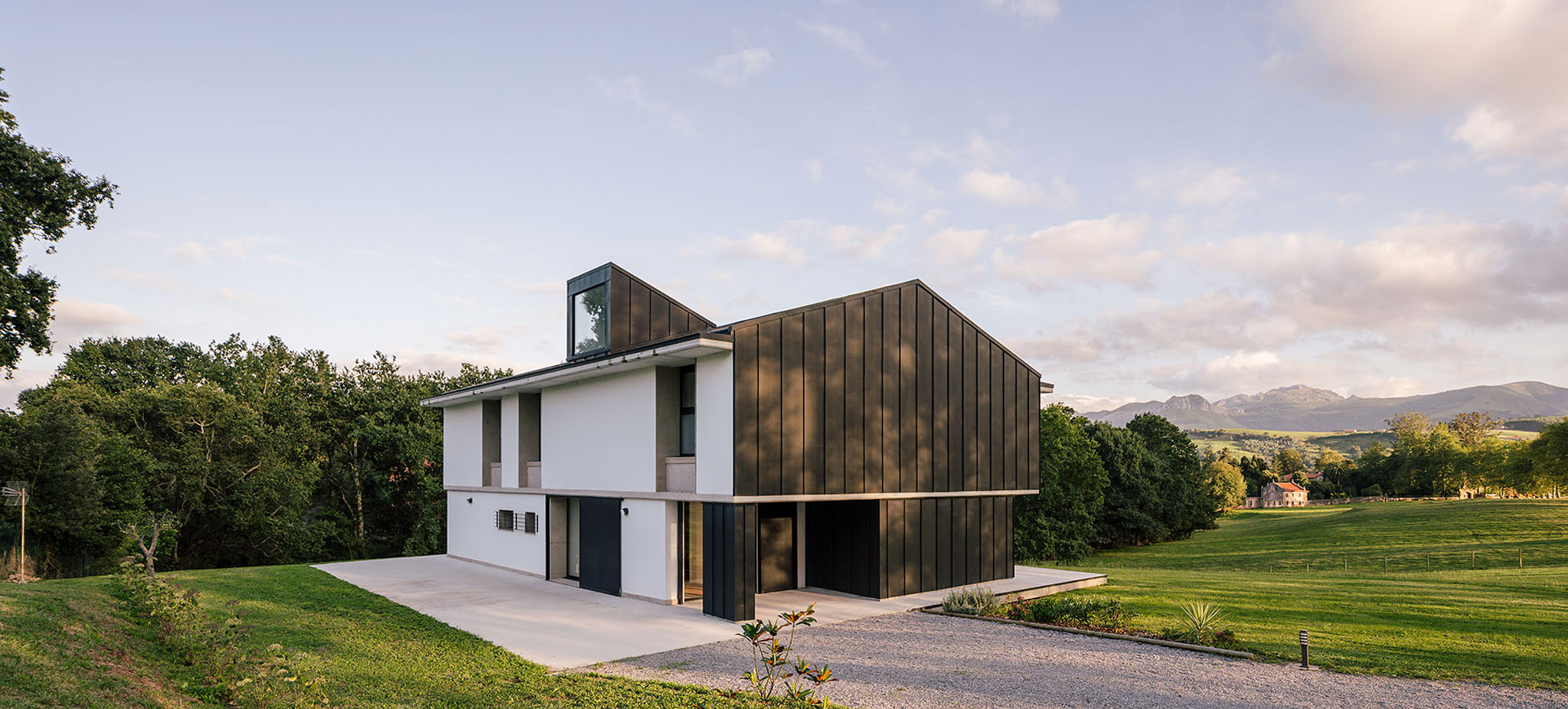

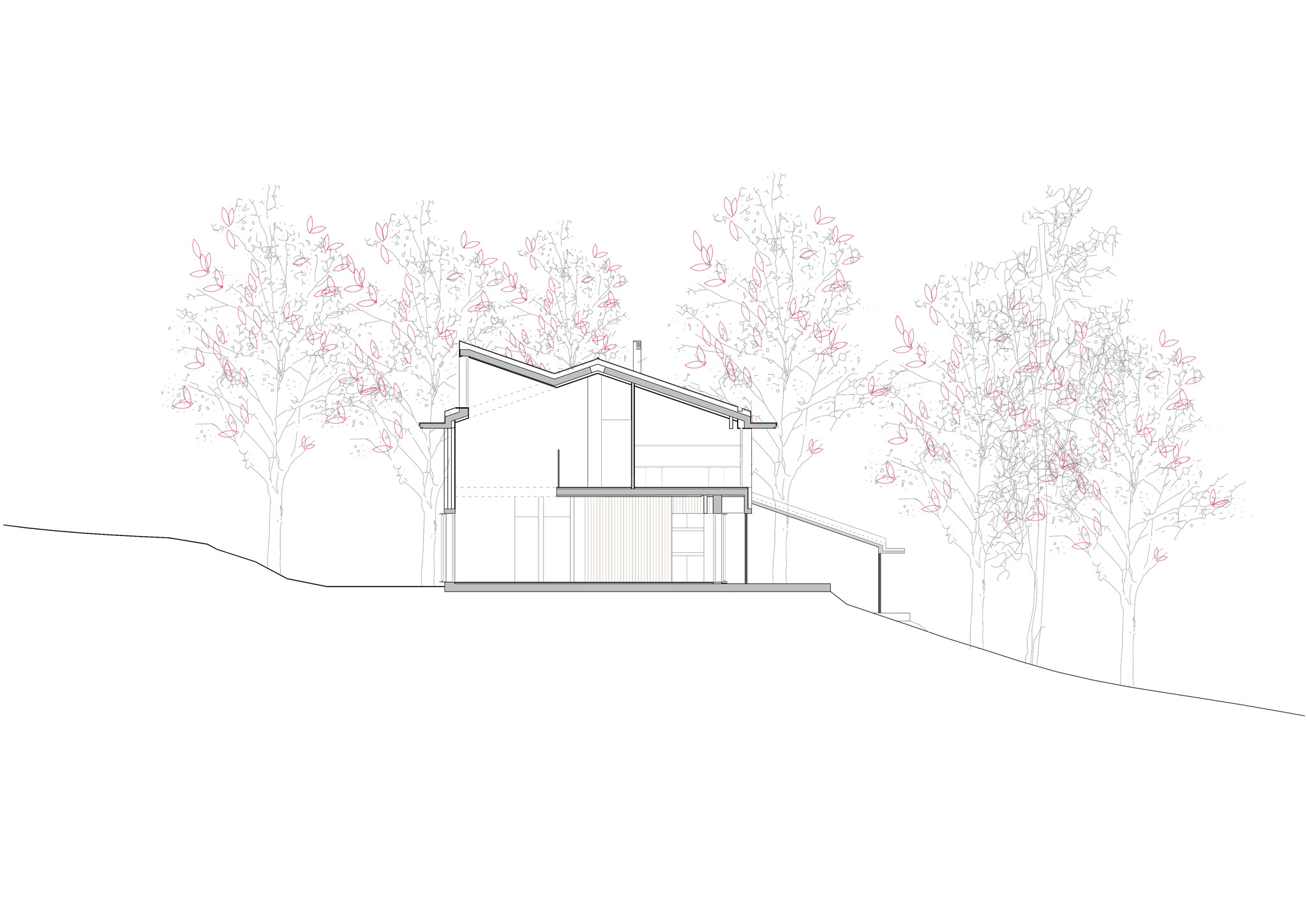

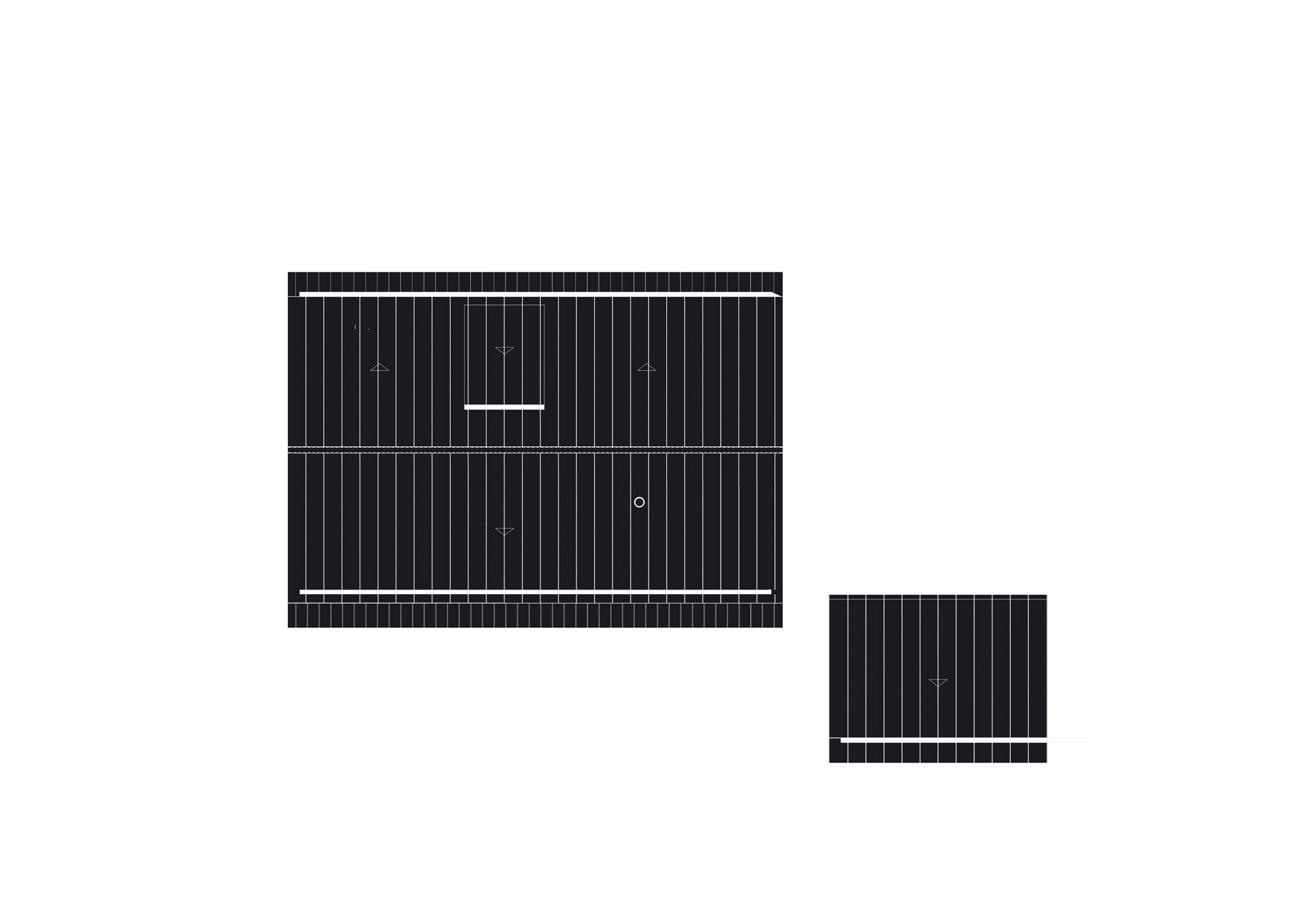

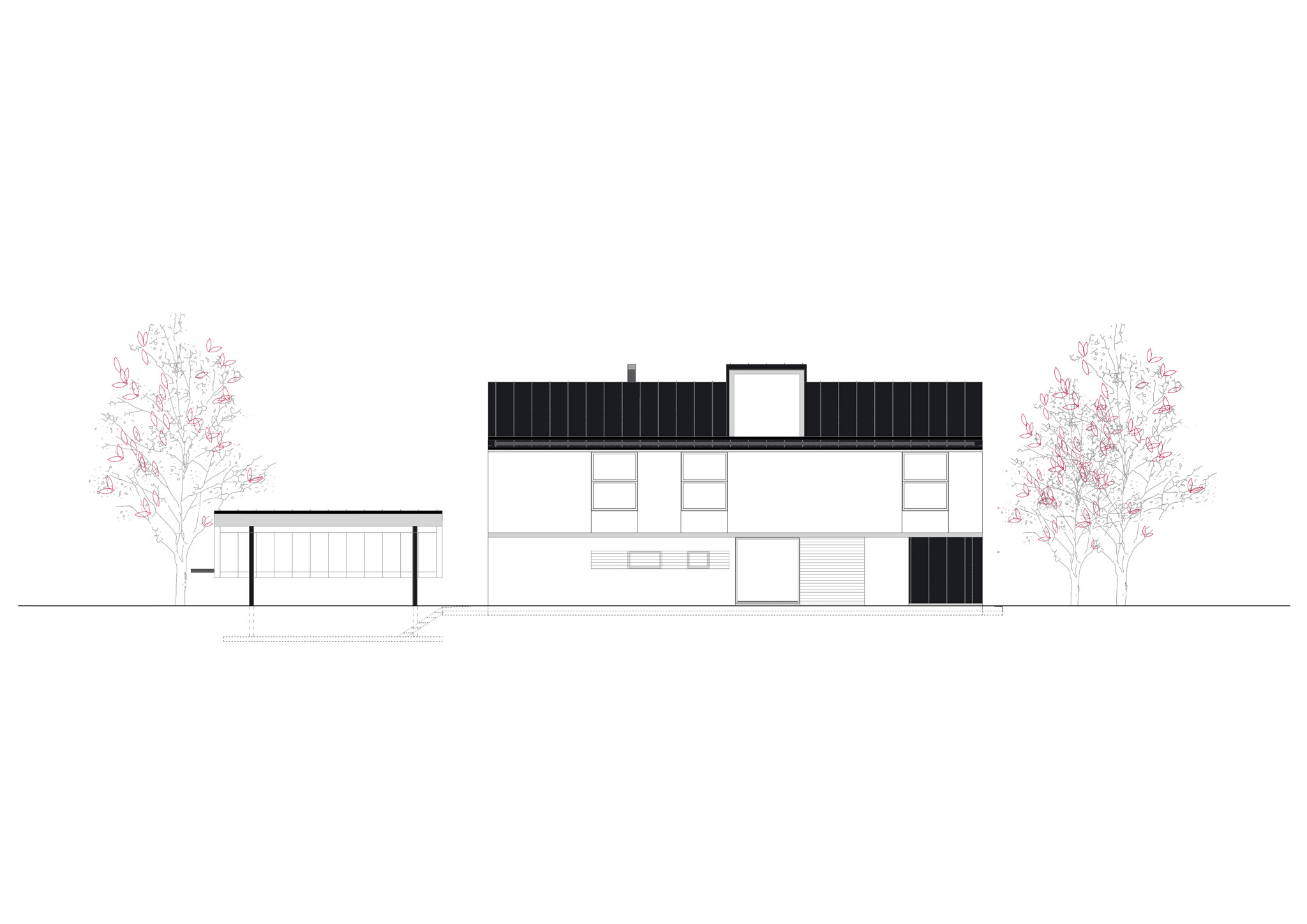

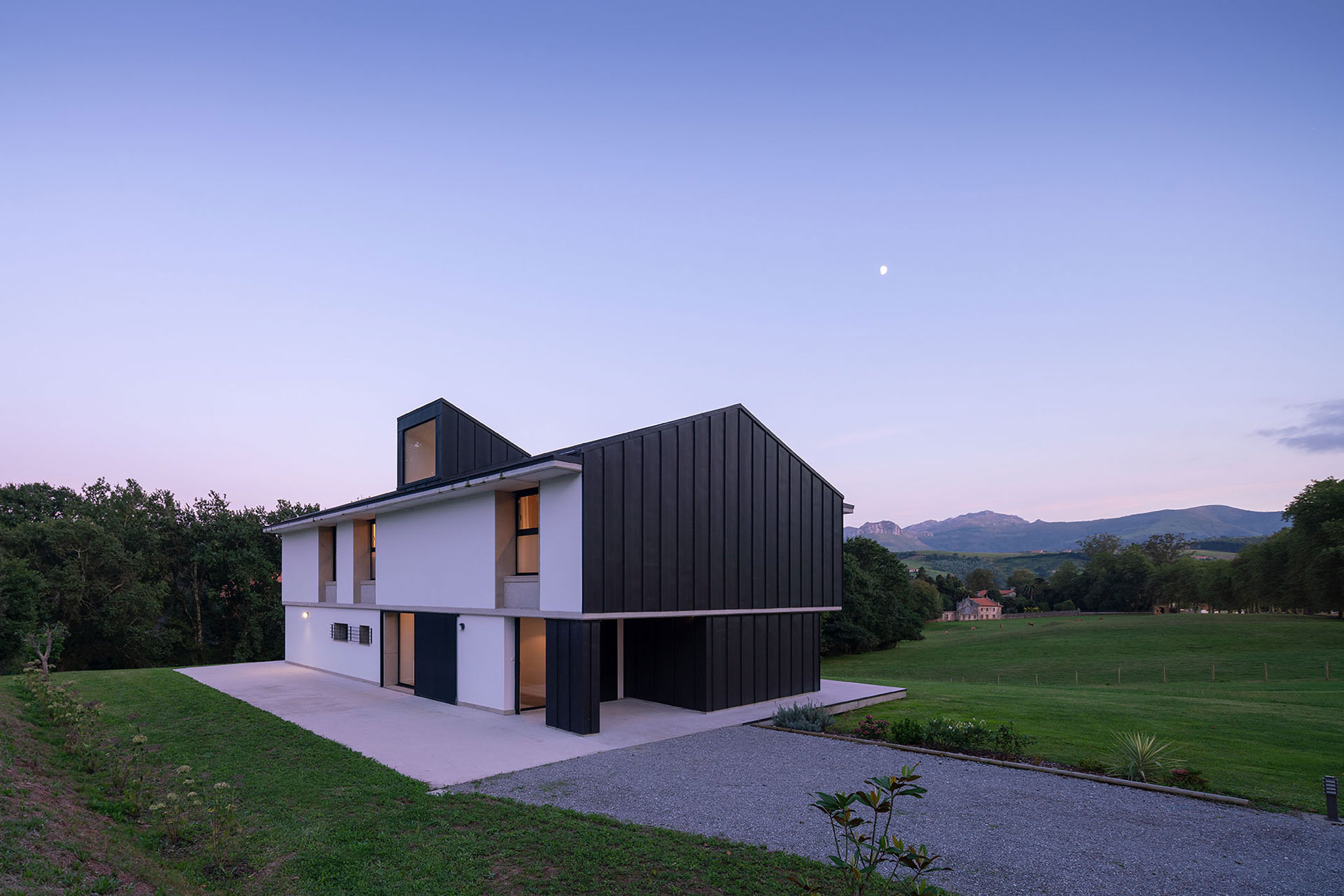

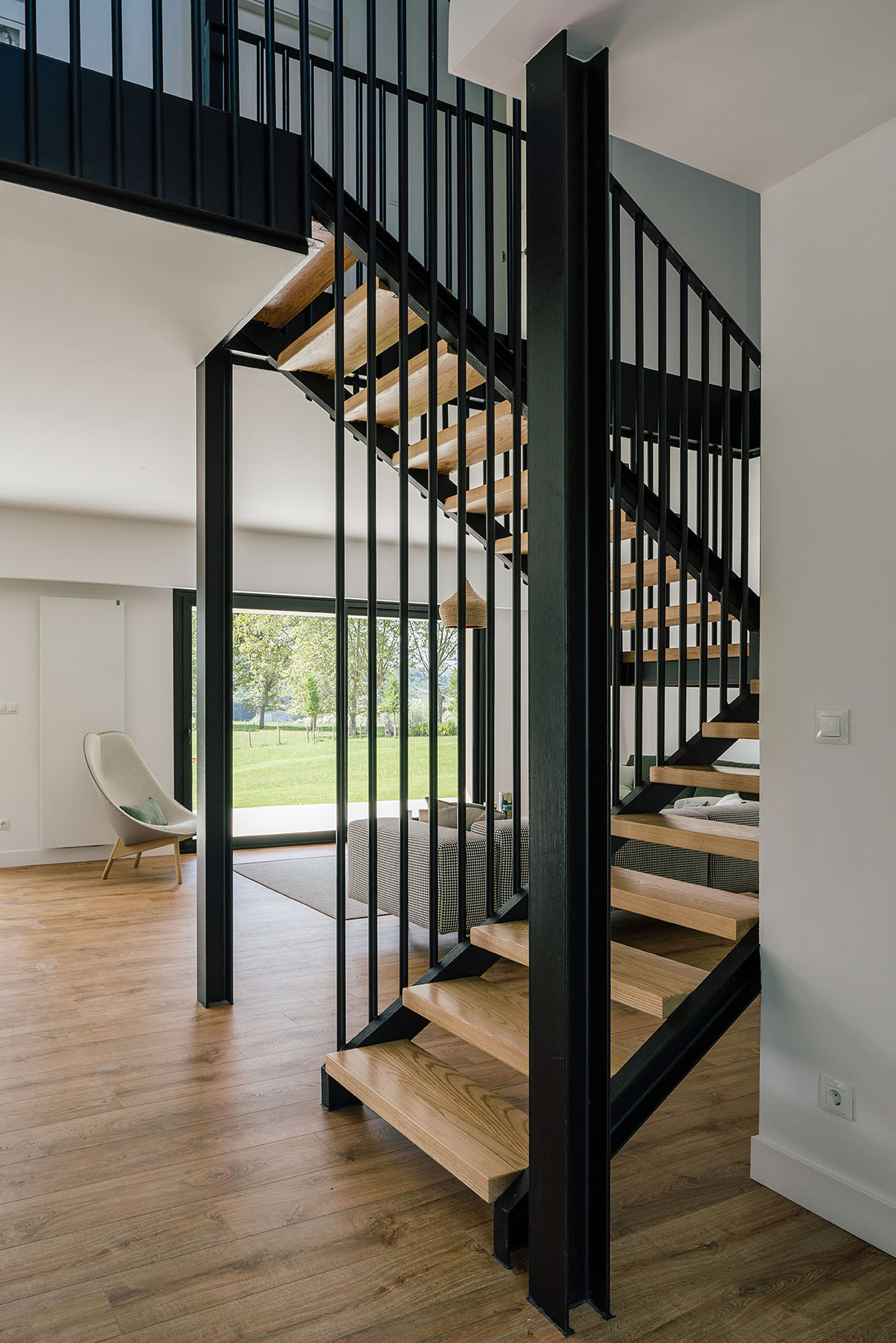

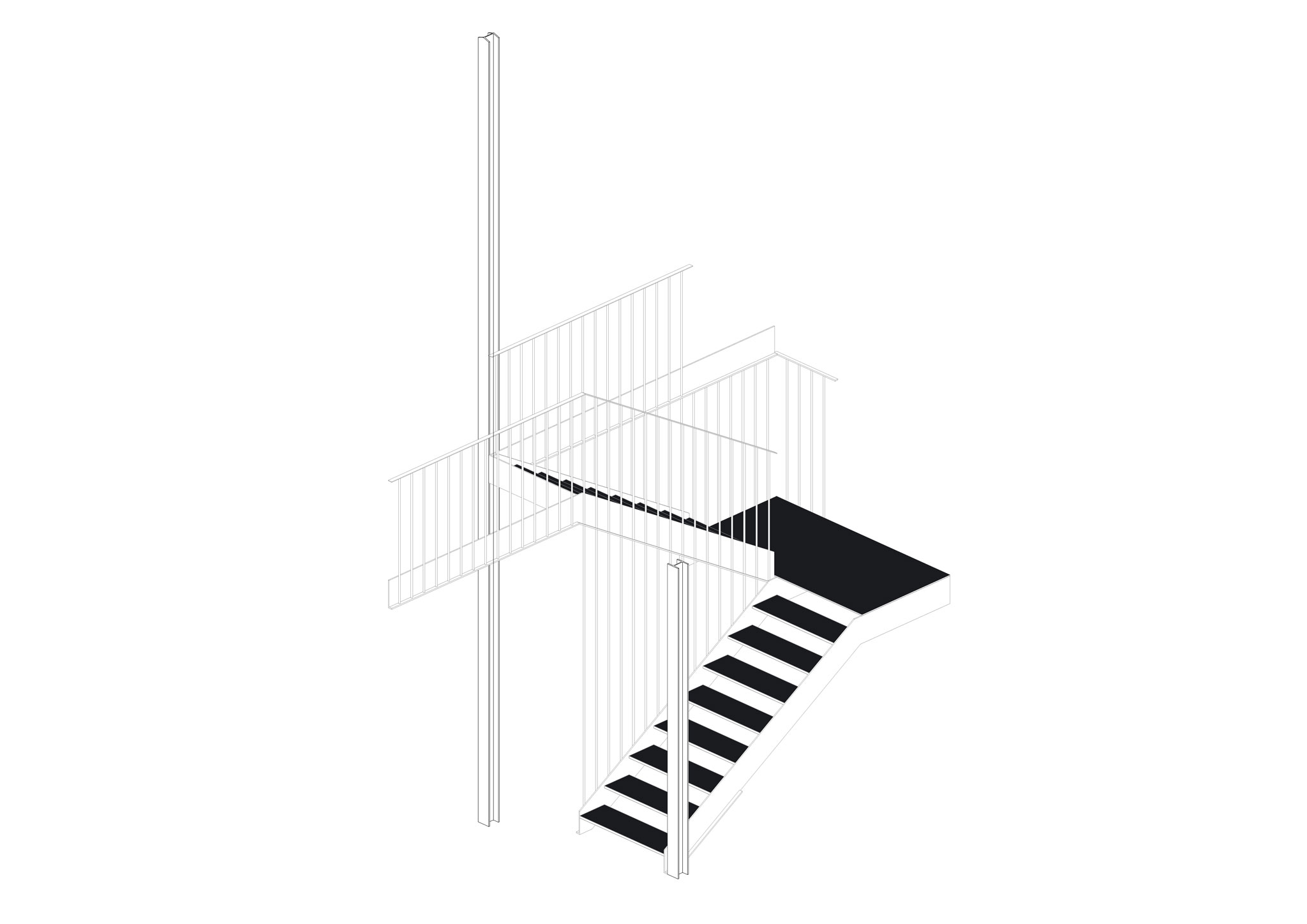

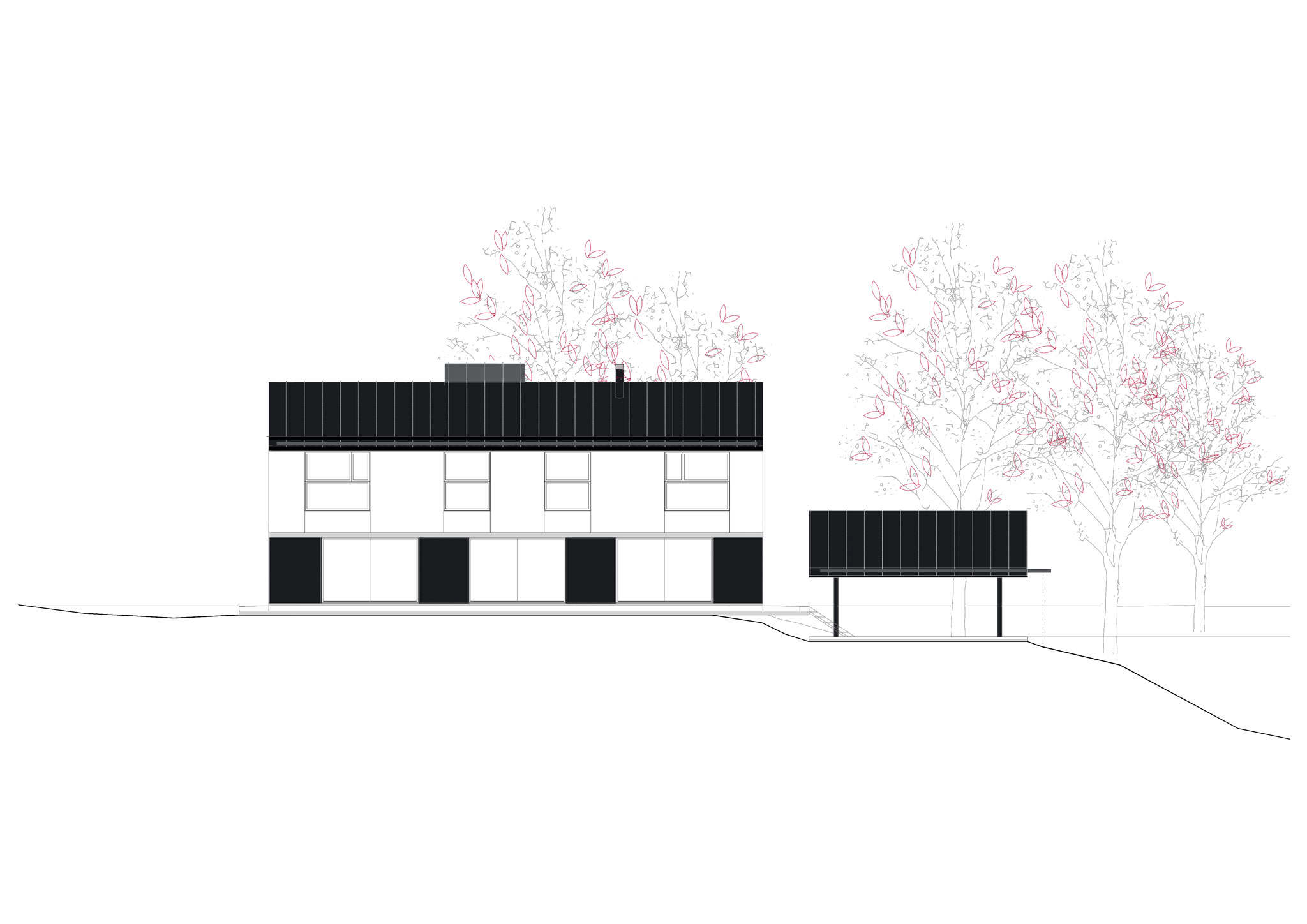

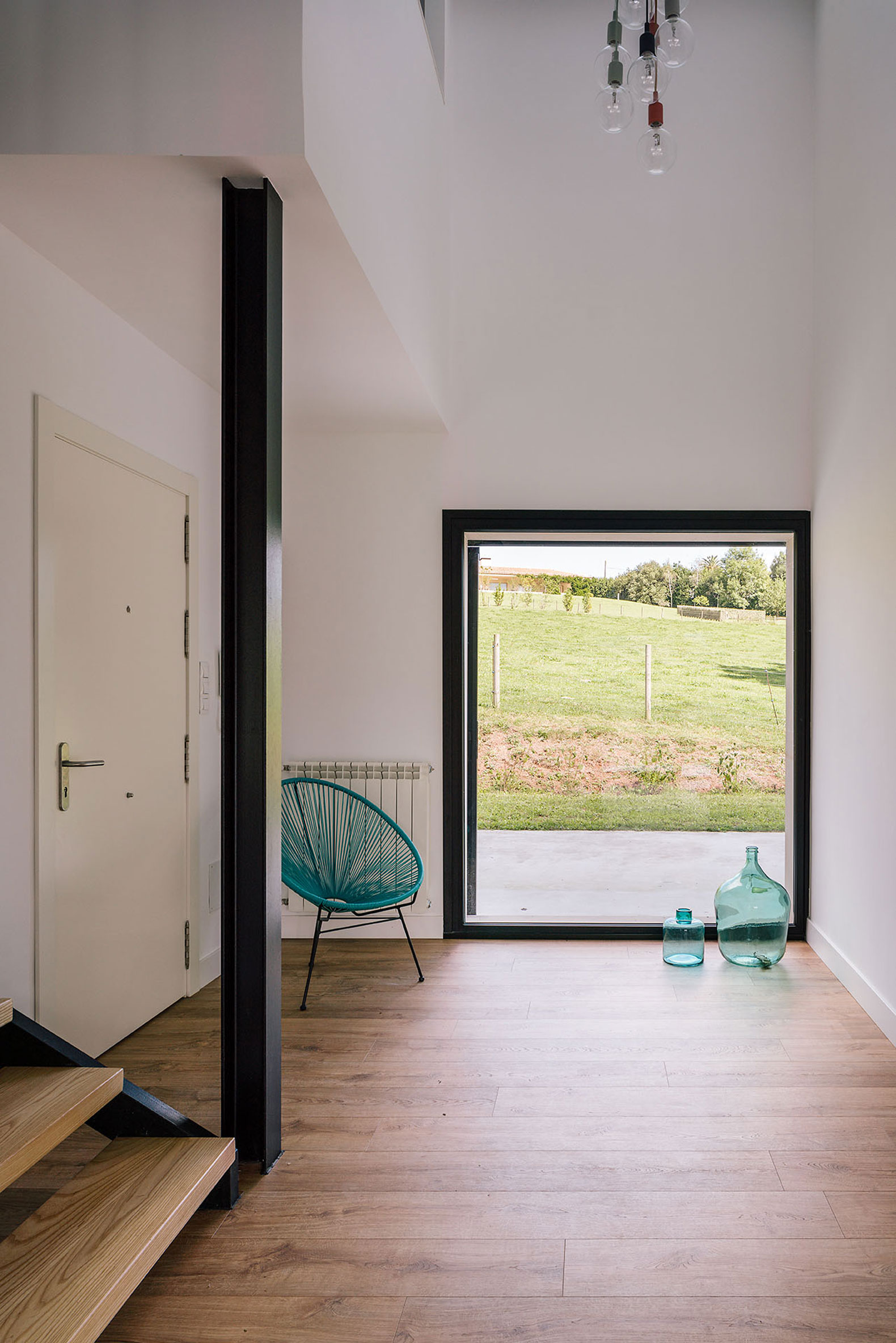

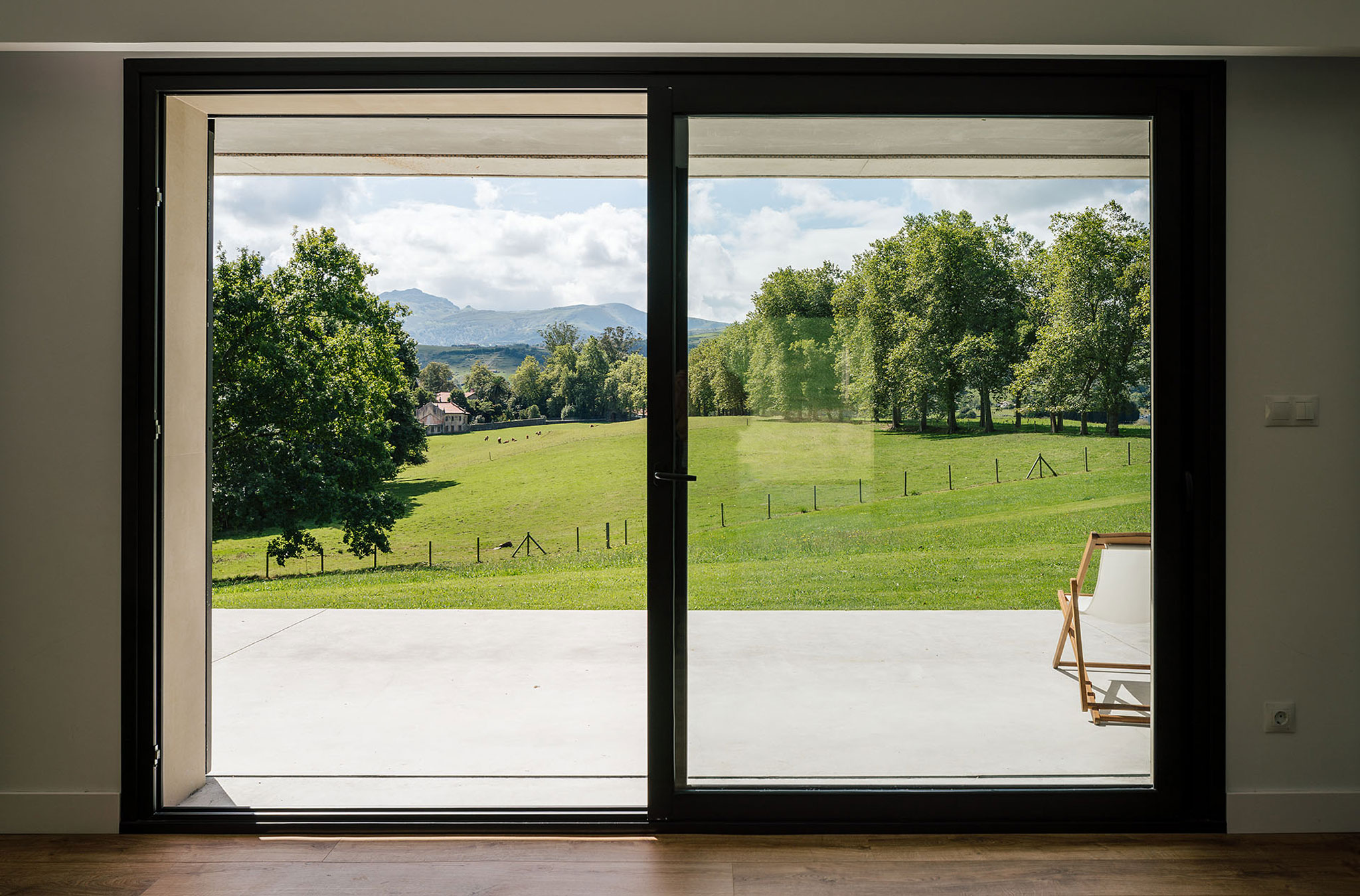

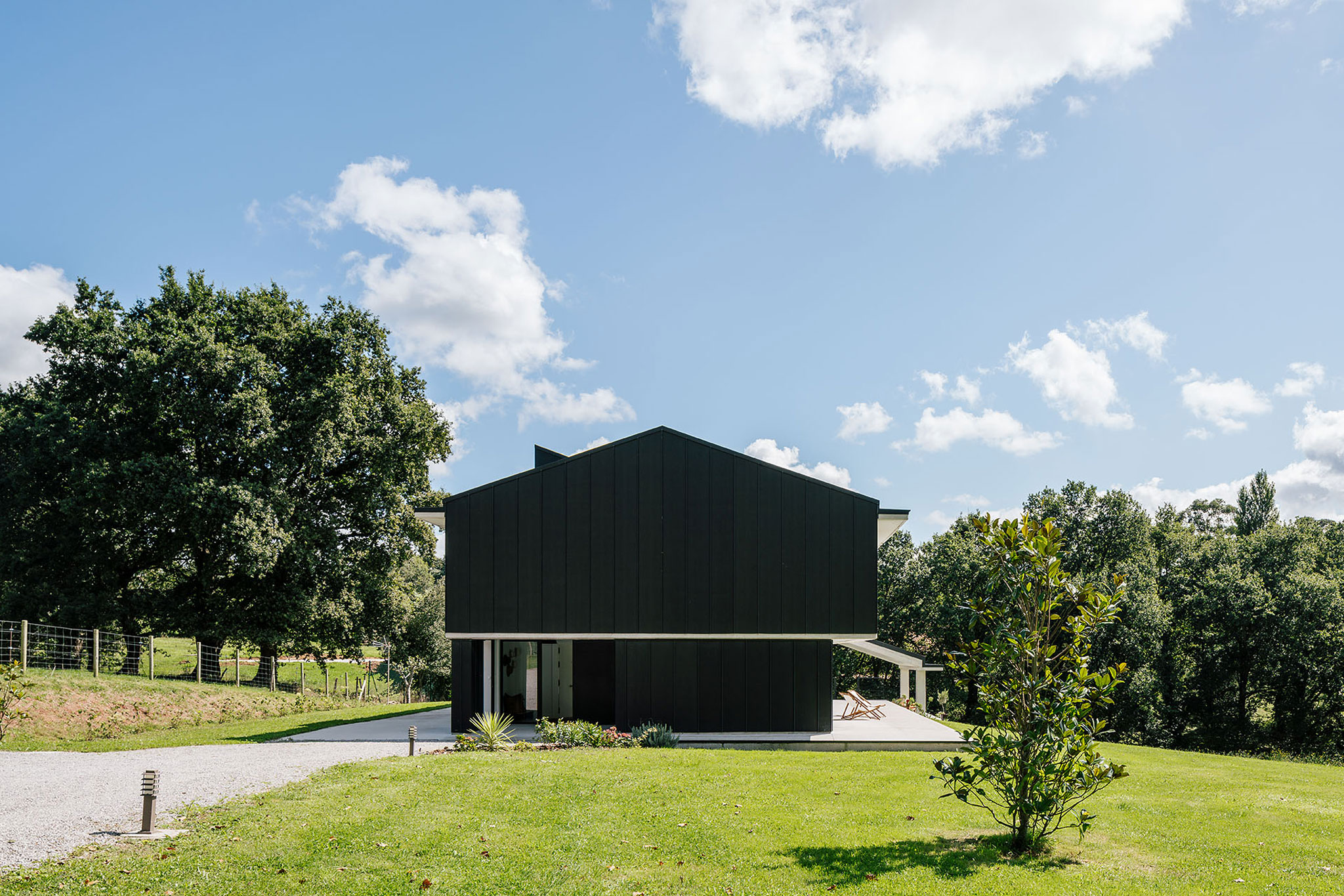

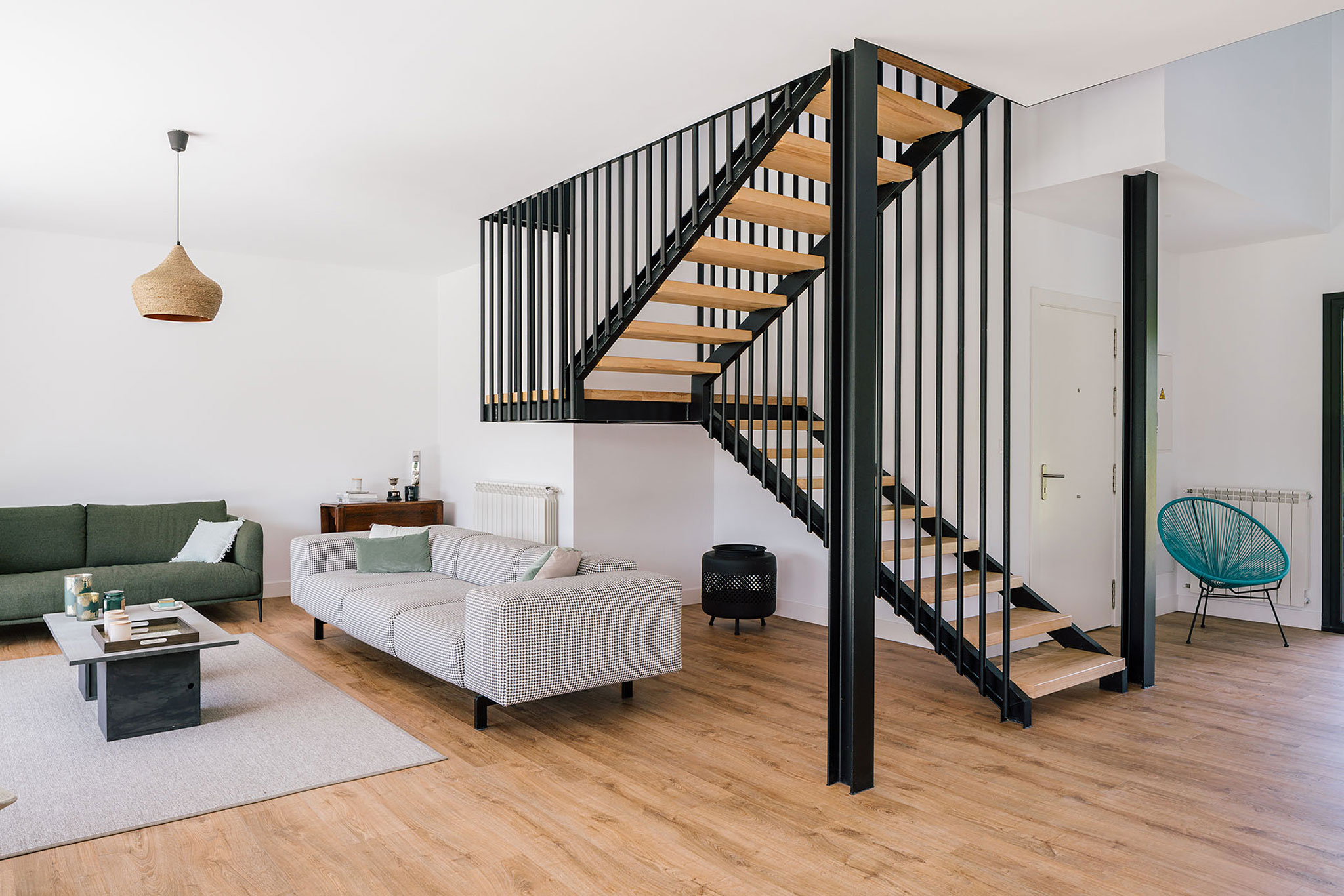

Colours, textures and materials balance traditional and industrial techniques, with exposed sanded-concrete bands giving way to artisanal white mortar surfaces. Roofs and the house’s West façade are finished in black zinc cladding, a solution which, besides offering a fine water-proofing, recalls nearby early XX century “indiano” houses. Punctuated only by the entrance porch, the West facade is kept completely opaque as a protection towards prevailing westerly storms in autumn and winter, when rains hits almost horizontally for days on end. Meanwhile the North and South façades have a regular pattern of generous-sized openings, with jambs and lintelsin local sandstone emphasizing the depth of walls. A single skylight above the double-height vestibule, which curls around a hanging metal staircase, introduces a cold and blue northern light inside the house.

Read more
Read less

More information

Label
Architect
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project Team
Text
Jacobo García-Germán, Raquel Díaz de la Campa, Miguel López, Marta Roldán, Lidia de Lucas, Rocío Mazón, Paloma Mayor
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Quantity surveyor.- José Enrique Cacicedo
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text
Fernández Rosillo y Cia S.L.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
2019
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
San Vitores, Santander. Spain
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
Imagen Subliminal (Miguel de Guzmán + Rocío Romero)
+ + copy Created with Sketch.
- + copy Created with Sketch.
Jacobo García-Germán (1974) is an architect by the Madrid Polytechnic (ETSAM), M.Arch. by the Architectural Association, and PhD European Doctor (cum laude, ETSAM 2010). After collaborating with Rafael Moneo (1998-2001), he established GARCIAGERMAN ARQUITECTOS in 2003.

Since 2005 he is a teacher in the Madrid Polytechnic (ETSAM), currently teaching at the Thesis Group APFC with Professor Juan Herreros, besides co-directing the MPAA Máster y Doctorado en Proyectos Arquitectónicos Avanzados at ETSAM (2015-).

He has taught in different universities in Spain; ETSAM (2005-), Escuela de Arquitectura de Pamplona (2012), Universidad Pontificia de Salamanca, Madrid (2011-2014), Universidad Camilo José Cela, Madrid (2003-2004), UPC-La Salle Tarragona (2009), and worldwide; Liubliana Architecture Faculty (2010), Escola da Cidade Sao Paulo (2010), Universidad Javeriana Bogotá (2007-2009), and FeBelCem in Antwerp (2008), having also been visiting critic at Columbia University, NY (2012), Cornell University, NY (2012), Universidad Católica de Lima (2011), IE Instituto de Empresa, Segovia (2011), Universidad Francisco de Vitoria, Madrid (2011) Universidad Europea, Madrid (2006-2009) and Architectural Association, London (2005).

He is co-founder of the Symmetries platform for teaching and has directed workshops in Split, Rome and Lisbon. He has been curator for several exhibitions.

Among the awards obtained by GarciaGerman Architects are: XIV BEAU Spanish Biennial of Architecture and Urbanism Award (2018), Mies van der Rohe Finalist of the European Union Architecture Prize (2019), CEMEX Award (2018), Finalist FAD (2018) ), Outstanding Award (2017), Selection of the Enor Prize (2017), FAD Award (2013), Selection of the European Union Architecture Award Mies van der Rohe (2009), First European Prize (2001 and 2009), Awards of the Madrid City Council (2003 and 2007) and EMVS First Prize (2003 and 2004). The work of the office has been widely published and exhibited. Clients: Ministry of Development, Ministry of Finance and Public Administration, Embassies of Spain in Ljubljana, Sofia and Tokyo, Cervantes Institute, EMVS Madrid, UPM-Polytechnic University of Madrid, Government of Cantabria, Madrid City Council, Municipality of Nacka (Stockholm) , Illinois Institute of Technology (Chicago), Acciona Inmobiliaria, Reyal Urbis, Eurocís, Isolux Corsán, Gilmar, Ciudalcampo SL. He has been a member of the Scientific Committee of the Spanish Pavilion of the XV Biennial of Architecture of Venice 2016 (Golden Lion Award), and currently codirects Architecture, official magazine of the Board of Architects of Madrid (COAM).





Read more
Published on: February 20, 2020
