The architecture practice Burckhardt Architecture has been in charge of the design of the vertical extension and reconstruction of the Collège Rousseau in Geneva, after winning the competition for the renovation in 2018. Located in an urban neighbourhood surrounded by residential buildings, the school extension is much larger, increasing its height and providing more natural light thanks to skylights above the stairwells. The layout of this new floor is defined by the central lighting.
For the extension, lightweight timber was used, reducing the building's static loads, preventing significant stress, improving the building's sustainability, and lowering the cost of the project. Furthermore, the Total Home Energy Performance (THPE) targets and the Minergie standard were taken into account.
The proposal involved an initial 3D survey, generated from a point cloud, and a 180° digital photographic survey using Matterport. Combining these two surveys created a rigorous BIM model on which to base the work.

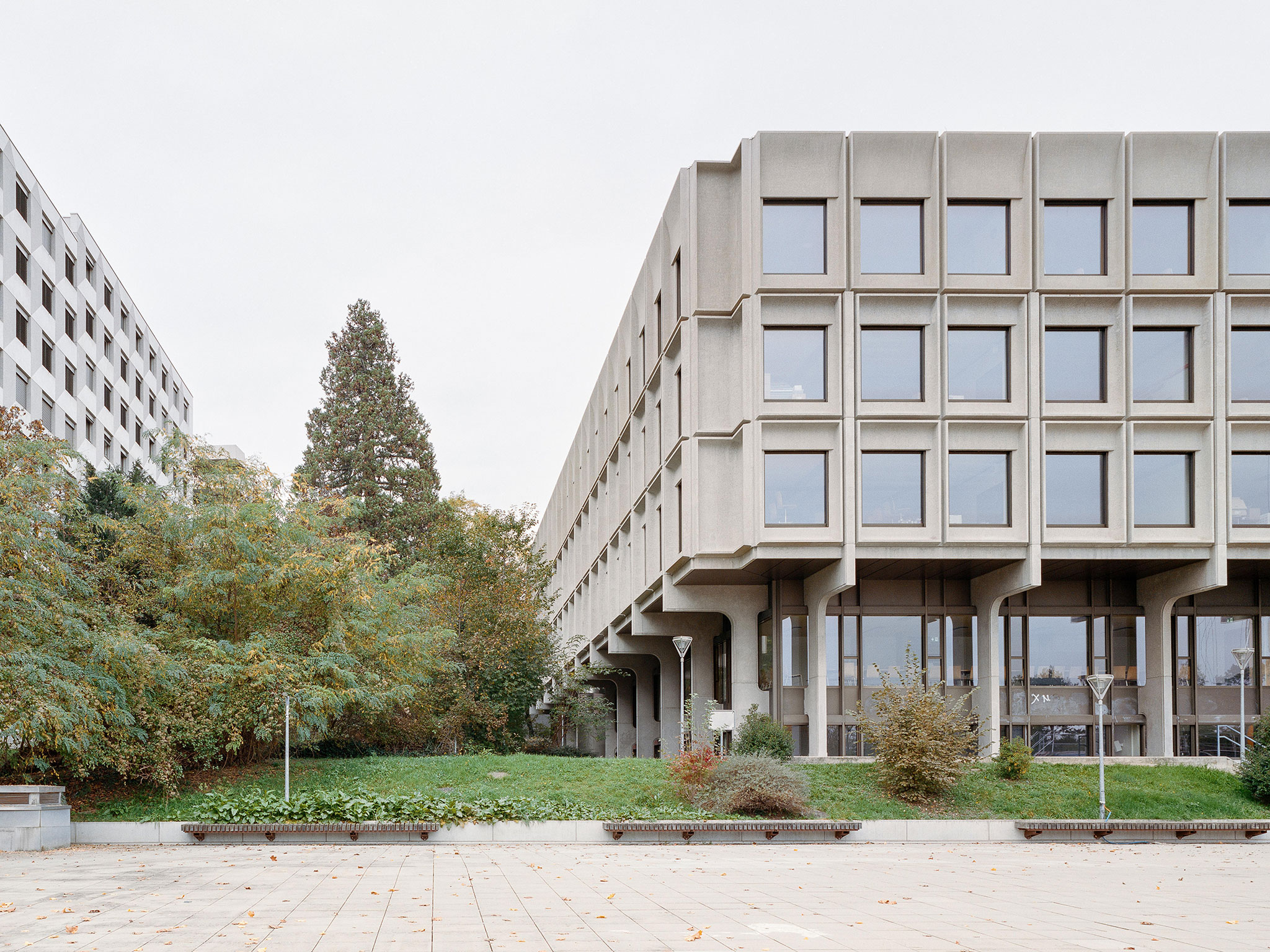

Vertical extension and renovation of Collège Rousseau by Burckhardt Architecture. Photography by Olivier Di Giambattista.
Project description by Burckhardt Architecture

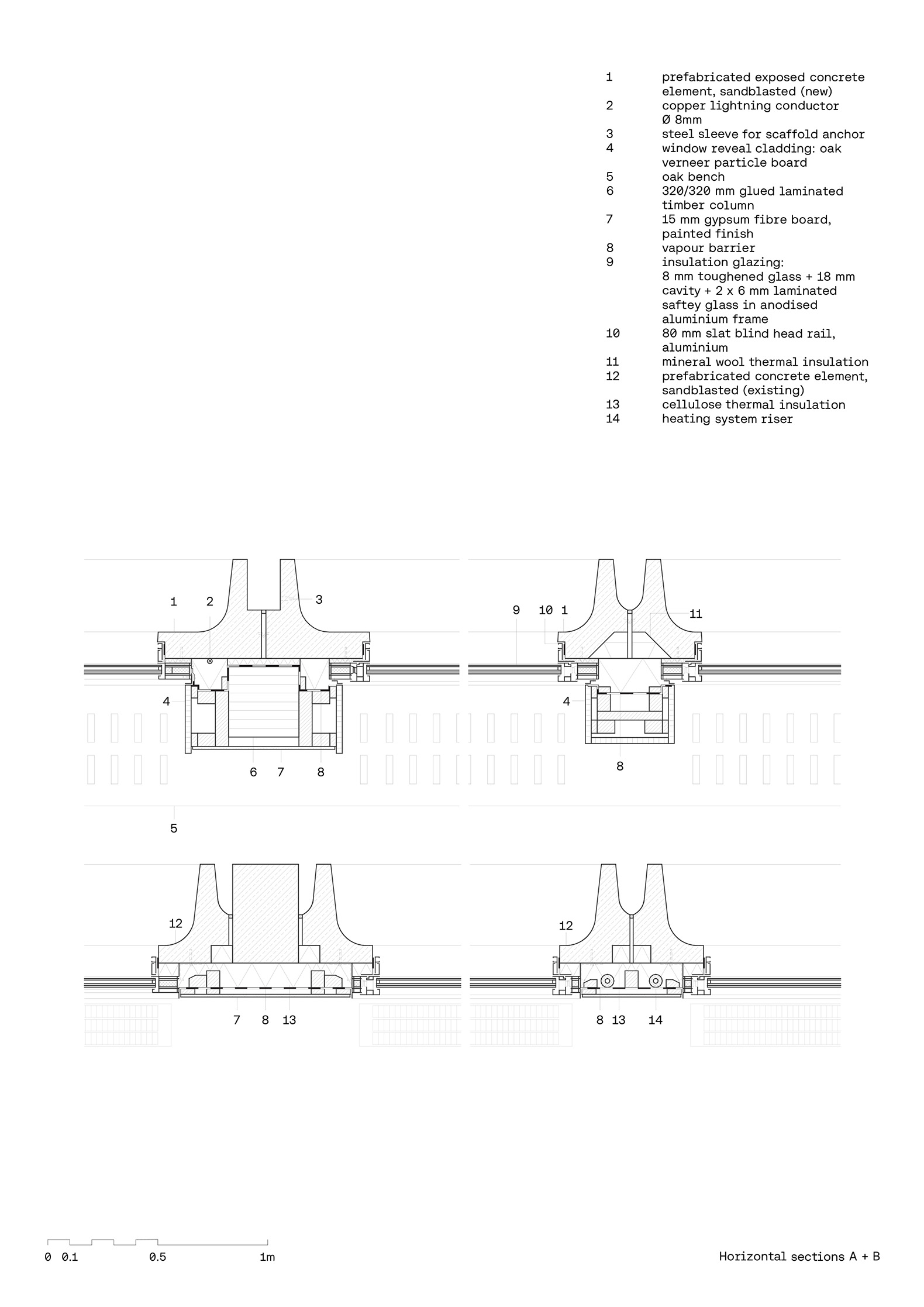

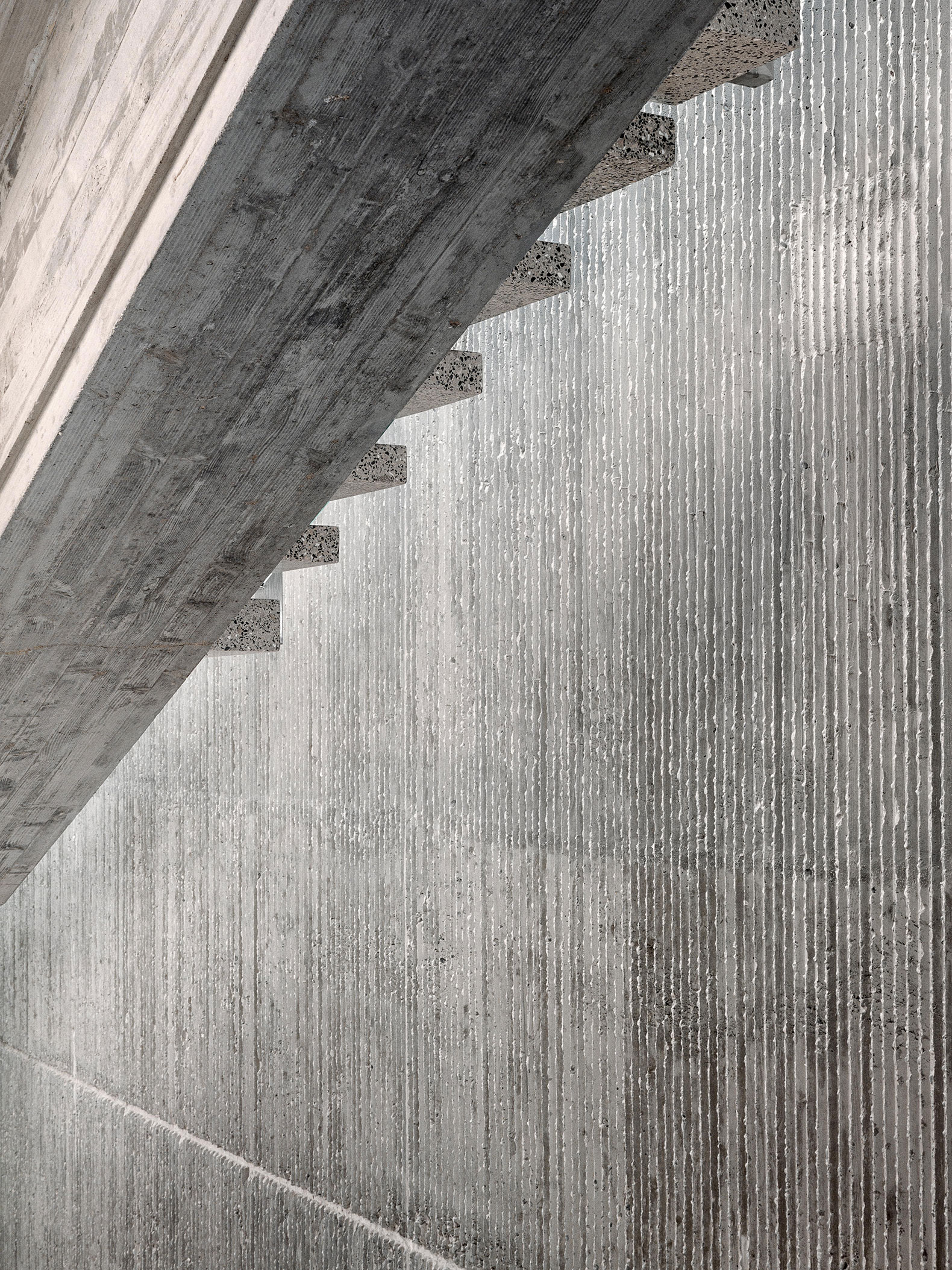

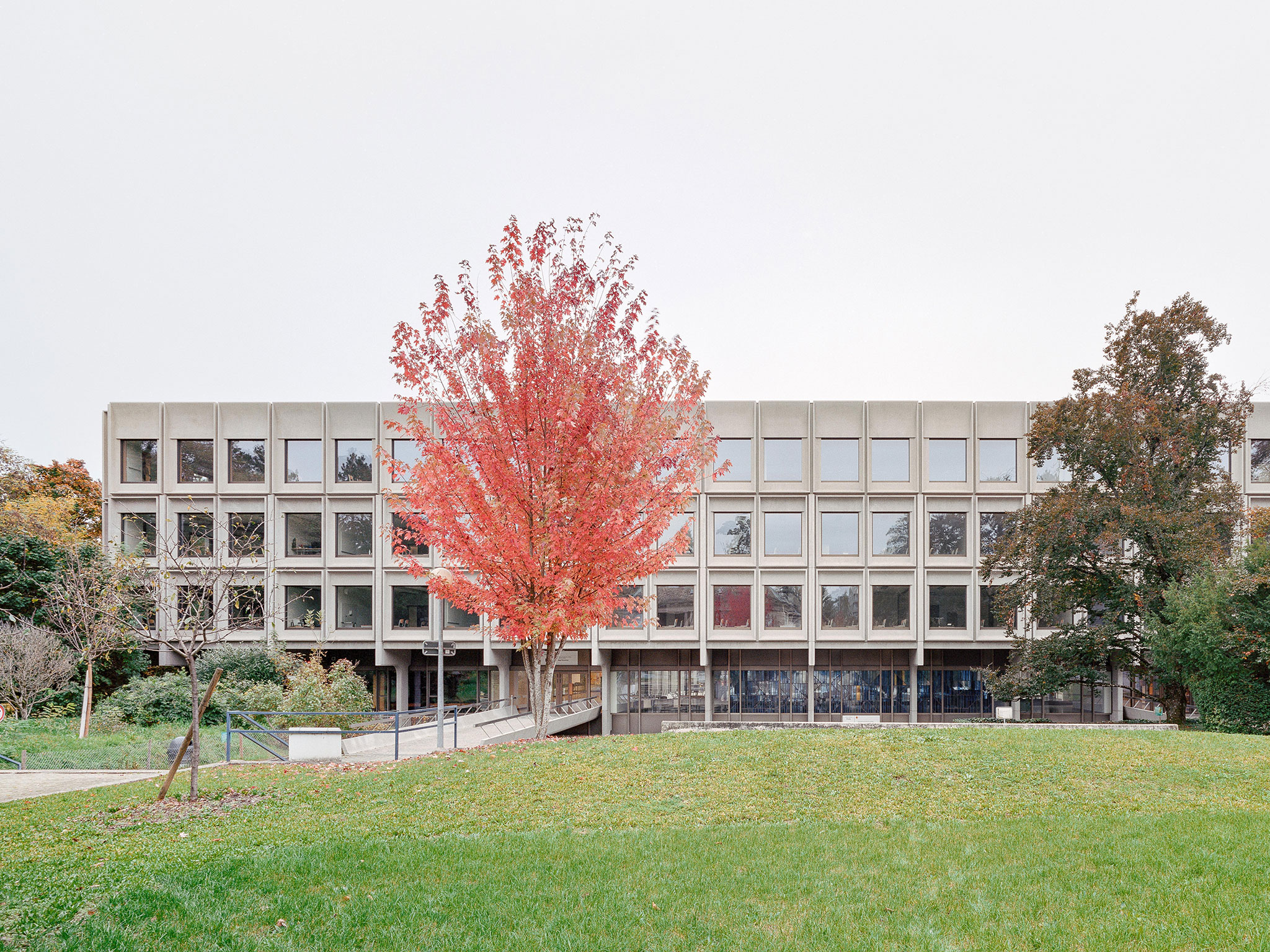

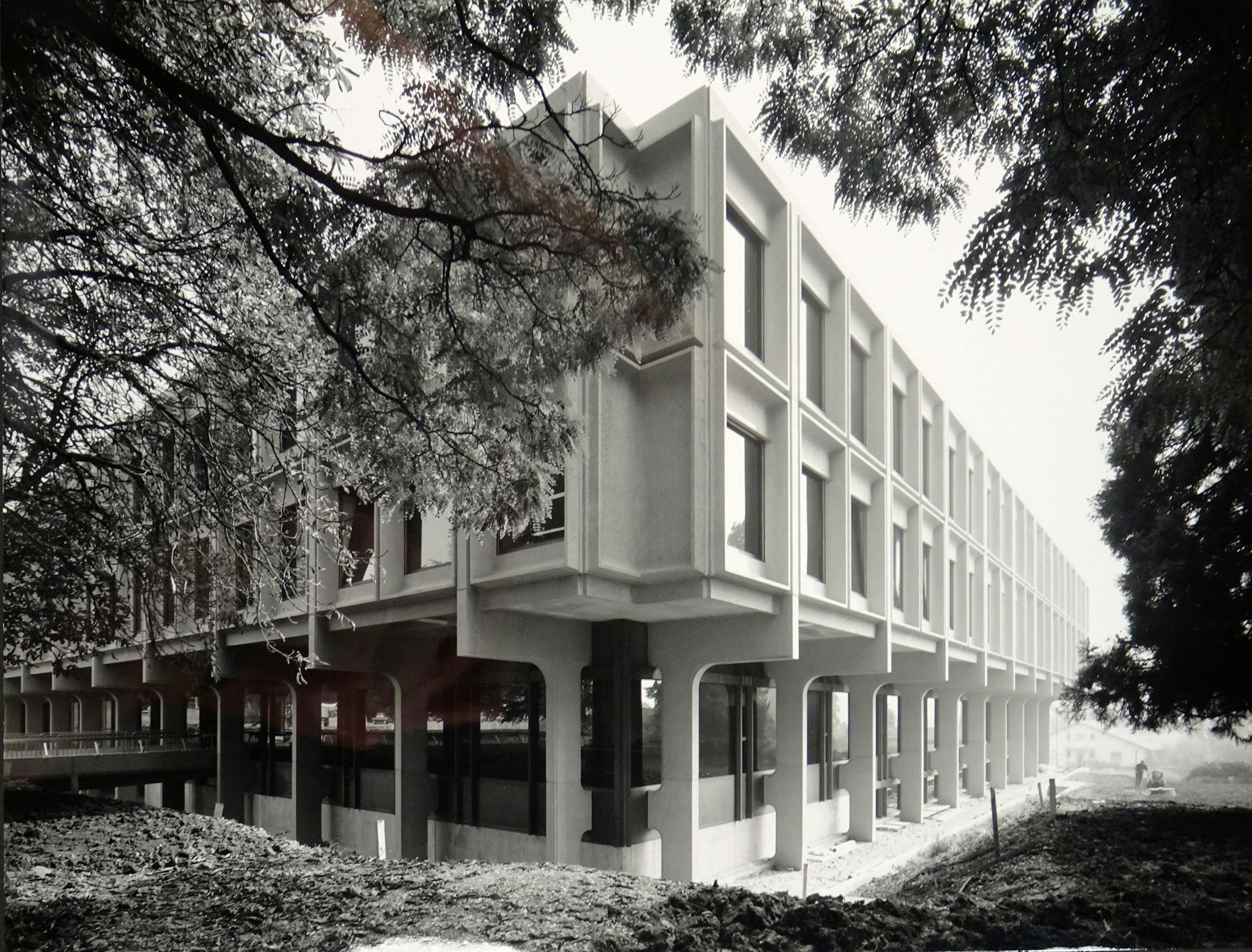

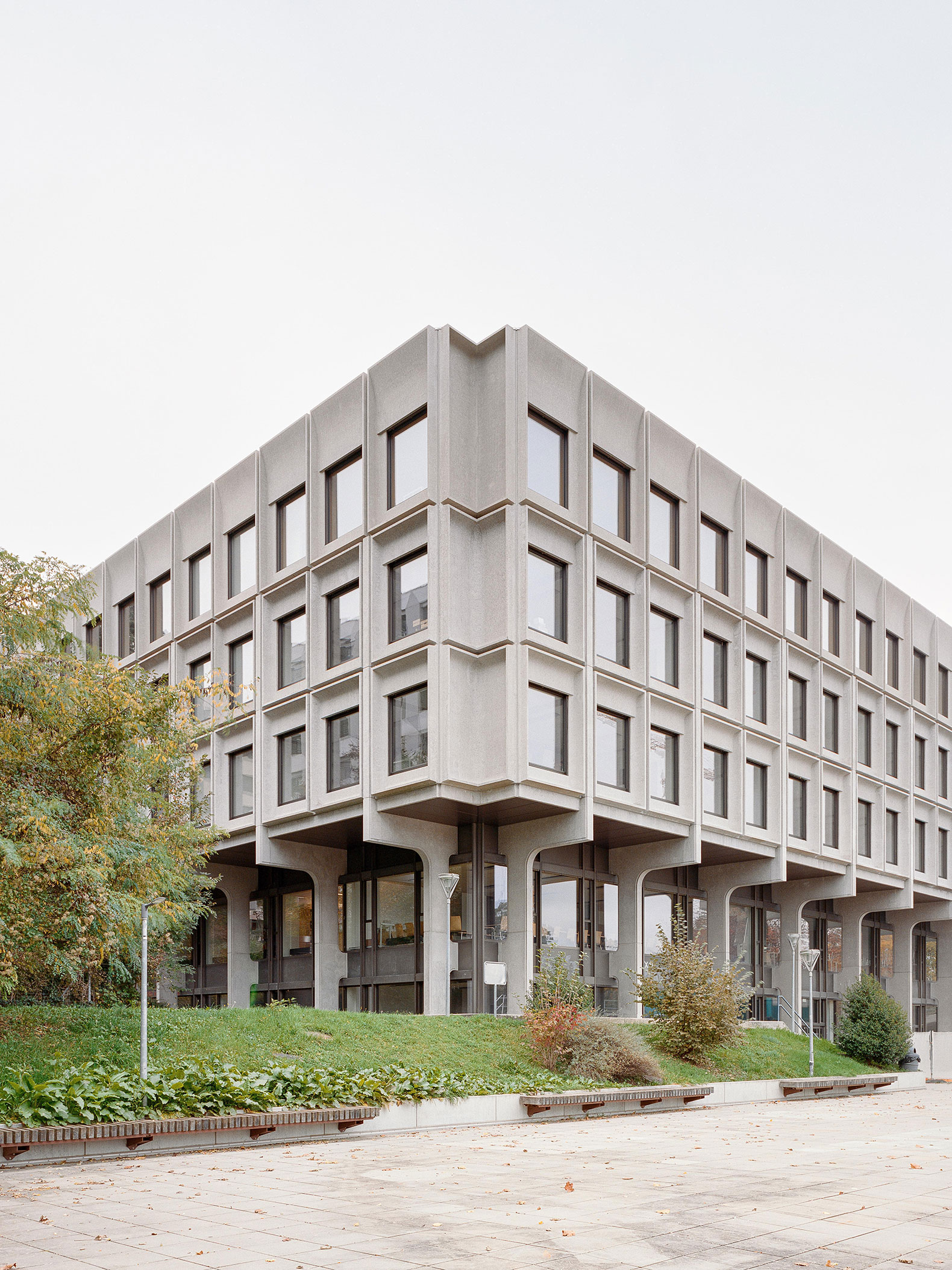

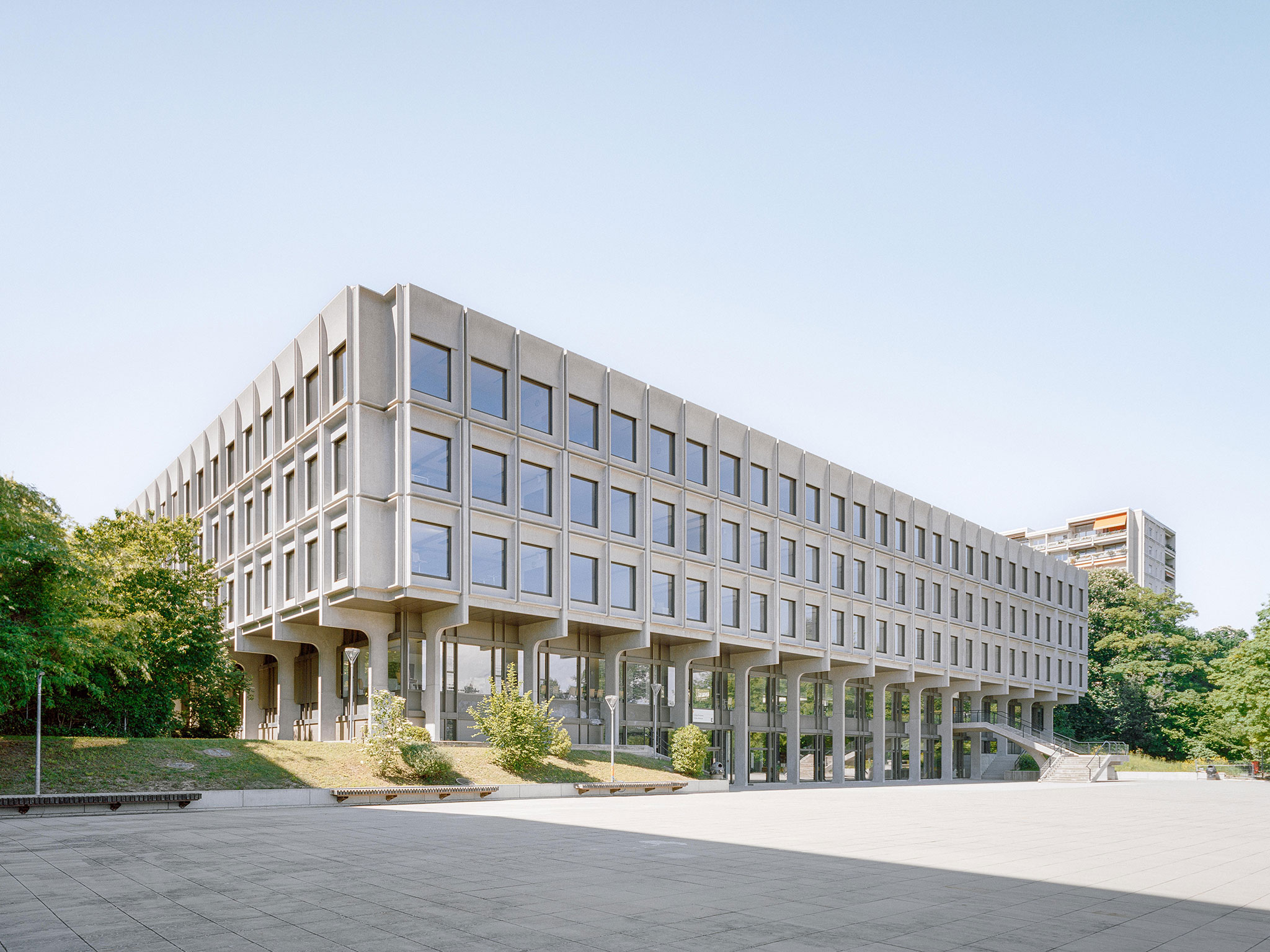

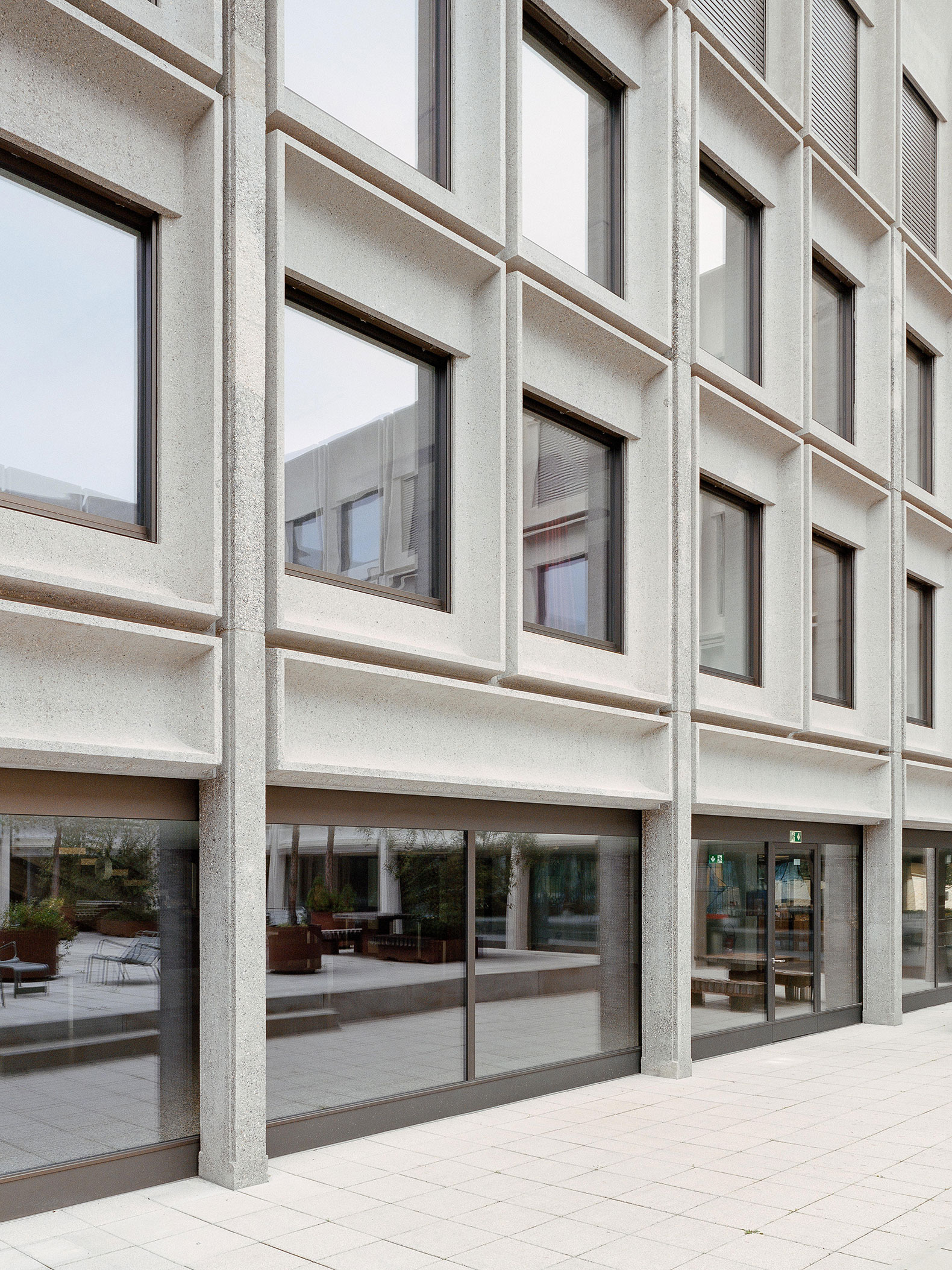

The heritage-protected Collège Rousseau in Geneva, built in 1969 by Alain Ritter, is a remarkable example of Brutalism. Not only did the building's condition require refurbishment, but an extension was also needed to cope with the increased numbers of students. Burckhardt won the architectural design competition in 2018 with a proposal that emphasizes continuity and yet breaks with it: From the outside, the added story extends the existing façade with its striking relief of finished concrete components in such a way that the addition is only recognizable at second glance. Inside, however, the intervention presents itself as a light and airy wooden construction that exudes a cozy atmosphere.
Reading the Façade

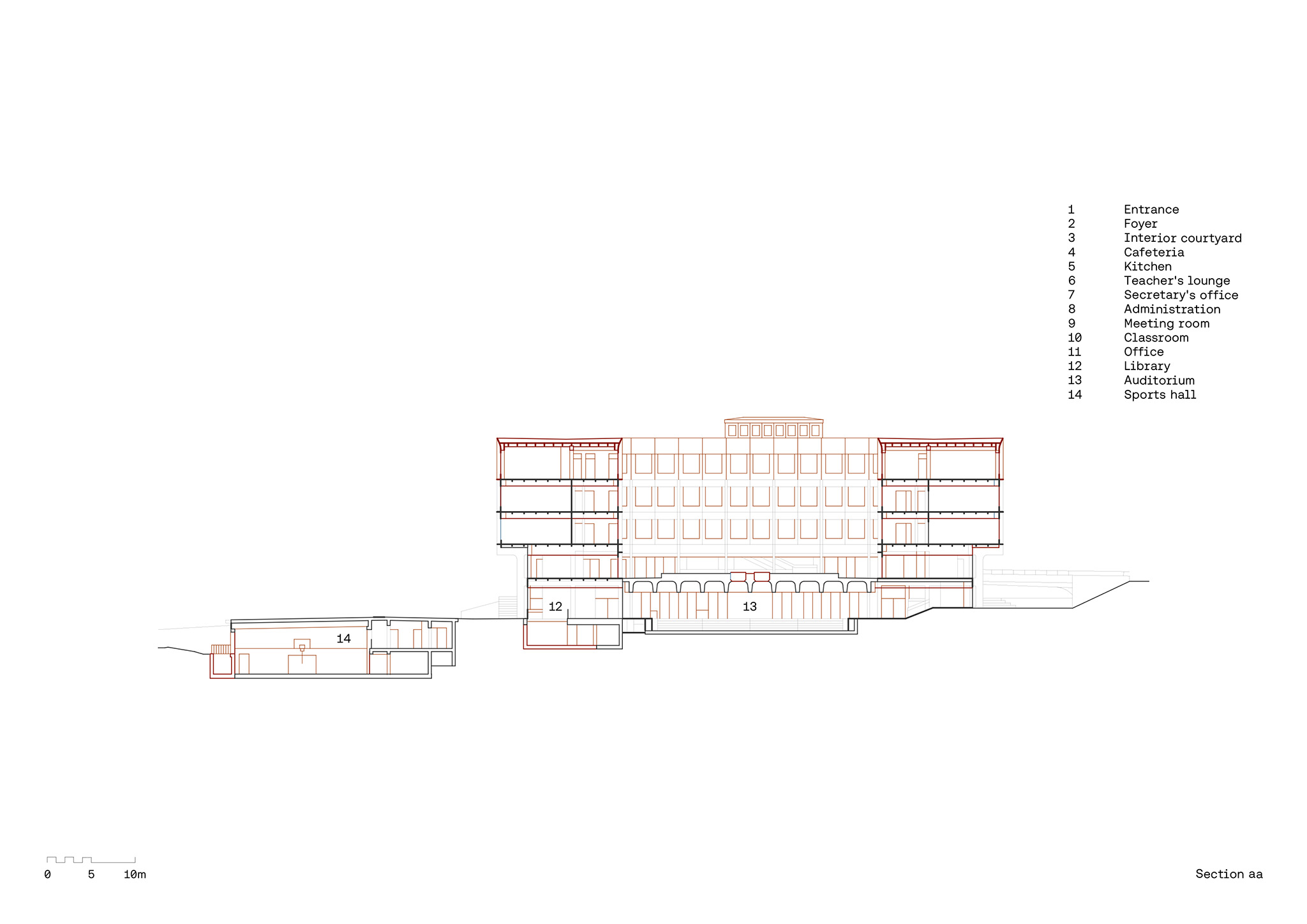

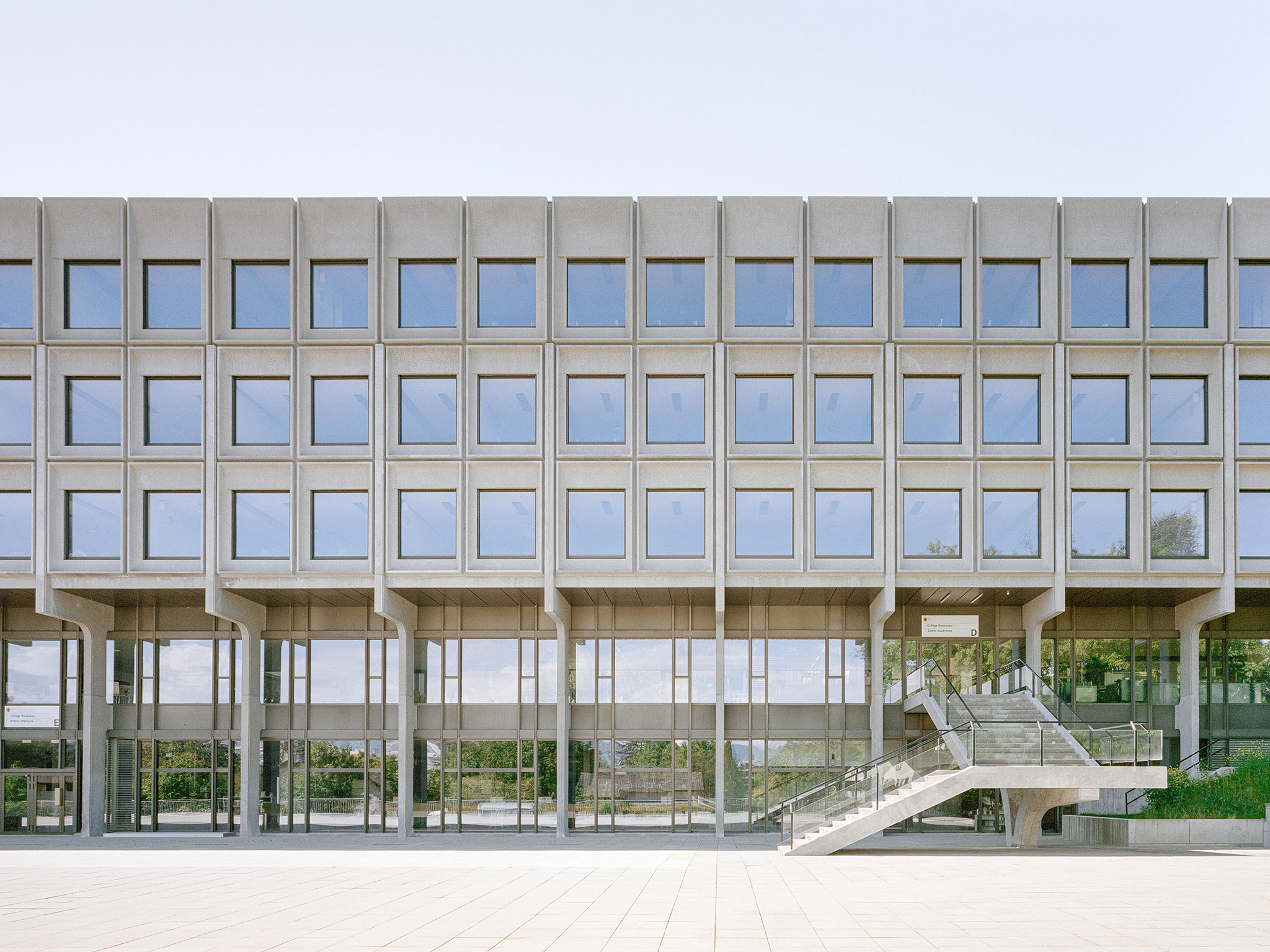

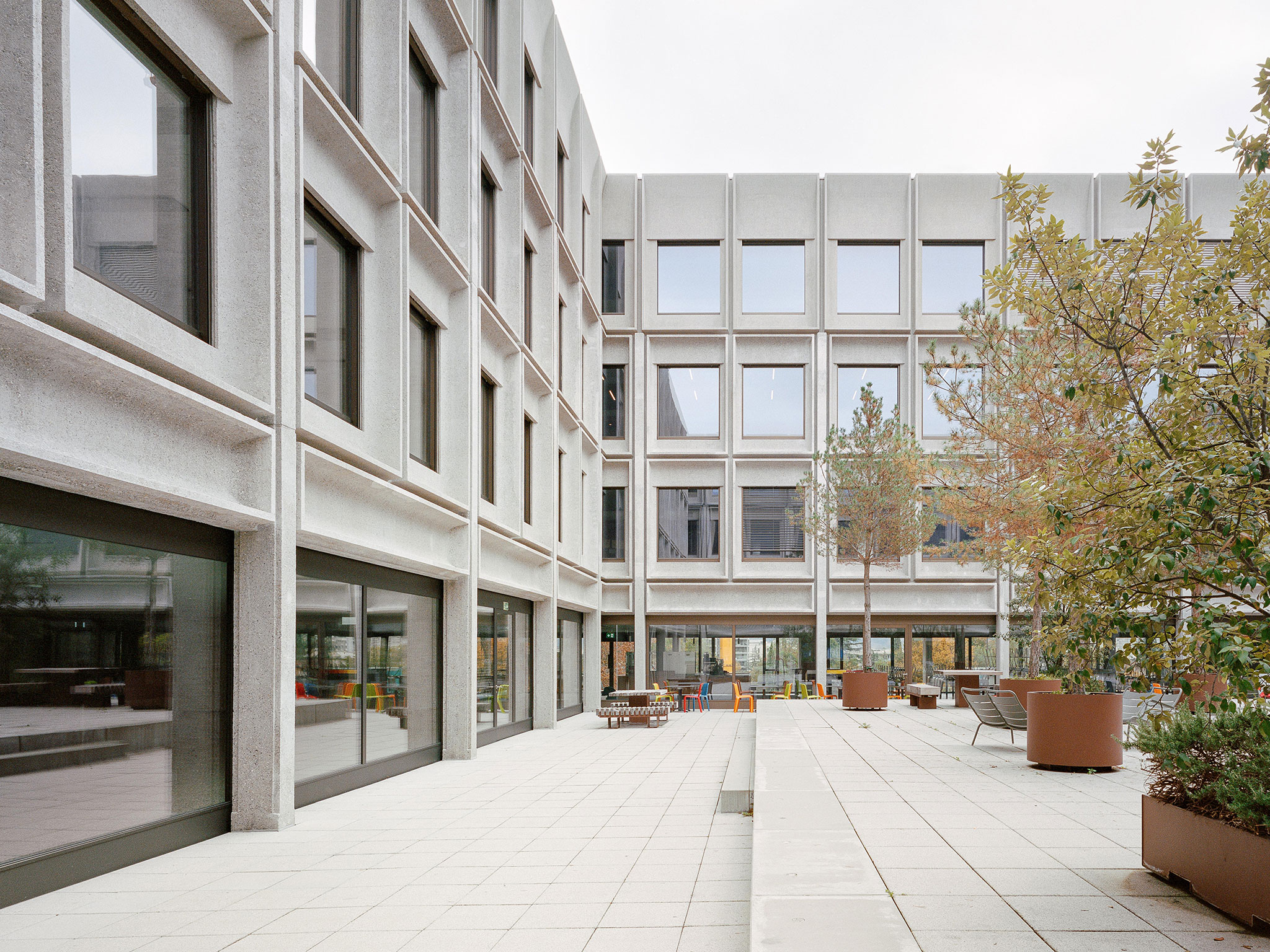

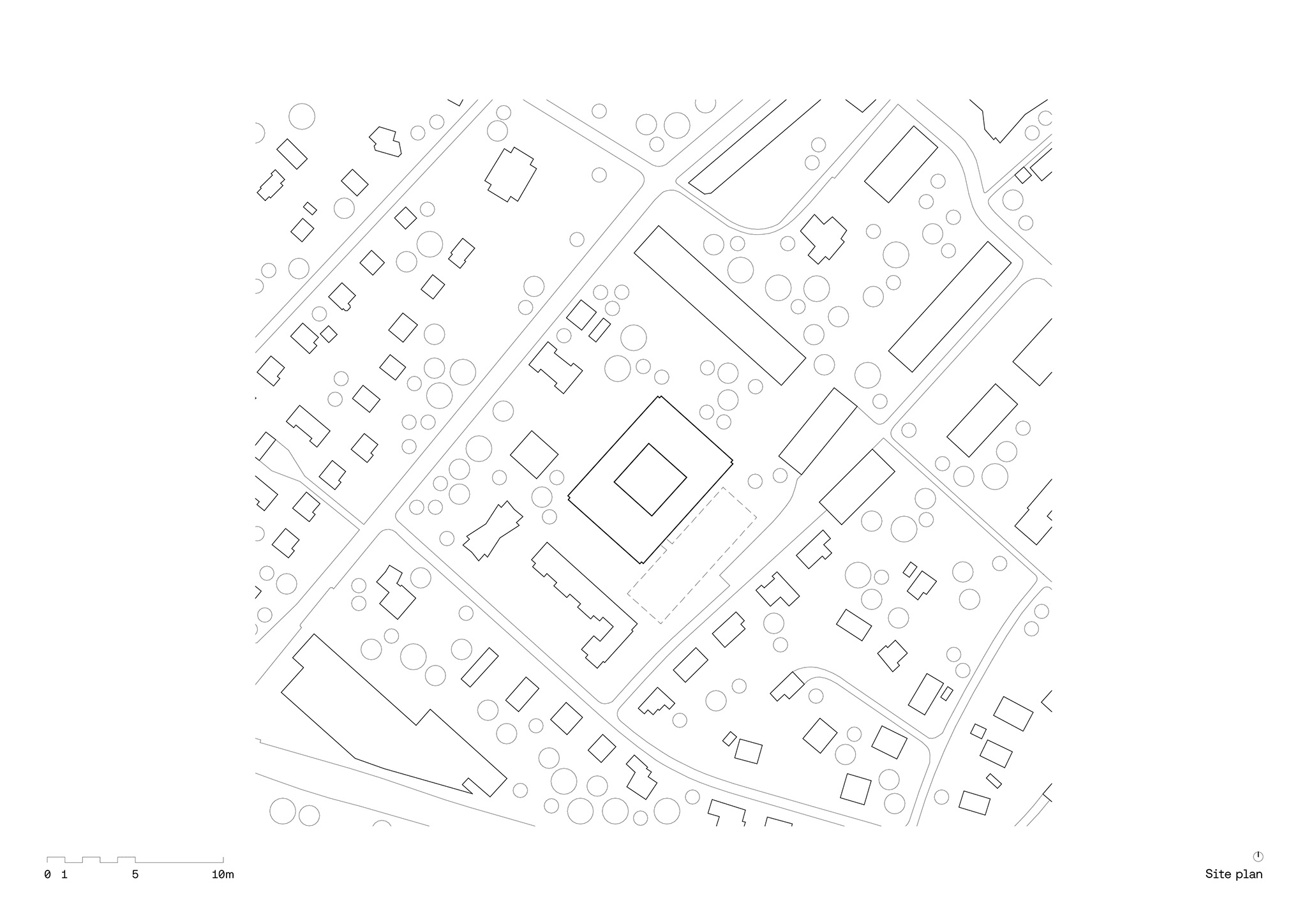

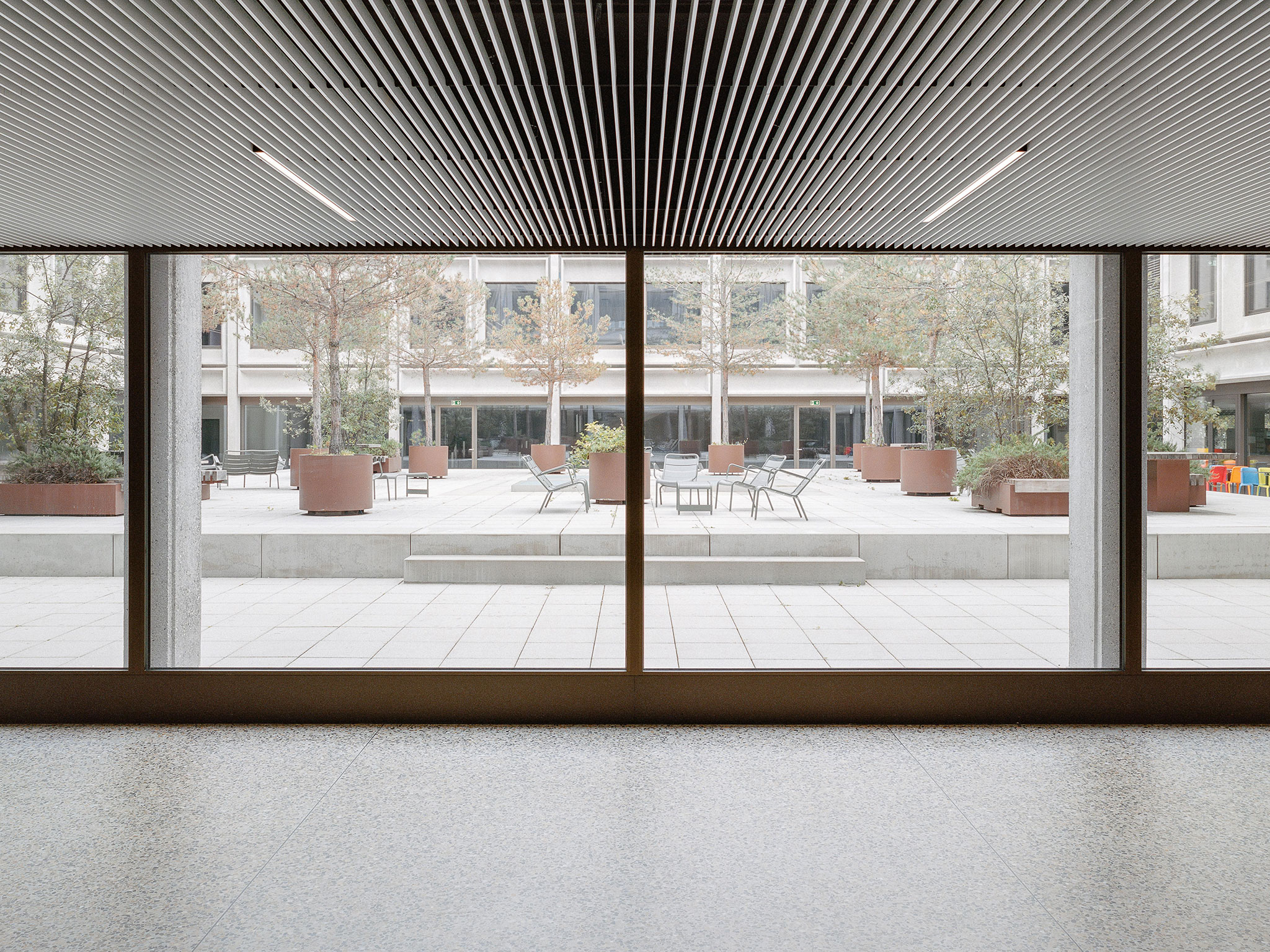

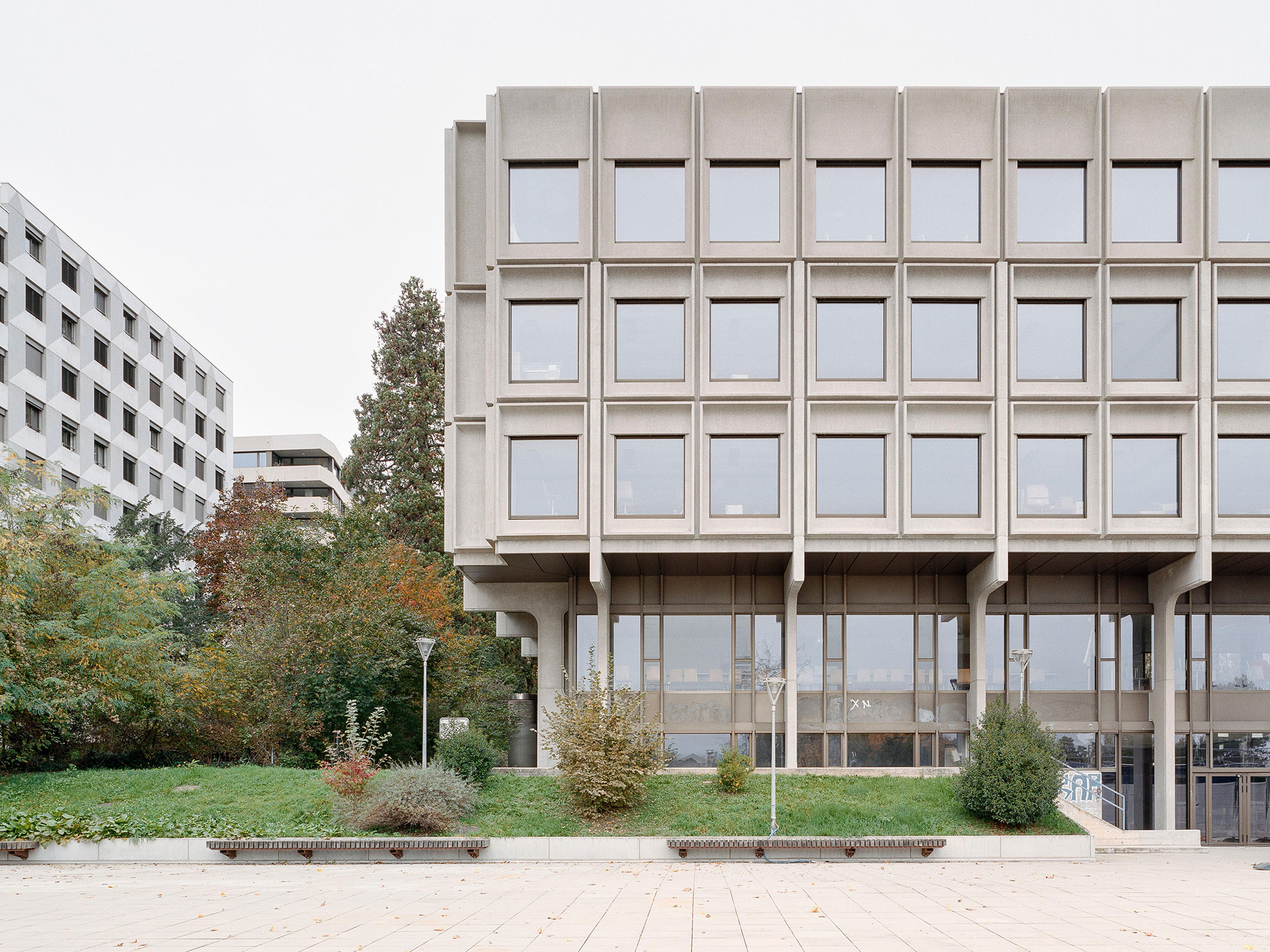

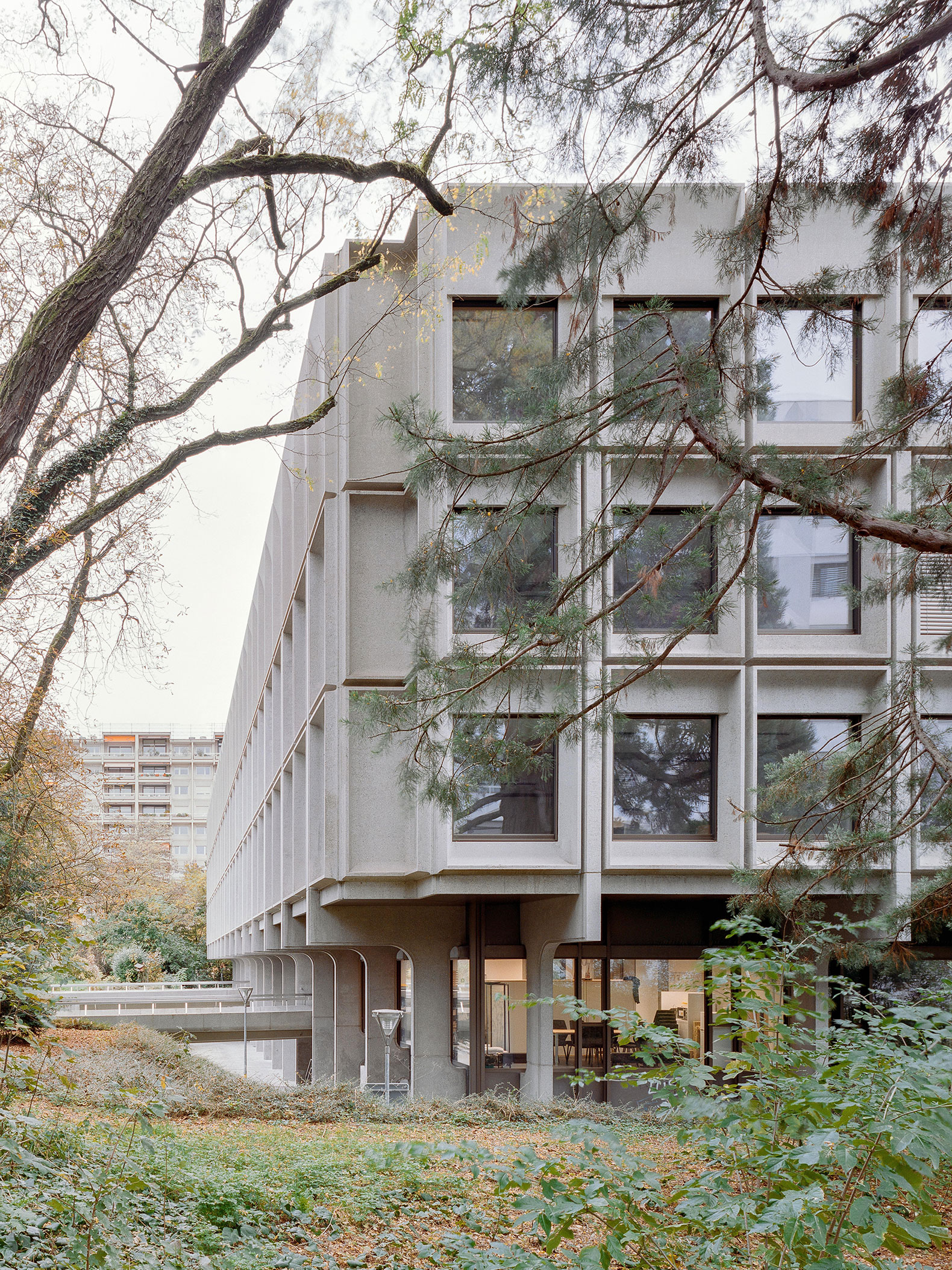

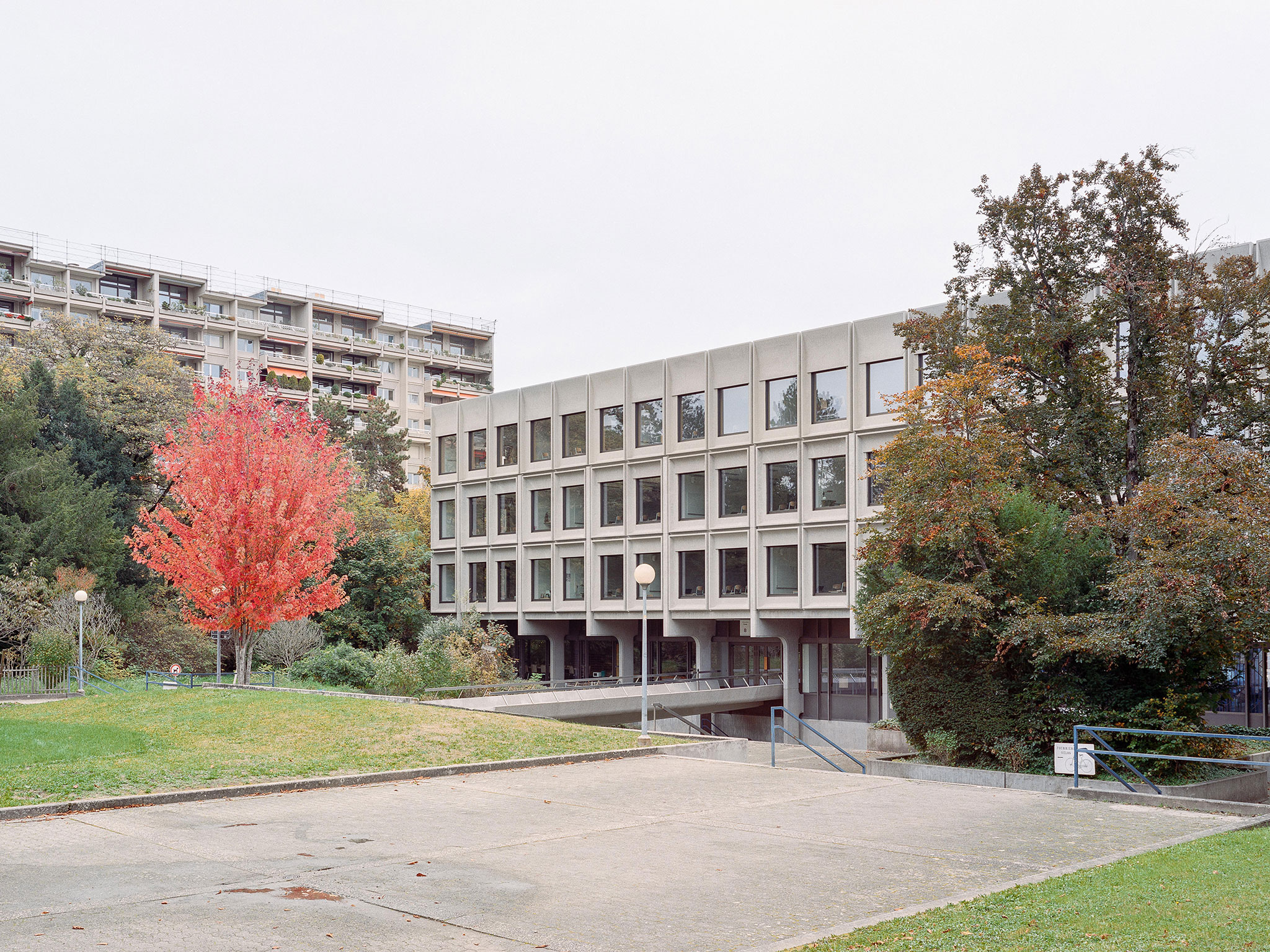

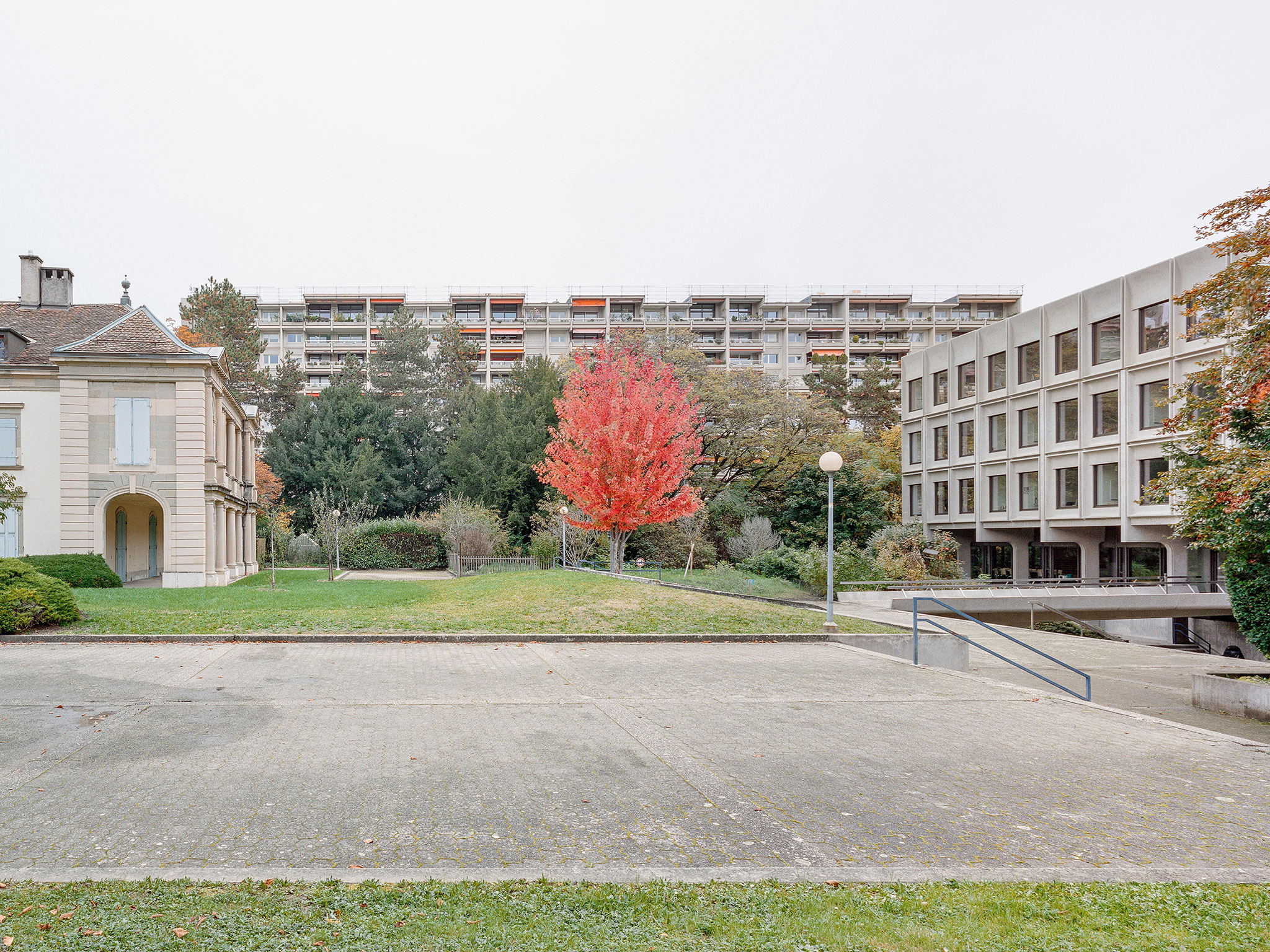

Set far back from the road, nestled between sober residential tower blocks to the north and south and a multi-part structure of detached apartment buildings to the east and west, the building asserts a calm presence on the sloping plot. Its most salient characteristics are its stark structure and rectangular shape with a central courtyard. The building's organization can be made out on the façade: The administrative offices are housed in the two glazed basement stories. On the floors above, the classrooms project out over the base building as a mineral block.
Light and Airy Rooms

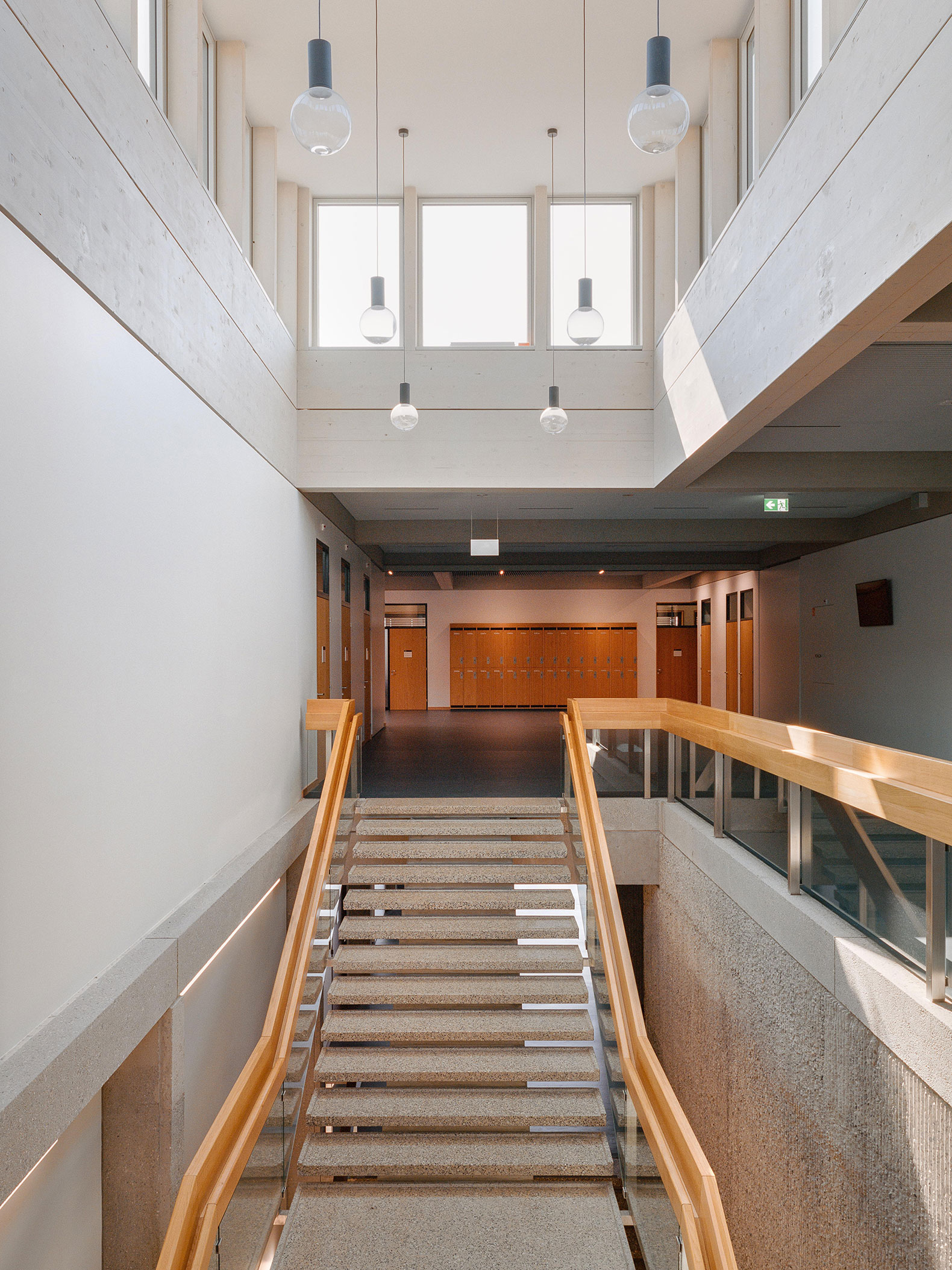

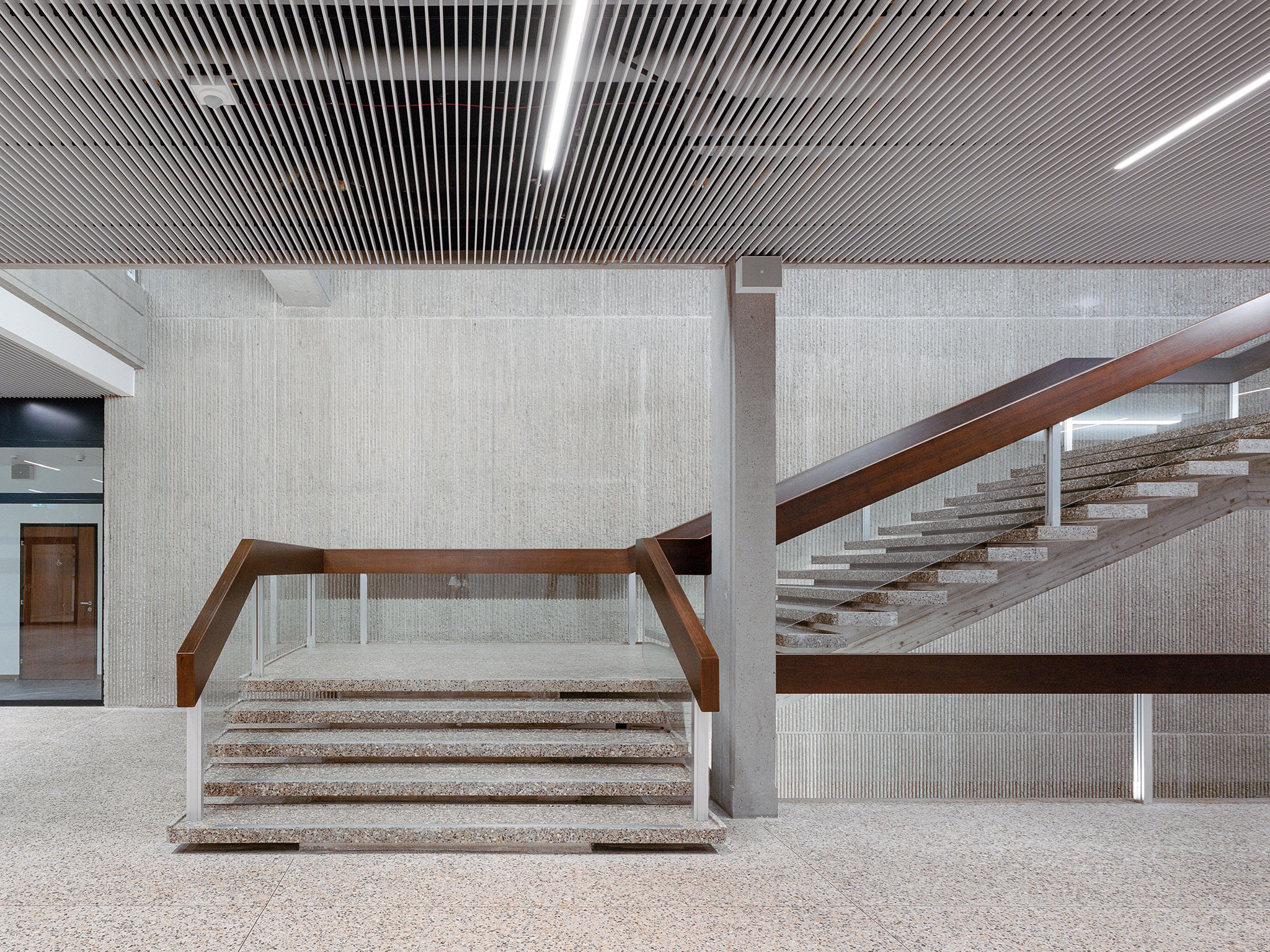

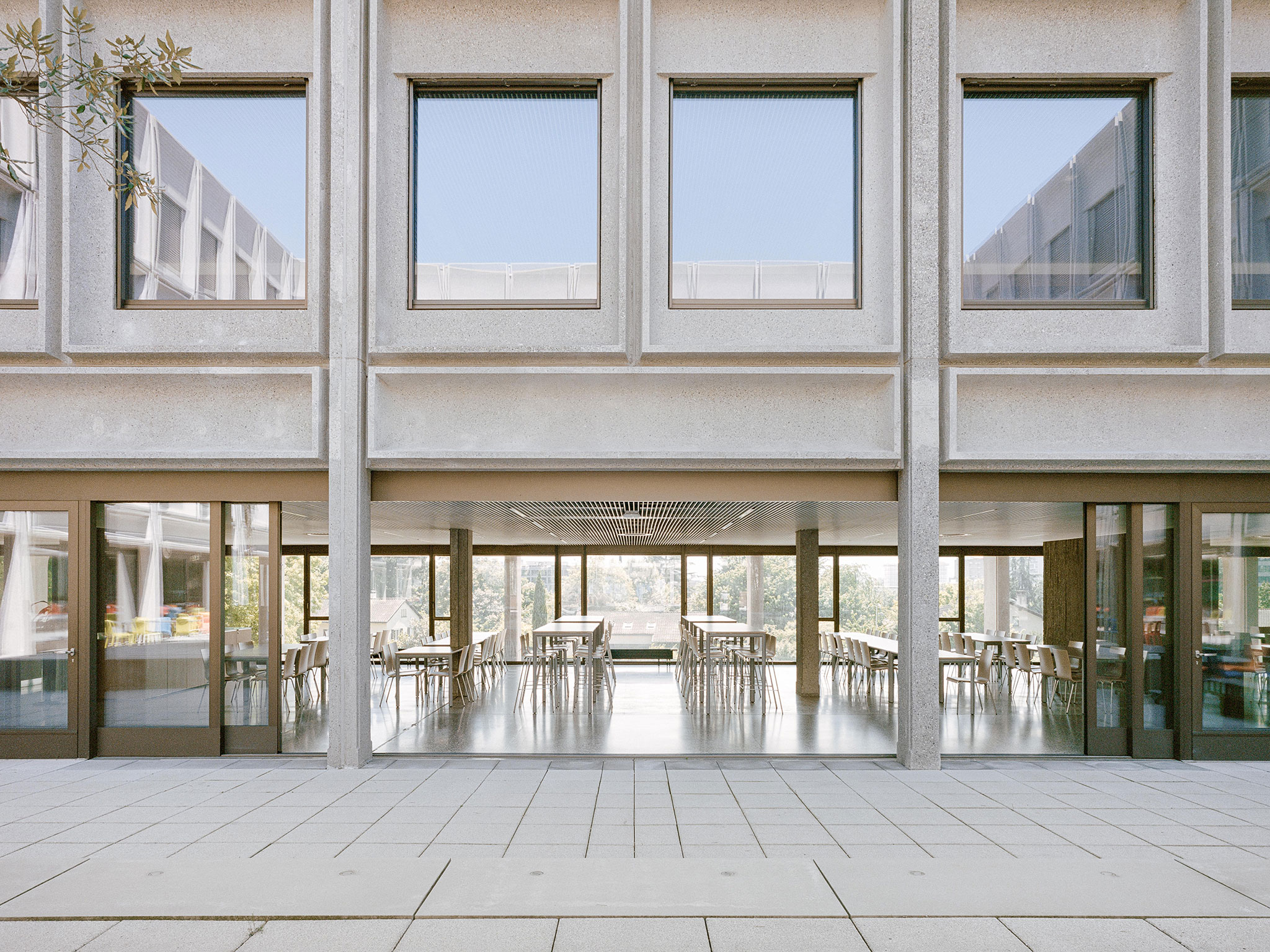

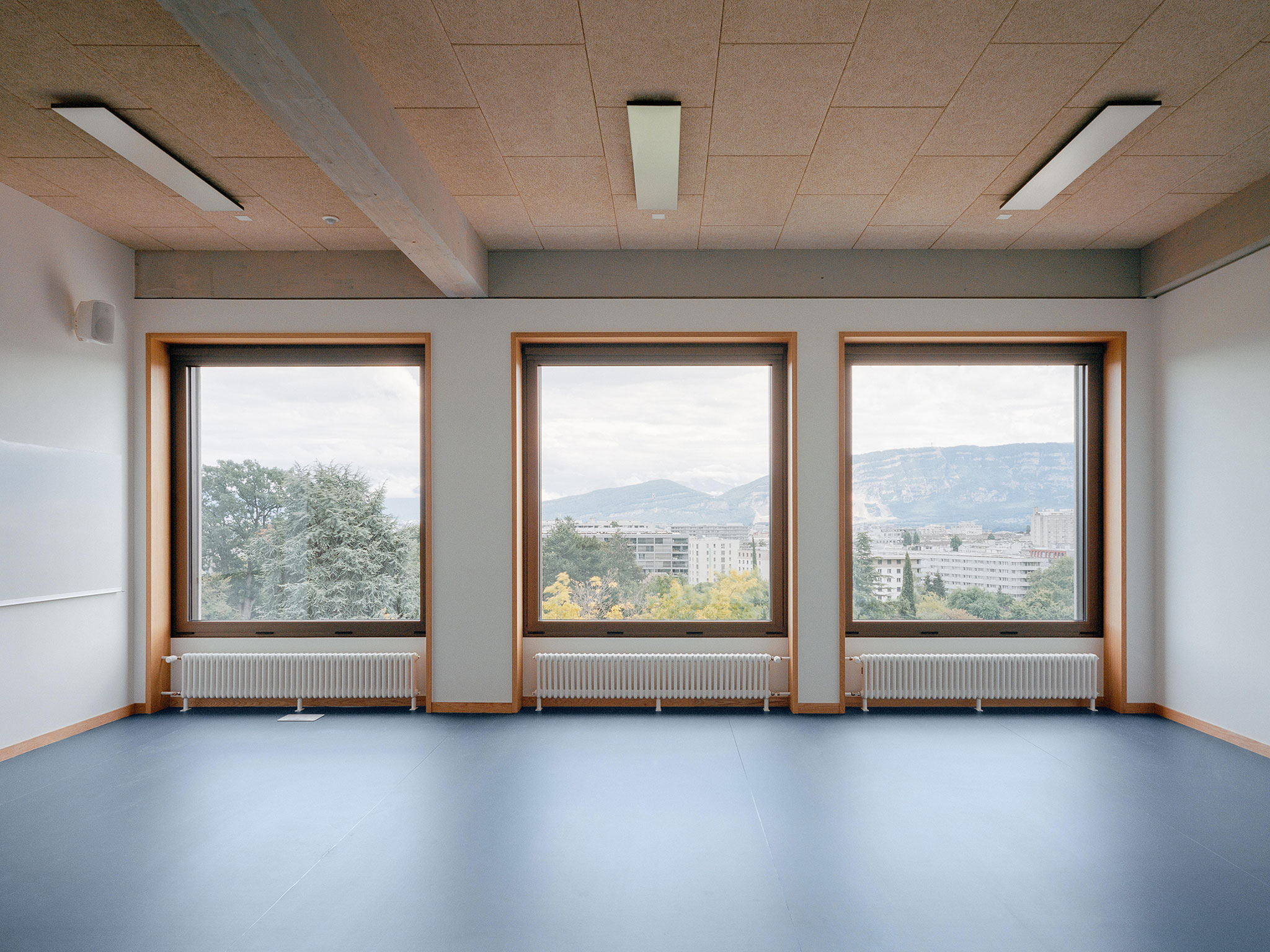

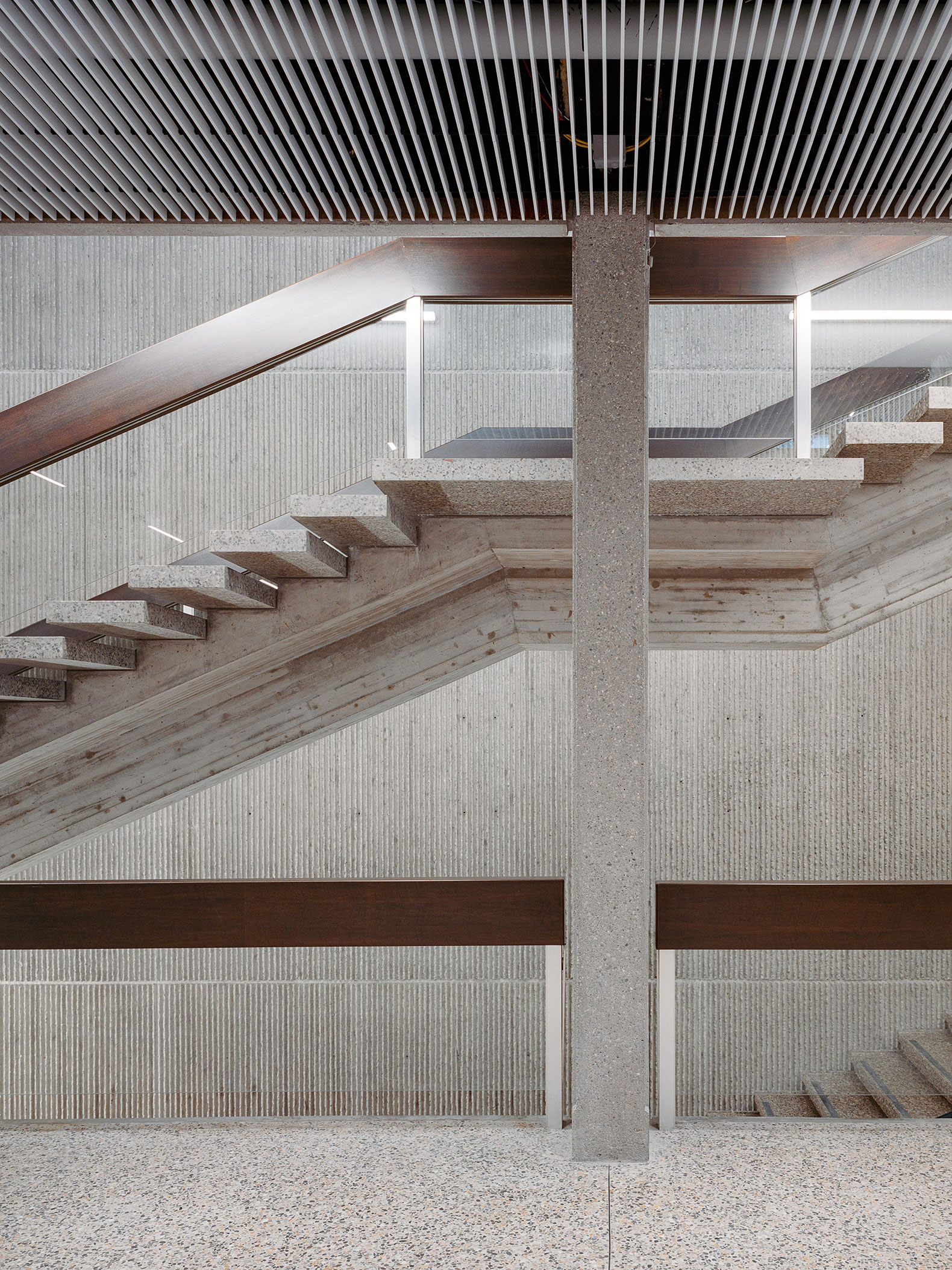

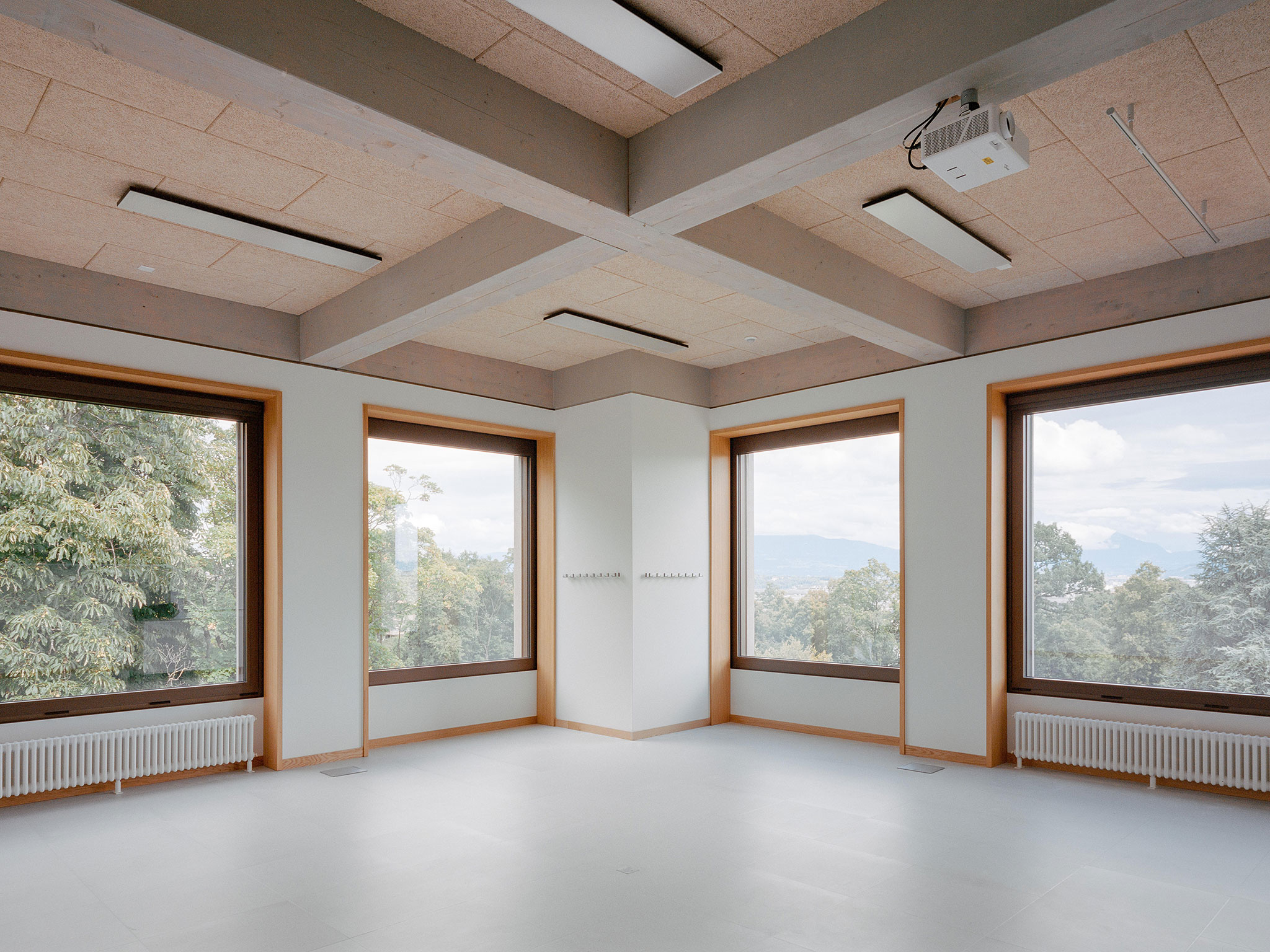

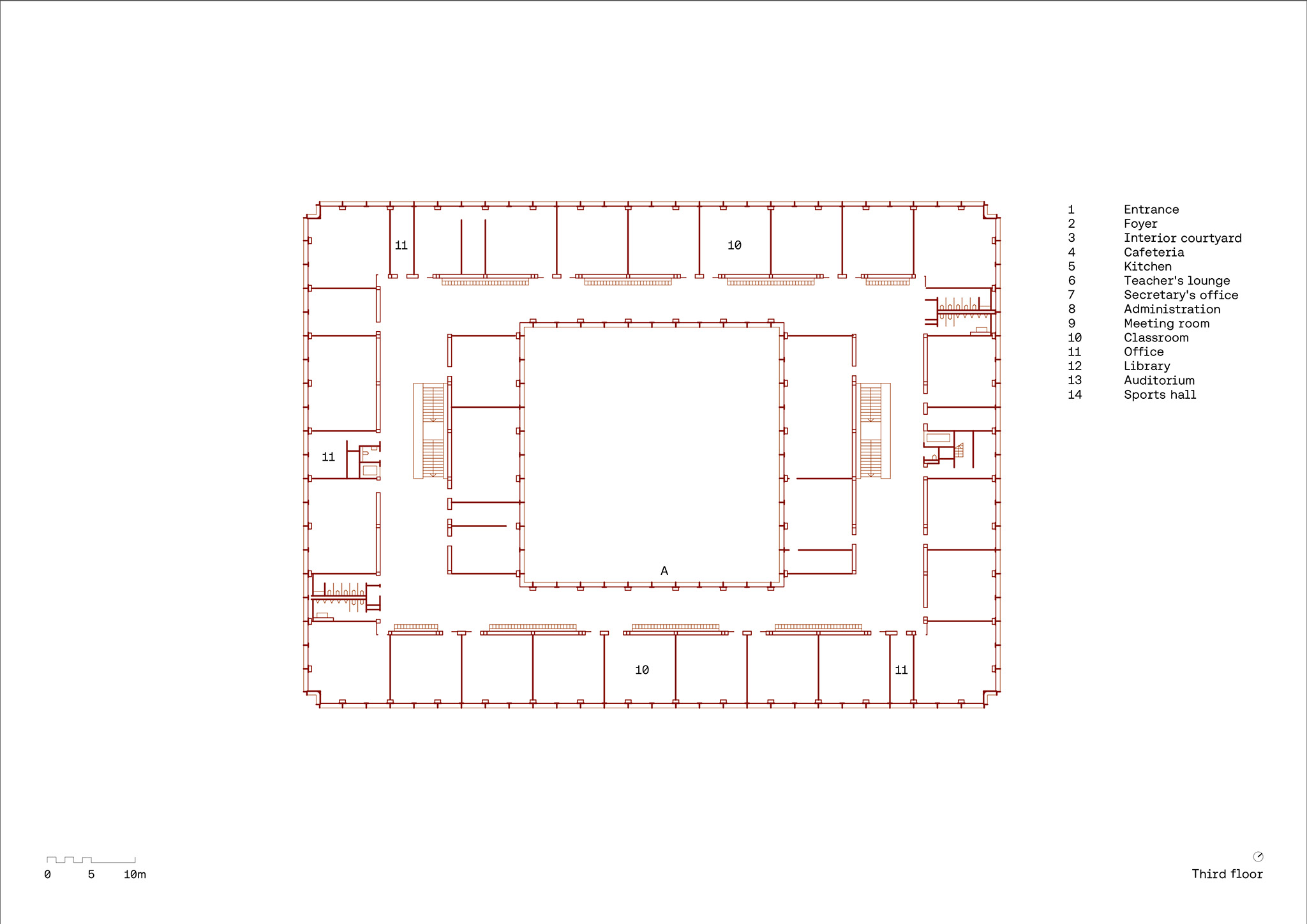

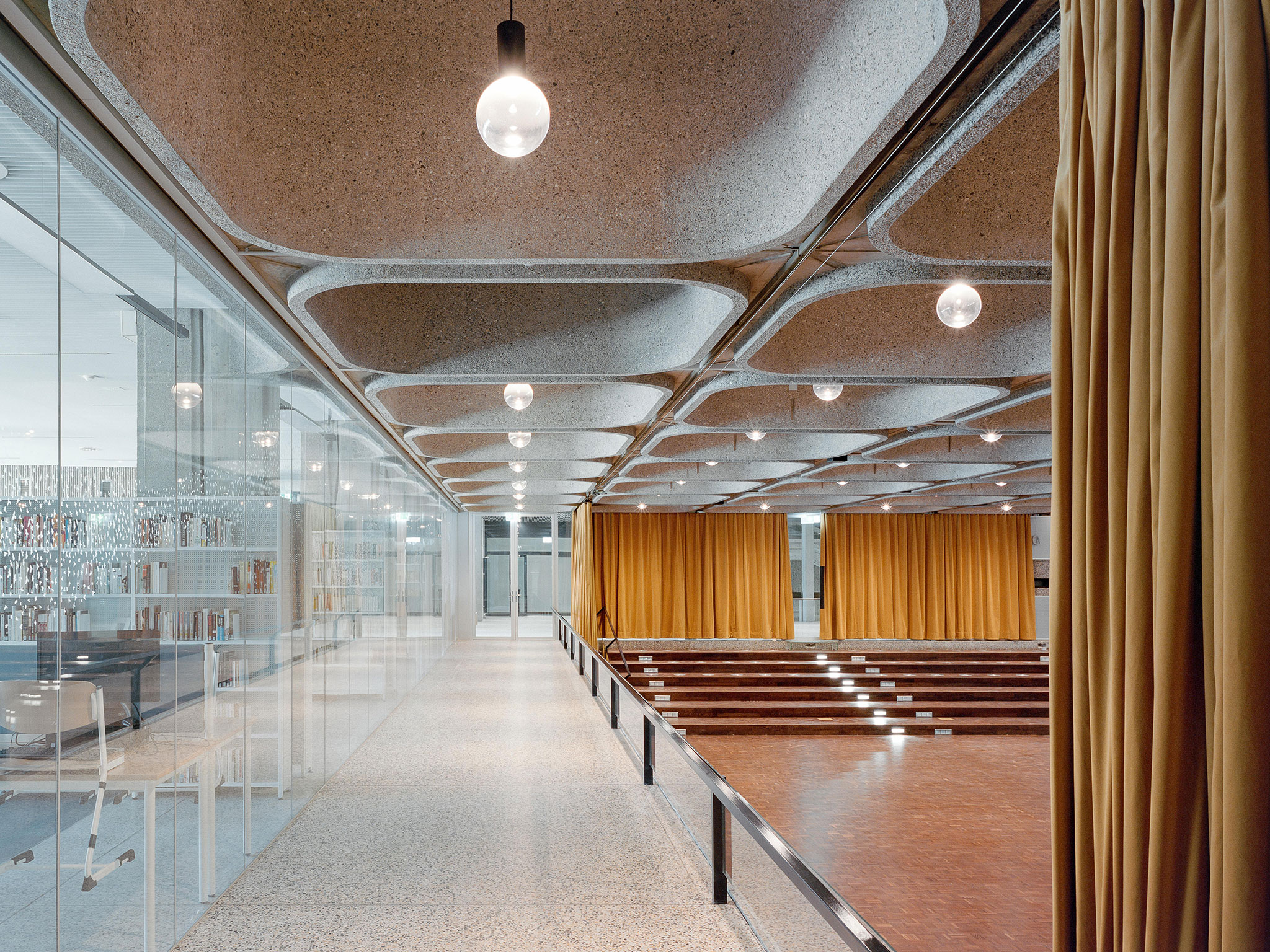

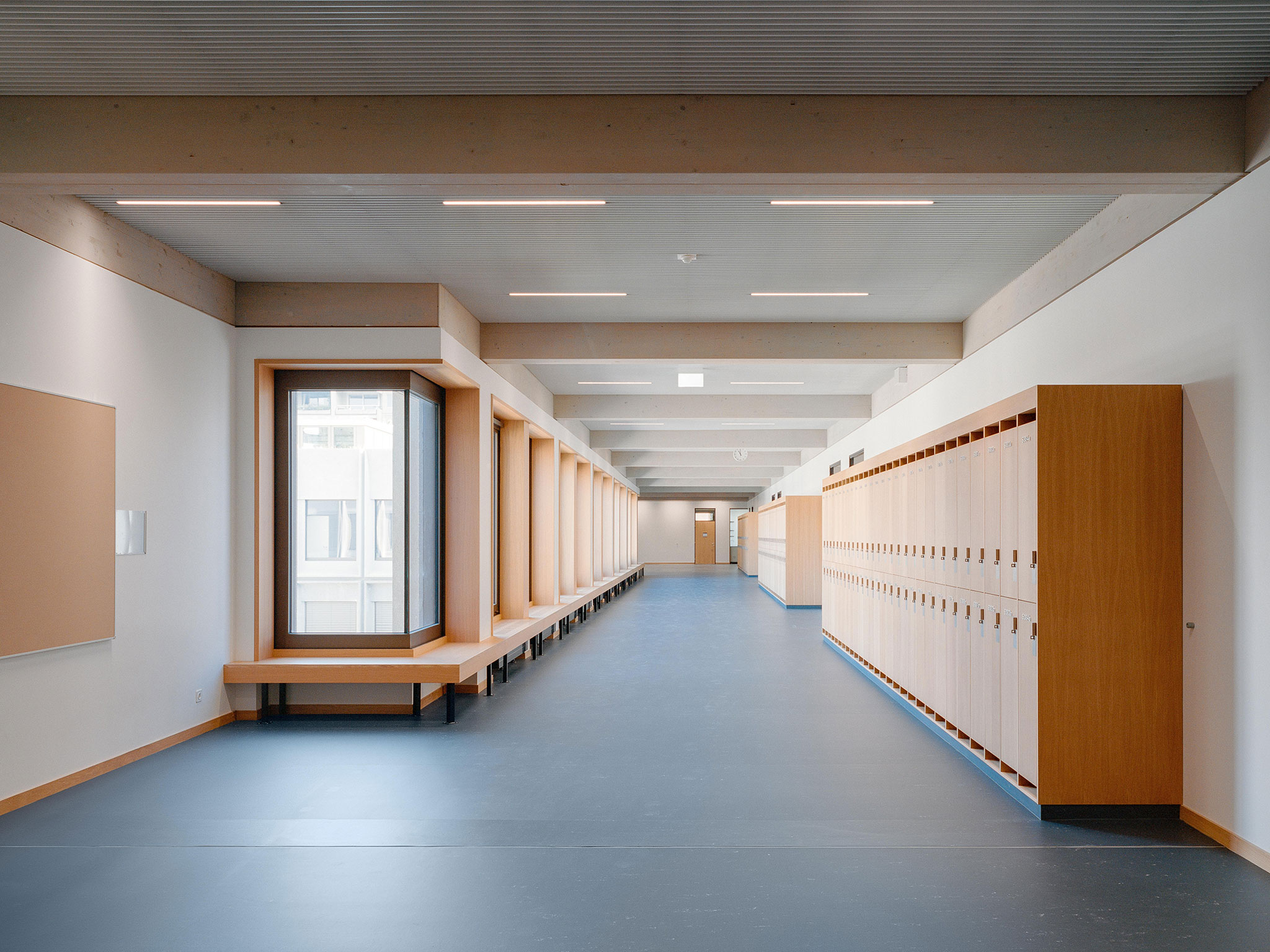

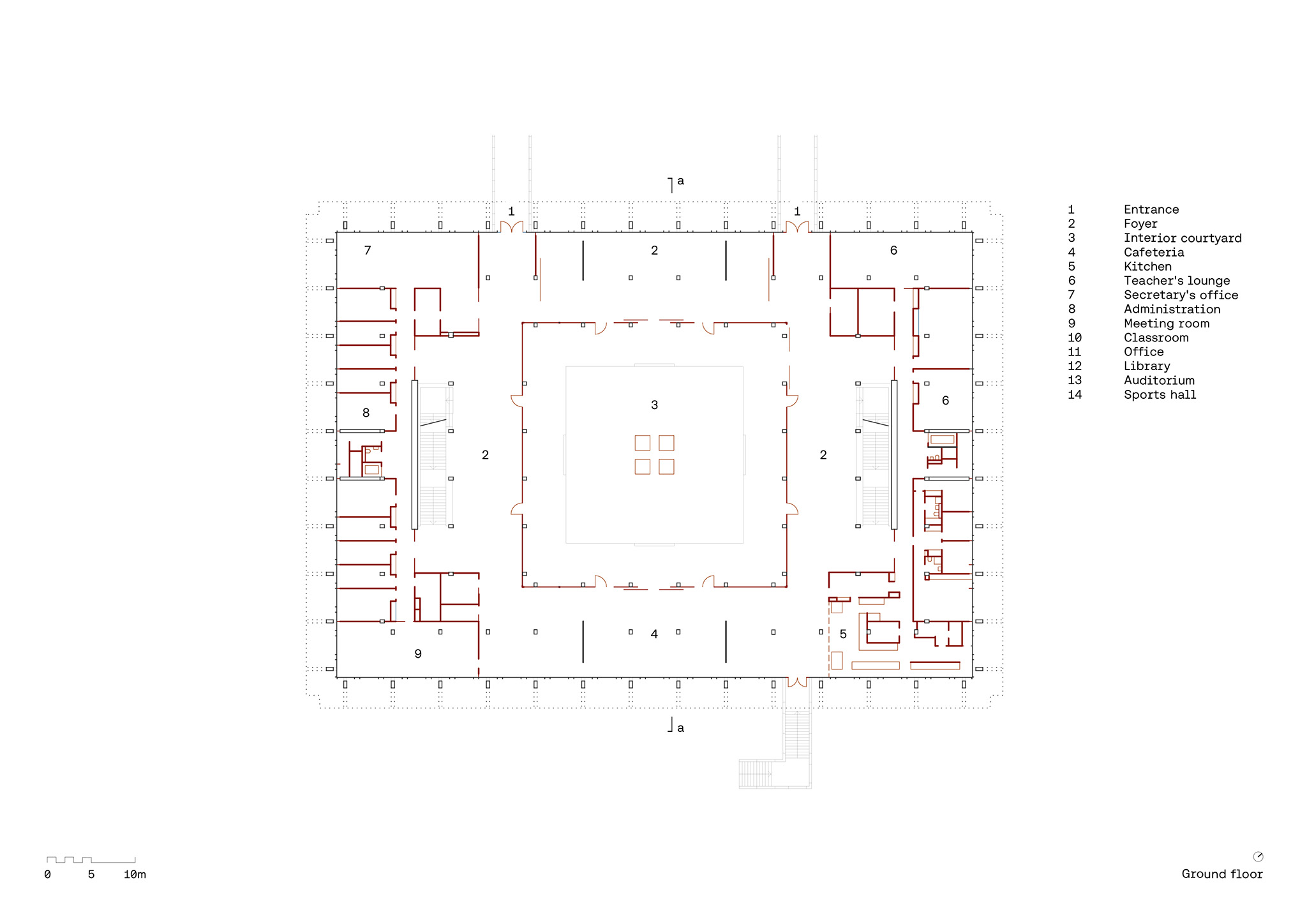

The new story's floor plan is the same, but the feeling of space is entirely different: The ceiling height is more generous and the timber structure is deliberately exposed. Two generous skylights bathe the large staircases in daylight. Floor plans and rooms are orientated around these natural light sources. The new ground-level cafeteria manages to capture the openness that architect Alain Ritter had envisaged in his original design. It is a place of socializing and informal learning, not just during breaks.
Respectful Approach

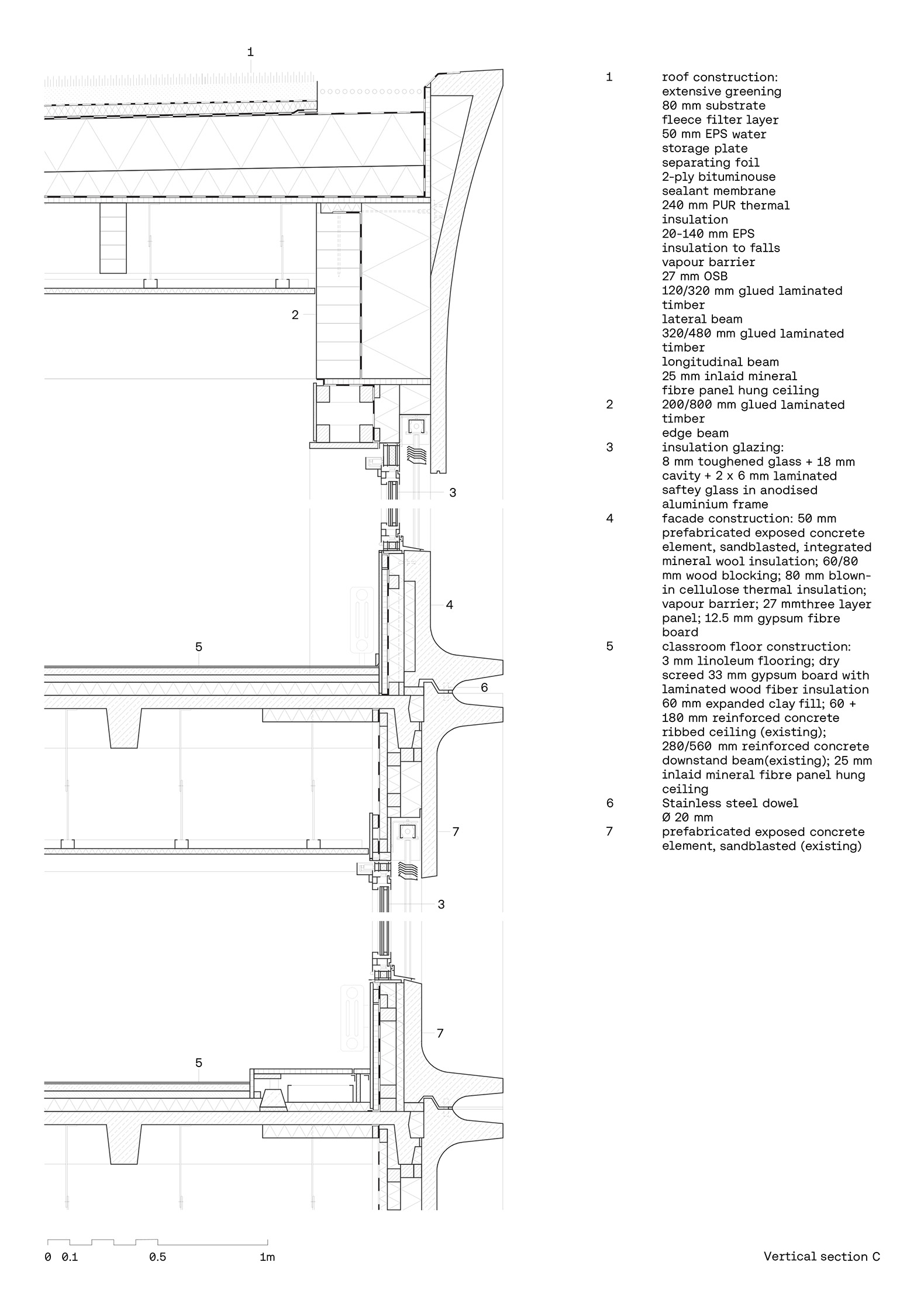

The extension upwards was not only a design-related decision, but also one of sustainability, in that it avoided more of the ground being sealed. Making the building taller instead of wider also limits the infrastructure's extent and rationalizes the technical systems. Shorter distribution paths prevent load and heat losses. The lightweight timber construction (structure, floor and roof) reduces the extra static loads to a level that the existing building can bear without significant reinforcements. The minimally invasive approach has not only reduced the cost, but is also part of a sustainable economic strategy.
Optimized Energy Ratings
Very High Energy Performance (THPE) targets were met for the extension, whereas the historic parts satisfied renovation targets to the Minergie standard. These differentiated measures significantly improve overall energy consumption while respecting the building's heritage value.
Digitalization of the Planning Process
Although not required by the client, the refurbishment and extension were executed as a BIM project. The initial full survey of the existing building involved the creation of a point cloud, a kind of 3D scan, which was supplemented by a digital 180° photographic survey with the Matterport tool. The information thus gathered was compared with the point cloud to create a very precise BIM model of the existing building.
Lean Construction
The use of lean construction methods in the collaboration between architects and technicians proved to be very efficient in view of the complexity of the processes on a school construction site with ongoing operations: For noise-intensive work, for example, several phases and micro-phases were scheduled and observed to coincide with the school holidays.
