Rural house in Carmona by Estudio ACTA
31/05/2019.
[Carmona] Spain
metalocus, BLANCA VÁZQUEZ
metalocus, BLANCA VÁZQUEZ
Estudio ACTA has designed a house located in a rural setting on the edge of a 60's urbanization, halfway between Carmona and Seville. Unrelated to any built reference, the project strategy takes as a reference the Andalusian rural architectures.

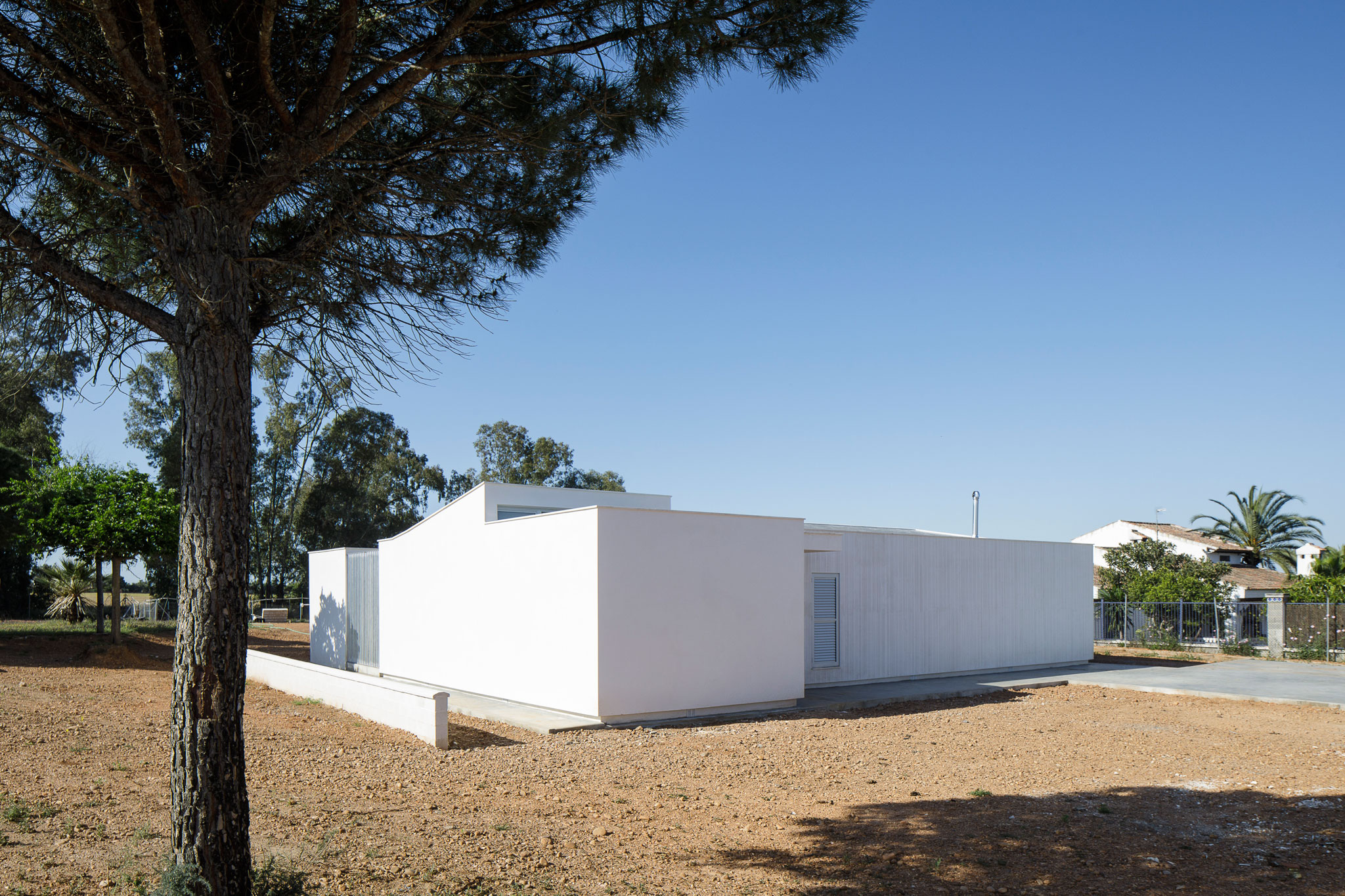

House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
House in Carmona by Estudio ACTA. Photograph by Fernando Alda.
Context. House in Carmona by Estudio ACTA.
Axonometry. House in Carmona by Estudio ACTA.
Axonometry. House in Carmona by Estudio ACTA.
Site plan. House in Carmona by Estudio ACTA.
Ground floor plan. House in Carmona by Estudio ACTA.
Elevations. House in Carmona by Estudio ACTA.
Sections. House in Carmona by Estudio ACTA.
Construction. House in Carmona by Estudio ACTA.
Construction. House in Carmona by Estudio ACTA.
The house designed by Estudio ACTA is organized in a single floor, structured in three rectangular bodies, developed around an exterior courtyard open on the south side. The roofs confer volumetry to the whole, alternating light inclinations in several directions with small flat areas.
Structure and enclosure are joined in a single element of reduced thickness, formed by vertical and horizontal EPS panels, with projected micro-concrete covering, reinforced with mesh, on both sides (Baupanel System©). The system adopted makes it possible to dispense with pillars.
Structure and enclosure are joined in a single element of reduced thickness, formed by vertical and horizontal EPS panels, with projected micro-concrete covering, reinforced with mesh, on both sides (Baupanel System©). The system adopted makes it possible to dispense with pillars.
Description of project by Estudio ACTA
Located on the edge of an urbanization of the 60s, halfway between Carmona and Seville, the size of the plot (more than 4000 m2), its peripheral position and the absence of neighbors, make the physical space where the housing in something fully RURAL, empty of any urban or built reference.
With these wickers, the implementation strategy resumes the invariance of Andalusian rural architecture, based on geometry and the creation of exterior spaces - central and secondary courtyards- around which the building is located.
The building is designed as a single-family home for own use in which the configuration of the plant revolves around an outdoor courtyard open on the south side to the rest of the vacant plot. Around it, three rectangular pieces are developed which appear to rotate around the courtyard until forming a kind of inverted U.
The covers are slightly inclined, in opposite directions, alternating with small flat areas, in order to achieve a certain volumetry of the whole, both exterior and interior, which compensates the development in a plant.
The functional program is organized in a single plant, structured in three pieces joined by two distributors. One of them is the living room, kitchen and dining room. The second one houses the master bedroom and its associated bathroom and dressing program. And the third one, houses the rest of the night program, with two bedrooms and a bathroom. Complete this piece a small toilet, locker room and storage, linked to the external uses of the plot.
The structure is solved based on vertical and horizontal panels of EPS, with micro-concrete coating projected, reinforced with steel on both sides (Baupanel system ©). This allows the meeting of structure and enclosure in a single element, of reduced thickness, the absolute absence of pillars, and a magnificent energetic behavior.
More information
Architects
Estudio Acta. F. Javier Löpez Rivera, Ramón Pico Valimaña.
Collaborators
Irene Serrano Cabello. Baupanel System. Quantity surveyors.- Manuel Jesús Cansino Conejero, Carlos Manuel Gómez Ávarez.
Contractor
Area Servicios
Area
Built Area.- 190 m². Plot Area.- 4.000 m².
Dates
Project.- 2016. Construction.- 2019.
Venue
Urbanización La Celada. Carmona, Seville, Spain.
Photography
Fernando Alda.
