France architecture studio Graal delivers a recreation center in Athis-Mons, a commune in the southern suburbs of Paris, France. It is located 16.5 km from the center of Paris. Inhabitants are called Athégiens.

The zone is characterized by its geography, a very fragile alluvial plain between the Seine and the Orge, which was ideal for locating important railway infrastructure and urban development stretching lengthwise form the southwest to the northeast. A small part of Orly International Airport lies on the territory of the commune of Athis-Mons.
The integrative approach, implemented by Graal, here considered the nearby Seine as a genuine material of the project. The flowing water and the reflections inspired the project designers to create a changing and harmonious envelop.

The rhythmic and kinetic façade expresses the different temporalities of the program while dialoguing with the activities of the nearby railways. Composed of curving concrete veils colored a pinkish gray, the façade, though massive, vibrates and interacts with the light, one’s point of view and the comings and goings of users making this a welcoming and protective building.


Project description by Graal

The construction of the Jaurès recreation center provided the city of Athis-Mons with an opportunity to equip itself with a facility for small children adapted to open learning methods and at the same time help to reduce the pressures of the towns growing population.

The zone is characterized by its geography, a very fragile alluvial plain between the Seine and the Orge, which was ideal for locating important railway infrastructure and urban development stretching lengthwise form the southwest to the northeast. This area is subject to a number of rights of way exposing it to important nuisances. Thus, the Jaurès school complex plays the strategic urban role of liaison with the rest of the neighborhood. The school complex stands in a residential area comprised of a number of period buildings of varying typologies.

The urban challenges of the project were to create a pleasant entry opening onto the pedestrian area and the church of Notre-Dame de la Voie as well as to undertake an urban and architectural recomposition in which the recreation center plays the role of connecter between the different scales.

Imagined as an element embedded in this fluvial zone, the building stands on a unifying mineral platform approximately one meter in height, which blocks the view of the children from the street while still enabling the interior spaces to open broadly to the outside. Thus, by protecting the plot from high water, the platform transforms the constraints of this site on the floodplain into project opportunities.

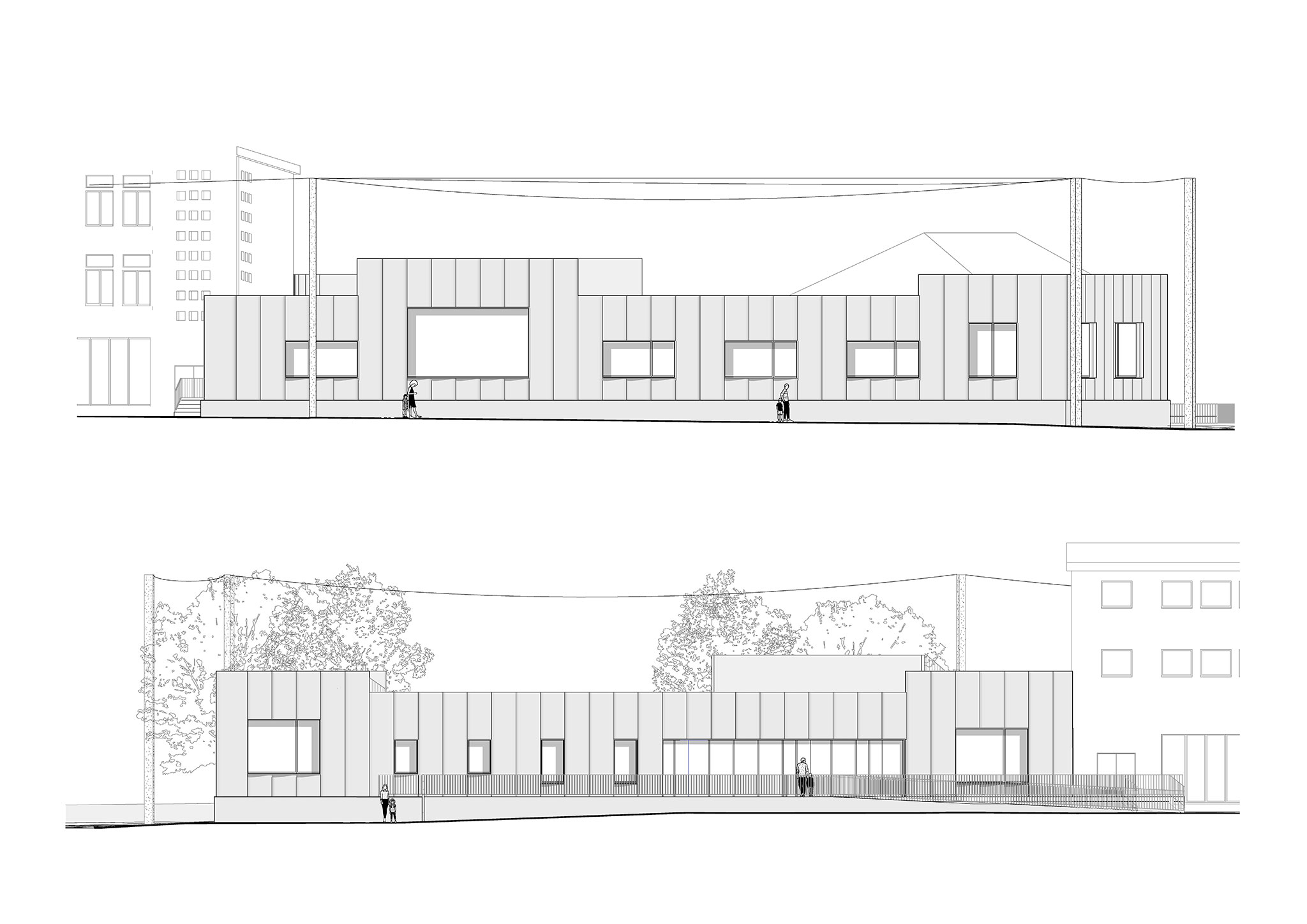

The protective façade of the facility where it borders the railways extends for a length of 40 meters, ensuring a powerful presence in the area. The integrative approach implemented here considered the nearby Seine as a genuine material of the project. The flowing water and the reflections inspired the project designers to create a changing and harmonious envelop. The rhythmic and kinetic façade expresses the different temporalities of the program while dialoguing with the activities of the nearby railways. Composed of curving concrete veils colored a pinkish gray, the façade, though massive, vibrates and interacts with the light, one’s point of view and the comings and goings of users making this a welcoming and protective building.

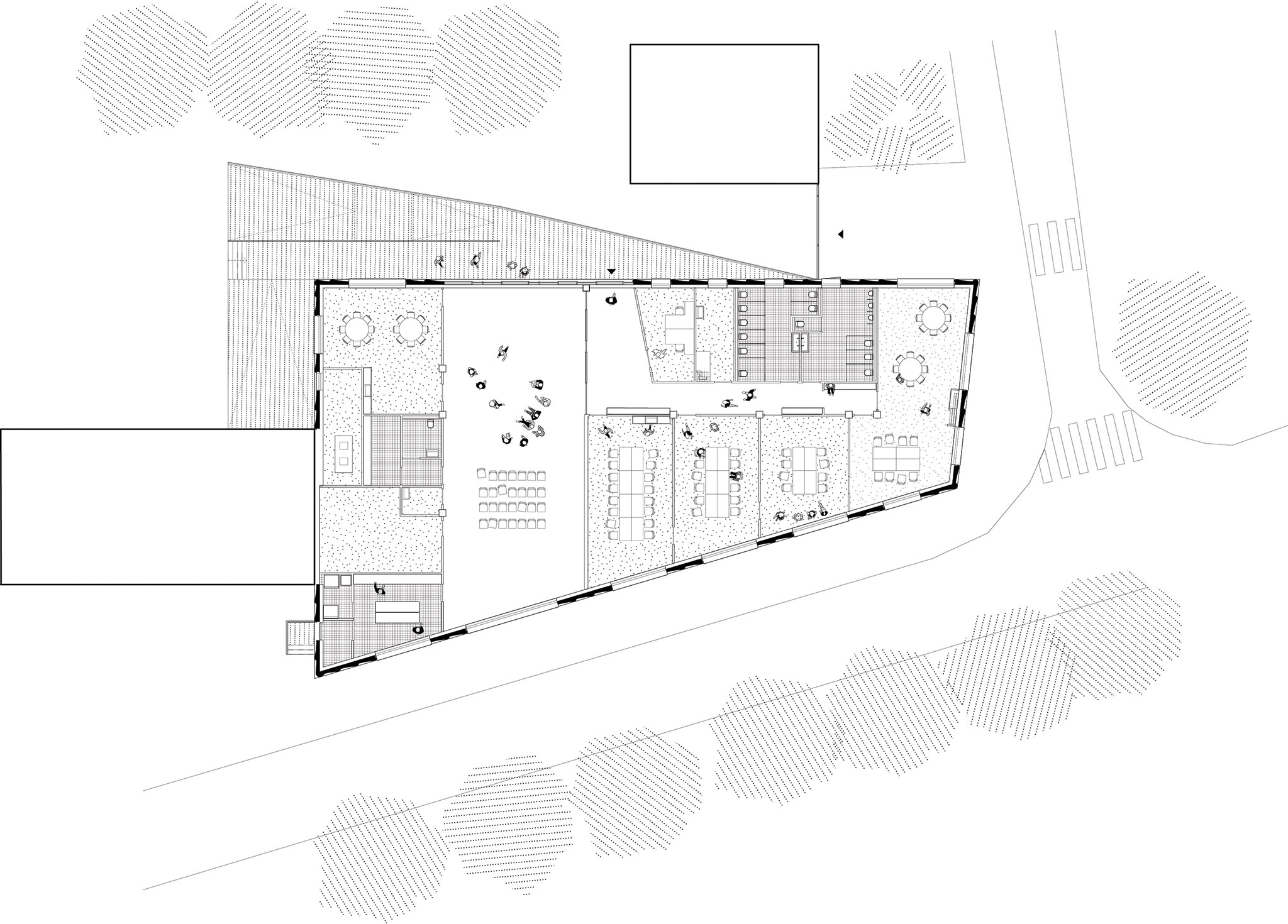

Users access the recreation center via a ramp hollowed out of its stained concrete base. This exterior pathway leads to the lobby, which serves as a threshold and reception area for parents. To the right, the “big hall” is a multipurpose room. The floor area of 157 m² extends across the entire width of the building with a height of 4.70 meters and broad glazed bays creating a dialogue between the area of the courtyard and the railways. Designed for flexibility, this central space is easily adapted to all sorts of extra-curricular activities.

The workshops are intentionally simple spaces, designed to host a wide range of activities. Conceived with the aim of easy maintenance and upkeep, these rooms are as basic as possible to reduce finishing and fitting out costs. A training kitchen is placed in direct contact with the big hall and with the exterior to facilitate waste management. All these rooms have large glazed bays to ensure optimal natural light and additional fresh air.

The project was designed as a “basic facility.” Thus, far from being complex and costly, the Jaurès recreation center strove to focus on the economics of the project, carrying out an in-depth survey of the area and local uses to be able to offer an energy efficient, adaptable and sustainable facility to the town of Athis-Mons.

Read more
Read less

More information

Label
Architects
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Team
Text
Alejandro Bernal, Maéva Liaut, Cristiano Gerardi, Lou Goiran, Prisca Bouhier, Jaehyun Park.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Architect, cost management.- Graal. Structure.- Astuce béton. M&E engineer.- Sunsquare.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Client
Text
Town of Athis-Mons.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
610 m²
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Budget
Text
€ 2.0 M
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Delivered in October, 2019.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Program
Text
Multipurpose room, workshops, training kitchen, office.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
Quartier du Val, Rue de Juvisy. 91200 Athis-Mons - France.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
+ + copy Created with Sketch.
- + copy Created with Sketch.
Graal is an architecture and urban planning practice founded in 2012 by Carlo Grispello and Nadine Lebeau, based in Paris, France. Its activity spans different scales, from interior interventions and residential buildings to public facilities and urban projects, in France and internationally.

The practice combines architectural and urban strategies through an analysis of territorial contexts, patterns of use, construction systems, and materiality, with particular attention to the public dimension, contemporary forms of living, and available resources. Its projects are developed in collaboration with multidisciplinary teams.

Graal has received several distinctions, including the ArchiDesignClub Award and the Europe 40 Under 40 Award in 2016, the Italian Architect and Young Architectural Talent Prize in 2017, the AR Emerging Award and the Iconic Award in 2022, and an honourable mention at the Built Design Awards in 2024.

Nadine Lebeau was born on 7 July 1982 in Saint-Rémy, France. She graduated in Interior Architecture from the École Nationale Supérieure des Arts Appliqués et des Métiers d'Art (ENSAAMA) in 2002 and in Architecture from the École Nationale Supérieure d'Architecture de Paris-La Villette in 2007. Before co-founding Graal, she worked as an architect at Atelier Seraji. In 2018, she was named among the 100 young leaders shaping the cities of tomorrow by the Institut Choiseul.

Carlo Grispello was born on 8 April 1982 in Naples, Italy. He graduated in Architecture from the École Nationale Supérieure d'Architecture de Paris-La Villette in 2007. Before establishing Graal, he worked at Renzo Piano Building Workshop and as lead architect at Bruno Mader's practice. From 2016 to 2022, he taught Architectural and Urban Design Theory and Practice at the École Nationale Supérieure d'Architecture de Nantes. Since 2022, he has taught at the École Nationale Supérieure d'Architecture de Paris-La Villette.

Read more
Published on: March 12, 2020
Cite:
metalocus, ANA DIOSDADO
"The Seine as a genuine project material. Recreation center in Athis-Mons by Graal" METALOCUS. Accessed
<https://www.metalocus.es/en/news/seine-a-genuine-project-material-recreation-center-athis-mons-graal> ISSN 1139-6415
