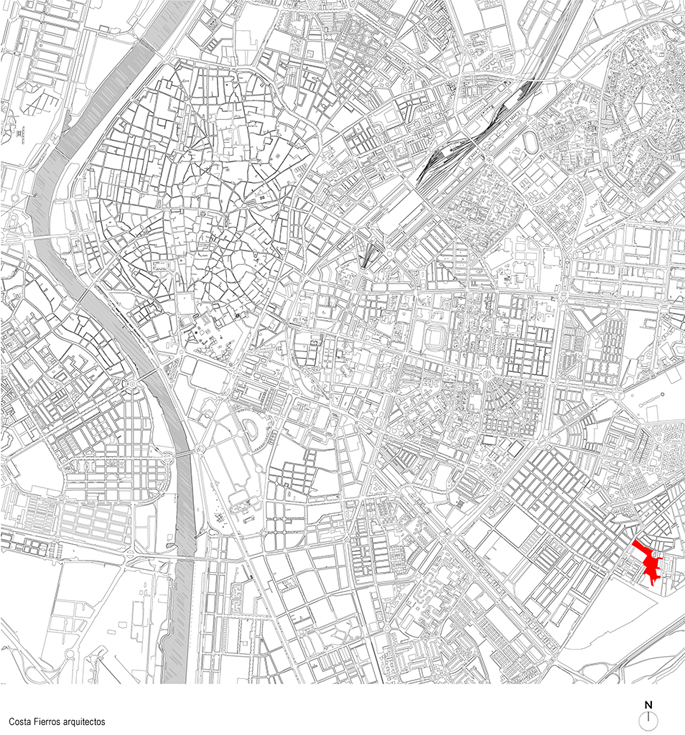

This is a proyect from the study Costa Fierros for the urban adequacy of the Cocheras station in the subway Line 1 in Seville creating a new park located between the districts of Nuestra Señora del Águila and Barrio de la Musica.

The plot on which stands the Park was a degraded area without equipment and acting as a barrier between the two neighborhoods. The Music Park is one of the unique actions on redevelopment and urban integration associated with Subway Line 1 infrastructure in Seville, which began in January 2009. In its gestation, projects were developed with the active participation of neighborhood associations in the surrounding districts.

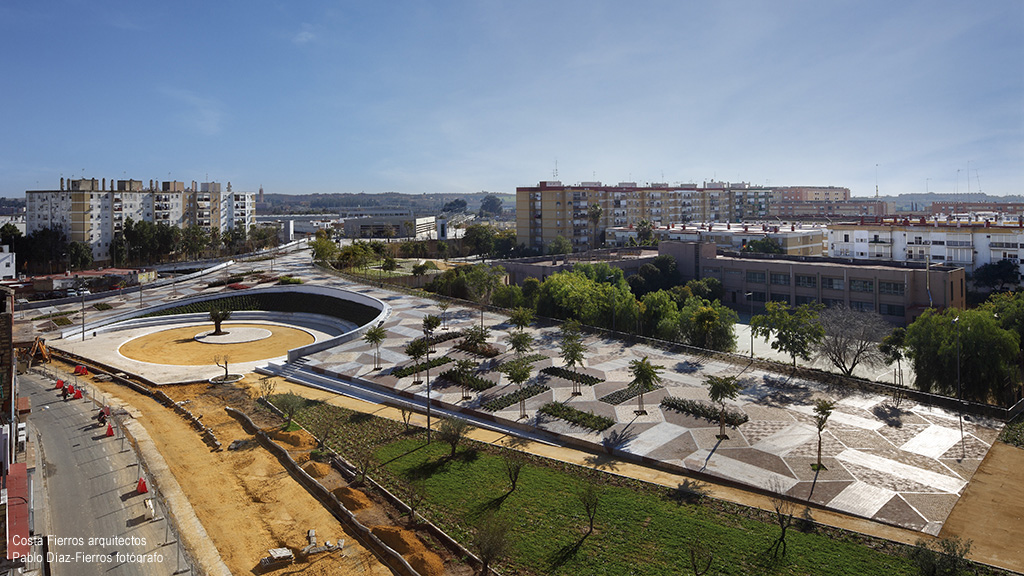

The intervention, with an area of 32.487 square meters, ensures accessibility to the Cocheras station, located in the centra plateau of the park, and the access of residents from homes that are located on both sides. It has a double purpose: a more cohesive, regenerated city, with better internal relations, and a more human and pleasant city un its daily experiences.

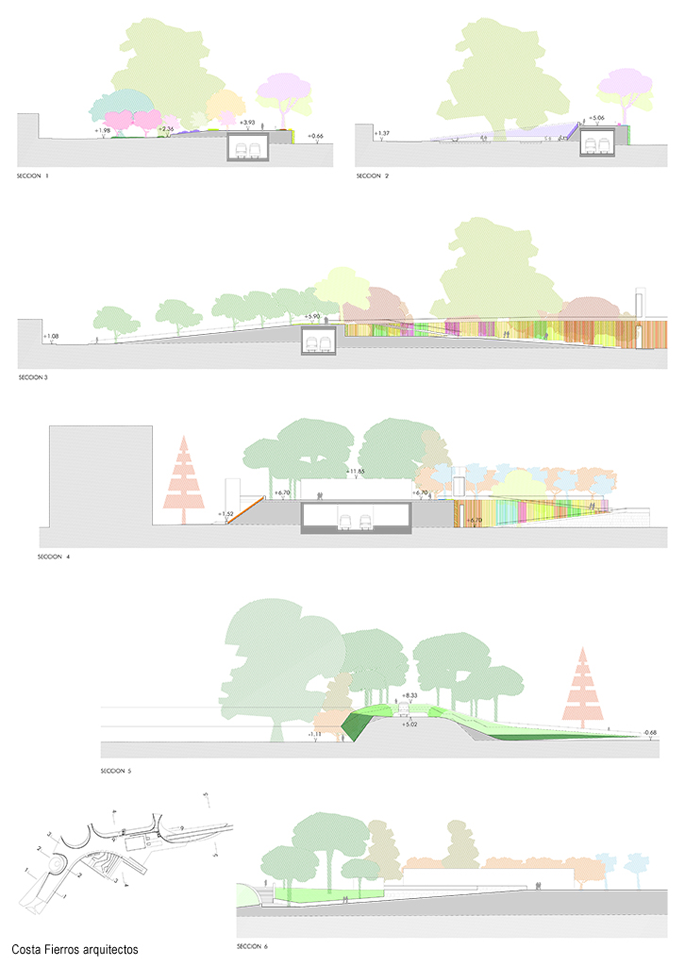

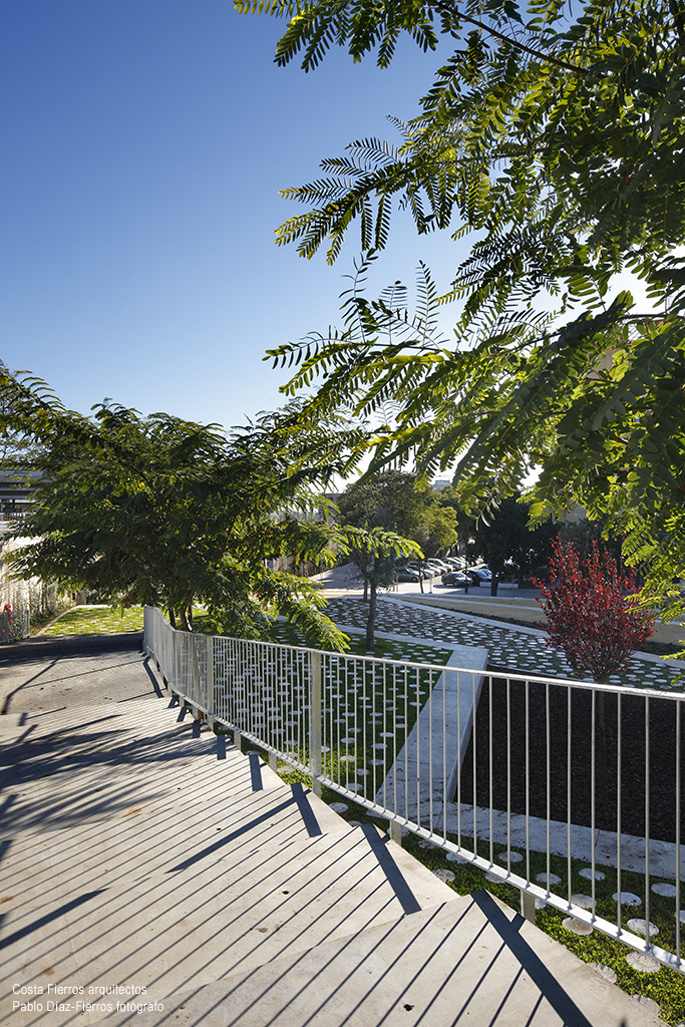

The space is organized by a major north-south route in soft ramp that allows to reach the station height. In this longitudinal route are other cross-linking departing from between the squares and streets. In the eastern edge the level difference is saved through streets that climb the field forming slopes that protect the neighborhood level squares. On the west side the height difference is solved by a wall parallel to the subway tunnel and develps curve to define the western entrance with a ramp.

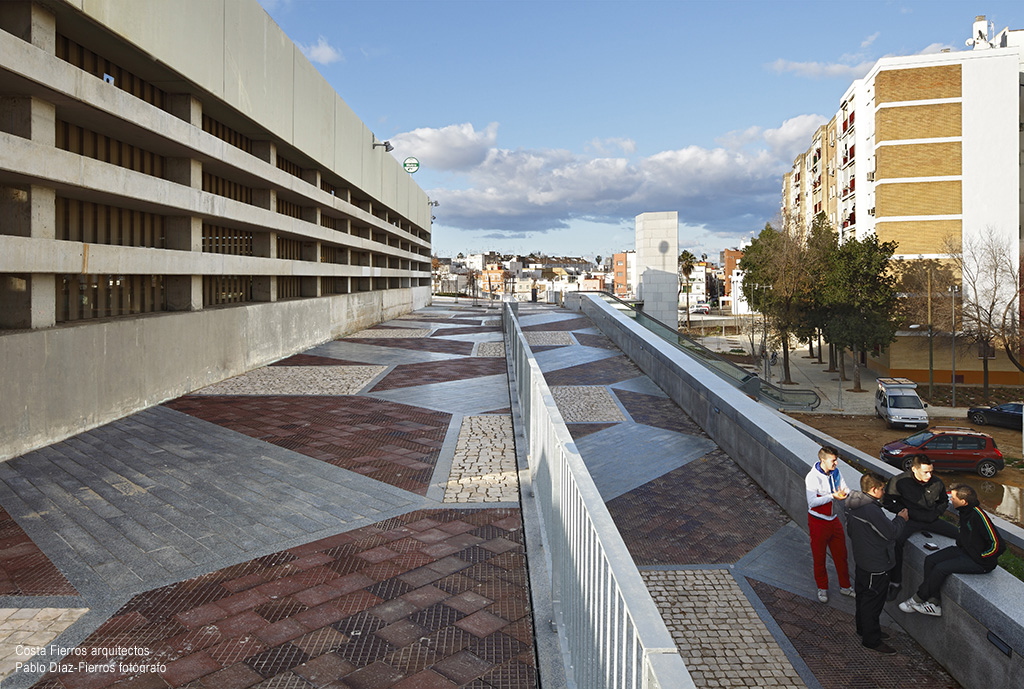

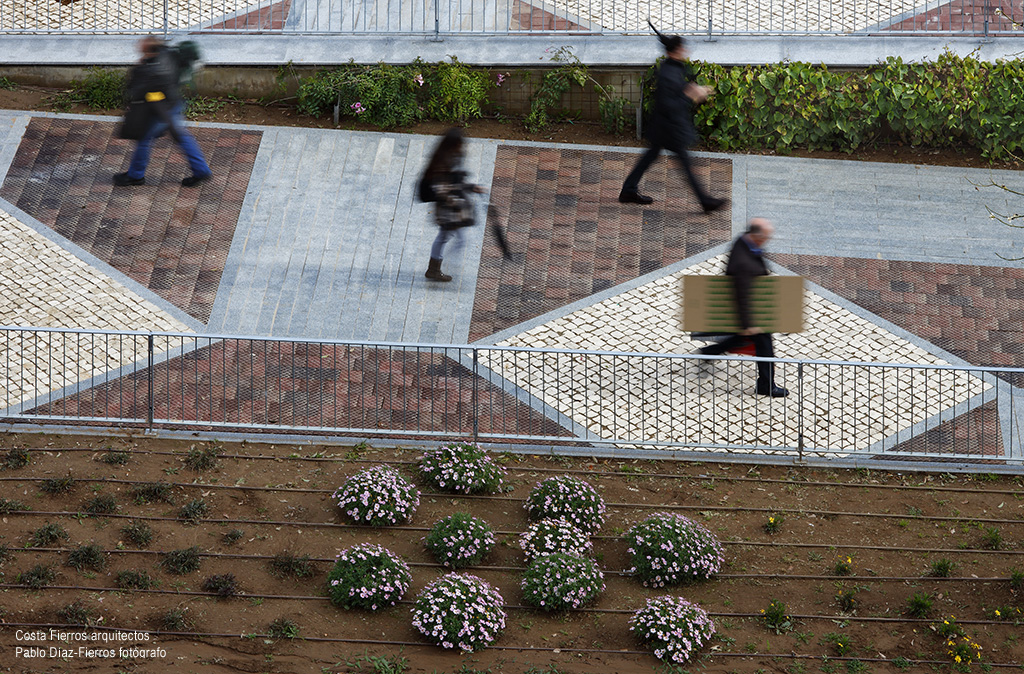

The pavement comes from a stretch of some existing tiles in the Patio de las muñecas of the Reales Alcázares in Seville. The curved wall with 274 meters long and with a maximun height of 7 meters becomes a vegetal canvas composed of 24 varieties of 18 species of climbing plants, chosen carefully according to their location, orientation, compatibility, color, smell, etc. All vegetal treatment consists of planting local species easy to care.

PROJECT CREDITS

Architects.- Sara Tavares Costa y Pablo F. Díaz-Fierros.
Team.Collaborators.- David Breva, Paula Ferreira, Pedro Rito Nobre, David Ampe, Elena González, Rosario Alcantarilla, Sergio González, Cristina Rubiño y Alejandro Rodríguez. Quantity Surveyor: Antonio Carrascal Cruzado. Structures: CATSOLI S.L. Facilities: ETINSA. Botany: Ernesto Fernández Sanmartín, Sara Tavares Costa. Infographics: Marcin Sapeta, Alfonso Fiz.
Developer.- Agencia de Obra Pública de la Junta de Andalucía.
Construction.- Rafael Morales S.A, HELIOPOL, S.A.U.
Gross built area.- 32.487 sqm.
Budget.- 4.544.894,06 €.
Cost/sqm.- 140 €/sqm.
Dates.- Draft: August 2007. Basic proyect: October 2007. Execution proyect: February 2008. Construction.- November 2008-November 2001.

Read more
Read less

More information

Published on: June 27, 2012
Cite: "Music Park in Seville" METALOCUS. Accessed
<https://www.metalocus.es/en/news/music-park-seville> ISSN 1139-6415
