La Calderona cistern, whose restoration project and opening to the public has been carried out by the architectural studio of Pablo Millán, arquitectos, is located in the current city of Porcuna, Jaén. The project joins other interventions carried out by the architectural studio such as the parish centre, the restoration of the galleries of the Royal Granary of Charles IV, or the restoration of the hermitage of Santa Ana.

The infrastructure was built in the 1st century BC and is located in the Roman city of Obulco, which with 100 walled hectares, became the largest in Hispania due to its support for Julius Caesar and after the victory of the Battle of Munda, only surpassed by Córdoba with 120 hectares.

The current name of this cistern (declared a Site of Cultural Interest in 2014) derives from its location in the Calderona neighbourhood. It is believed that it was linked to a hydraulic infrastructure of the "Municipium Pontificensis Obulconensis", possibly public thermal baths.

The project by Pablo Millán, arquitectos, involved a complex intervention given the conditions of the terrain. Given the location of the cistern, almost nine metres below the current level of the city, it was necessary to build a building that would serve as a reception centre for visitors and also integrate the descent ramp.

To connect all the spaces without affecting the houses that currently exist above the Roman complex, a bridge was also created in the cart and a tunnel under the houses to access all the Roman architecture that is below ground level (in addition to the cistern, a Roman street, houses with walls of more than three metres in height, a bread oven and an atrium, among other remains incorporated into the project).

The new building is located on a hillside on the urban edge of Porcuna, facing a sea of ​​olive groves. The space houses, as the main protagonist of descent and ascent, from the exterior light to the darkness, the cistern, a suspended walkway that facilitates "a journey through the centuries that culminates in the peristyle that welcomed it."

Puesta en valor de la Cisterna romana de "La Calderona" por Pablo Millán

Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla.

Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla

Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla.

Project description by Pablo Millán

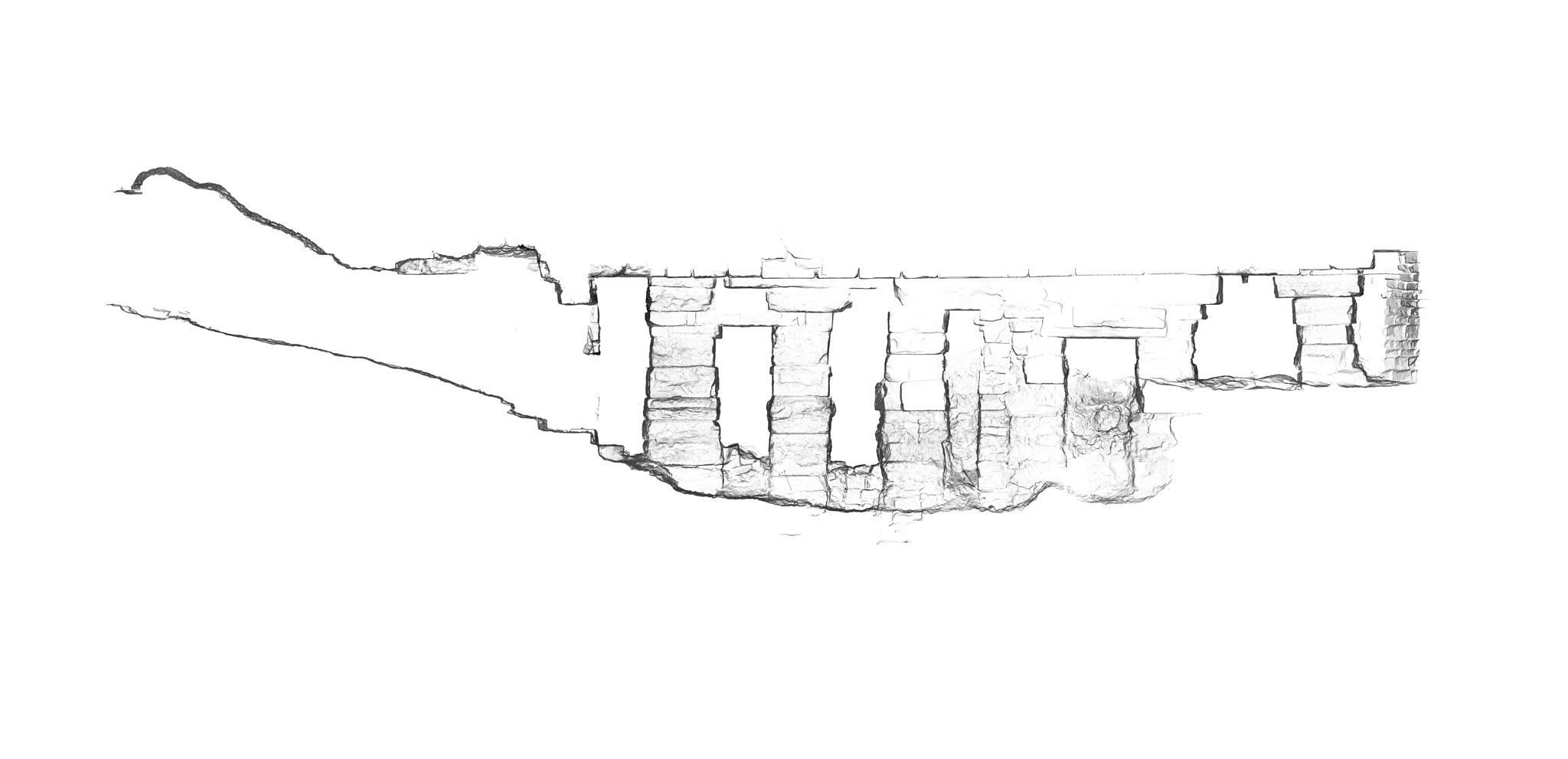

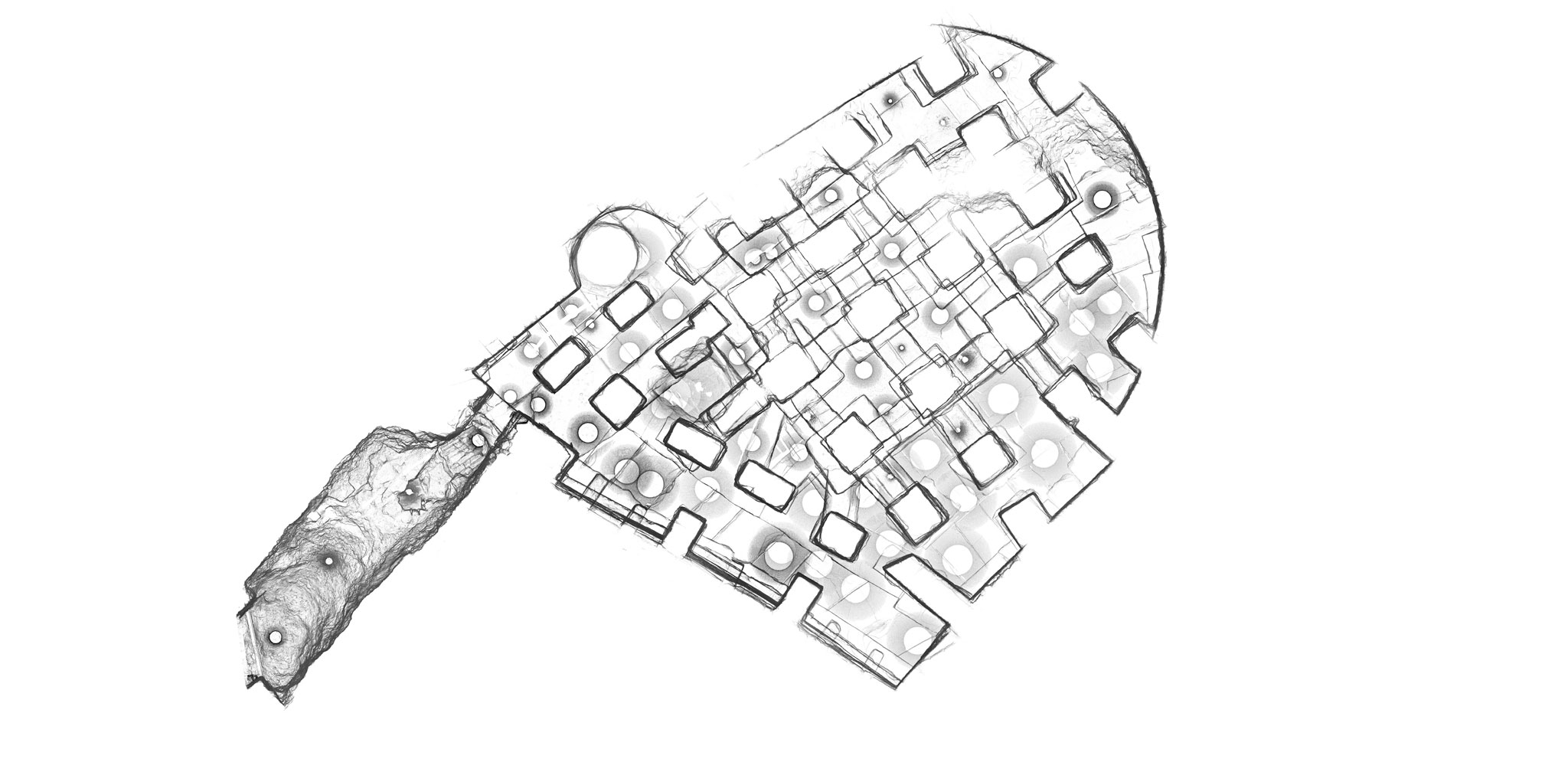

Located above the Roman City of Obulco, the “La Calderona” in Porcuna (declared an Asset of Cultural Interest in 2014) is a water storage tank which, given its typology, is assumed to be linked to the water infrastructure of the municipium, and possibly to the public baths. At that time during the Roman Empire, with the growth of the population and the need to expand the city limits, the inhabitants covered the area with large stone slabs and pillars, onto which new buildings were erected. This would become the largest walled city in Roman Spain. The passage of centuries, and the evolution of history, added successive layers which contributed to the pre-existing buildings of the 1st Century BCE being definitively buried, both physically, and in terms of memory.

In modern times, what was thought to be simply a water storage tank, supplying numerous wells to the houses of the San Benito neighbourhood, was identified. It was during the Spanish Civil War in the 20th century when a chance discovery put experts on the trail of the original infrastructure. When the population went underground to protect themselves from aircraft bombings, the residents observed that the wells they had in their homes were part of a much more complex structure. As a result of this discovery, many experts wanted to investigate and study the monument. Unfortunately, they were unable to carry out a proper investigation due, among other reasons, to the difficult conditions impeding access to the space, located approximately nine metres below the level of the houses.

Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla.
Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla.

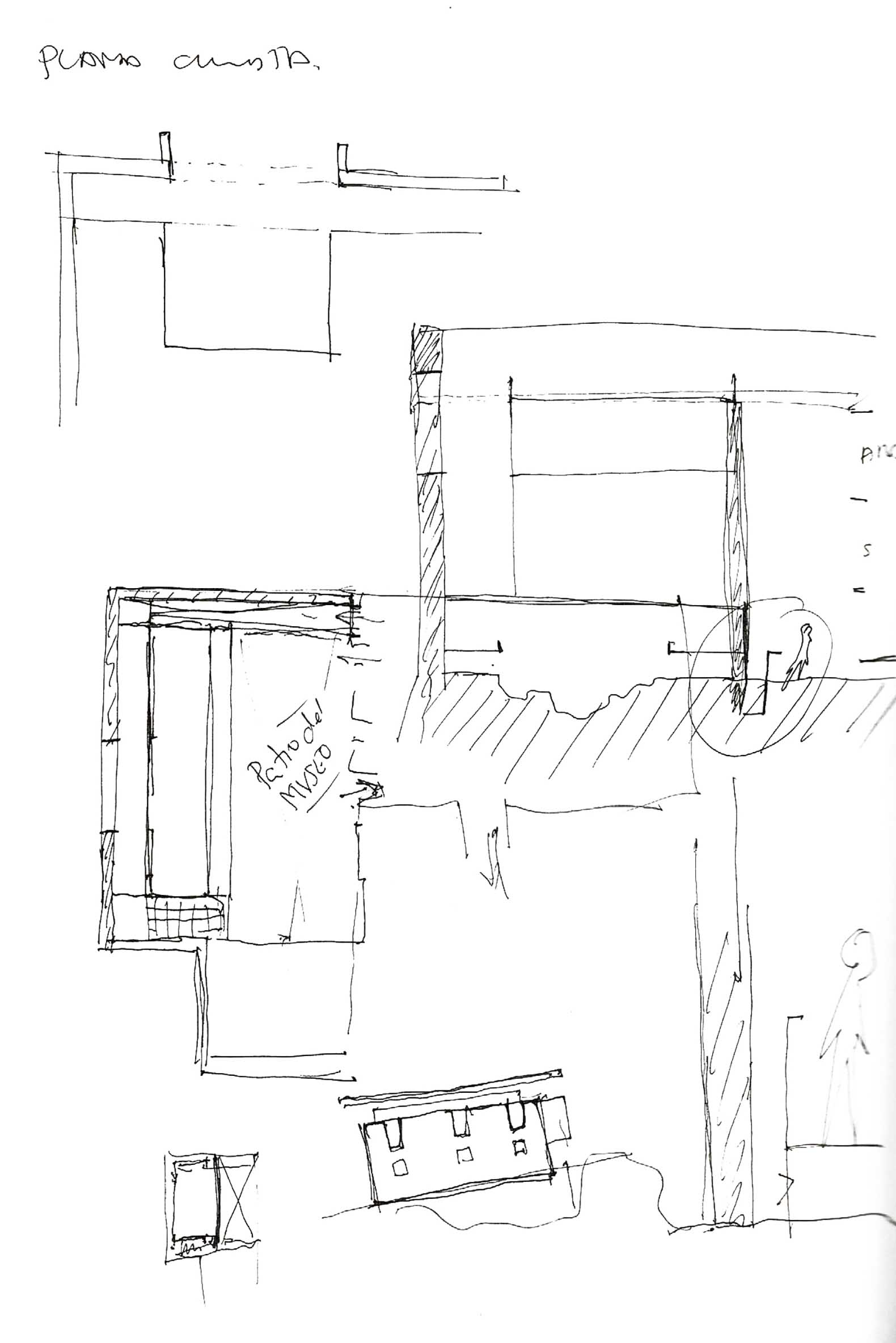

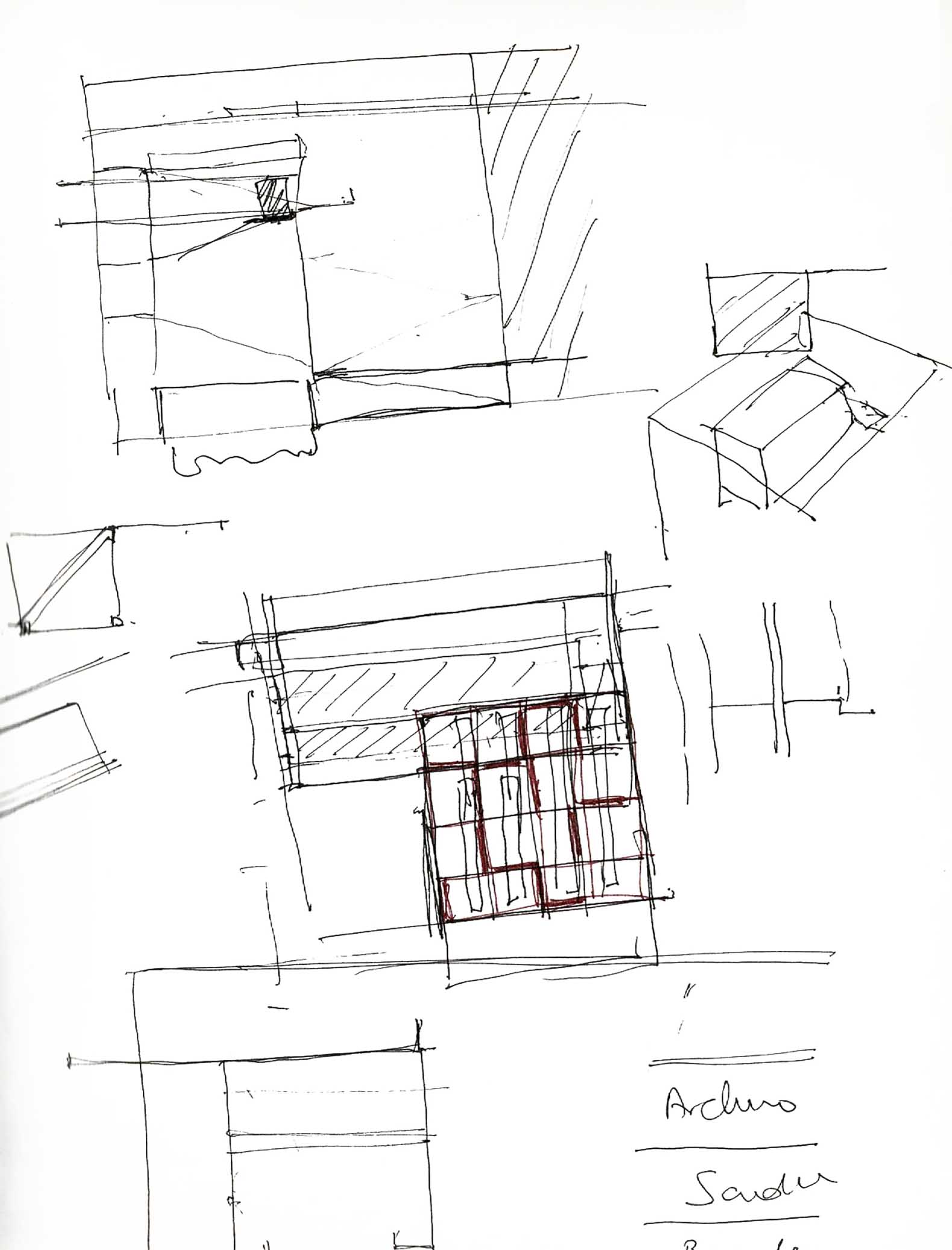

The project of restoration and the opening of access to the public, required a complex intervention, taking into account the circumstances of the locality. Firstly, to access the level of the cistern, a new building was imperative. This would serve as a Visitor/Reception Centre and also act to integrate the descending ramp. Advantage was taken of an empty area, located on one of the margins close to the nearest road, so that the houses located on the Roman complex would not be affected. However, the search for a suitable access to the cistern ended up generating a new construction, a bridge on the road, and a tunnel underneath the homes.

This work has produced a dichotomy. On the one hand, there was the heritage architecture, present both in the Roman cistern and in all the domestic buildings revealed during the archaeological intervention, and the new construction, which houses the entire programme. On the other hand, the work was confronted with an architecture below ground level, closed and hidden, into which no light enters. Against this backdrop, a new, open, clear, diaphanous space was proposed. Thus, a dialogue was established between an almost excavated architecture, more like a cave, and a new construction that had to include a stereotomic approach, moving between the Visitor/Reception Centre and a minimally constructed space. In short, this is a project based on the interrelationship of opposing realities and which, in the face of complexity, proposes a discourse based on the simplicity of a clean, geometrically precise architecture which does not conflict with the inherited architecture.

Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla
Roman Cistern of "La Calderona" restored by Pablo Millán. Photograph by Javier Callejas Sevilla

The land on which the development project is located is on the edge of the urban municipality, on a slope of what was once the epicentre of this ancient Roman city. There, the new building opens out towards the slope, forming a space which, at the same time, offers a clear reading with respect to the context in which it is situated. It serves as an iconic reference to the cistern monument itself, displayed on the lower level. The construction is closed to the domestic architectures of the area, which have irregularly formed an area devoid of the sense of heritage, inherent to the architecture of the stratum. Thus, with a clear structure, a space for light is configured as a preliminary step, before accessing the heritage world of the shadows.

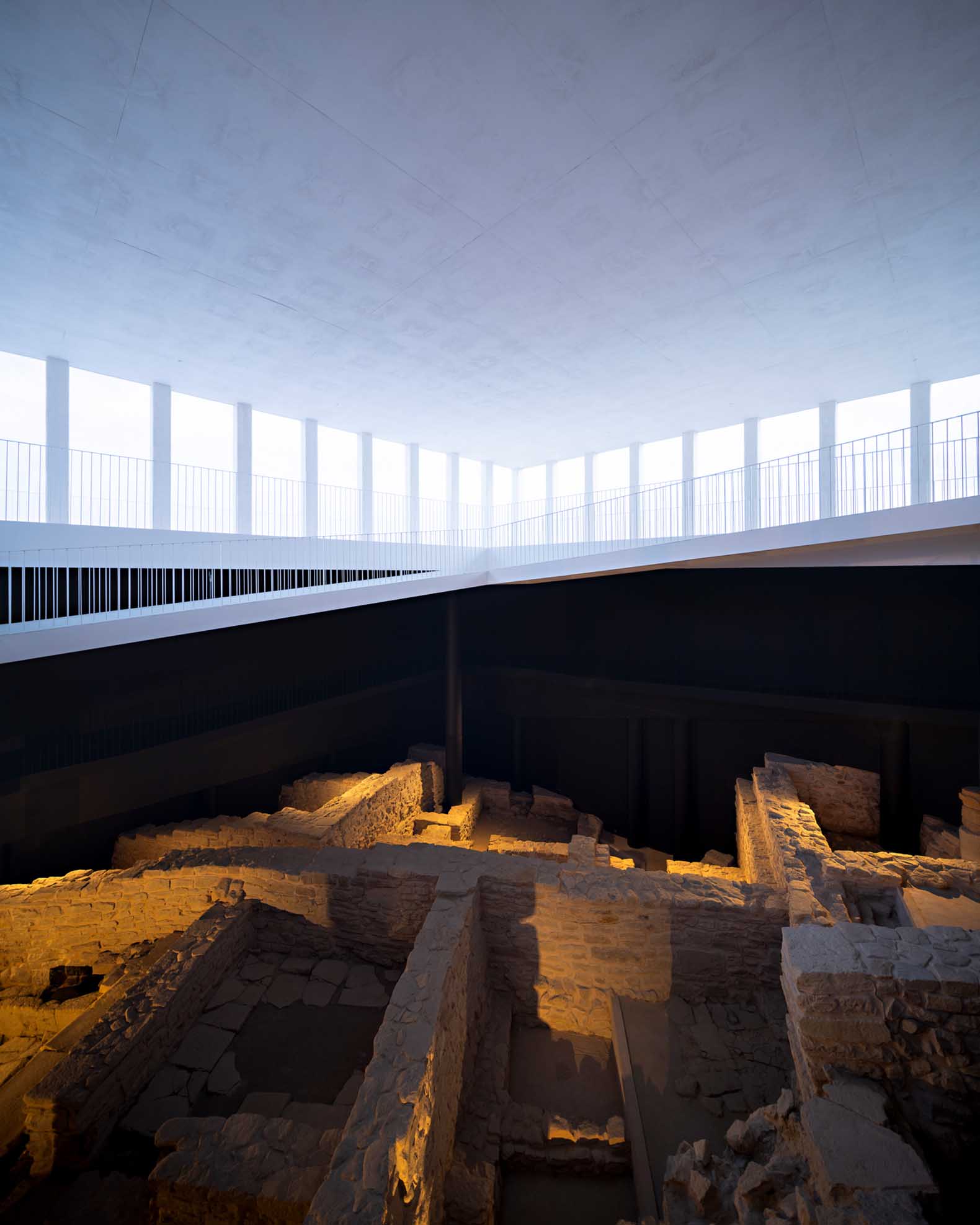

On the contrary, the return to the surface is proposed as a dynamic, a key to the final ascent from the darkness of the interior of the cistern, to the light of the exterior. Over the suspended walkway, the visitor passes through an open space that is suspended above the ruins. Part of the Roman city can be observed and toured without disrupting it. Perhaps, without being aware of it, this tour updates the Platonic allegory of the cave, reaching knowledge (in this case, the understanding of a part of the history of an ancient land) after journeying through the centuries, culminating in the welcoming peristyle.

More information

Label
Architects
Text

Pablo Millán, arquitectos. Lead architects.- Pablo Manuel Millán Millán.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project team
Text

Cristian Castela González (architect); David Vera García (architect); Simona Belmondo (architect); Inmaculada Cervera Montilla (architect).

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text

Structure.- Salmer Técnicos.
Quantity Surveyor.- Javier Serrano Terrones; José Miguel Fernández Cuadros.
Archaeology.- ARQVIPO.
Architectural Survey.- AMR Levantamientos


+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Promoter
Text

Porcuna Council.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Finance
Text

Ministerio de Transportes, Movilidad y Agenda Urbana; Ayuntamiento de Porcuna; Diputación Provincial de Jaén (1,5% Cultural Programme).

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text

TRAGSA.
Lighting.- Iguzzini.
Sensing.- Fundación Santa María la Real.
Lime mortars.- Morteros Cumen S.L.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text

500 m².

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text

Design year.- 2017.
Start works.- March, 2021.
Year of construction.- 2024.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text

La Calderona. Calle Camino de San Marcos, 25-5. 23790 - Porcuna. Jaén, Spain.

+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
+ + copy Created with Sketch.
- + copy Created with Sketch.

Pablo Manuel Millán Millán is Doctor Architect by the University of Seville with the thesis 'Inhabiting the cliff: the little convent as a promoter of a new architecture in the hills of Valparaiso.' After completing the "Master in Architecture and Historical Heritage" and the "Master in Management of Latin American and Andalusian Heritage", he has focused his study on the contemporary analysis of historical buildings and structures.

At present, together with the research and teaching activity carried out at the Higher Technical School of Architecture of Seville, he is a researcher at the School of Architecture and Design of the Pontificia Universidad Católica de Valparaíso in Chile. Among his recent works, we could highlight the project for the rehabilitation and conservation of the San Francisco de Estepa Convent (Seville), the Rehabilitation of the 16th century Royal Butchers of Porcuna (Jaén), the conservation project of the Greater Sacristy of the Sanctuary of Regla in Chipiona (Cádiz), the restoration of the Monastery of San Juan de la Penitencia in Alcalá de Henares (Madrid) or the restoration of the Chapel in Martín de la Jara (Seville).

He has been awarded with the best academic record by Fundación Caja de Arquitectos; 2nd Europe Architecture Award 2017; Build Architecture Award or recently nominated for the Andrés de Vandelvira awards.
