HUMA architecture studio has been in charge of the restoration of a water tower dating from the 15th century in Aledo, at the foot of the southern slope of Sierra Espuña, Municipality of the autonomous community of Murcia, Spain. Thanks to the restoration, new aspects of this masterful defensive building have been discovered from which to discover part of the history that occurred in the place.

The intervention is carried out faithful to its footprint following techniques and using present materials found in the original medieval building, and maintaining its tone of reddish colors, in order to, in this way, blend the tower with the surroundings, converted into another rock, born from the land.
Consolidation and restoration of the water tower and caracol mine, designed by the HUMA architecture studio, recovers the volumetric of a medieval ruin faithful to its origin. The plinth retains its claws in its stepped silhouette on its masonry and mortar foundation, while the new canvases executed are made using calicastrated walls following the existing module.

The intervention is not only in the tower, but in its entirety, the environment is carefully pampered, cleaned and reforested with local plants, thyme, rosemary, mastic and cistus once again recover the imprint of the place. The intervention adds a new door that gives access to the caracol mine located next to the tower, which is executed using steel plates that are left to rust, separated from each other so that light can enter and provide the necessary ventilation to the underground passage.


Consolidation and restoration of the water tower and caracol mine by HUMA. Photograph by SALMER.


Project description by HUMA

Defending water as a human maxim by understanding its condition as an inexhaustible source of life that sustains existence is the basis on which the consolidation and restoration works of the Aledo Water Tower are carried out. The works have made it possible to discover new aspects of this masterful defensive building from which to discover part of the history that occurred in the place.

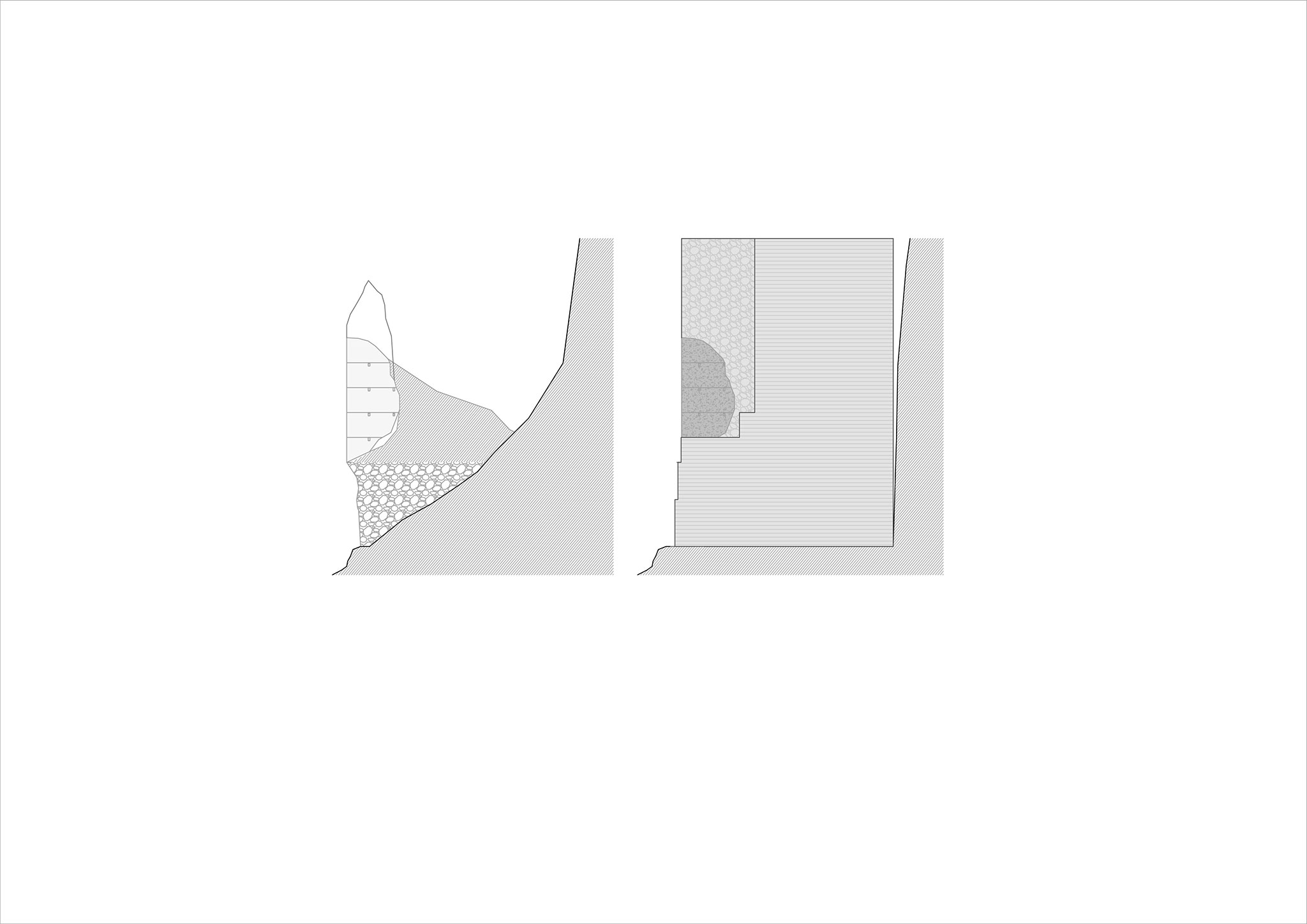

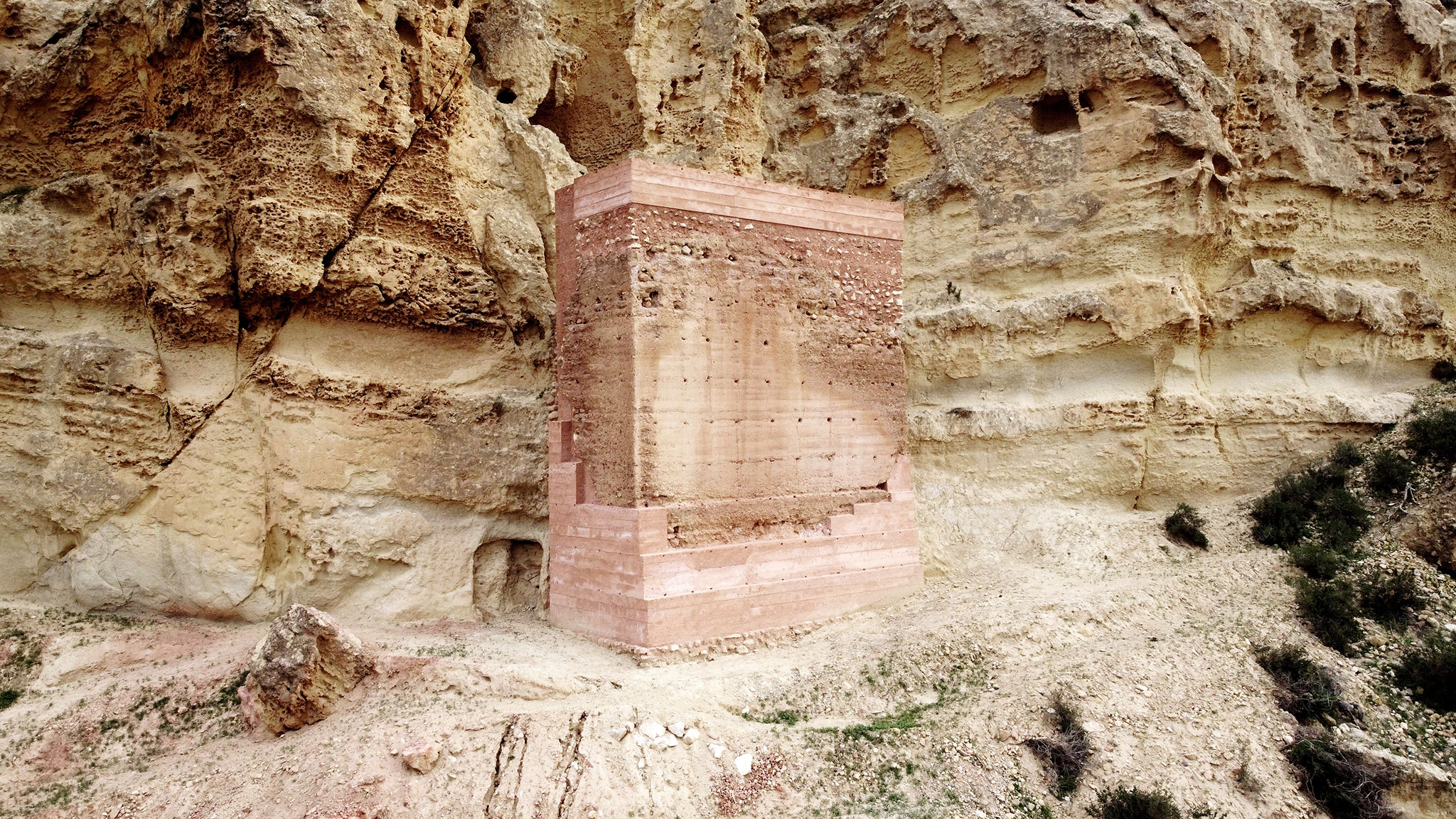

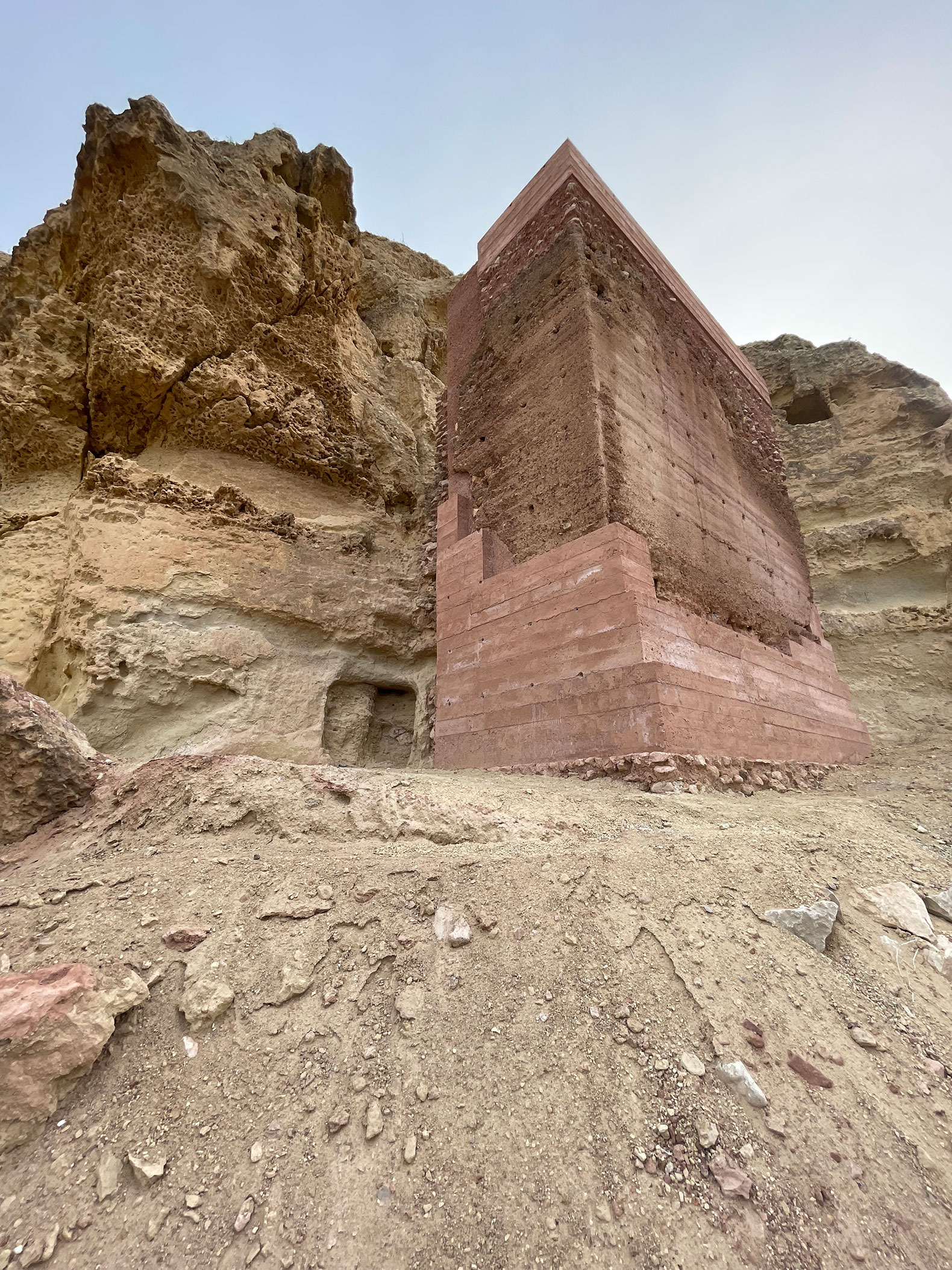

The tower that reached our days was called the Water Tower, dating from the 15th century. Its volumetric recovery is carried out faithful to its imprint following techniques and using materials found in the original medieval building. Thus, the reinforcement and patching work is carried out using in situ formwork of wooden planks filled with white lime, stones and local sand, from which the reddish appearance present on all the slopes is recovered. The tower is thus blended with the surroundings, converted into another rock born from the earth. The plinth retains its claws in its stepped silhouette on its masonry and mortar foundation, while the new canvases executed are made using calicastrated walls following the existing module used in its day of the 0.80 cm Castilian rod from which the walls They rise, recovering the original height of the tower.

The new walls are raised set back, in the shadow of the original ones, setting back their plumb lines and separated with geotextile in an attitude of respect and reverence to what already exists.


Consolidation and restoration of the water tower and caracol mine by HUMA. Photograph by Eva Garcia Millán.

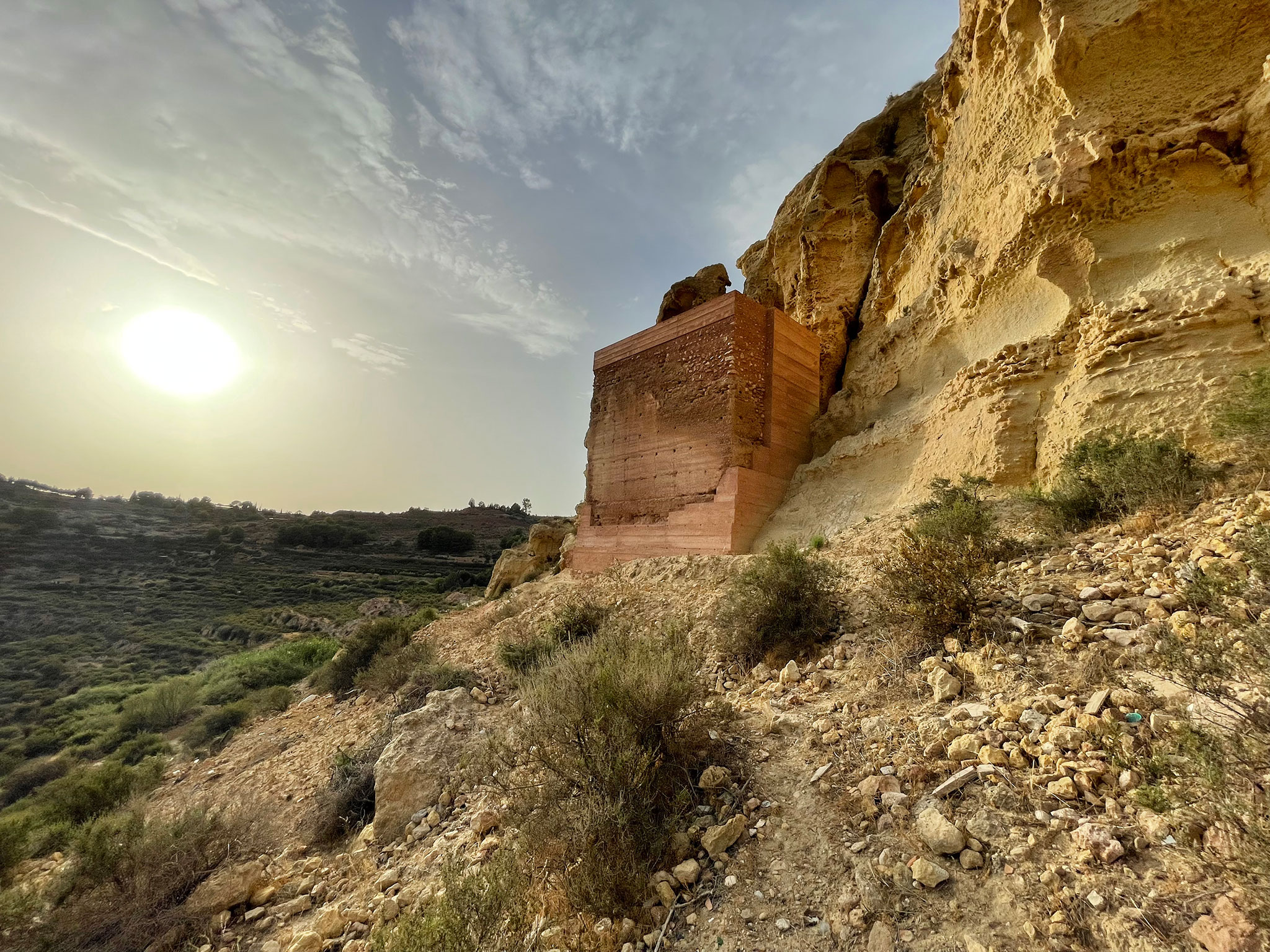

The intervention is not only in the tower, but in its entirety. The environment is your faithful companion, the one that gives you support and meaning. In the intervention, the environment is carefully pampered, cleaned and reforested with local plants, thyme, rosemary, mastic and cistus once again recover the imprint of the place. The tower only makes sense from this place as a singularity found on the slopes of this valley from where the intervention is justified, in its steep orography, as an access point to a Villa de Aledo that lives at the top of it.

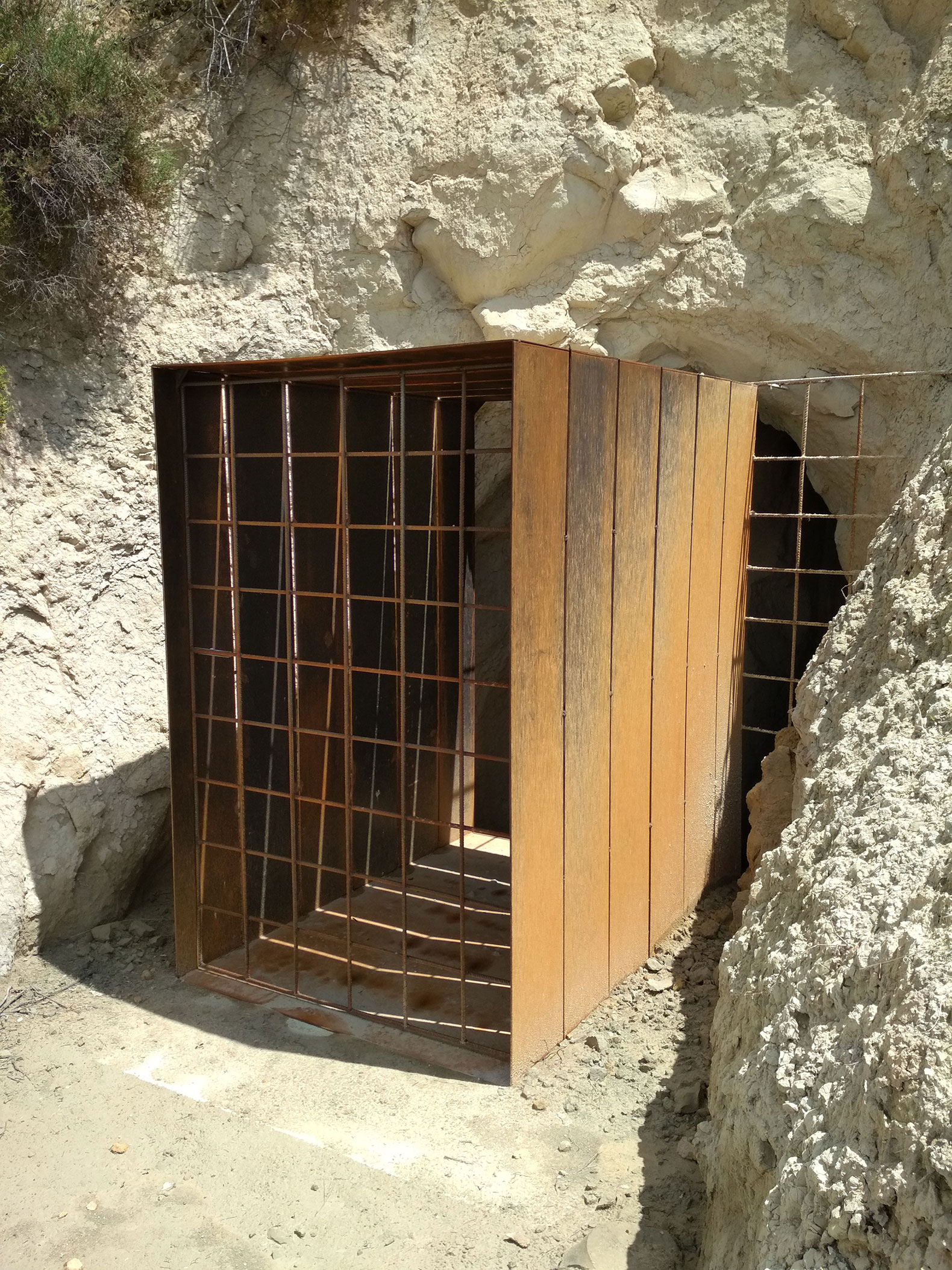

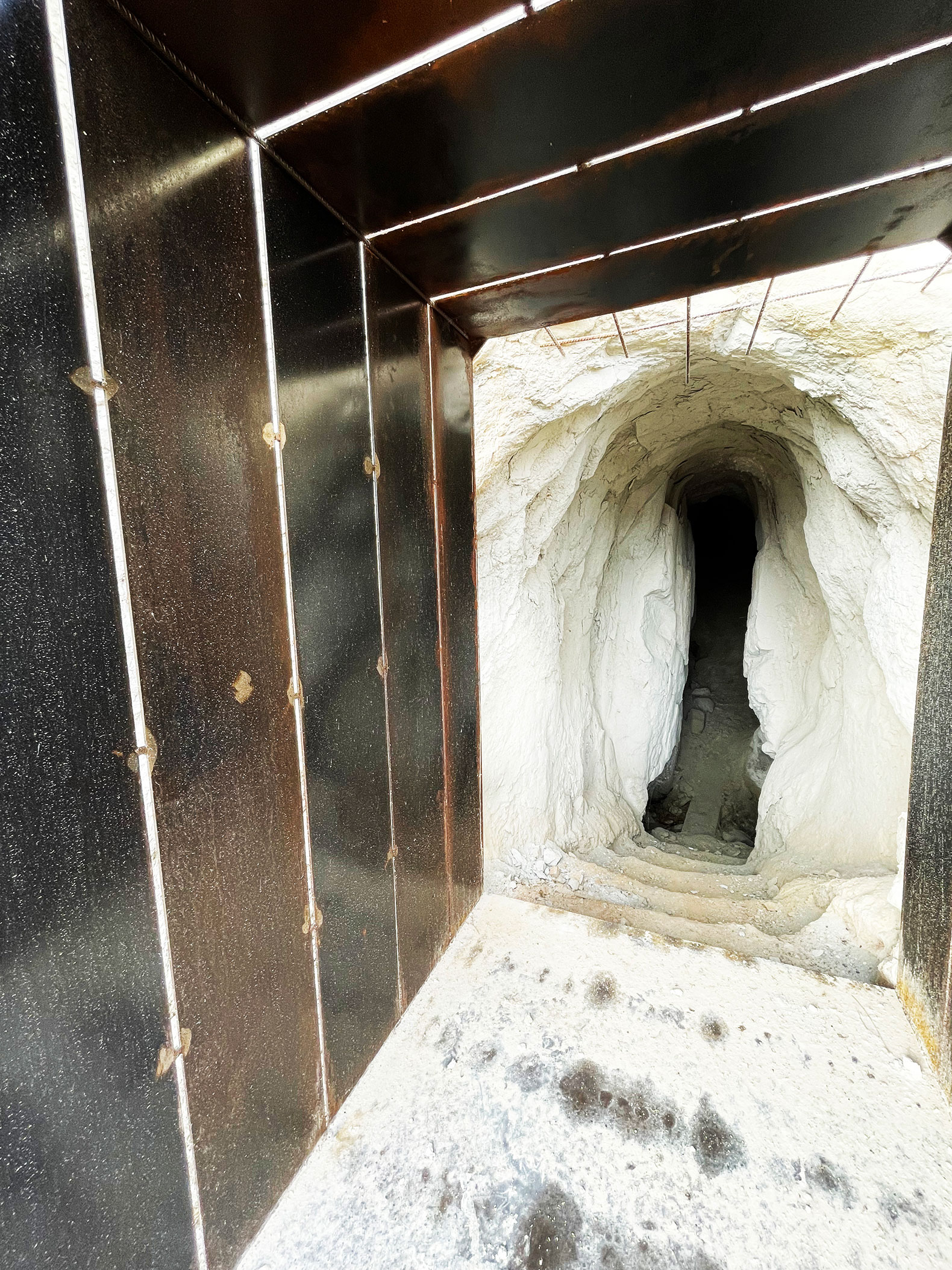

A new horn-like door allows access and control to the snail mine located next to the tower that begins its journey at the foot of the hillside to penetrate into the bowels of the earth in its infinite gallery through which the water walked. The door is resolved with a slight gesture, using steel plates that are left to rust, separated from each other so that light can enter and provide the necessary ventilation to the underground passage.

Today the Water Tower has been recovered, its wounds have been healed, showing itself renewed in its proud countenance. Today the story continues, and once again the rock planes come to the place in their avid flight, once again the scorpion finds shelter in the stone and the song of the cicadas accompanies with its melody in the shadow of the branch.

More information

Label
Architects
Text
HUMA, Jose Amoros Martinez, Alberto Amoros Martinez.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project team
Text
Archeology.- Jose Antonio Sanchez Pavia.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Alberto López, Francisco Denia, Joan Miguel Martínez.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text
Salmer Canteria y Restauracion.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Developer
Text
Aledo City Council (Murcia).
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
75 sqm.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
Aledo, Murcia, Spain.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Budget
Text
€ 120,000.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
Eva Garcia Millán. SALMER.
+ + copy Created with Sketch.
- + copy Created with Sketch.
HUMA is a multidisciplinary architecture and engineering studio founded by Jose Amorós Martínez and Alberto Amorós Martínez. They are specialized in resolving unique architectural projects, urbanism, design and culture of architecture. He has received more than numerous national and international awards and his projects are continuously published in the most prestigious magazines around the world.


The studio is currently immersed in numerous projects throughout the Spanish territory and collaborating in different international projects in countries such as Singapore, Morocco, Amsterdam, Mexico, San Salvador, Brazil, India, London…. From the projection of the Master plan, to the resolution of a single-family home, going through shopping centers, hospitals and hotels... the variety of scales and programs is one of the hallmarks of the office, which studies projects from the Capture of the land until the city of the final interior design.

Read more
Published on: December 1, 2023
