In many European cities, hidden urban courtyard (Nádvorie), between residential buildings, are important extensions of public space. Fundamental spaces for the life of the city.

The Slovak practice Vallo Sadovsky Architects has renovated one of these courtyards in Trnava, a city near Slovakia capital, Bratislava. The courtyard (Nádvorie), which is accessed from different passages from the nearby streets, has been rehabilitated with new buildings and also with new functions and programs.

An interesting way to renovate in the consolidated city, to revitalize it.


Description of project by Vallo Sadovsky Architects

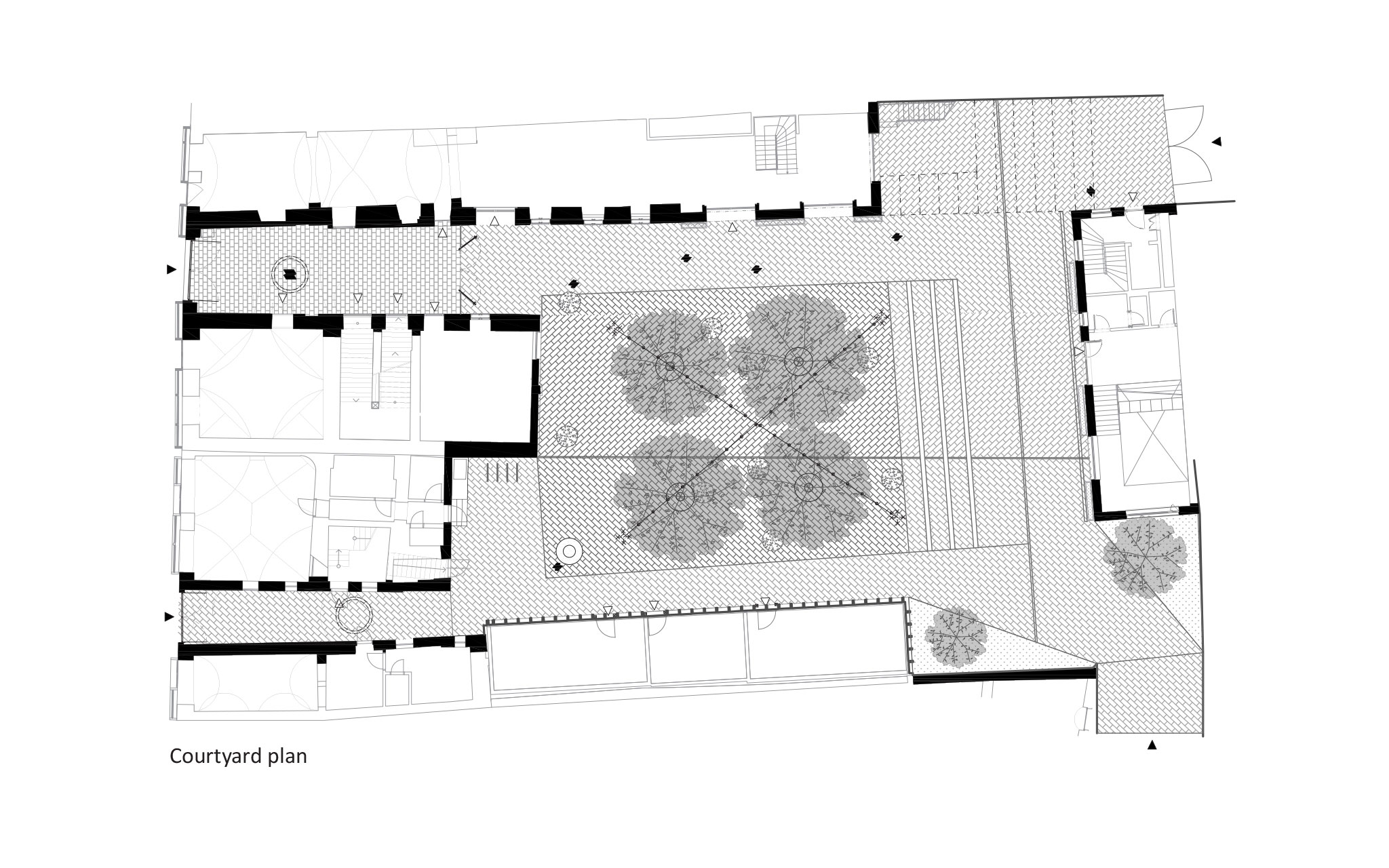

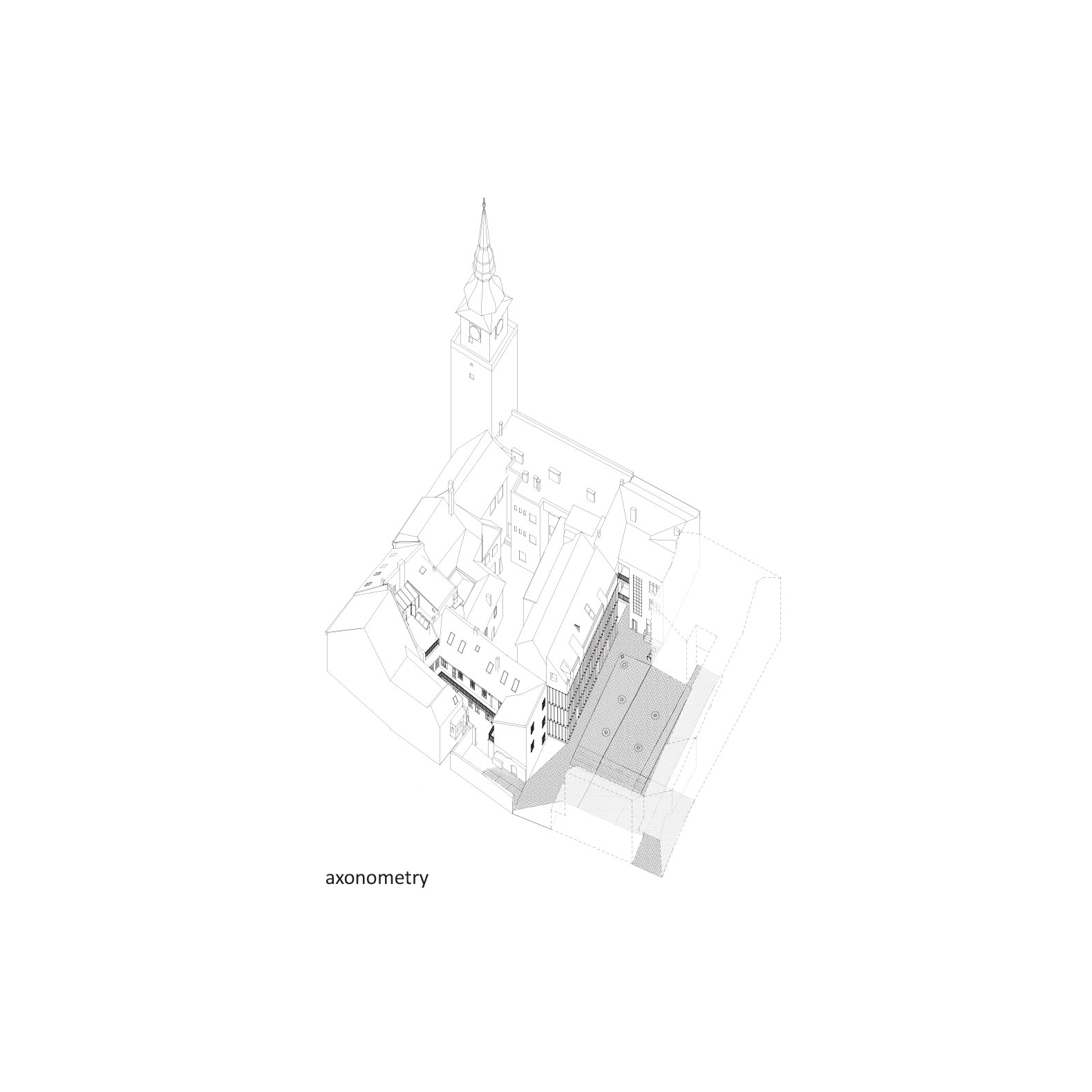

The entire complex was created by joining multiple adjacent sites, which had access from 3 different old - town streets in Trnava. The sites originally contained multi-storey houses with a passage and were connected through backyards.  After uniting these adjacent sites a new open space was created within the central urban structure. The space was then complemented with new objects. This is how the new public space of „Nádvorie“ (Courtyard) was created.

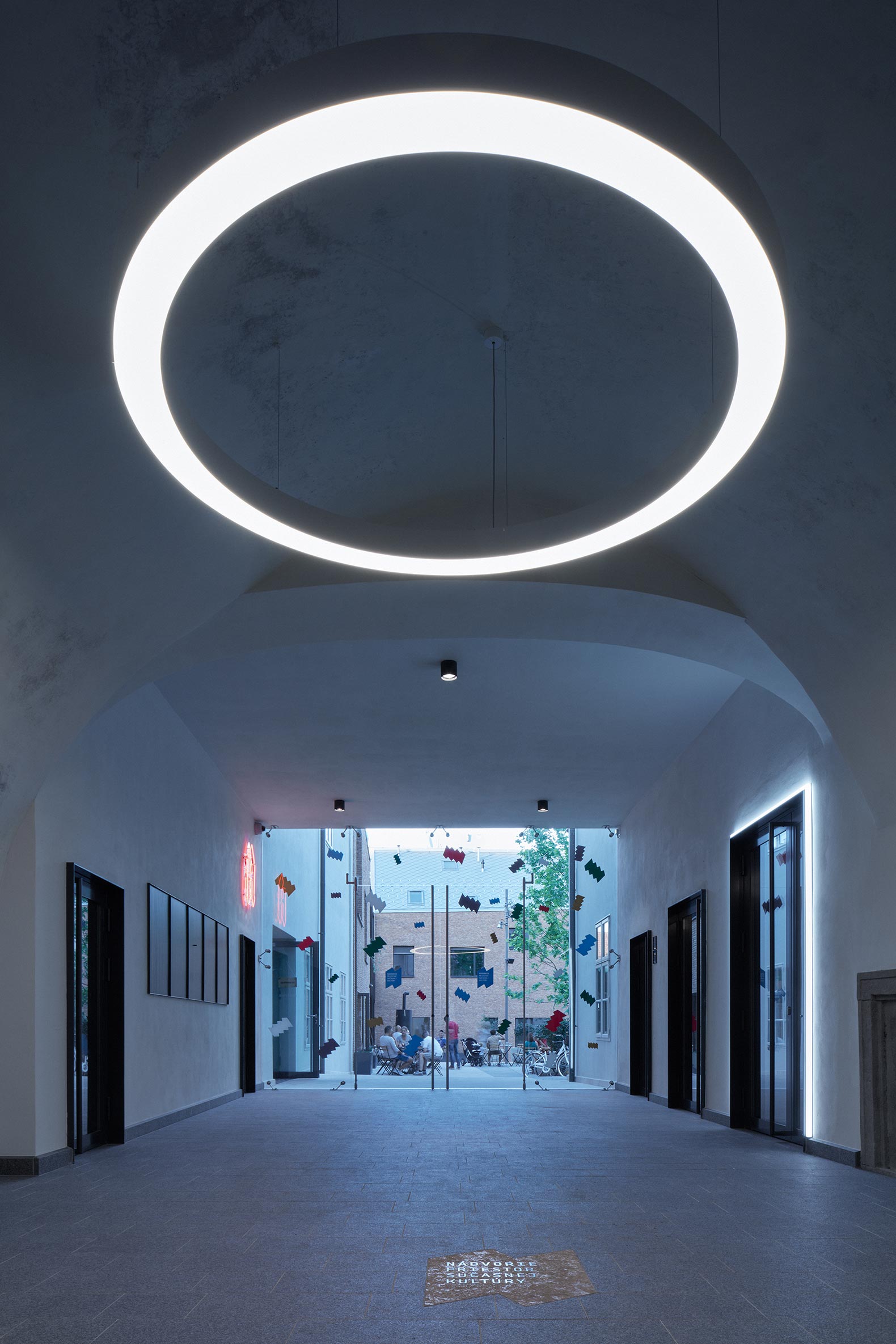

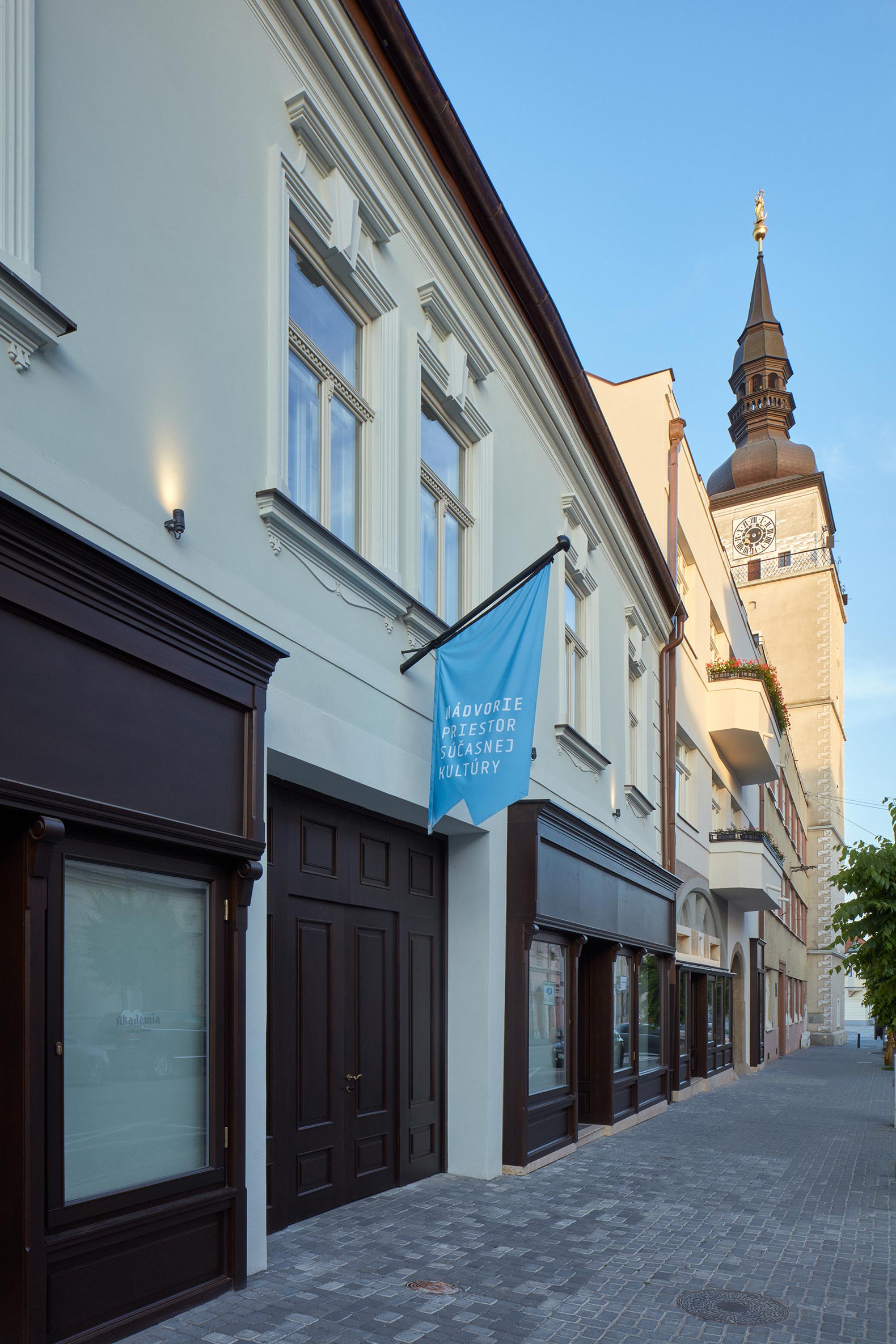

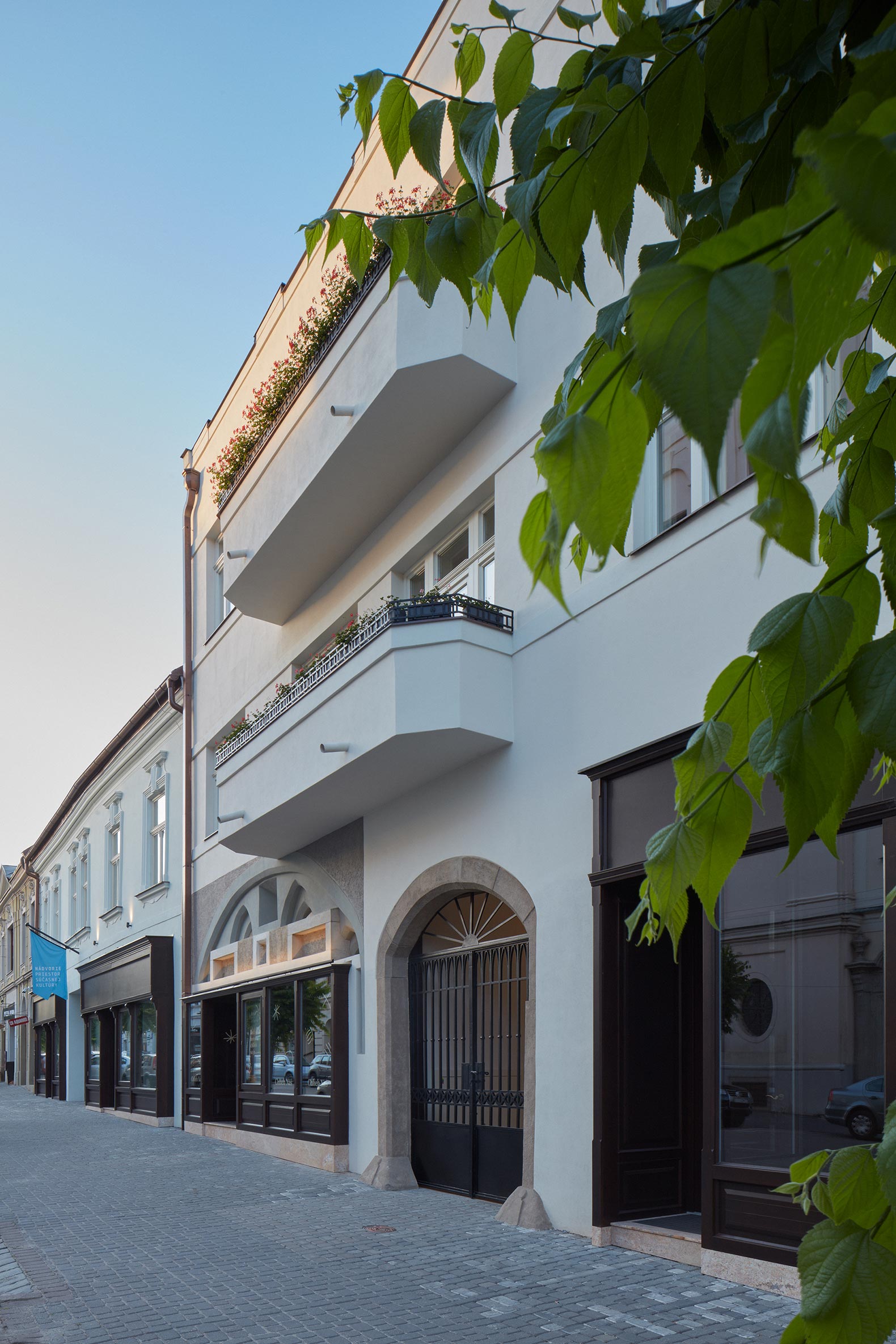

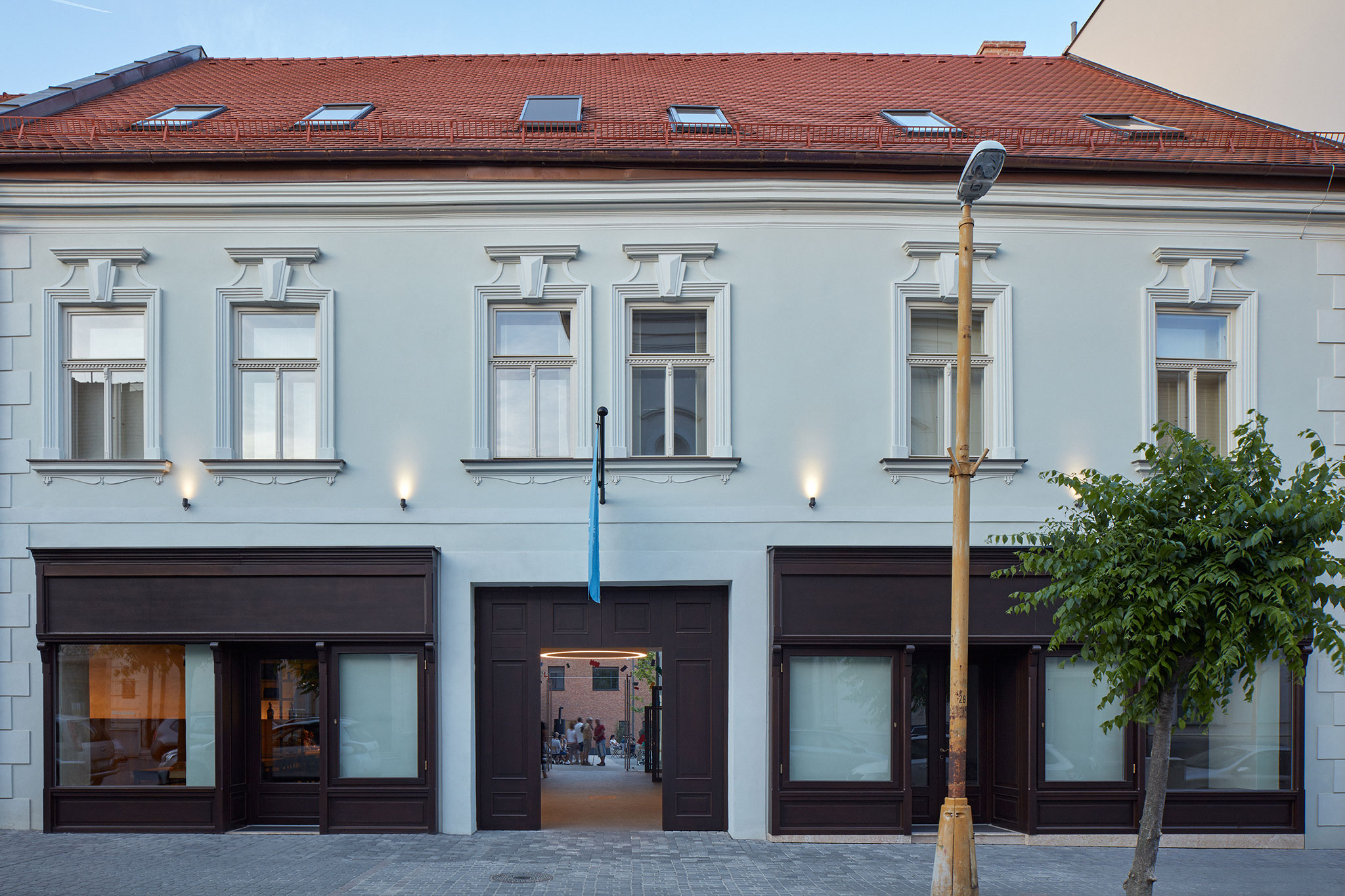

The entire complex has access from Trojicne square, Stefanikova street by 3 original entrances with a future plan to enter from Pekarenska street.

The reconstructed adjacent buildings were originally built with multi-storey houses with a passage.

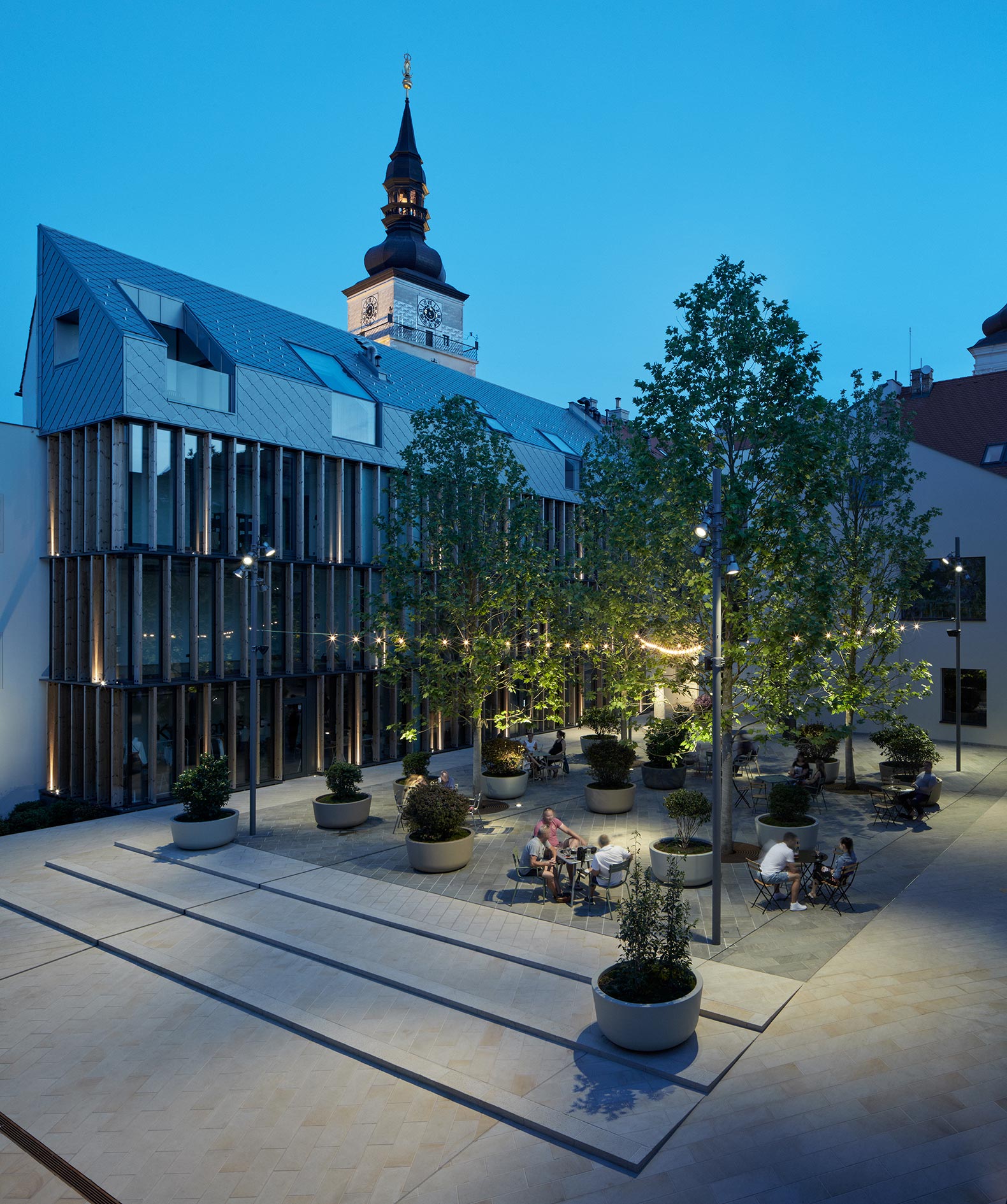

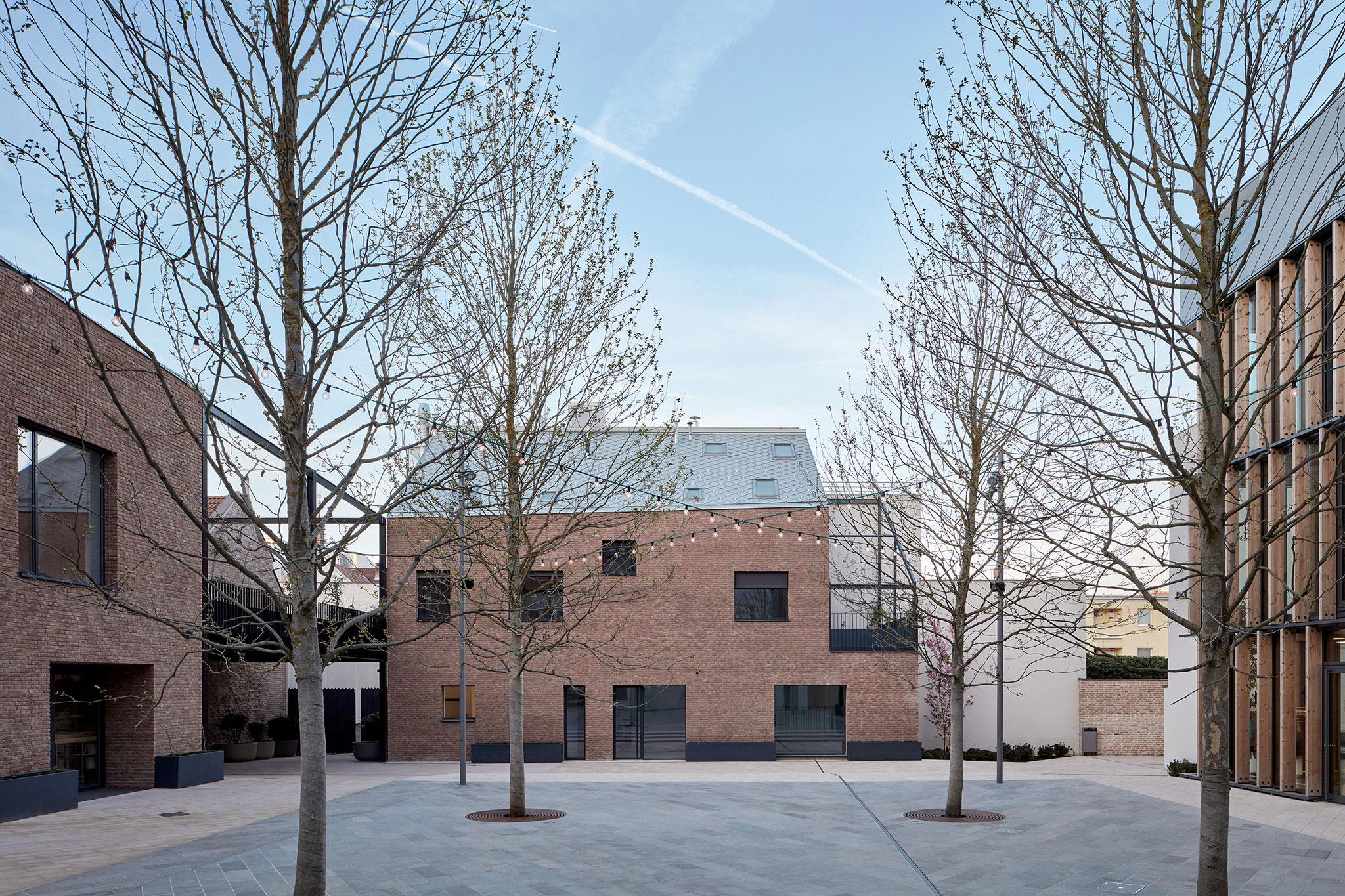

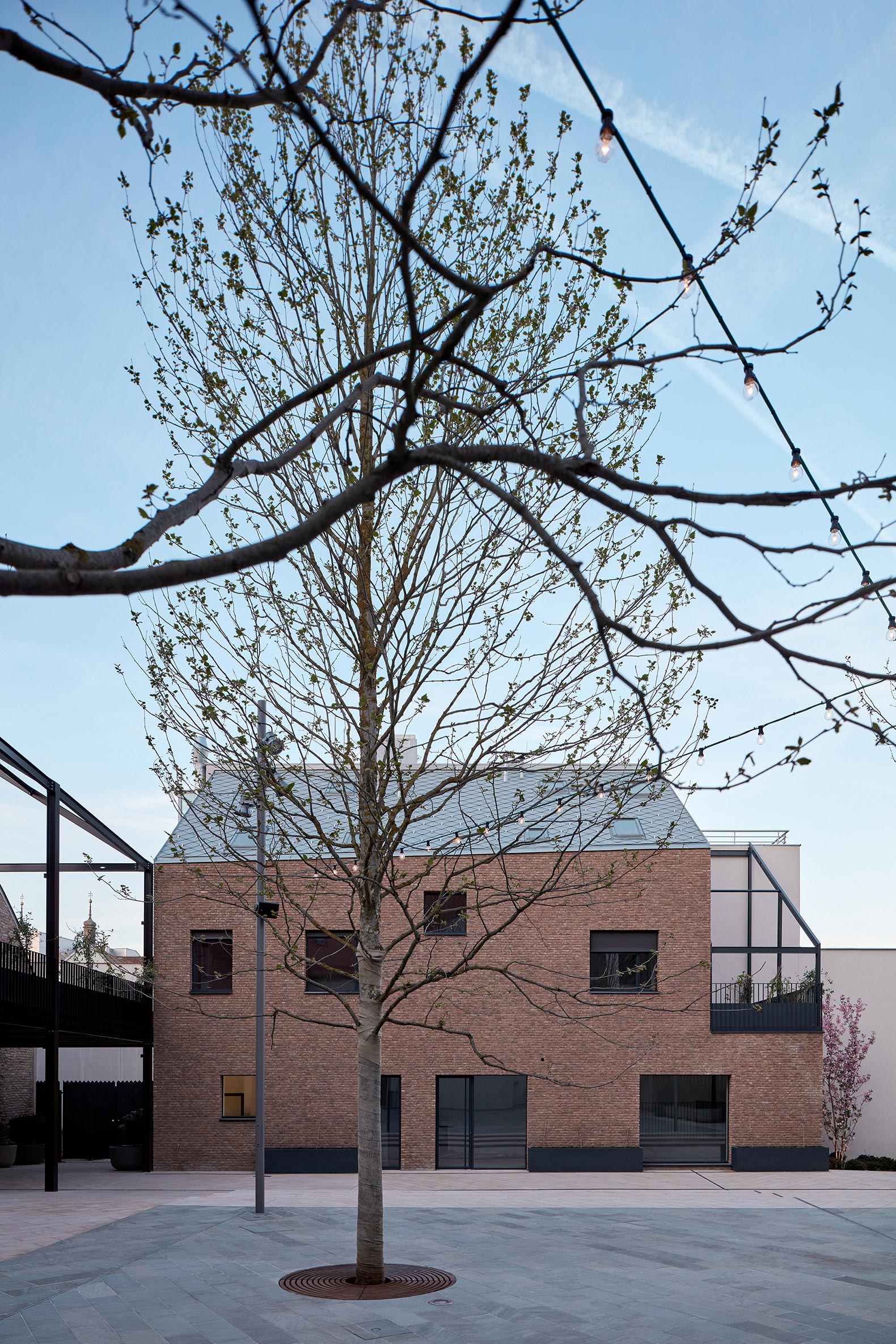

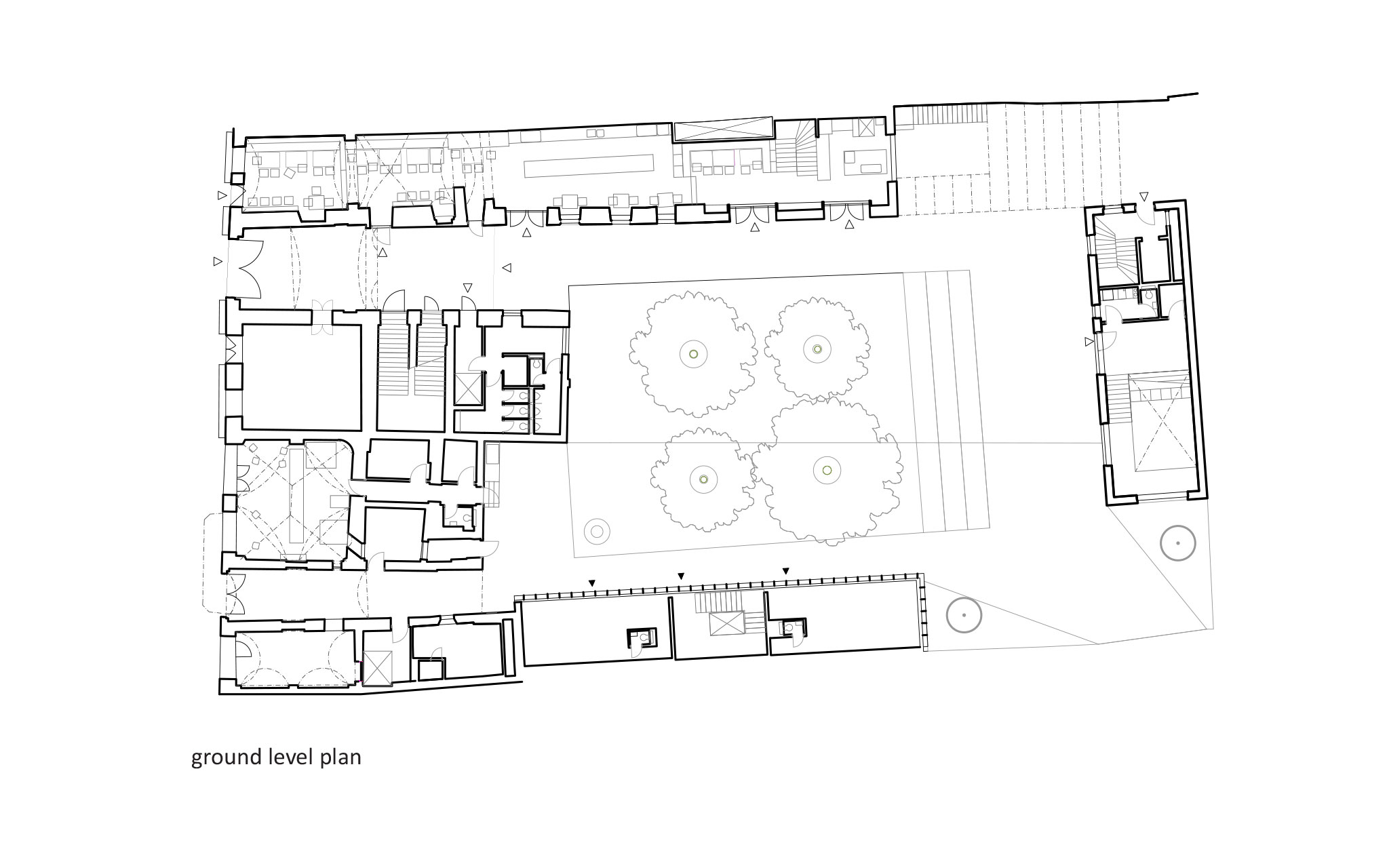

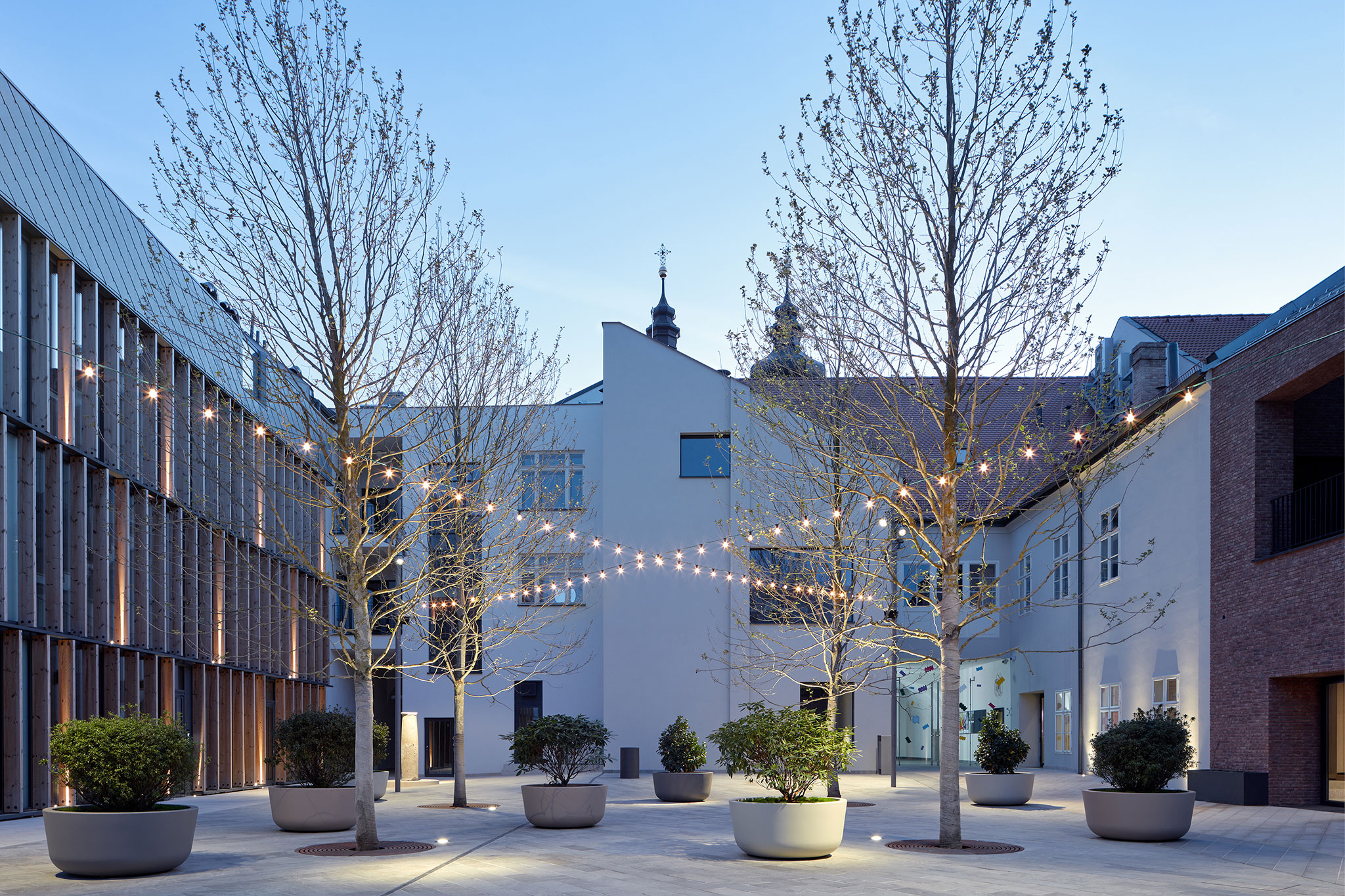

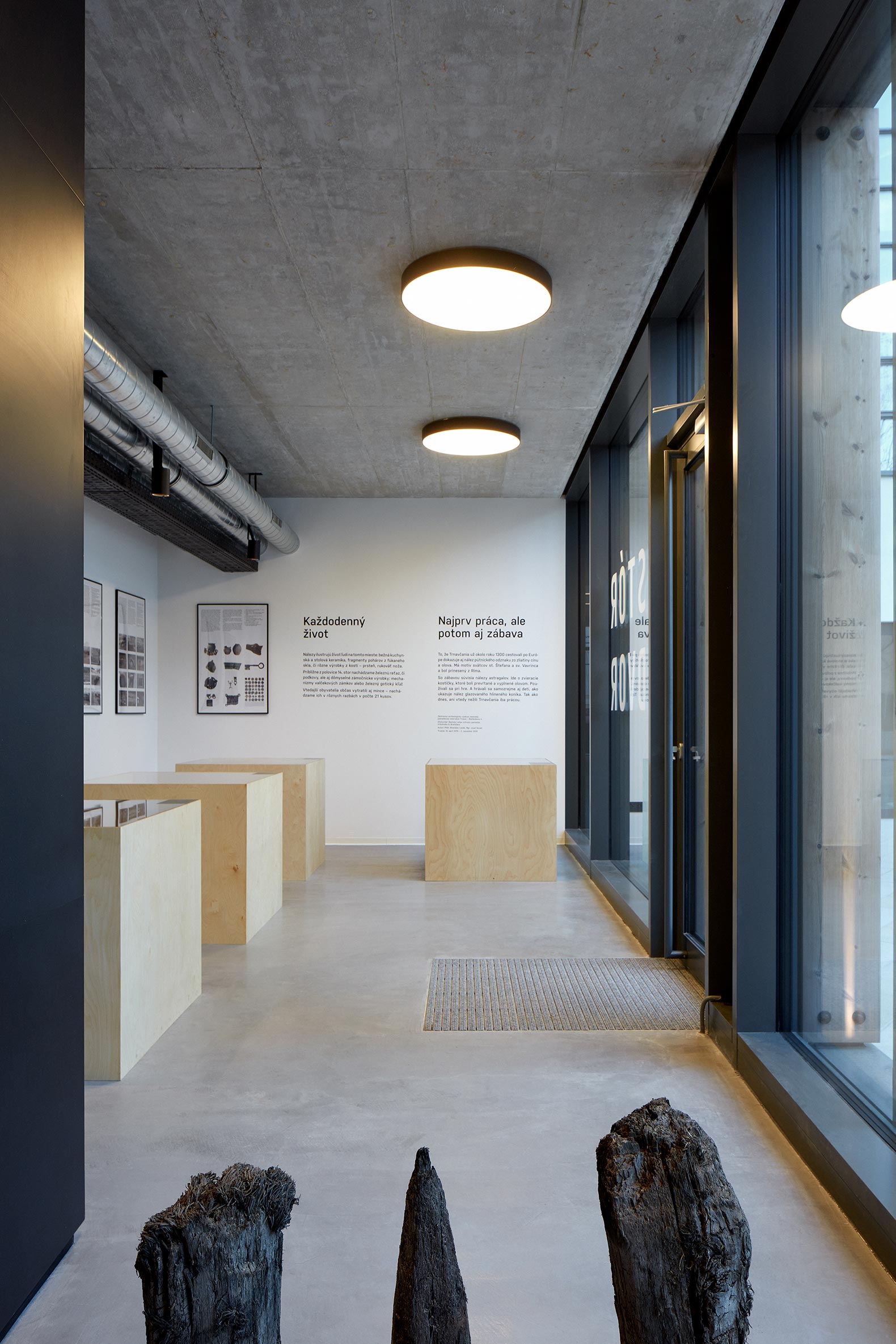

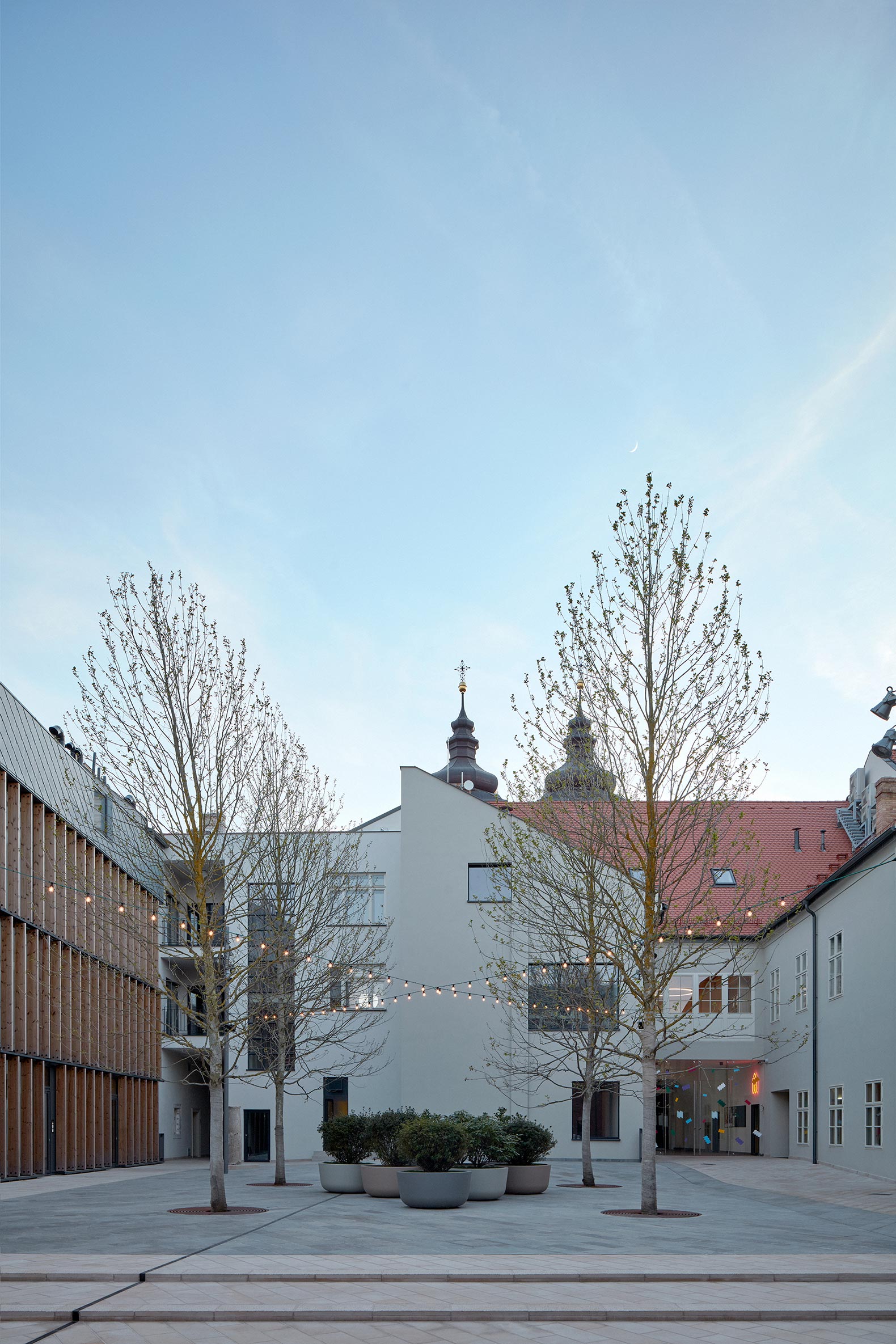

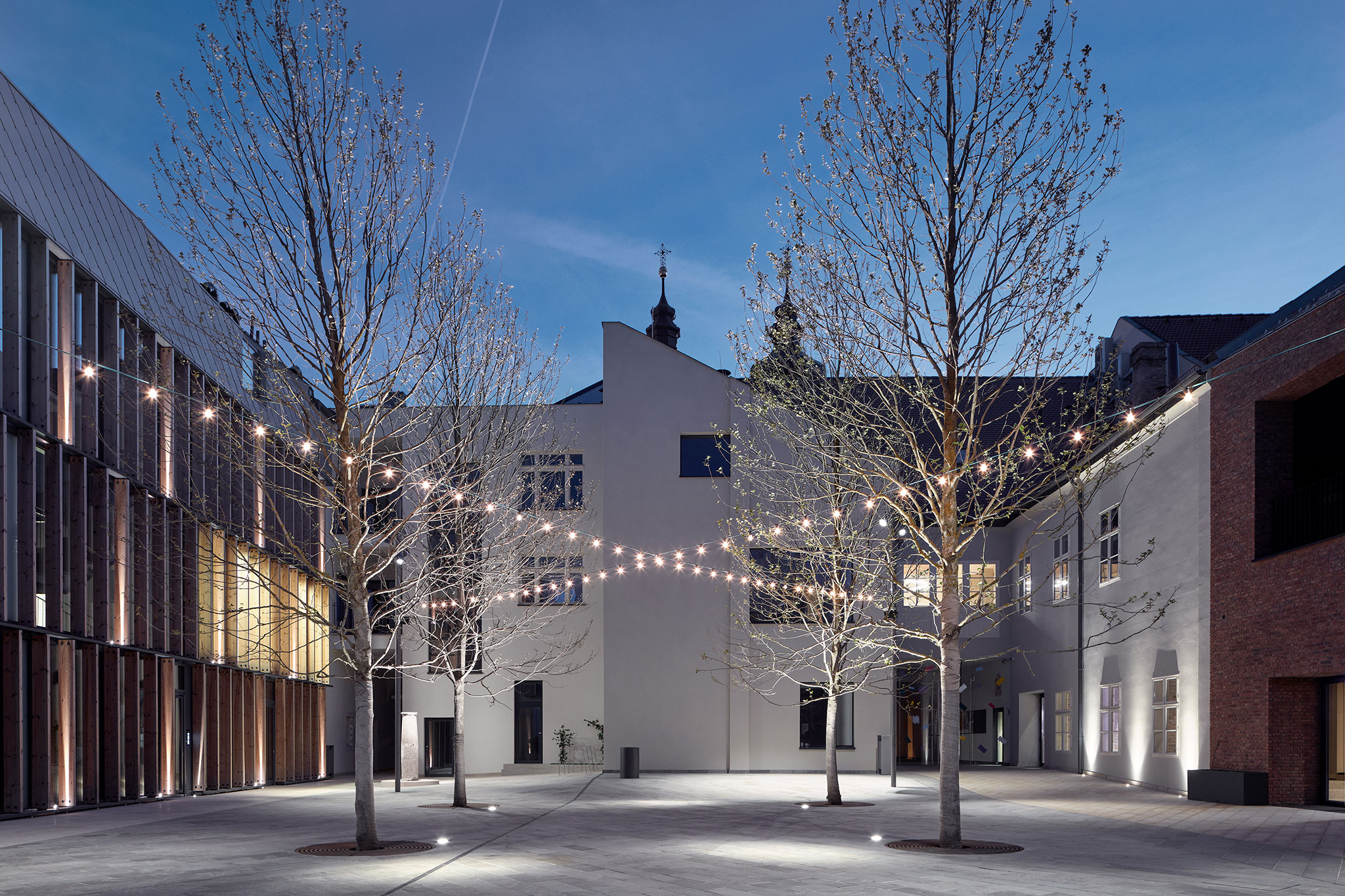

A diversity of semi-public and private functions are contained on the premises, which activate the new public space in multiple ways on a daily basis (terrace of the restaurant, retail) and occasionally (events). The multifunctional central space is defined by four trees, surface alterations, and the illumination. The green is filled with mobile pots. The findings from the archeological survey and historical parcellation are presented in the pavement.

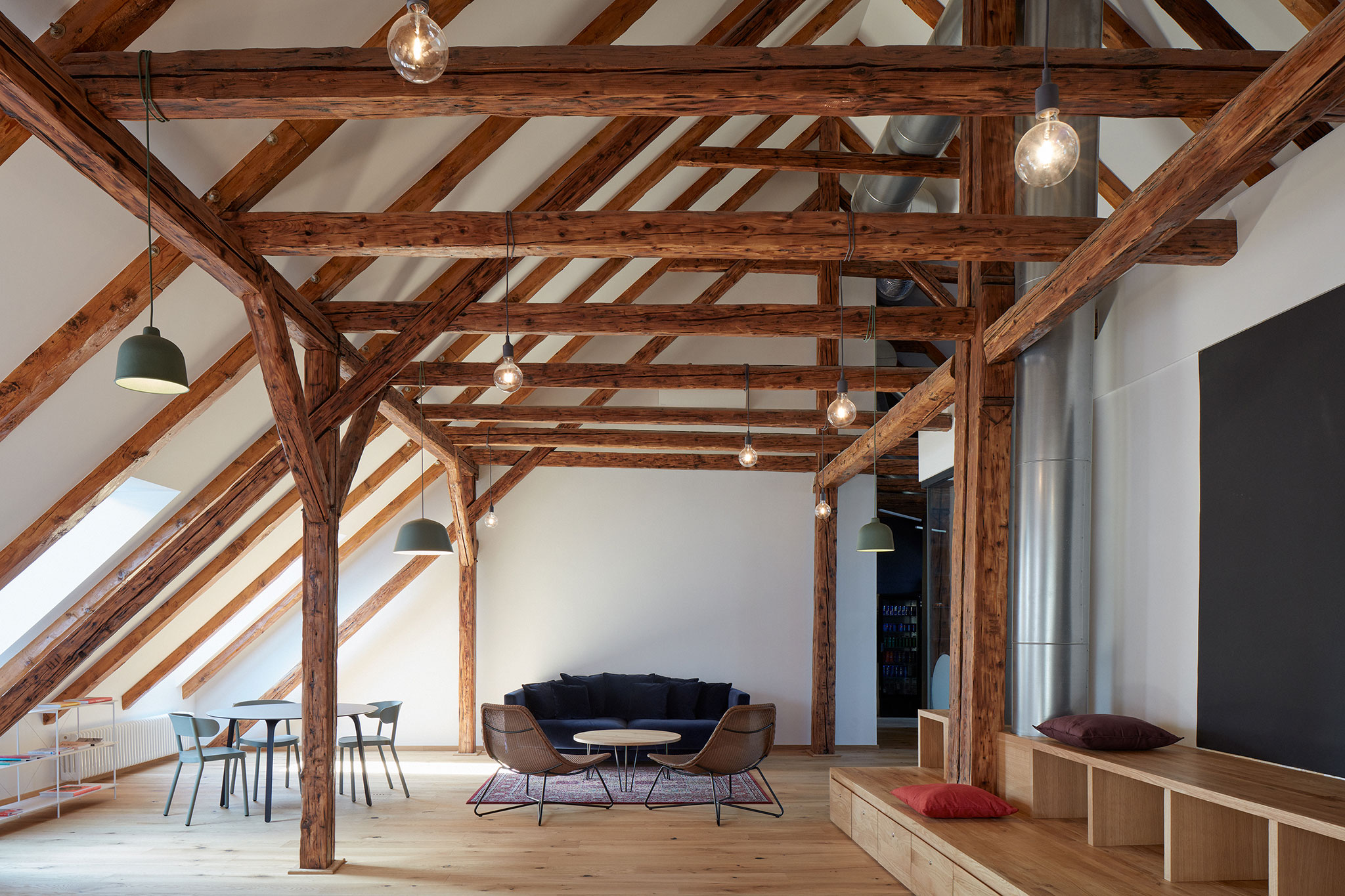

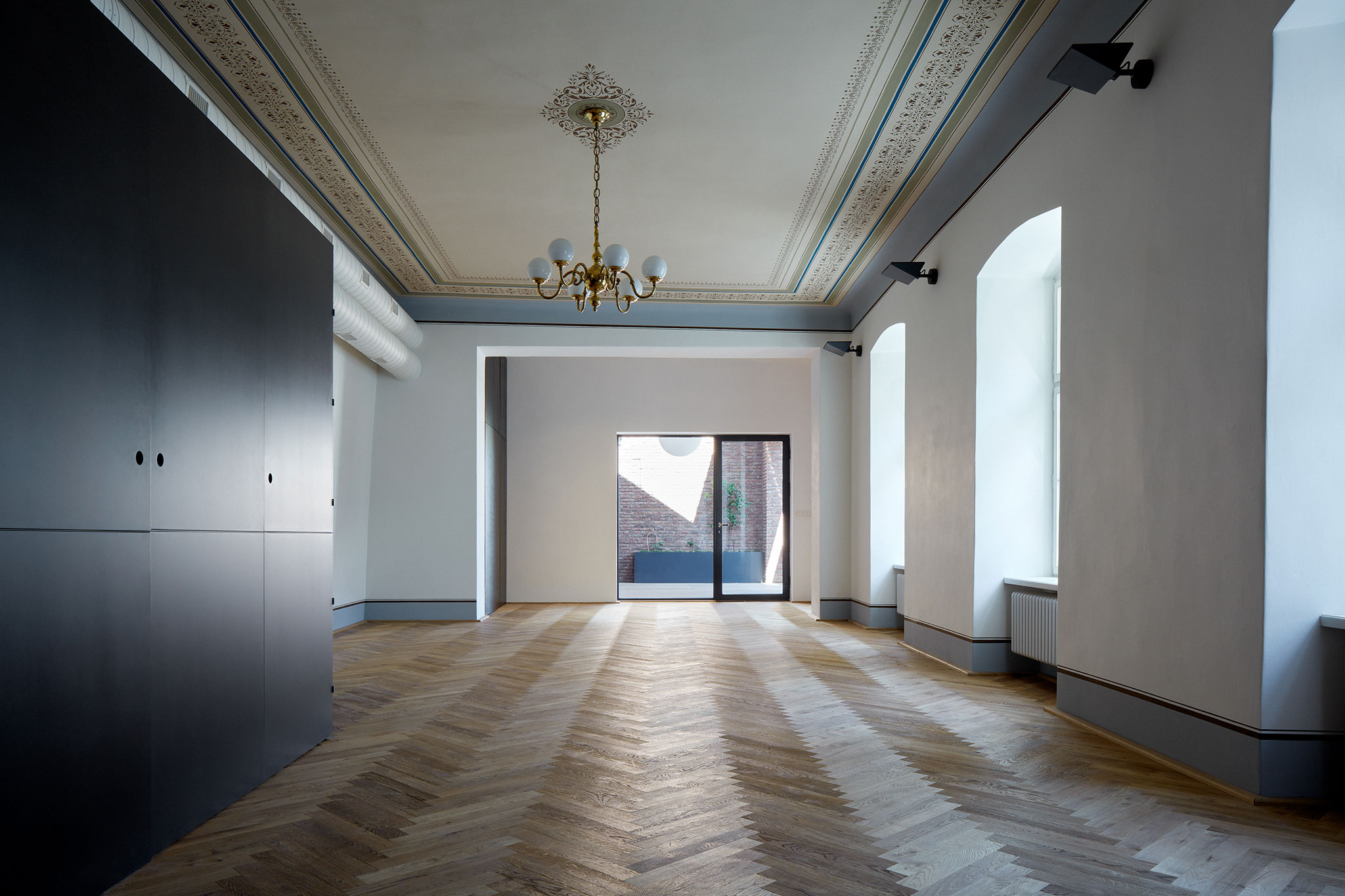

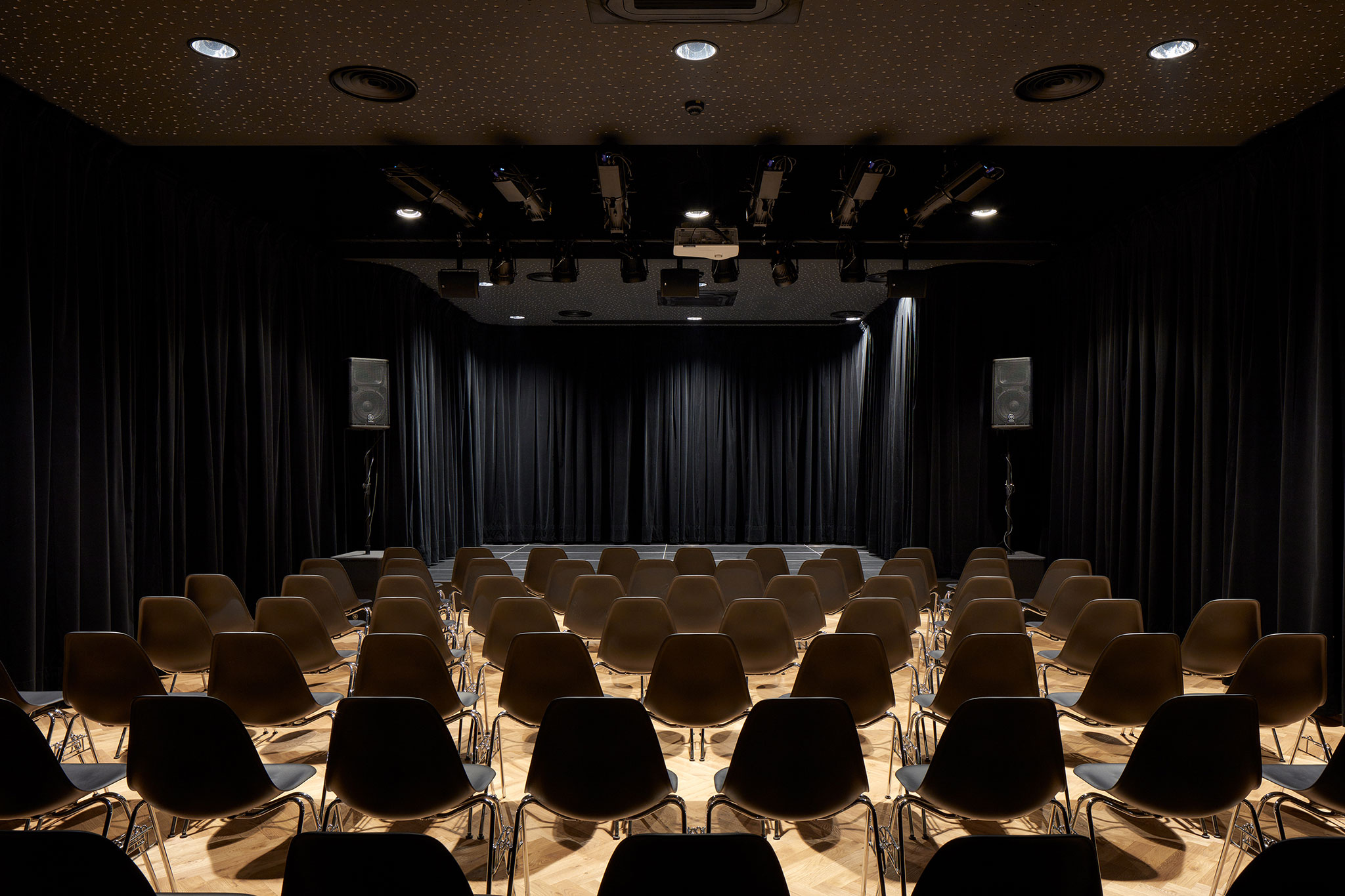

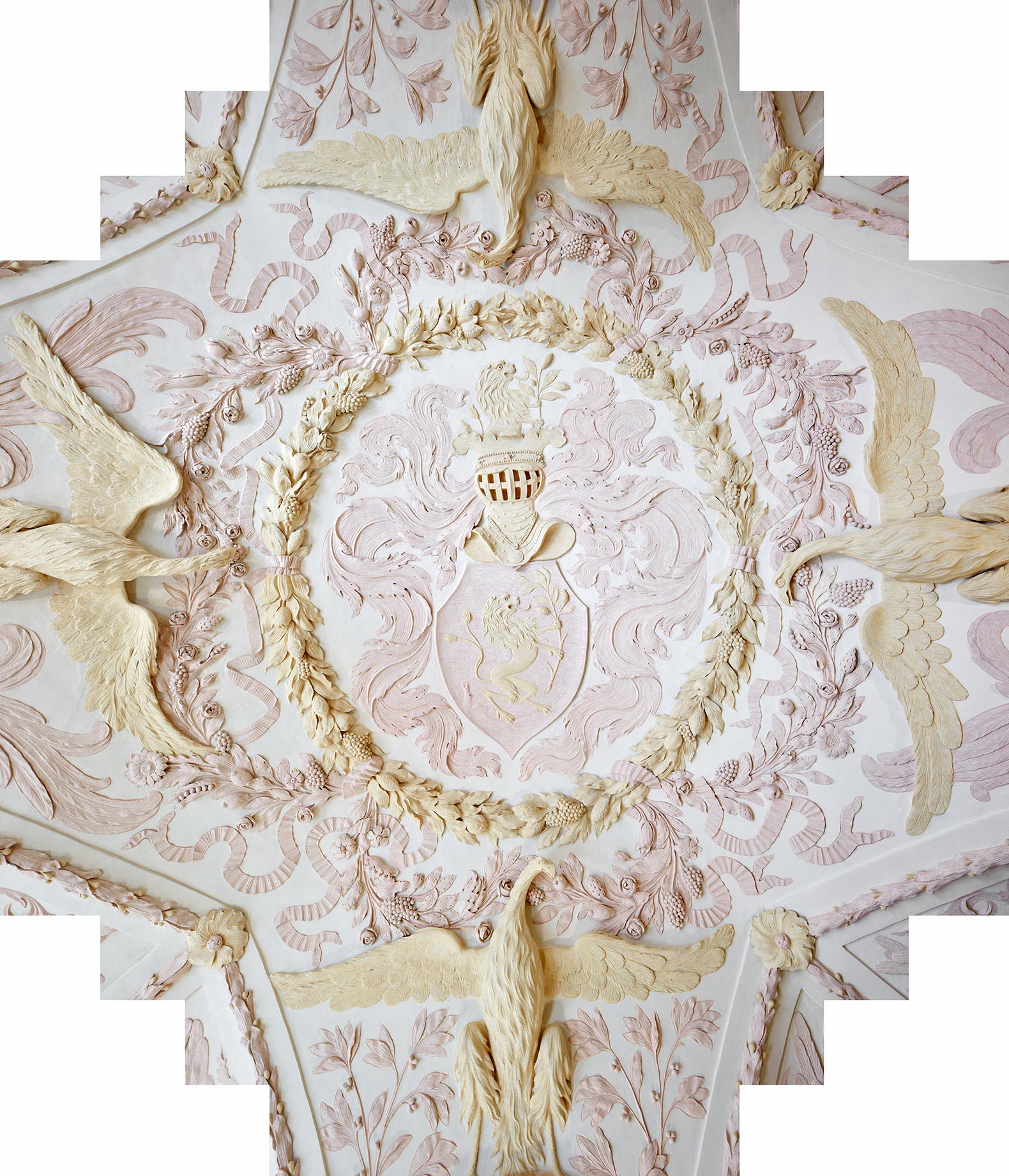

We tried to preserve all important time traces in reconstructed objects, taking care of the unified material language, respecting the principles of restoration. The history of the buildings dates back to the 14th century, with changes from the 16th-20th century. Objects cluster a number of different features as a cultural centre, restaurant, bakery shop, retail, offices or co-working spaces in the inter-linked attic.

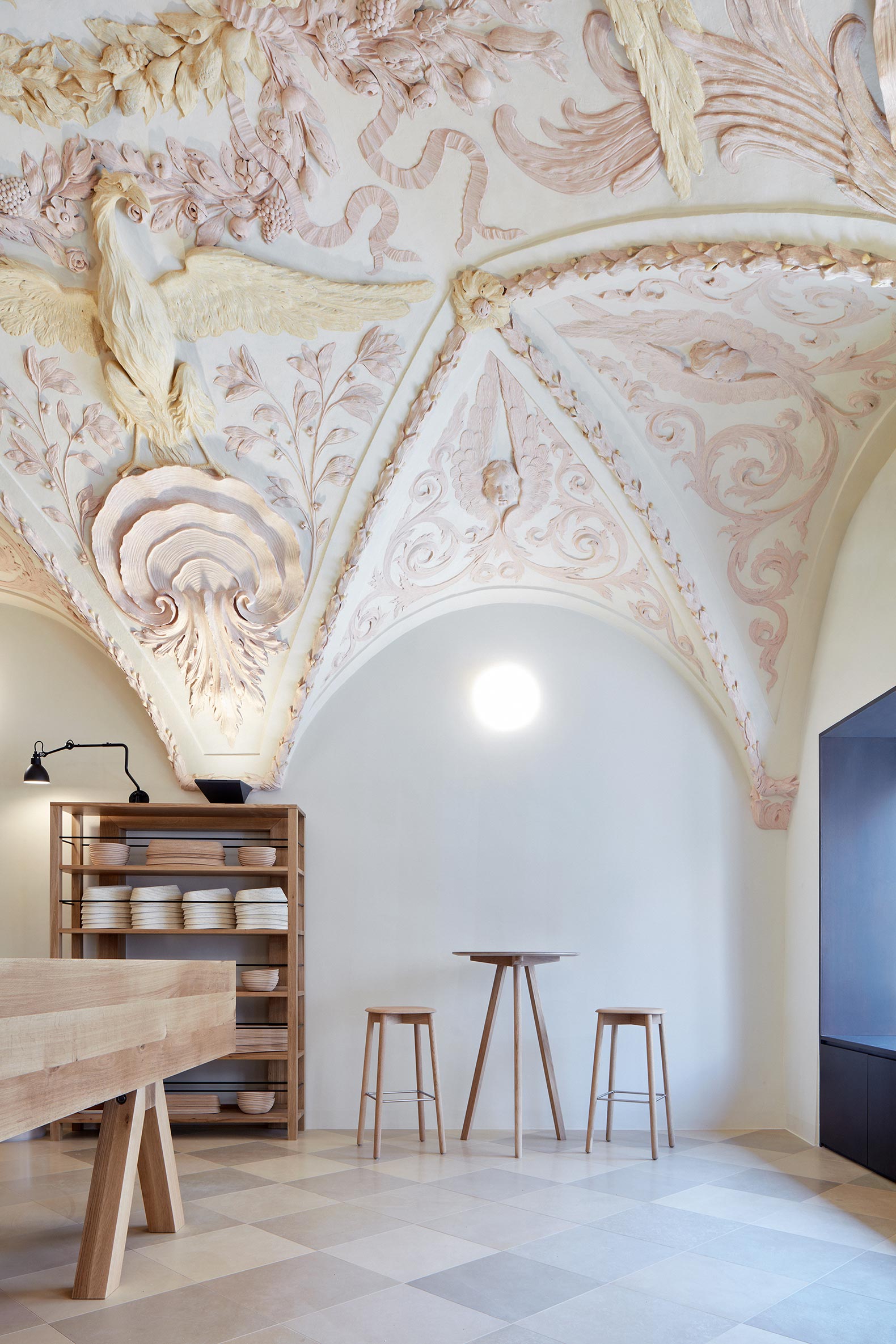

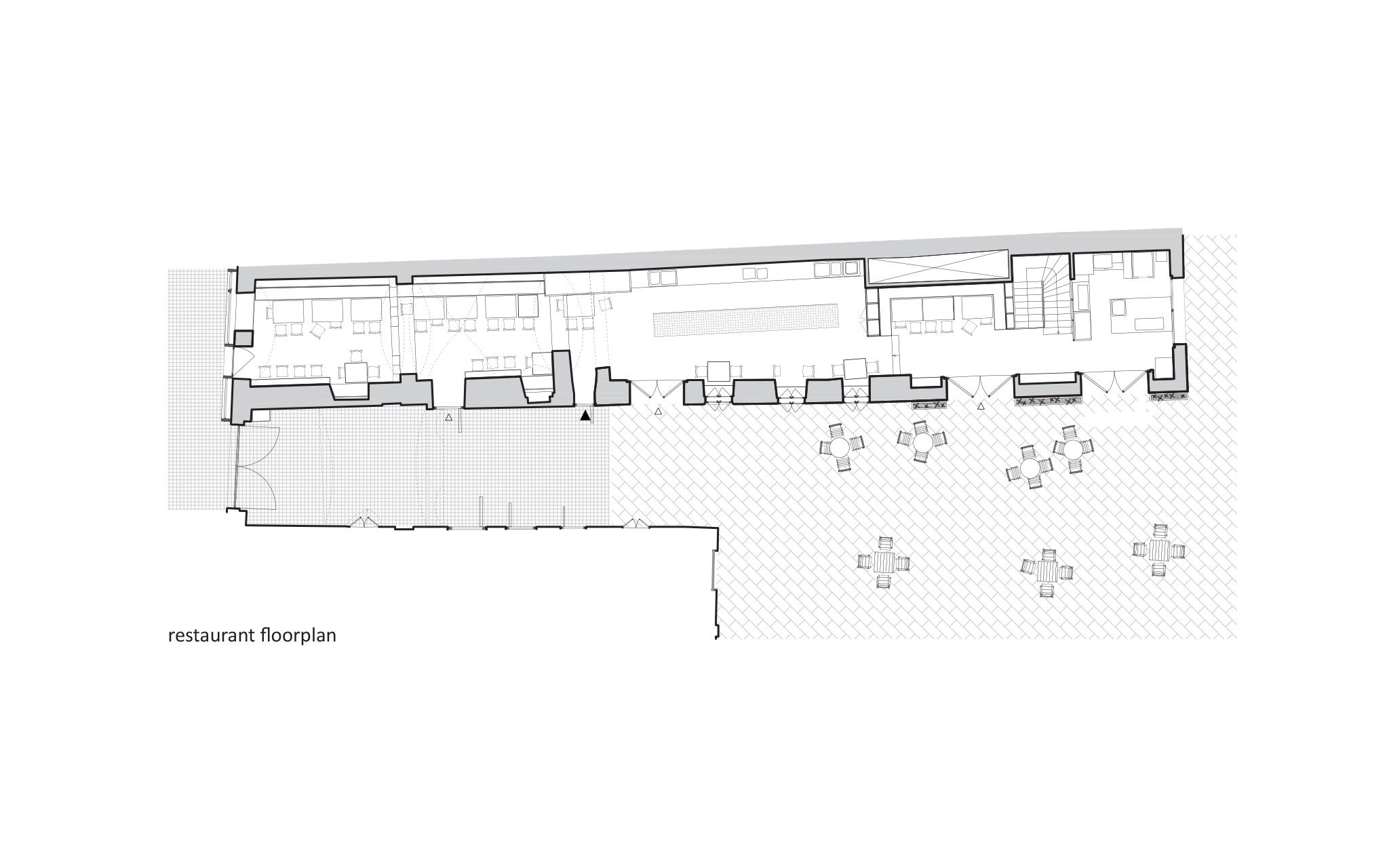

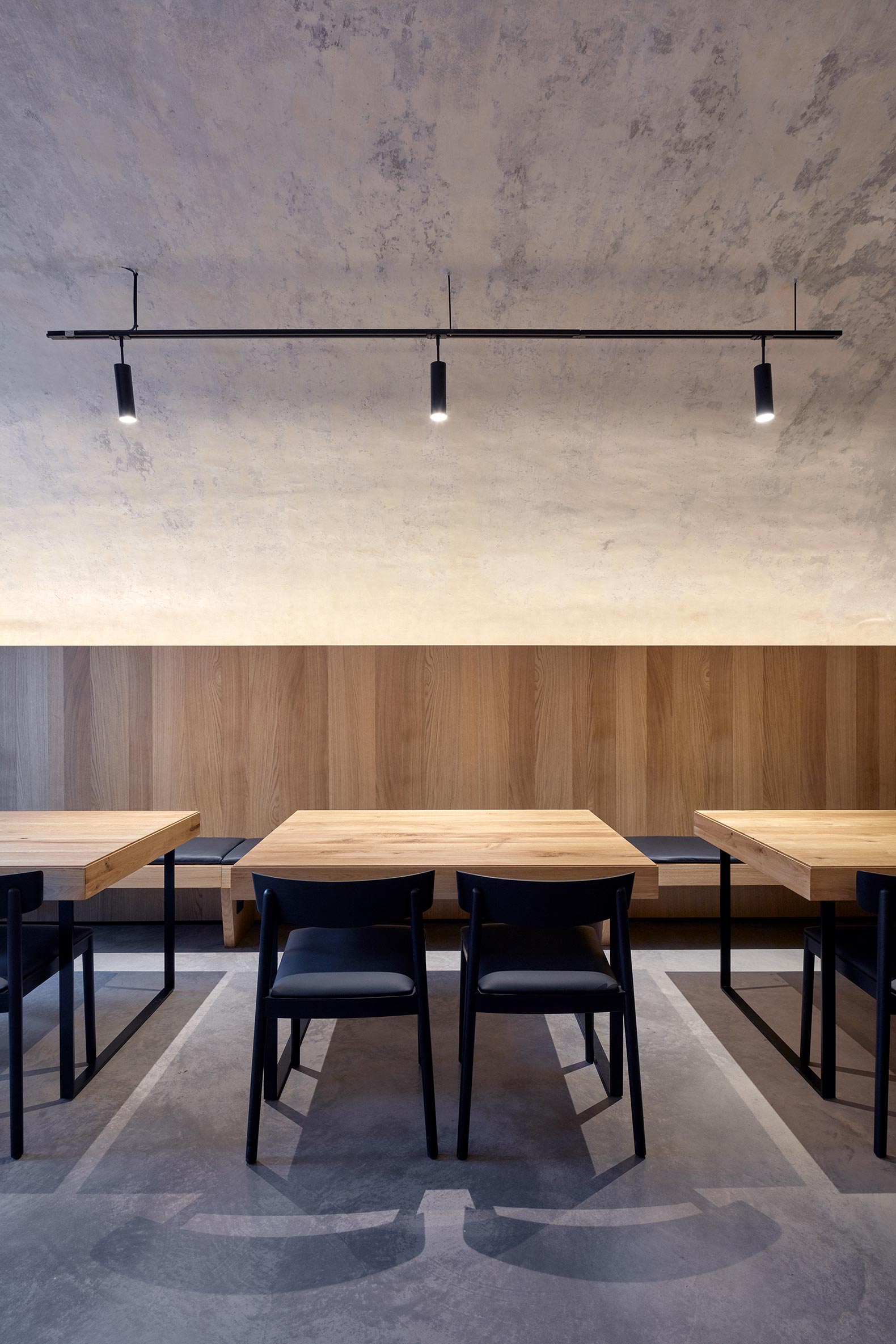

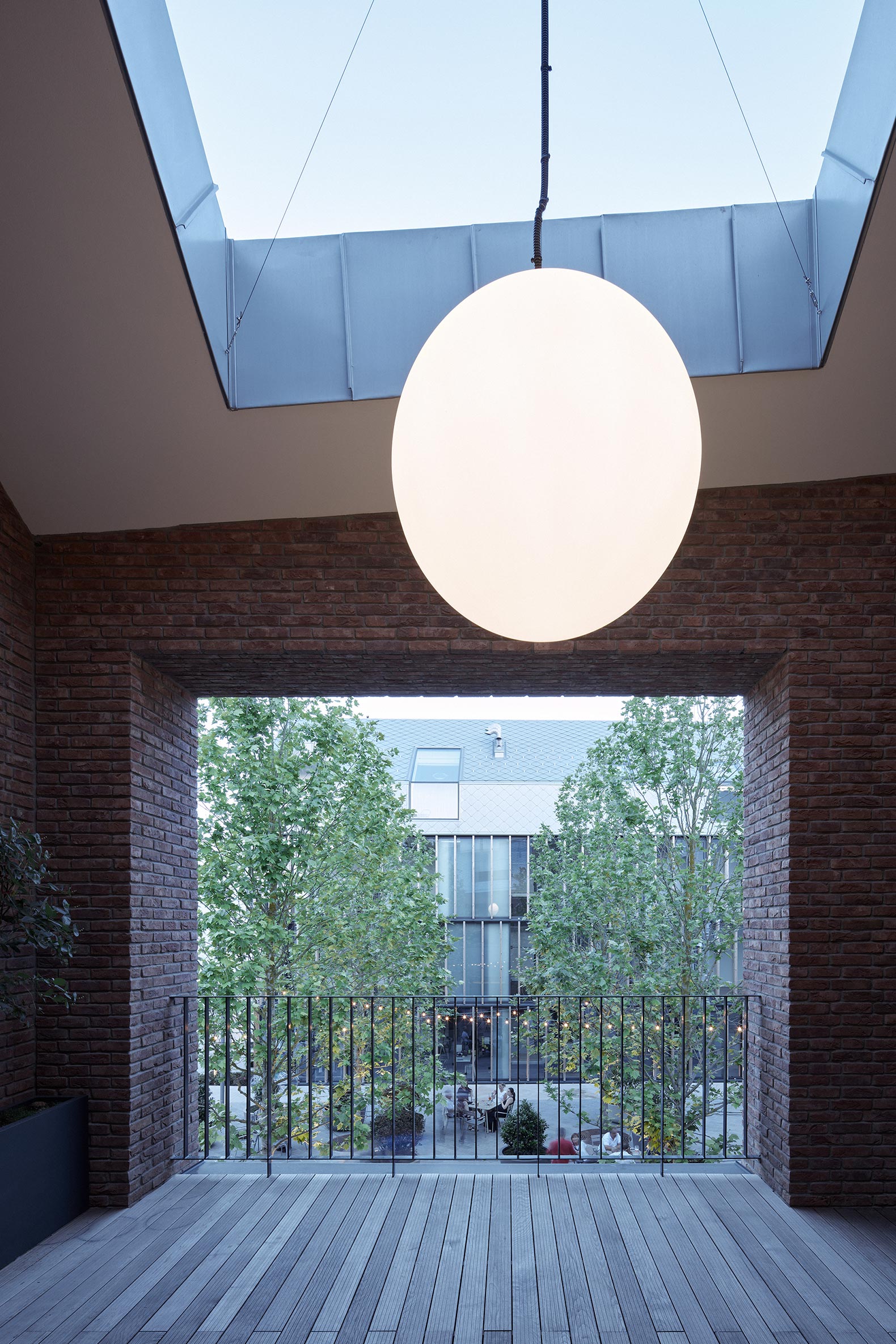

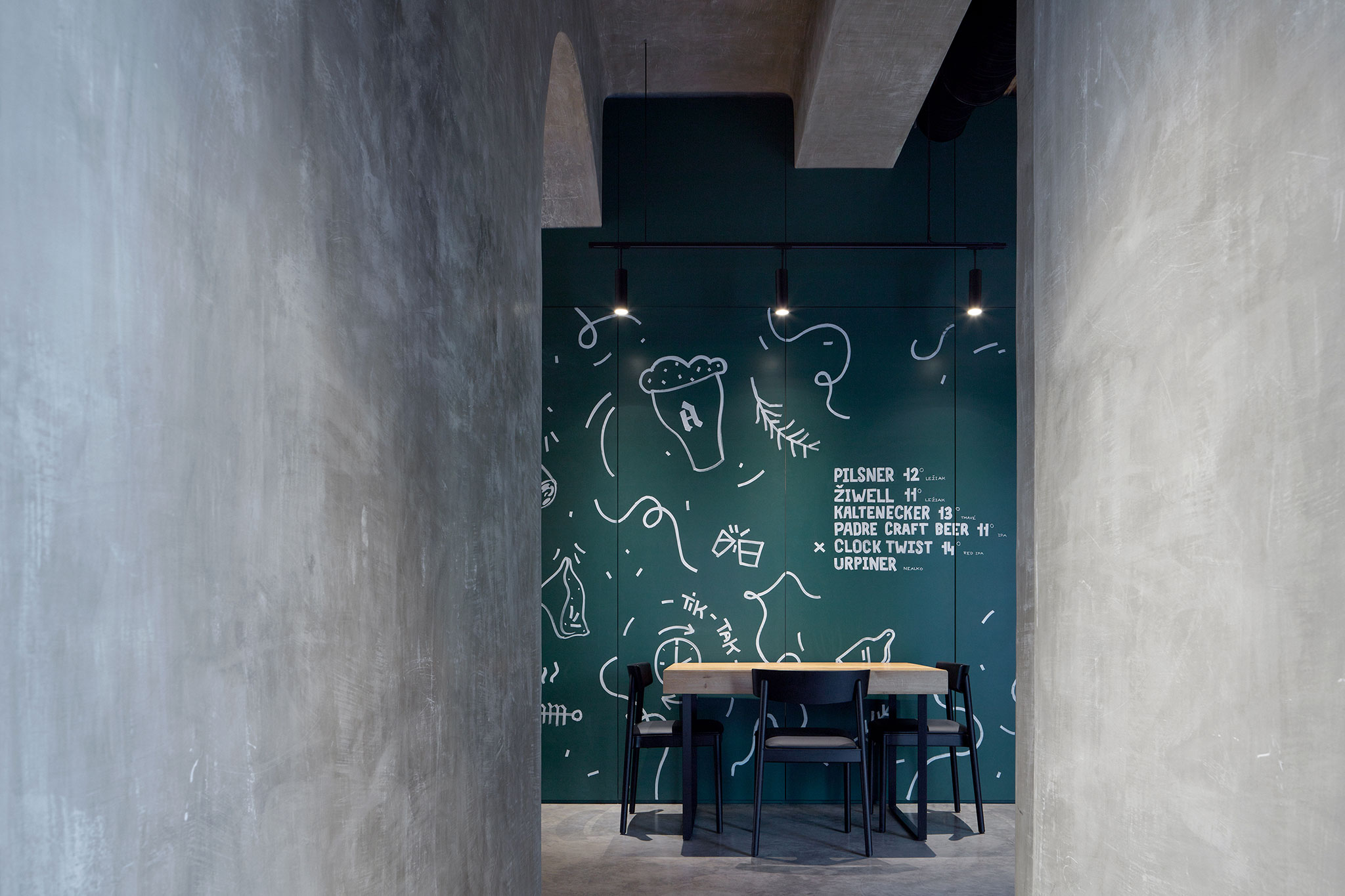

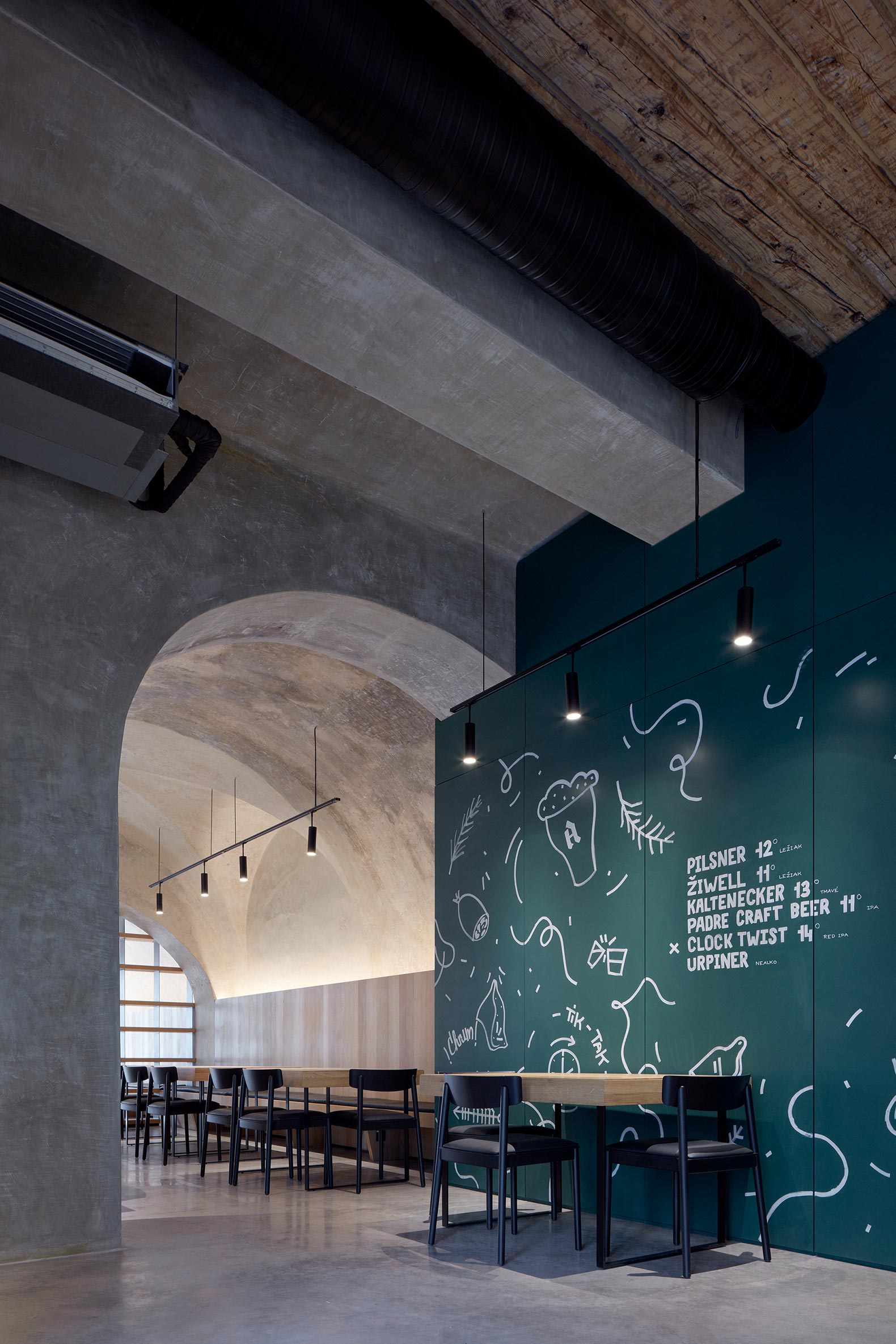

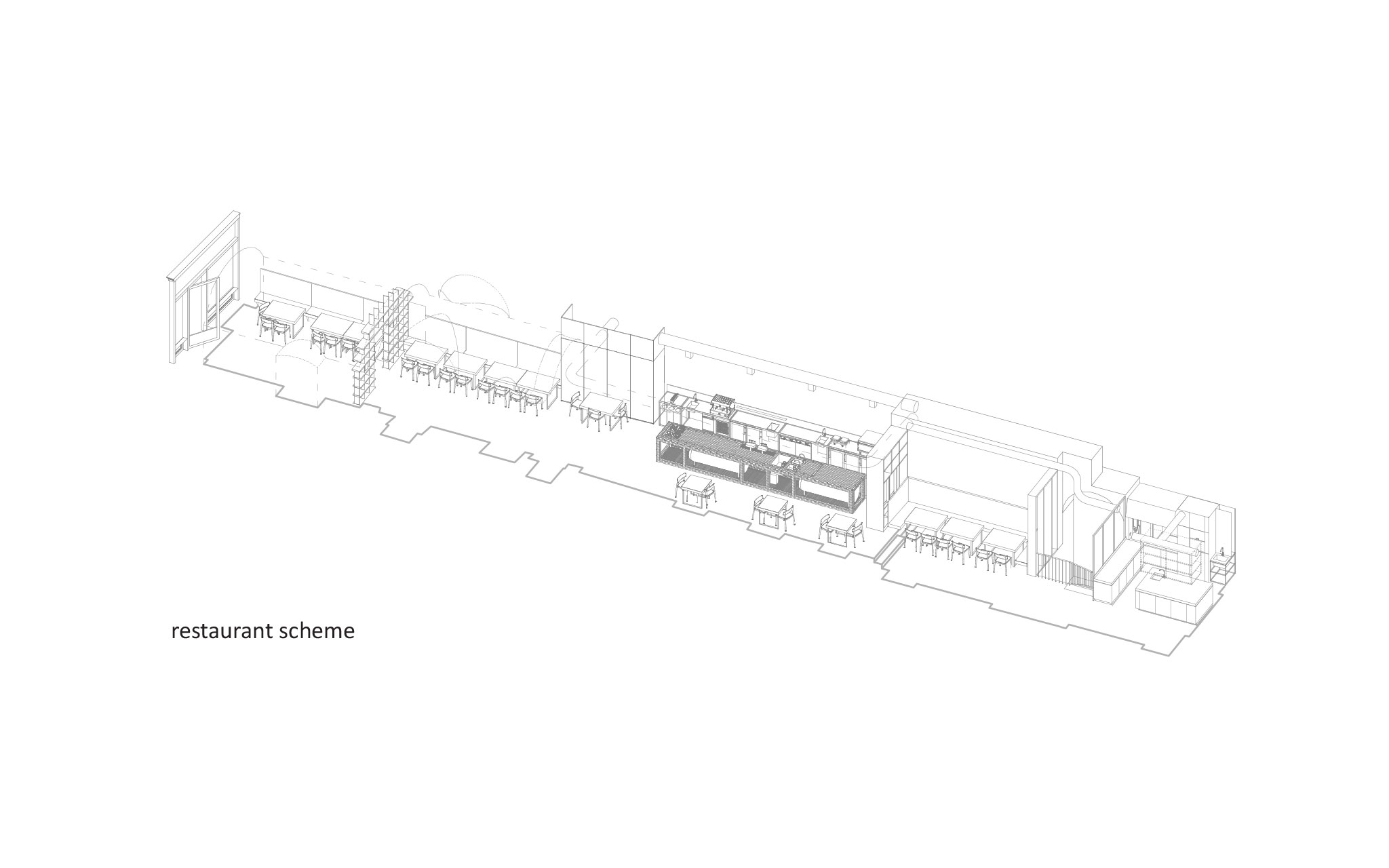

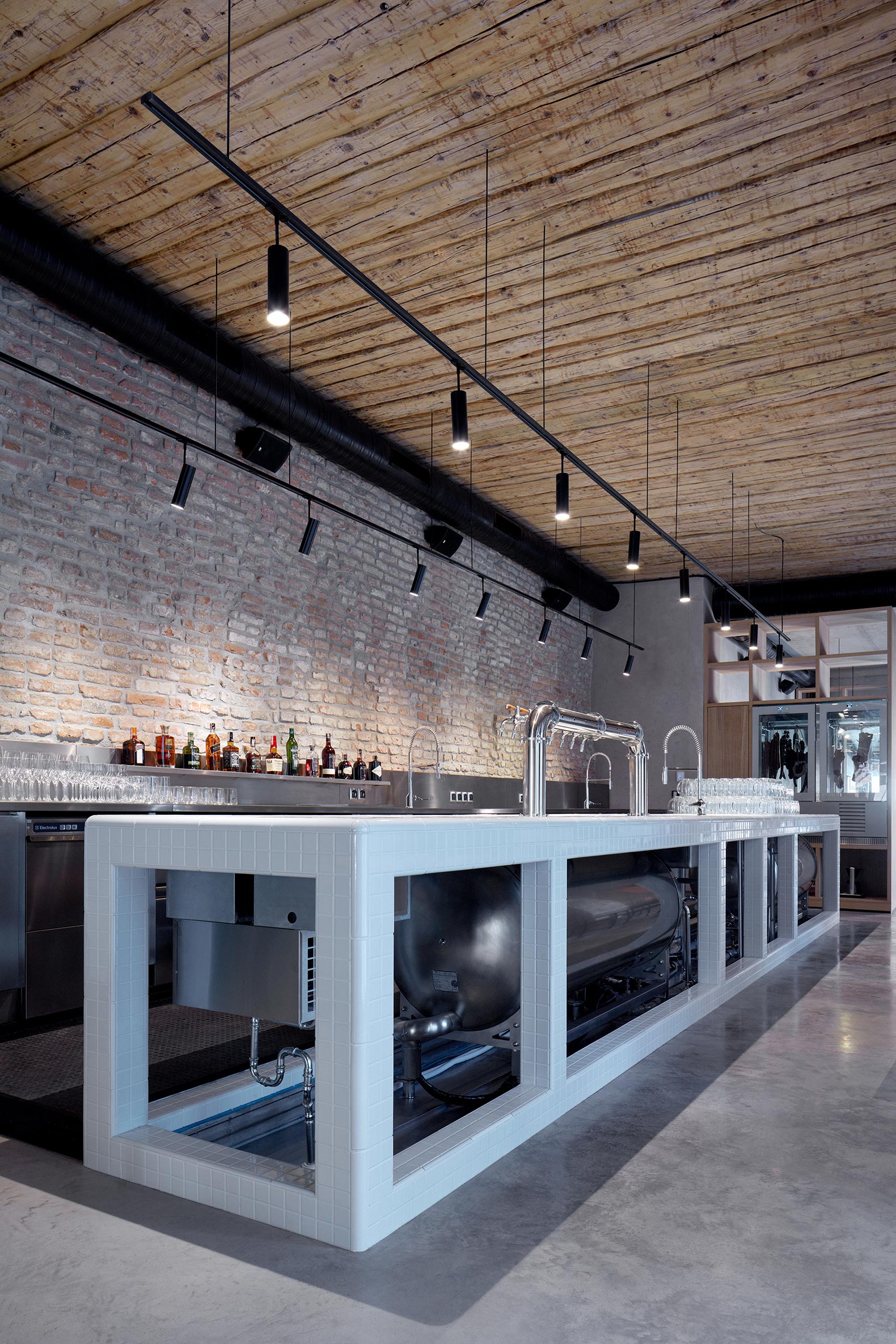

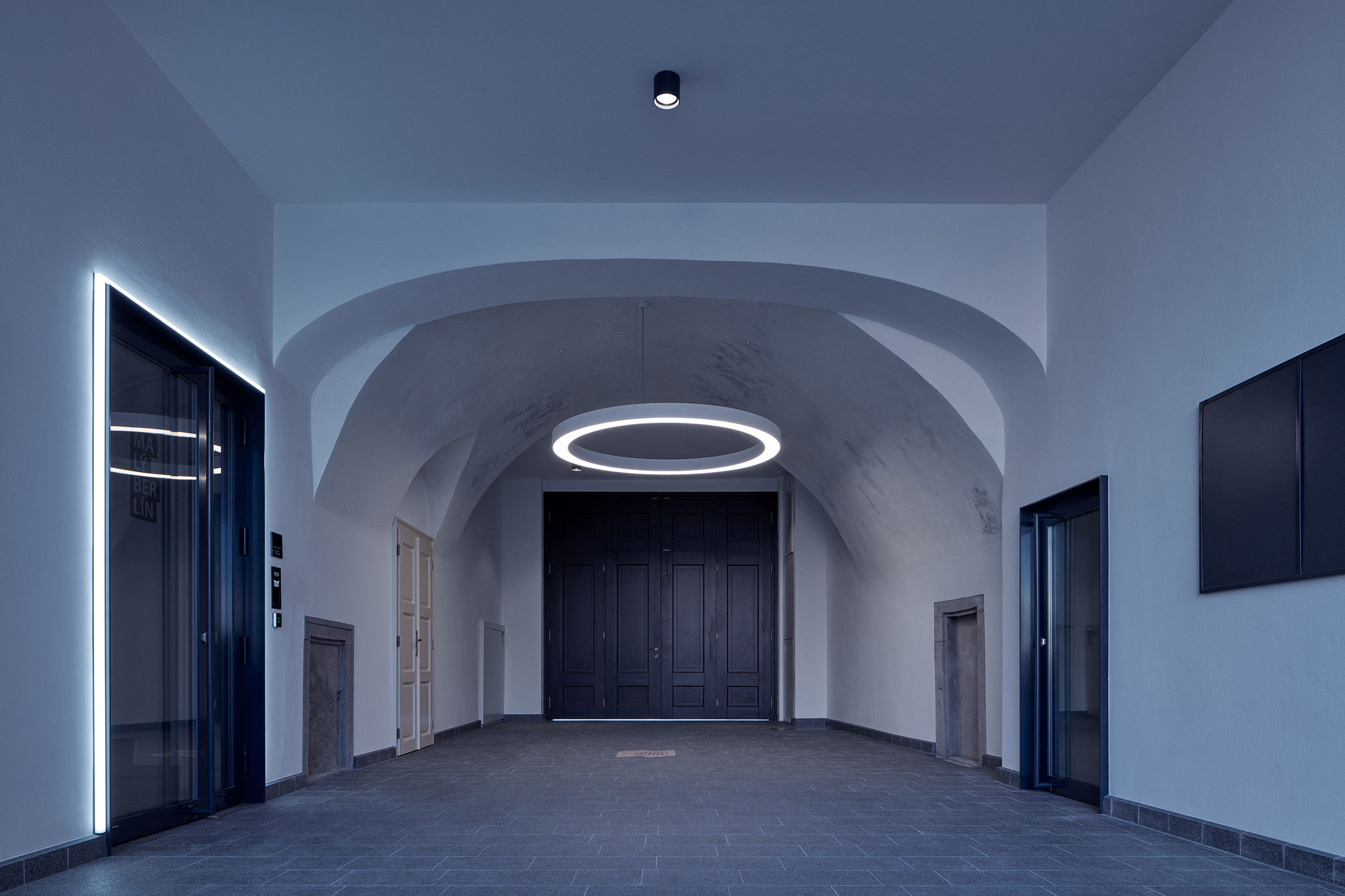

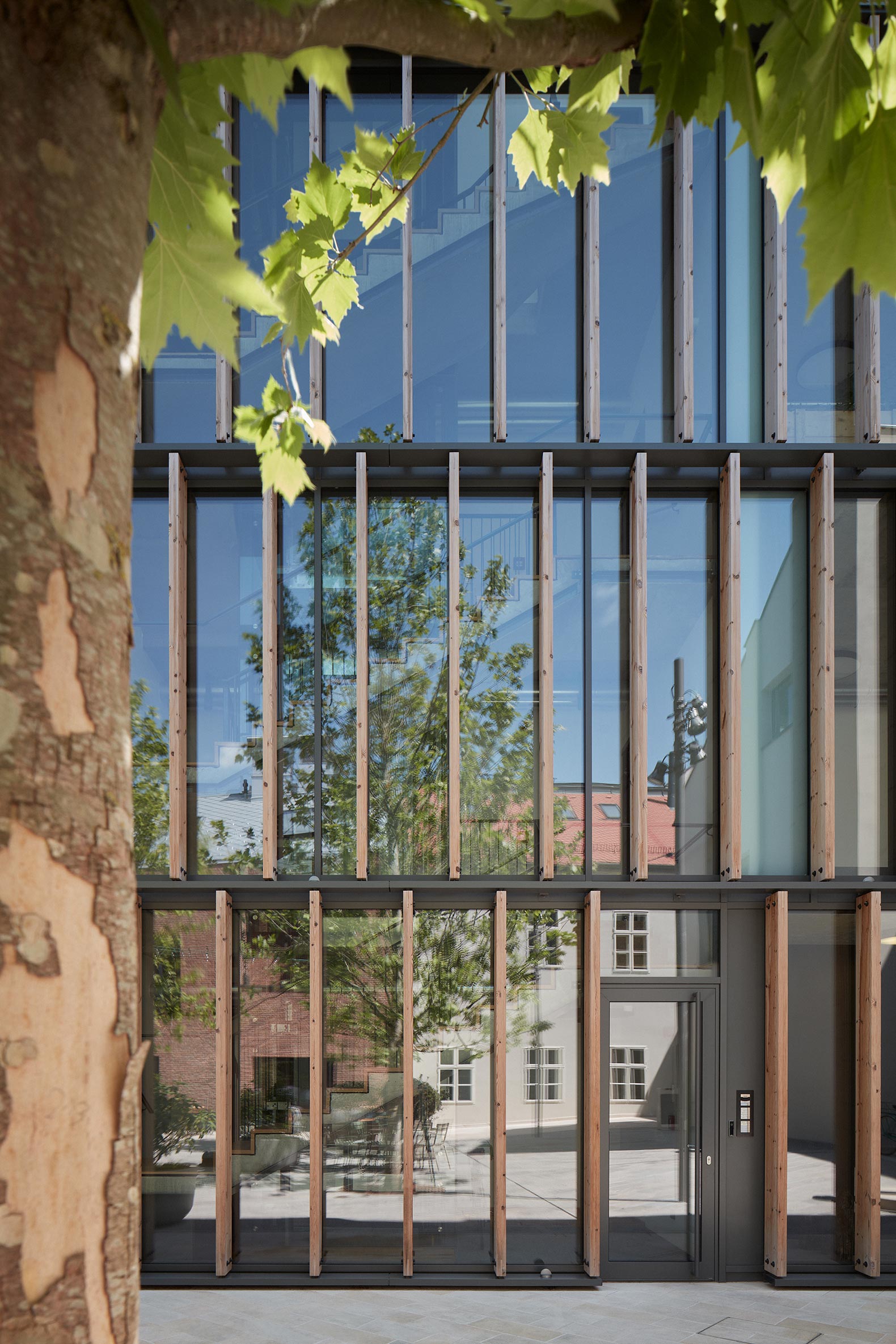

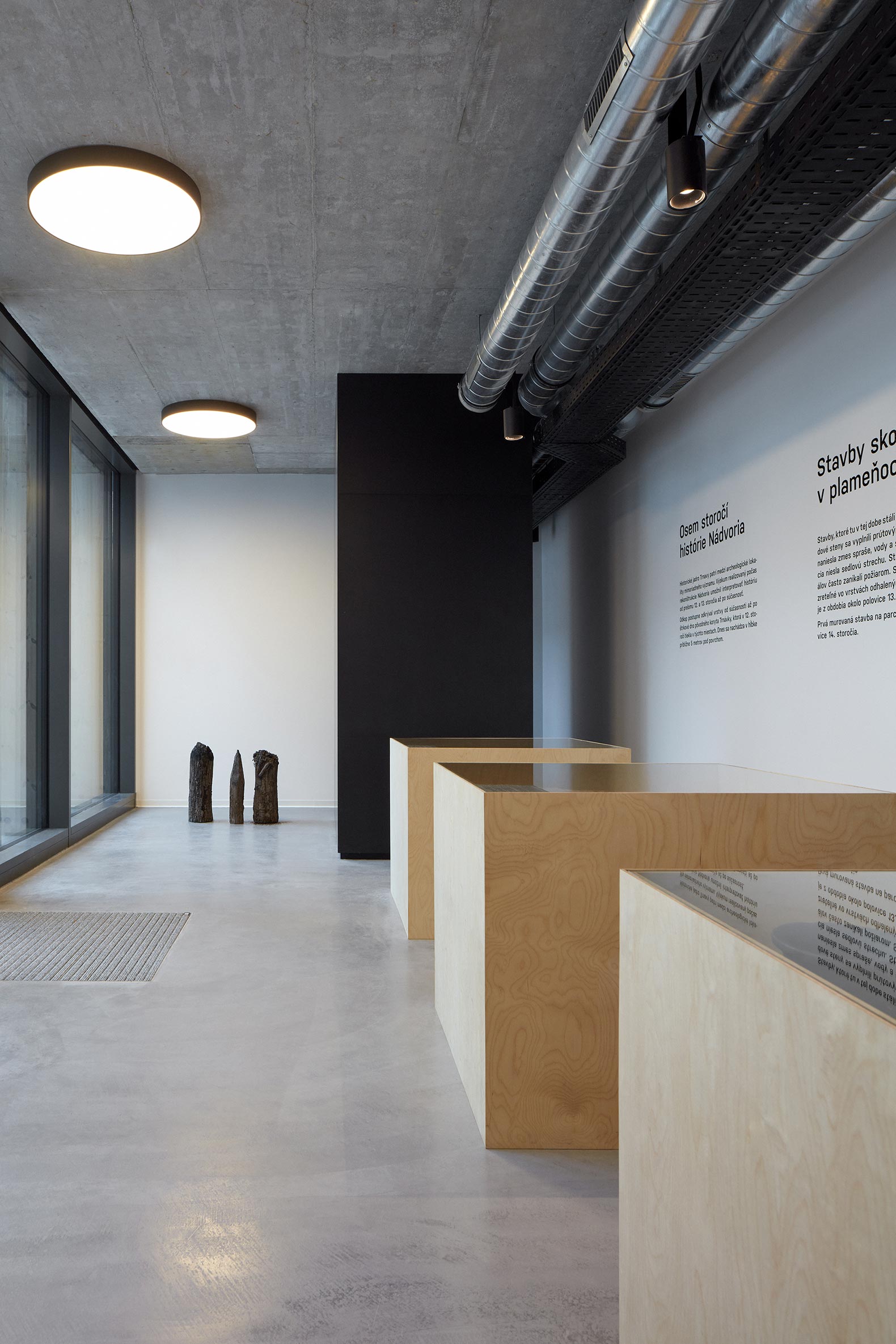

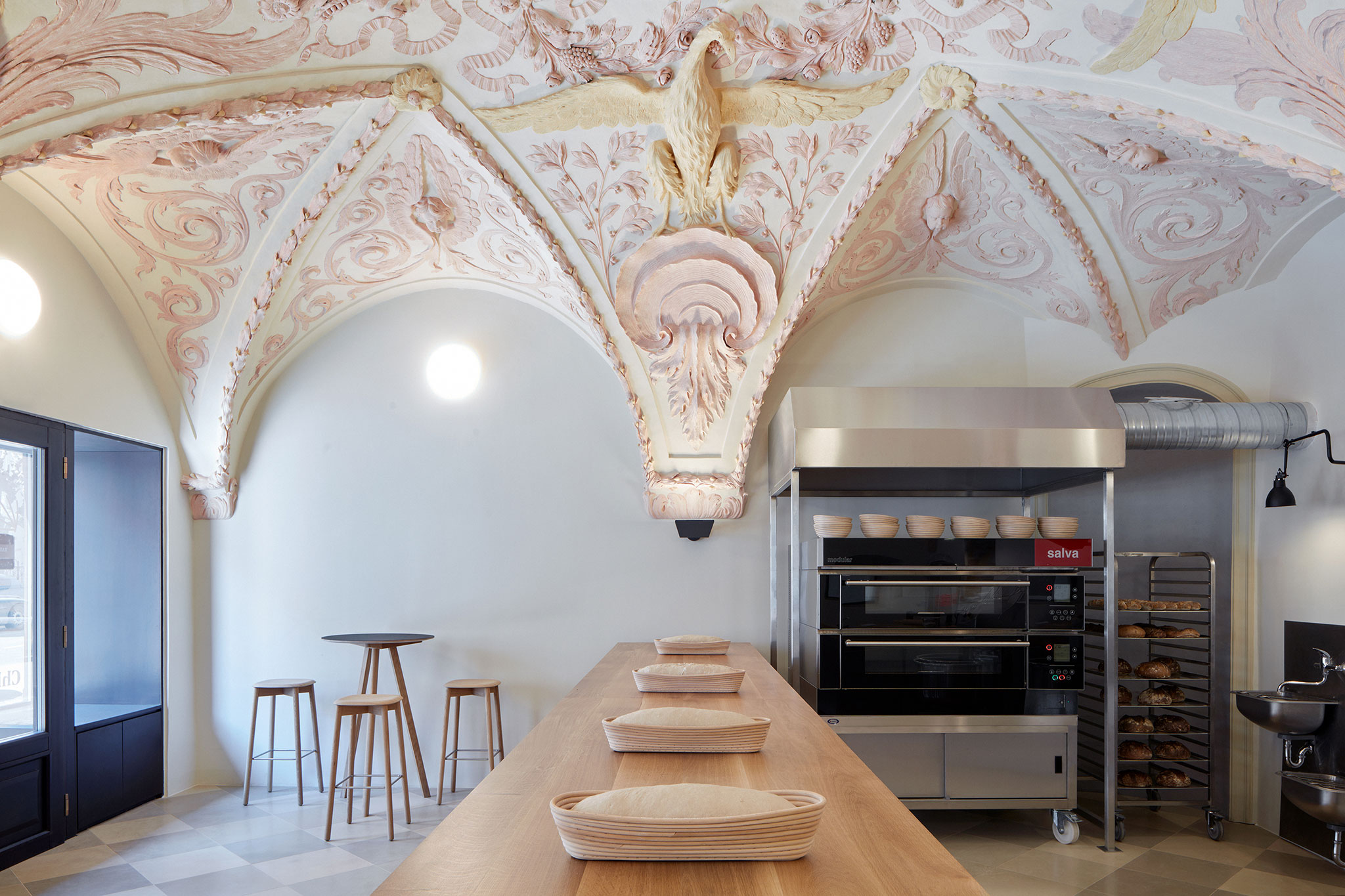

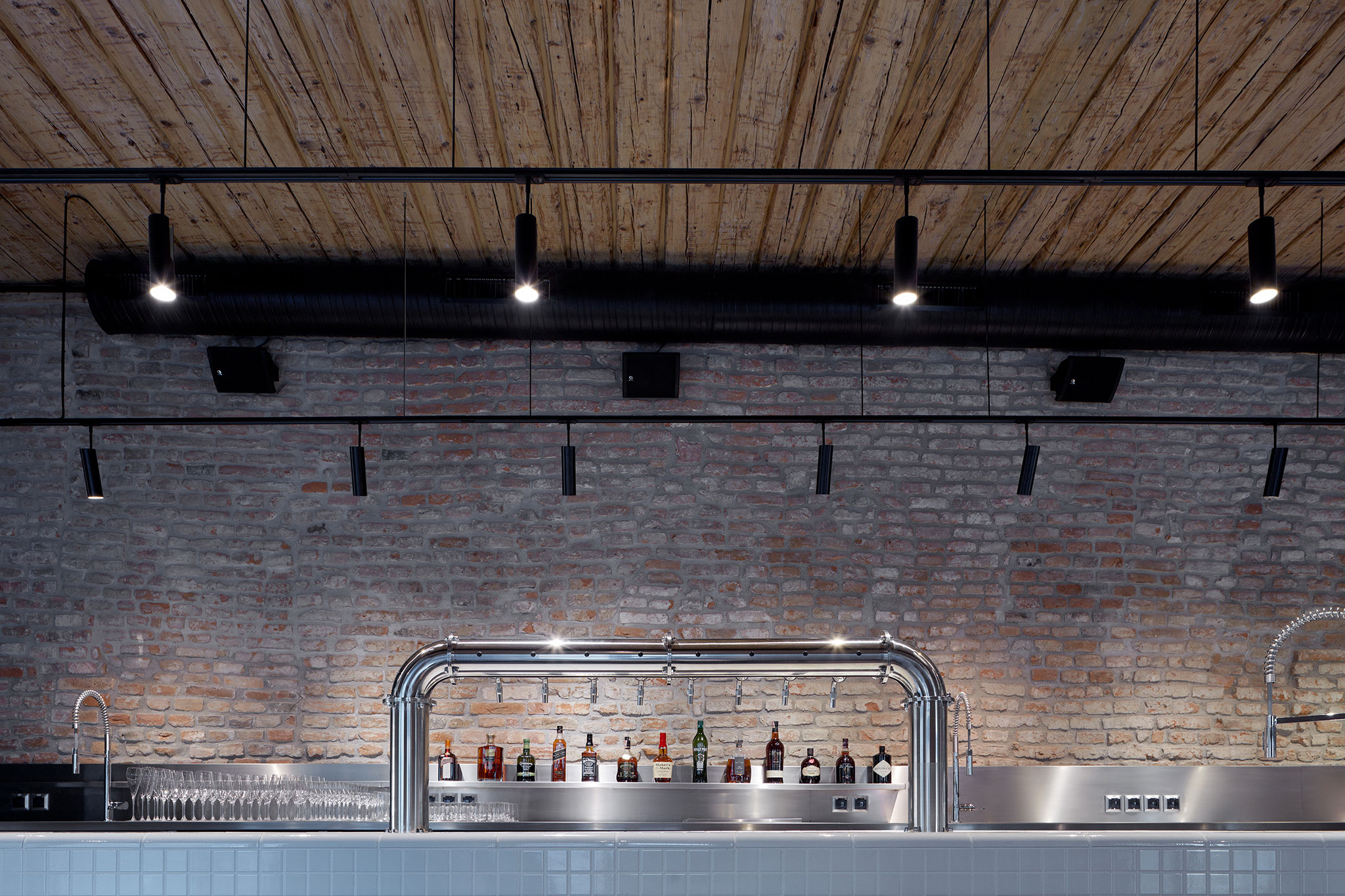

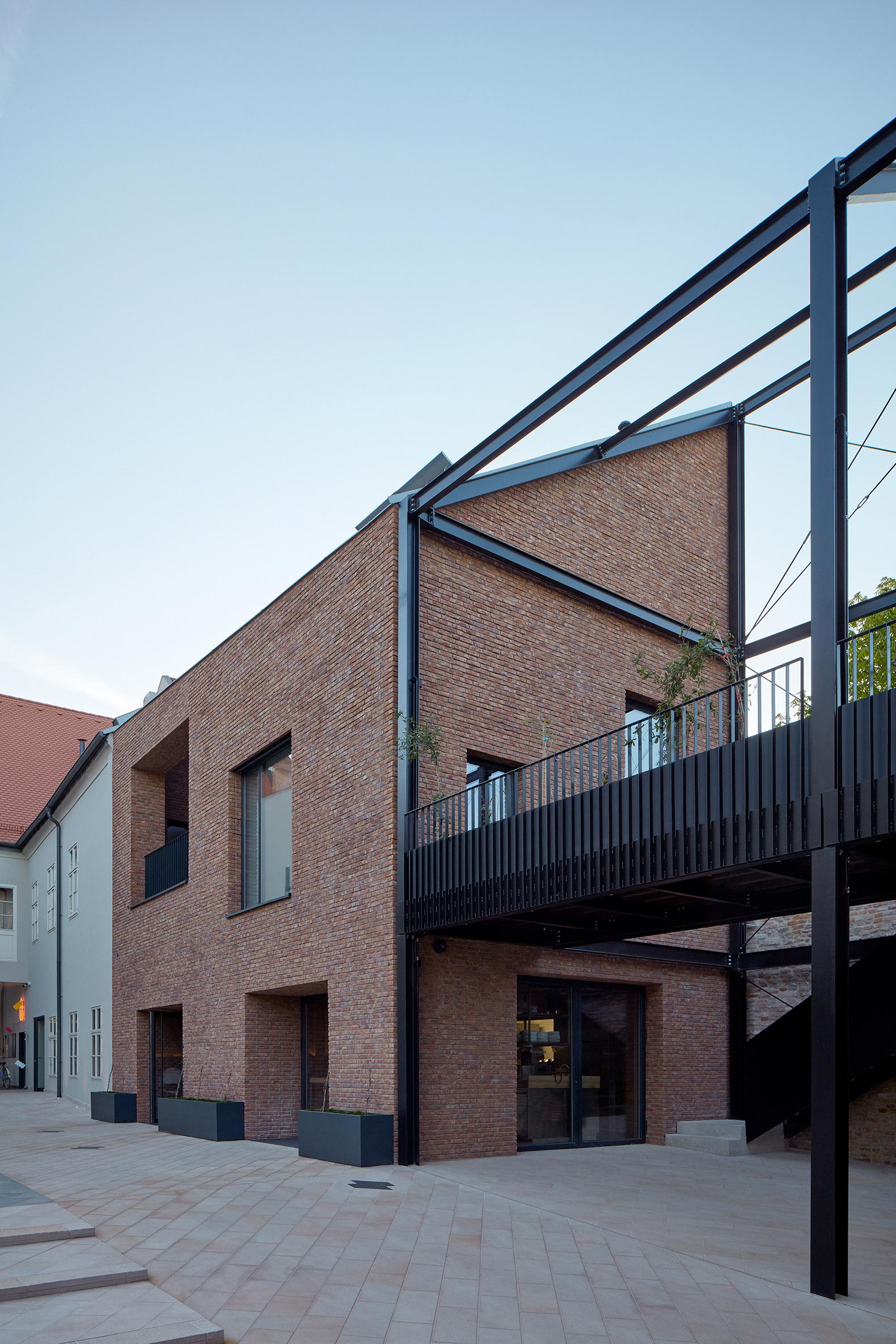

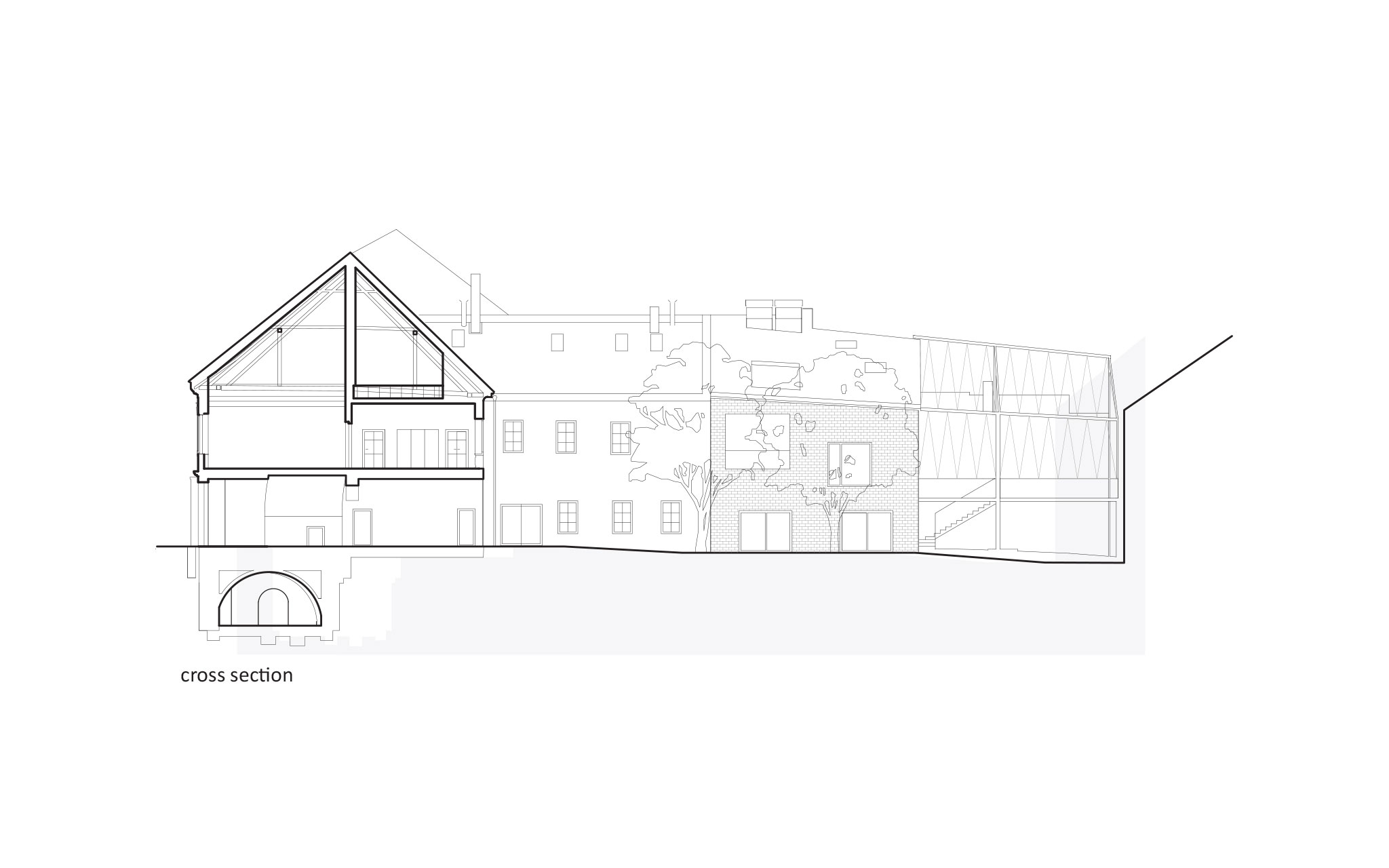

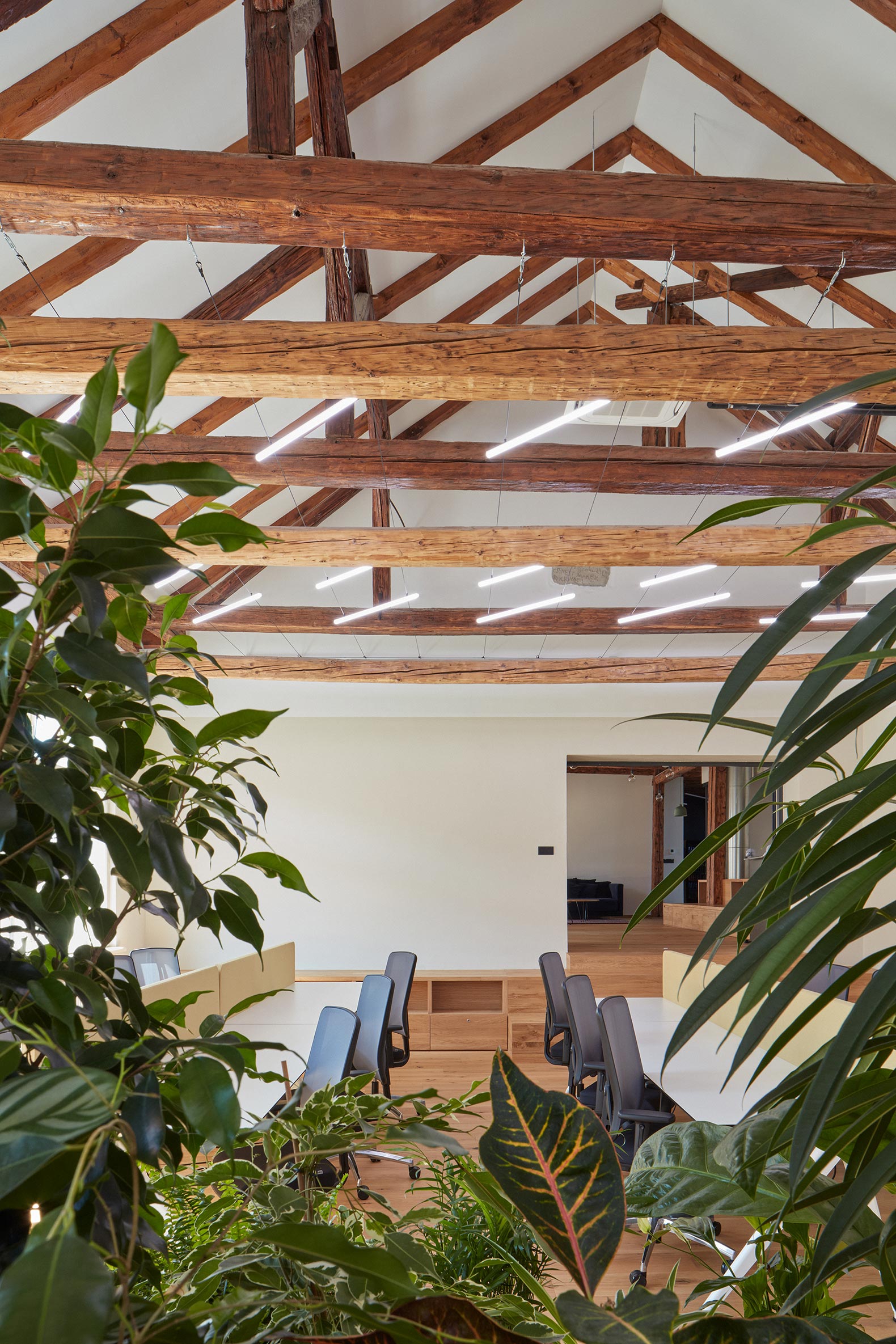

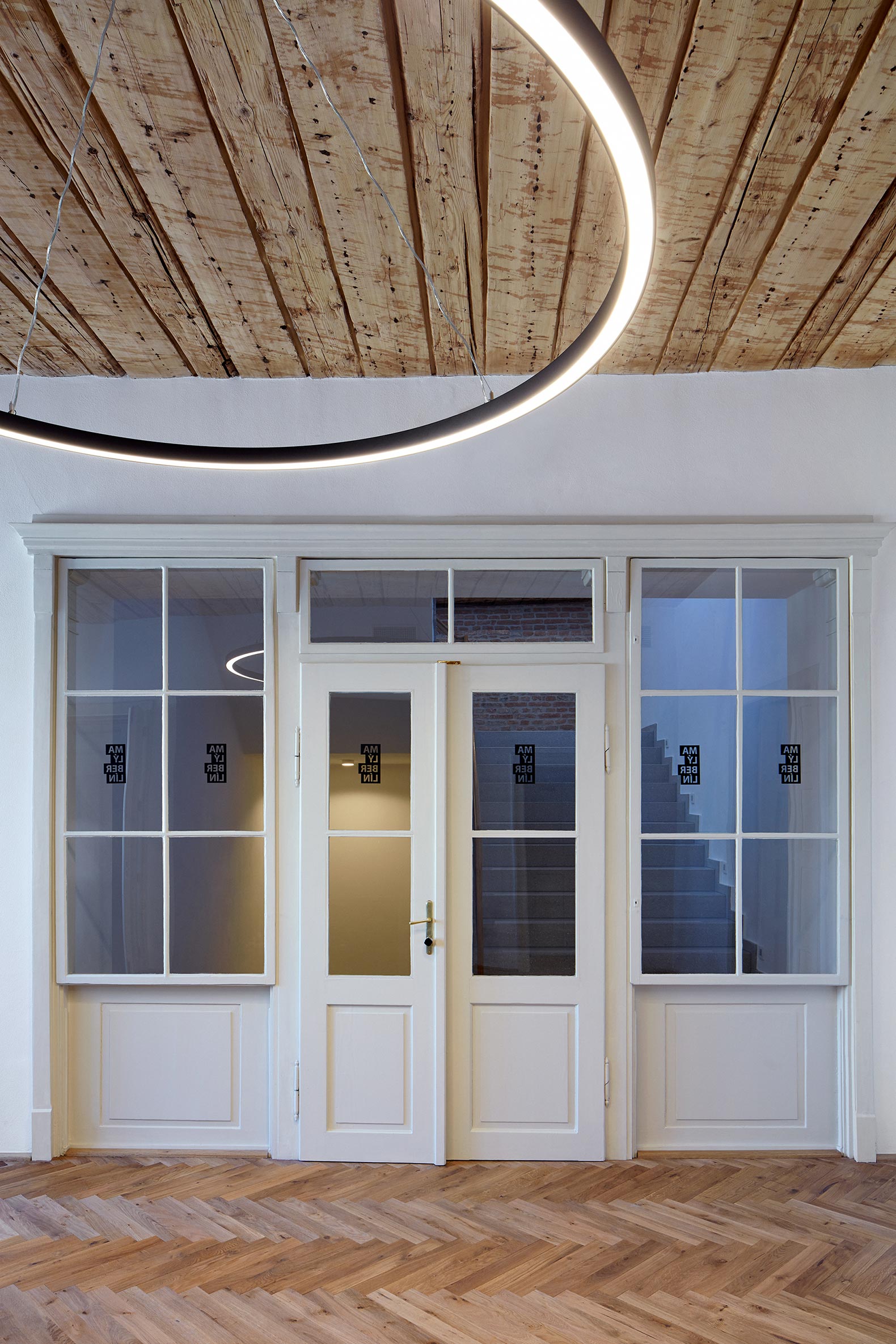

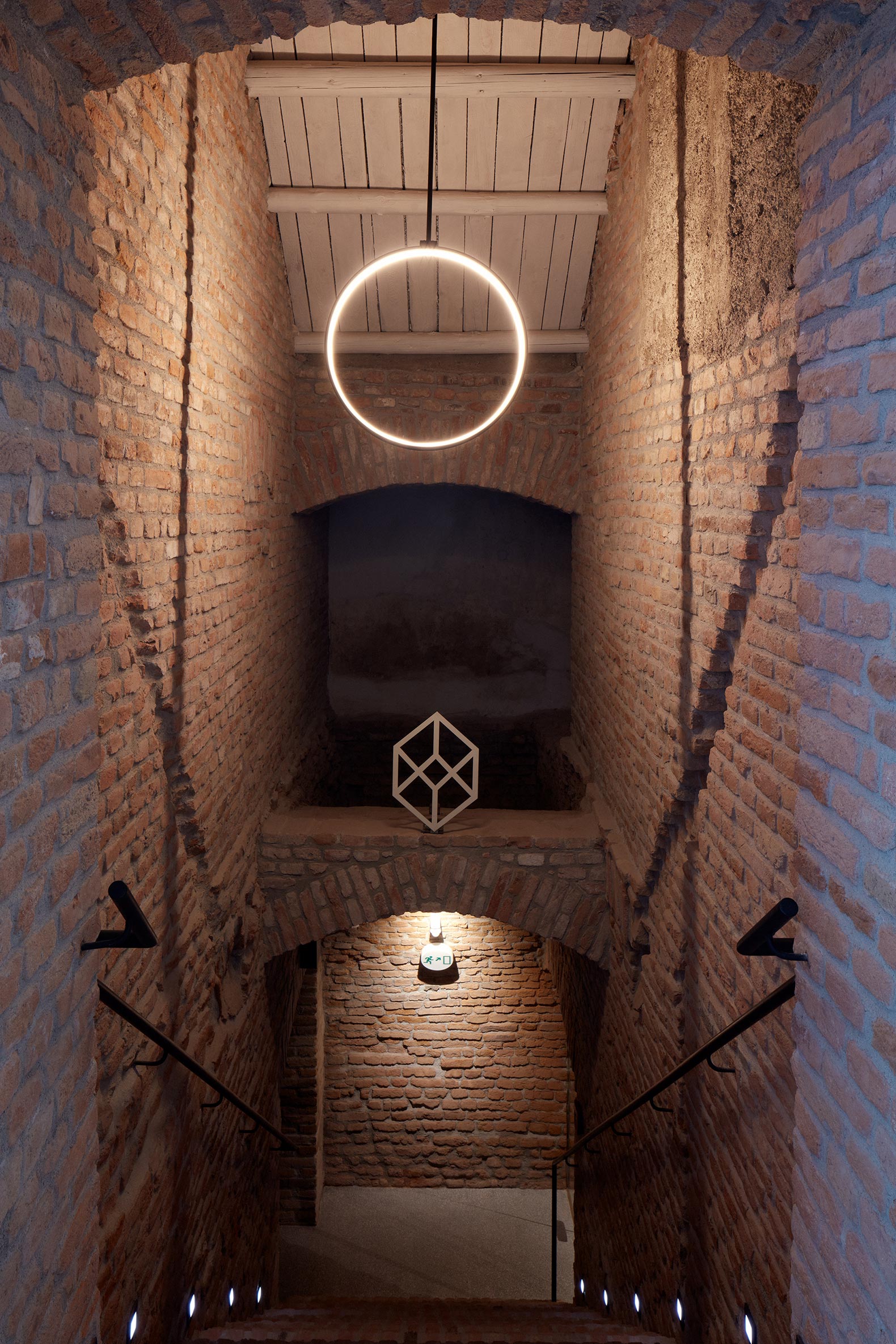

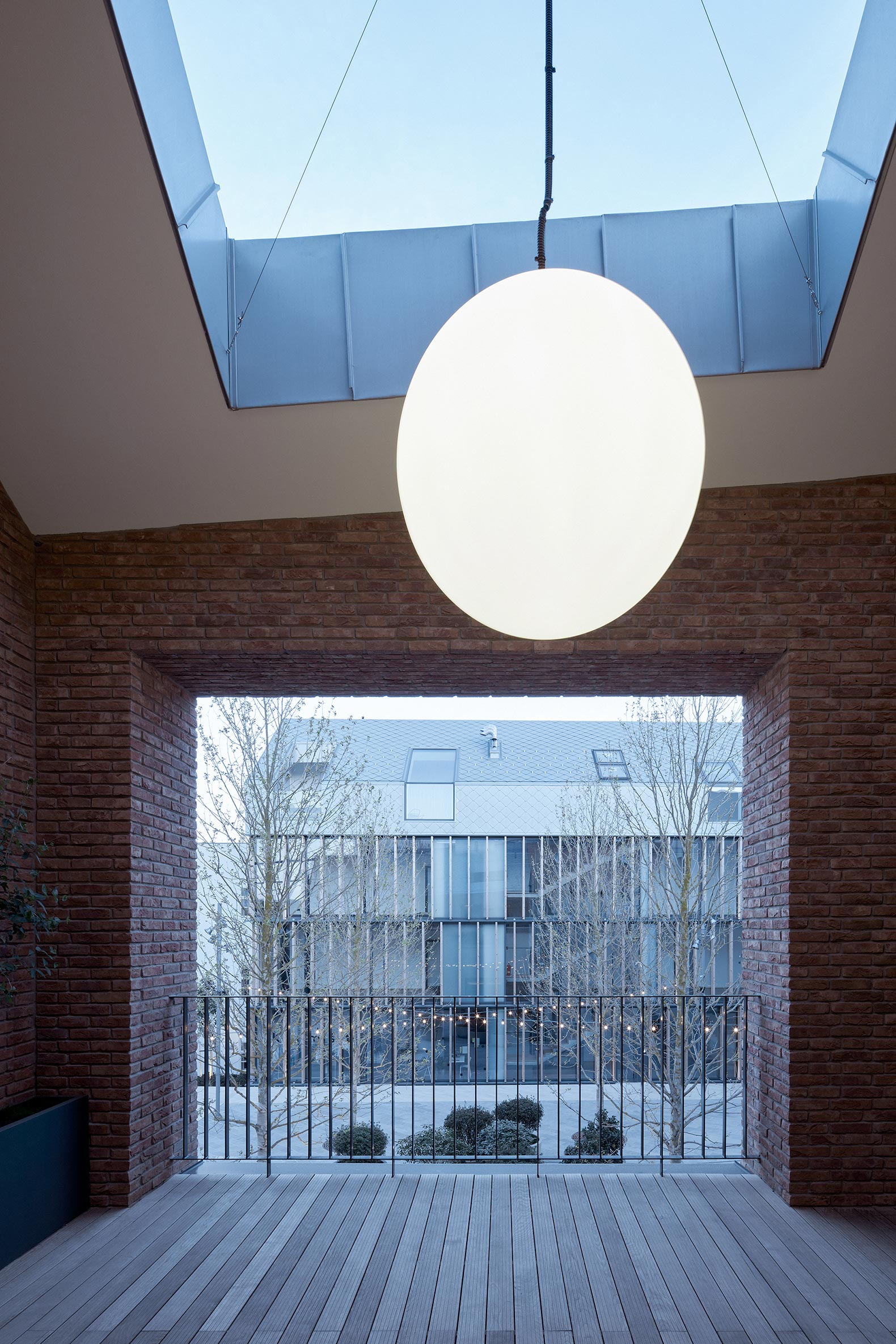

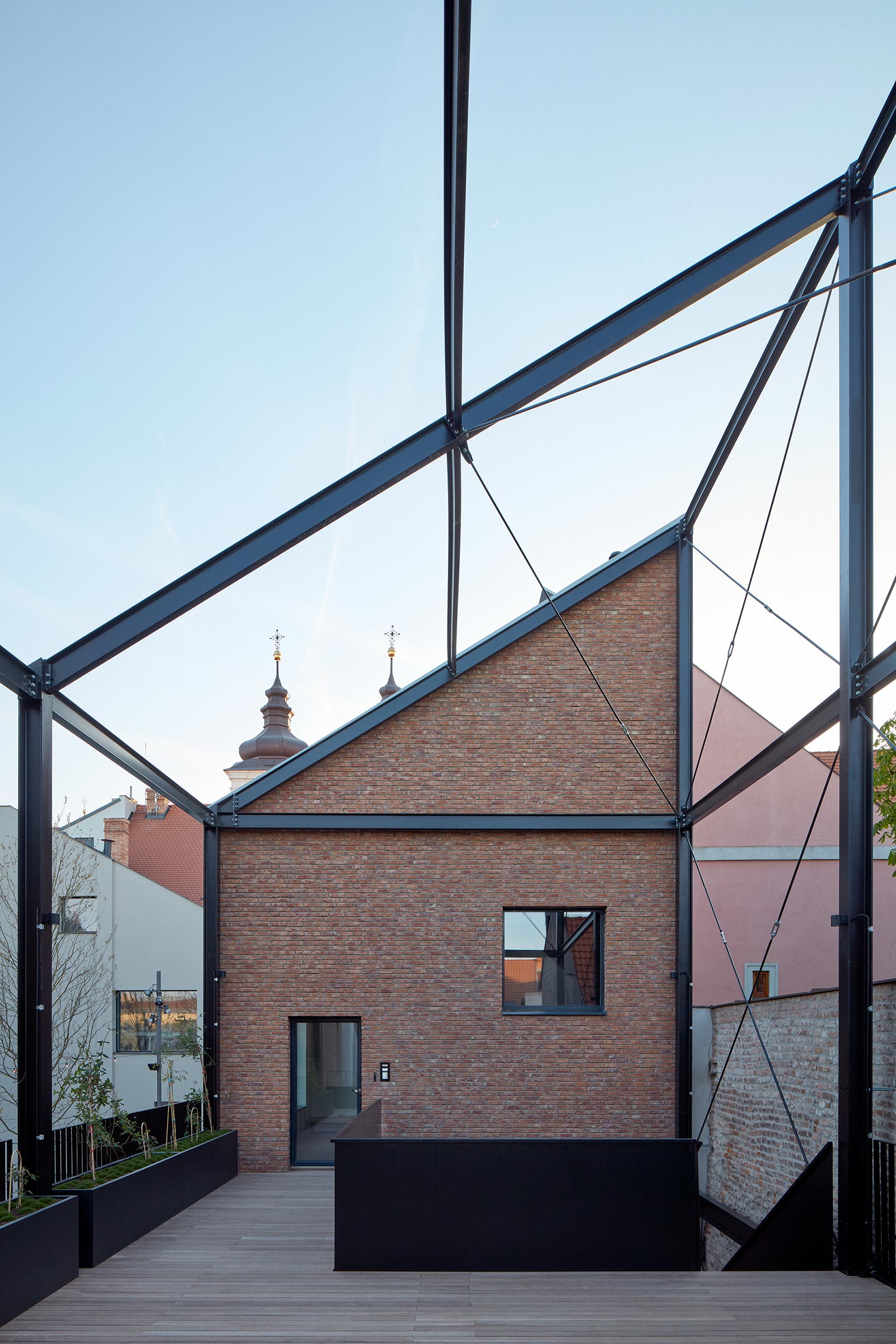

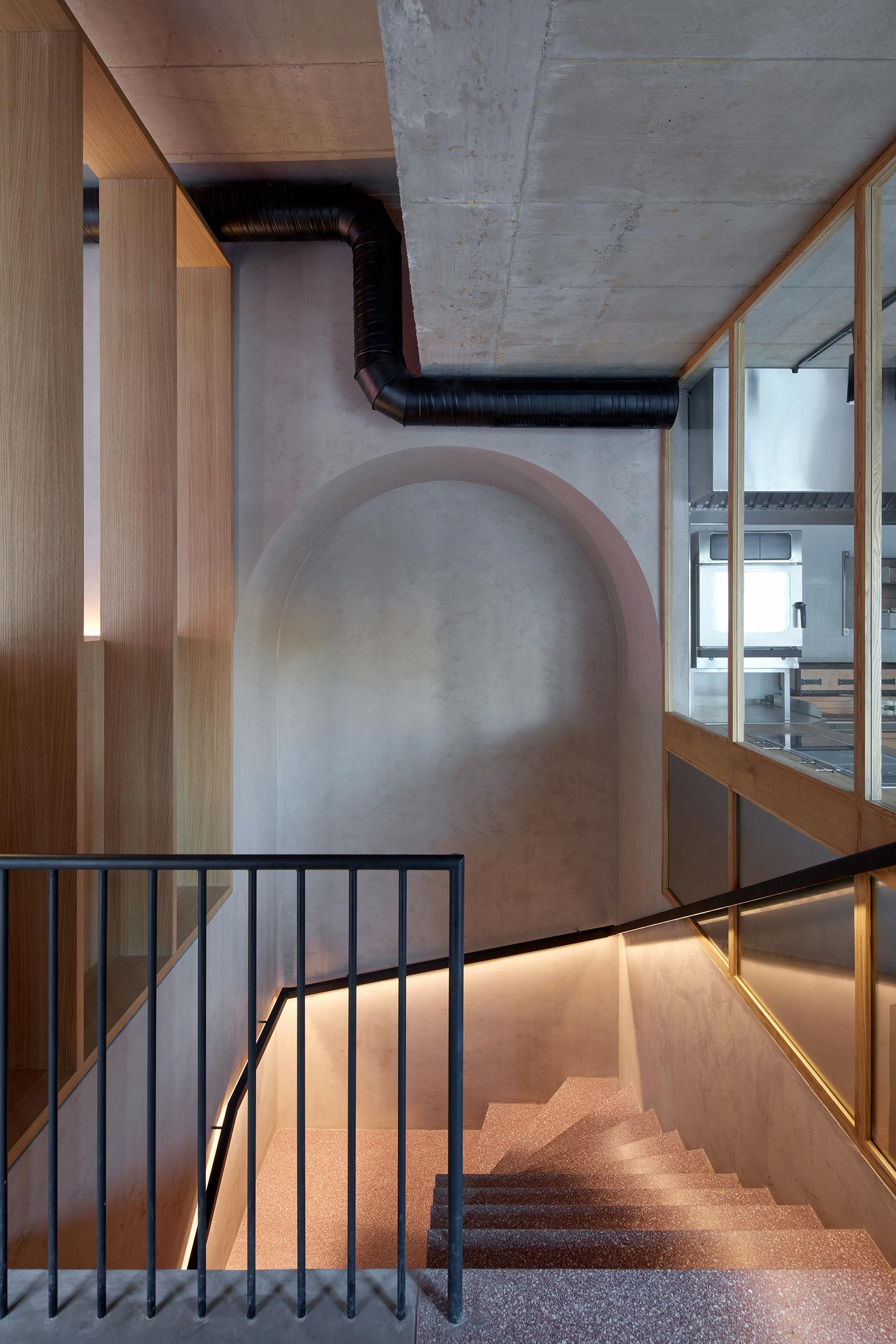

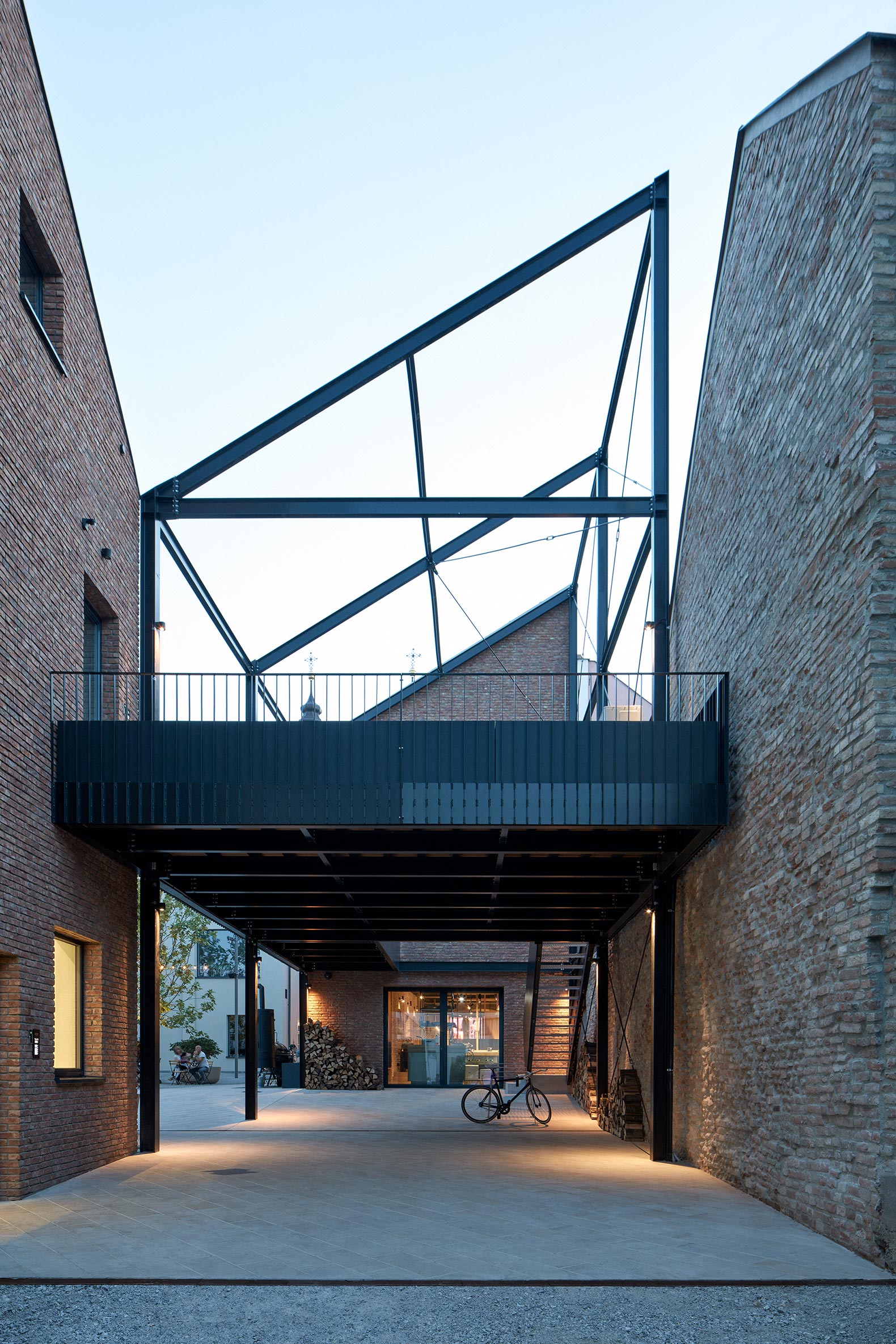

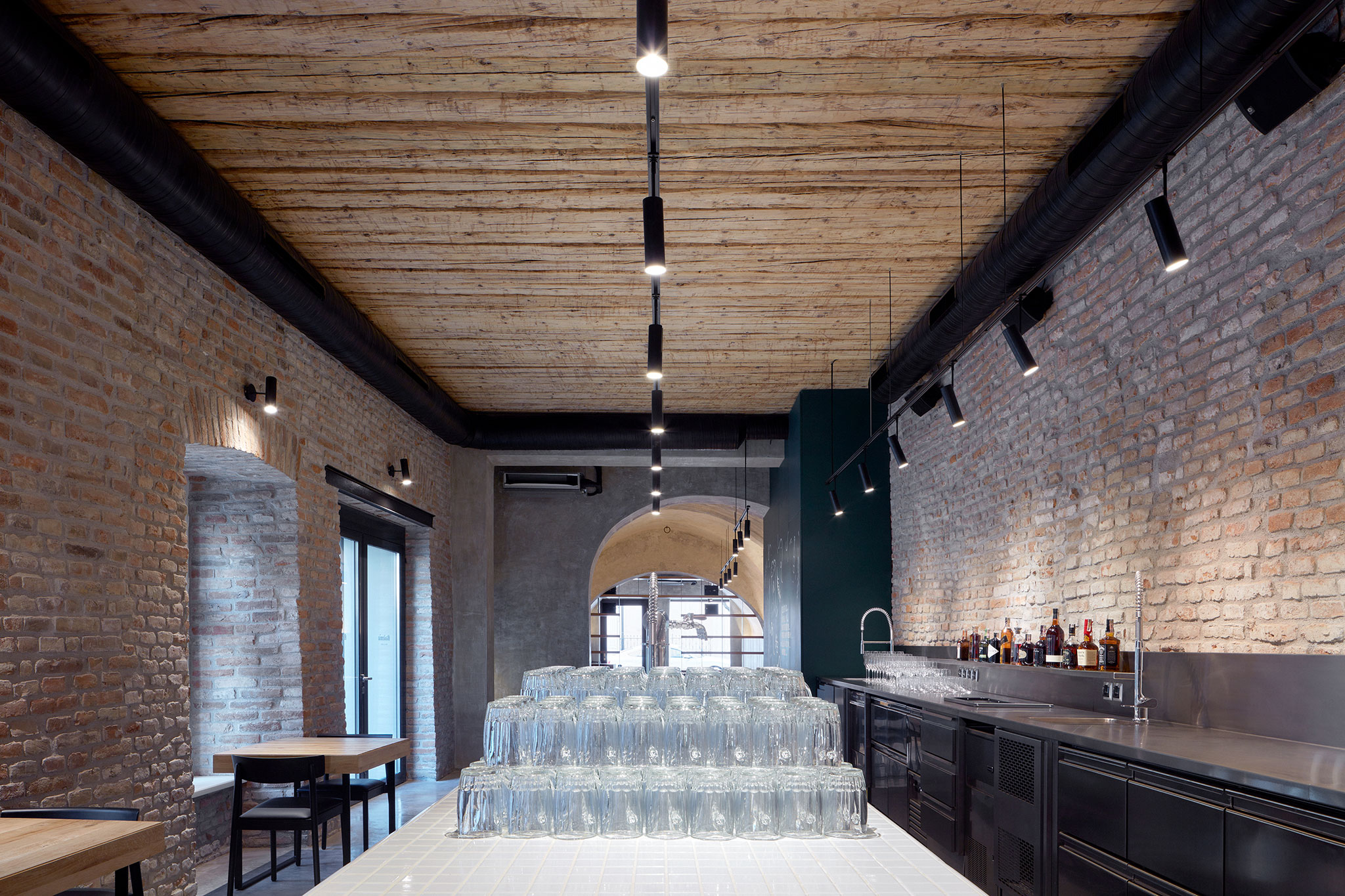

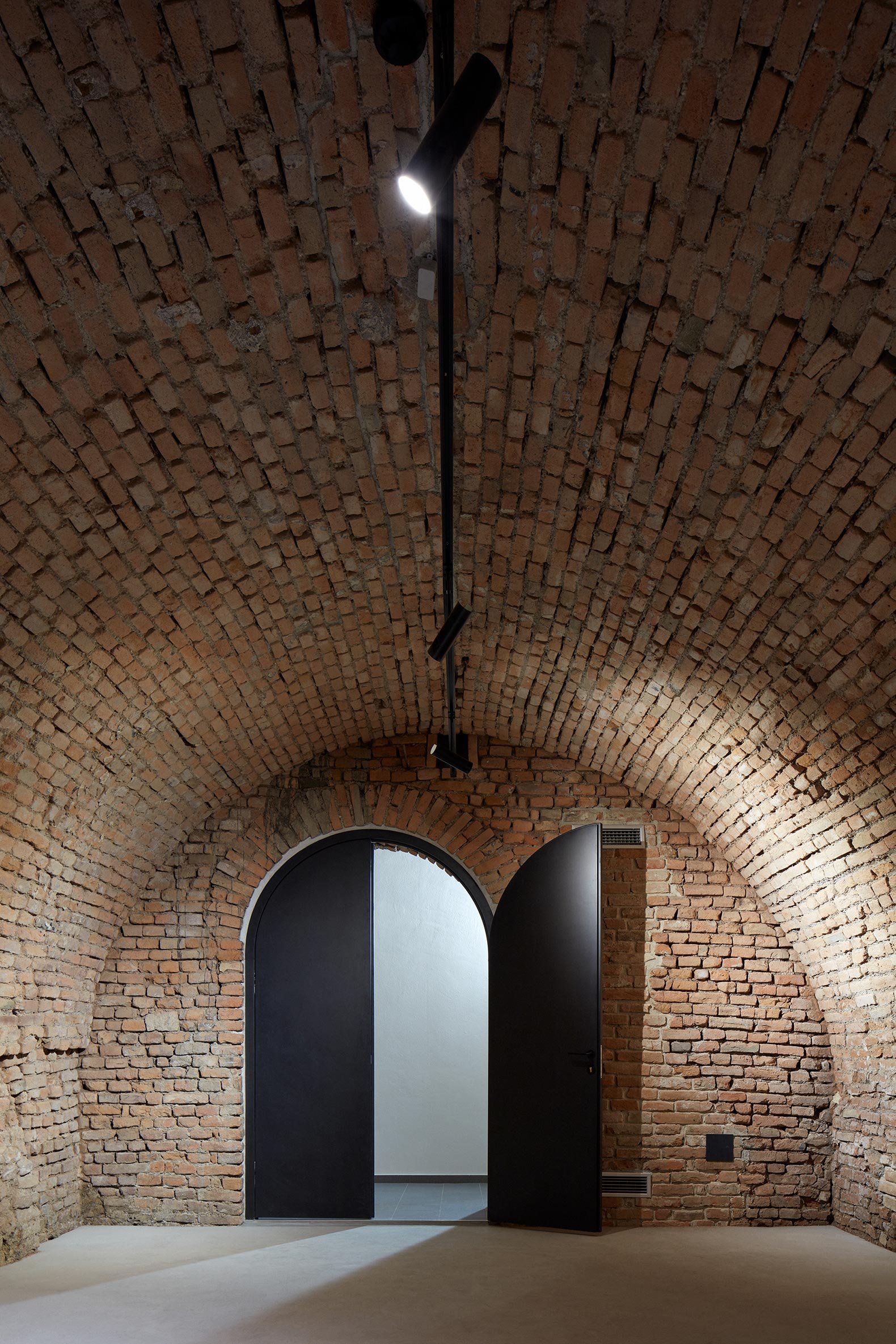

The north completion adheres to the mass of the original wing, as well as the steel structure with a connection to the eastern object of the complex. It contains a terrace for the cultural centre, student accommodation, retail and connects to the restaurant in the reconstructed part. This translation between several periods of completions gives it a specific atmosphere , recognizable notably through the ceiling structures, changing from gothic vaults to the baroque beam ceiling or concrete slab. Concrete floor and furniture help unify the whole space.

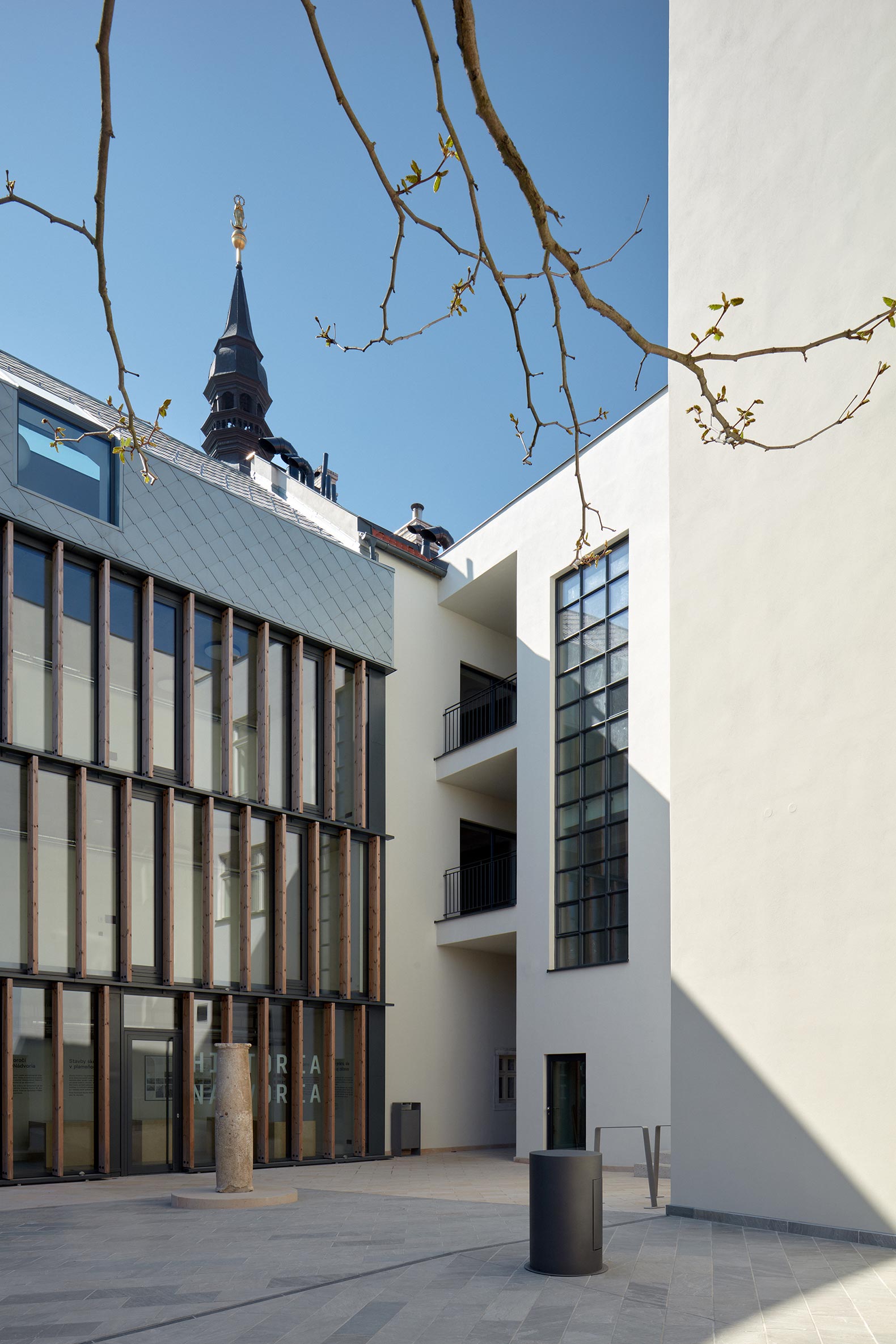

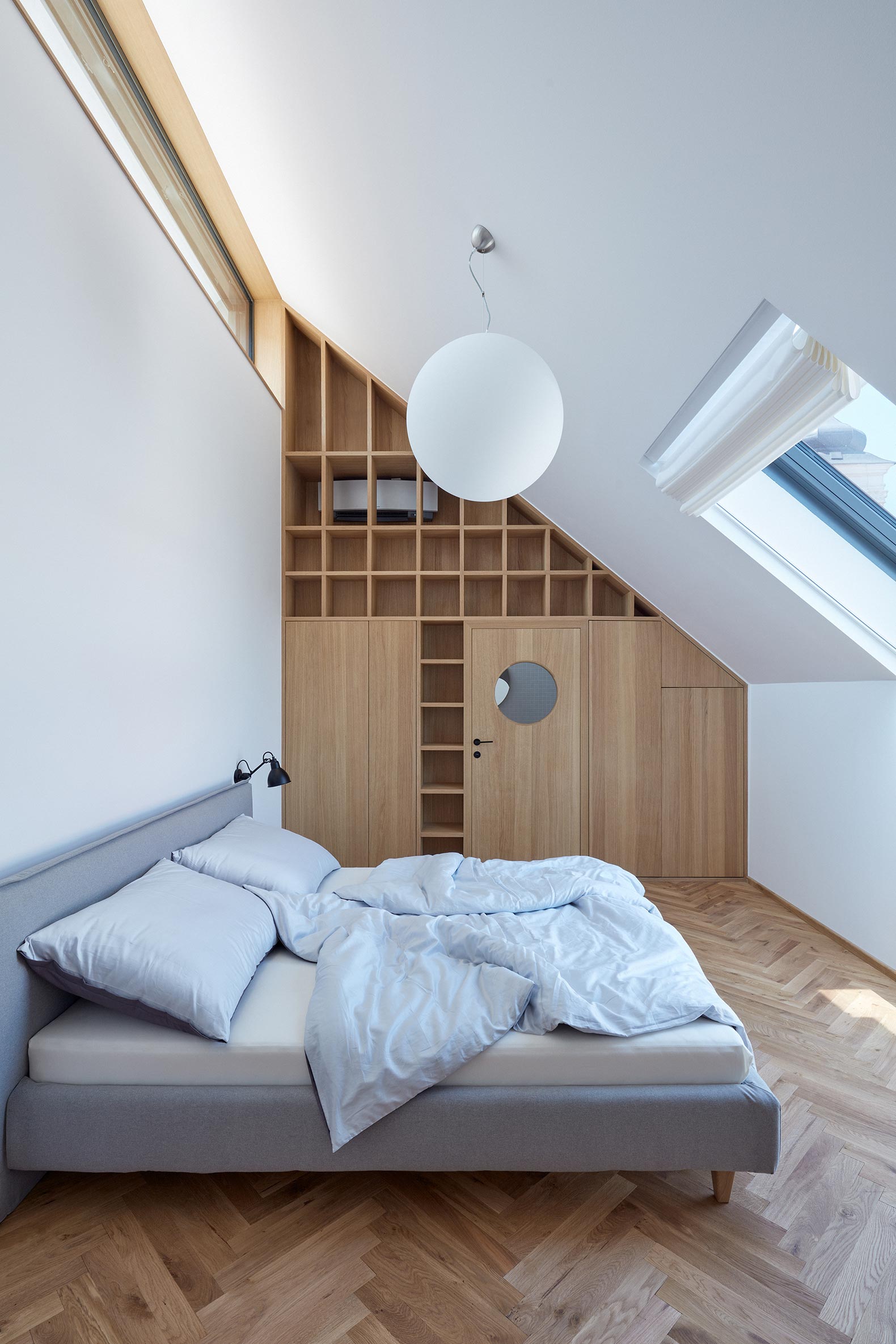

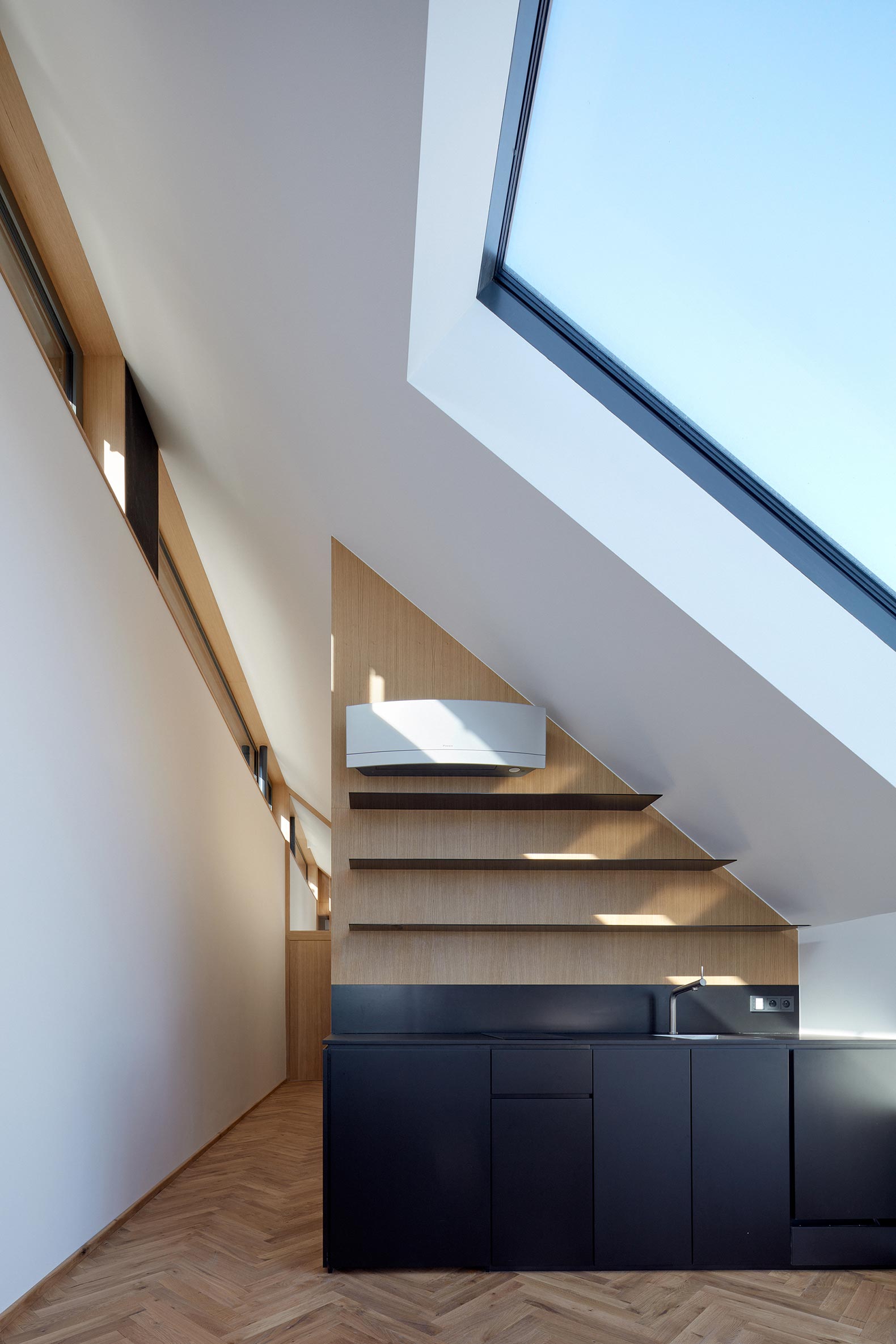

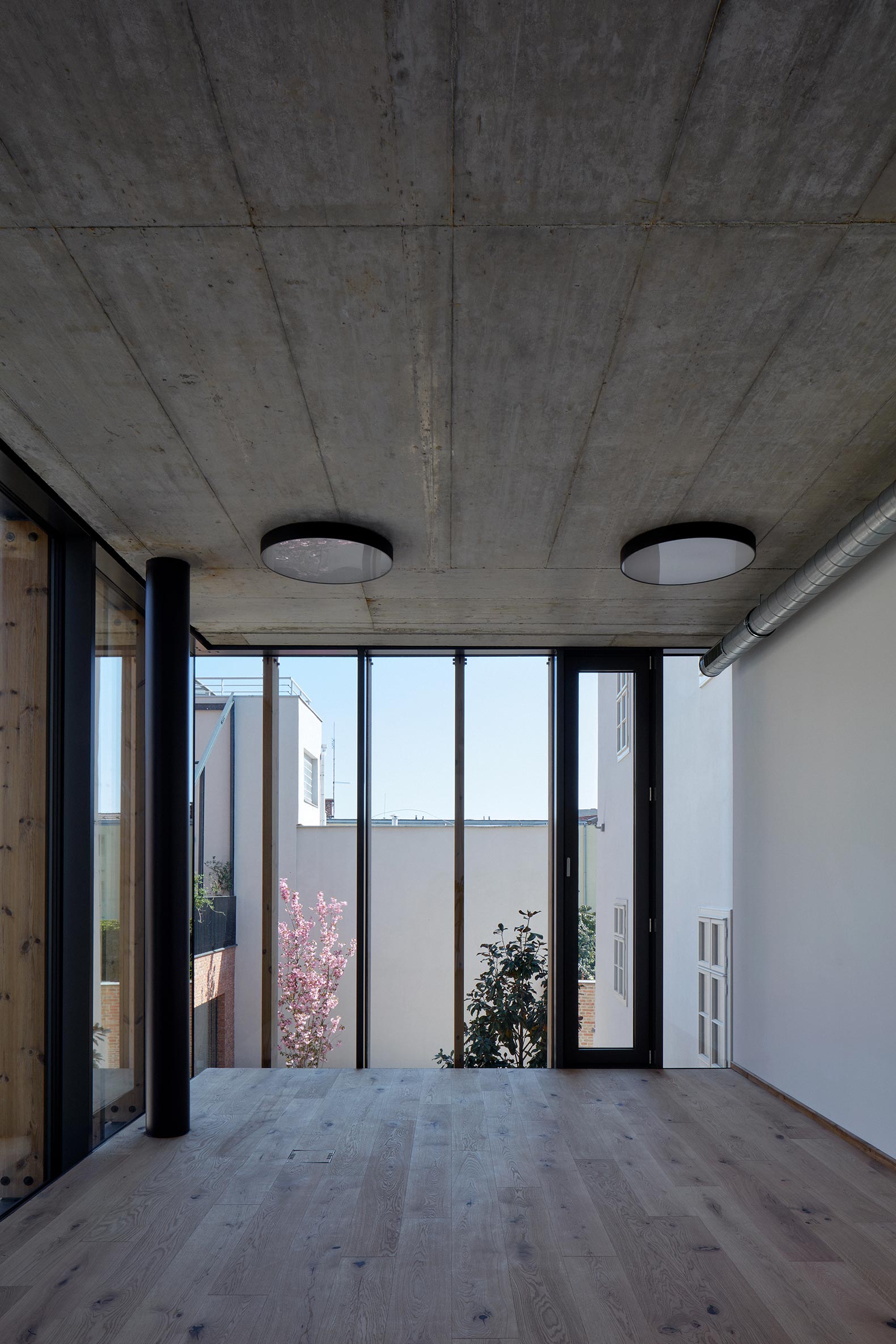

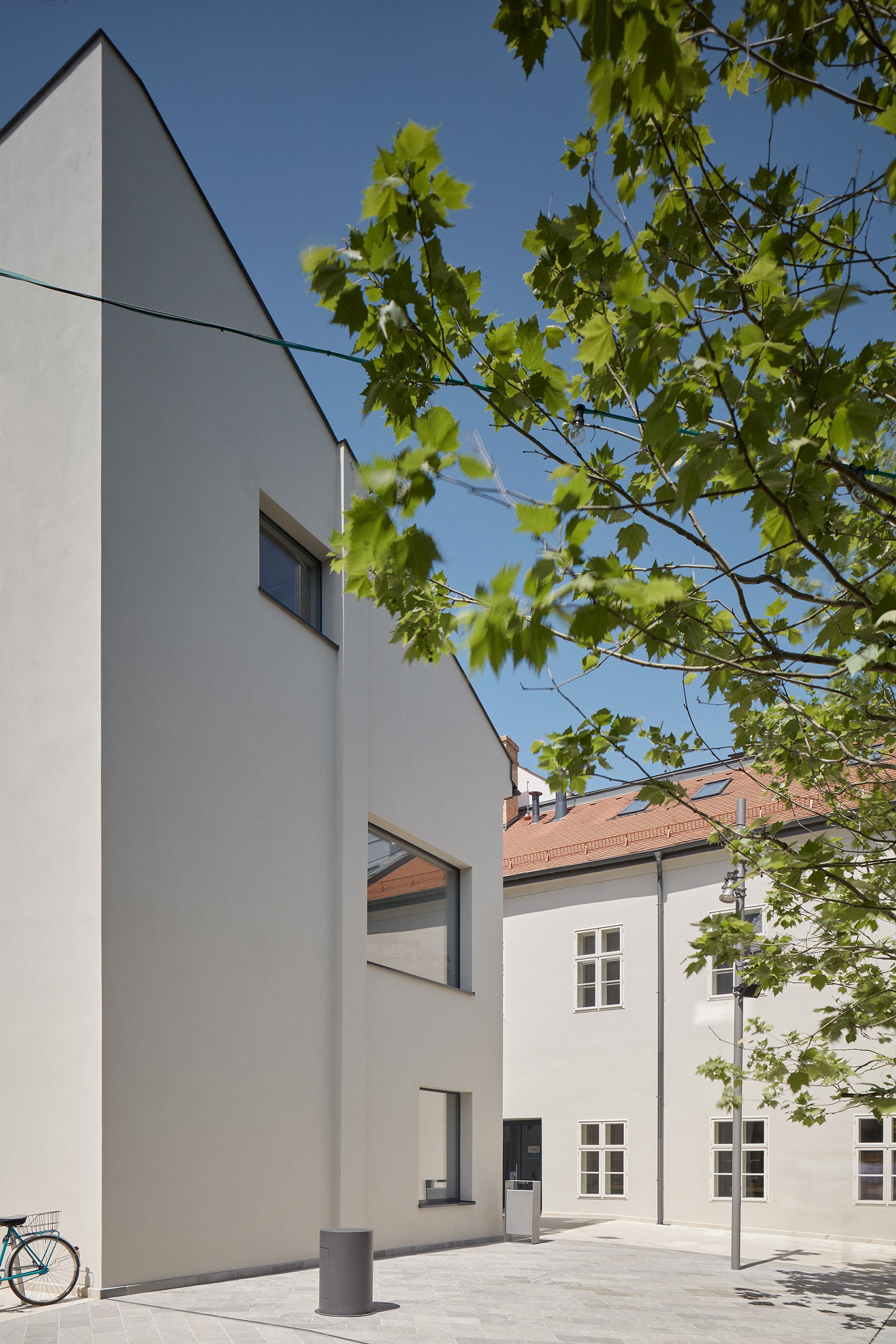

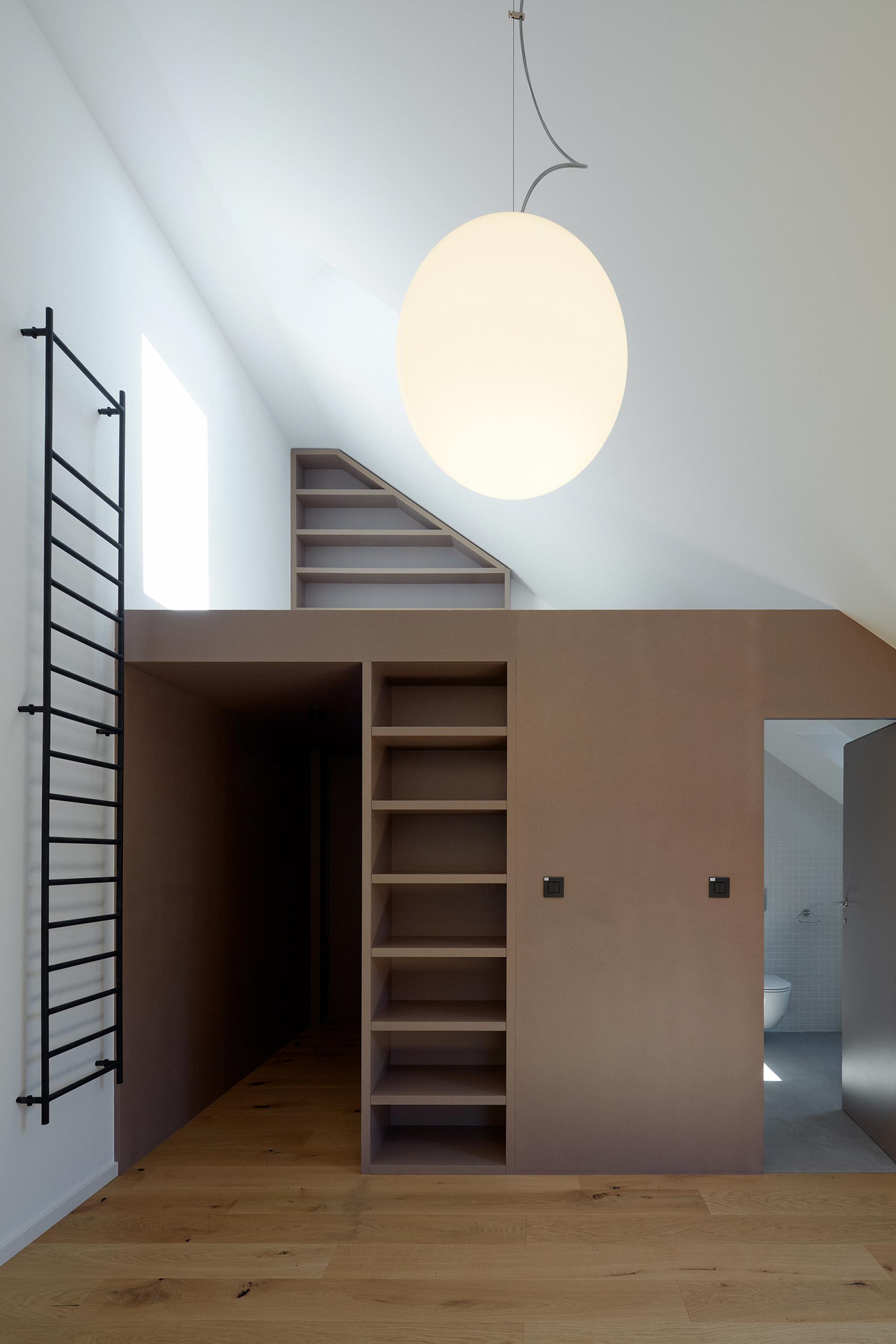

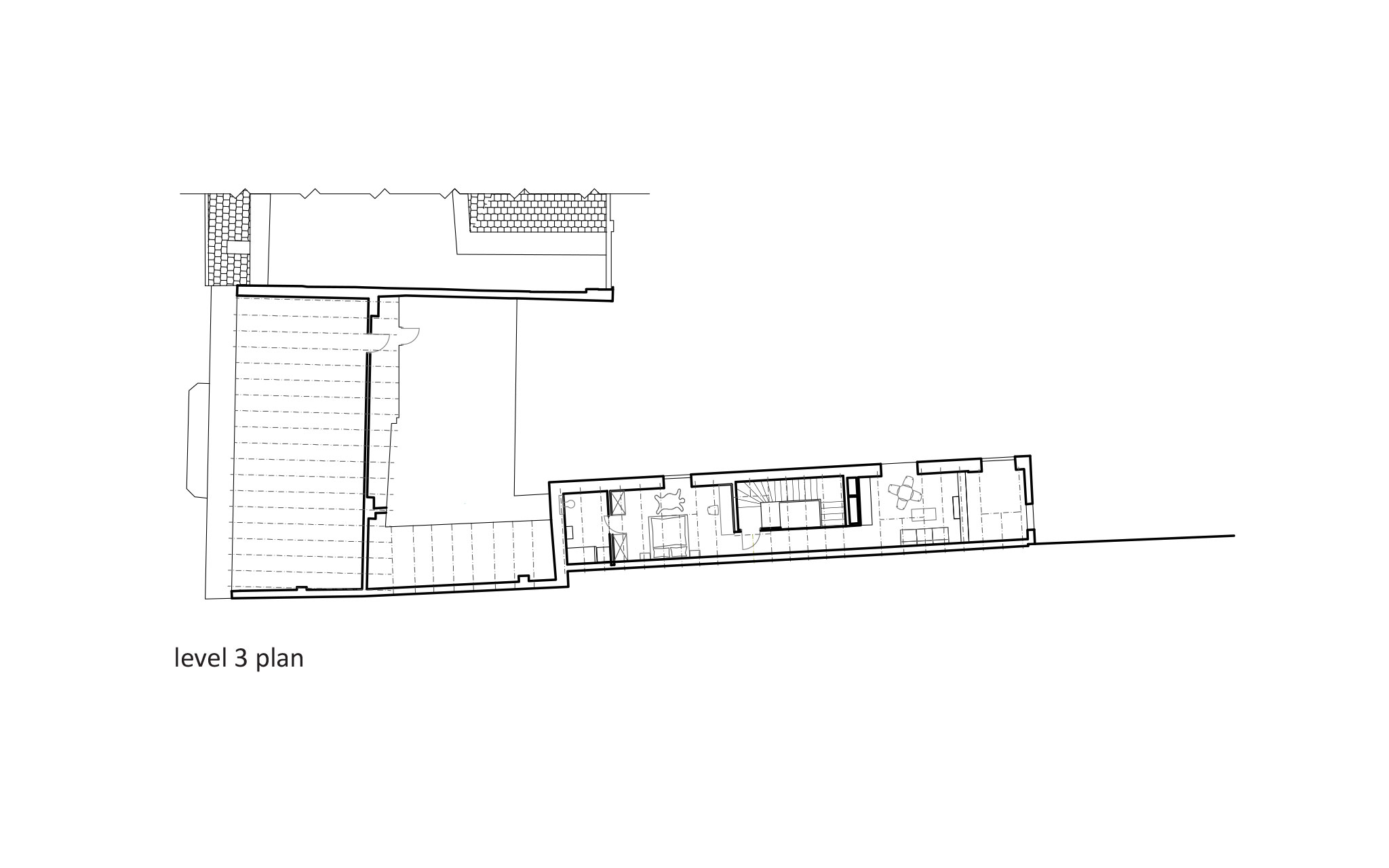

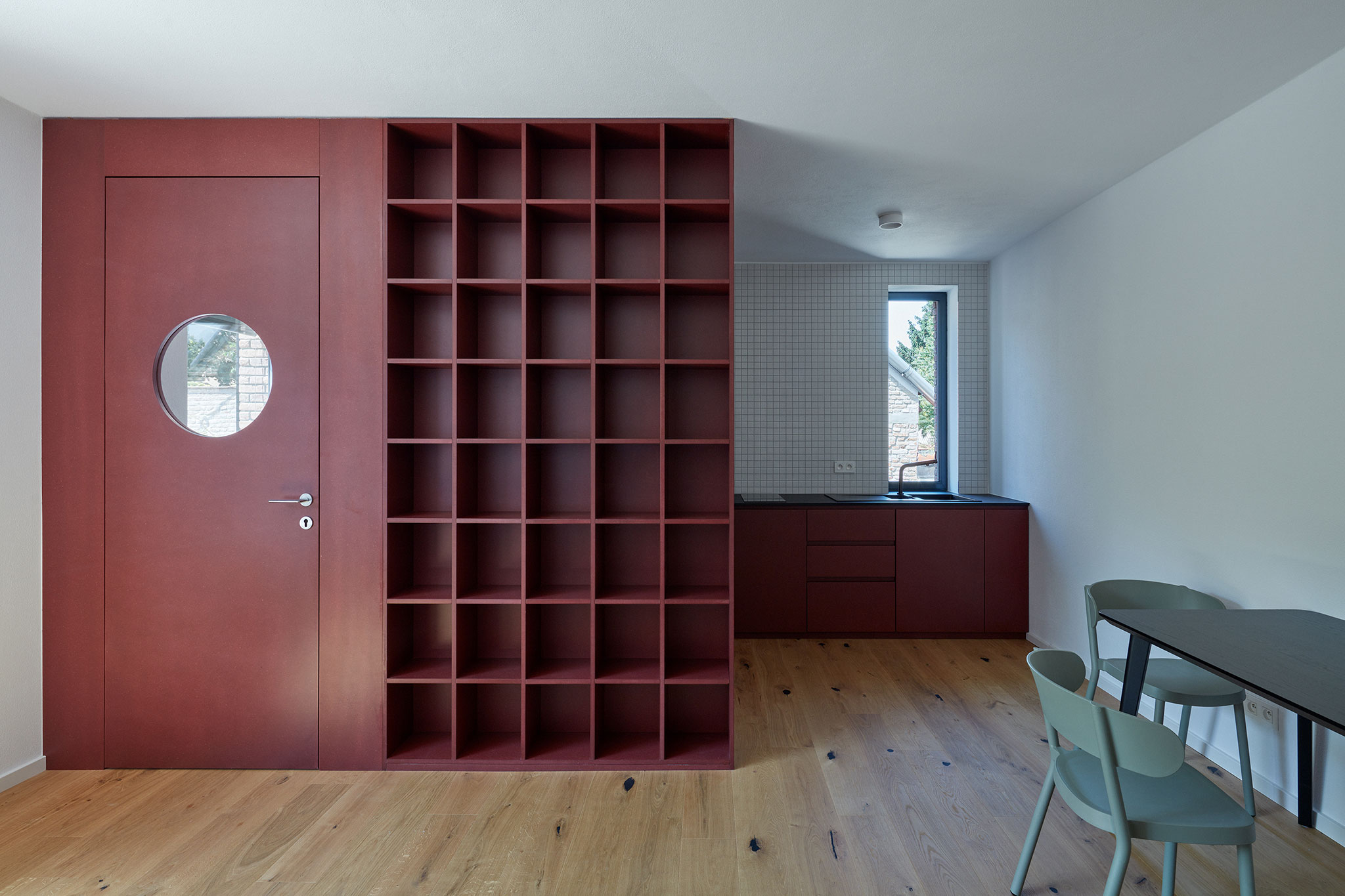

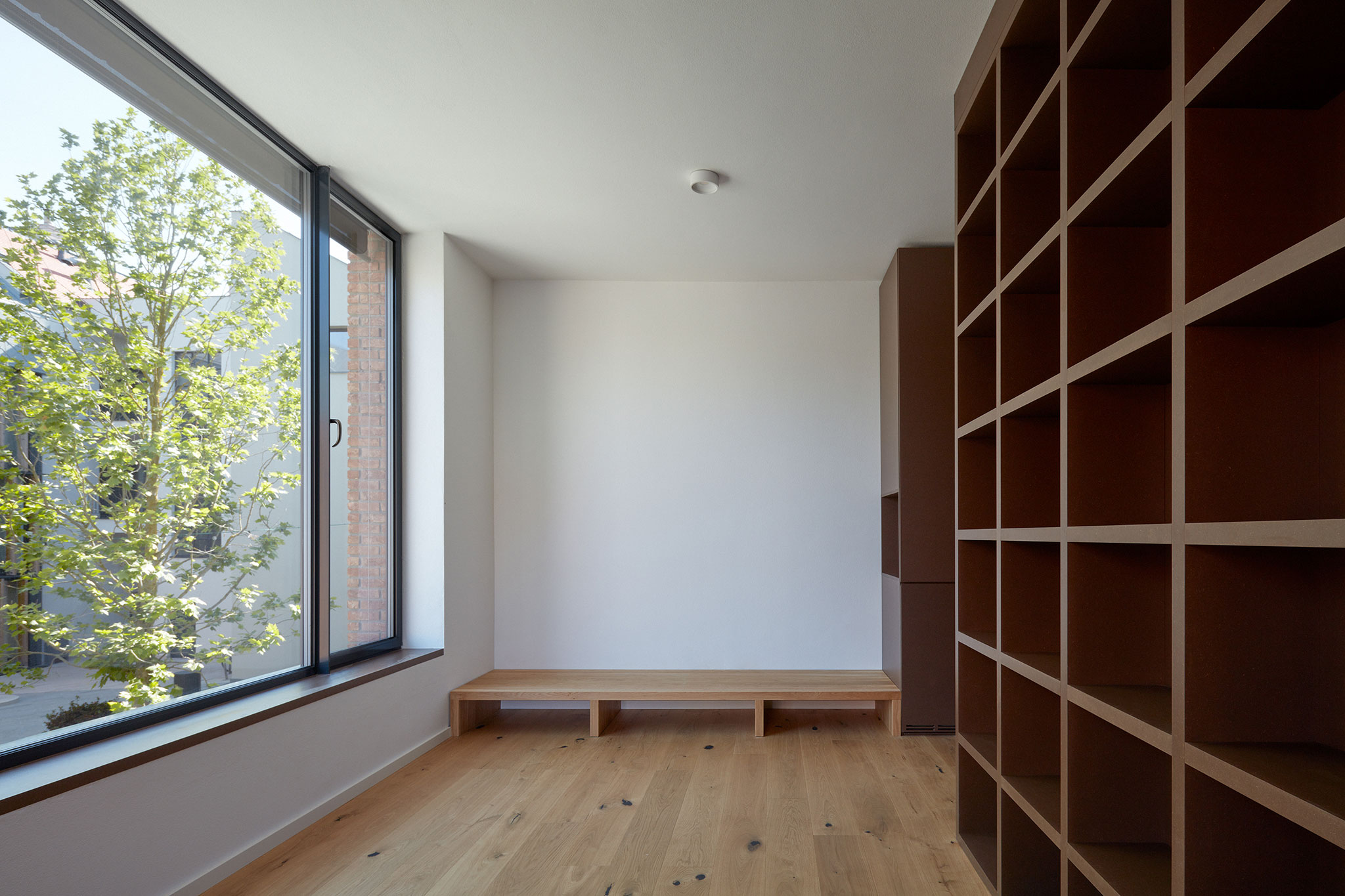

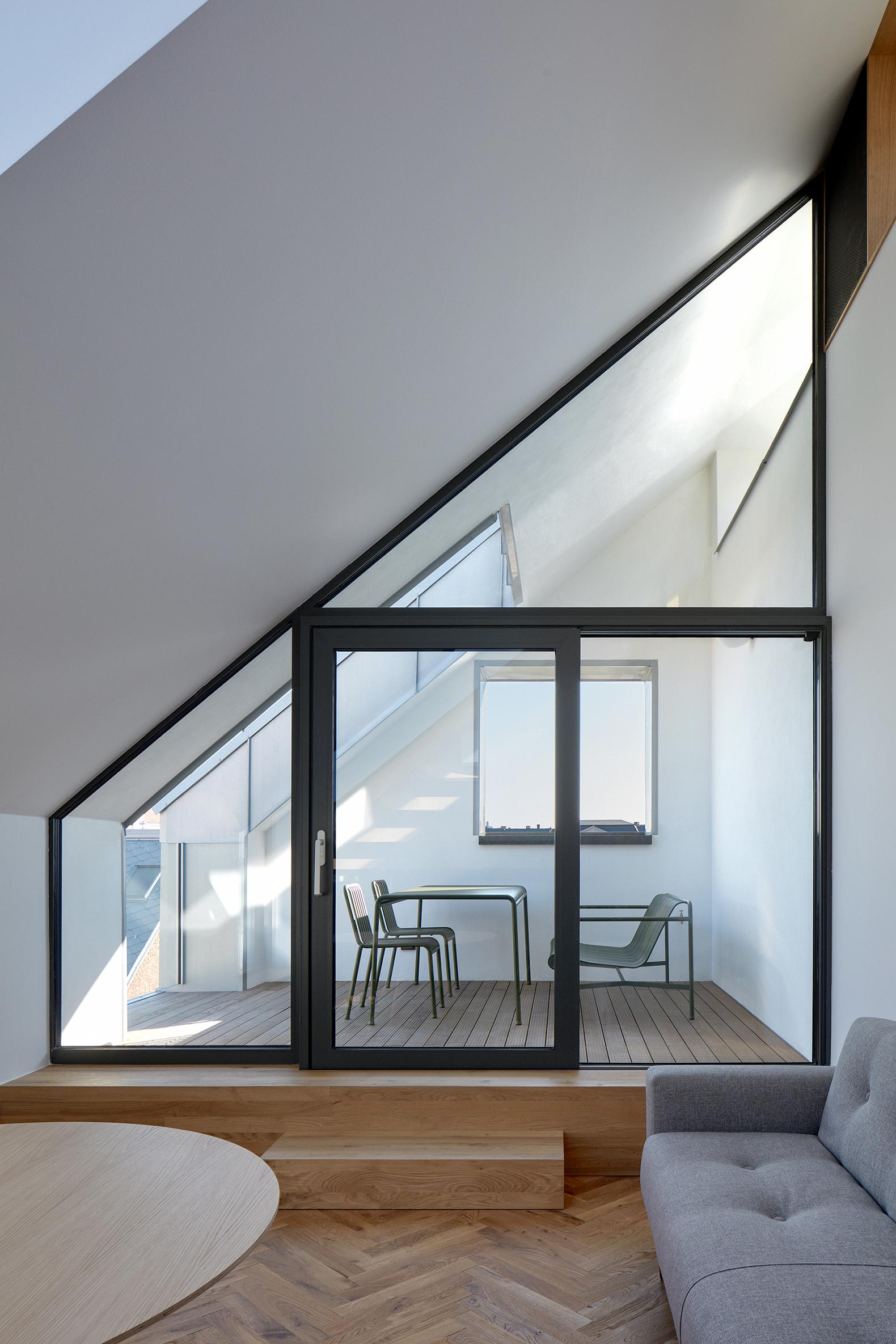

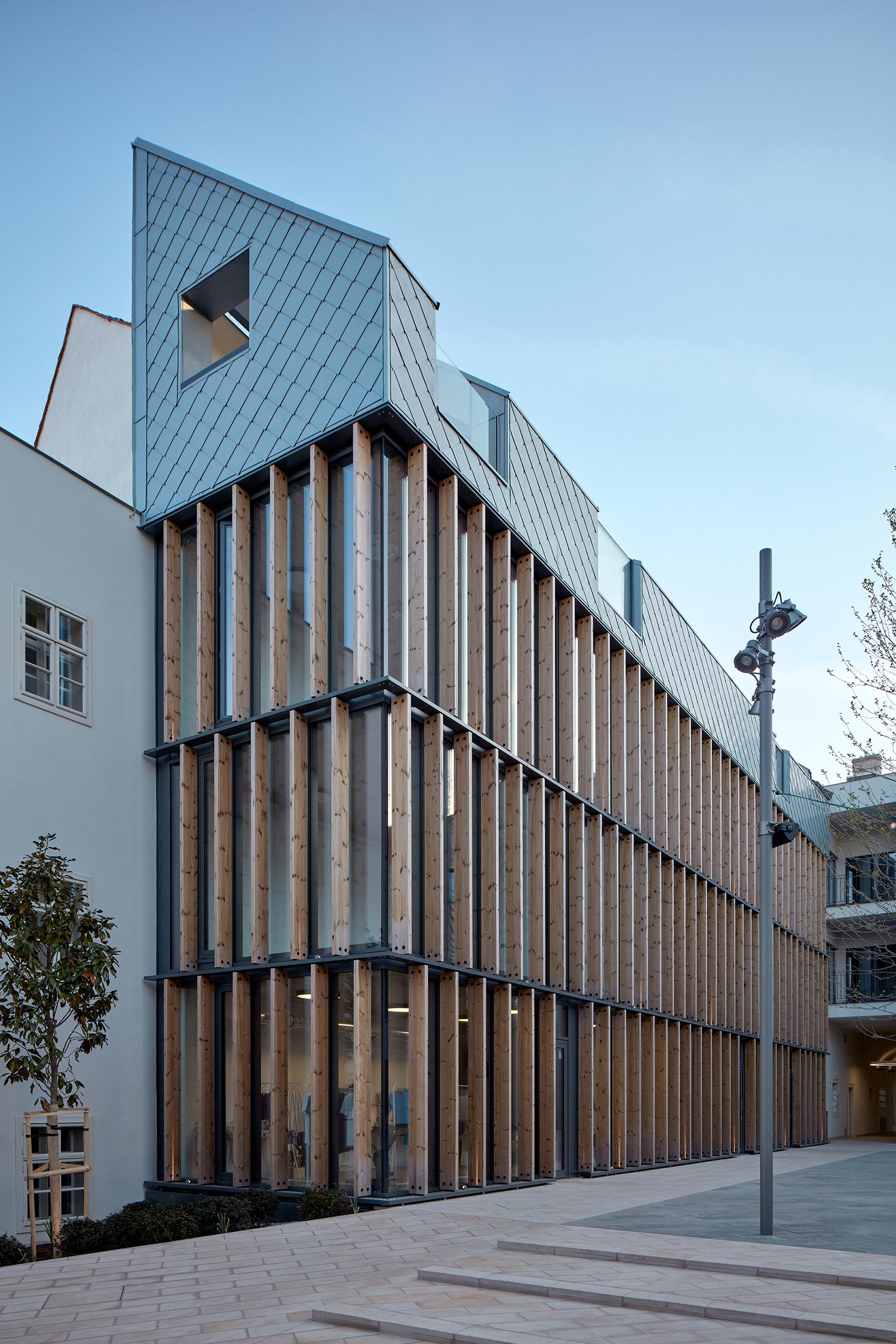

The new mixed-use object in the southern part is designed as an extension, built to the blind wall of the neighbouring building in order to activate the newly created courtyard. The object has a narrow floor plan and is mostly one-sided towards the courtyard. The heigh is held with the original part while the material is vertically divided and creates a gradual increase of the scale from the house in Trojicne square. The contrasting morphology of the facade is moderated by the regular rhythm and the used materials. The surrounding structure thus preserves the natural character of the inner city fragmentation. The simple layout is vertically divided into a rentable space, office space and an attic apartment.

Read more
Read less

More information

Label
Architects
Text
Vallo Sadovsky Architects. Matúš Vallo, Oliver Sadovský, Marián Stanislav, Viliam Zajíček, Mateja Vonkomerová, Marcel Vadík, Zuzana Krejčířová, Elena Šoltésová
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Michal Marcinov, Katarína Stanislavová
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Client
Text
Trnka Investments
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
GBA.- 1030.0 m². GLA.- 3393.0 m². Site size.- 2603.0 m²


+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Project year.- 2013-2017. Completed.- 2018
+ + copy Created with Sketch.
- + copy Created with Sketch.
Vallo Sadovsky Architects was founded by architects Matus Vallo and Oliver Sadovsky. Based in Bratislava, Slovakia. The practice focuses on architecture, town planning and interior design as well as exhibition design. Matus Vallo and Oliver Sadovsky have founded an "urban interventions" initiative in 2008, which had continuously been transformed to an on go, focused on architectonic activism, research, consulting activities in the field of city and public space and on citizens participation on their development.

"Long time before Vallo Sadovsky Architects, it was Vallo, Sadovsky. Trademark VSA was born on elementary school in Bratislava sometimes around 1990. The foundations of architectural office is long friendship. We take everything deadly serious, but only until the moment we start to laugh. We love architecture just like music. A lot."
