Typological research. Granero House by Alberich-Rodríguez Arquitectos
01/11/2021.
[Castillejo de Mesleón - Segovia] Spain
metalocus, CARLOS GONZÁLEZ
metalocus, CARLOS GONZÁLEZ
The Madrid-based architecture studio Alberich-Rodríguez Arquitectos has completed the first phase of a built complex that will be completed with a main house and a wagon fitted out as a guest house.

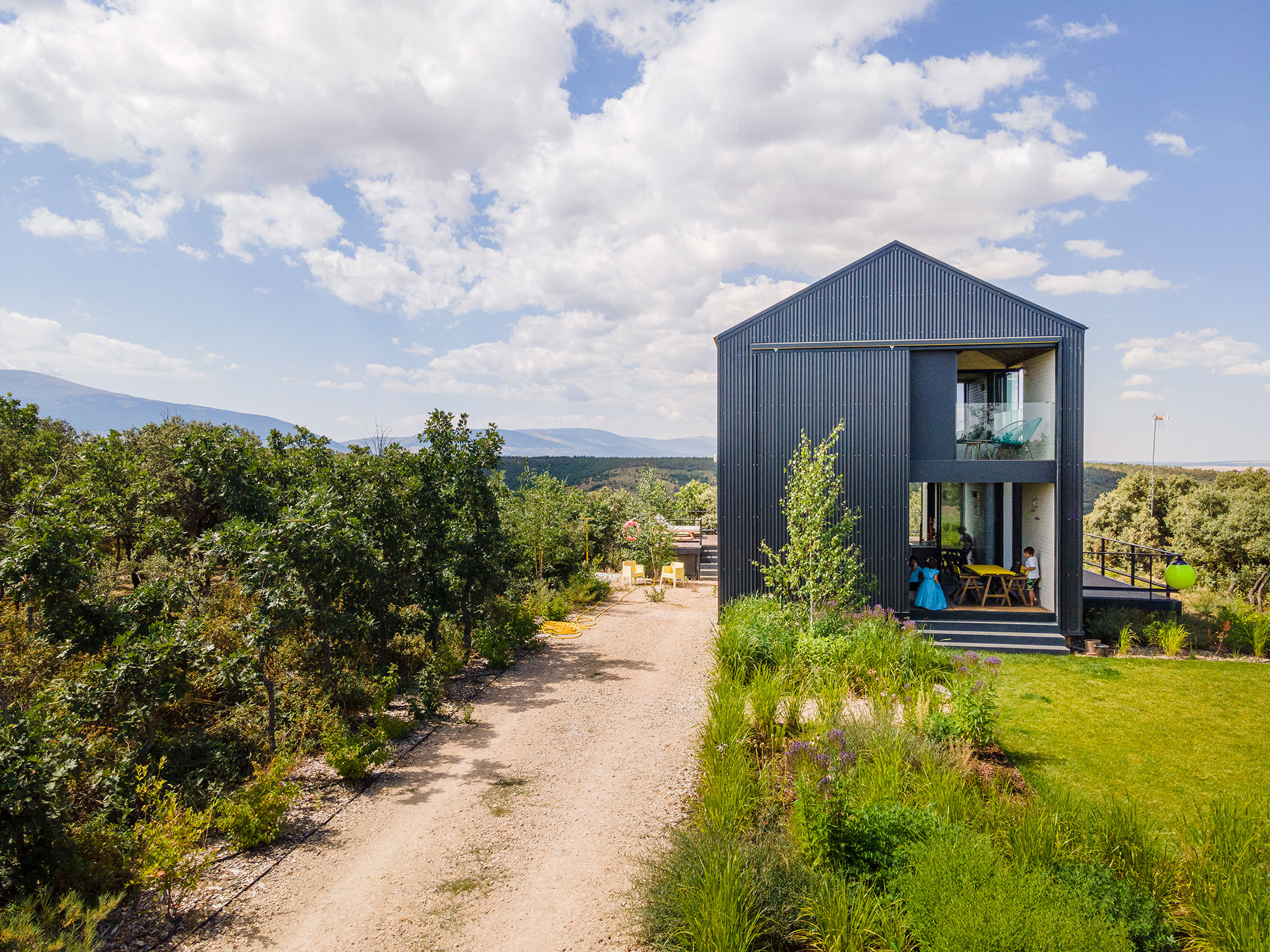

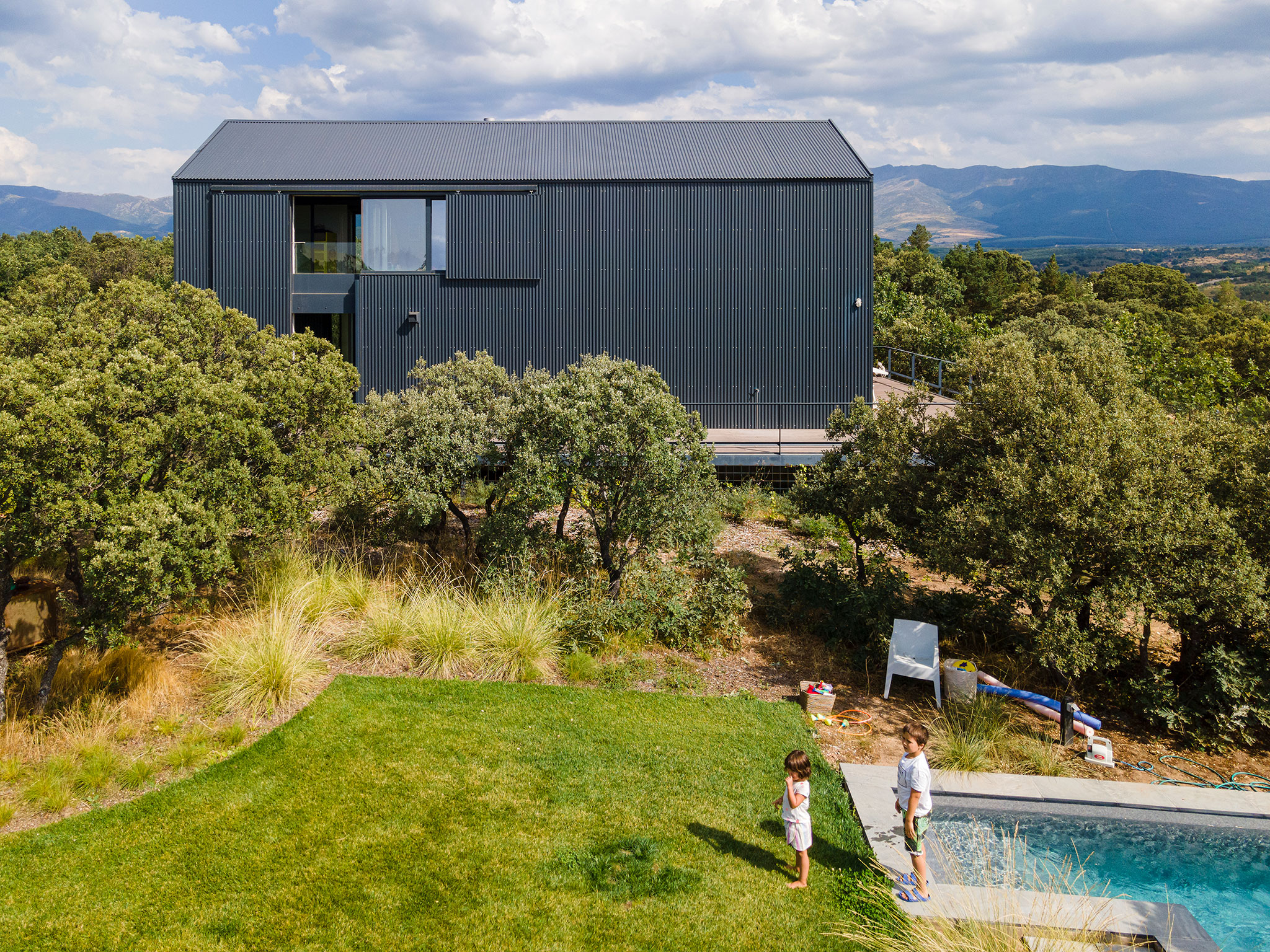

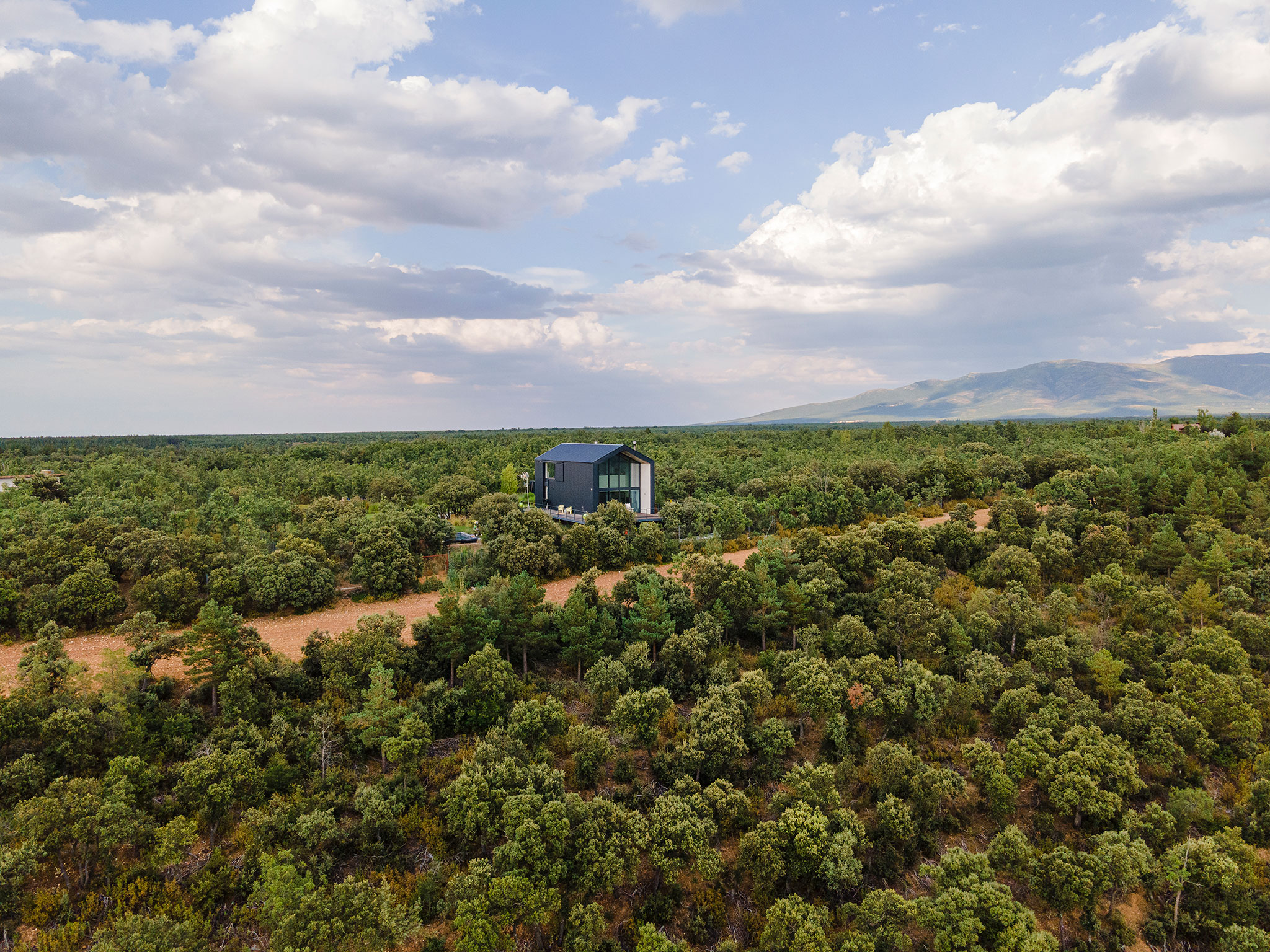

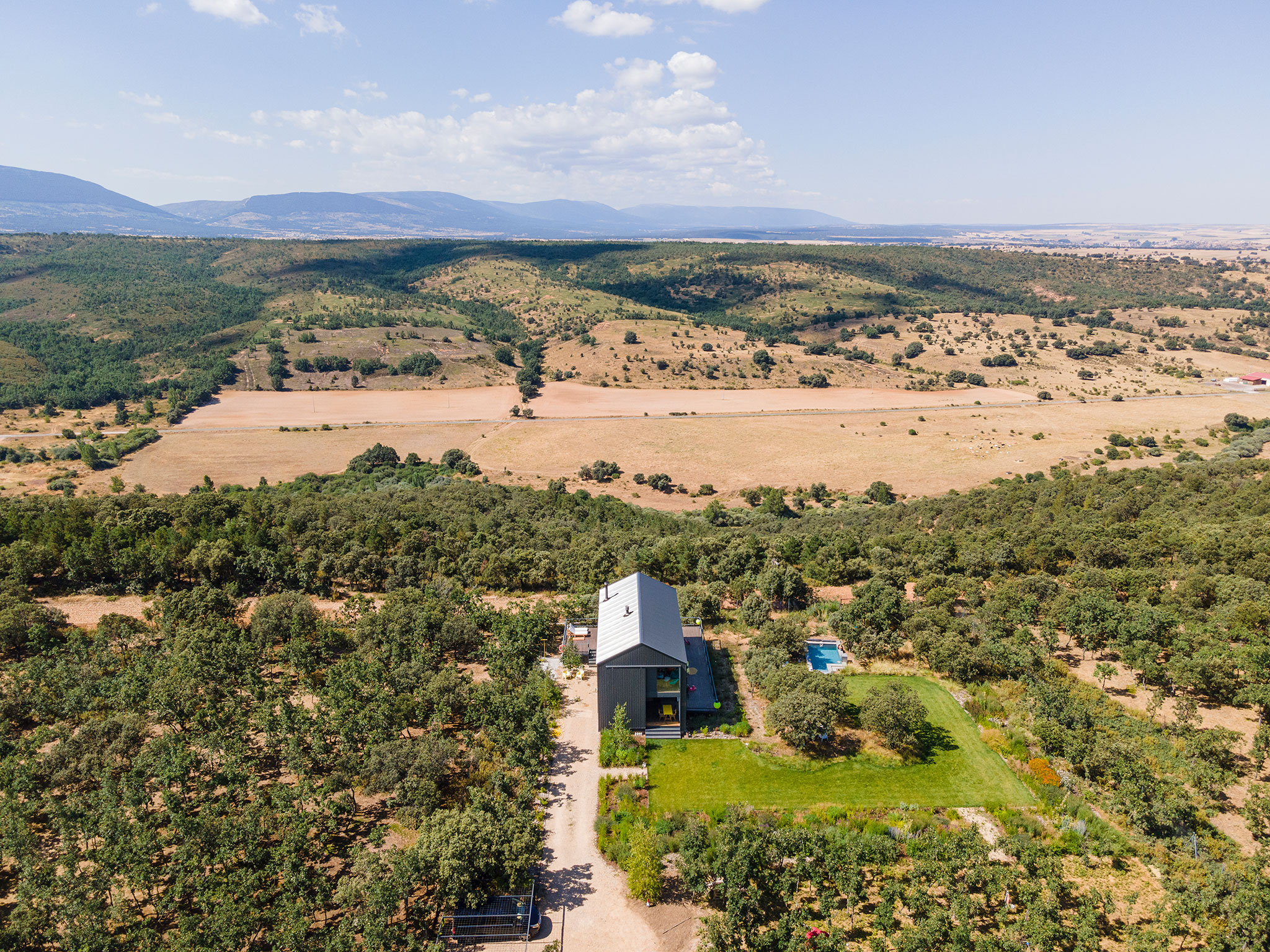

The house is located on a large rustic plot, in the foothills of the northern side of the sierra in Segovia, very close to one of the main accesses to Madrid, highway A-1.
The house is located on a large rustic plot, in the foothills of the northern side of the sierra in Segovia, very close to one of the main accesses to Madrid, highway A-1.
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal
Granero House by Alberich-Rodríguez Arquitectos. Photograph by Imagen Subliminal

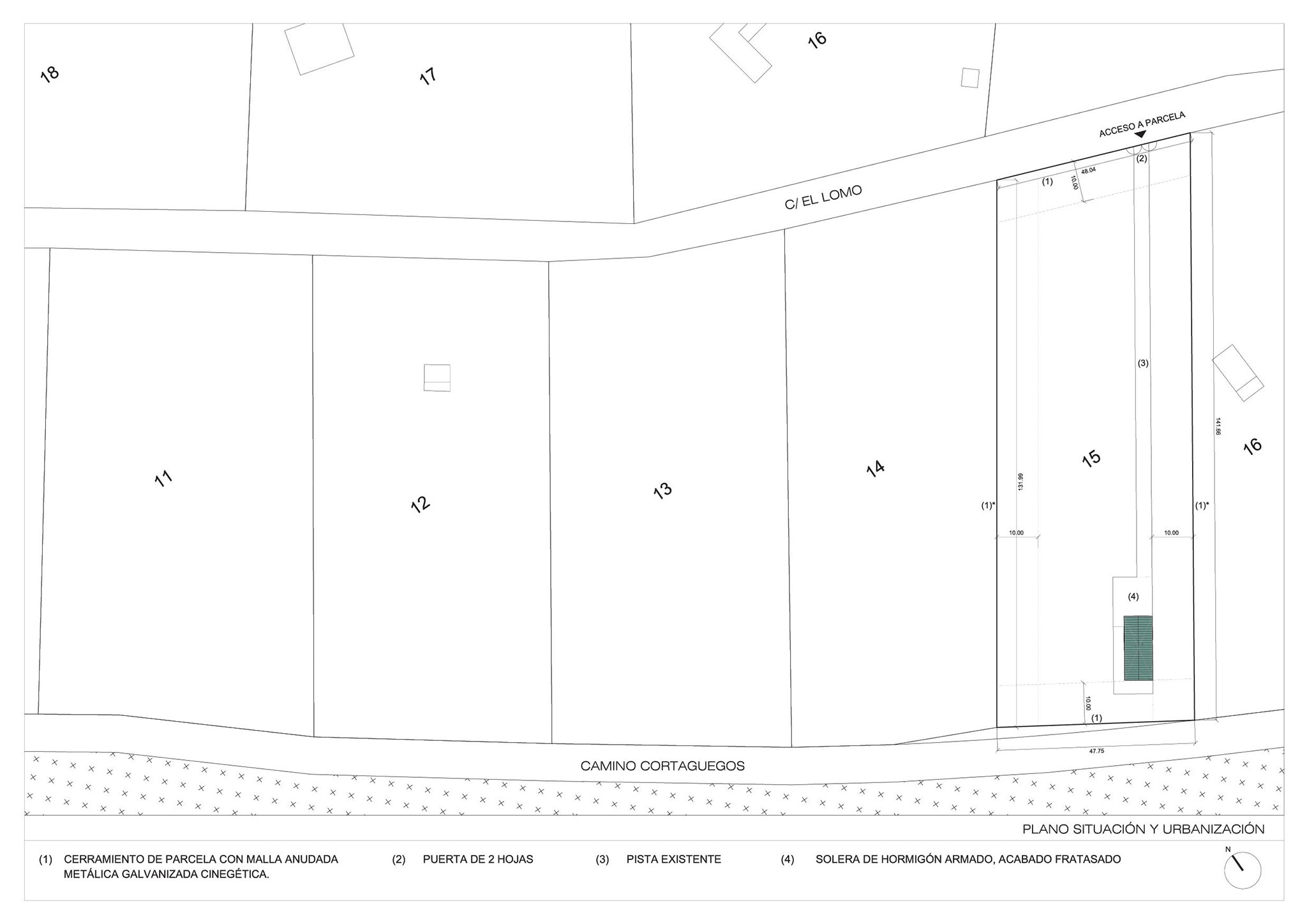

Site plan. Granero House by Alberich-Rodríguez Arquitectos.

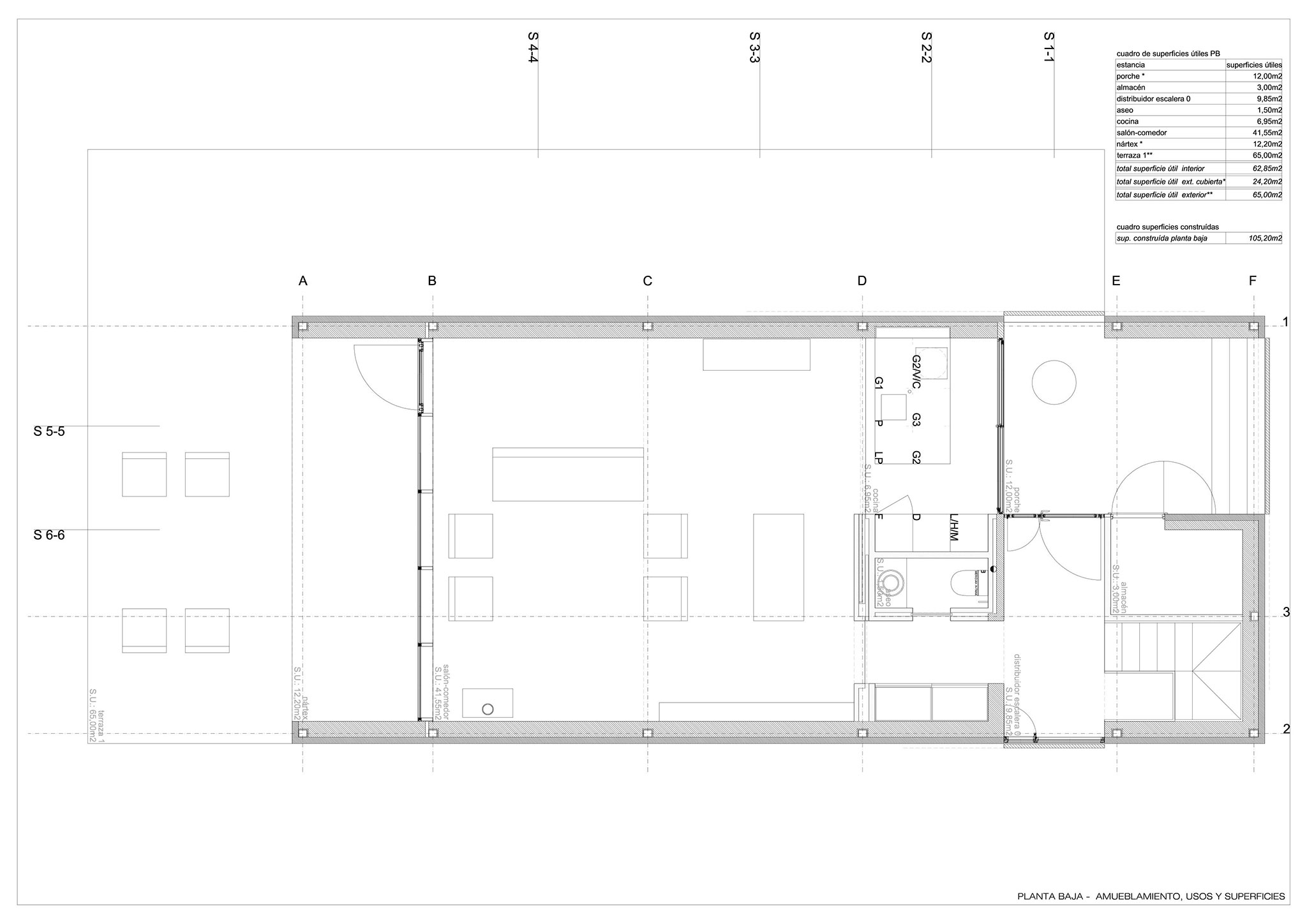

Ground floor plan. Granero House by Alberich-Rodríguez Arquitectos.

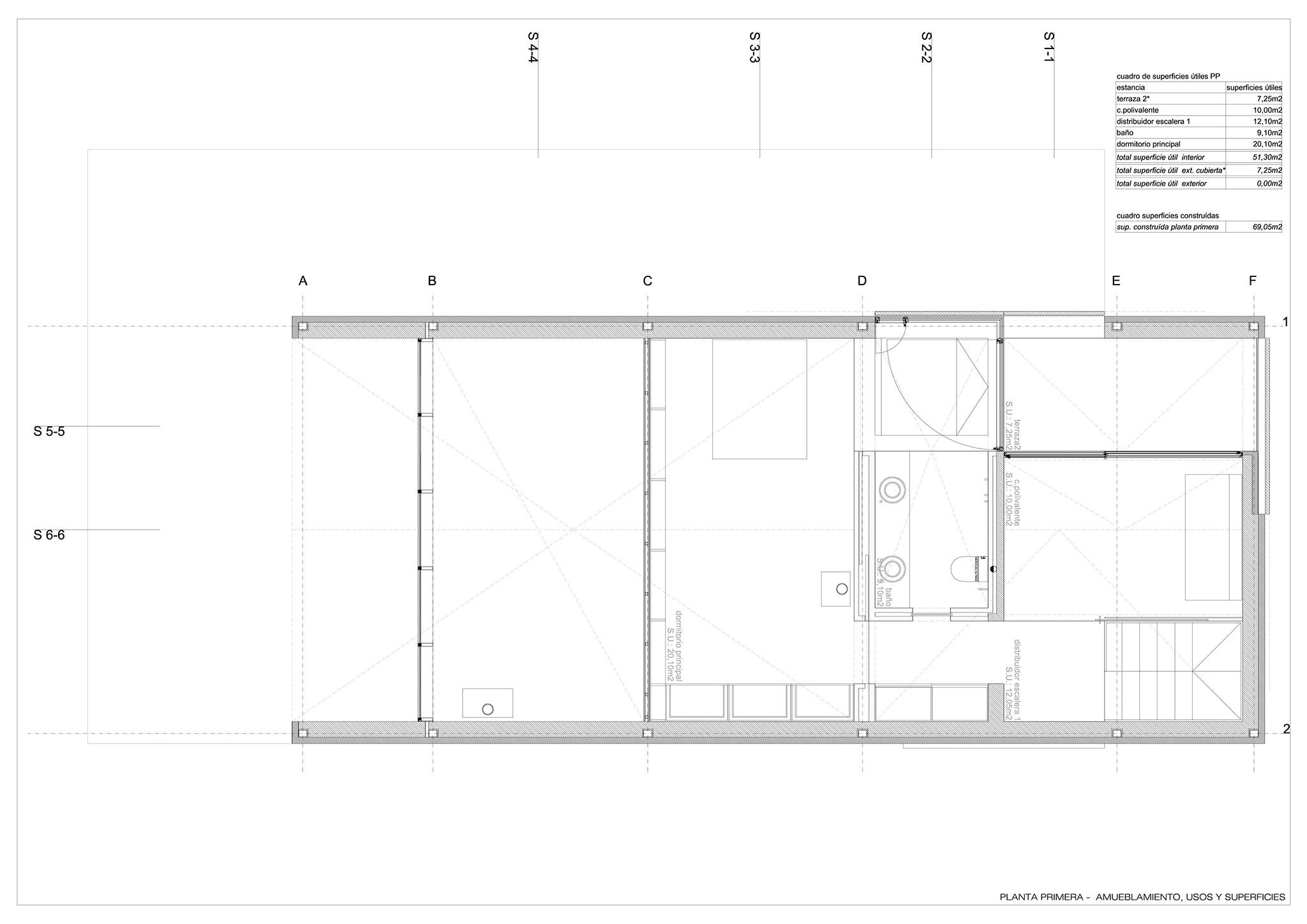

First floor plan. Granero House by Alberich-Rodríguez Arquitectos.

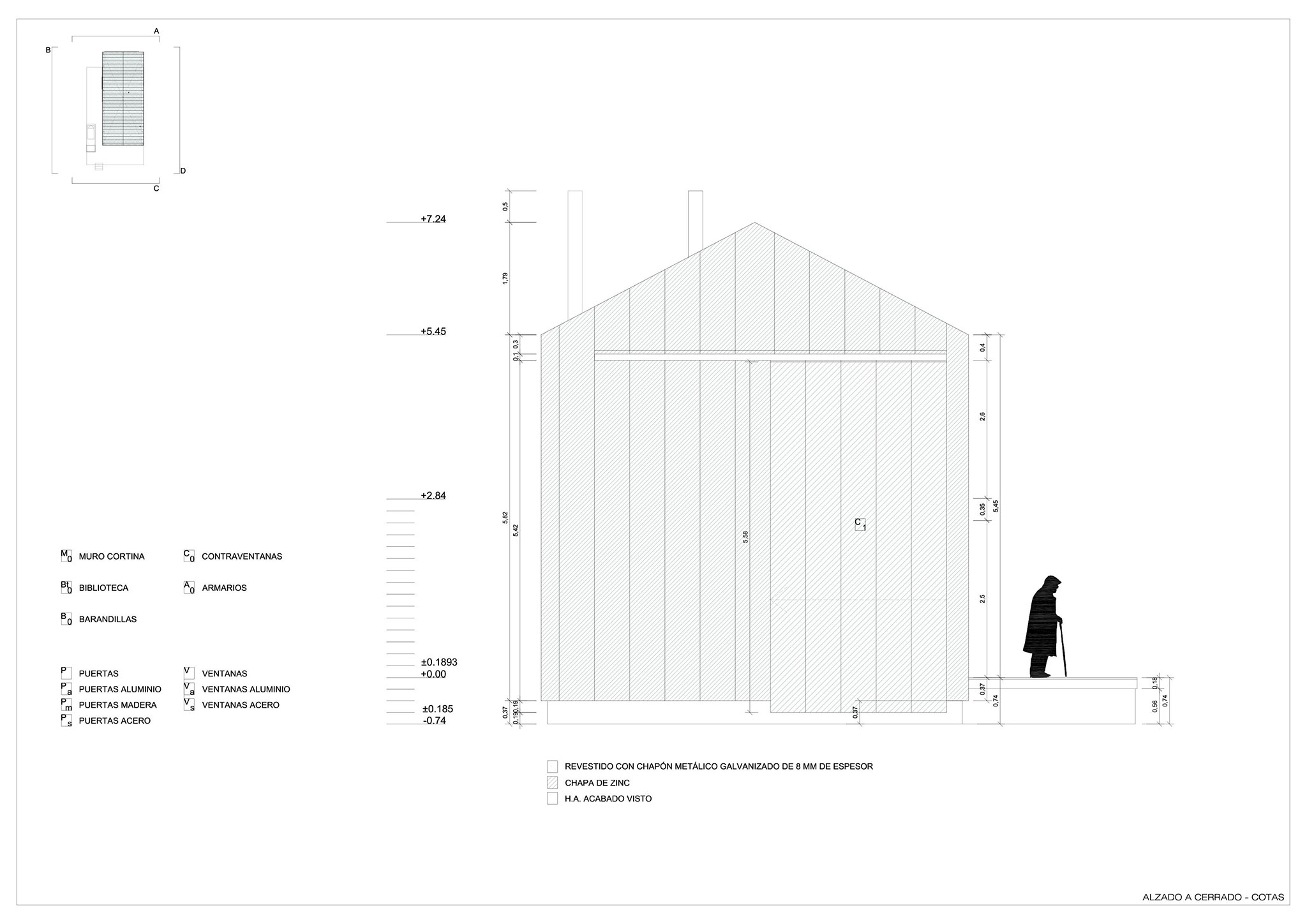

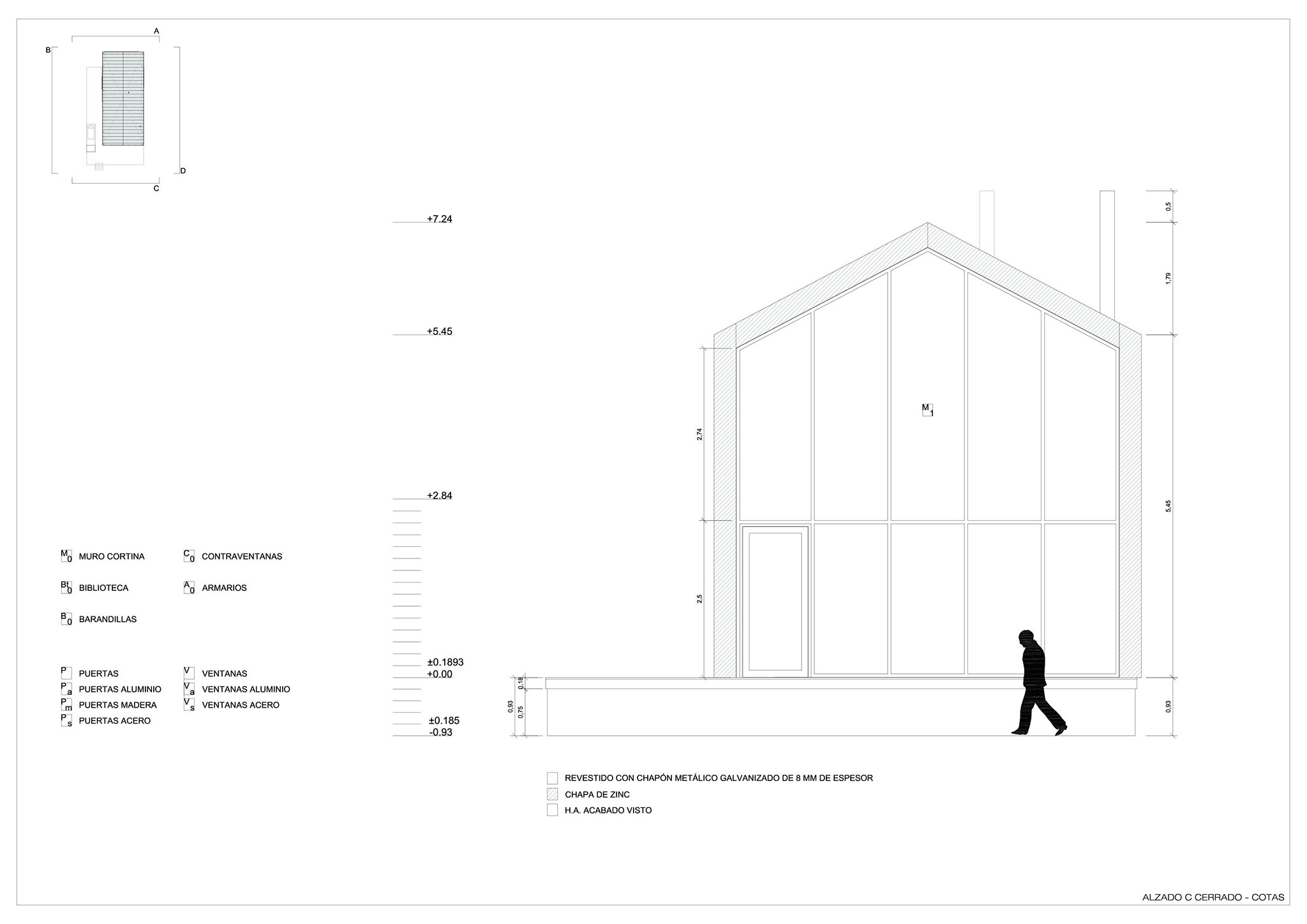

Closed access elevation. Granero House by Alberich-Rodríguez Arquitectos.

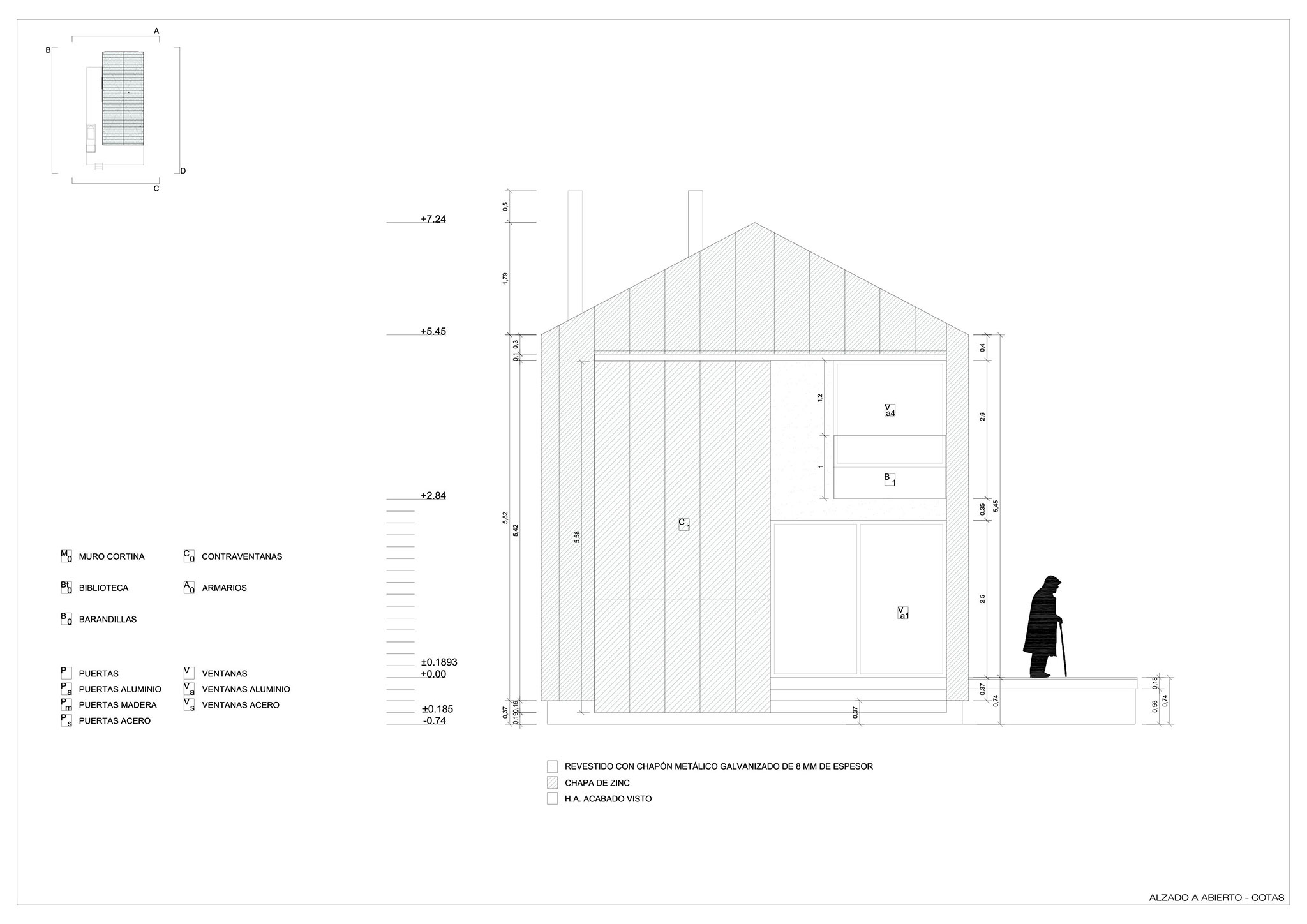

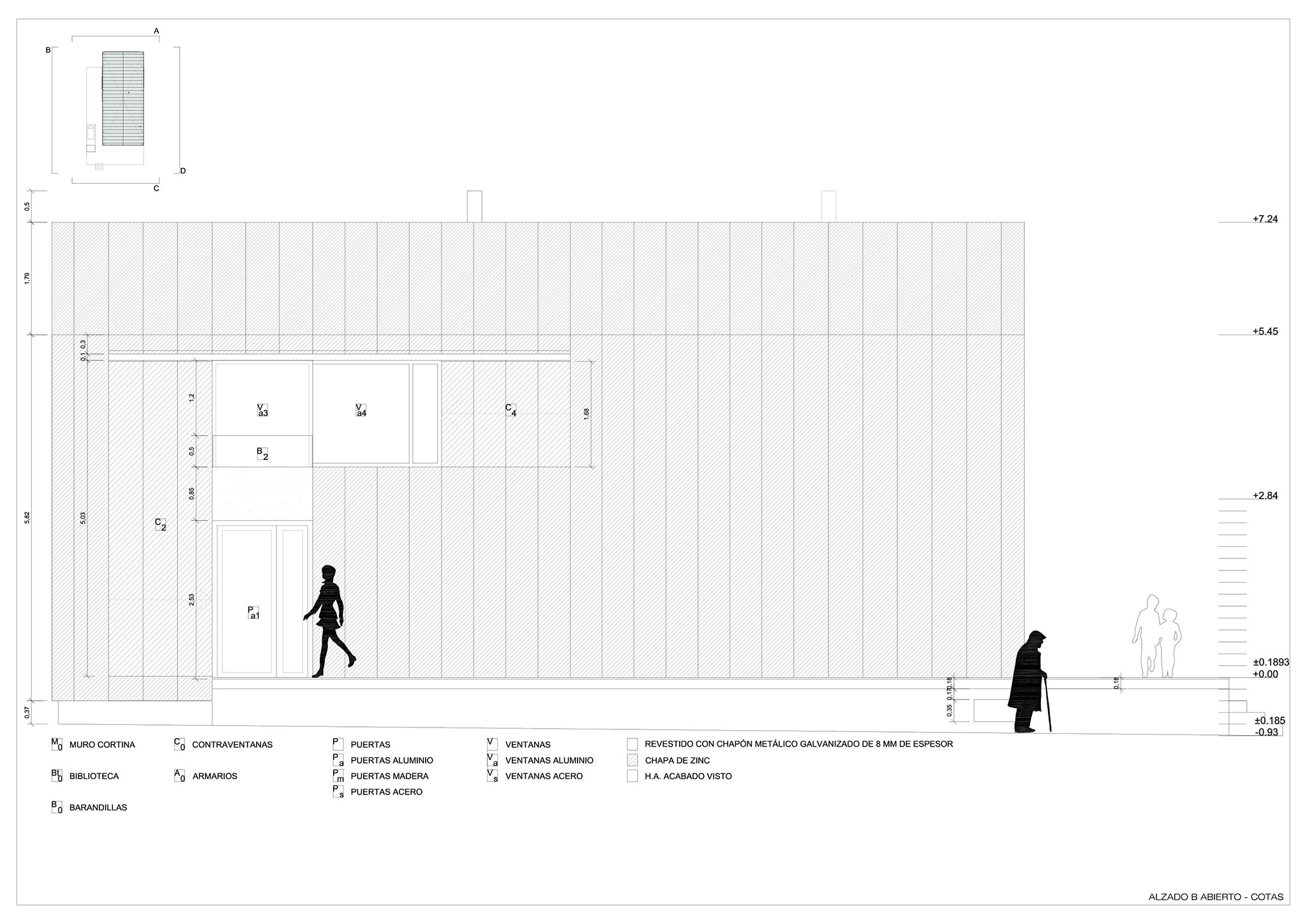

Opened access elevation. Granero House by Alberich-Rodríguez Arquitectos.
Side elevation. Granero House by Alberich-Rodríguez Arquitectos.
Main elevation. Granero House by Alberich-Rodríguez Arquitectos.

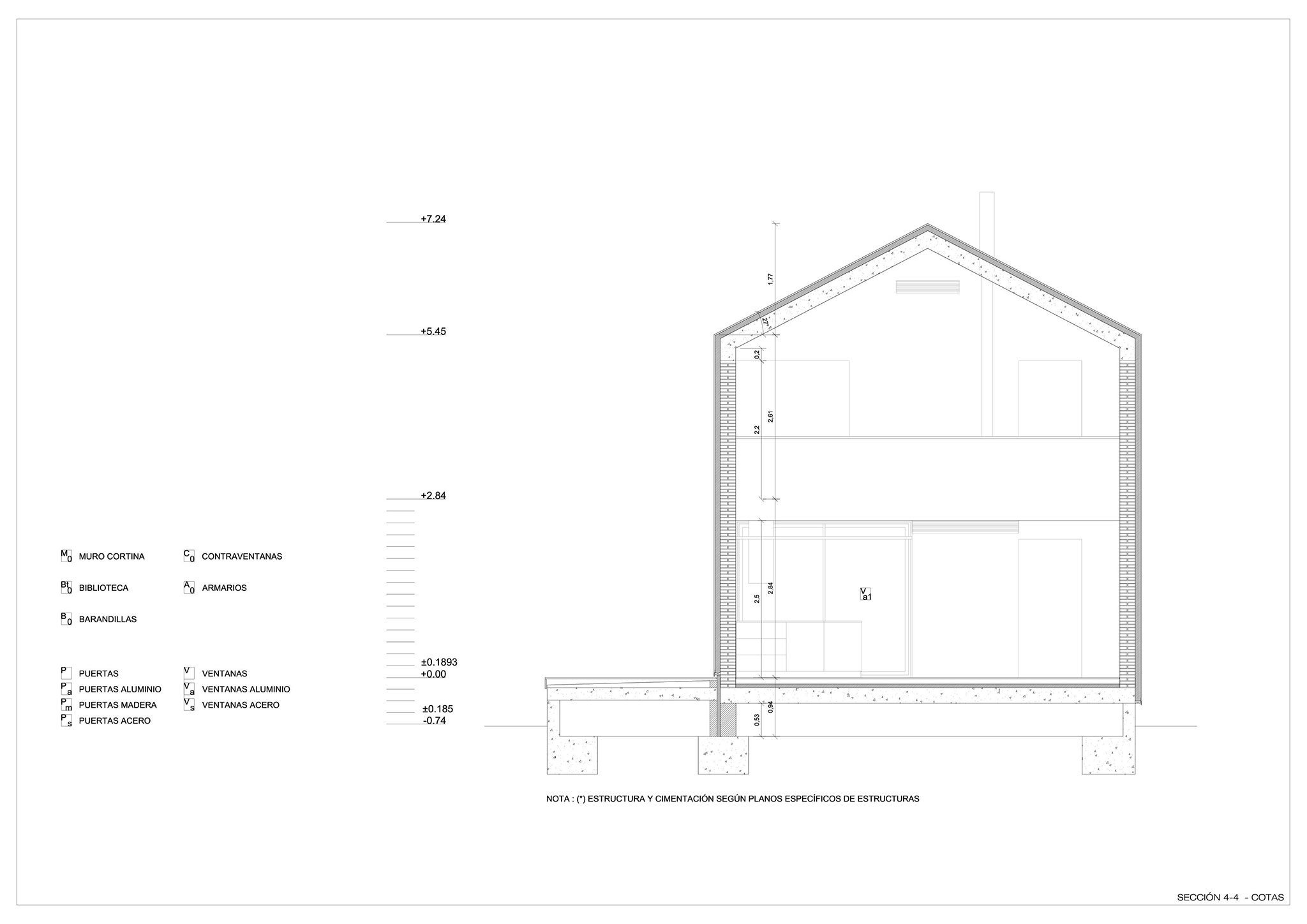

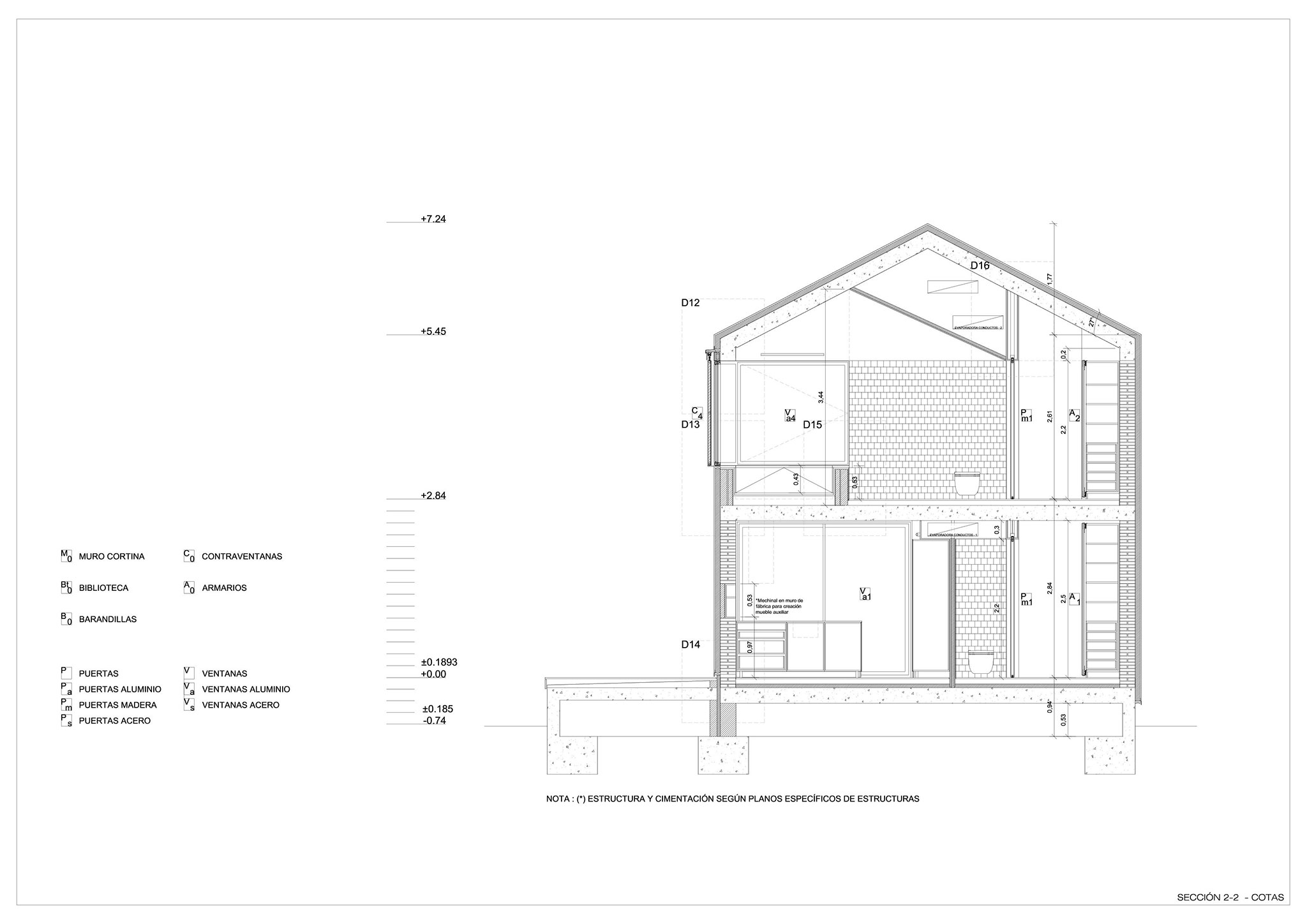

Bedroom cross section. Granero House by Alberich-Rodríguez Arquitectos.
Living room cross section. Granero House by Alberich-Rodríguez Arquitectos.

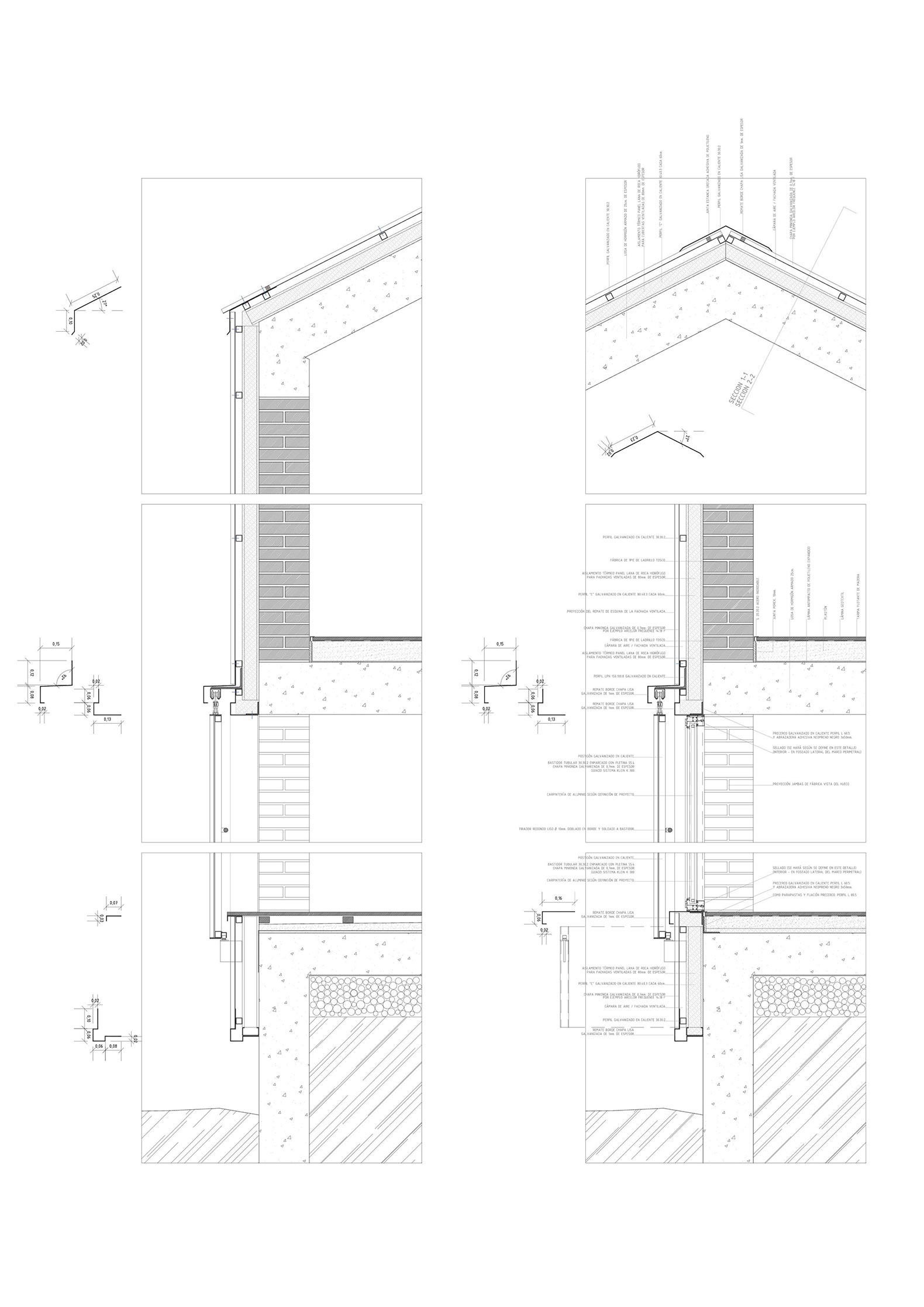

Façade details. Granero House by Alberich-Rodríguez Arquitectos.
Constructive section. Granero House by Alberich-Rodríguez Arquitectos.

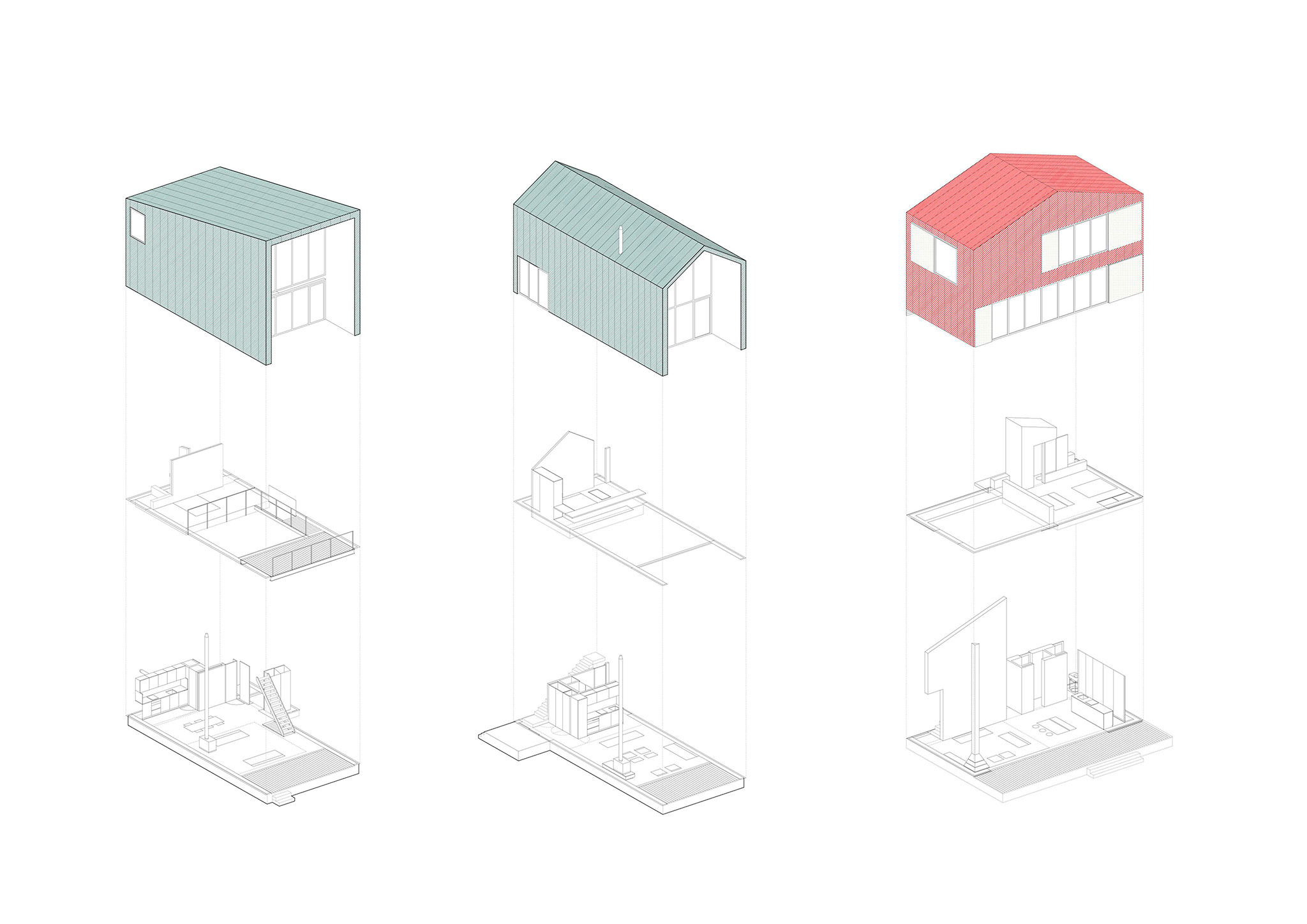

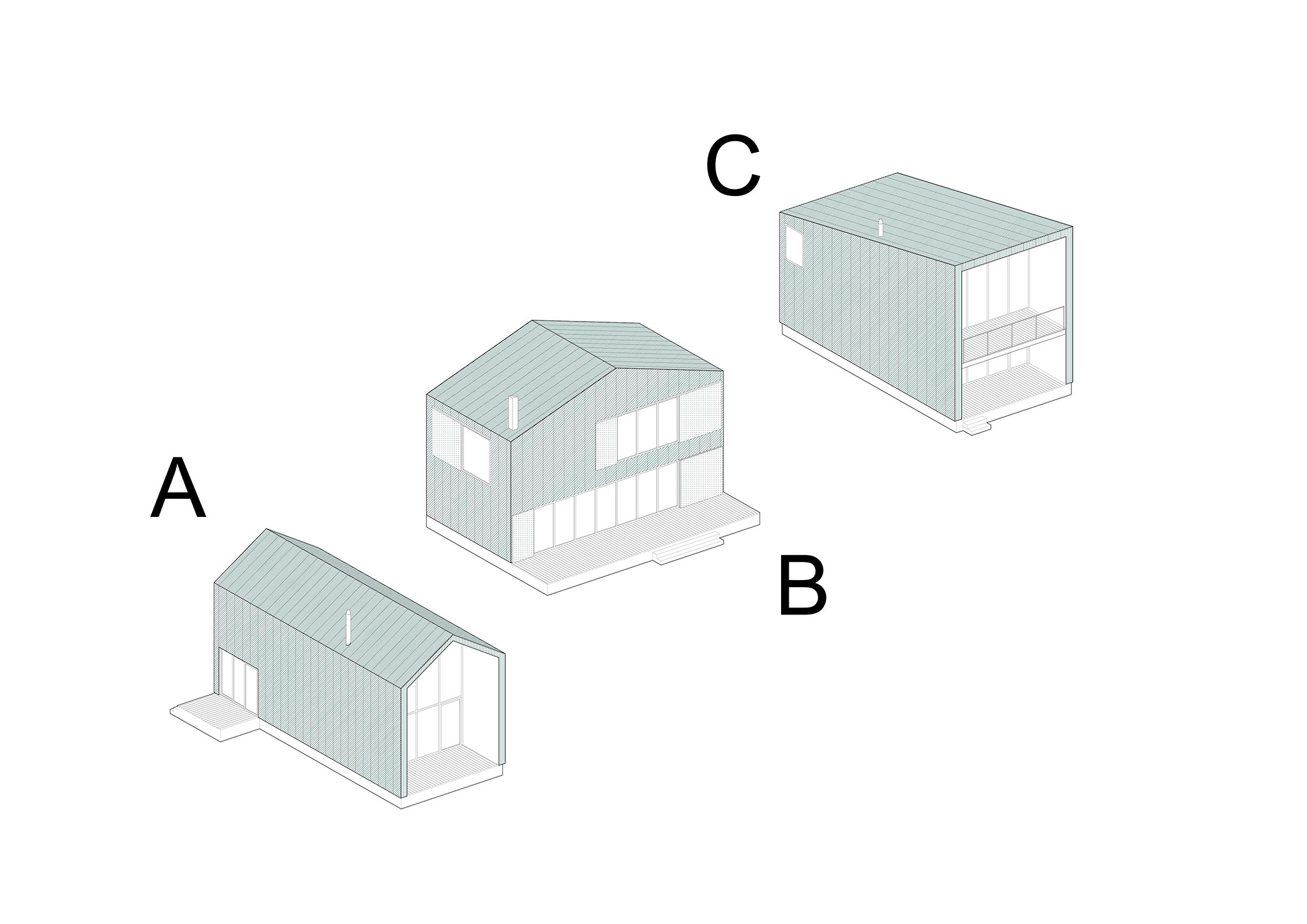

Shape variants. Granero House by Alberich-Rodríguez Arquitectos.
Shape variants. Granero House by Alberich-Rodríguez Arquitectos.
The design proposed by Alberich-Rodríguez Arquitectos developed a formal research on barns typology built in agricultural areas.

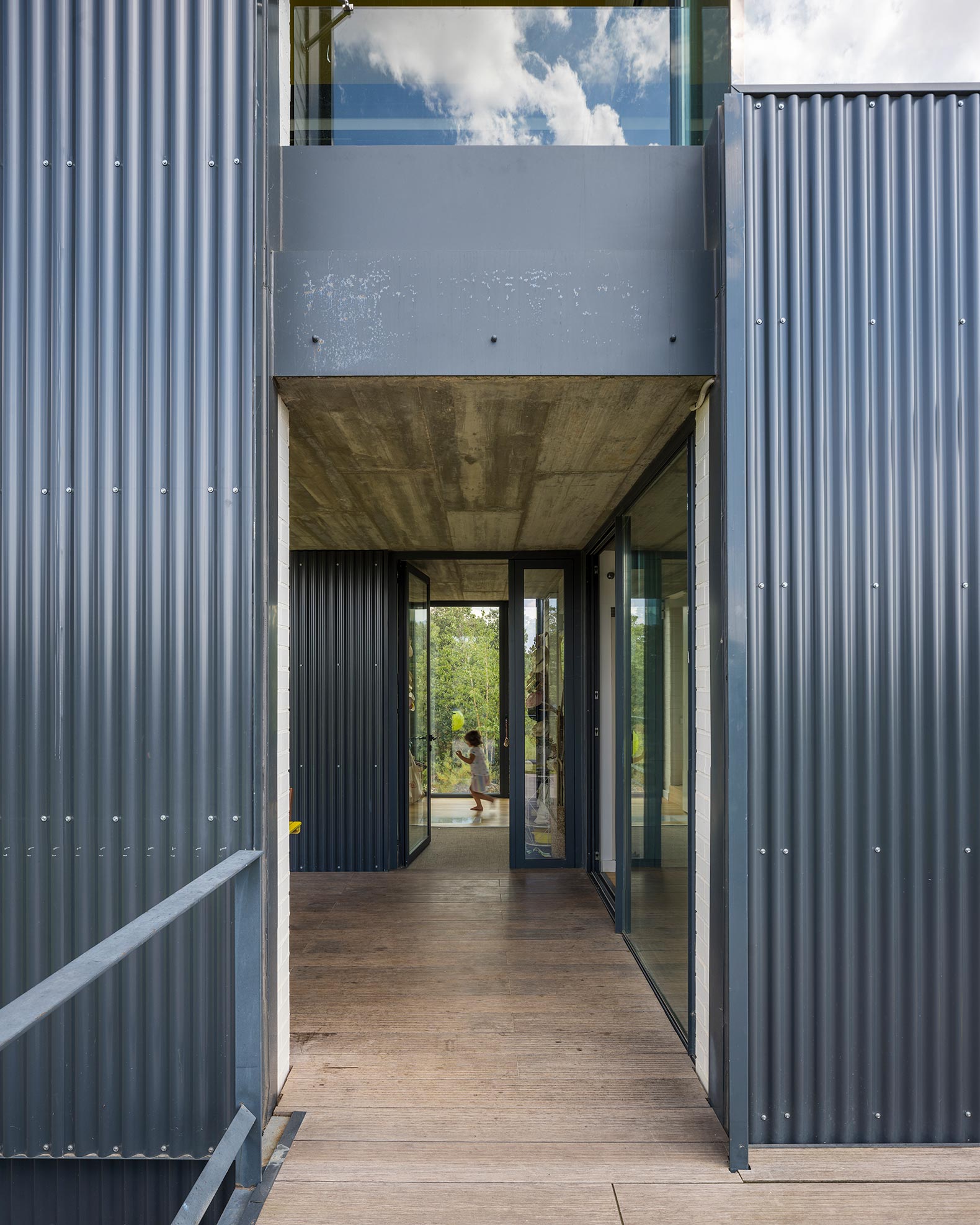

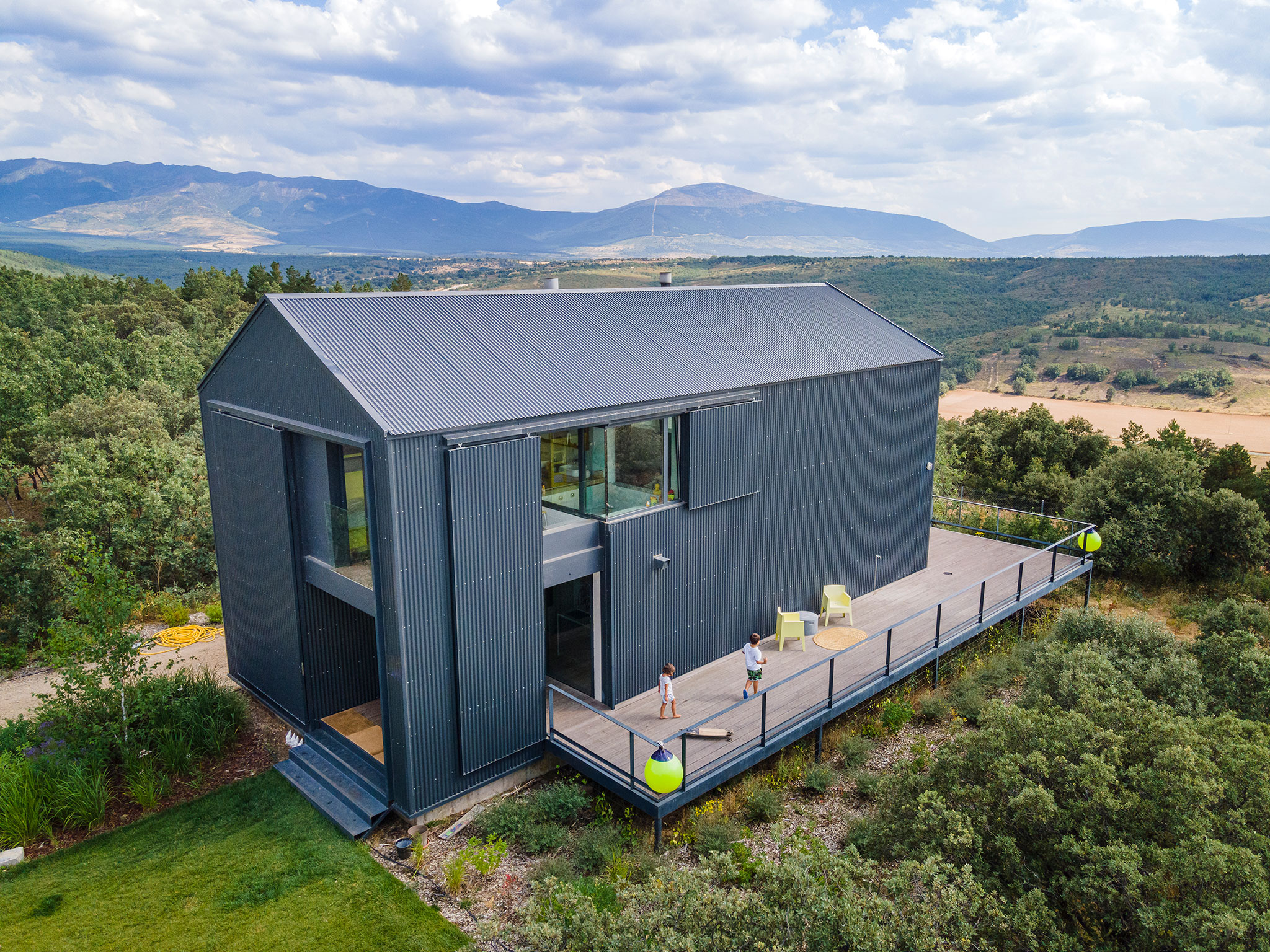

With a concrete and brick structure, and a «minionda» sheet metal envelope - reminiscent of the materials used for storage warehouses on farms-, a basic program of a large living room and kitchen is developed on the ground floor, and two bedrooms upstairs. The complex is surrounded by an "L" shaped platform, which allows spectacular views of the landscape to be seen.
With a concrete and brick structure, and a «minionda» sheet metal envelope - reminiscent of the materials used for storage warehouses on farms-, a basic program of a large living room and kitchen is developed on the ground floor, and two bedrooms upstairs. The complex is surrounded by an "L" shaped platform, which allows spectacular views of the landscape to be seen.
Project description by Alberich-Rodríguez Arquitectos
This "barn" (future studio) constitutes the first phase of a project that will be completed with the main house annexed construction. The large plot will also include a rail wagon putted up as a guest room.

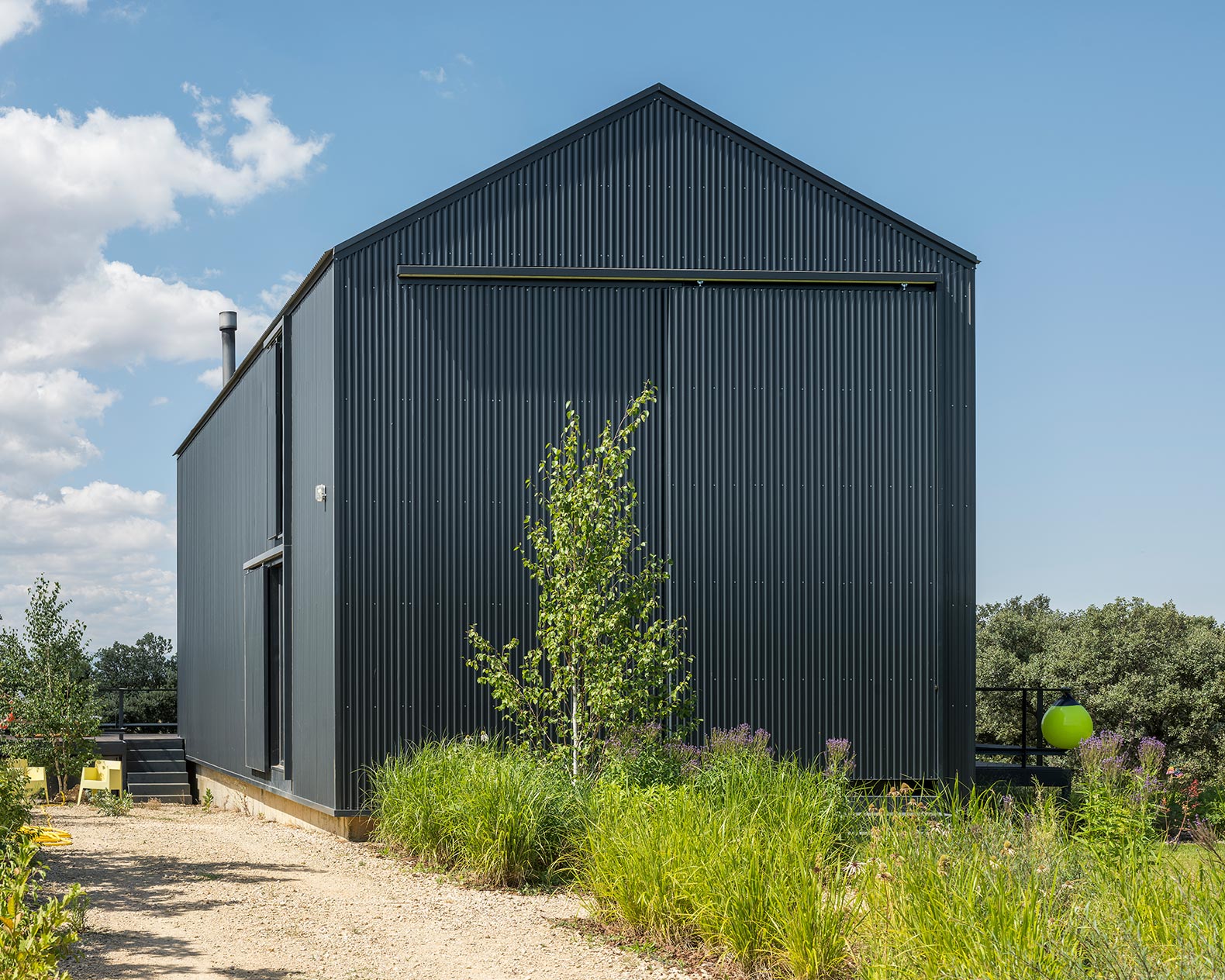

The final geometric form of this shed is the result of previous studies on some archetypal typological variants of barns, constructions historically conceived for storage used in rural settings, and its new interpretation as a contemporary domestic-industrial space. Finally, the solution of a compact volume with a rectangular plan with a gable roof in its longitudinal direction is adopted.

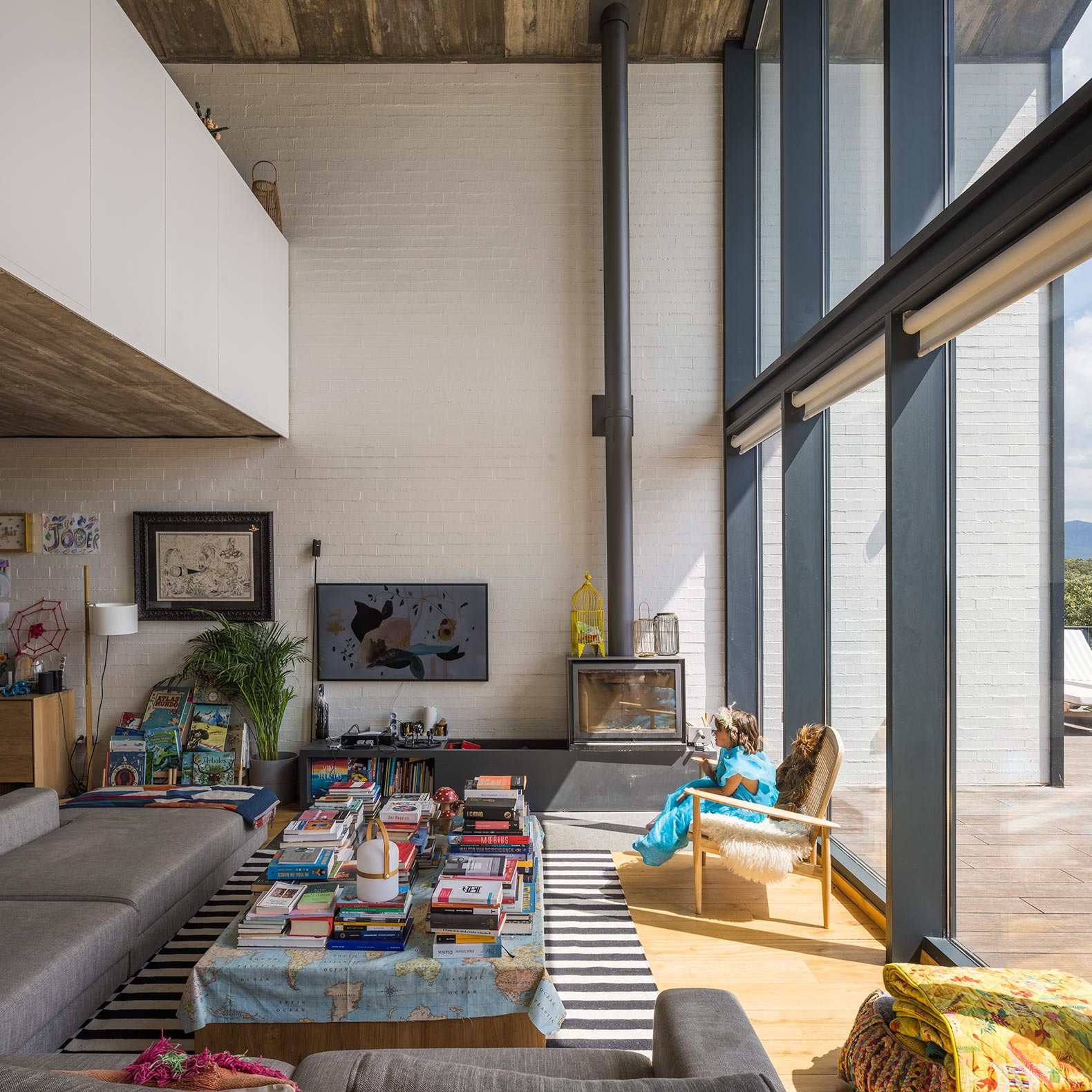

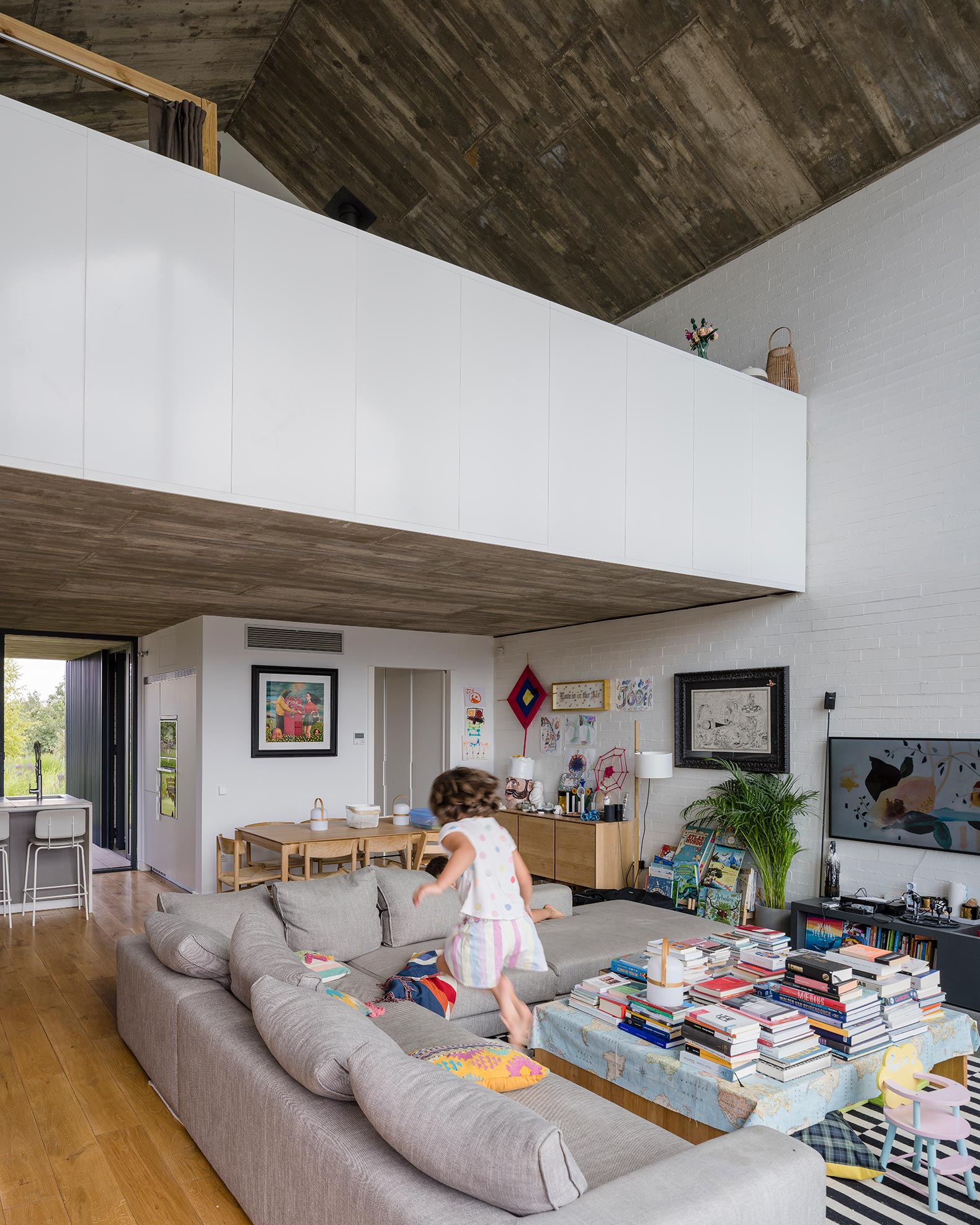

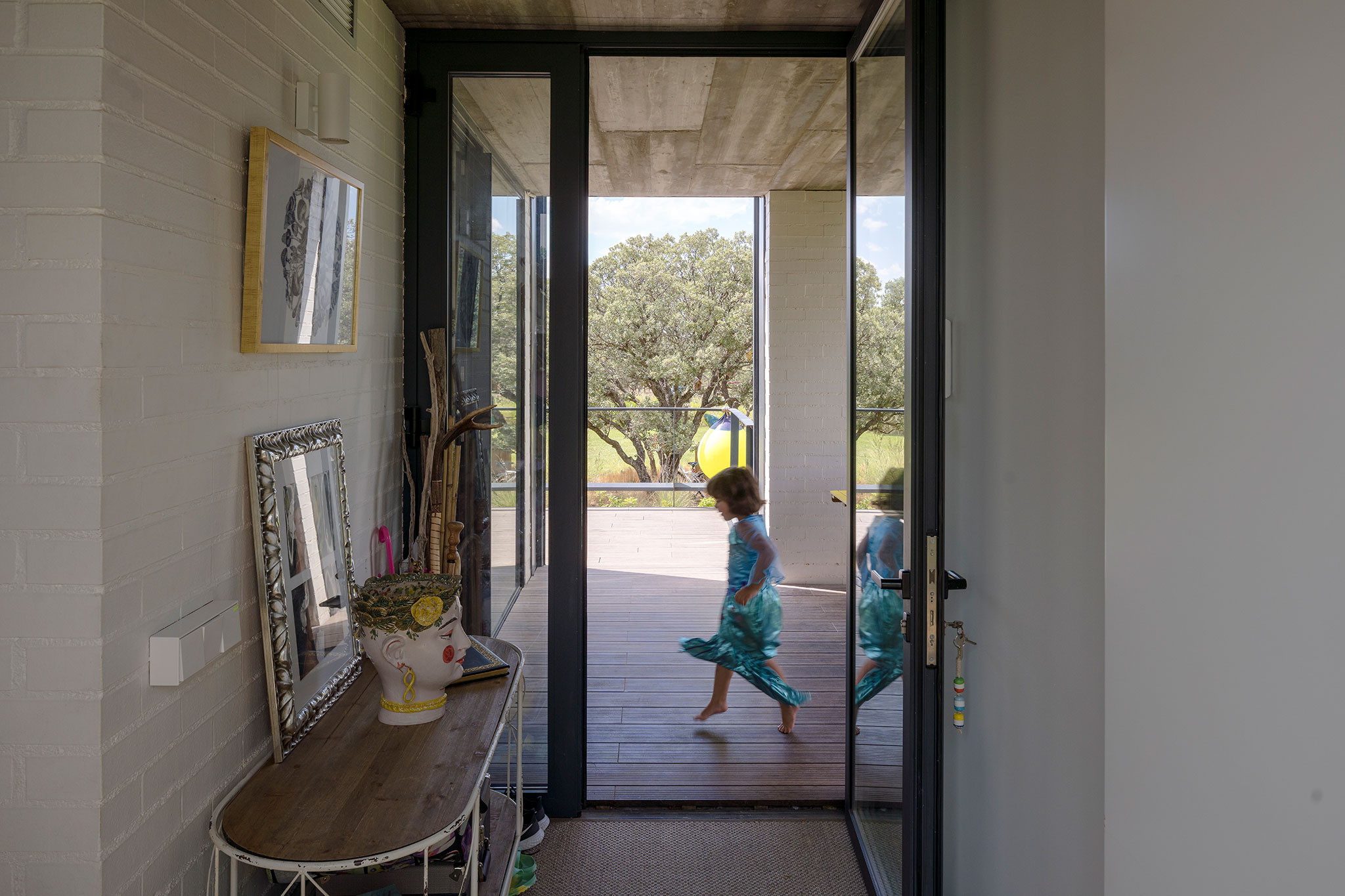

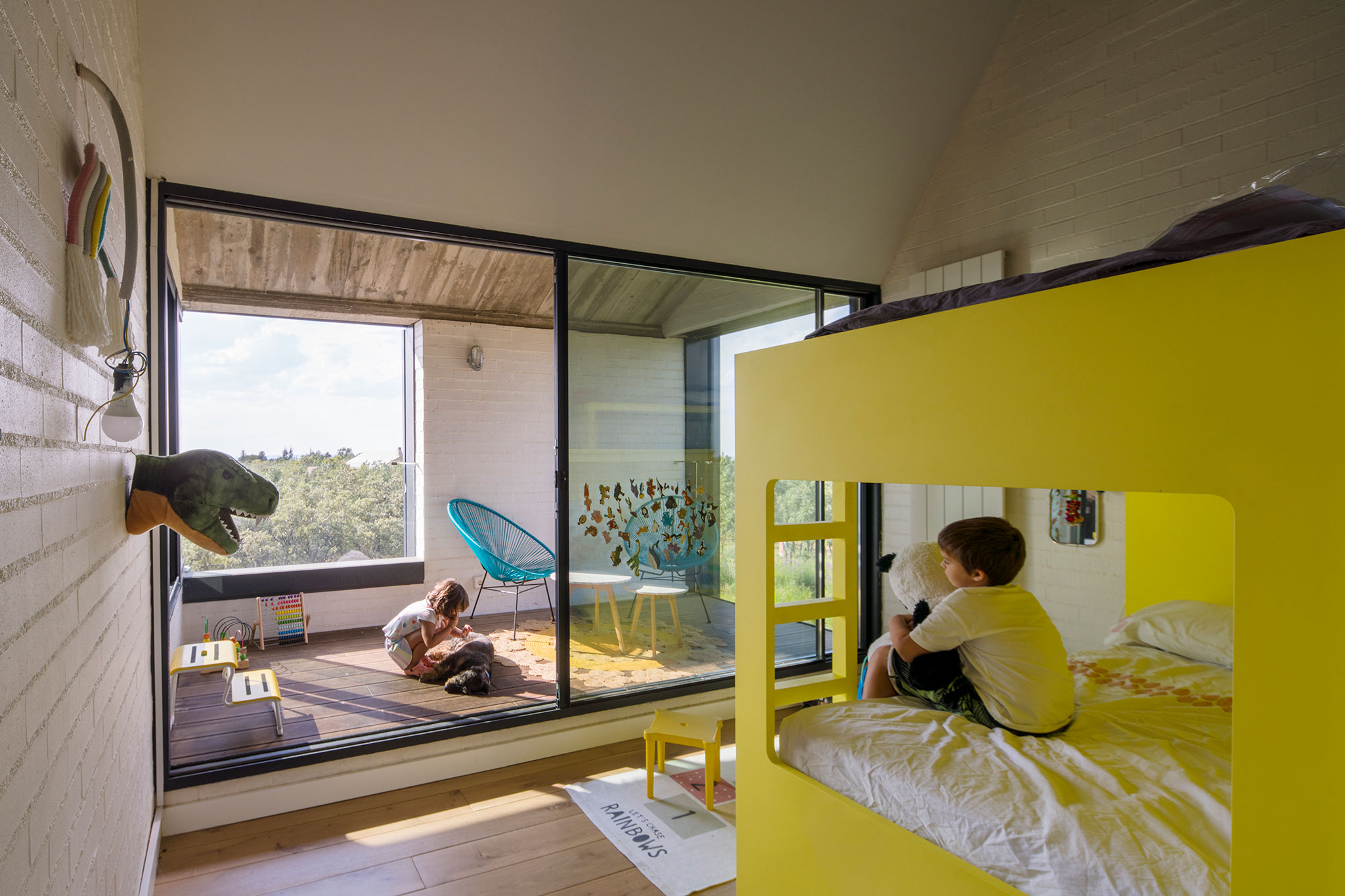

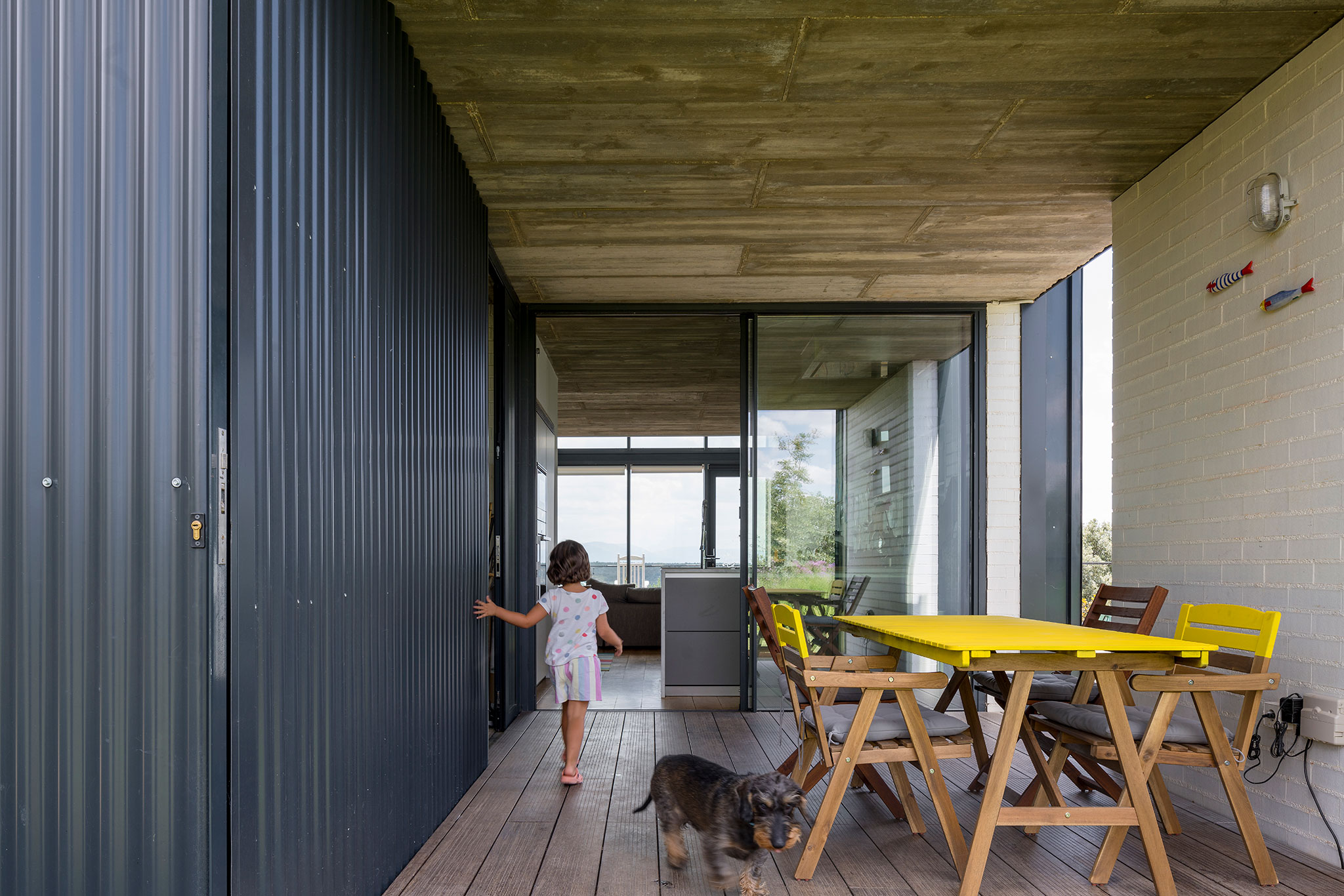

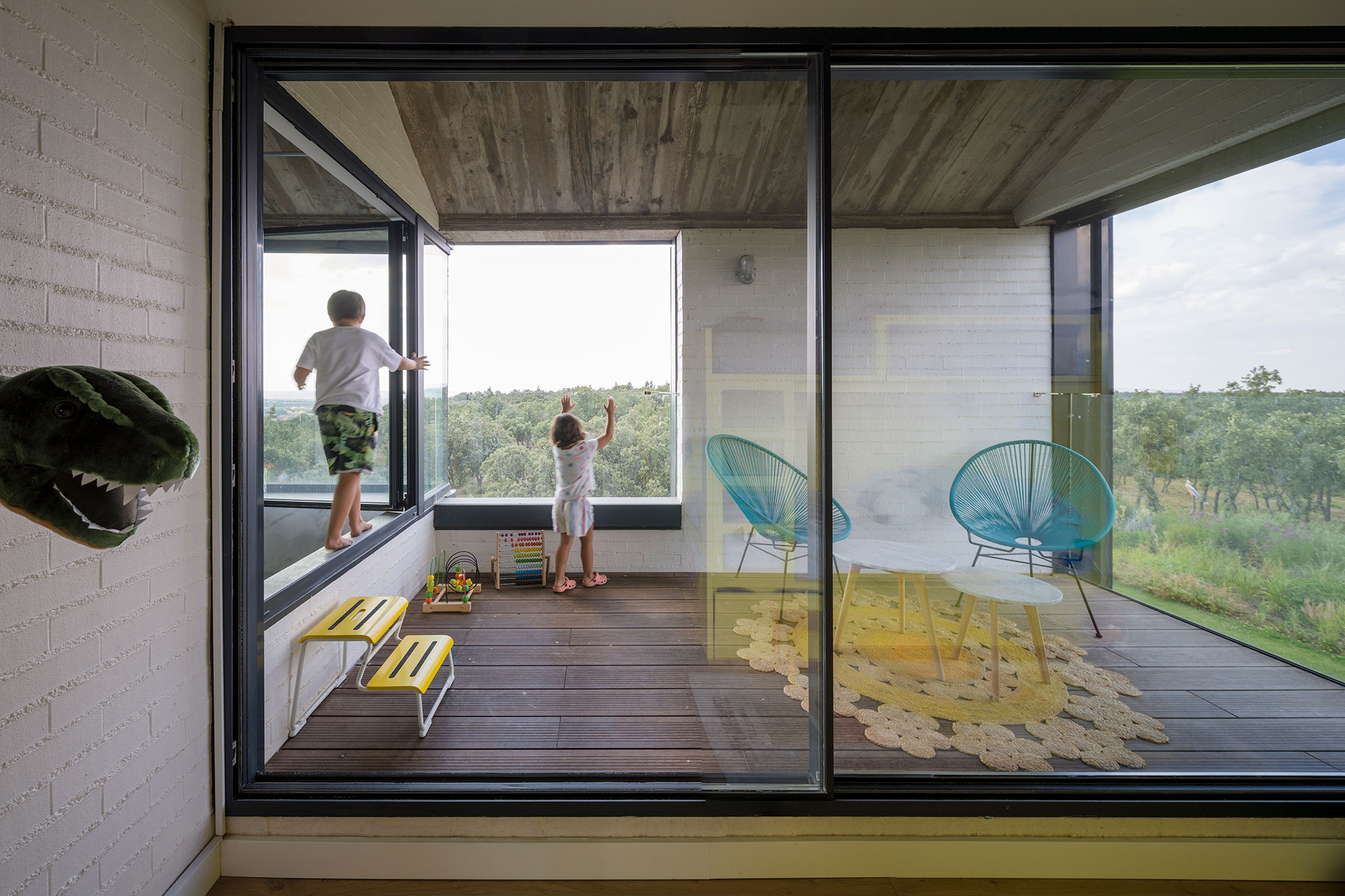

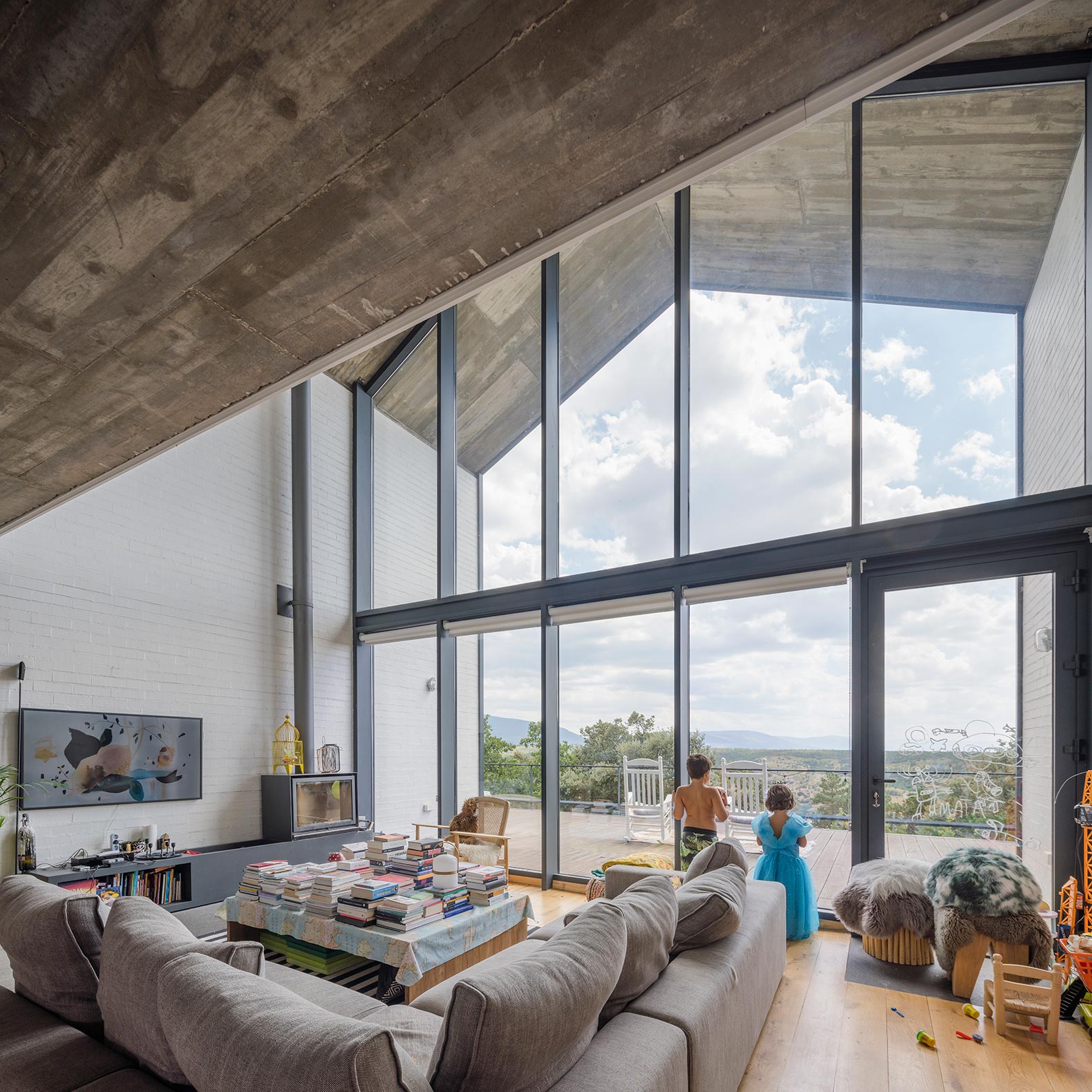

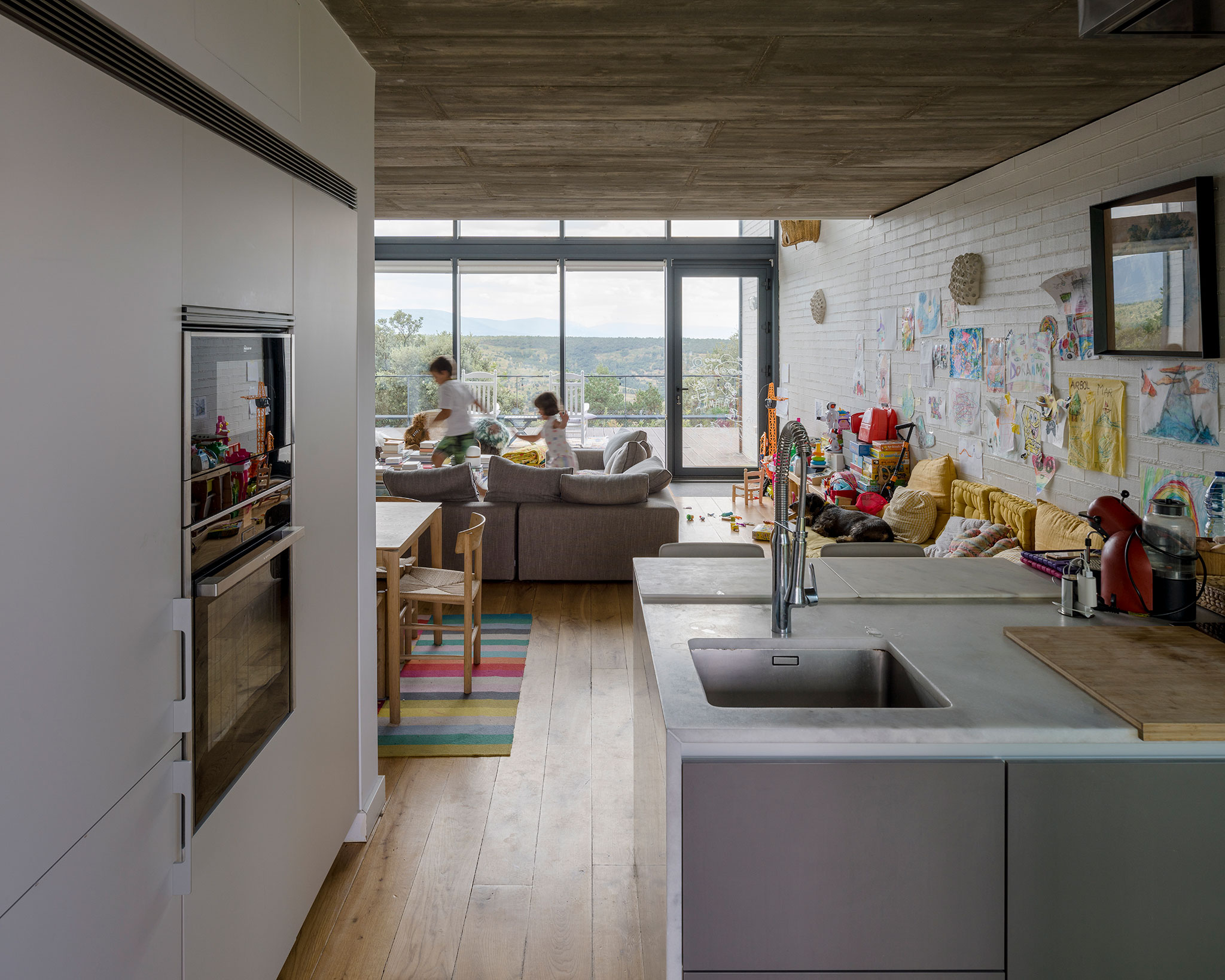

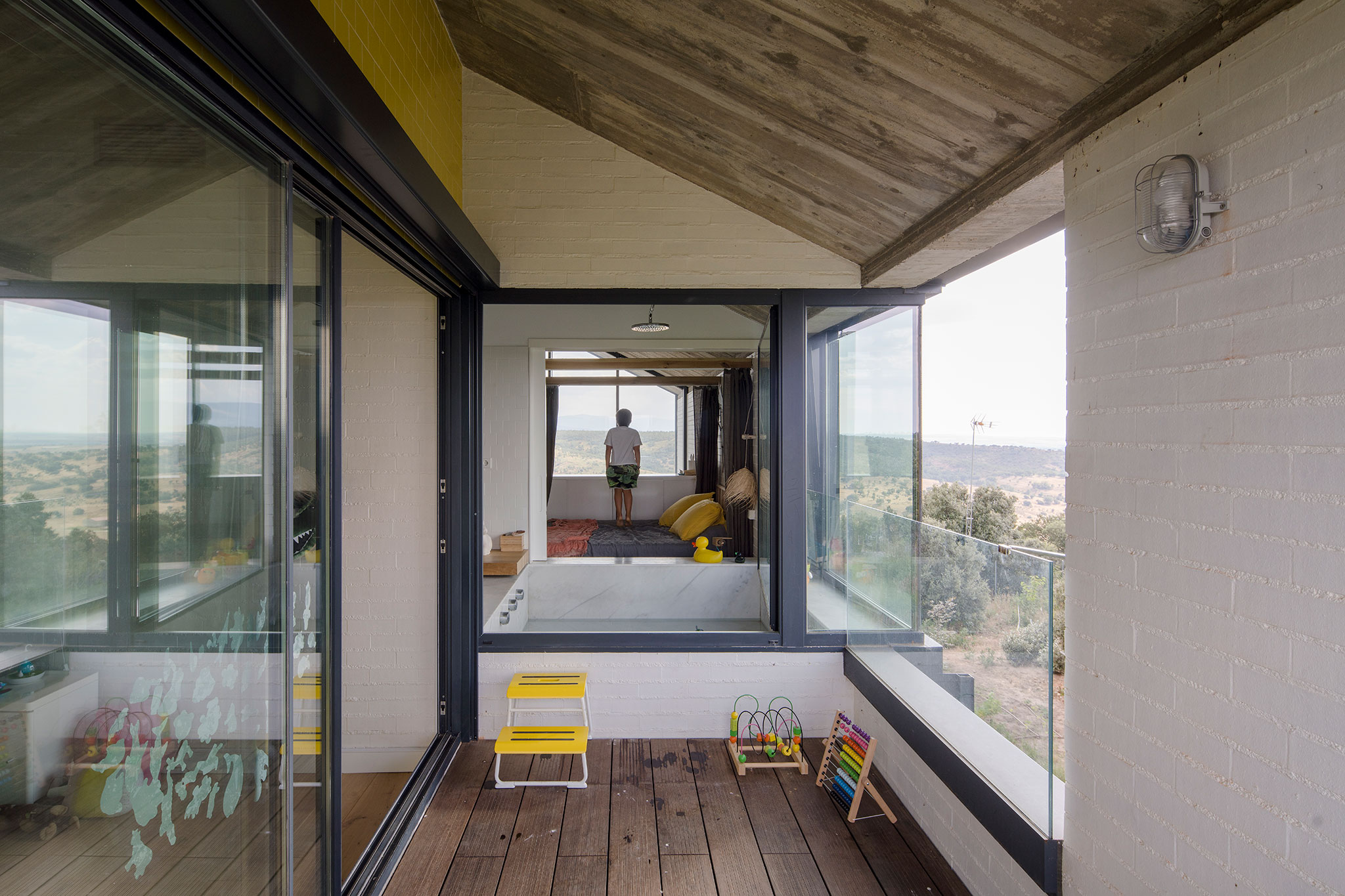

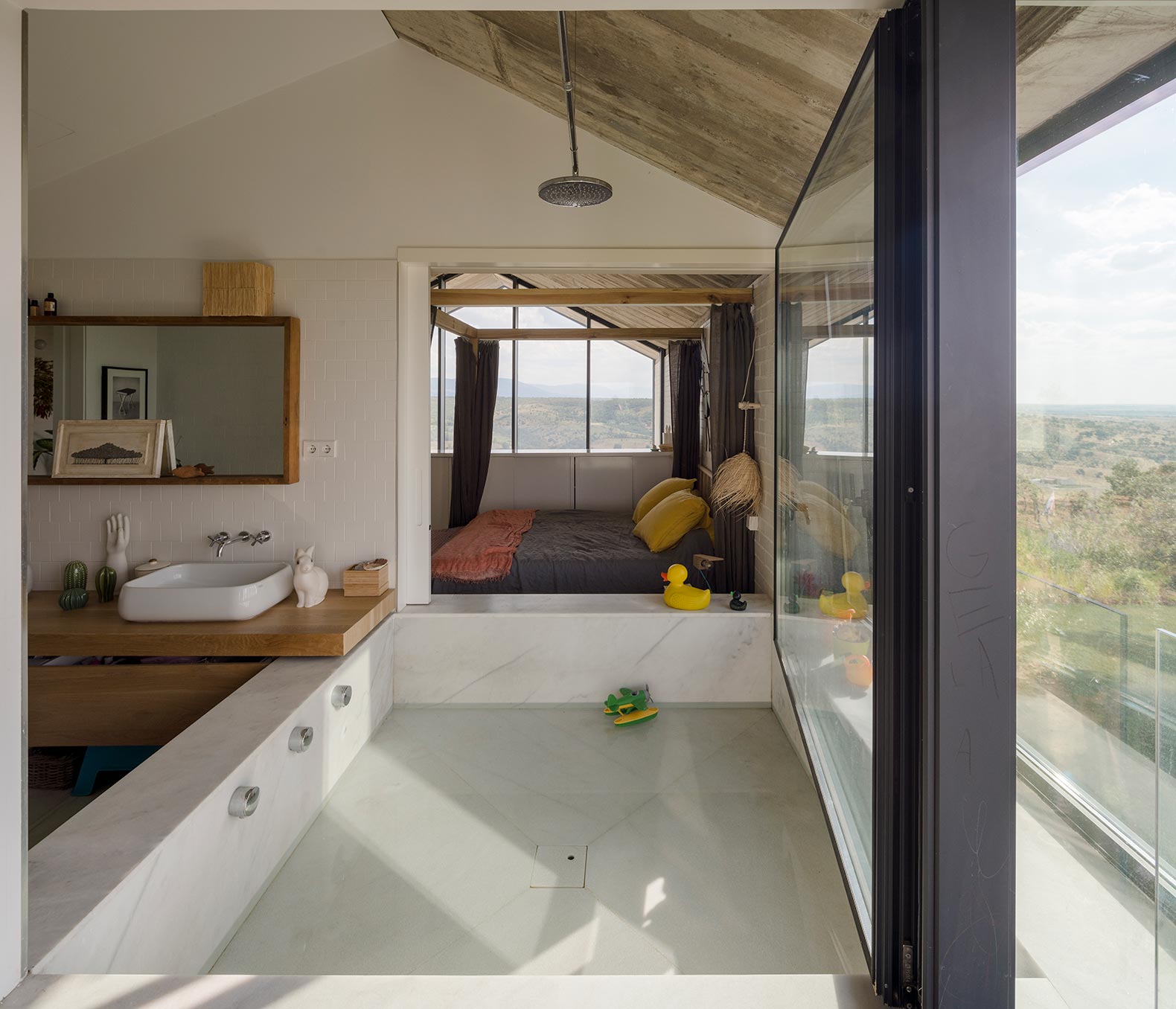

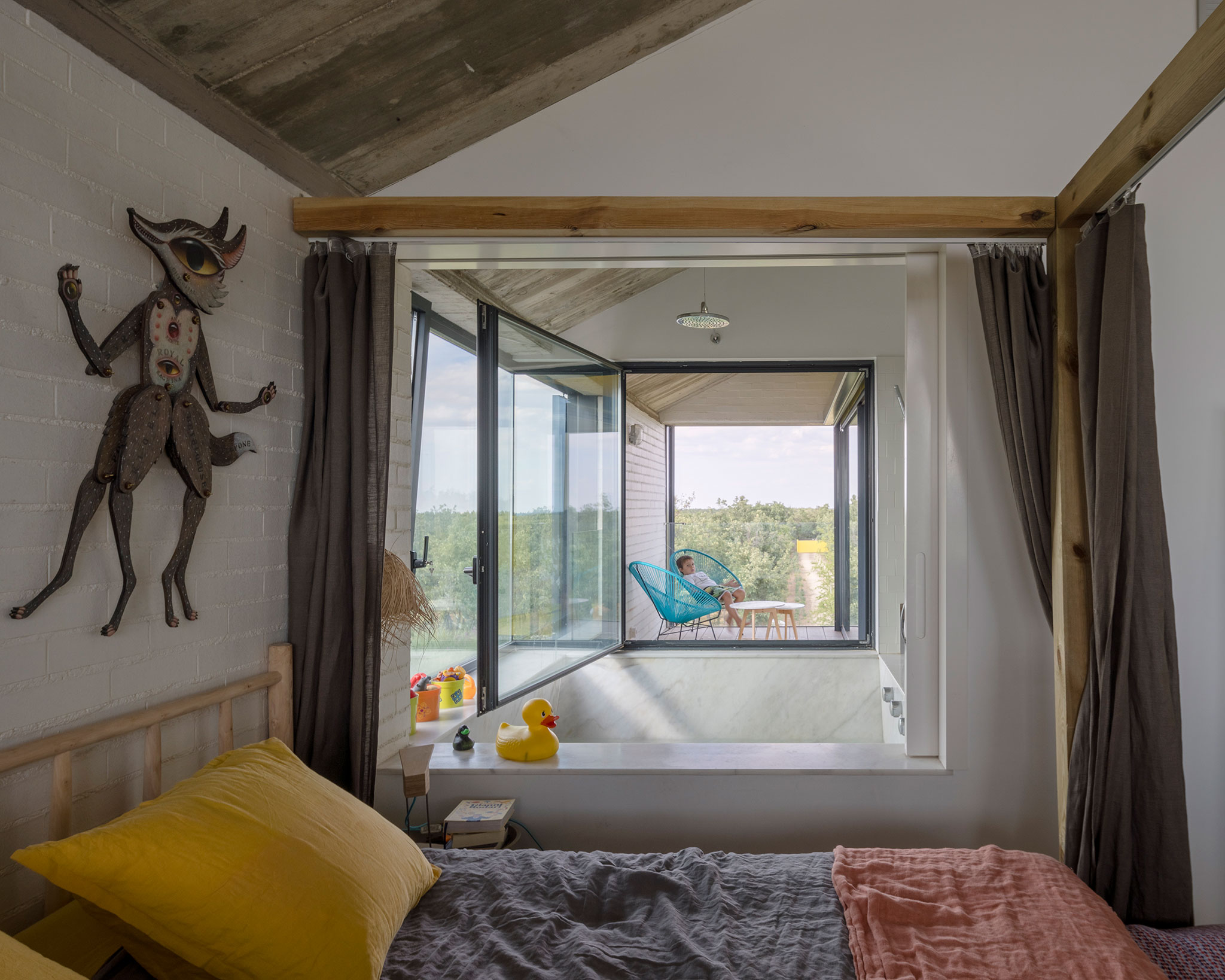

The required program is distributed over two floors. The ground floor houses the entrance hall, a toilet, a storage space and a large room for a dining room where the kitchen is incorporated. This room communicates with covered outdoor spaces that have continuity with a raised terrace on the ground that surrounds three of the four facades of the house. Two bedrooms, a generous bathroom and a large terrace have been planned on the upper floor. The distribution and size of the projected openings, as well as the use of sliding partitions, allows the visual and physical connection of bedrooms, bathroom, and terrace, and the panoramic view enjoyment of the surrounding landscape.

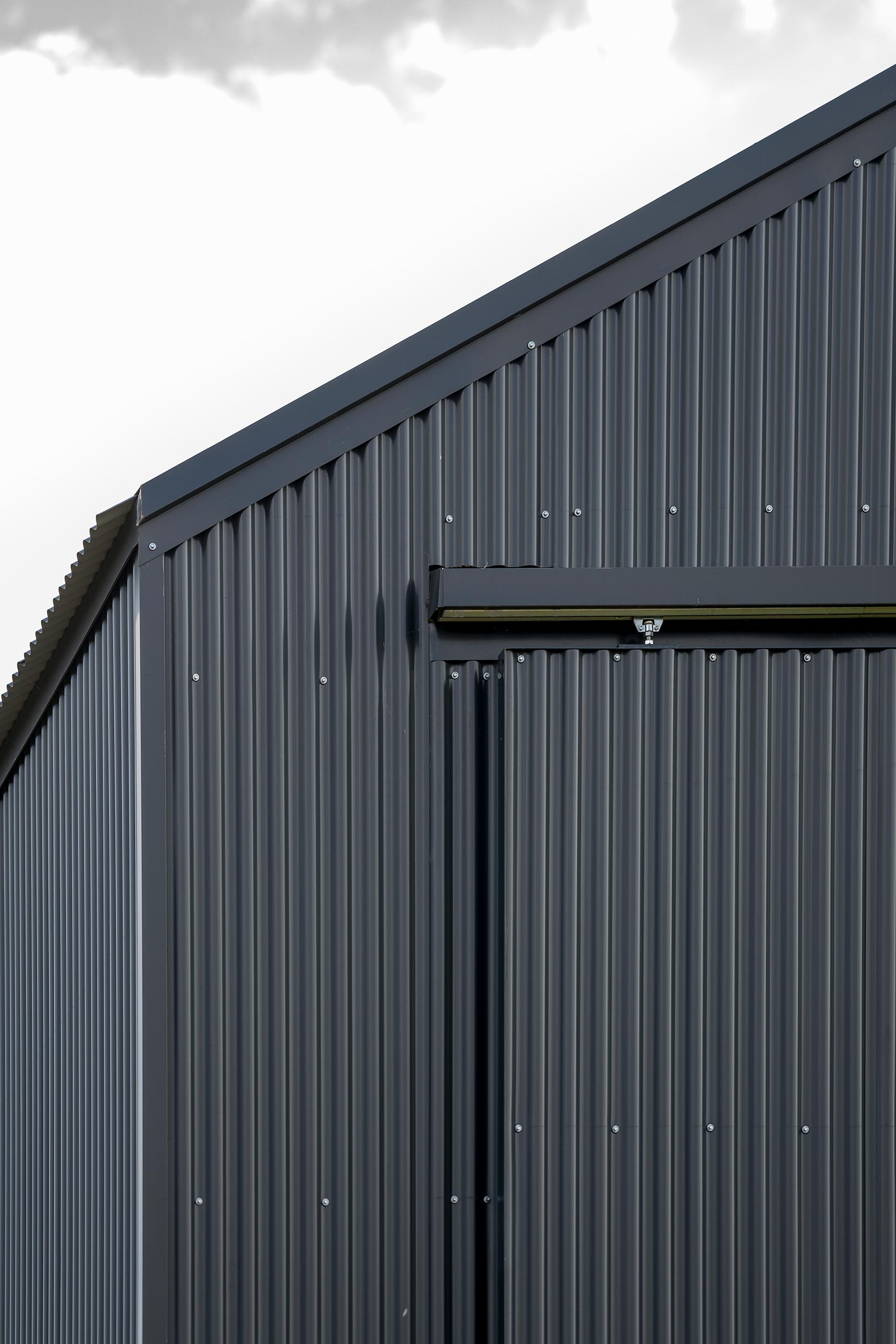

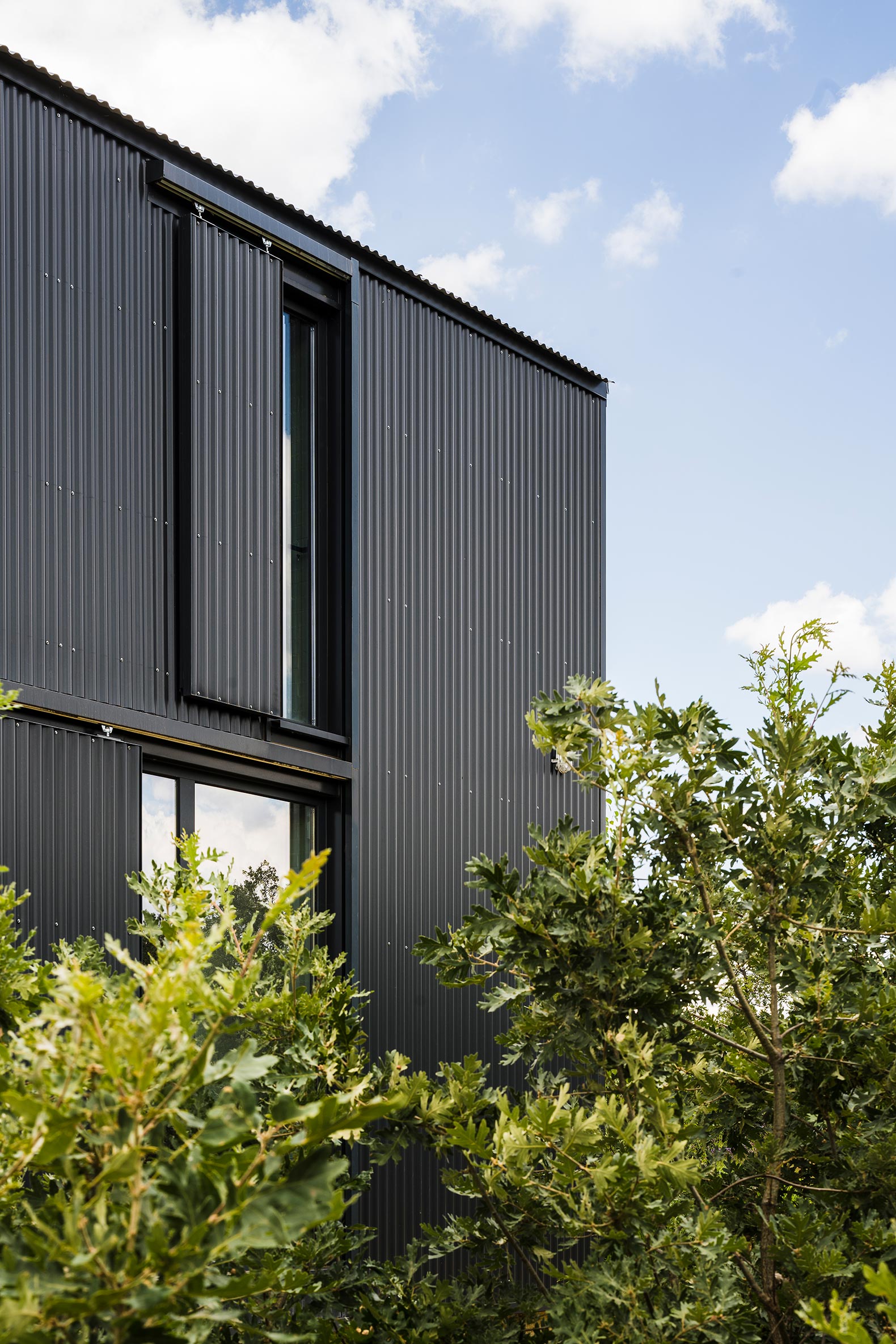

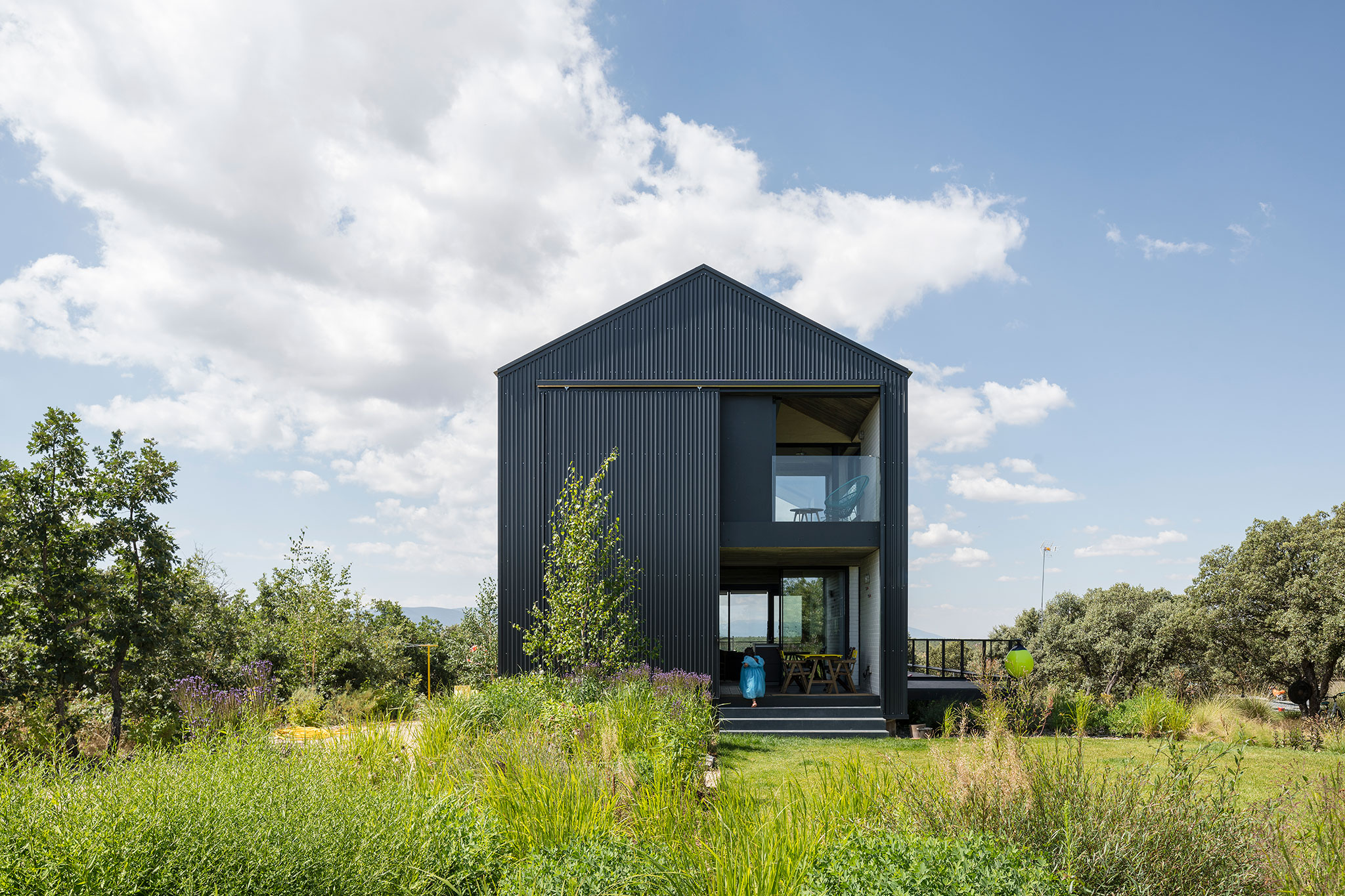

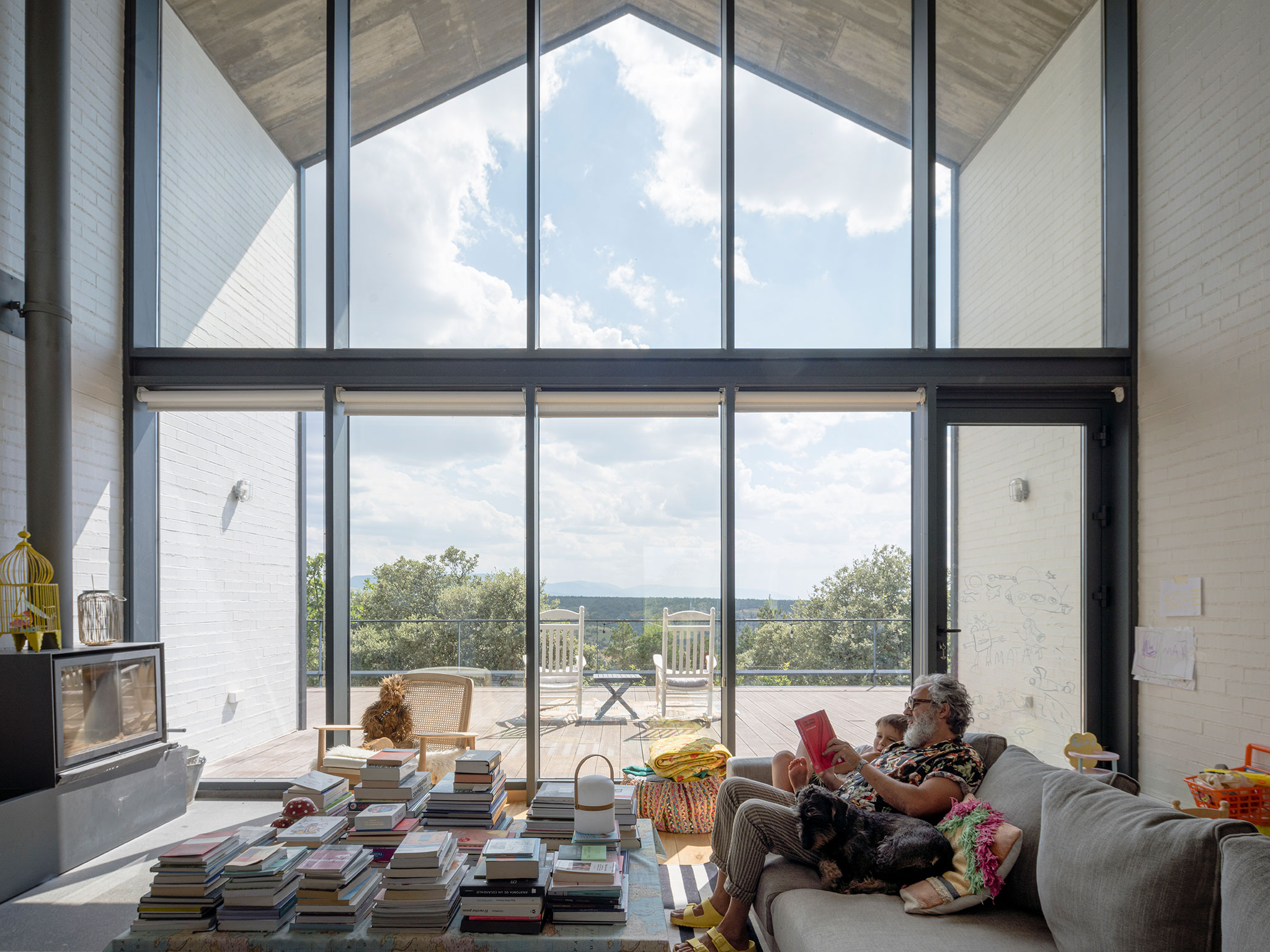

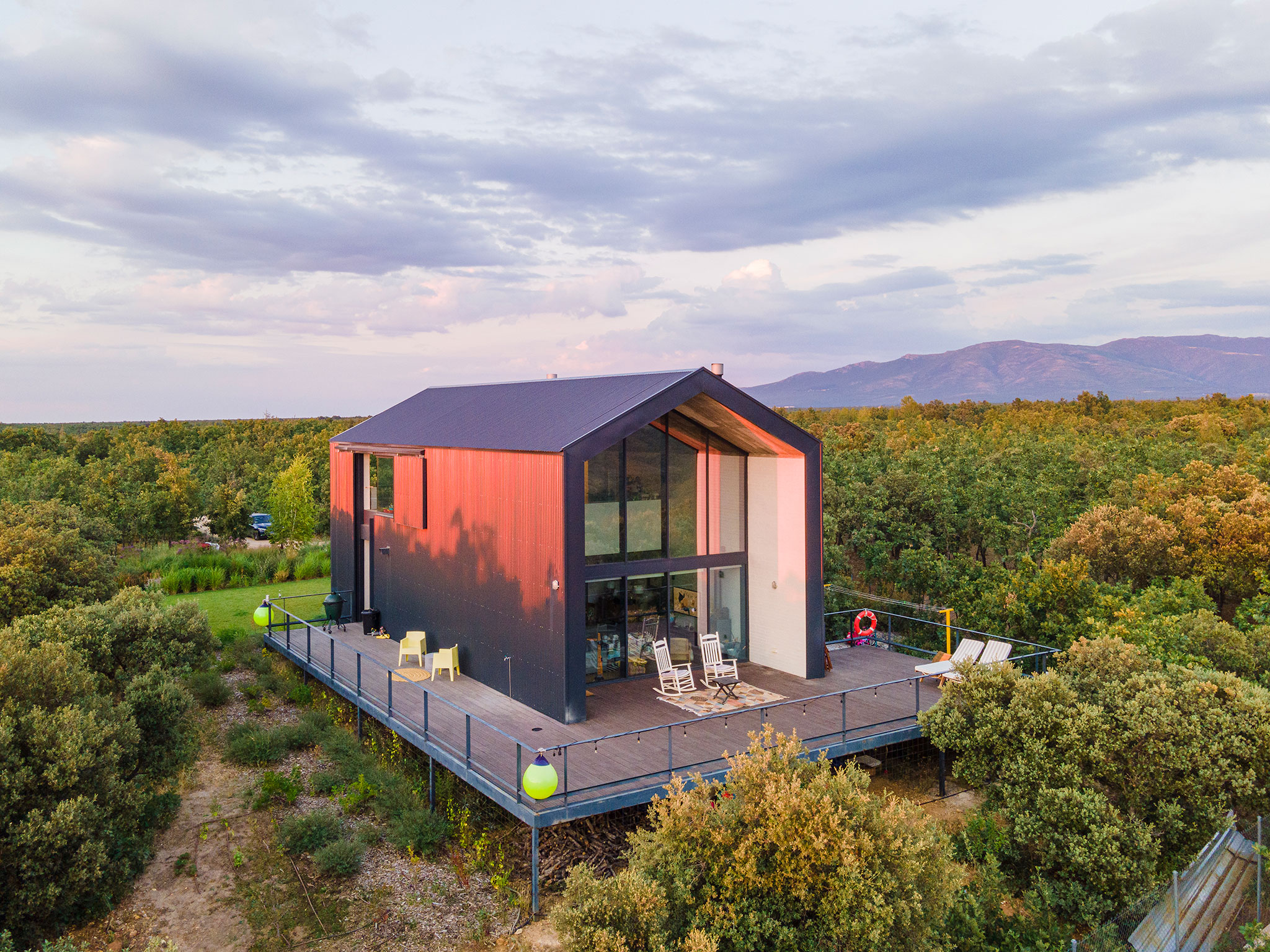

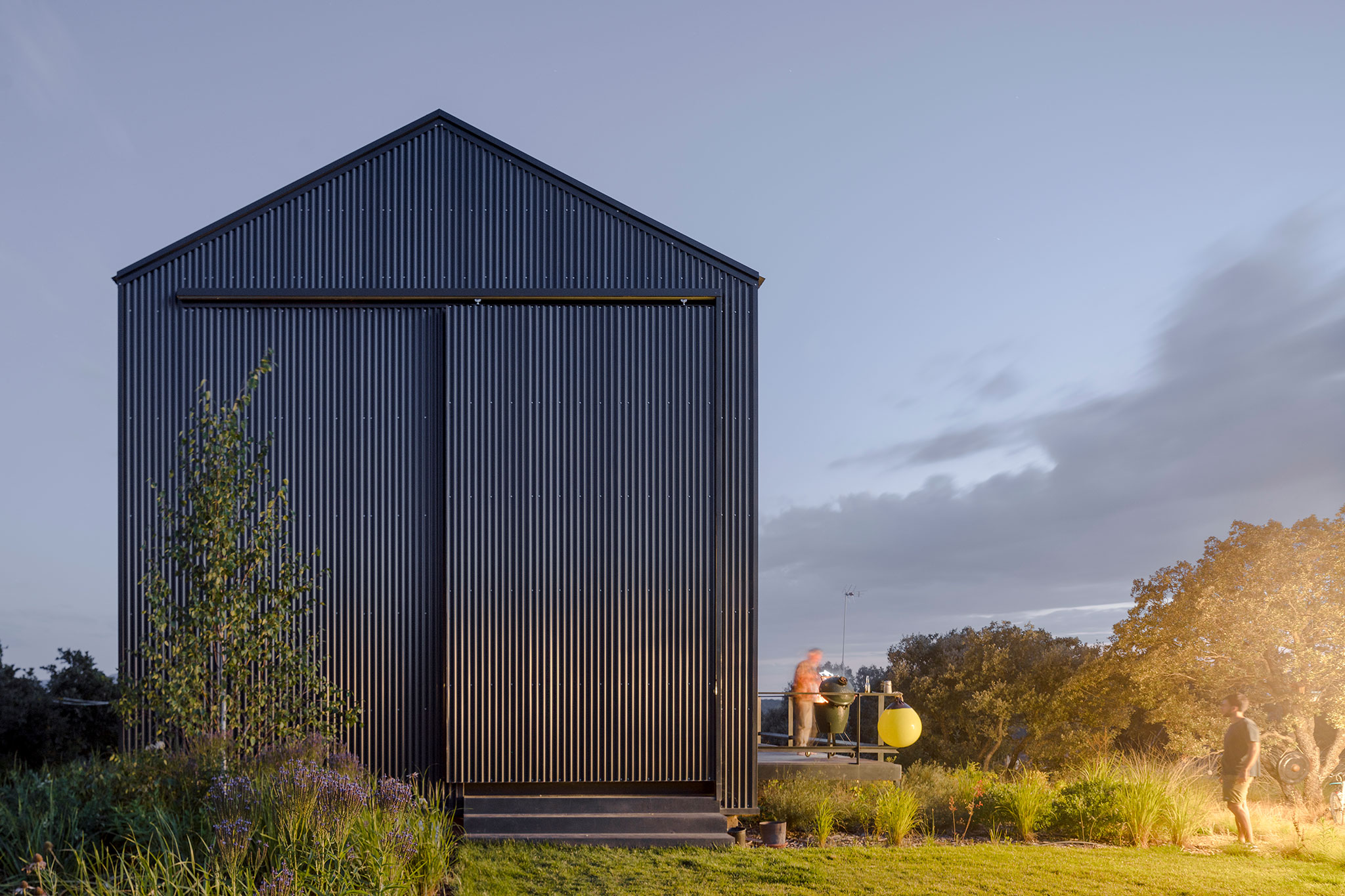

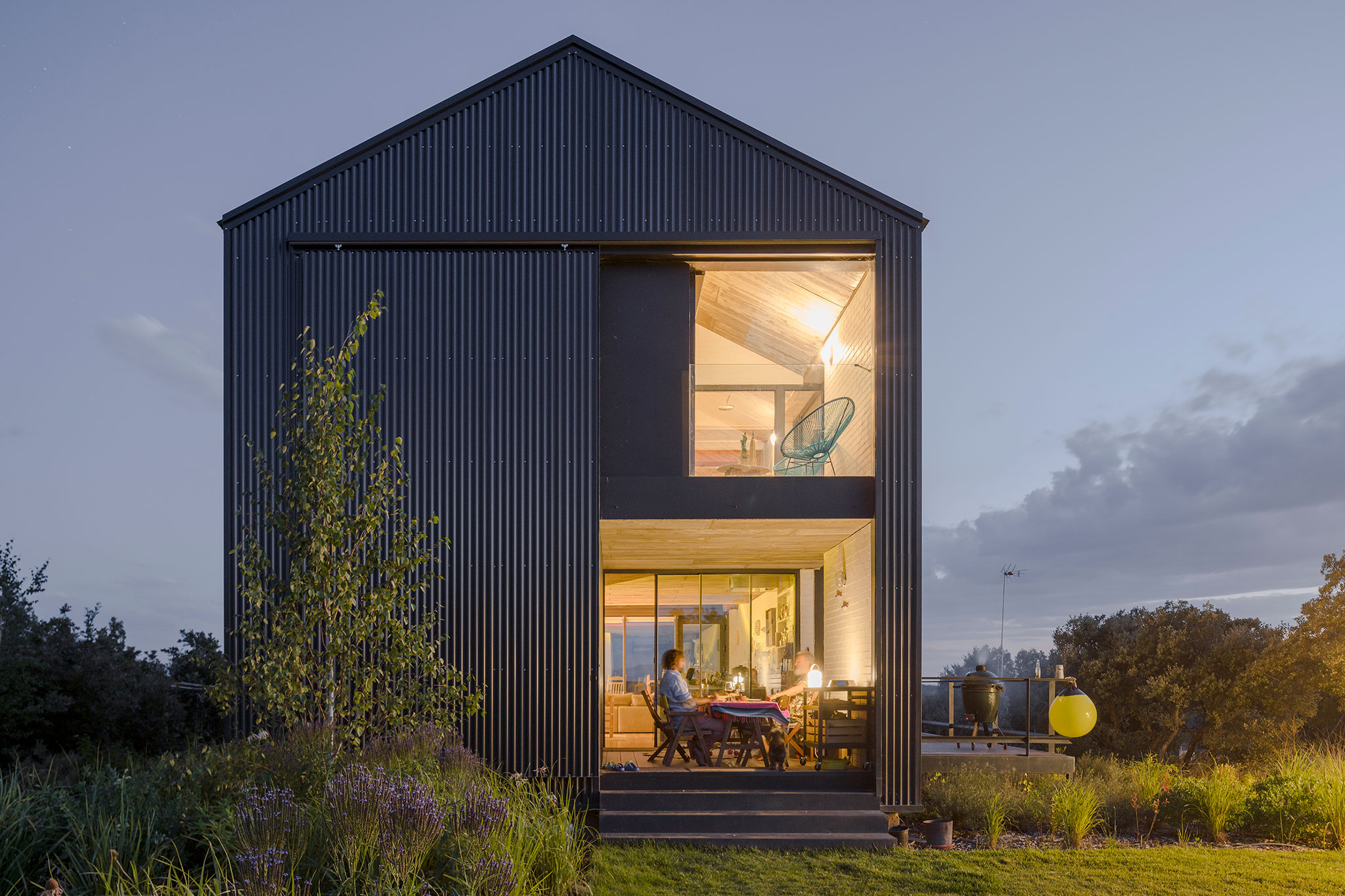

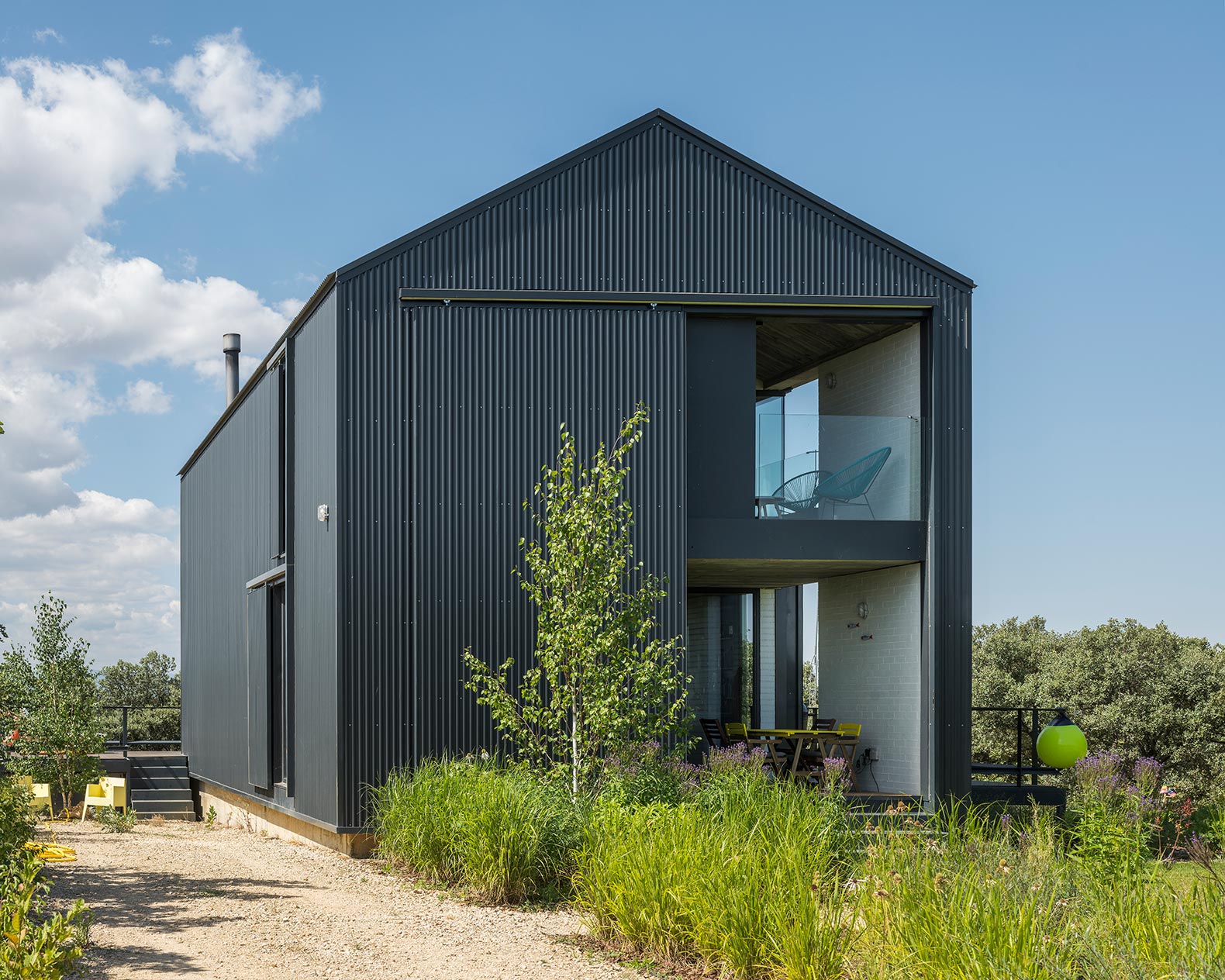

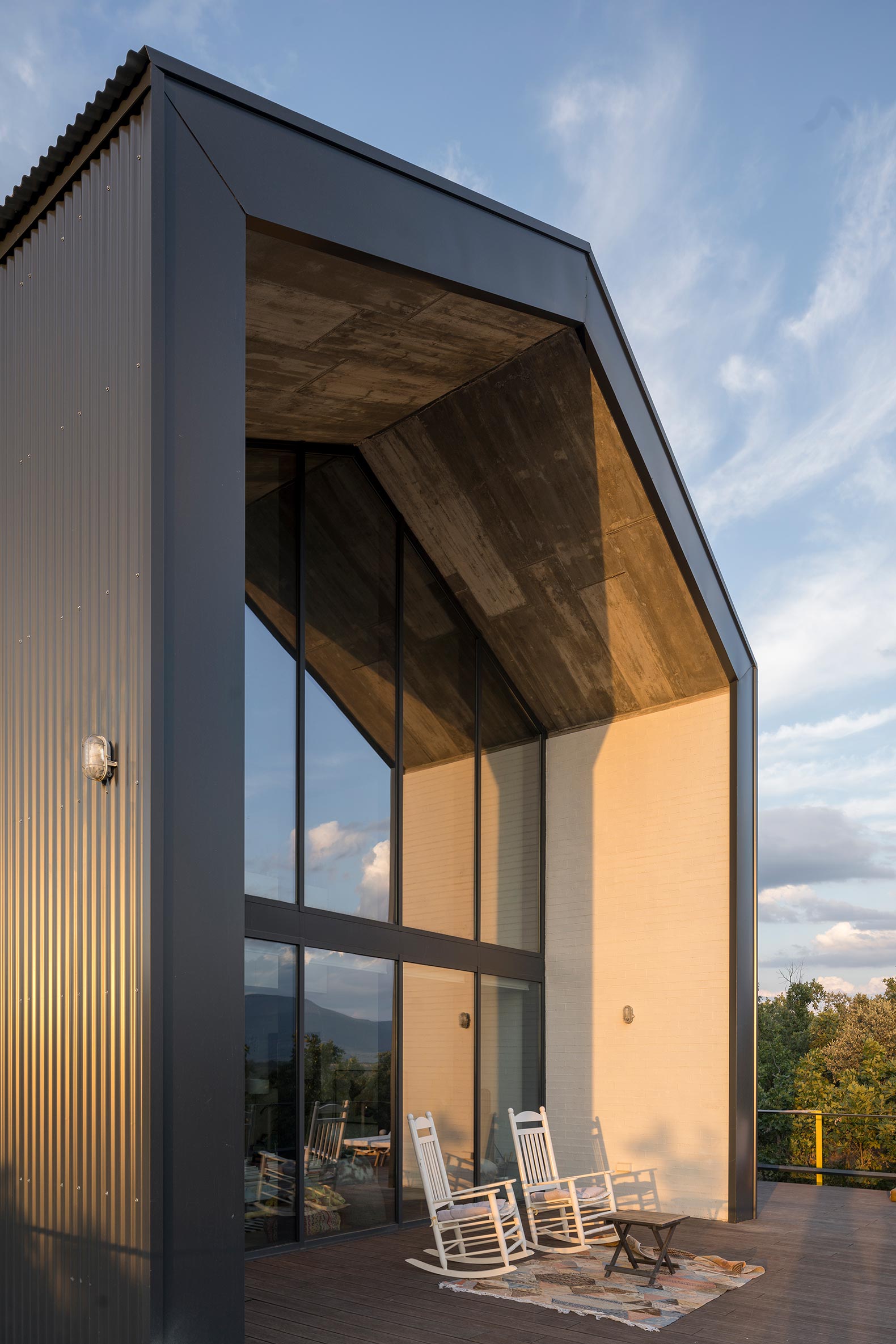

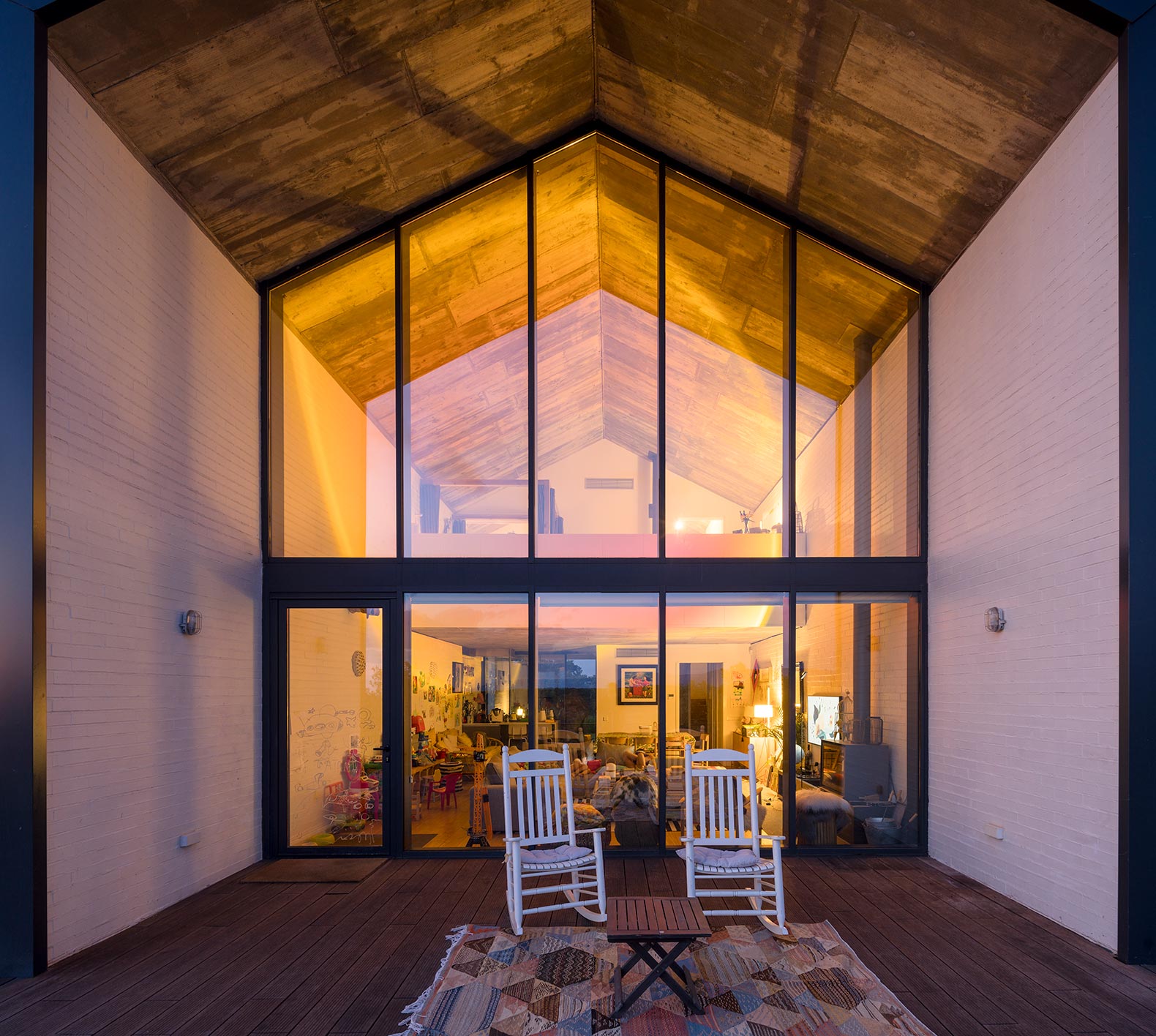

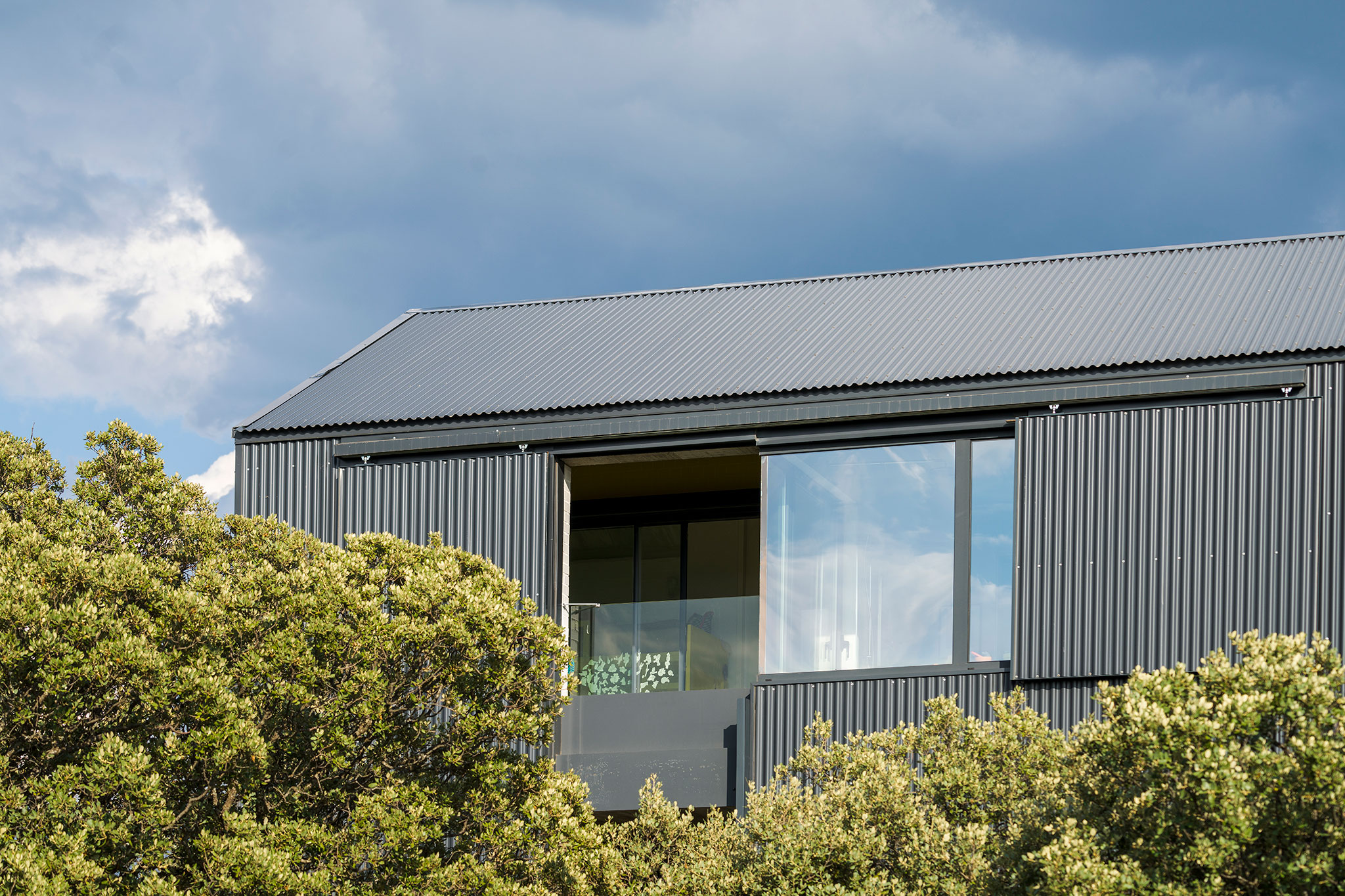

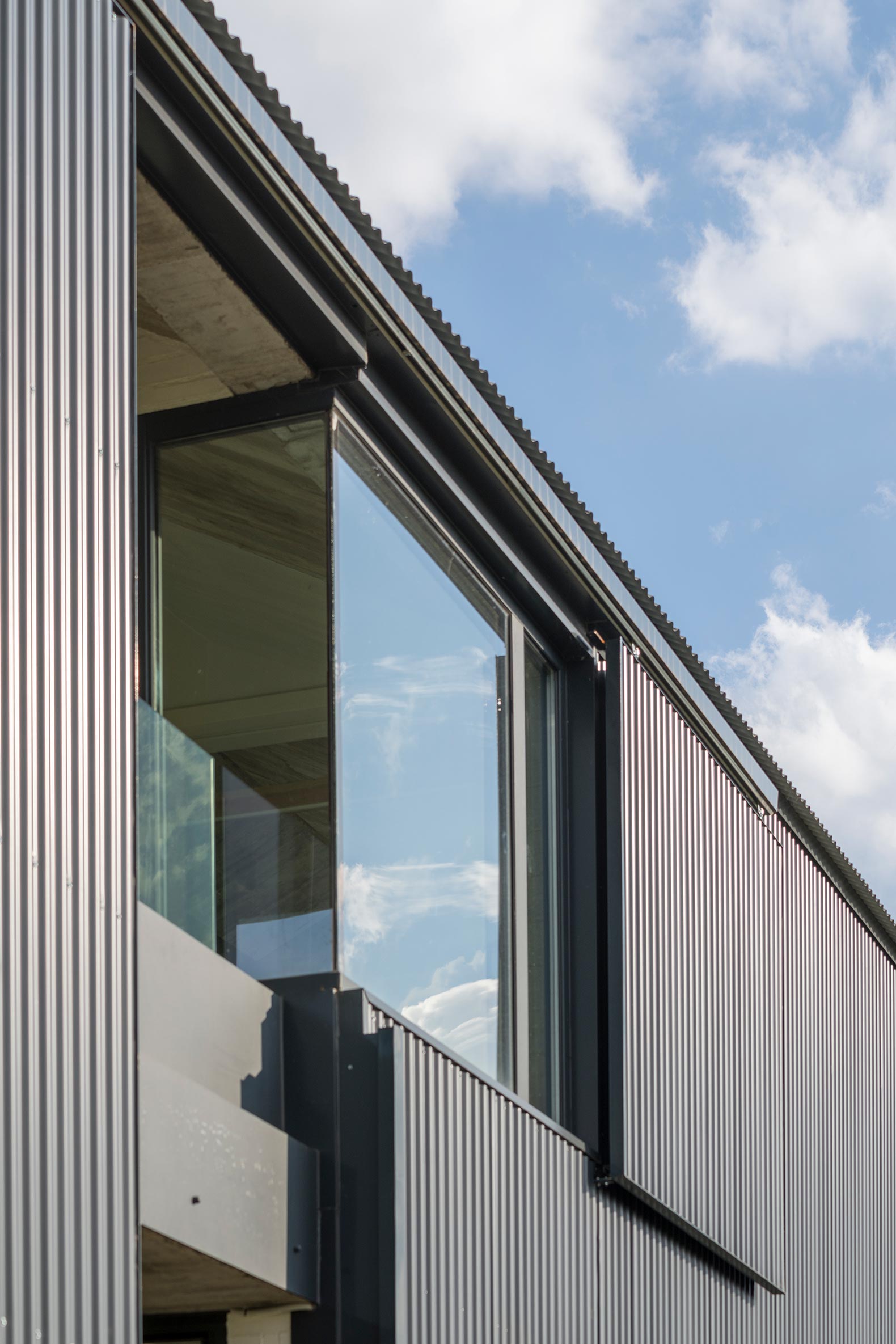

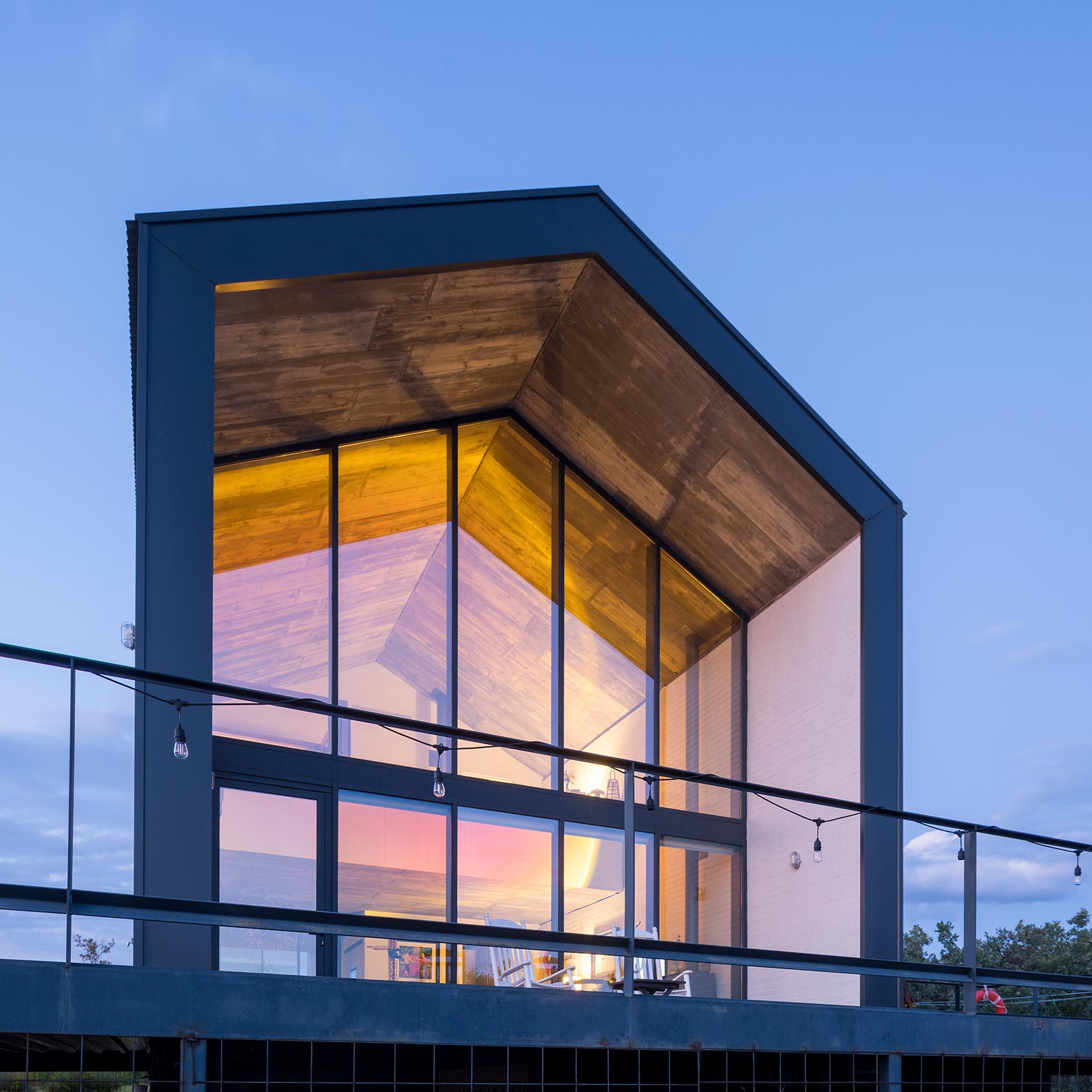

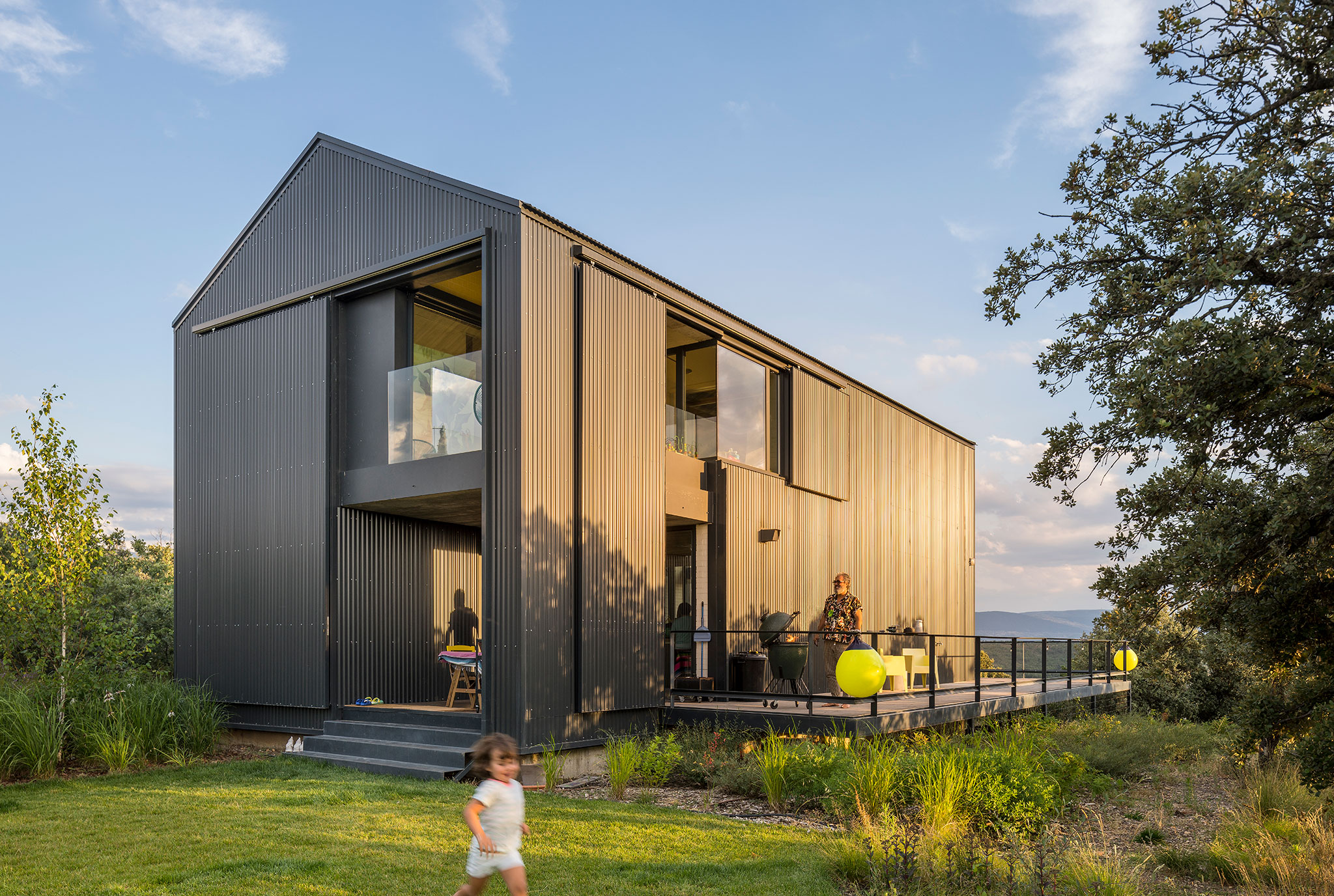

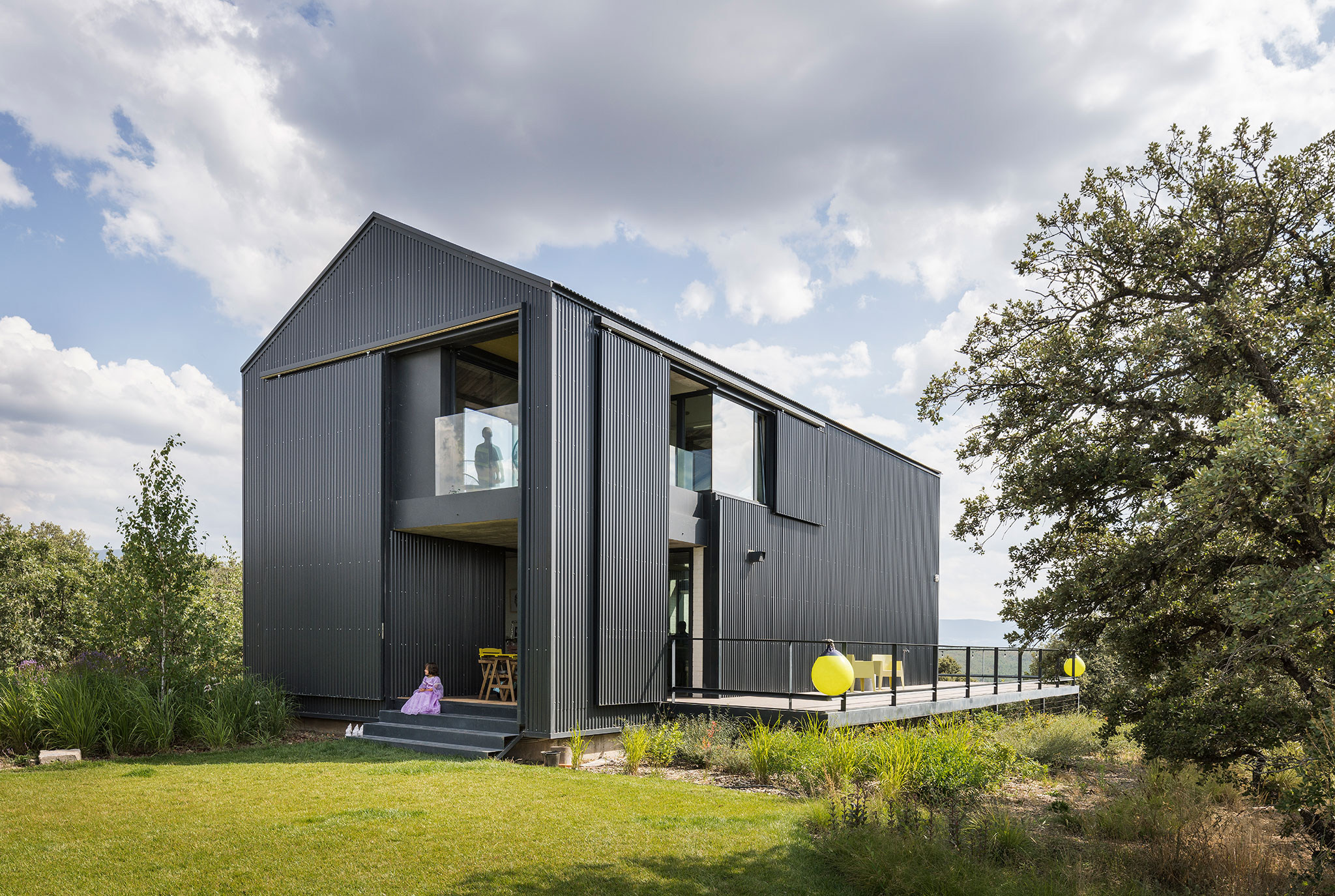

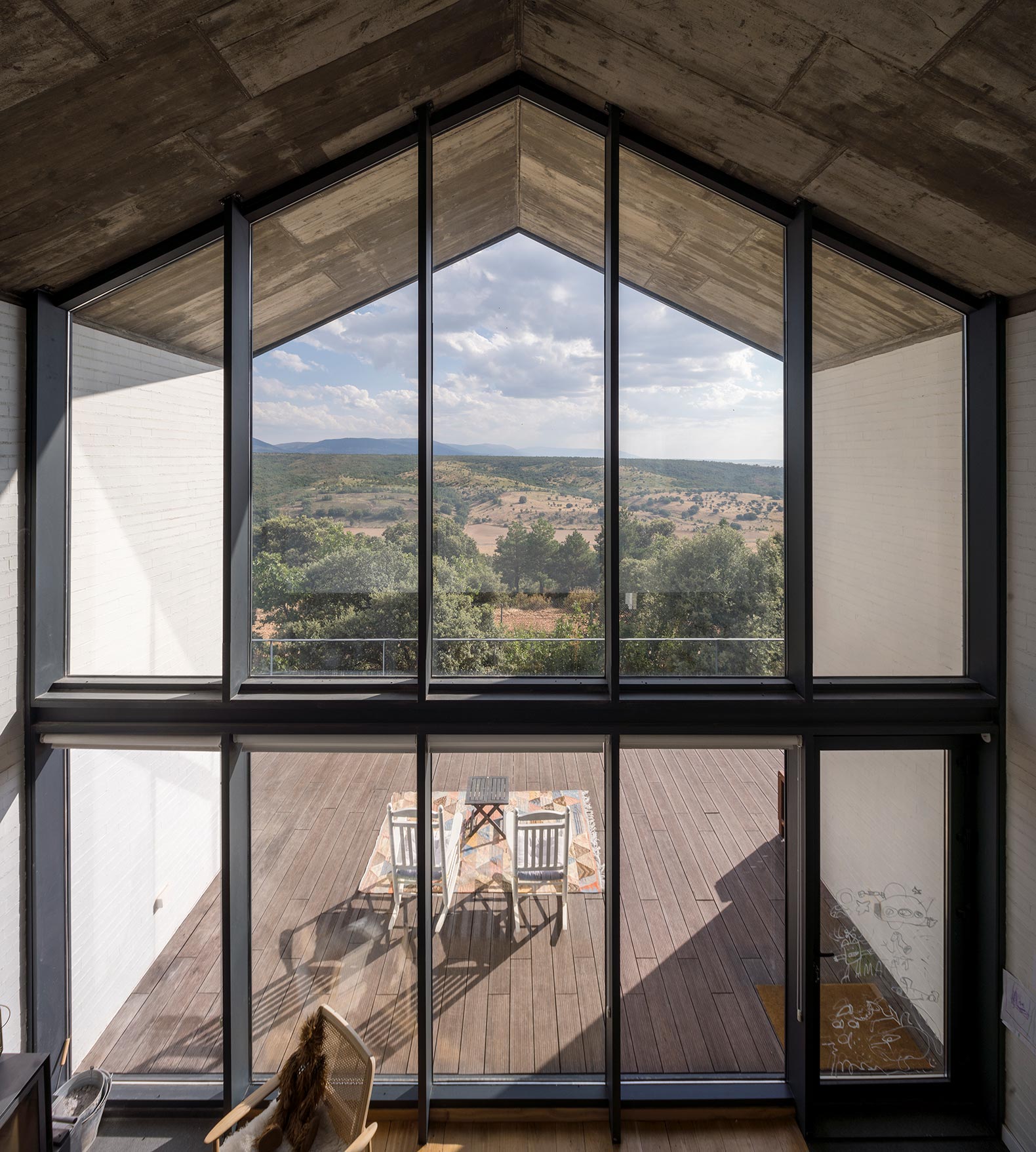

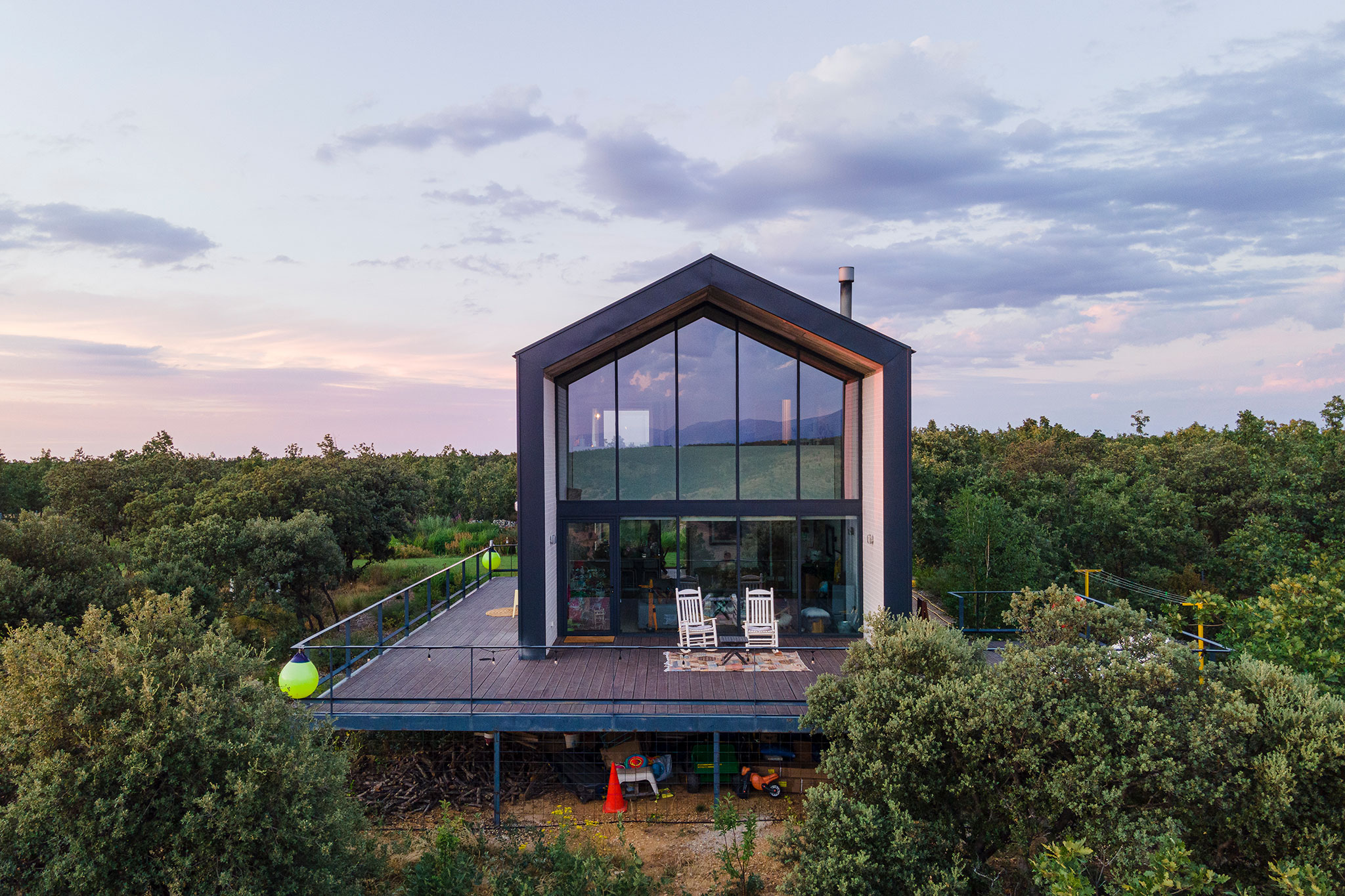

Faced with the aggressive weather of the Sierra de Guadarrama, it was decided to protect all the gaps in the north, east and west facades with shutters of the same finish as the outer envelope (mini wave metal sheet). On its south face, behind the protection of a narthex, a curtain wall photographs the landscape and stands as a silent witness to the passage of time and the seasons.

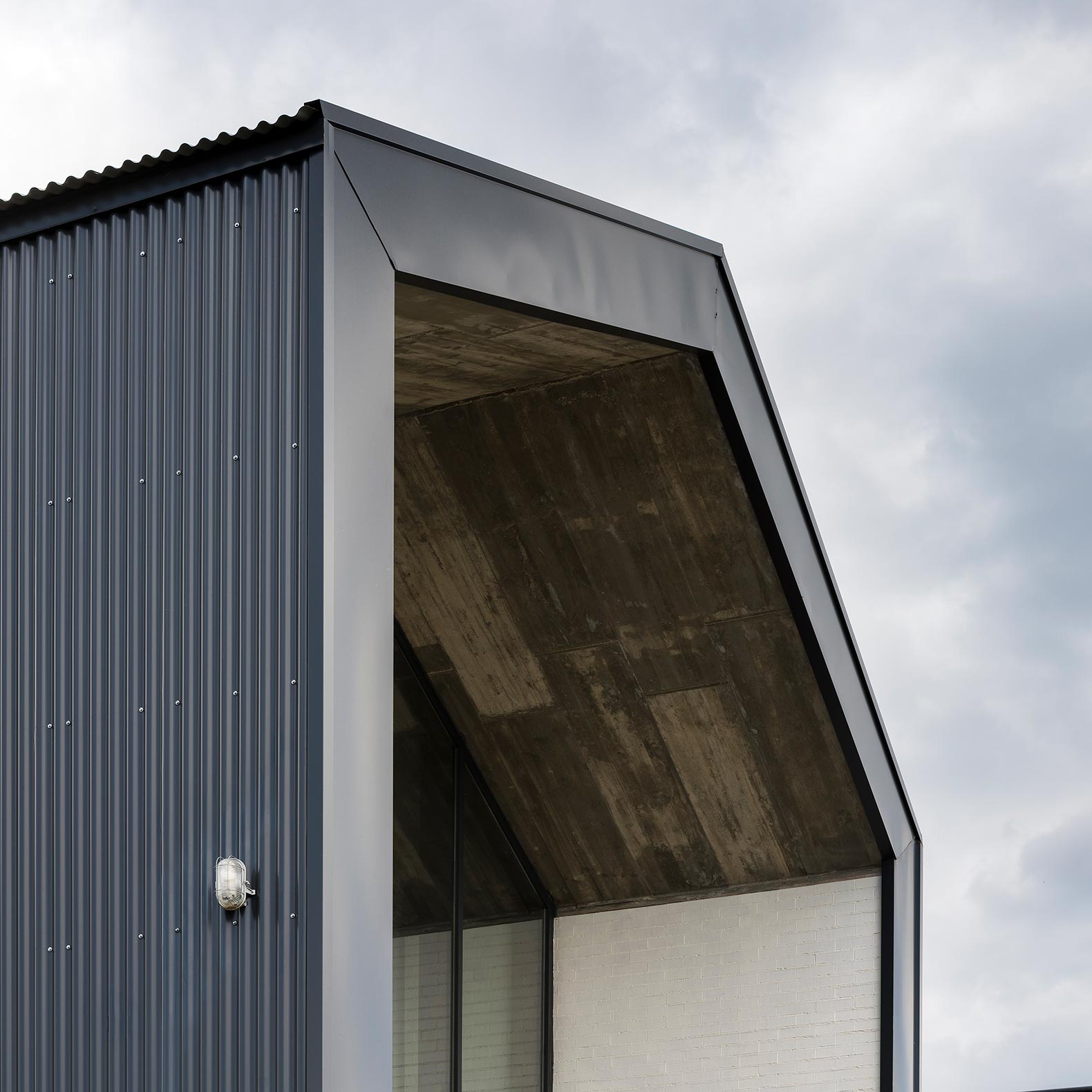

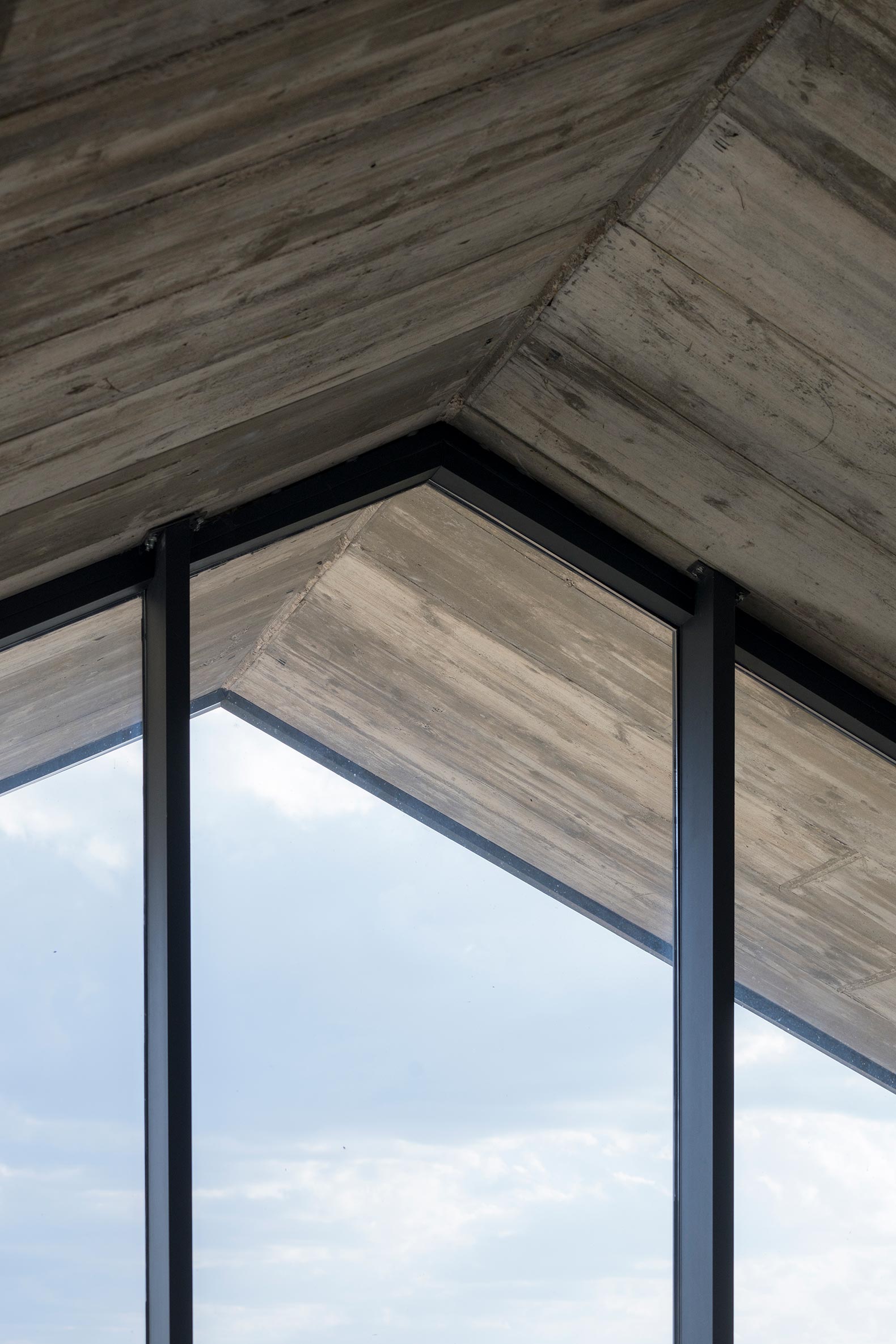

Metal columns and reinforced concrete slabs structurally solve the building. The brick enclosure and concrete slabs are wrapped on the outside with rock wool and miniature aluminum sheet lacquered in anthracite color. The outdoor terrace finished in synthetic wood rests on a lightweight metal structure.
More information
Architects
Alberich-Rodríguez Arquitectos. Carlos Alberich, Emilio Rodríguez.
Collaborators
Fernando Martos.- Landscape.
Builder
DADPINSON S.L.
Area
174.25 m².
Dates
2016-2021.
Manufacturers
Exterior carpentry.- CORTIZO. Blinds.- BANDALUX. Kitchen.- SANTOS. Chimneys.- STUV. Laminate flooring.- DE PALIMA. Faucet.- BOSSINI-CRISTINA. Washbasins.- INDA. Wood Carpentry.- Curro Brena. Aluminum carpentry and exterior envelope.- Aluminios Briceño.
Photography
Carlos Alberich, Emilio Rodríguez. Alberich-Rodríguez Arquitectos
Alberich-Rodríguez Arquitectos, is an architecture studio based in Madrid. Carlos Alberich Lanzos and Emilio Rodriguez Jiménez, both architects, join the Alberich Arquitectos studio as partners; which was founded by Raimundo Alberich Cid in 1992. Raimundo Alberich and Emilio Rodríguez have been collaborating in numerous architectural competitions and projects for more than twenty years.
