Variable geometry. Campañó soccer field by Santos y Mera Arquitectos
13/05/2020.
[Pontevedra] Spain
metalocus, HAMZA AYADI
metalocus, HAMZA AYADI
Santos y Mera arquitectos have projected the remodeling of the Campañó football field. This football club gets its name from the place where it is located, the Campañó parroquia, an administrative division belonging to the municipality of Pontevedra, in the autonomous community of Galicia.
To do this, they start from an old compacted land field with a series of installations in quite deterioration which, in turn, are the only access to the field and with a notable difference in height with respect to access from the road.
These parameters, together with the high-voltage lines that are located on the perimeter of the place, are the bases that give rise to this unique soccer field.
To do this, they start from an old compacted land field with a series of installations in quite deterioration which, in turn, are the only access to the field and with a notable difference in height with respect to access from the road.
These parameters, together with the high-voltage lines that are located on the perimeter of the place, are the bases that give rise to this unique soccer field.

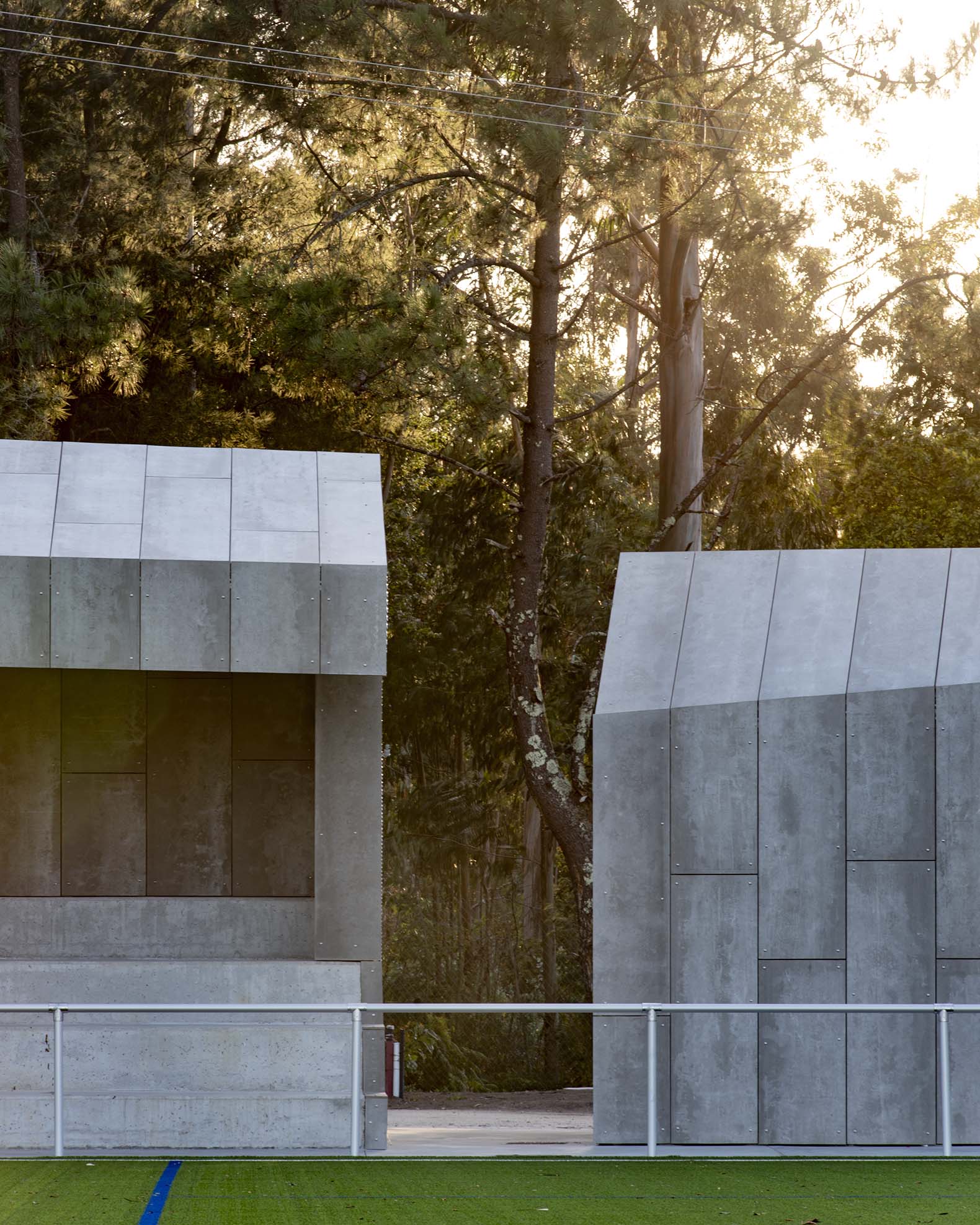

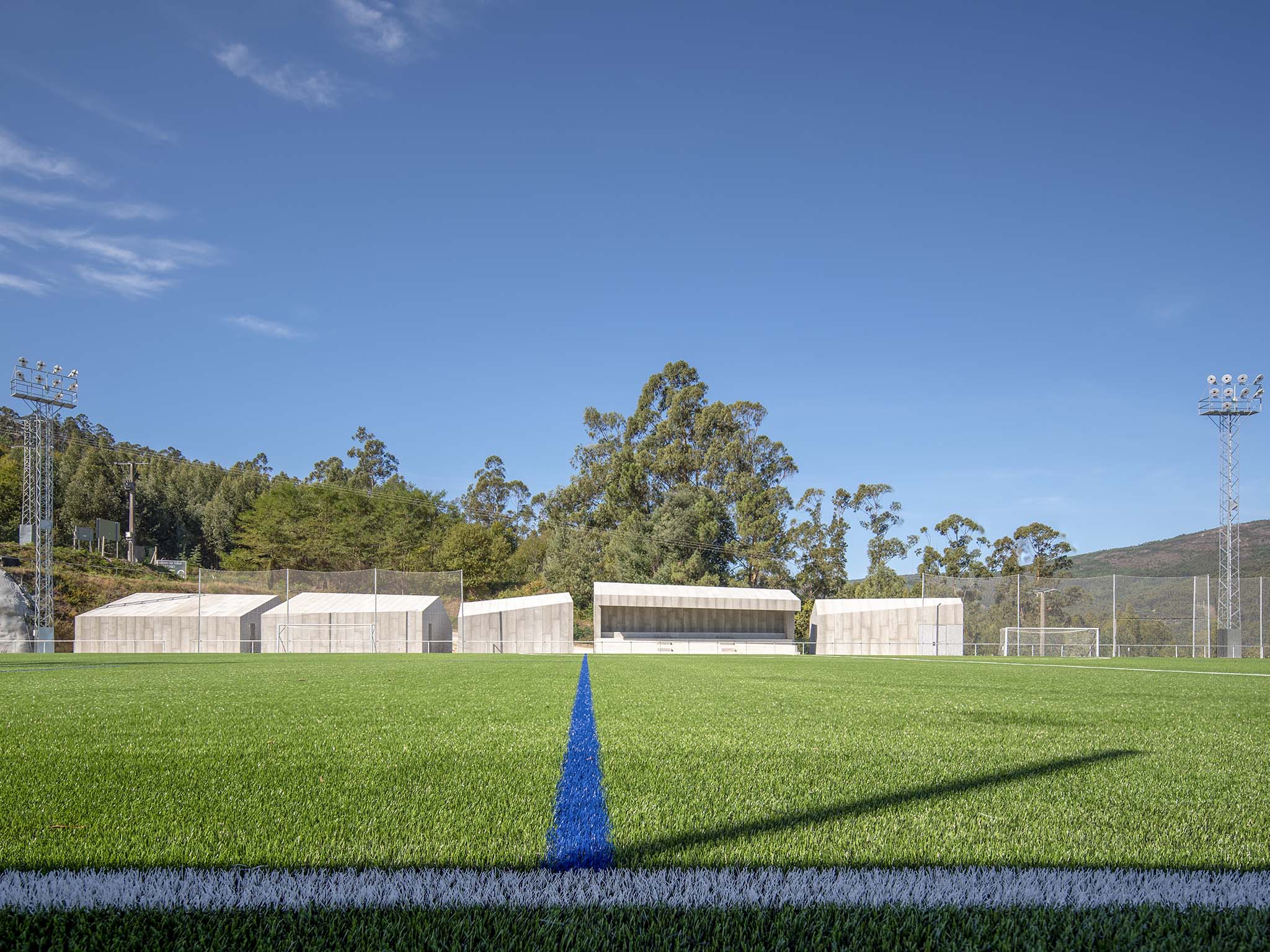

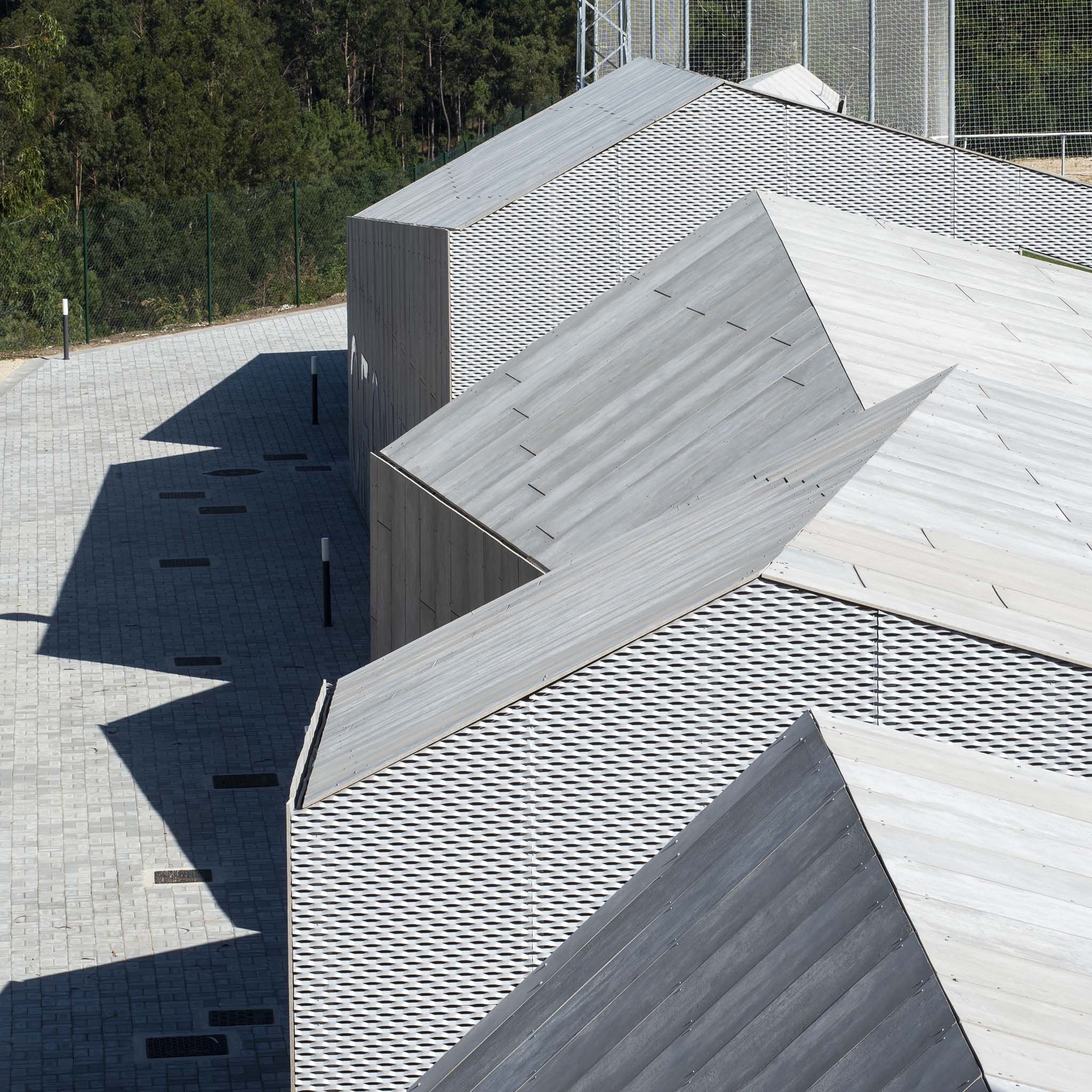

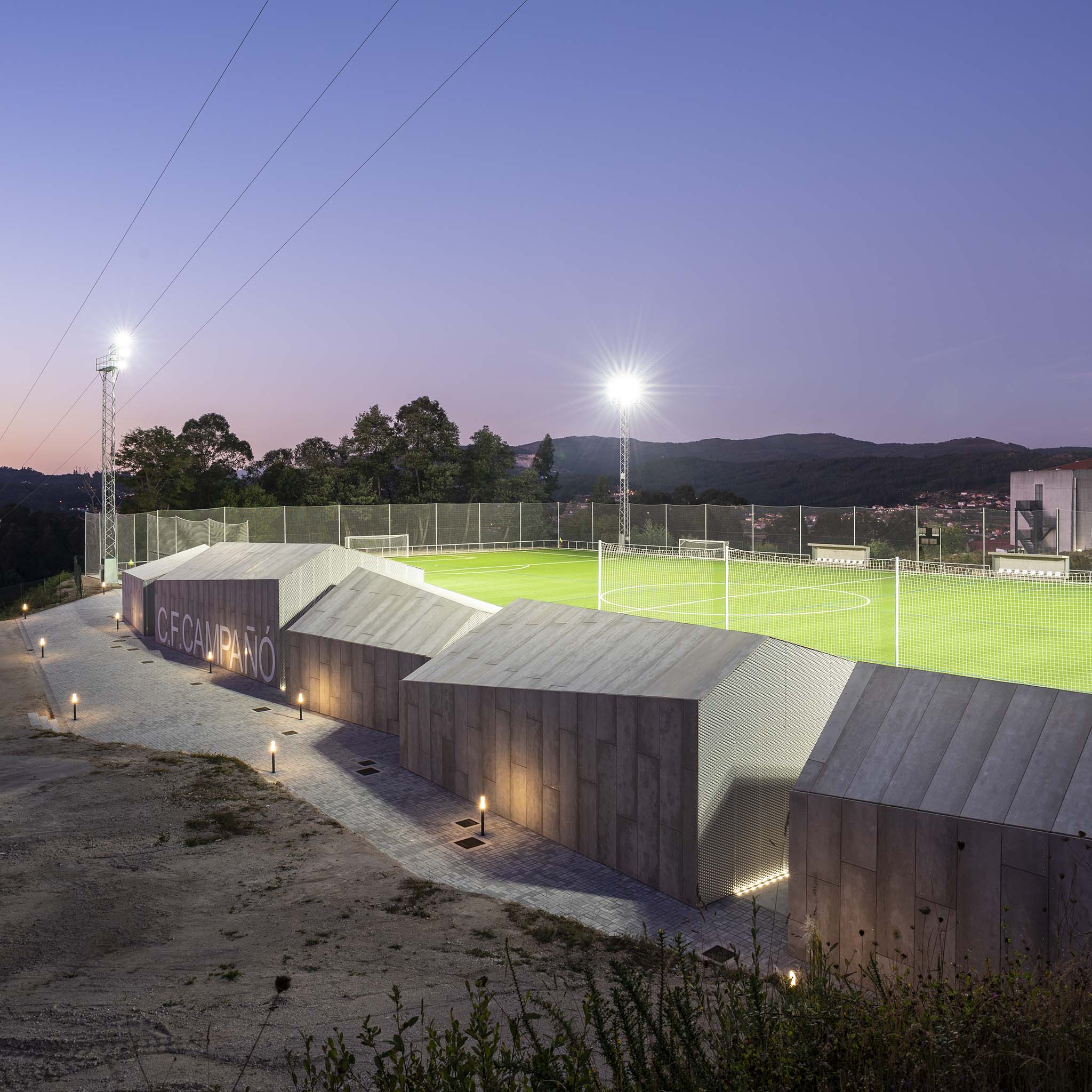

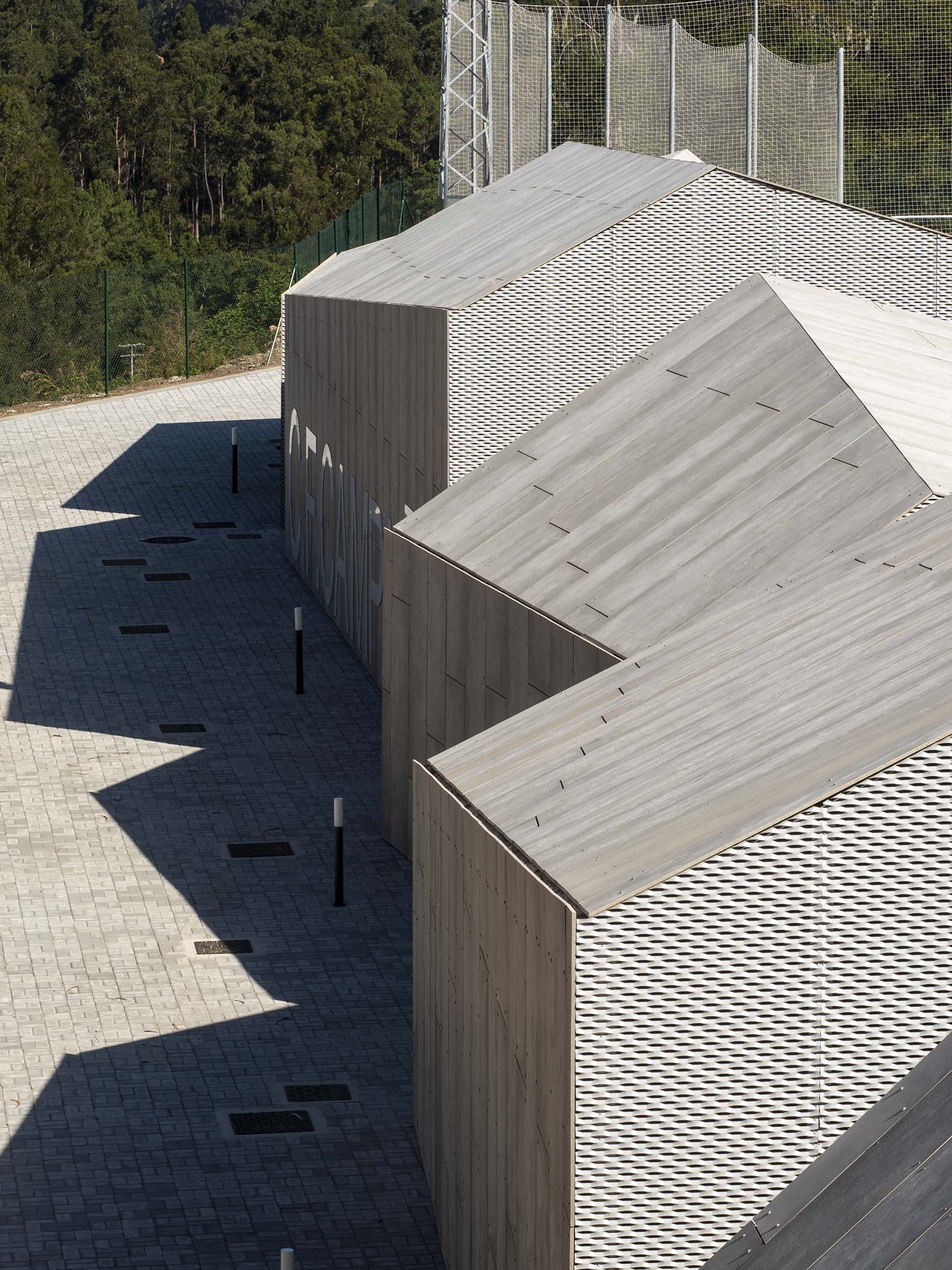

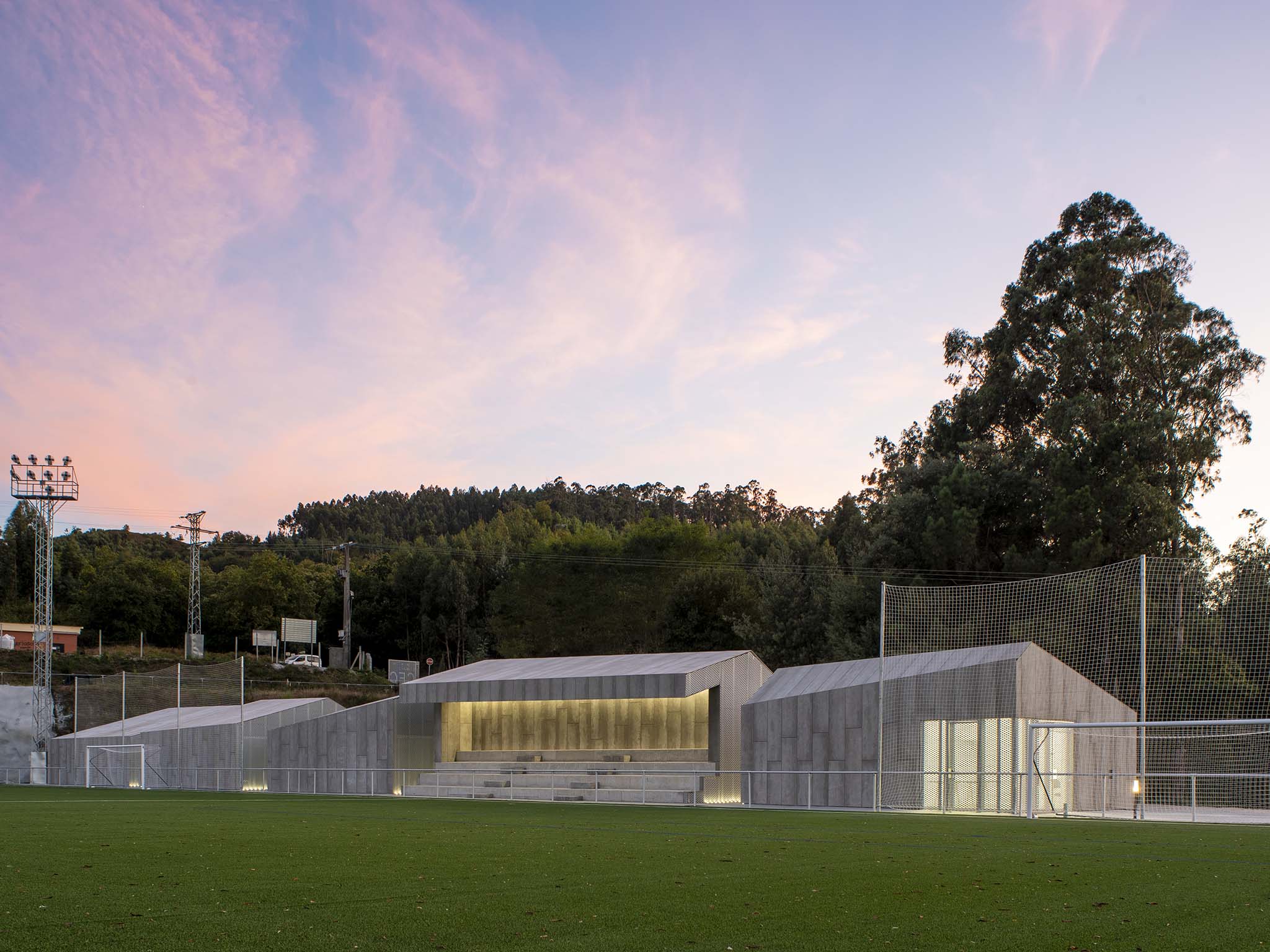

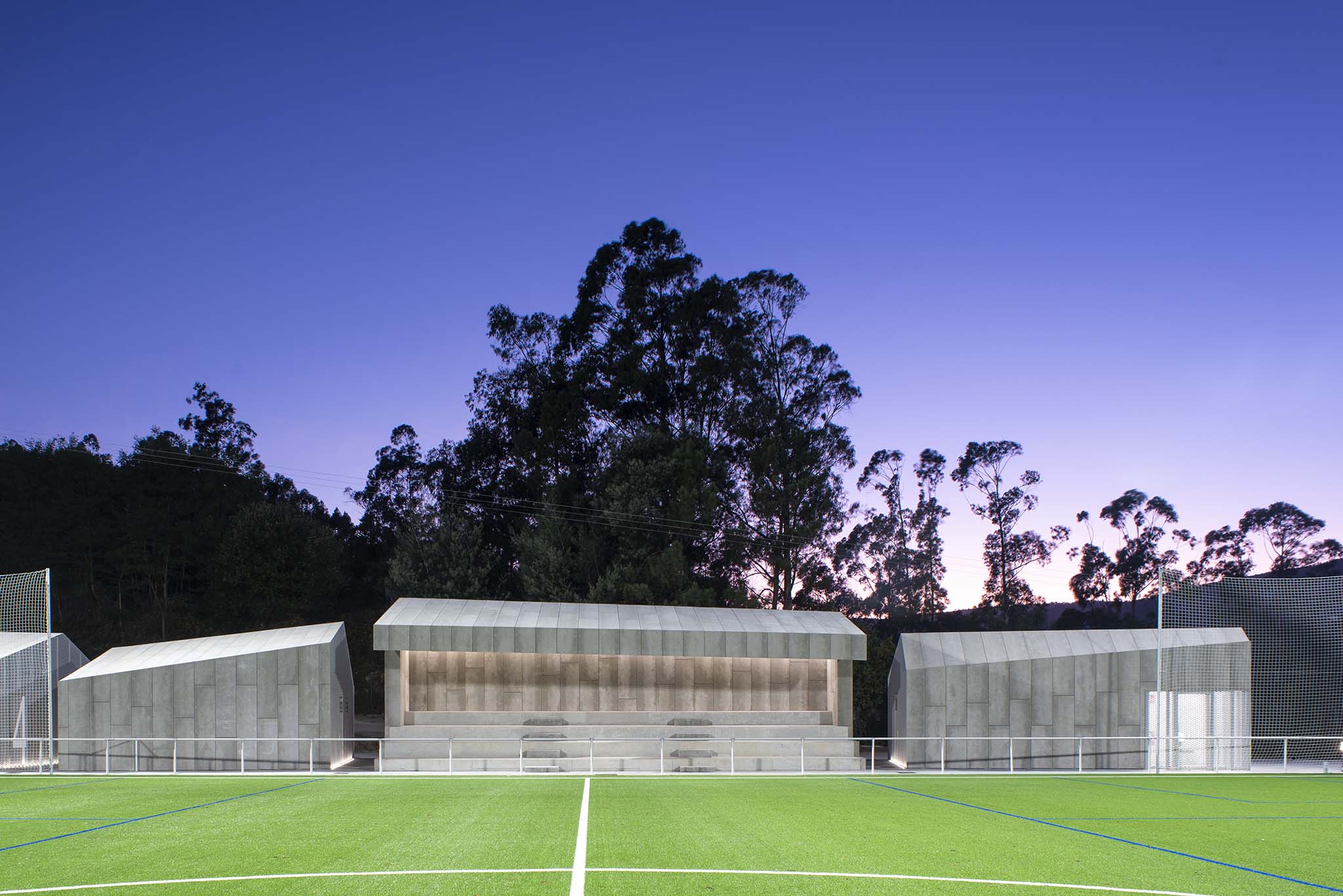

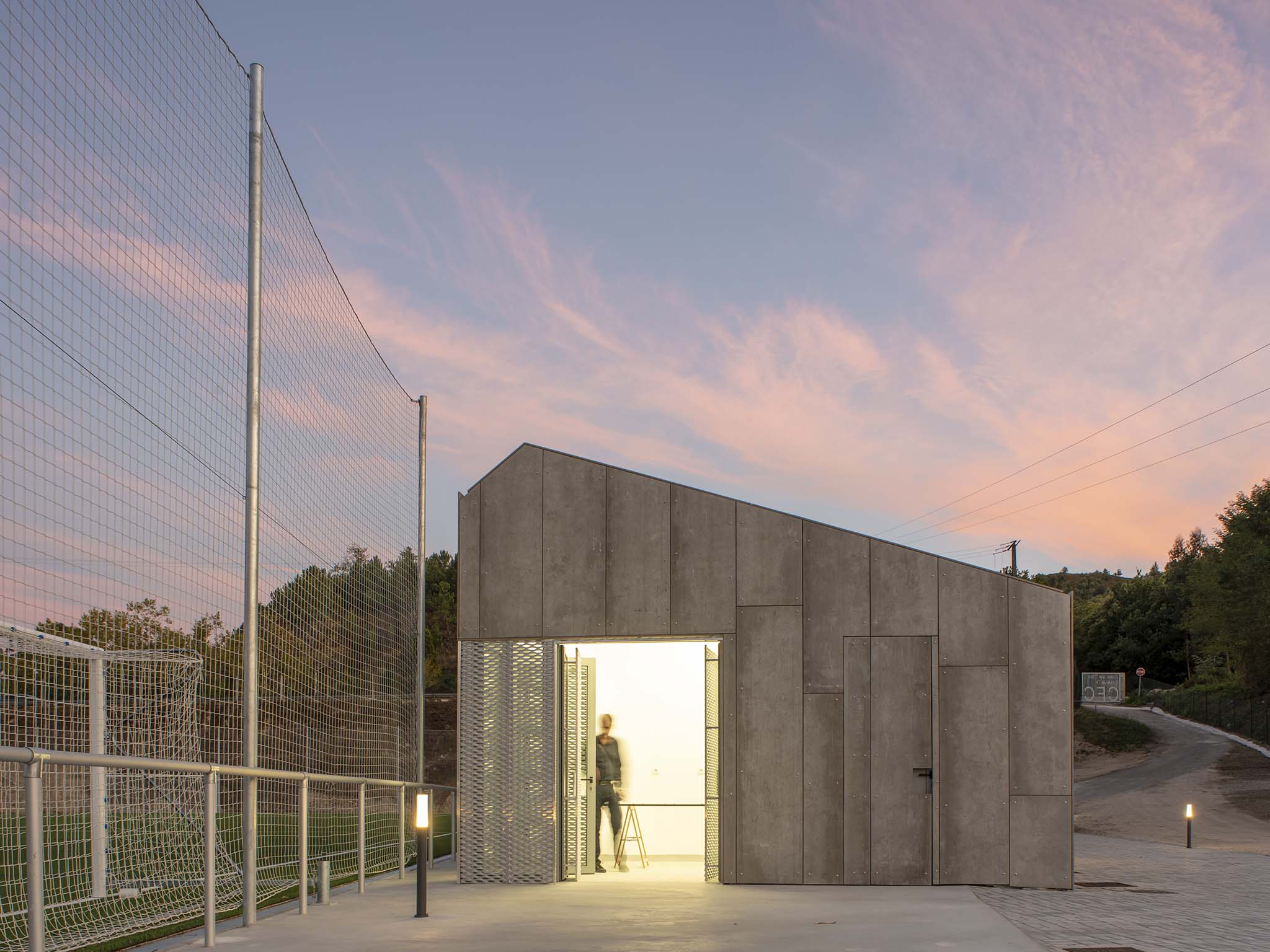

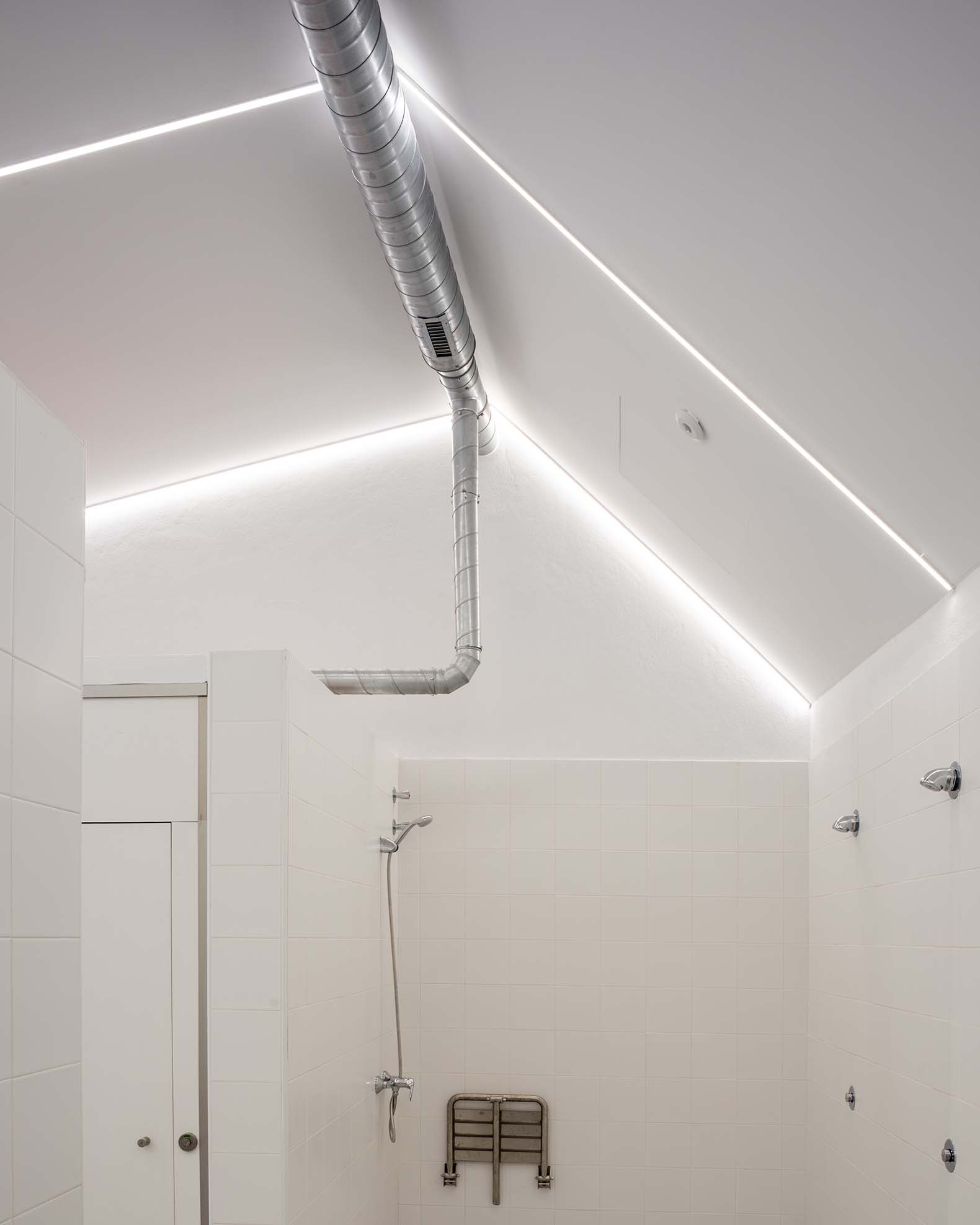

Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez
Campañó soccer field by Santos y Mera Arquitectos. Photograph by Héctor Fernández Santos-Díez

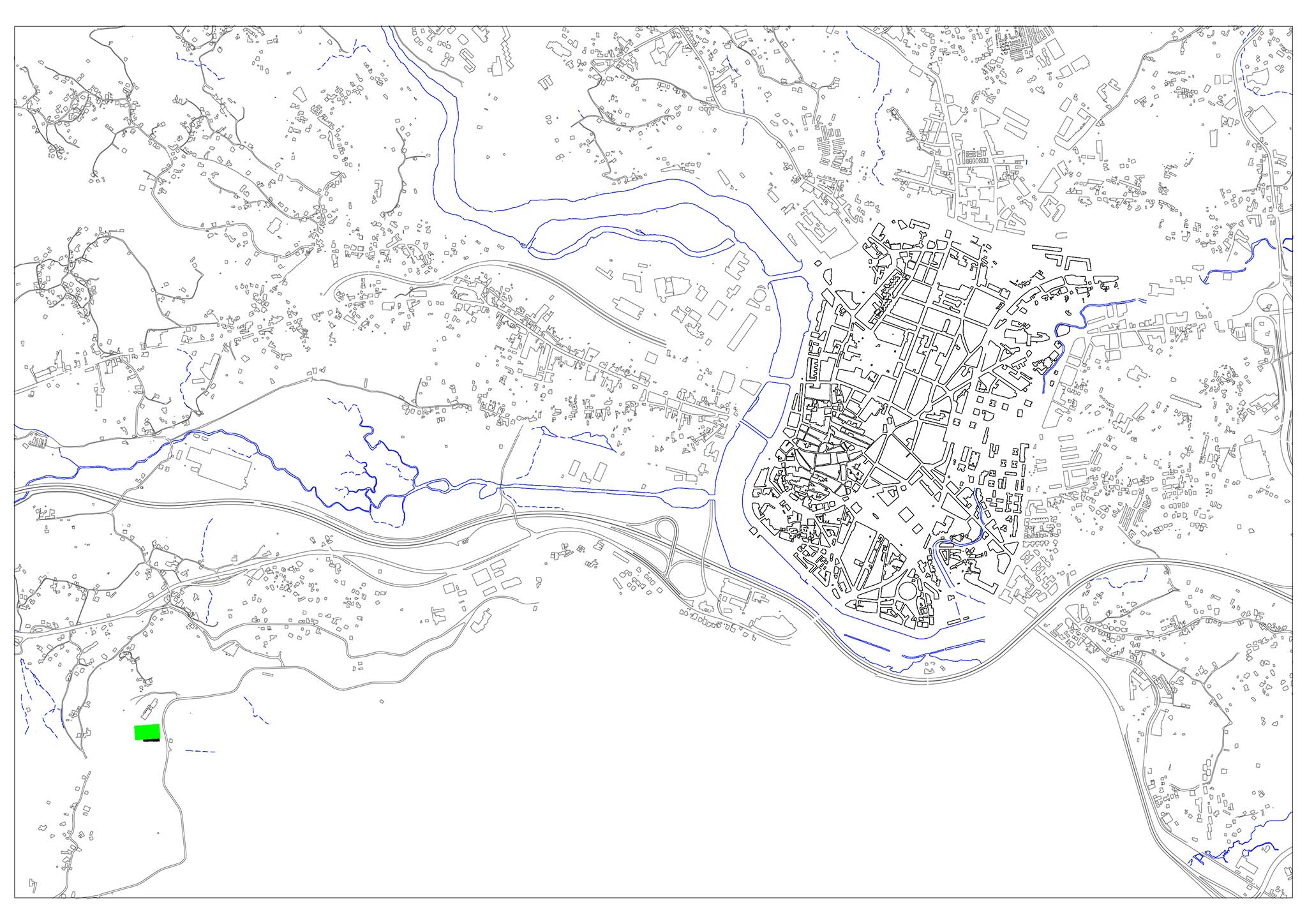

General site plan. Campañó soccer field by Santos y Mera Arquitectos.

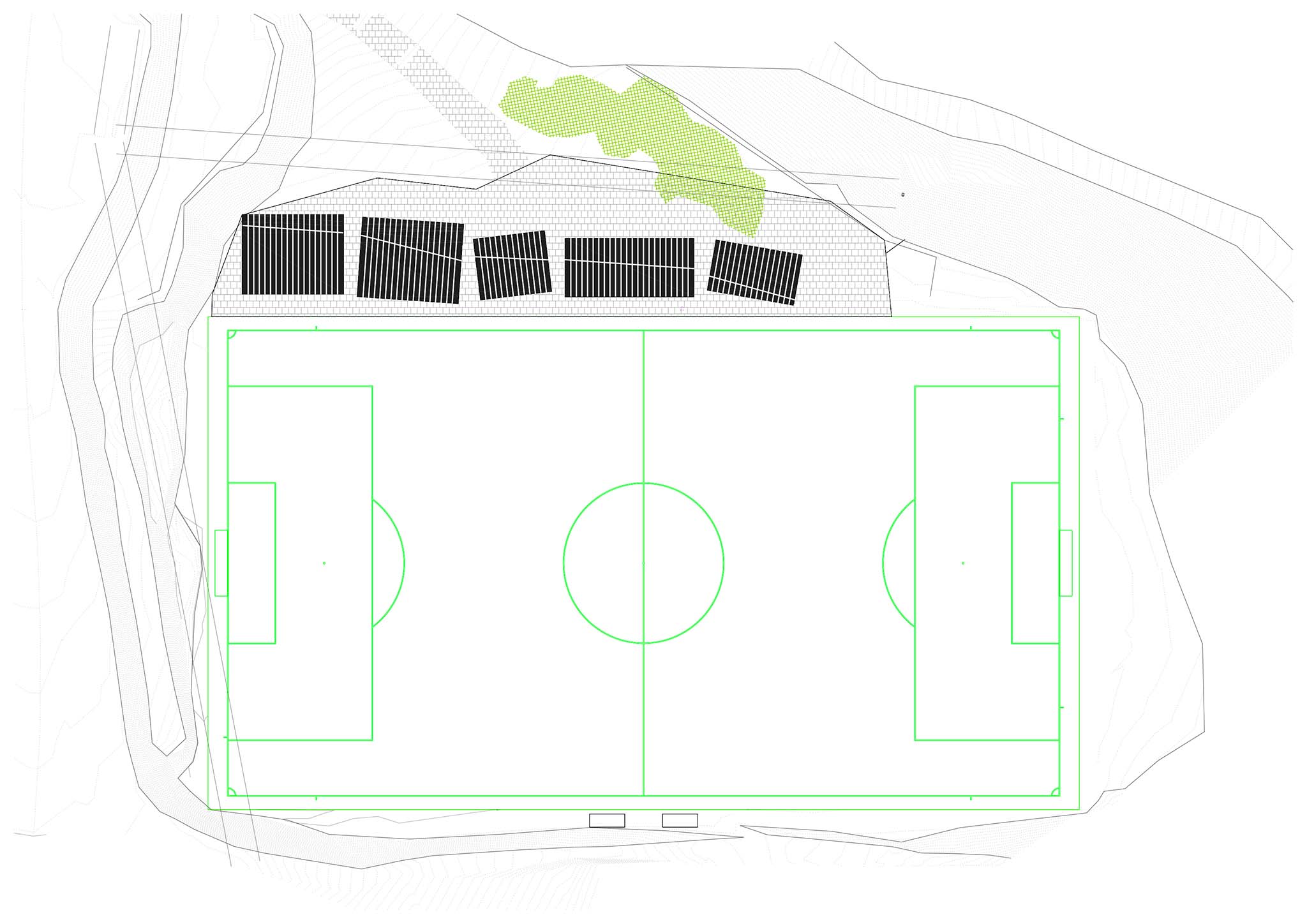

Site plan. Campañó soccer field by Santos y Mera Arquitectos.

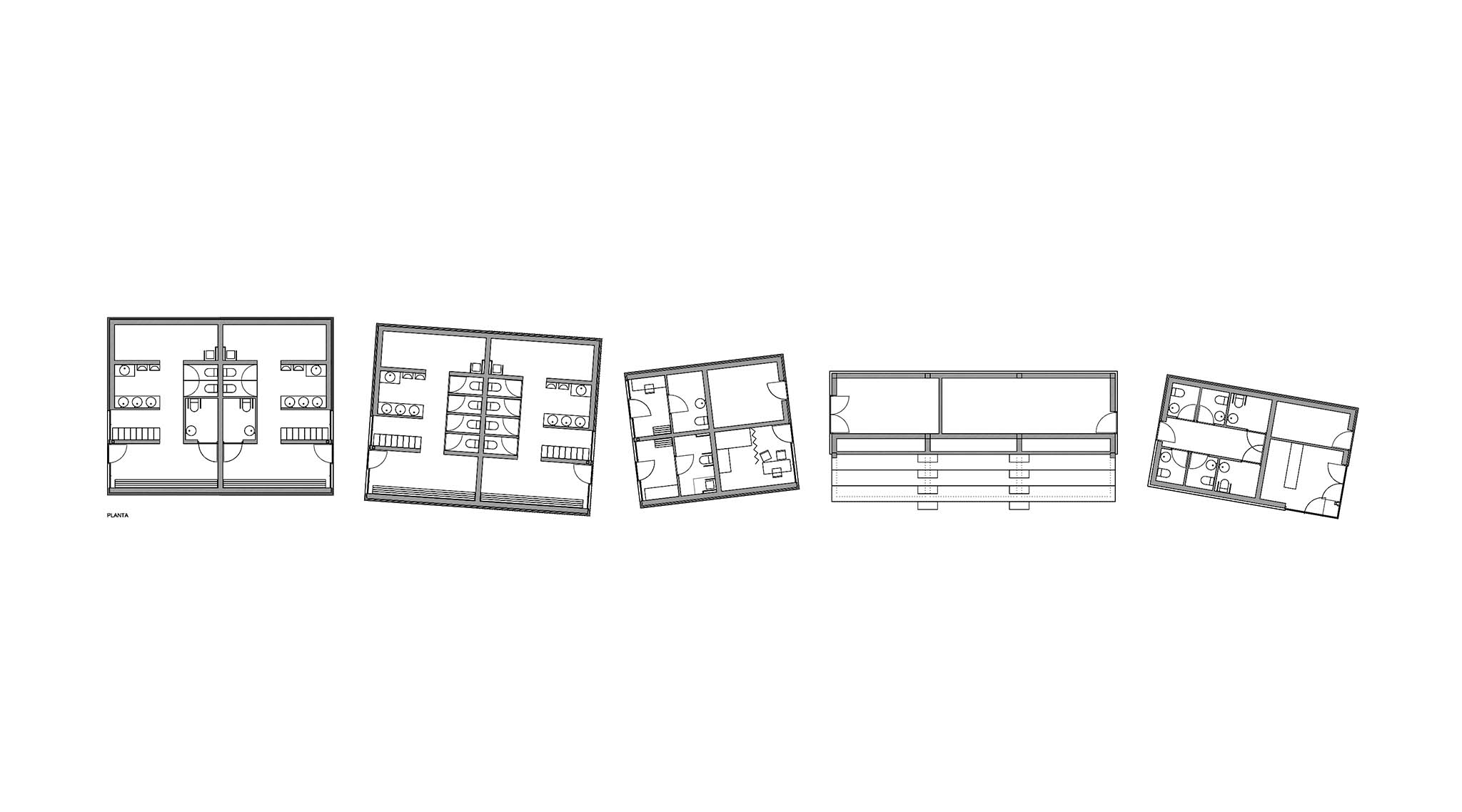

Floor plan. Campañó soccer field by Santos y Mera Arquitectos.

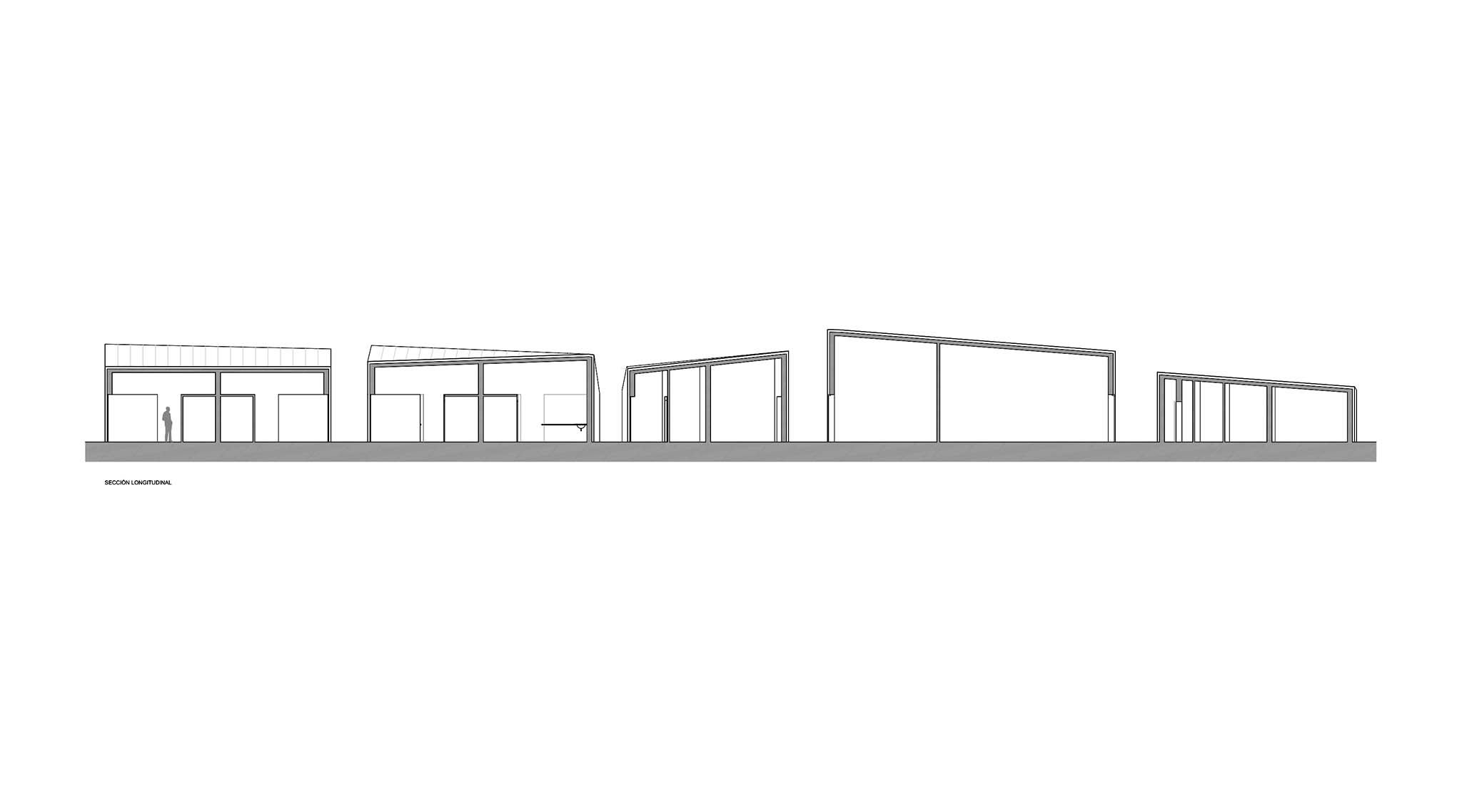

Longitudinal section. Campañó soccer field by Santos y Mera Arquitectos.Sections and elevations I. Campañó soccer field by Santos y Mera Arquitectos.

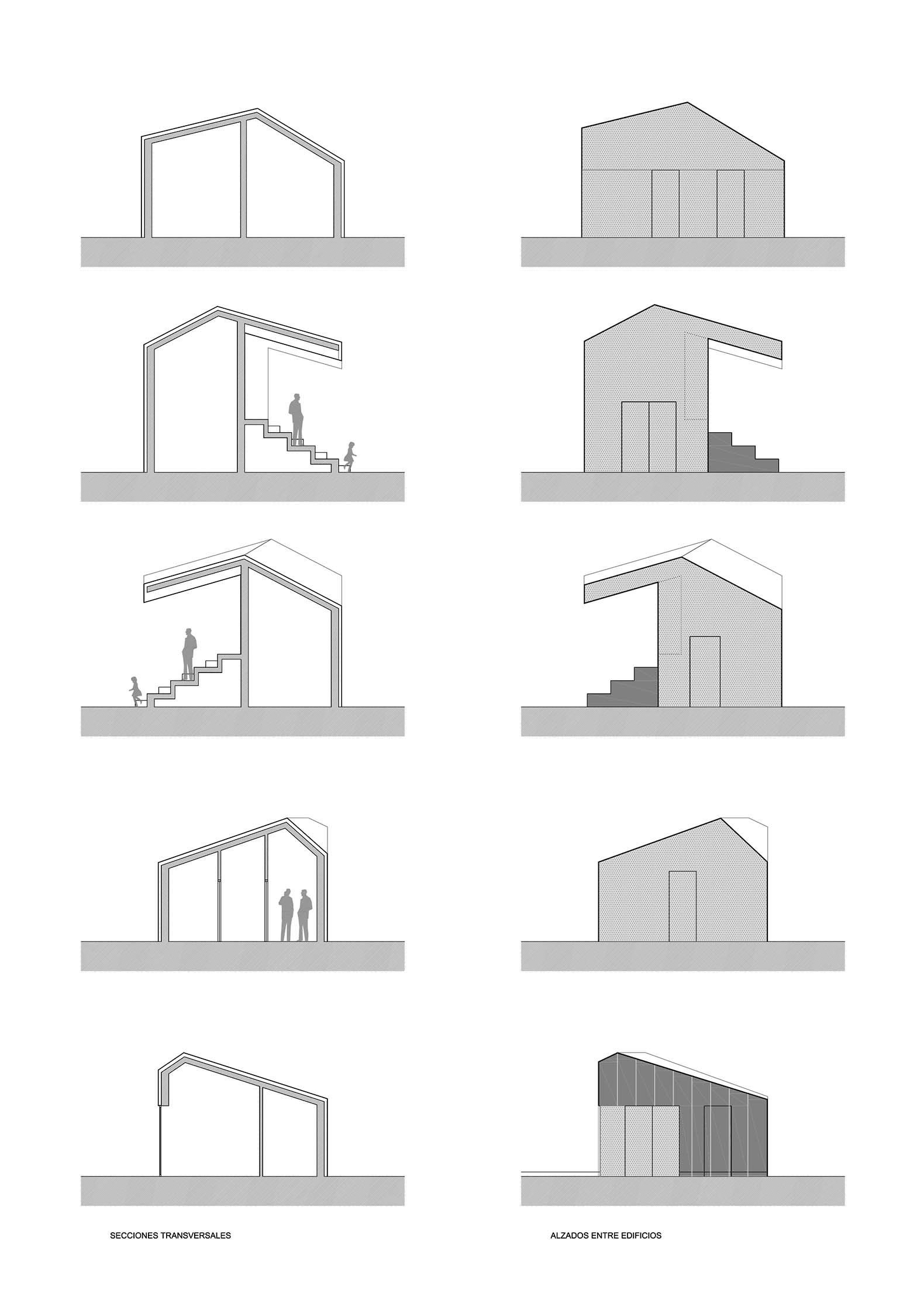

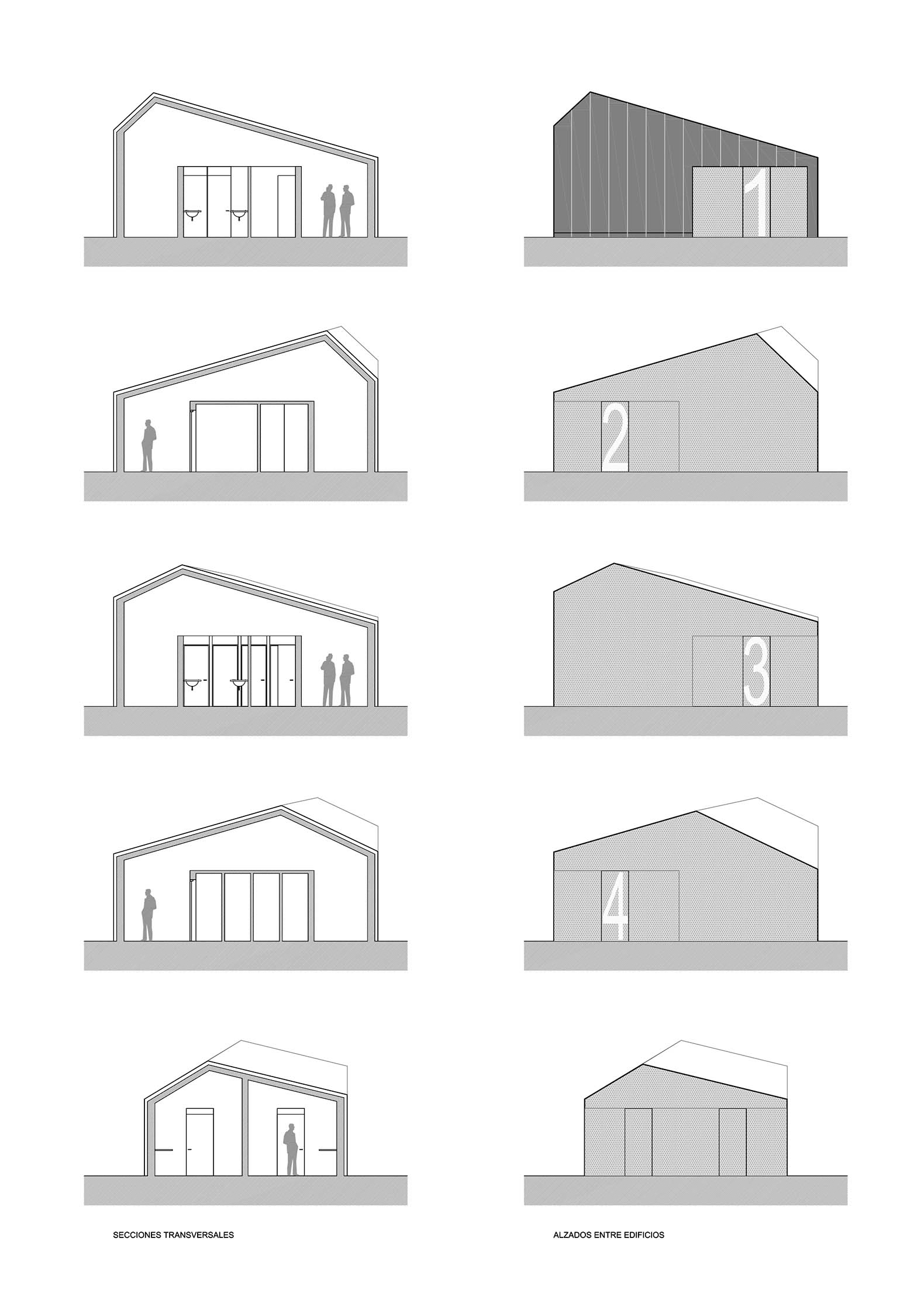

Cross sections and side elevations I. Campañó soccer field by Santos y Mera Arquitectos.
Cross sections and side elevations I. Campañó soccer field by Santos y Mera Arquitectos.

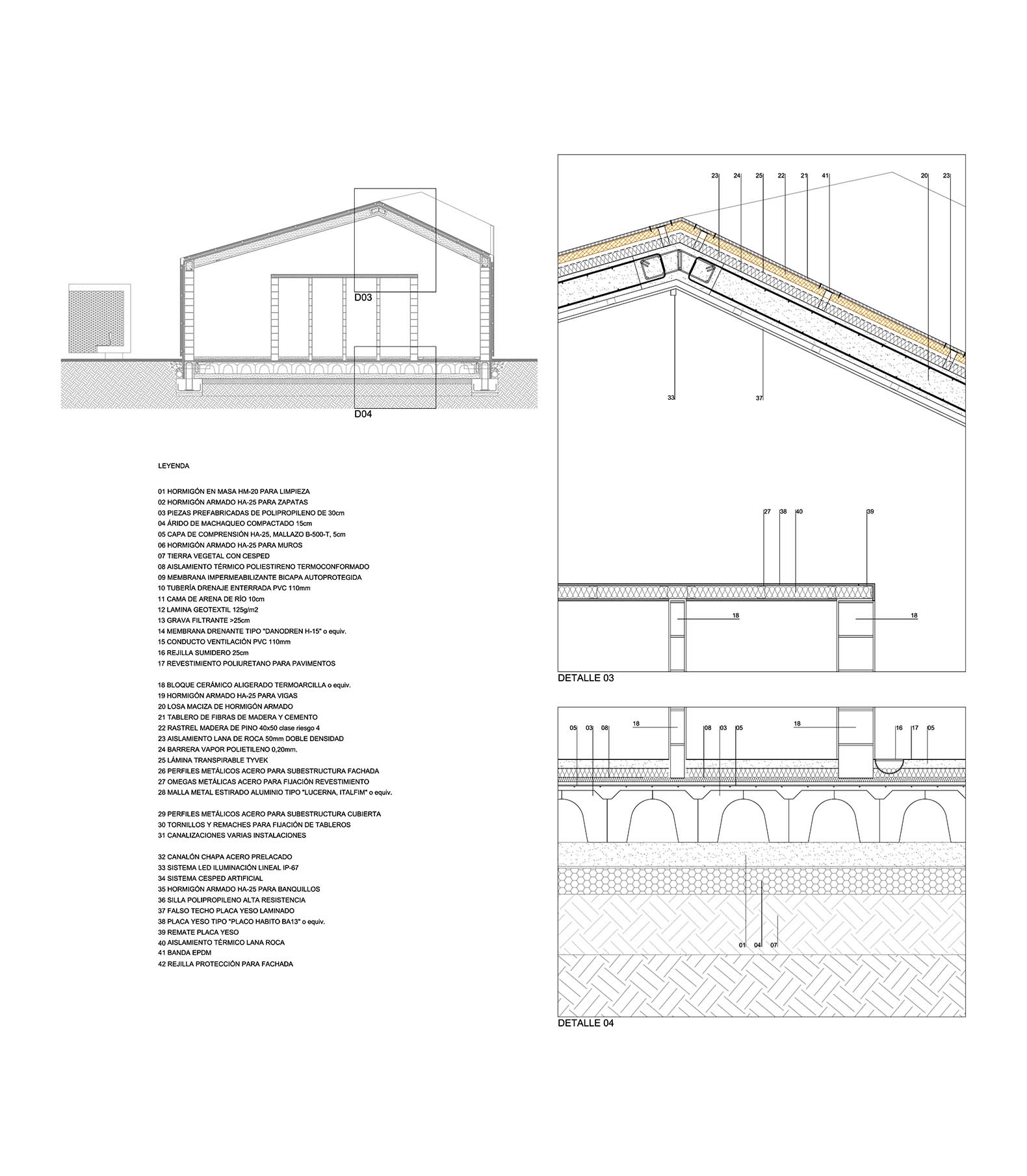

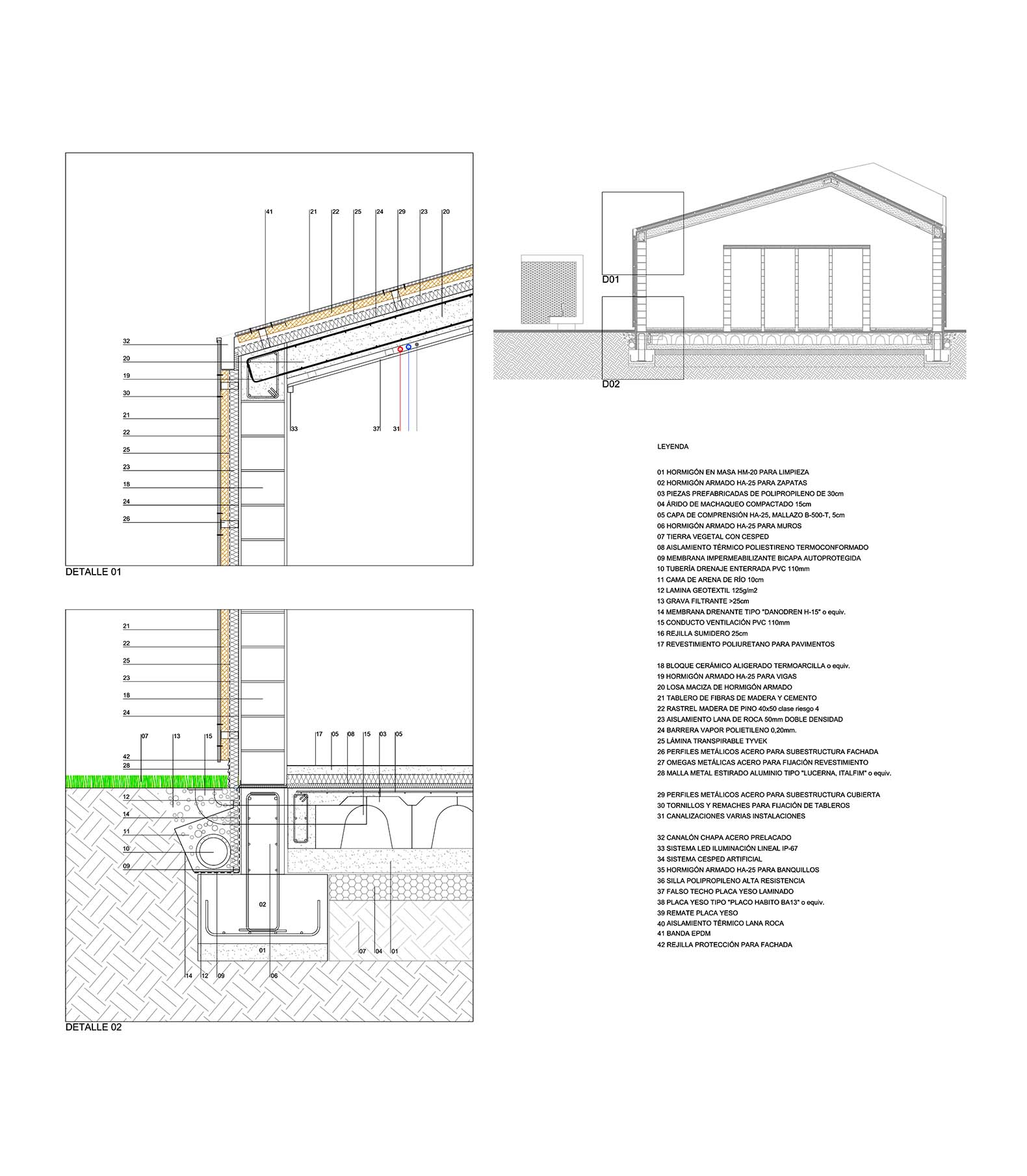

Construction details I. Campañó soccer field by Santos y Mera Arquitectos.
Construction details II. Campañó soccer field by Santos y Mera Arquitectos.

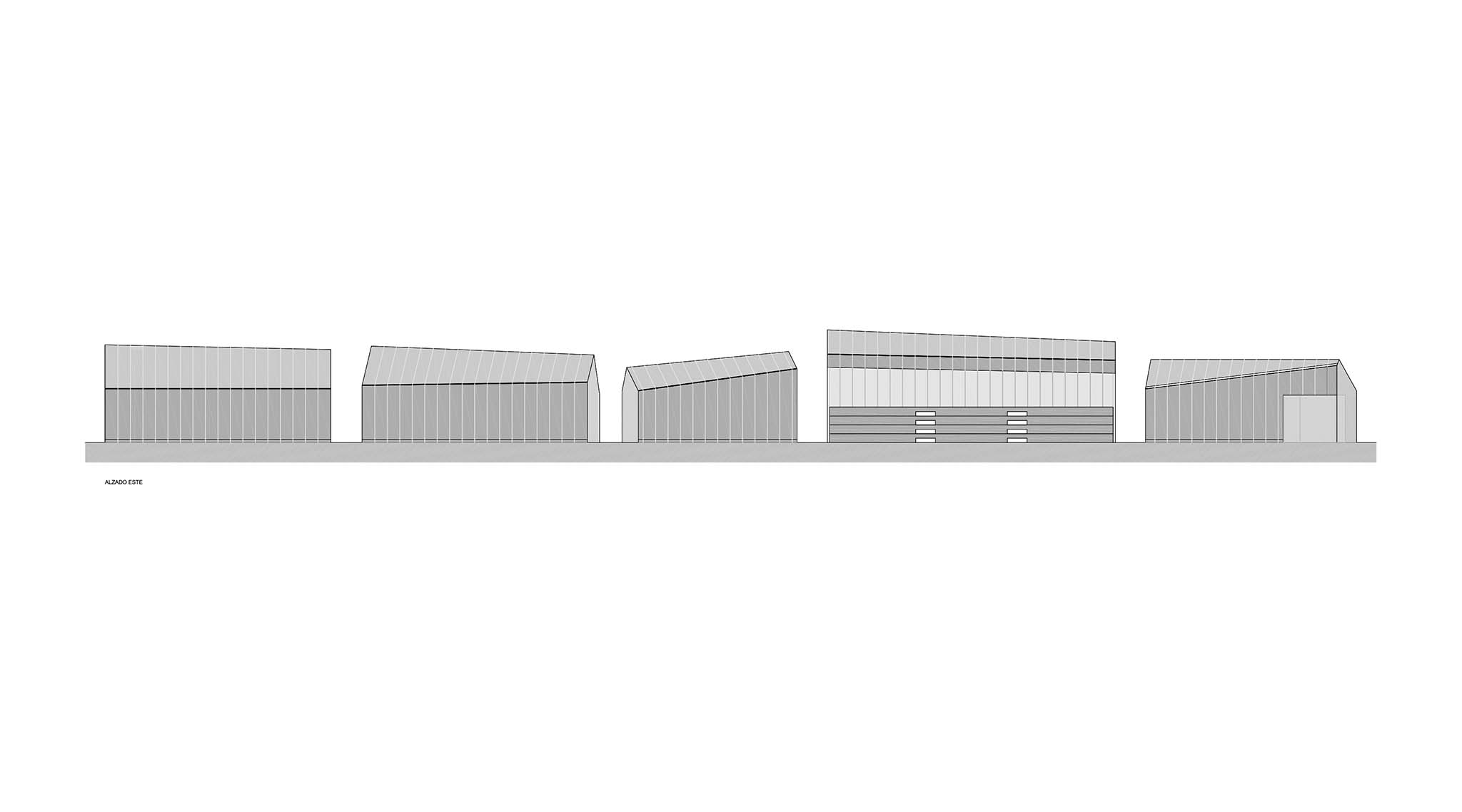

East elevation. Campañó soccer field by Santos y Mera Arquitectos.

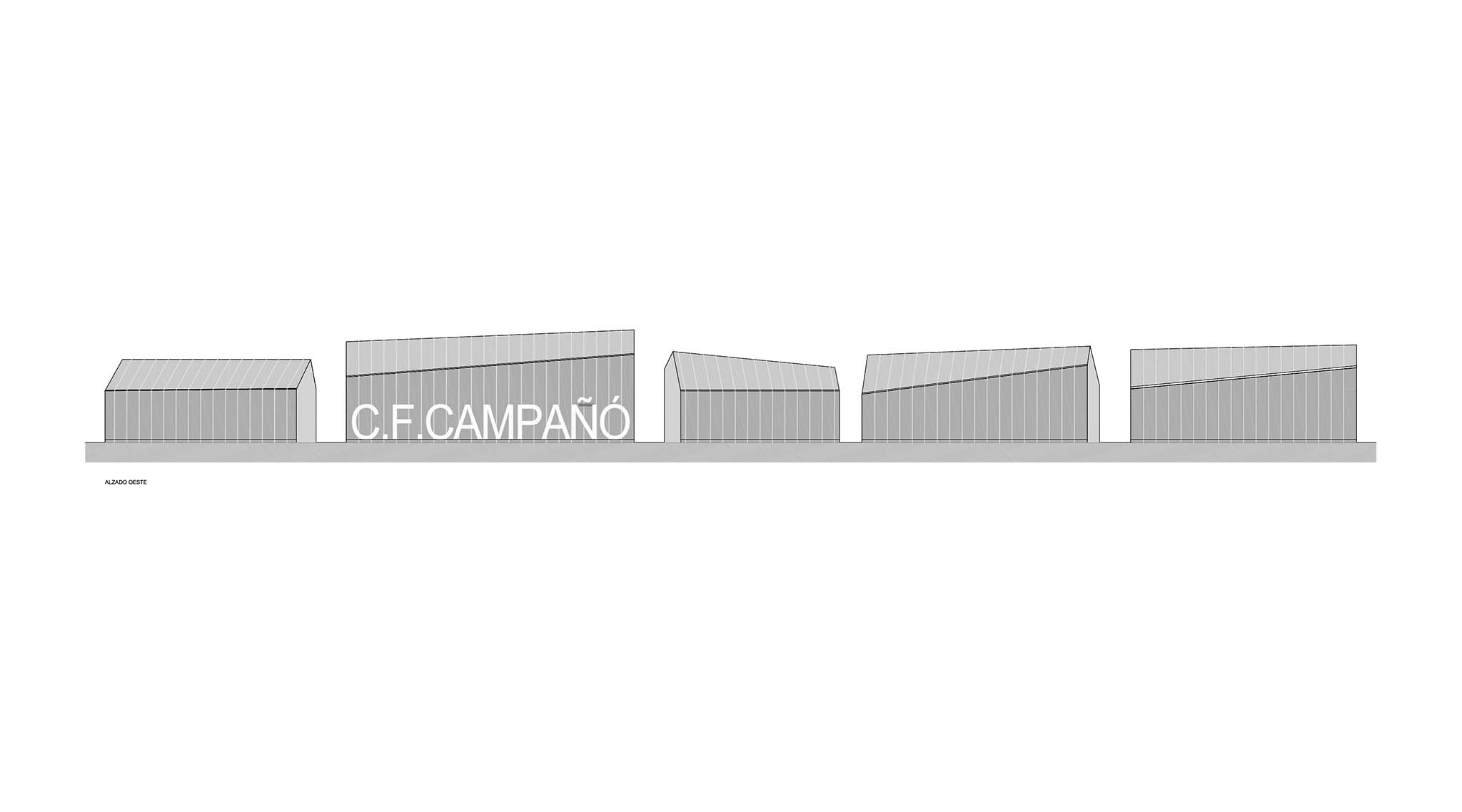

West elevation. Campañó soccer field by Santos y Mera Arquitectos.
Faced with this project of the Campañó football field, Santos y Mera Arquitectos choose to play organically with the general volume, a long and divided building that results in five independent constructions. This solution is mainly given after the analysis of access to the field.
The only access is located in the same band where the installations should be and from where the main road is accessed. For this, it is solved firstly by means of a ramp from the road, which makes the views towards the building quite important, treating them as just another facade.
This split building is presented in small pieces of deformable and rearranging character to generate small access roads to the countryside and installations.
The only access is located in the same band where the installations should be and from where the main road is accessed. For this, it is solved firstly by means of a ramp from the road, which makes the views towards the building quite important, treating them as just another facade.
This split building is presented in small pieces of deformable and rearranging character to generate small access roads to the countryside and installations.
Project description by Santos y Mera arquitectos
In Campañó, on the outskirts of the city of Pontevedra, there was a compacted land soccer field with a dilapidated building for changing rooms. The planned action was intended to improve the field by making a new artificial grass pavement and providing it with new facilities for changing rooms, toilets, canteen, infirmary, stands and warehouses, as well as new lighting for the field and the urbanization of part of the surroundings.
The new building had its location conditioned by the topography and the affections of the high-voltage lines that are in the perimeter of the plot, therefore, given its surface, it had to occupy practically all the space available on the eastern side of the field, becoming a barrier between the only possible access from the road and the soccer field. A building is then proposed that organically plays in volume to adapt to the different functional spaces it must house, but which fractures to make it passable. This breakdown of the initial volume into small specialized pieces allows us to deform and rearrange them to generate small access roads to the countryside and buildings. In these smaller, cleaner, continuous volumes, the singularity is found in the cutting areas where the accesses and light inputs are concentrated.
The ramp access from the road to a higher level turns the roofs into one more facade and as such they are treated giving continuity to the facade material which helps to understand the buildings as part of the only initial volume, while the facades to the Inner streets are treated with a metal mesh that solves the void areas and marks the cut areas of that volume.
The interior spaces maintain the exterior shape of the buildings and the grandstand piece is singled out by partially emptying it to generate the covered grandstand.
The scale and volume of the pieces and ensemble evoke in the distance a small village at the foot of the access road, where a small square is configured from which the alleys that give access to the buildings depart and have as background the green of the countryside.
The construction solution adopted for the roofs and facades consists of a composite board for finishing high pressure and temperature compressed dry pine wood and cement fibers, in Viroc type, in 16mm thick gray, cut into sheets of dimensions 2990 x 615 mm, placed on a 40 x 50 mm pine wood batten. treated for risk class 4, with head screws of diameter 16 and colorless protector for exterior panel. Between the battens rock wool insulation placed on the outside of the 50 mm double density cover and facade cladding. thick, dimensions 1200 x 600 x 50 mm. fixed with plastic mushrooms by direct firing or drilling, including a breathable Tyvek-type sheet. In the case of the roofs, a waterproofing membrane of polyreal applied in liquid was placed on the slabs with the previous placement of the profiles for the substructure of the fixing of the pine strips.
More information
Architects
Project team
Jose Jorge Santos Ogando, Jose Carlos Mera Rodríguez and Gustavo Pérez Álvarez.
Builder
Elsamex S.A.
Developer
Pontevedra City Council.
Area
Built area.- 421,08 m². Urbanization area.- 6,242 m².
Budget
€ 624,101
Dates
Project.- July 2017. Works.- August 2019.
Location
Campañó, Pontevedra, Galicia, Spain.
Photography
Jose Jorge Santos Ogando, Jose Carlos Mera Rodríguez. Santos y Mera arquitectos
