The Vora studio has developed the design of the transformation that the Dan i Imma apartment has undergone, located in the Poblenou neighborhood, in Barcelona, Spain, a few streets from the Mediterranean coast, formerly used as a commercial premise with an upper floor of housing, in a building of the early twentieth century.

This space is now being renovated as a home-studio for its new tenants, dedicated to photography and video recording, a detail that the architects do not overlook, thus enabling the darkest space on the ground floor for that purpose. and offering the rest of the rooms a large amount of direct light, but in a completely open way between the entire housing complex.
The renovation of the Dan i Imma apartment designed by the Vora architecture studio focuses the most commonly used spaces on the ground floor, and the bedrooms are removed to the first floor together with the service areas, all located in a configuration made by boxes made of wood, which, without completely dividing the space, provide more privacy for these uses.

On the other hand, space is characterized by the emphasis that is given to the entrance of natural light enhanced by the use of white colors both on walls, stairs, railings, etc., creating a mixture of soft tones next to the wood and the microcement floor.


Description of project by Vora

This is the refurbishment of an old store in the Poblenou neighbourhood, within the 22@ district. Originally, it had the store on the ground floor and a mezzanine with a little apartment. The building dates from 1906. At a later stage, the backyard was covered to extend the store.

The refurbishment is to turn it into a home-studio for a couple, which includes a studio space for video and photo recordings, as they work at home.

The first important decision of the project was the opening of a double space in a part of the slab next to the rear façade, which, due to the orientation of it, allows direct natural light to reach the entire home. The studio space is placed under the terrace, the darkest and therefore most suitable space, and on the other hand related to the living room.

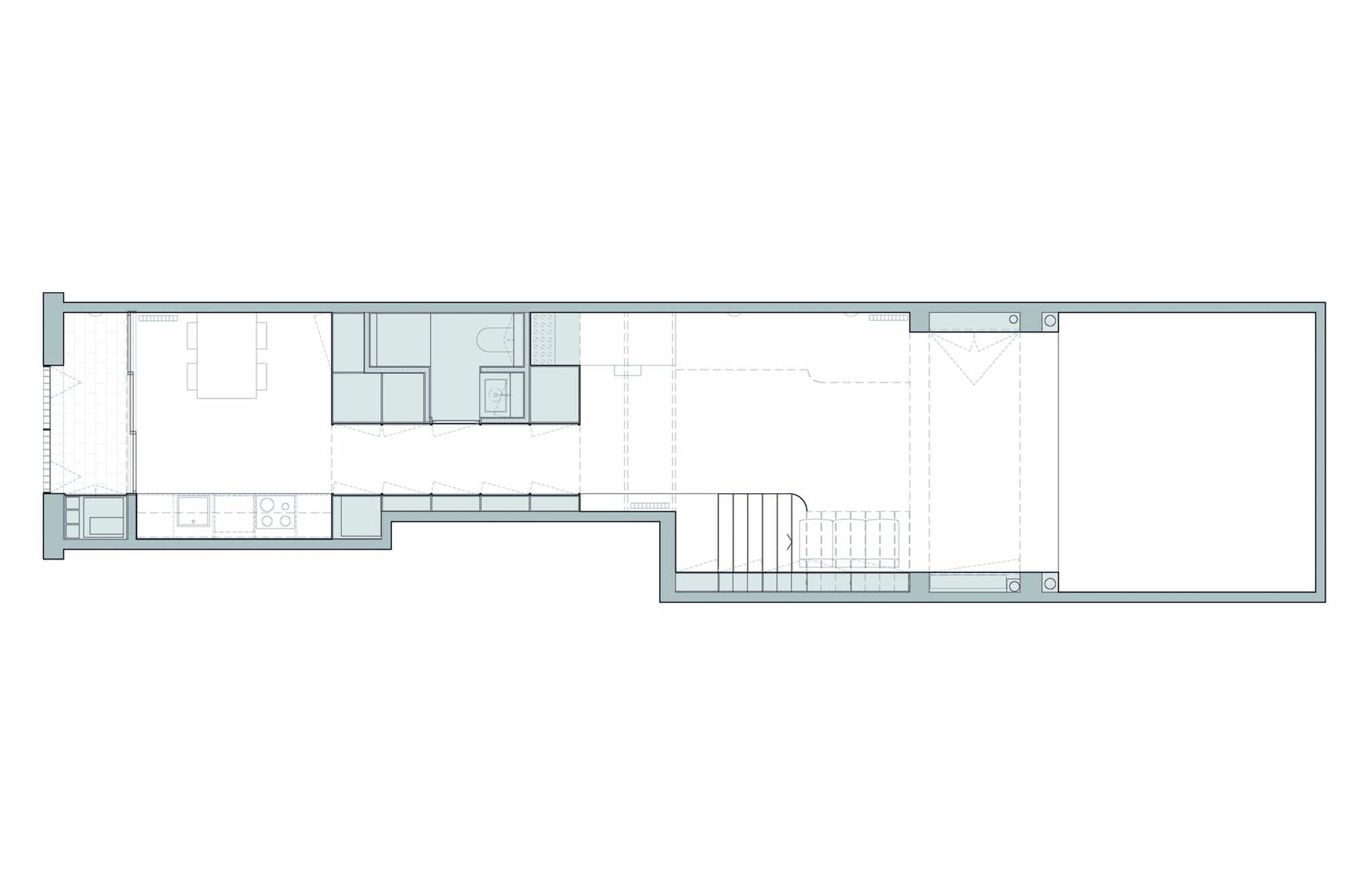

The ground floor concentrates the spaces for day uses, and the first floor the bedroom spaces. The staircase is located in a corner, open to the living room, and making a direct link between it and the terrace. The bedrooms are separated from this main route.

Regarding the façade, the apartment recedes slightly, generating an interior façade and a cushion space between the apartment and the street, space for counters and services, and able to store stroller and bicycles, etc...

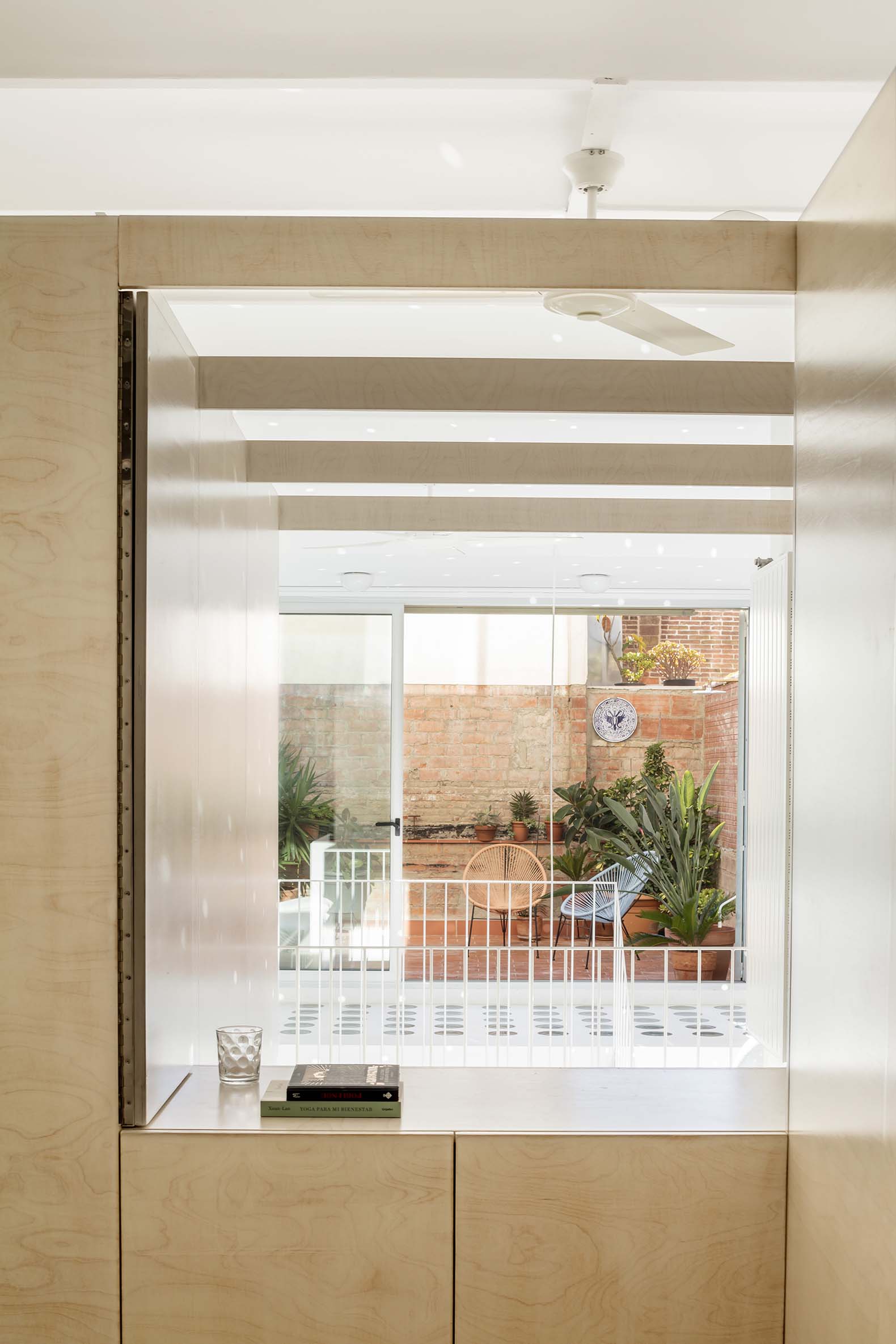

The configuration of the space is done by wooden boxes that contain the service spaces (bathrooms, closets, even the bed), thus configuring a fluid but articulated space for the circulations and the living spaces. On the first floor, these boxes do not reach the ceiling, allowing a total perception of the space.

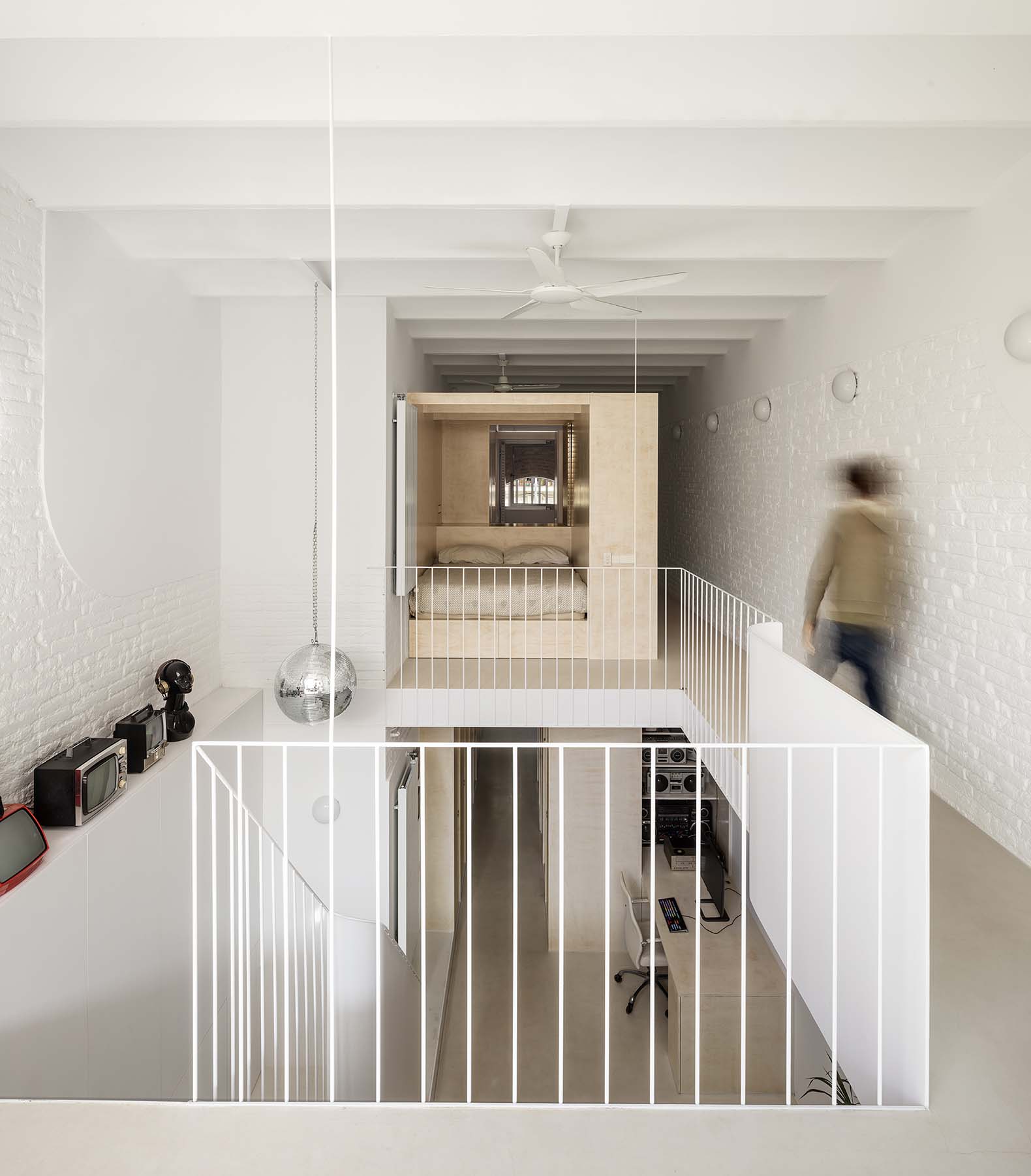

Around the living room is the main circulation of the house: the ascent to the terrace, the rear gallery and an open walkway to access the rooms. The master bedroom on the first floor is also open to the living room. Stairs, walkways and railings are built on steel works. The railings are purposely thin, almost inapparent, with some sections of sheet steel to pick up curved sections that fit the truncated geometry of the plan.

About finishes, plastered sections of wall are combined with painted masonry. The pavement is continuous, microcement, and the boxes are built with plywood with birch finish. All in light colors. In the entrance space, outside, and on the terrace, the natural colors of the masonry have been reserved, unpainted.

Read more
Read less

More information

Label
Architects
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Project team
Text
Project architects.- Pere Buil, Toni Riba.
Building coordination architect.- Zoí Casimiro.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Collaborators
Text
Zoí Casimiro, Marina Pina, Pol Bosch, Aleksandra Mazewska.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Builder
Text
Fórneas-Guida.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Area
Text
110sqm.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Dates
Text
Design.- 2018. Construction.- 2019.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Location
Text
Carrer Roc Boronat, Barcelona, Spain.
+ + copy Created with Sketch.
- + copy Created with Sketch.
Label
Photography
Text
+ + copy Created with Sketch.
- + copy Created with Sketch.
vora based in Barcelona, was ​​founded in 2000. It is led by Pere Buil (1973), who graduated from the ETSAB in 2000. He combines his professional activity with teaching, occasionally with curating and cultural action. Pere Buil is a professor of Projects at the ETSAV (UPC, Sant Cugat del Vallès). Toni Riba (1973) was a partner from 2004 to 2023.

The studio works on projects of different scales and typologies. It has also designed some urban furniture. Its approach to the design and construction process is abstract and material. The studio is interested in using, reduction, and materiality in response to current challenges. It also focuses on traces and remains as remnants of memory and their impact on collective identities.

Her work has received several awards, including the El Temps de les Arts 2021 Award, Frame 2020, Surface Design 2020, 2AA 2018, Archmarathon 2014, Ciutat de Barcelona 2013, AJAC 2012, Arquitectura+ 2011, Bonaplata, finalist or shortlisted in several editions of the Mies van der Rohe Awards, FAD, ENOR, Bigmat, Spanish Architecture Biennial (BEAU), Architecture Award, European Landscape Biennial, and Arquía/Próxima, among others. She has been exhibited at the Venice Biennale in the Catalan and Spanish pavilions in the 2014 and 2016 editions. In May 2018, she presented her first monographic exhibition, "Shared Identities," at the Kolektiv gallery in Belgrade. His most recognized works include: Vallirana 47 (a comprehensive renovation of a small residential building), the Can Rosés Temporary School, the Ramon y Mar Pavilion (a small residential extension pavilion), the surroundings of the Born Market, the Juan Apartment, and the Can Ricart Sports Center, all in Barcelona; a medical office in Paüls, the Rambla San Francisco in Vilafranca, and the Bank of Spain Operations Courtyard in Madrid.

Read more
Published on: April 29, 2021
Cite:
metalocus, CRISTINA FERNÁNDEZ
"My home, my office. Apartment Dan i Imma by Vora" METALOCUS. Accessed
<https://www.metalocus.es/en/news/my-home-my-office-apartment-dan-i-imma-vora> ISSN 1139-6415
